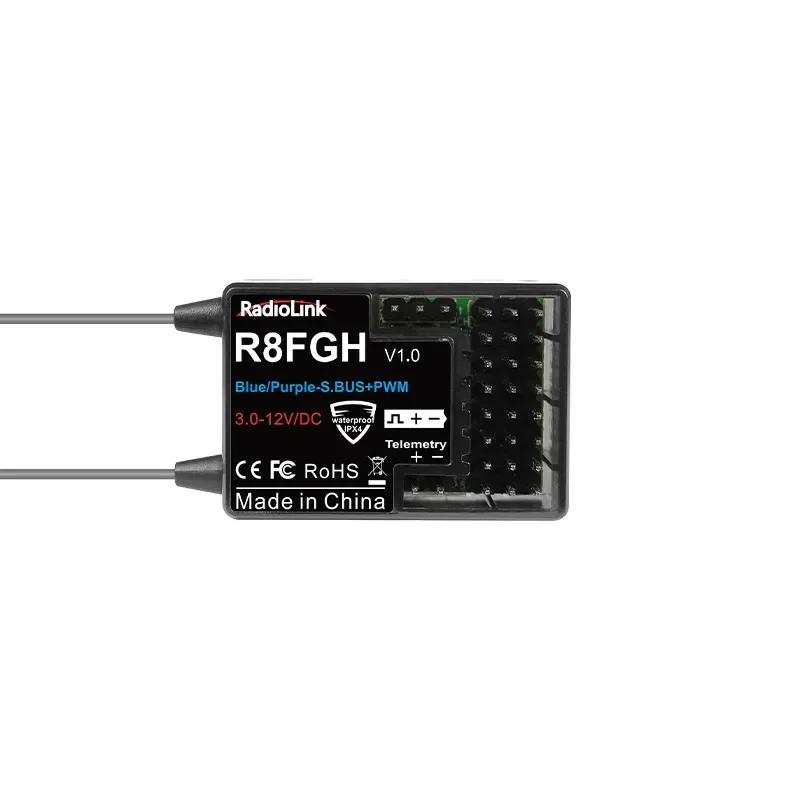

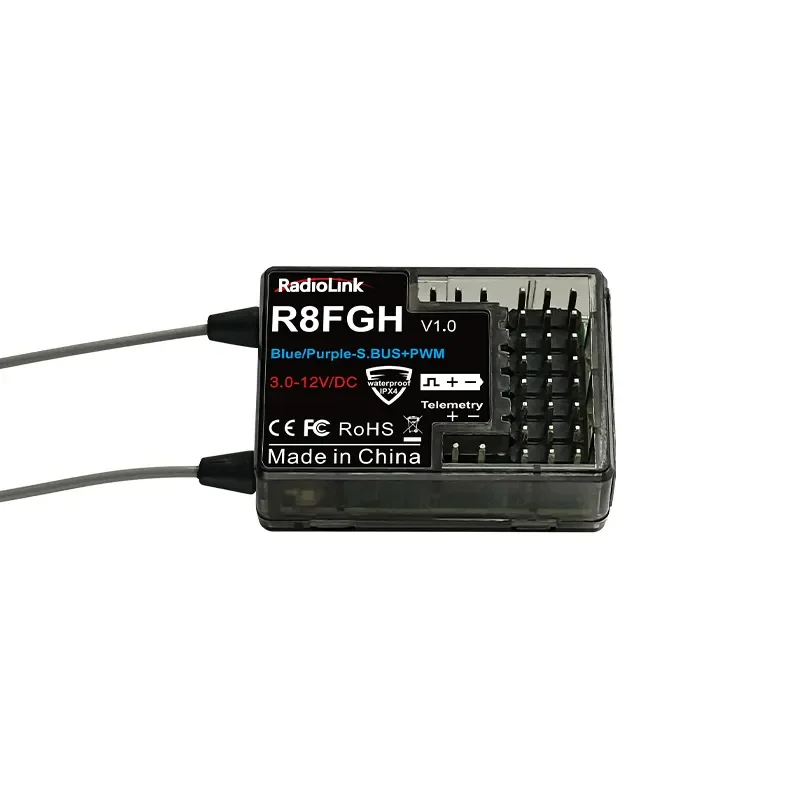

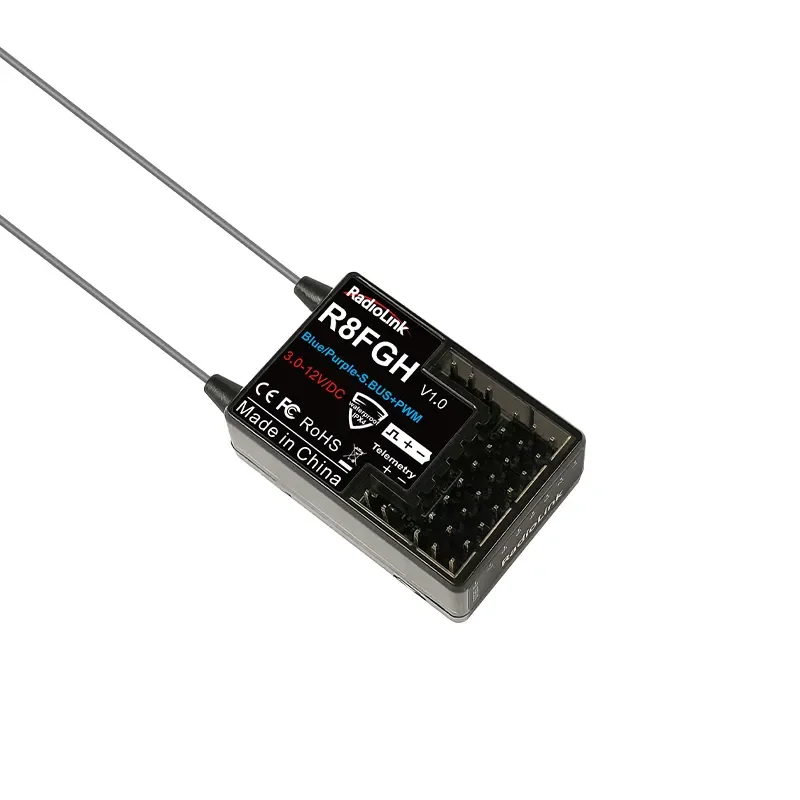

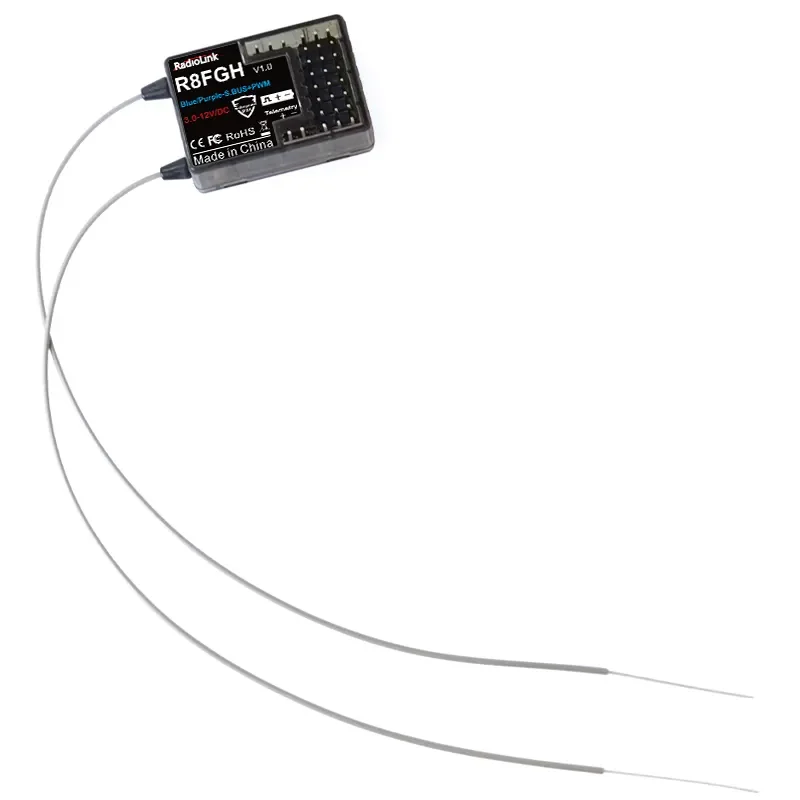

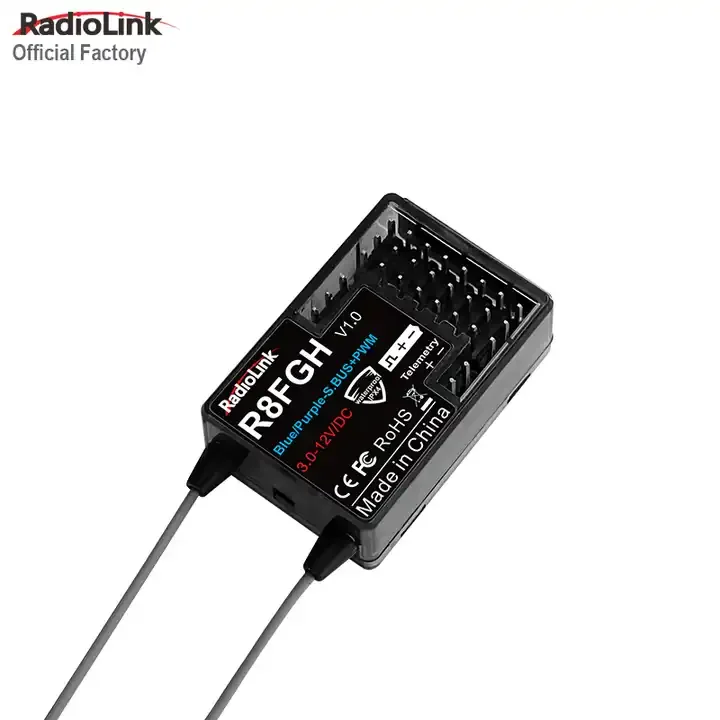

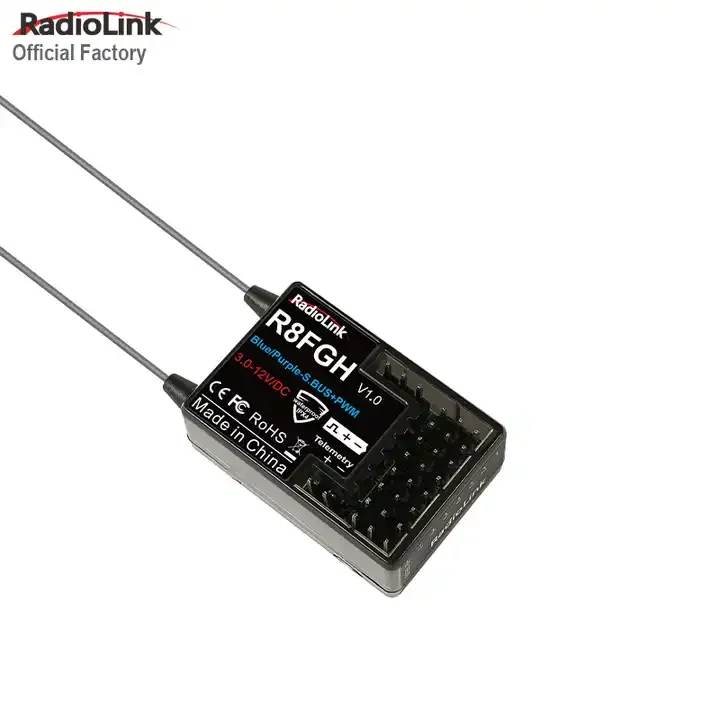

Manufacturer Radiolink R8FGH 8 Channel Dual Antenna Receiver 600m Control Distance Gyro Integrated PWM and SBUS Signal supported
- Category: >>>
- Supplier: Radiolink Electronic LimitedRadiolink Limited
Share on (1600997266284):
Product Overview
Description
Company Profile
Founded in 2003, RadioLink Electronics Limited is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters. Based on solid technical know-how and expertise accumulated over the years, we have established our position as the top radio control provider, offering the turn-key solution for hardware and software designing.
Our products portfolio includes Remote control, Flight control, GPS, Charger, Fixed wings, etc.
RadioLink products are widely recognized and accepted by the global market because of its good brand image, excellent product quality, full product line and competitive pricing. At present, we have exported to more than 50 countries.
We take the lead in conforming to the certification of FCC, CE, Rosh and ISO9001 standard in the industry. We execute strictly the IQC\\IPQC\\QC\\CFQC\\QA in each step of quality control engineering and supply chain management in the technological process.
Our products portfolio includes Remote control, Flight control, GPS, Charger, Fixed wings, etc.
RadioLink products are widely recognized and accepted by the global market because of its good brand image, excellent product quality, full product line and competitive pricing. At present, we have exported to more than 50 countries.
We take the lead in conforming to the certification of FCC, CE, Rosh and ISO9001 standard in the industry. We execute strictly the IQC\\IPQC\\QC\\CFQC\\QA in each step of quality control engineering and supply chain management in the technological process.
Product Description
Specification
Place of Origin | China |
Model Number | RadioLink R8FGH |
Dimensions | L*W*H =35*24*13.5mm (1.38” *0.94” *0.53”) |
Antenna Length | 205mm (8.07”) |
Weight | 10.5g(0.37oz) |
Operating Voltage | 3-12V |
Operating Current | 35mA@5V |
Channel | 8 channels |
Signals | SBUS+PWM |
Response Latency | When bound to RC8X, 3ms, 4ms, and 14ms can be selected, if bound to other transmitters, it defaults to 14ms. If you want to select 3ms or 4ms digital servo speed, make sure the firmware of RC8X is V1.1.5 or above. |
Gyro | Receiver with gyro-integrated, customizable gyro sensitivity |

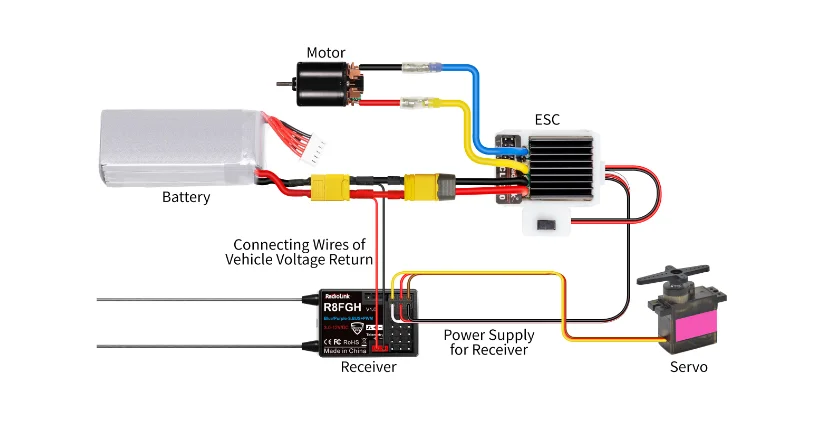

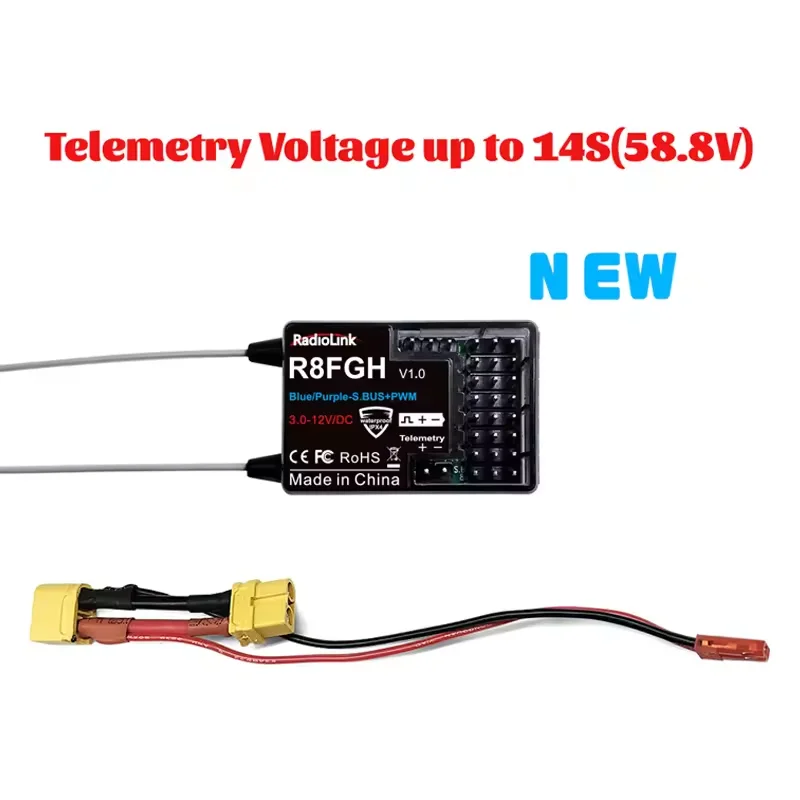

Telemetry | Real-time built-in telemetry of the model battery voltage(3.0-60V), RSSI, and receiver voltage |
Water Splash Proof | The waterproof grade is IPX4 |
Applicable Model Types | Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot |
Frequencies Band | 2.4GHz ISM band (2400MHz~2483.5MHz) |
Spread Spectrum Mode | FHSS, 67 channels pseudo-random frequency hopping |

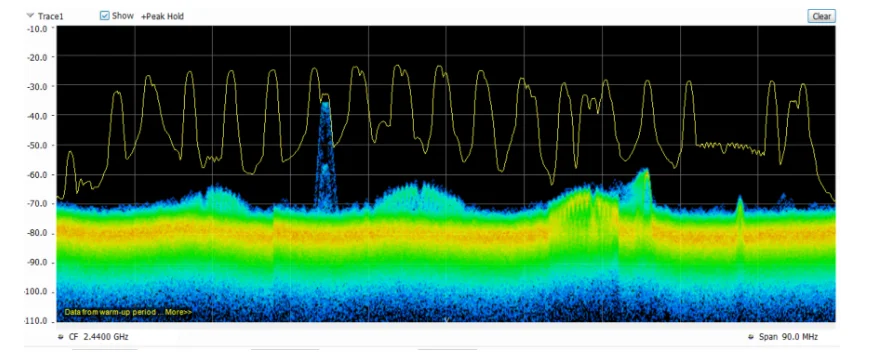

FHSS Hopping Communication, Anti-Interference
FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance,
perfect for multiplayer completely synchronously, and helps protect from fuel engine sparks and ensures the safety of enjoying fuel-powered model cars.

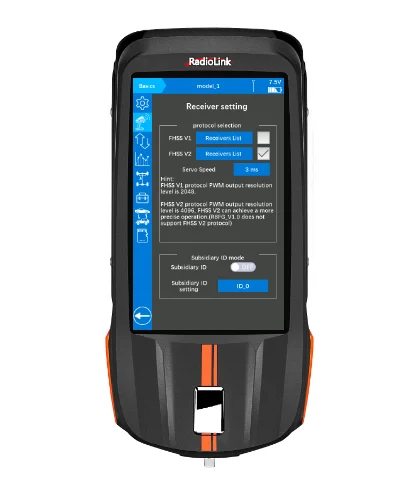

3ms* Response
When bound to RC8X, servo speed can be selected from 14ms, 4ms, and 3ms, if bound to other transmitters, it defaults
to 14ms. 14ms
is suggested if connected with the analog servo while 4ms or 3ms is suggested selected if connected with the digital servo.

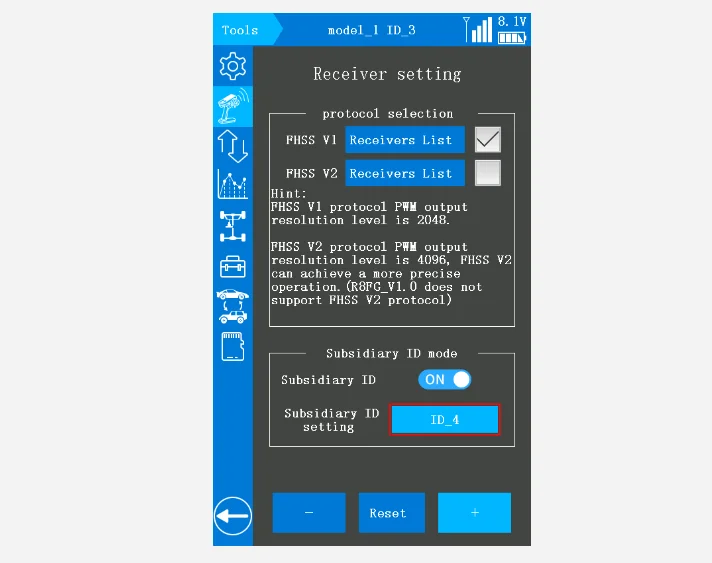

*Attention: It is necessary to update the firmware of RC8X to V1.1.5 or above, and then select FHSS V2 protocol to display this
option.
to 14ms. 14ms
is suggested if connected with the analog servo while 4ms or 3ms is suggested selected if connected with the digital servo.
*Attention: It is necessary to update the firmware of RC8X to V1.1.5 or above, and then select FHSS V2 protocol to display this
option.
600 Meters Control Distance
The stable remote-control distance of R8FGH is up to 600 meters on the ground.

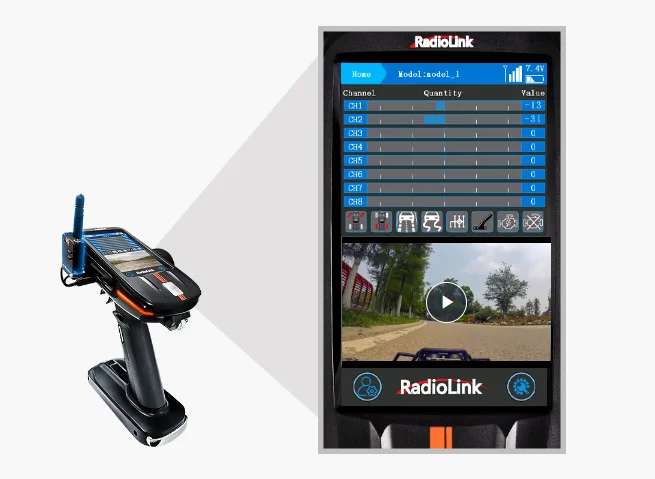

Control with the camera and the RC8X dual display function/display screen/goggle makes the drivers enjoy FPV fun.
PWM and SBUS Signal-supported
PWM working mode: Green LED or green plus red LED always on indicates PWM signal output, 8 channels total.
PWM+SBUS working mode: Blue LED always on indicates PWM+SBUS signals output.
CH1 to CH7 are with PWM signal output while CH8 with SBUS signal output.
Players can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV.
Subsidiary ID
Rescue, Towing, Parent-child Entertainment, and Friend Teaching in One Control
Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.
Example of the use of the Subsidiary ID ①: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery
voltage.
At this time, ship No. 2 can be switched to tow to rescue.
Example of the use of the Subsidiary ID Mode ②: After the No. 1 trailer consigns the No. 2 vehicle to the designated address.
Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.
Anti-polarity Connect Protection, Power by Wide Voltage
Even if the polarities are mistakenly connected, the receiver will not get damaged.
The power of 3-12V supports high voltage servo.

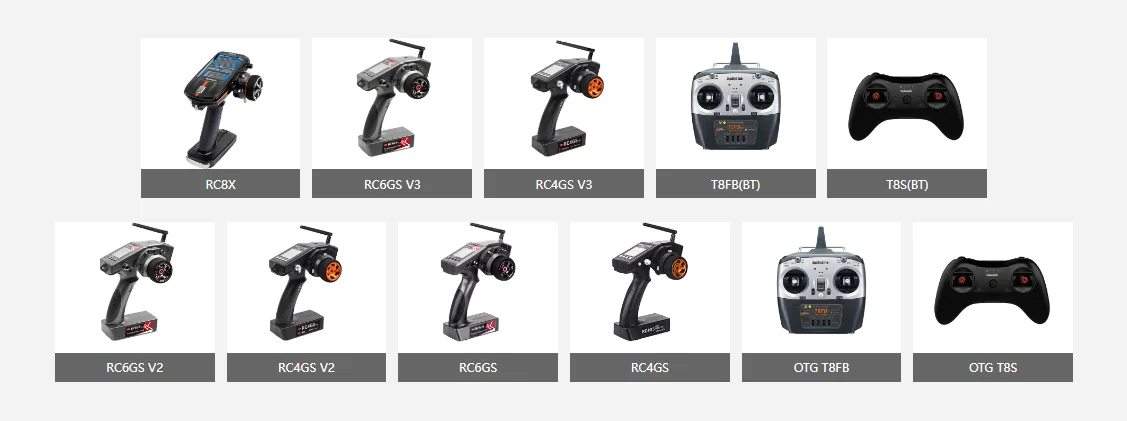

Wide Transmitters Compatible
R8FGH is compatible with RadioLink transmitters such as RC8X, RC6GS V3, RC4GS V3, T8FB(BT), T8S(BT),
RC6GS V2, RC4GS V2, RC6GS, RC4GS, T8FB(OTG), and T8S(OTG).

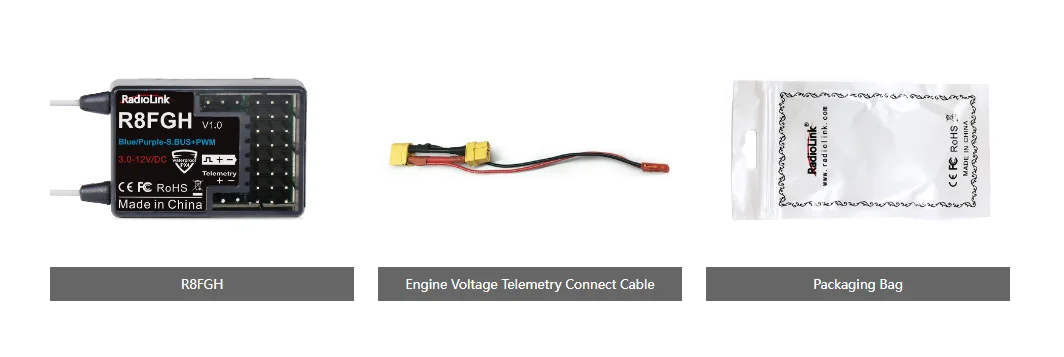

Packing List
