JOTUN Factory Direct Sale Automatic Metal Ss Cylinder Tank Polishing Grinding Machine
- Category: >>>
- Supplier: Anhui Jotun Import & Export Co. Ltd.
Share on (1600997353399):
Product Overview
Description
Products Description

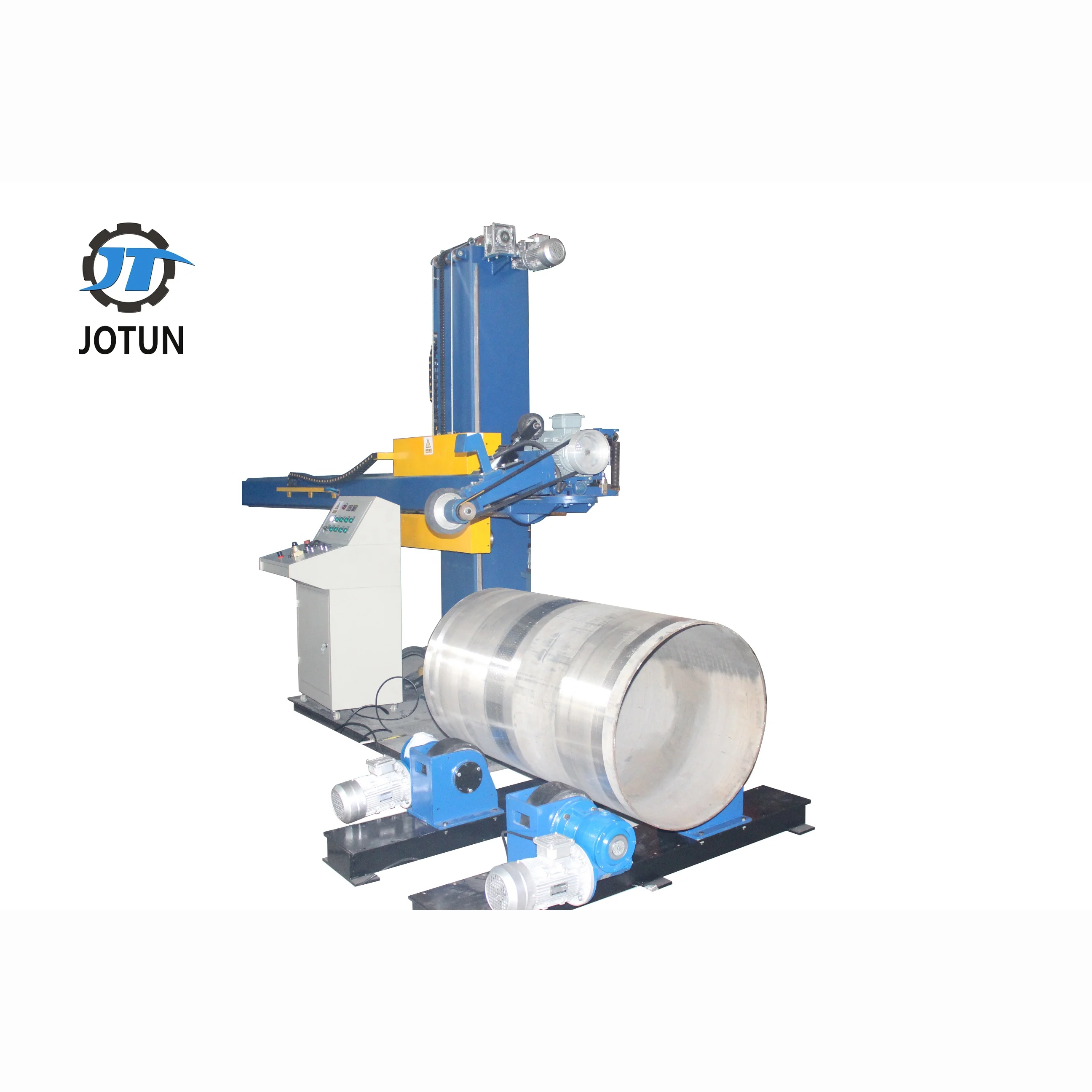

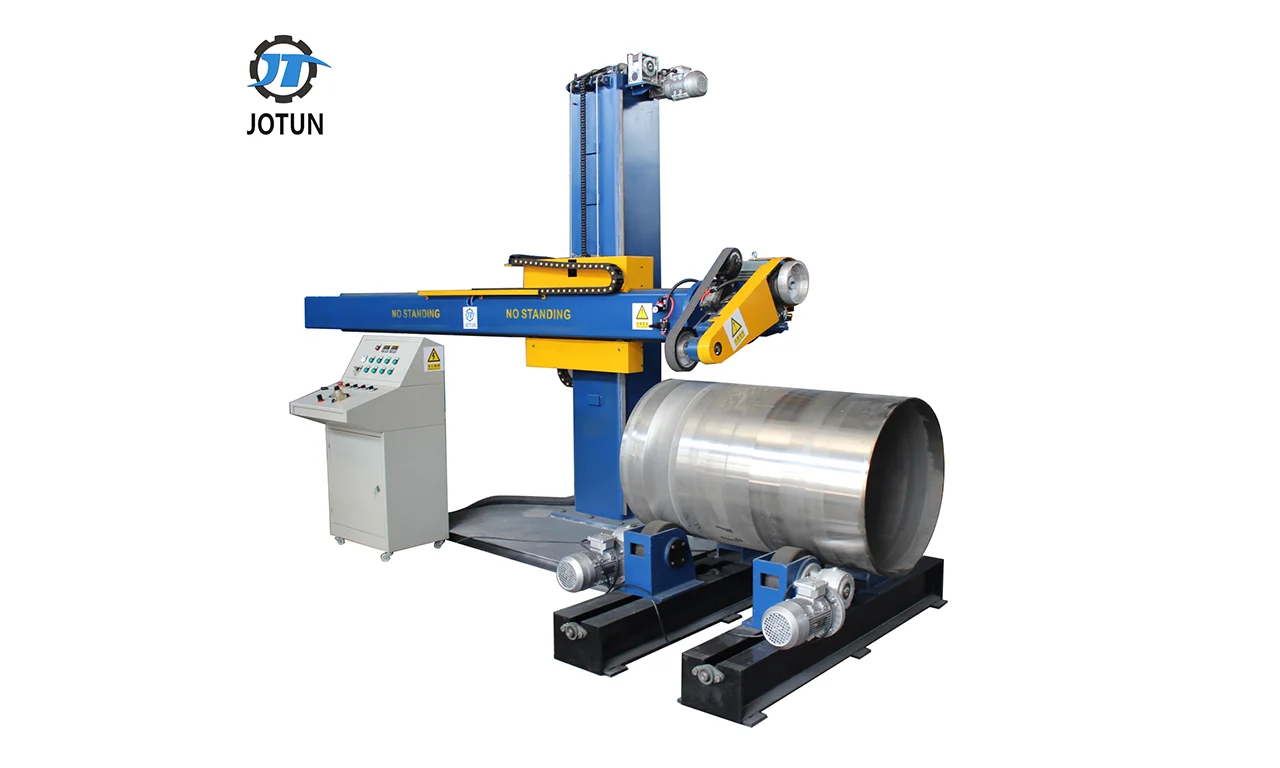

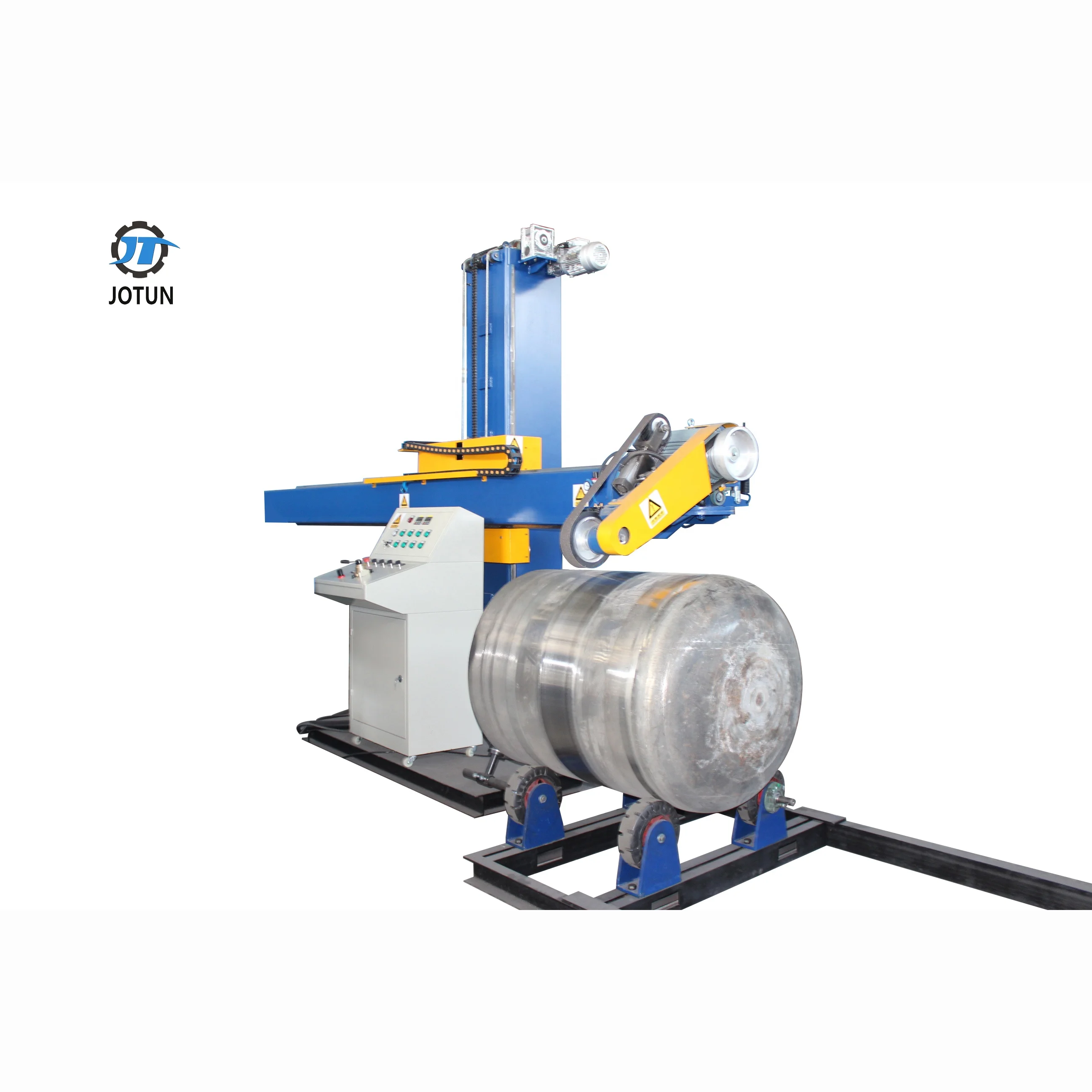

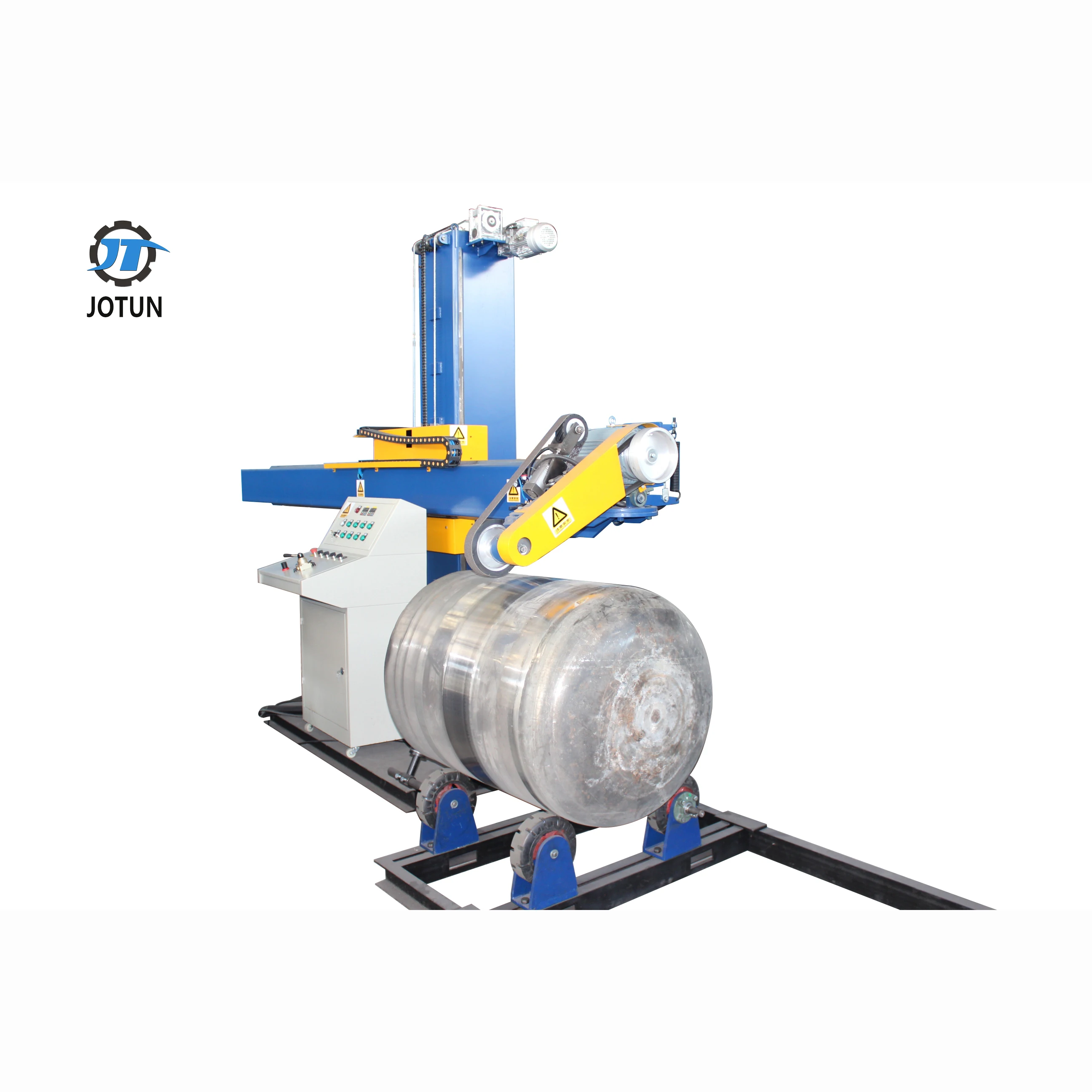

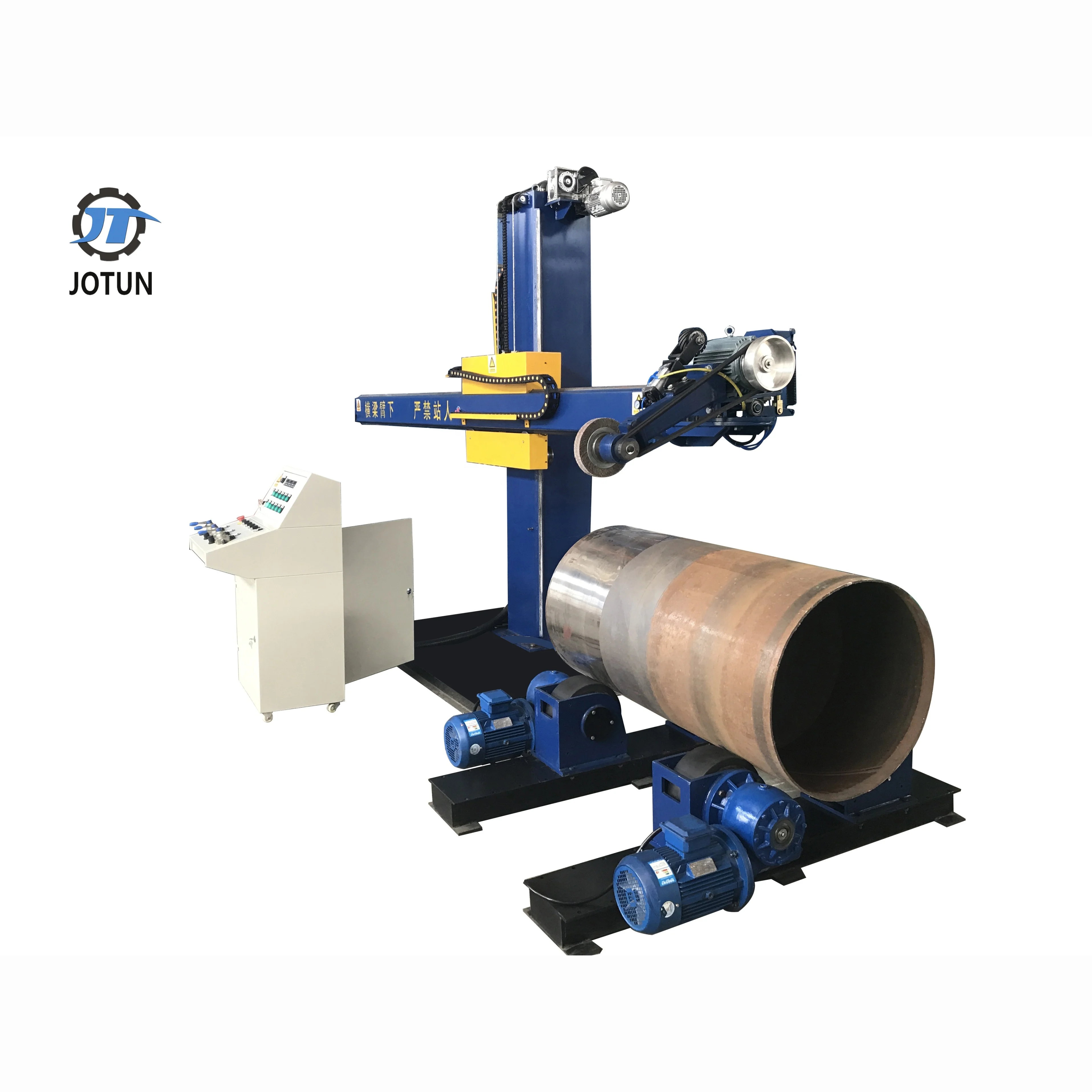

JT-1 Tank Shell Inner And Outer Surface Grinding Polishing Machine
This machine is suitable for all kinds of steel tanks,industrial tanks/vessels to polish the inside and outside of cylinder and
also used to polish the inside and outside,surface finish of pressure vessels and industrial container and the circumferential weld processing. The tank polishing machine is extensive apply for the polishing of work piece in the range of enviromental purification,food and beverage,water filtration etc.
also used to polish the inside and outside,surface finish of pressure vessels and industrial container and the circumferential weld processing. The tank polishing machine is extensive apply for the polishing of work piece in the range of enviromental purification,food and beverage,water filtration etc.
Product Parameters
Model | JT-1 | ||||||
Machine dimension | 5000*1600*2900mm | ||||||
Machine weight | 3000kgs | ||||||
Total power | 10KW | ||||||
Grinding head motor power | 4KW | ||||||
Rollers motor | 1.5KW*2 | ||||||
Column motor | 0.75KW | ||||||
Beam motor | 0.37KW | ||||||
Main motor brand | WANNAN | ||||||
VFD/Driven brand | DELTA | ||||||
Noted | Our products all Non-Standard Customization(the above data for reference only) | ||||||
Specifications of Working Pieces | 800mm | 1000mm | ||||
Material | stainless steel,carbon steel, copper,aluminum | |||||
Work piece size | max diameter | 200-6000mm | ||||
max length | 10meters | |||||
Abraseive belt motor power | max weight | 10tons | ||||

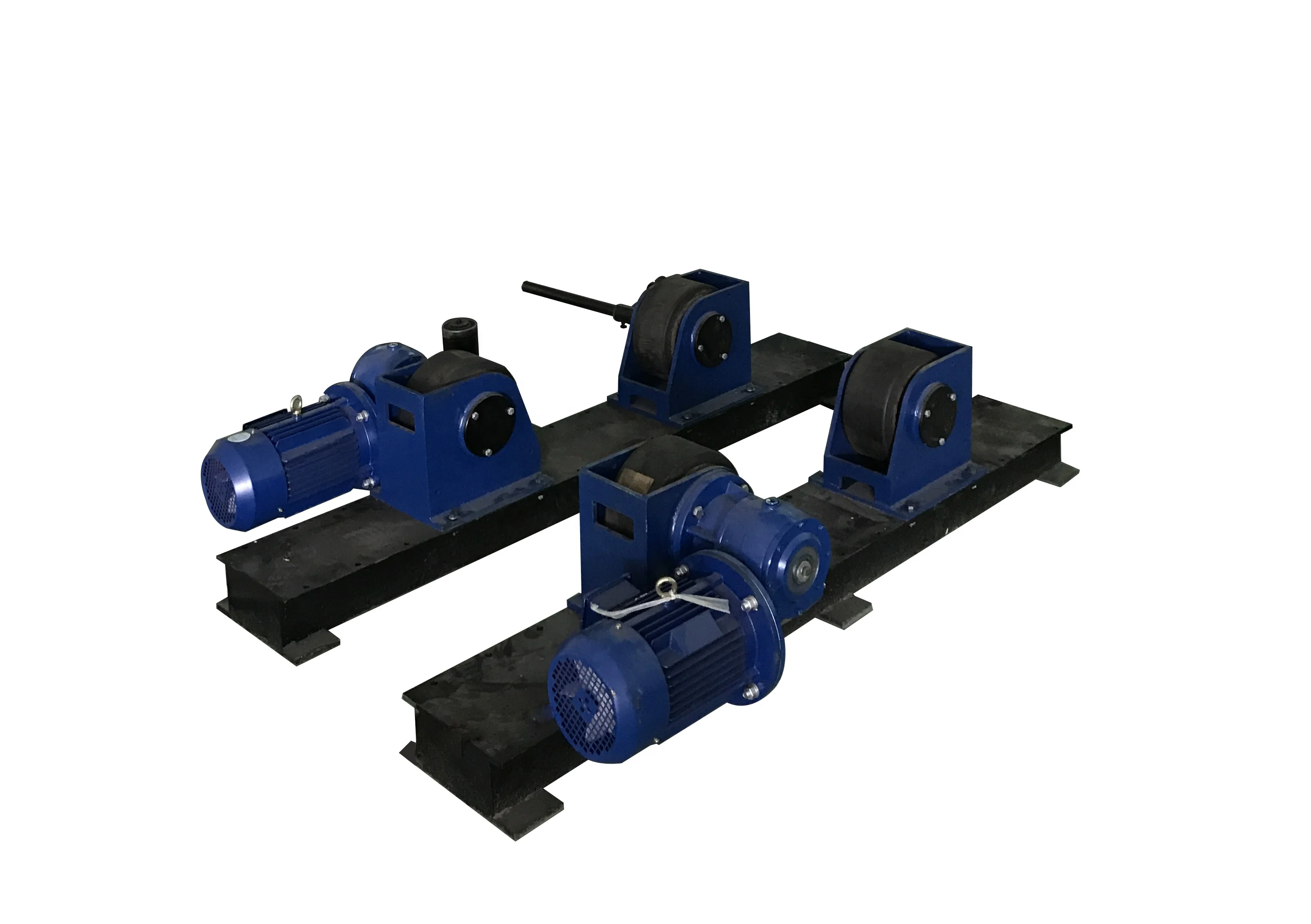

Sanding belt + Universal rollers | max diameter | 400-6000mm | ||||
Conveying motor power | 1.5KW | max depth | 1100mm | |||
Lift Motor Power | 0.37KW | max weight | 010tons | |||
Surface Roughness | Ra ≤ 0.25 μm (Mirror Finished) | 1920*1400*2100 mm | 2100*1700*2100 mm | |||
Product efficiency | 8-10 square meters per hour | 1400kgs | 1600kgs | |||

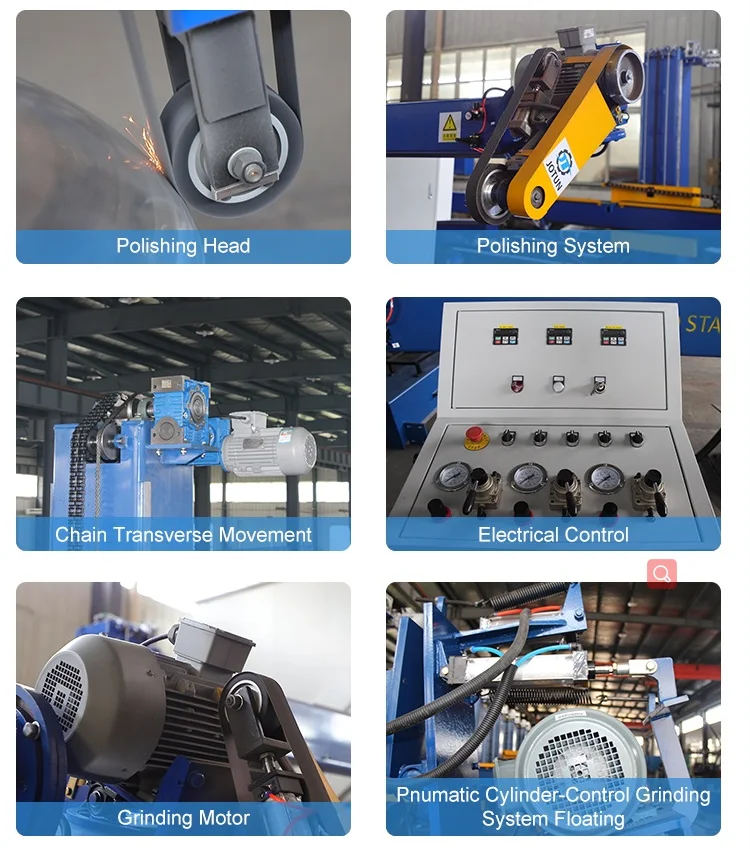

Product Details
Company Profile
China Jotun Polishing Machine supply professional
automatic grinding machine,polishing machine,deburring machine.
Main products are tank and dished end polishing machine, tube polishing machine,sheet deburring machine,weldseam polishing machine,etc.
Main Application Filed,
1,Pressure vessel industry. 2,Beverage & Brewery.
3,Chemical & Cosmetic. 4, Food & Dairy.
5,Pharmaceutical/CIP Plant 6,petrochemical industry
7, Truck tankers etc 8,Organic fuel production etc.
automatic grinding machine,polishing machine,deburring machine.
Main products are tank and dished end polishing machine, tube polishing machine,sheet deburring machine,weldseam polishing machine,etc.
Main Application Filed,
1,Pressure vessel industry. 2,Beverage & Brewery.
3,Chemical & Cosmetic. 4, Food & Dairy.
5,Pharmaceutical/CIP Plant 6,petrochemical industry
7, Truck tankers etc 8,Organic fuel production etc.
Related Products
Why Choose Us
Packing&Delivery
FAQ
Q:Why choose our machine?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.
Please tell me your requirements first, then we can designed the suitable machine to you.
Please tell me your requirements first, then we can designed the suitable machine to you.
Q:How about delivery time?
A: 20-35days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile
Currently, we have service partners in Portugal, Tukey and India.
A: 20-35days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile
Currently, we have service partners in Portugal, Tukey and India.
Portugal and Turkey partners provide service for the European area.
In other areas, if needed, we will arrange an engineer from China.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,
At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs
clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support
and service, and consumables at the lowest price.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,
At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs
clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support
and service, and consumables at the lowest price.
