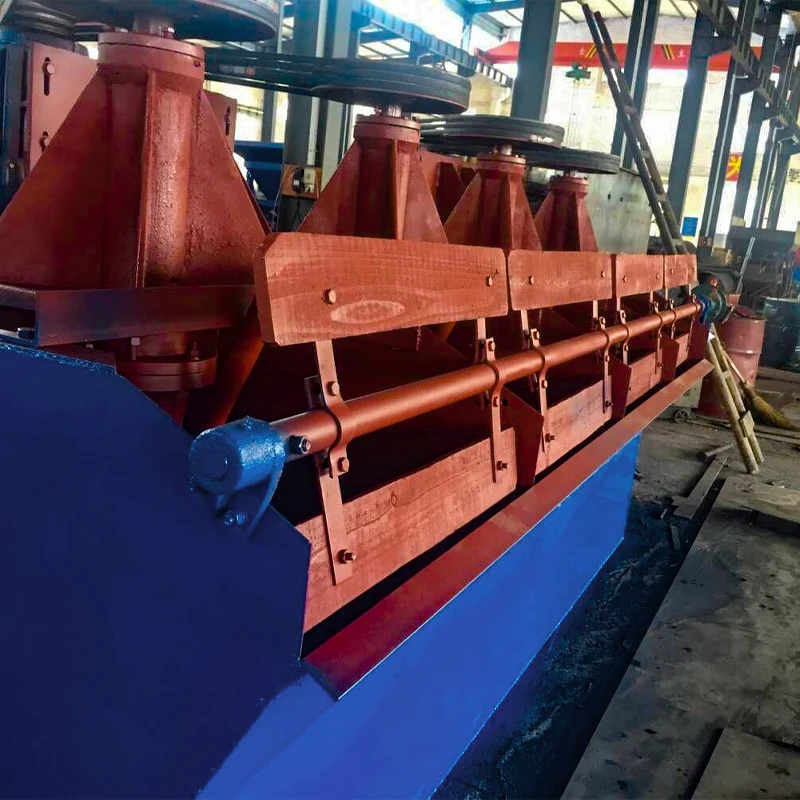

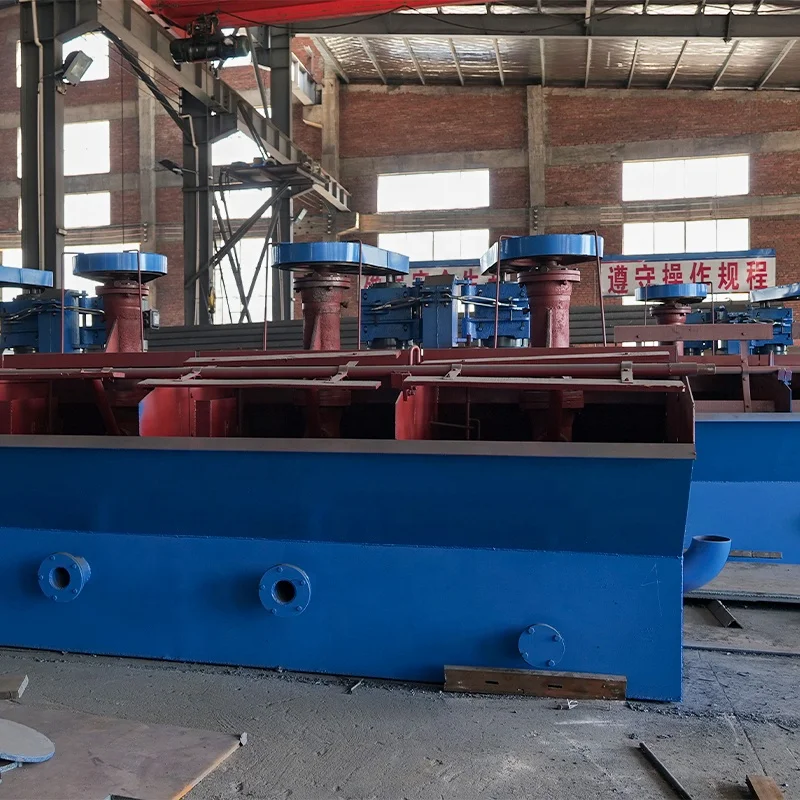

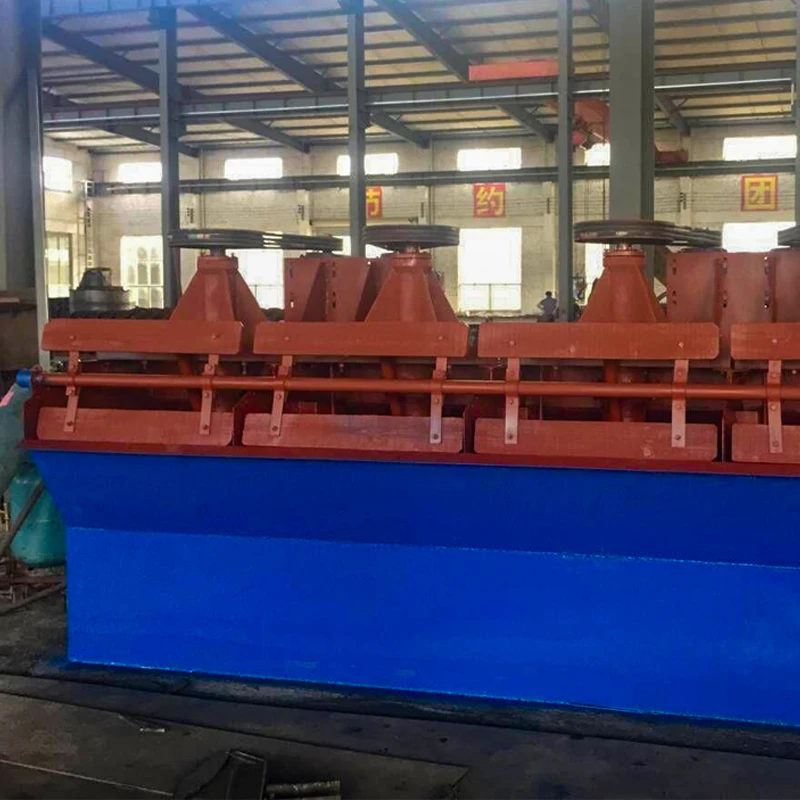

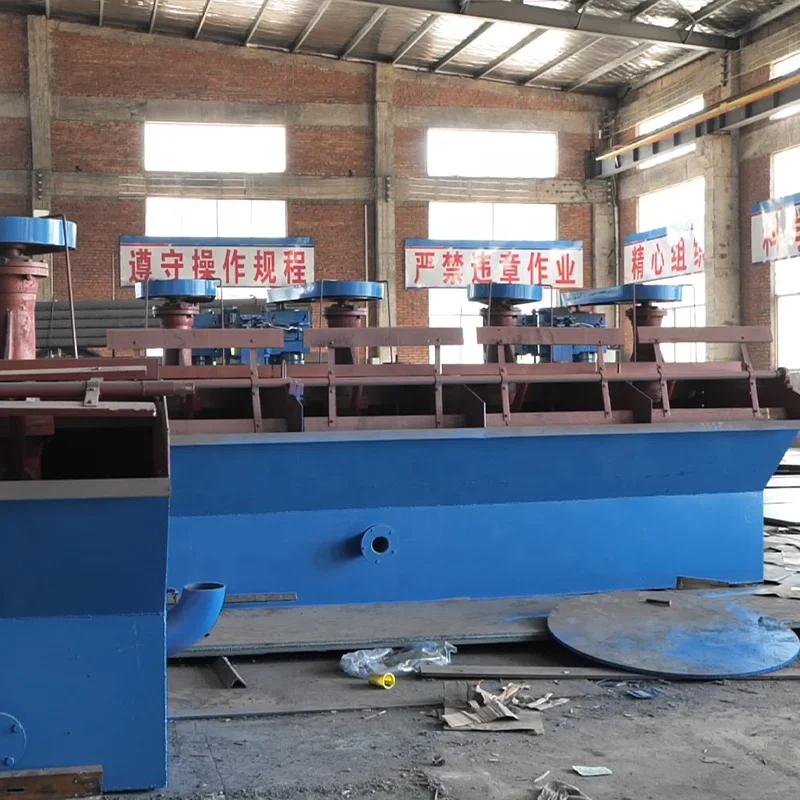

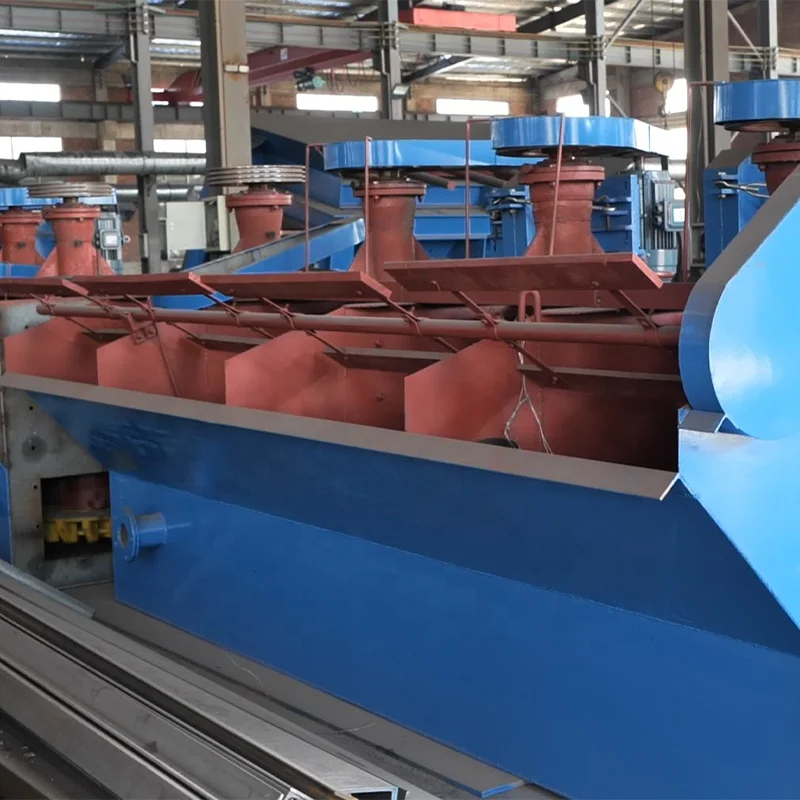

Hot sale flotation separator XJK flotation machine, 3.5m3 gold ore flotation separator
- Category: >>>
- Supplier: Jiangxi Weida Mineral Processing Equipment Co. Ltd.
Share on (1600997402963):
Product Overview
Description
High Recovery Rate Lithium Processing Plant 100 200 500 Tpd Gold Copper Ore Flotation Concentrator SF Flotation Machine
Flotation machine can be used for many ore beneficiation . lt is subject to coarse separation, swepseparation, fine separation and flotation, so the useful ore are reclaimed.
Application: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so onnon-metal mineral, raw body and materials of chemical industry.

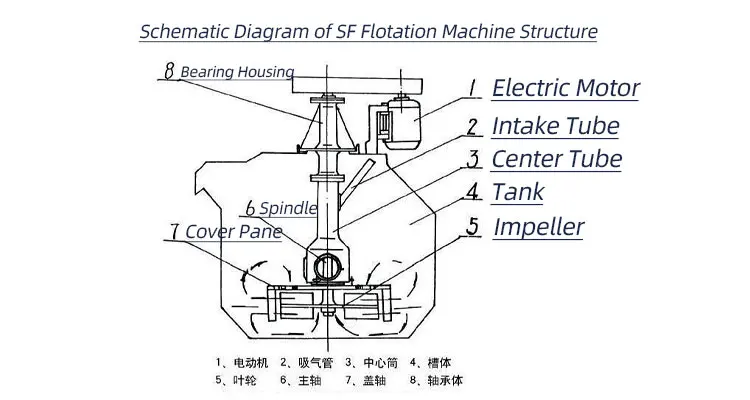

Schematic Diagram of SF Flotation Machine Structure
Product Information
Model | Effective Volume (m³) | Processing Capacity（m³/min） | Impeller Diameter (mm) | Impeller Speed (r/min) | Stirring Motor Power （kw） | Scraper Motor Powe（kw） |
SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 1.5 | 0.55 |
SF-0.7 | 0.7 | 0.3-1.0 | 350 | 336 | 3 | 1.1 |
SF-1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 5.5 | 1.1 |
SF-2.8 | 2.8 | 1.5-3.5 | 550 | 280 | 11 | 1.5 |
SF-4 | 4 | 2.0-4 | 650 | 235 | 15 | 1.5 |
SF-8 | 8 | 4.0-8 | 760 | 191 | 30 | 1.5 |
SF-16 | 16 | 5.0-16 | 850 | 169-193 | 45 | 1.5 |
Product Usage

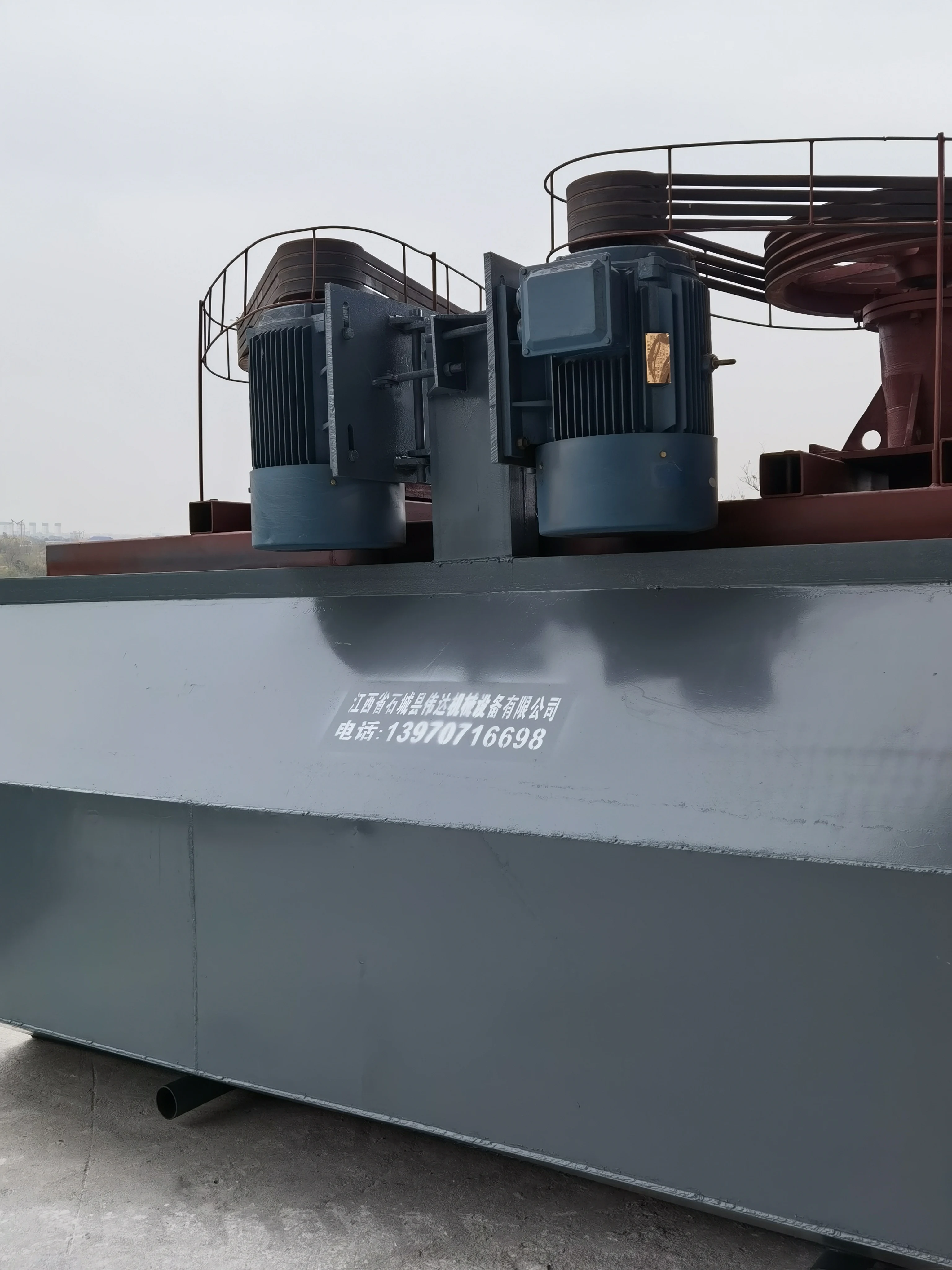

The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickeland gold, and can also be used for rough selection and selection of ferrous and non-metal. The motoris driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form anegative pressure On the one hand, it absorbs sufficient air to mix with the slurry. On the one hand, itmixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foamis formed on the slurry surface. Adjust the height of the shutter and control the liquid level so that theuseful foam is scraped off by the scraper
FAQ
Q1：Why we believe in WEIDA?
A1：More than 20 years' experience.
Q2：Deliver time?
A2：The lead time is 10-20 days, Delivery time will vary depending on the type of themachine, shipping method selected and part availability.
Q3：Payment terms?
A3：Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After signthe contract, pay the 10%-30% deposit of total purchase price and pay the full paymentbefore delivery.
Q4：What will you do if the machine is broken down?
A4：The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q5：What should i do if I want to get a best quotation?
A5：If you want a suitable type for you, please let us know your material and capacity.
