QIXINAG China manufacturer integration framework led traffic light signal pole post
- Category: >>>
- Supplier: Yangzhou Qixiang Traffic Equipment Co. Ltd.
Share on (1600997541513):
Product Overview
Description
Product Description
Traffic light poles are actually pole pieces for installing traffic lights. The traffic light pole is an important part of the traffic signal, and it is also an important part of the road traffic light.The single cantilever octagonal traffic light pole is the most conventional product in urban traffic. The structure size, connection method and foundation size of the signal pole are all determined by calculation according to the wind power at the installation site, the size of the signal board or sign board surface and the support method.
Specification
Height | 7000m ~ 7500mm |
Arm length | 6000mm ~ 14000mm |
The main rod | 150 * 250mm square tube, wall thickness 5mm ~ 10mm |
Bar | 100 * 200mm square tube, wall thickness 4mm ~ 8mm |
The lamp surface diameter | diameter of 400mm or 500mm diameter |
Color | red (620-625) and green (504-508) and yellow(590-595) |
Power supply | 187 V to 253 V, 50Hz |
Rated power | single lamp < 20W |
The service life of light source | > 50000 hours |
The temperature of the environment | -40 to +80 DEG C |
Protection grade | IP54 |
Composition structure editing:
1. Basic structure: Road traffic signal poles and sign poles should be composed of uprights, connecting flanges, modeling arms, mounting flanges and embedded steel structures.
2. The vertical pole or horizontal support arm adopts straight seam steel pipe or seamless steel pipe; the connecting end of the vertical pole and horizontal support arm adopts the same steel pipe as the horizontal arm, which is protected by welding reinforcement plates; the vertical pole and foundation adopt the flange plate and embedded Bolt connection, welding reinforced plate protection; the connection between the horizontal arm and the end of the pole is flanged, and welded reinforced plate protection;
3. All welding seams of the pole and its main components should meet the requirements of the standard, the surface should be smooth and smooth, the welding should be smooth, smooth, firm and reliable, without defects such as porosity, welding slag, virtual welding and missing welding.
4. The pole and its main components have lightning protection function. The non-charged metal of the lamp is integrated, and it is connected to the ground wire through the ground bolt on the shell.
5. The pole and its main components should be equipped with reliable grounding devices, and the grounding resistance should be ≤10 ohms.
6. Wind resistance: 45kg / mh.

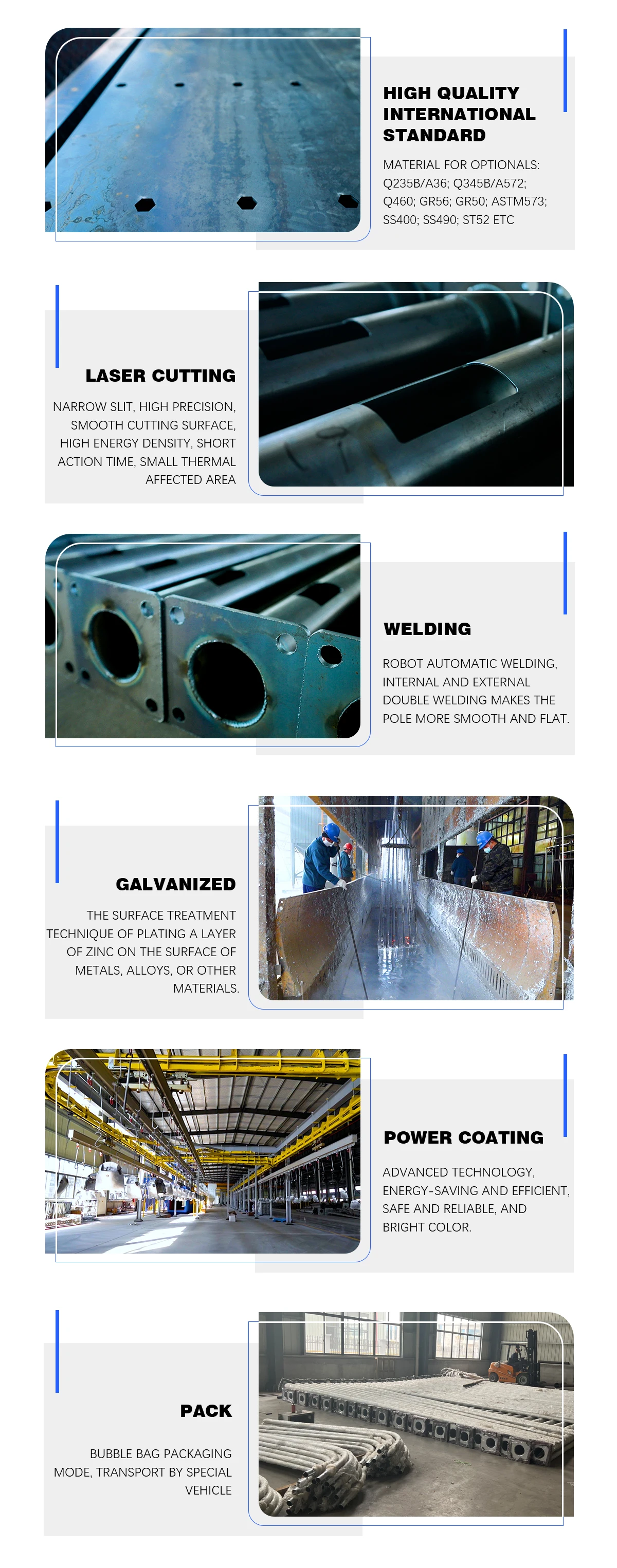

7. Appearance treatment: hot-dip galvanizing and spraying after pickling and phosphating.

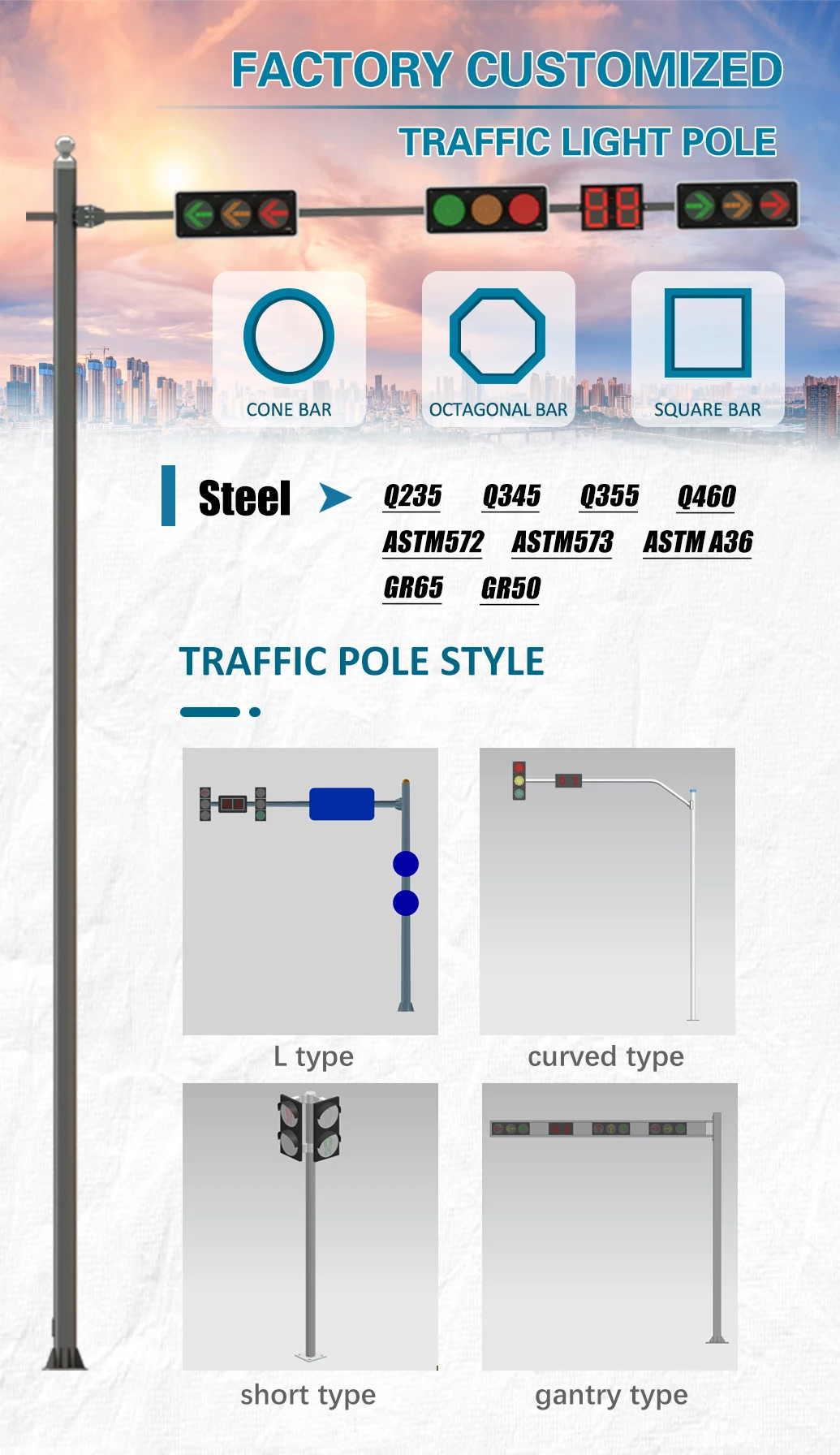

8. Traffic signal pole appearance: equal diameter, cone shape, variable diameter, square tube, frame.
2. The vertical pole or horizontal support arm adopts straight seam steel pipe or seamless steel pipe; the connecting end of the vertical pole and horizontal support arm adopts the same steel pipe as the horizontal arm, which is protected by welding reinforcement plates; the vertical pole and foundation adopt the flange plate and embedded Bolt connection, welding reinforced plate protection; the connection between the horizontal arm and the end of the pole is flanged, and welded reinforced plate protection;
3. All welding seams of the pole and its main components should meet the requirements of the standard, the surface should be smooth and smooth, the welding should be smooth, smooth, firm and reliable, without defects such as porosity, welding slag, virtual welding and missing welding.
4. The pole and its main components have lightning protection function. The non-charged metal of the lamp is integrated, and it is connected to the ground wire through the ground bolt on the shell.
5. The pole and its main components should be equipped with reliable grounding devices, and the grounding resistance should be ≤10 ohms.
6. Wind resistance: 45kg / mh.
7. Appearance treatment: hot-dip galvanizing and spraying after pickling and phosphating.
8. Traffic signal pole appearance: equal diameter, cone shape, variable diameter, square tube, frame.
Company Profie
Exhibition
Advantages of our traffic lights:
1.For all your inquires we will reply you in detail within 12 hours.
2.Well-trained and experienced staffs to answer your inquires in fluent English.
3.We offer OEM services.
4.Free design according to your needs.
2.Well-trained and experienced staffs to answer your inquires in fluent English.
3.We offer OEM services.
4.Free design according to your needs.
FAQ
1.Do you accept Small order?
Large and small order quantity are both acceptable.We are a manufacturer and wholesaler,good quality at competitive price will help you save more cost.
2.How to order?
Please send us your purchase order by Email .We need to know the following information for your order:
1)Product information:
Quantity,Specification including size,housing material,power supply (such as DC12V,DC24V,AC110V,AC220V or solar systerm),color,order quantity,packing and Special requirements.
2)Delivery time:Please advise when you need the goods,if you need urgent order,do tell us in advance,then we can arrangle it well.
3)Shipping information:Company name,Address,Phone number,Destination seaport/airport.
4)Forwarder's contact details:if you have in China.
Large and small order quantity are both acceptable.We are a manufacturer and wholesaler,good quality at competitive price will help you save more cost.
2.How to order?
Please send us your purchase order by Email .We need to know the following information for your order:
1)Product information:
Quantity,Specification including size,housing material,power supply (such as DC12V,DC24V,AC110V,AC220V or solar systerm),color,order quantity,packing and Special requirements.
2)Delivery time:Please advise when you need the goods,if you need urgent order,do tell us in advance,then we can arrangle it well.
3)Shipping information:Company name,Address,Phone number,Destination seaport/airport.
4)Forwarder's contact details:if you have in China.
