Price:$22,000.00 - $36,000.00

Quantity:


Product Overview

Description



Products Description




Printing Areas
Glass/Ceramic/Decoration/
Advertising&Sign industry
Image Quality
Color,white,varnish and
3D embossing effect optional
Printhead
RICOH GEN5/GEN6
Printhead 2-8 units


Product Paramenters

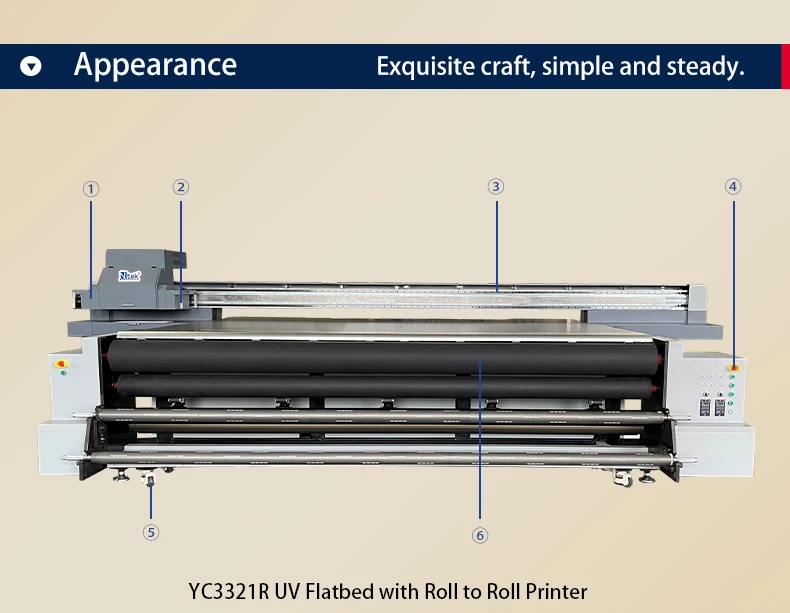

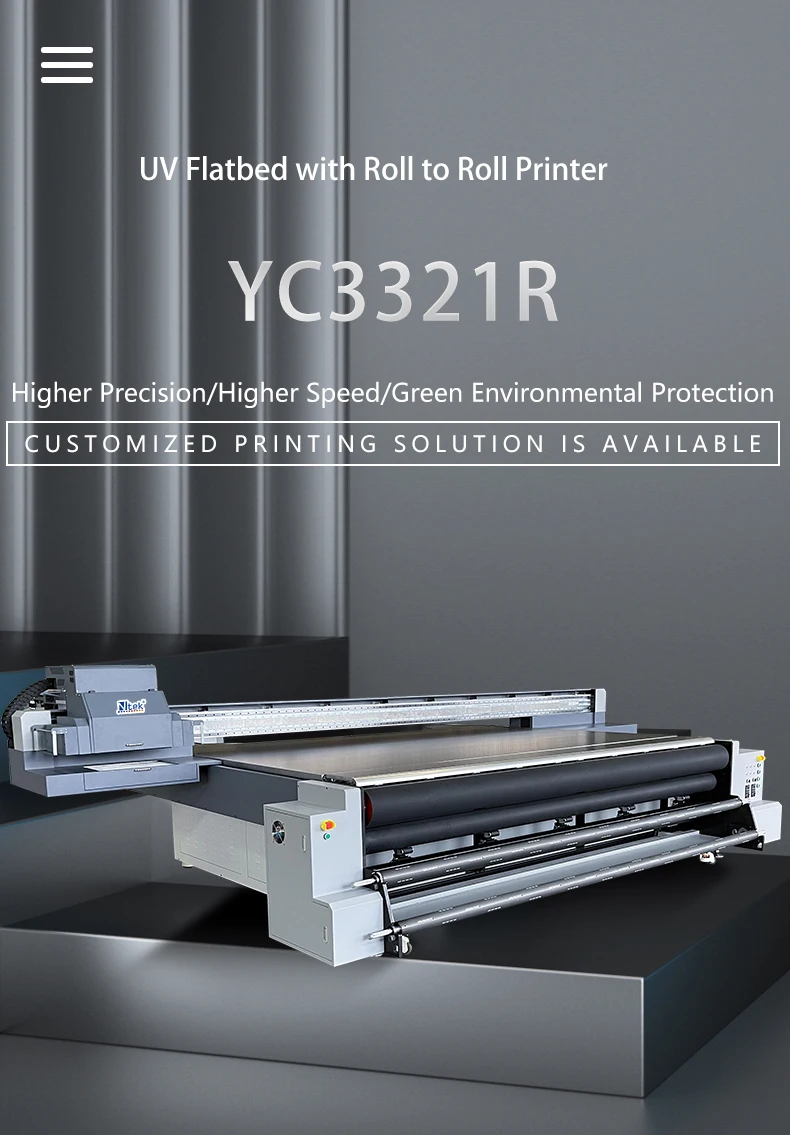

YC3321R UV Flatbed With Roll To Roll Printer
①UV LED Lamp
②Anti-static,Anti-crash
⑦Industrial Printhead
③TAIWAN HIWIN guide rail
④Switch and power switch area
⑤Top Heavy Rubber Roller
⑥Universal wheel





Specifications
Product Model
YC3321R
Printhead Type
RICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number
2-8 heads
Ink Characteristics
UV Curing Ink (VOC Free)
Ink reservoirs
Refillable on the fly while printing 2500ml per color
LED UV Lamp
more than 30000-hours life made in Korea
Printhead arrangement
CMYK LC LM W V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide rail
TAIWAN HIWIN/THK Optional
Working Table
Vacuum Sucking
Printing Size
3300*2100mm
Roller Material Width
3300mm
Roller Material Diameter
200mm
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm
Print Resolution& Speed
720X600dpi
4PASS
15-33sqm/h
(GEN6 40% faster than this speed)
720X900dpi
6PASS
10-22sqm/h
720X1200dpi
8PASS
8-18sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
RIP/Photoprint optional
Power Supply
220V 50/60Hz(10%)
Power
8500W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension
5.38*3.64*1.46m
Packing Dimension
5.55*2.25*1.68m 4.35*0.9*1.15m
Weight
3500kg
Warranty
12 months exclude the consumables related to ink, such as ink filter, damper etc
Above specification subject to change without notice beforehand


Machine Details

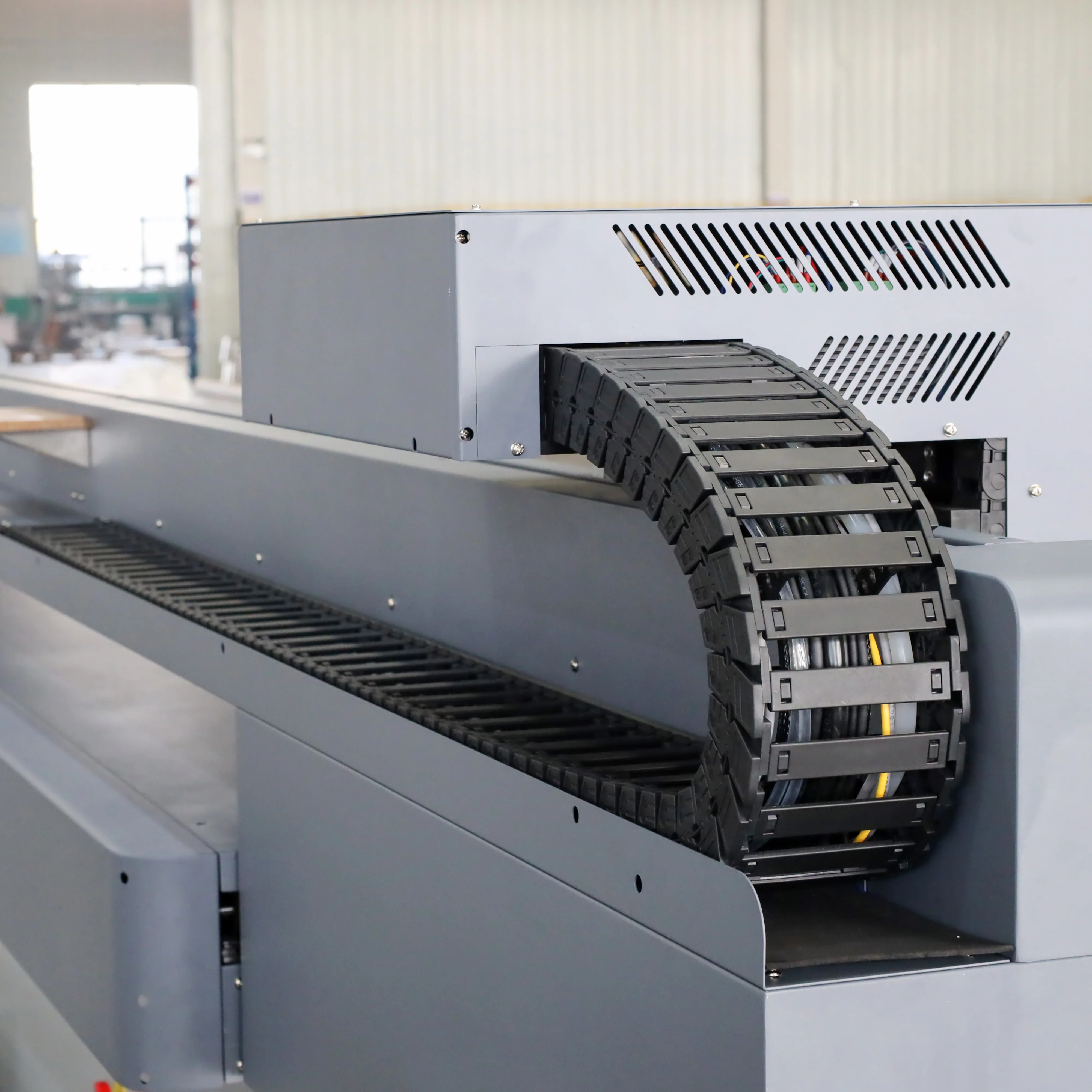

German IGUS Energy Chain
Germany IGUS Mute Drag ChainUtilize Germany IGUS mute drag chain on X ax
is,ideal for protection of cable and tubes under high speed motion.With high per-
formance,low noise,make the working environment more comfortable.

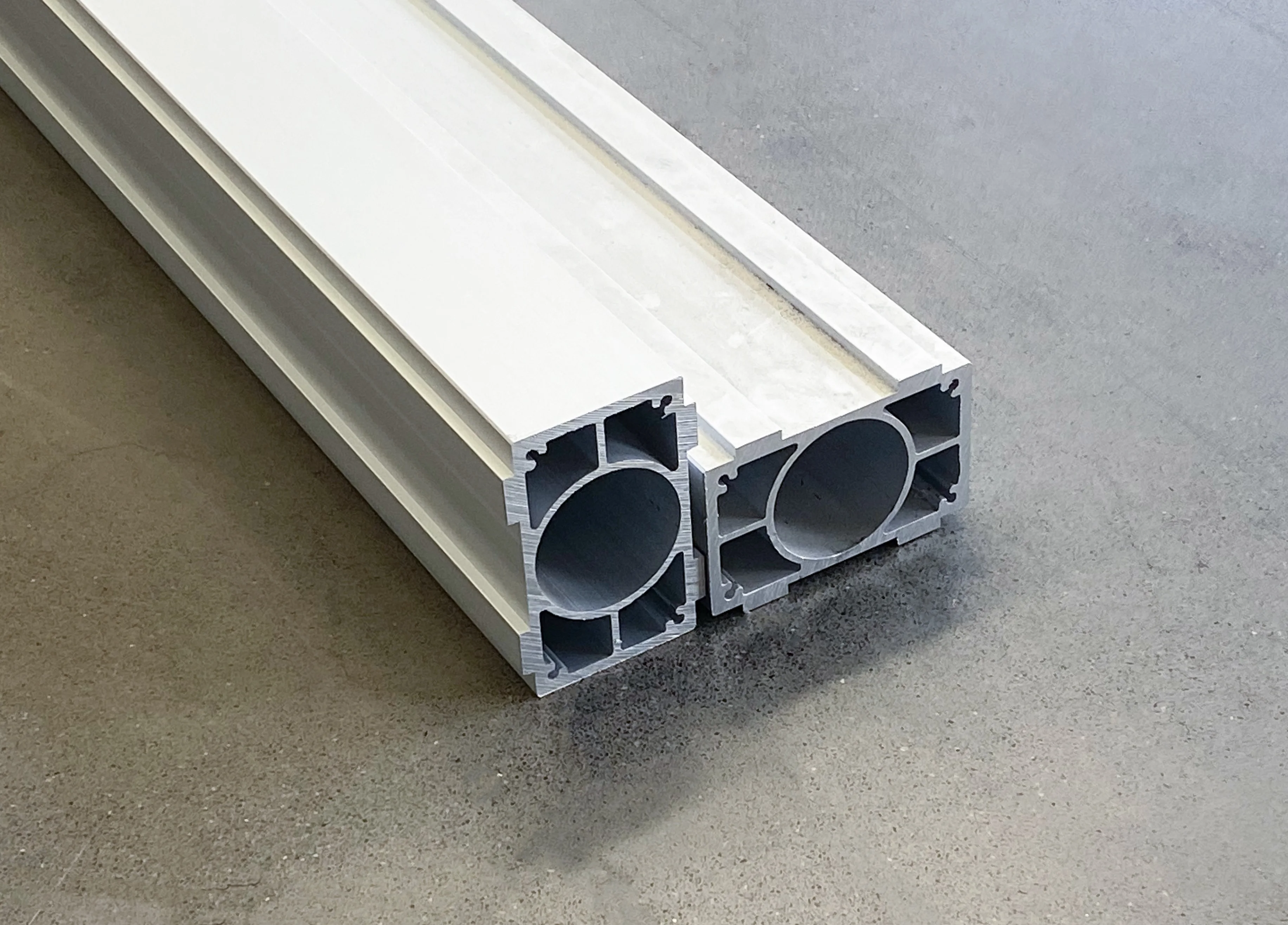

High Precision Aluminum Beam
Equipped with self-researched cold draw and high-strength aerial aluminium mate
rial,it ensures printing precision and stability,guarantee the perfect output.





Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resoluti-
on.It is suitable for long-time working, 24 hours running.




Vacuum Adsorption Platforem
Hard oxidized honeycomb hole srctiona-lized adsorption platform,strong adsorp-tion capacity,low mater consumption, cu
stomers can adjust the Adsorbed accor-
ding to the side of the printing material
the platform surface hardness is high,
scratch resistance,corrosion resistance.




Universal wheel

Secondary Ink Cartridge

Korea UV LED Lamp







Ricoh Piezoelectric Nozzle
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

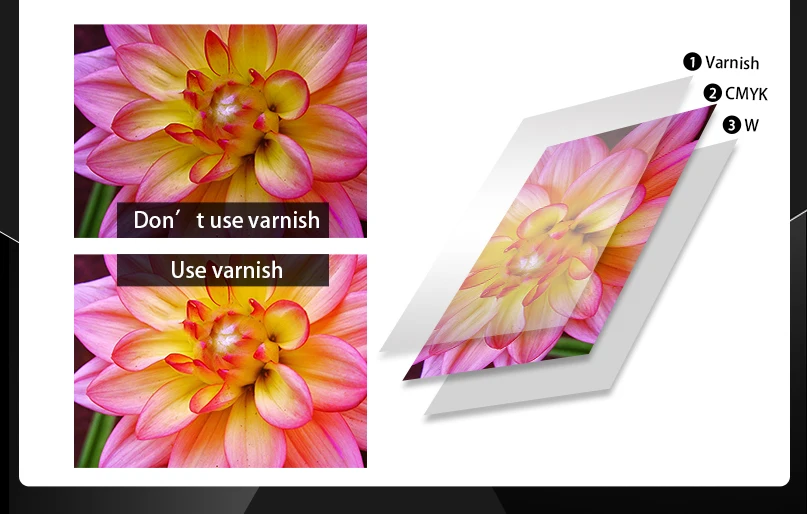

CMYK+W+V All three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.


Printing Samples




Advertising
Pen
Bottle


PVC
Glass
ceramic


fiber
wood
mouse pad


Advertising Cloth
Wall Background
PVC

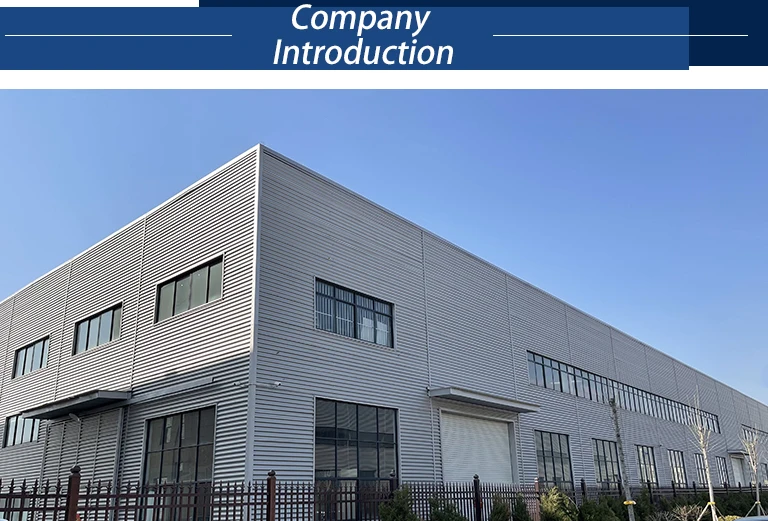

Company Profile




Jinan Yingcai Digital Technology Co., Ltd
Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City, Shandong province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume.
Winscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed
printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.
Winscolor digital printing machine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions according to different demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry.




Winscolor UV Flatbed With Roll To Roll Printer-Warranty
We provide one year warranty for our uv printers including all the electronic parts including the main board, driver board,control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc.


Packing & Delivery




Customer Photos




FAQ




1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.

3. How about the maintenance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.But customer has to be responsible for the accommodation and transportation costs of the technical staff.

4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.

5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump, print head, ink filter, and slide block since they are consumables.

6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the machine, our technician will teach you how to install and use machine by remote control via Team viewer or Skype. Whenever you have questions to the machine, you can contact our technician or me.

7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, winscolor should send new part within 48 hours by express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.

9. What kinds of materials need premier before printing？
Glass, ceramic, metal, acrylic, marble etc.
