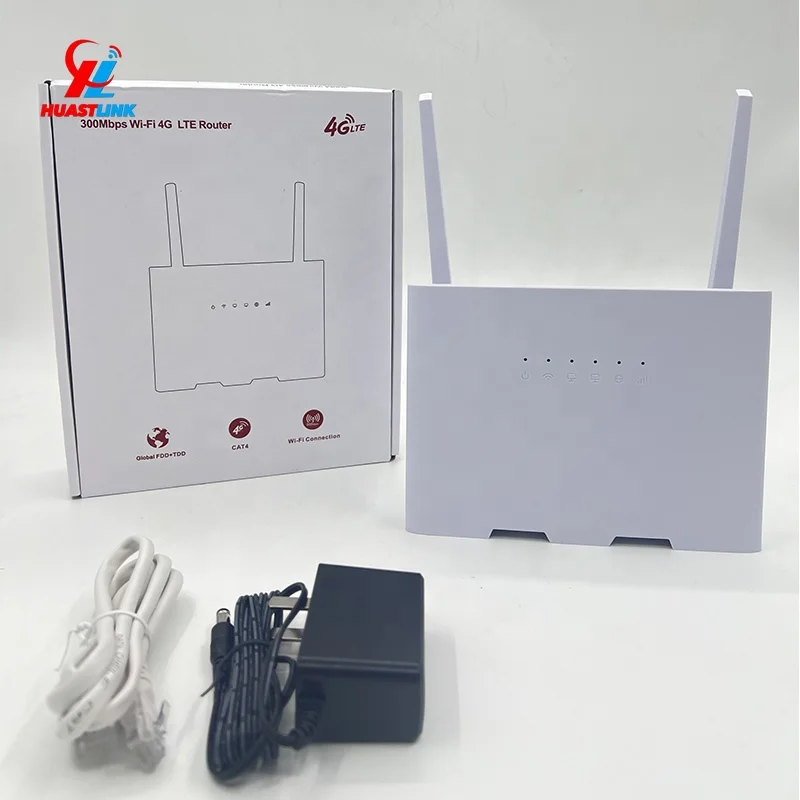

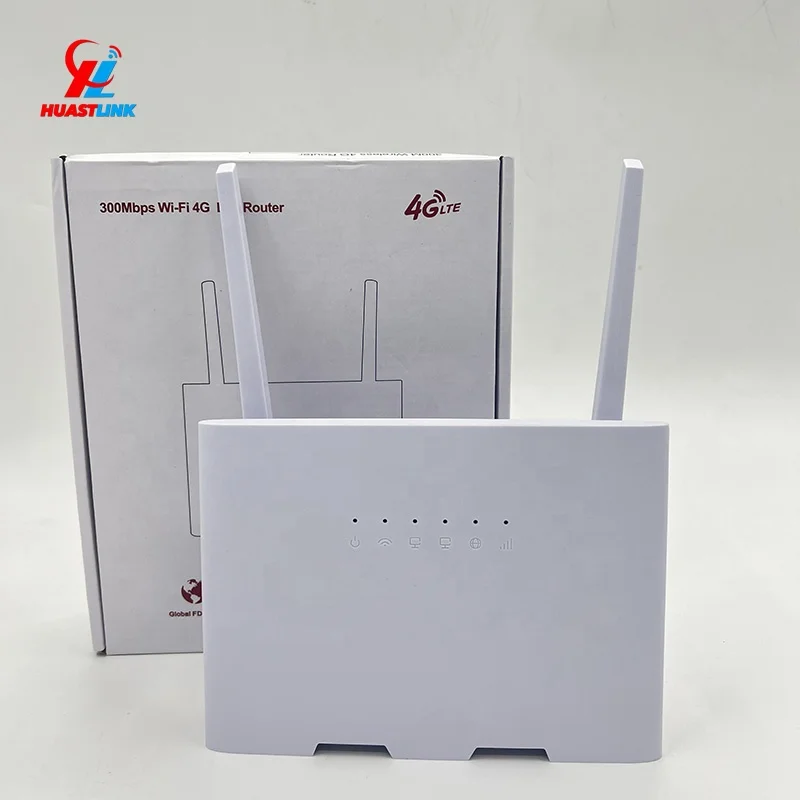

drop shipping 300mbps 4g Modem Wifi Router With Sim Card Slot Wireless Lte 4g Lte Wifi Router
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1600997655852):
Product Overview
Description
Product Parameter Datasheet
HC-CPE306K has below versions for customers:
LTE-TDD B34/B38/B39/B40/B41
WCDMA B1/B5/B8
HC-CPE306K (Default version)--Web Price Version
LTE-FDD B1/B3/B5/B8
LTE-TDD B34/B38/B39/B40/B41
WCDMA B1/B5/B8
HC-CPE306K (EU Version)---If you need this version, please contact us in advance!
LTE-FDD:B1/B3/B5/B7/B8/B20/B28
LTE-TDD:B38/B40/B41
WCDMA:B1/B5/B8
GSM:B3/B8
LTE-TDD:B38/B40/B41
WCDMA:B1/B5/B8
GSM:B3/B8
HC-CPE306K (AU Version)---If you need this version, contact us in advance!
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD :B40
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:B2/B3/B5/B8
LTE-TDD :B40
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:B2/B3/B5/B8
If you don't know which one version suitable for you, please contact with us before order!
Chipset | MTK7628, main frequency up to 575Mhz |
Wifi Technoly | 802.11b/g/n 300Mbps MIMO Technology |
Interface | 1*10/100Mbps WAN/LAN port 2*10/100Mbps LAN port 1*Nano SIM card slot 1*power port |
Button | 1*Reset Button |
LED Indicator | Power, Wifi, LAN1, LAN2, WAN, 4G |
Antenna | 2pcs built-in wifi antennas 2pcs external 4g antennas |
Power | 12V 1A |
Operation/Storage Tempeture | -10℃～45℃/-20℃～70℃ |
Operation/Storage Humidity | 5%～95% (non-condensing) |
Wifi Frequency | 802.11b/g/n:2.4~2.4835GHz |
Wifi Channel | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 |
Modulation mode | 802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) |
Transfer speed | 11b: Max. 11Mbps，11g: Max. 54Mbps，11n: Max. 300Mbps |
Transmit power | 11b: ≥20±1.5dBm@11Mbps 11g: ≥20dBm±1.5dBm@54Mbps 11n: ≥20dBm±1.5dBm@MCS7 |
Working Mode | 4G, routing, AP |
Products Description
HC-CPE306K is a cost-effective wireless communication product developed based on 4G network requirements. The WiFi wireless rate is up to 300Mbps. It can meet the needs of small networks such as offices and homes for high-speed, stable, safe and simple Internet access. It can also be applied to Internet of Things communications. industry, providing users with wireless long-distance data monitoring, collection and transmission functions. 4G network access, equipped with two 10/100M adaptive Ethernet LAN interfaces, connected to the internal LAN; one 10/100M adaptive Ethernet WAN/LAN interchange interface, which can provide wired broadband access.
Product Feature
1. Independent wireless routing processing chips and module 4G processing chips, each performing its own duties, with two channels running concurrently to ensure that the entire system is stable and easy to use;
2. Support 4G Telecom, China Unicom, China Mobile, Radio and Television full network access, and support APN/VPDN connection;

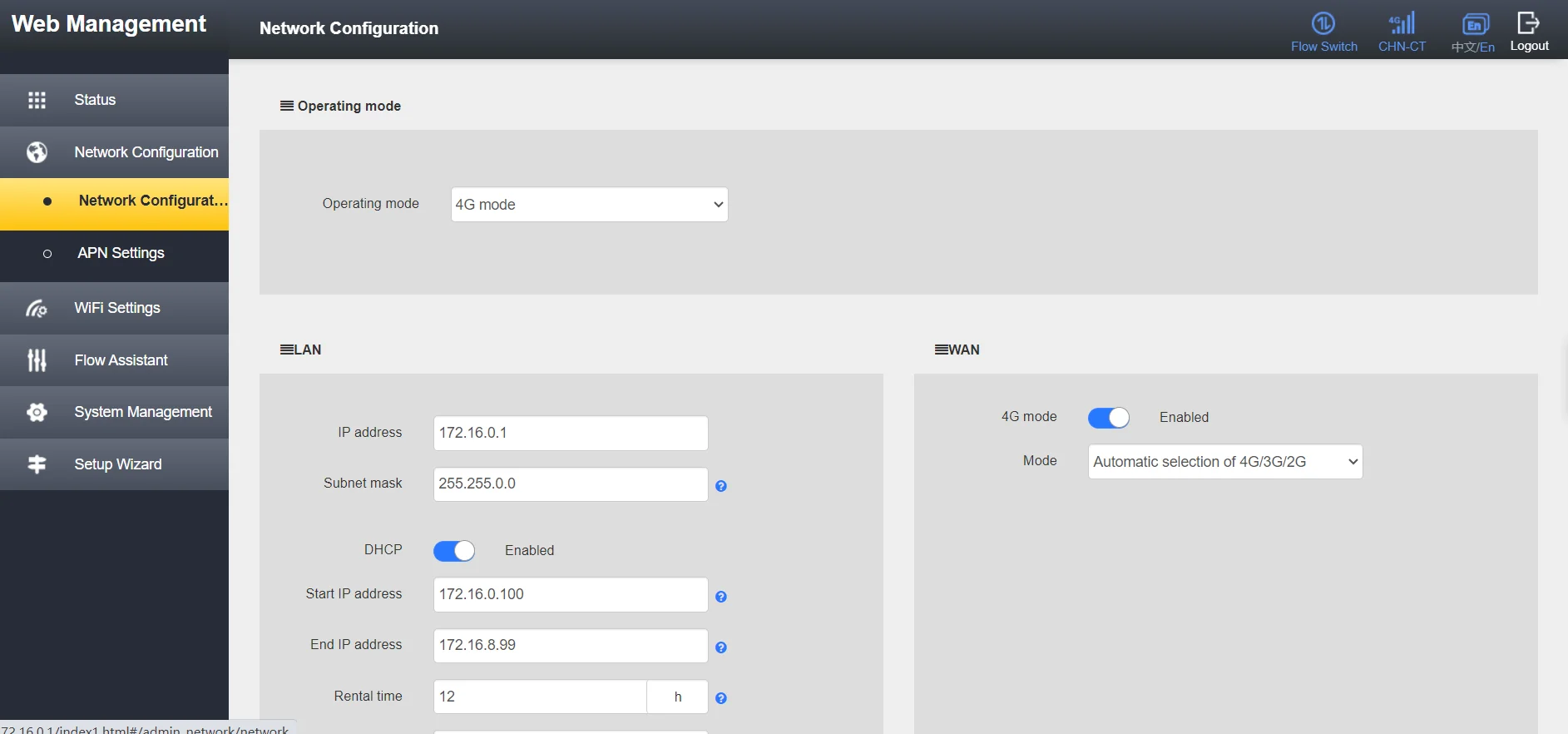

3. Support routing mode, AP mode and 4G LTE wireless access, flexible networking, adaptable to various complex scenarios;
4. Provide 802.11b/g/n WiFi 300M wireless access, with high-gain antenna, which can reach 30 meters in an open and unobstructed environment; and provide 10/100Mbps wired access, and the standby capacity of the whole machine can reach 16 people;

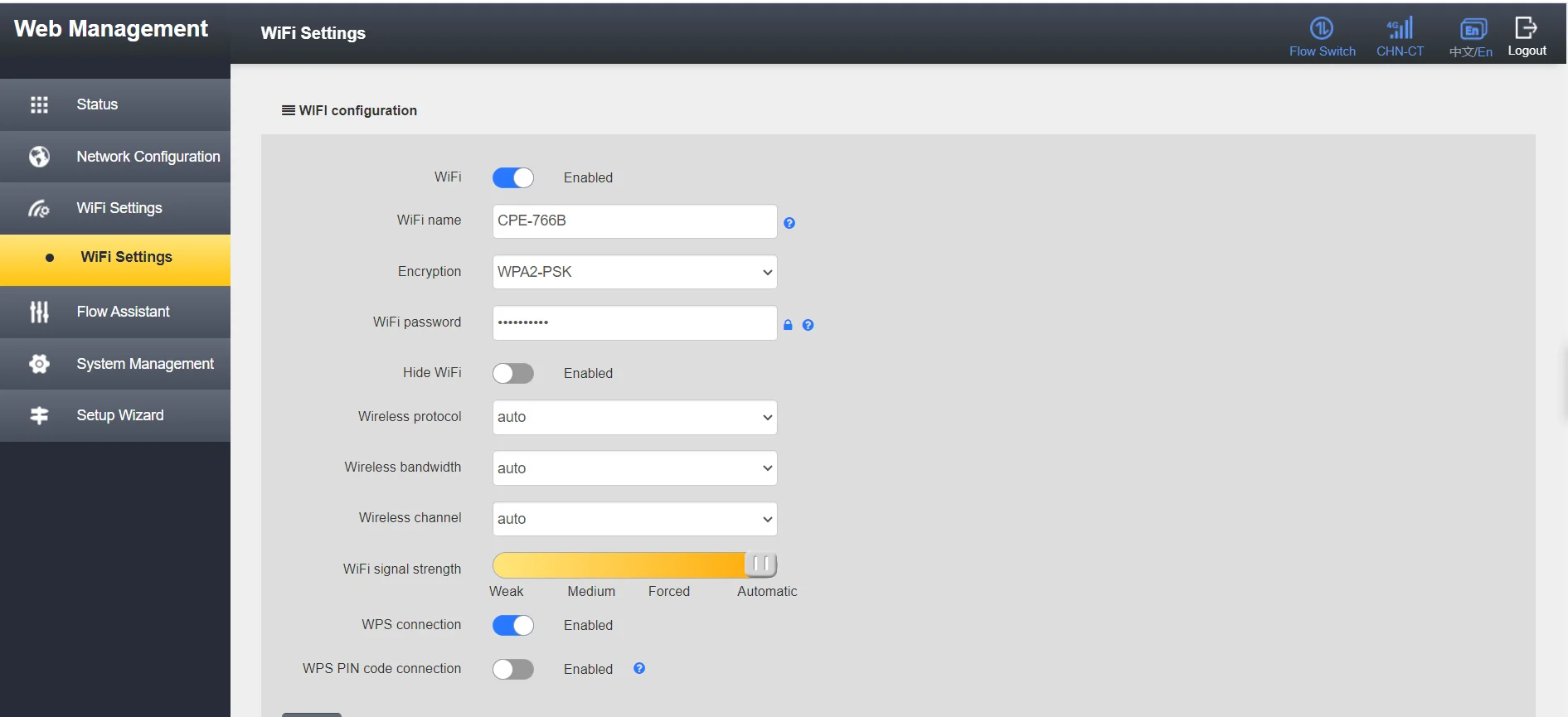

5. Support WPA/WPA2, SSID hiding, and blacklist to effectively protect user data security;

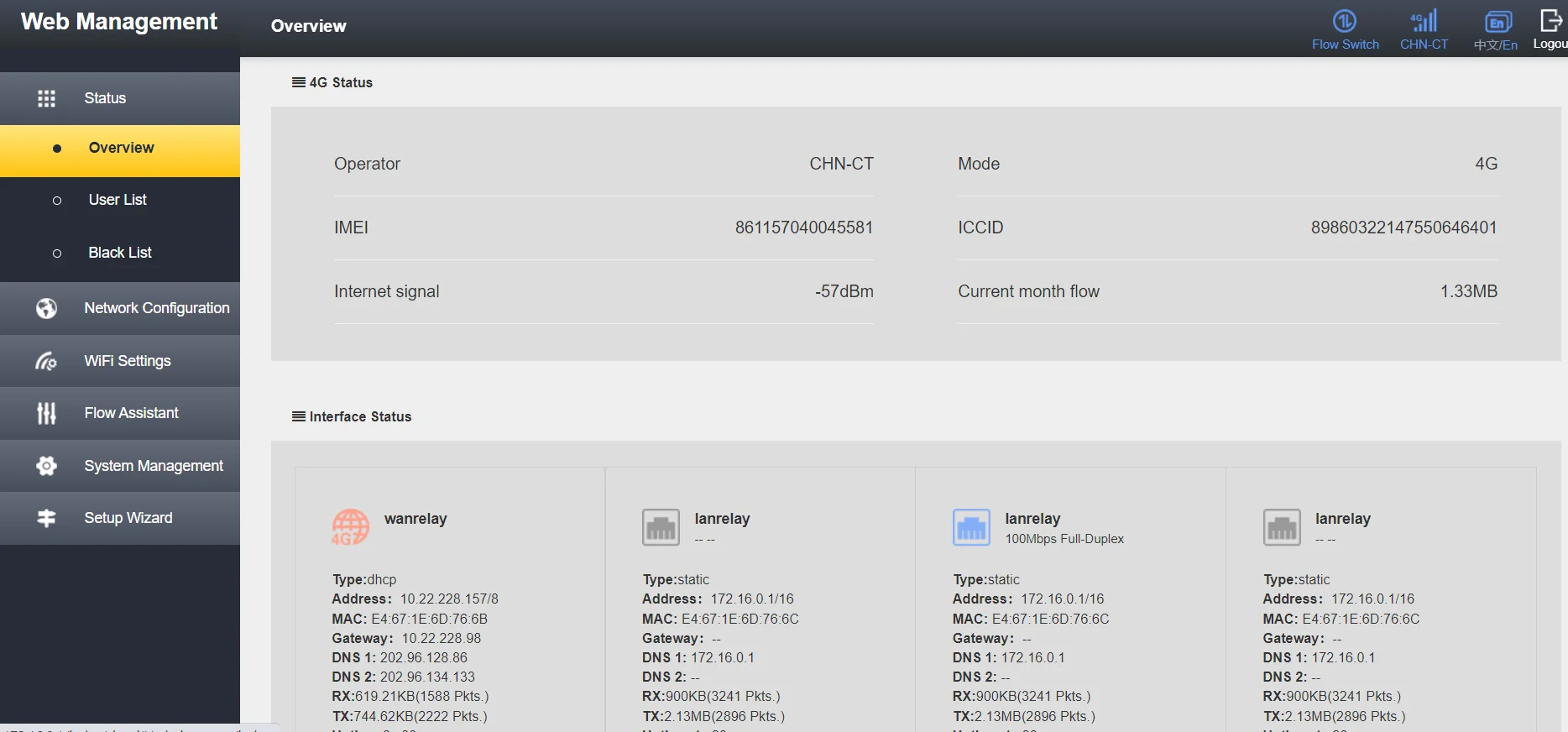

6. Rich status indicators, status overview, and easy-to-read log system make it easy to know the working status of the device; built-in traffic statistics and traffic assistant functions keep you informed of traffic usage;
7. Built-in quick setup wizard, no professional knowledge required, easy to use 4G LTE to access WiFi;
8. Customizable deployment is based on the TR069 protocol centralized management platform, which keeps the device running status informed and facilitates large-scale deployment;
2. Support 4G Telecom, China Unicom, China Mobile, Radio and Television full network access, and support APN/VPDN connection;
3. Support routing mode, AP mode and 4G LTE wireless access, flexible networking, adaptable to various complex scenarios;
4. Provide 802.11b/g/n WiFi 300M wireless access, with high-gain antenna, which can reach 30 meters in an open and unobstructed environment; and provide 10/100Mbps wired access, and the standby capacity of the whole machine can reach 16 people;
5. Support WPA/WPA2, SSID hiding, and blacklist to effectively protect user data security;
6. Rich status indicators, status overview, and easy-to-read log system make it easy to know the working status of the device; built-in traffic statistics and traffic assistant functions keep you informed of traffic usage;
7. Built-in quick setup wizard, no professional knowledge required, easy to use 4G LTE to access WiFi;
8. Customizable deployment is based on the TR069 protocol centralized management platform, which keeps the device running status informed and facilitates large-scale deployment;
Details Images
Company Profile
Shenzhen Huachuangyilian Electronics Co.,Ltd.
Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, with around 20,000 square metes and a team of more than 100 R&D engineers. Huastlink specializes in 5G/4G LTE Router, Vehicle Router, DTU, Outdoor Router, AP/CPE, 5G/4G Mifi, 5G/4G Modem, POE switch etc., Huastlink products passed CE and FCC certificate to meet different markets customer’s needs, ODM&OEM service is available. Huastlin builds a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now Huastlink exported products to over 40 countries and regions. Huastlink visions are providing best service to customers.
Our Advantages
Customer Photos
Recommend Products
FAQ
1. Can you customizated LOGO or packaging?
Yes, OEM/ODM are acceptable. Our design team help you design as your requirement.
2. Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3. How do you ship the goods? How long does it take to arrive?
We usually ship by All Logistics, DHL, UPS, Fedes, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Air shipment and sea shipment are optional.
4.Can I have a sample order?
Yes, welcome to place sample order order testing and checking, mixed samples are acceptable.
5.What about lead time?
Sample needs 1-3 working days mass production time needs 3-5 weeks pased on order quantity.
6. Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
