Product Overview
Description
Product Description

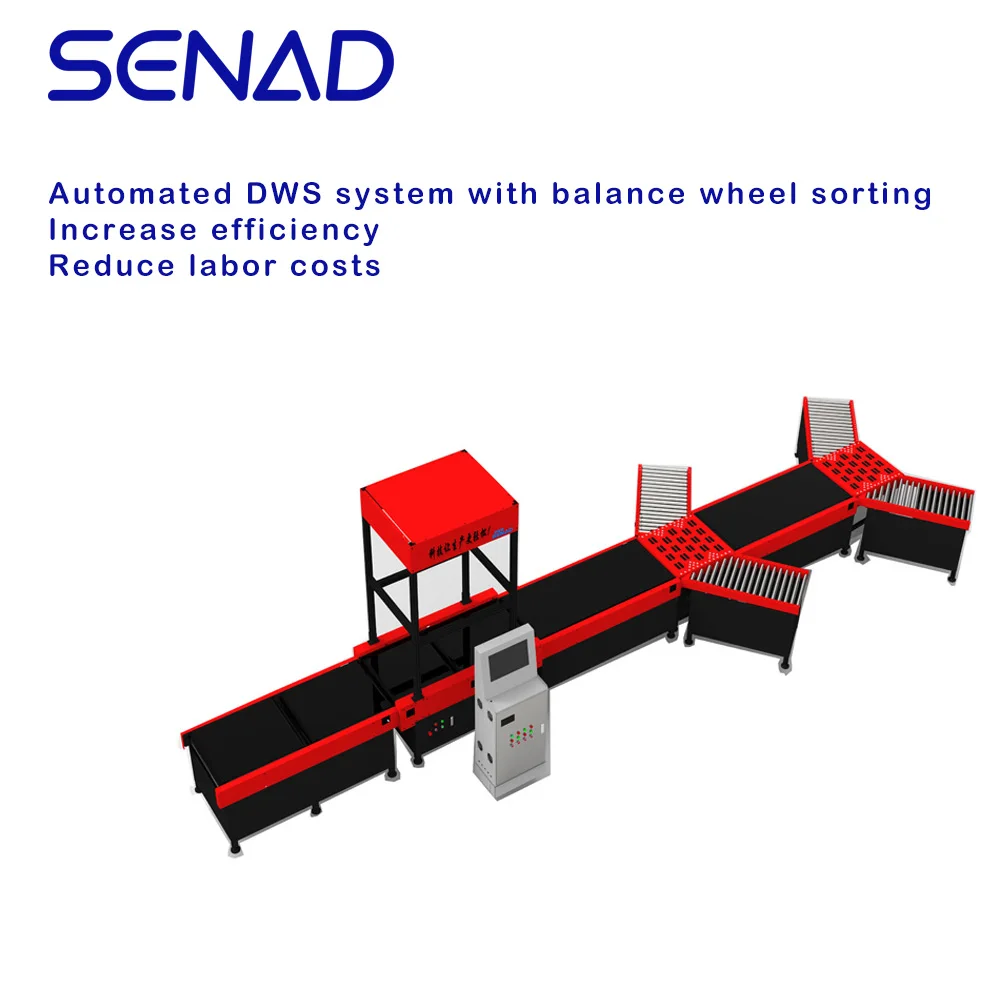

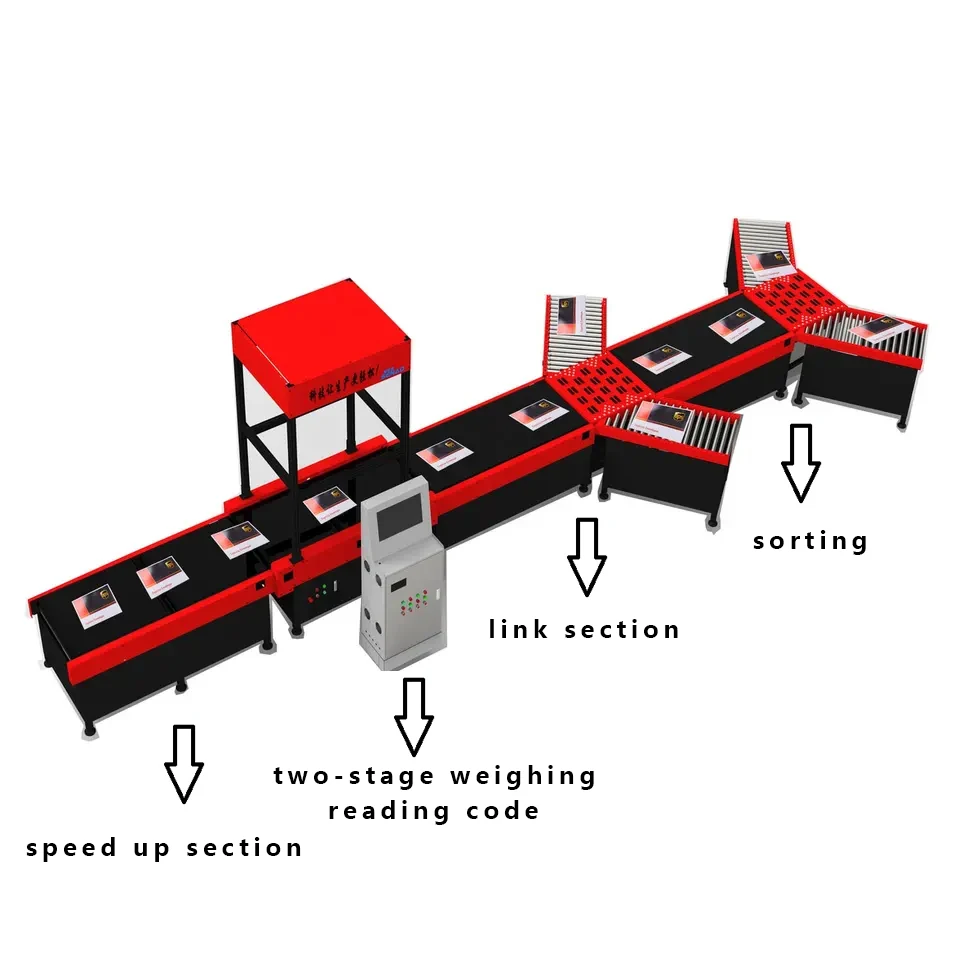

The DWS adopts the self-developed high-resolution intelligent barcode reading camera, volume measuring instrument, and dynamic weighing module, which can efficiently complete the real-time accurate collection and output of the three major information of volume, barcode and weight. The system can realize the automatic sorting of express parcels with the sorting equipment.
Main features:
* Collect data automatically with accuracy
-Data are collected in one pass without operator's intervention, ensuring its accuracy
* Exception alarm
- The equipment will alarm when Packages' weight and dimention are beyond limit or the code can not be read
*Highly flexible with expandability
- The equipment can be equipped with cameras with different resolution
- It can be connected to telescopic conveyor and conveyor belt
Main features:
* Collect data automatically with accuracy
-Data are collected in one pass without operator's intervention, ensuring its accuracy
* Exception alarm
- The equipment will alarm when Packages' weight and dimention are beyond limit or the code can not be read
*Highly flexible with expandability
- The equipment can be equipped with cameras with different resolution
- It can be connected to telescopic conveyor and conveyor belt
Product Details
Parameters
Parts | Configuration | ||||||
Industrial computer | Intel I5 | ||||||
Display | 19.5inches LCD | ||||||
Camera | Hikvision 20 million pixel Industrial camera | ||||||
Keyboard/mouse | Logitech | ||||||
Load cell | 100kg | ||||||
Bracket | Senad customized | ||||||
Index | Parameter | ||||||
Weighing range | 30g~60kg | ||||||
Dimensioning range | 50*50*50~1200*1000*800mm | ||||||
Capacity | 2500~3600pcs/hour | ||||||
Recognition rate(Normal package) | 99% | ||||||
Dimensioning accuracy | ±5~15mm | ||||||
Weighing accuracy | ±20~40g | ||||||
Scanning accuracy | 99% | ||||||
Software Interface | HTTP, TCP, 485 | ||||||
Weighing mode | Dynamic weighing | ||||||
Remote diagnosis | yes | ||||||
Product Details
__________

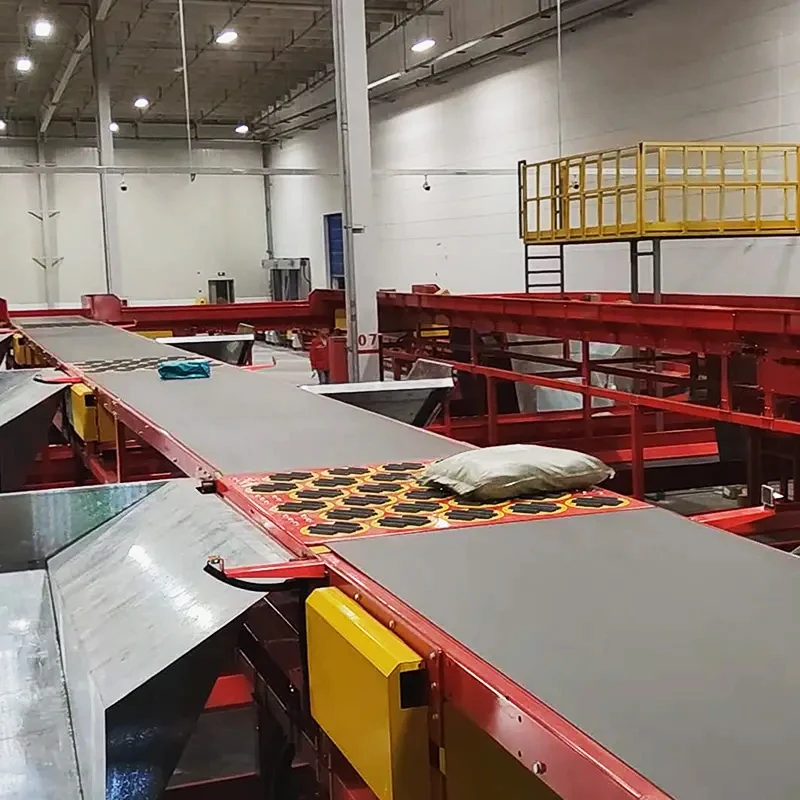

The rolling wheel sorter can be automatically sorted into 3 directions to realize automatic sorting of parcels
__________
__________
__________
Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
About Us
Welcome to visit us!
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions,such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system,etc. These equipments take machine vision deep learning algorithm and robot motion control as the core, and adopt image processing algorithm, artificial intelligence, pattern recognition, video analysis algorithm, ARM|FPGA|DSP embedded software and hardware development, industrial machine vision positioning, vision tracking, vision detection, multi-sensor information fusion and other technical methods to achieve the goal of "replacing manual labor with robot". These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency. Technology makes production easier. We pursue a win-win situation. Our mission is to make work easier and more efficient for our partners. We will continue to contribute to upgrading and developing the practical application of new technologies, providing our partners with high quality equipment and professional consulting services.Our Factory
Development history
Our Certifications
Partners
Exhibition
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise.It has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise.It has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
