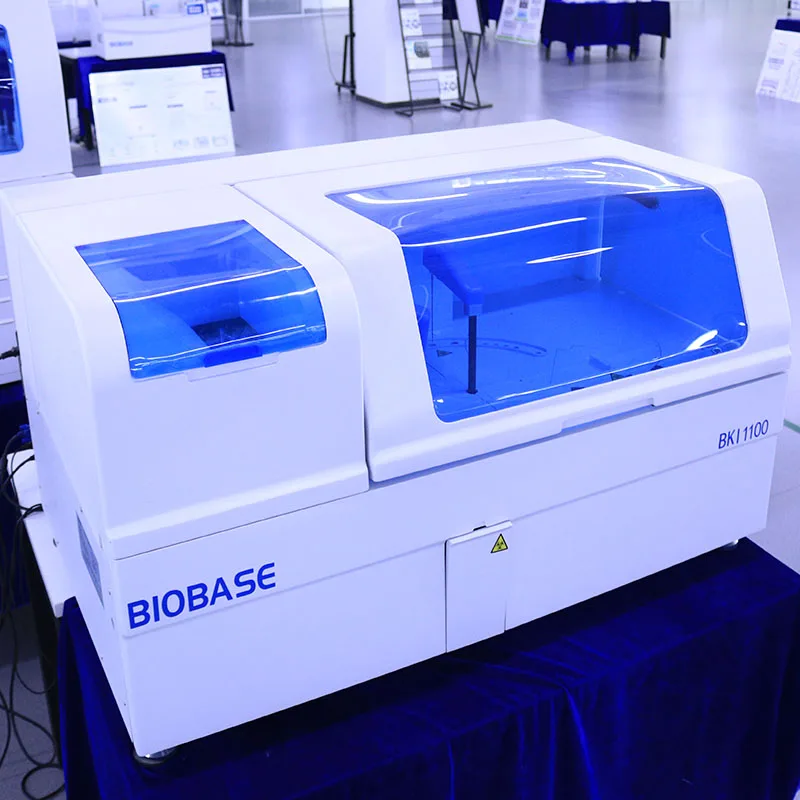

Biobase Manufacturer 7 minutes Automatic Chemiluminescence Immunoassay System CLIA Analyzer Immunoassay

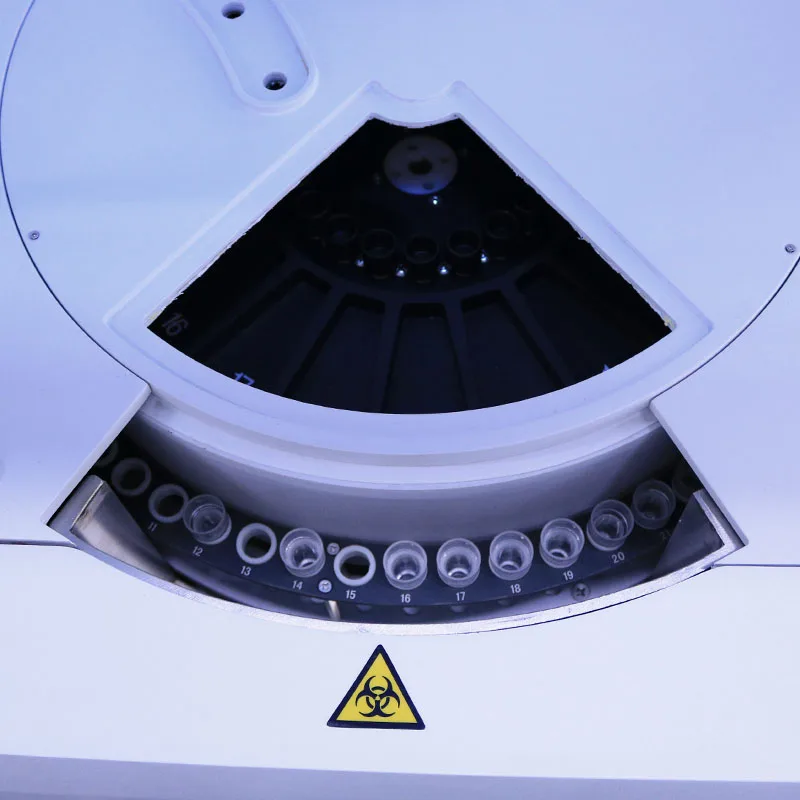

Sample Tray

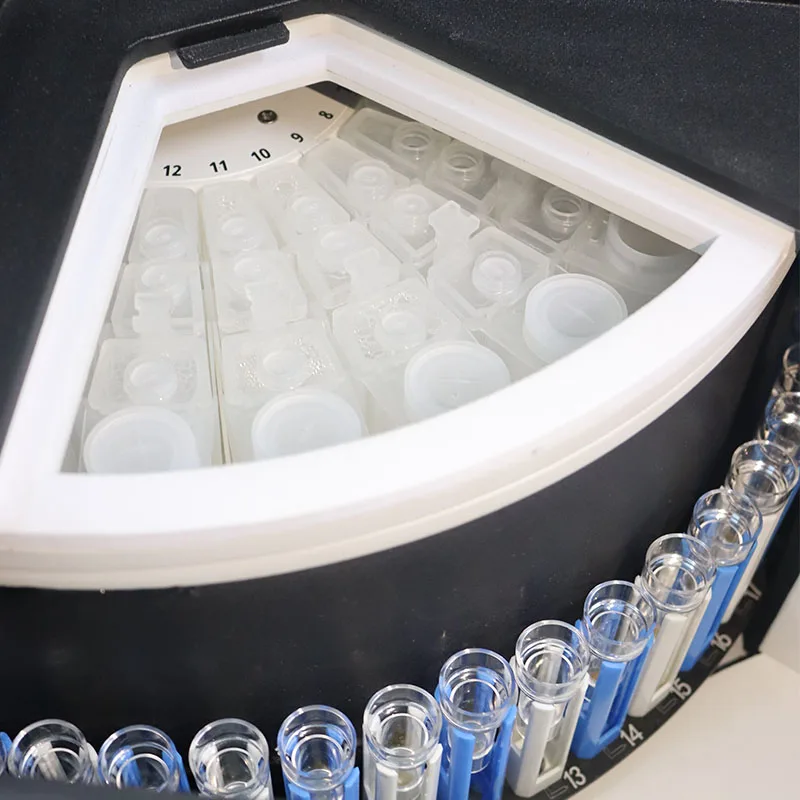

Reagent Tray

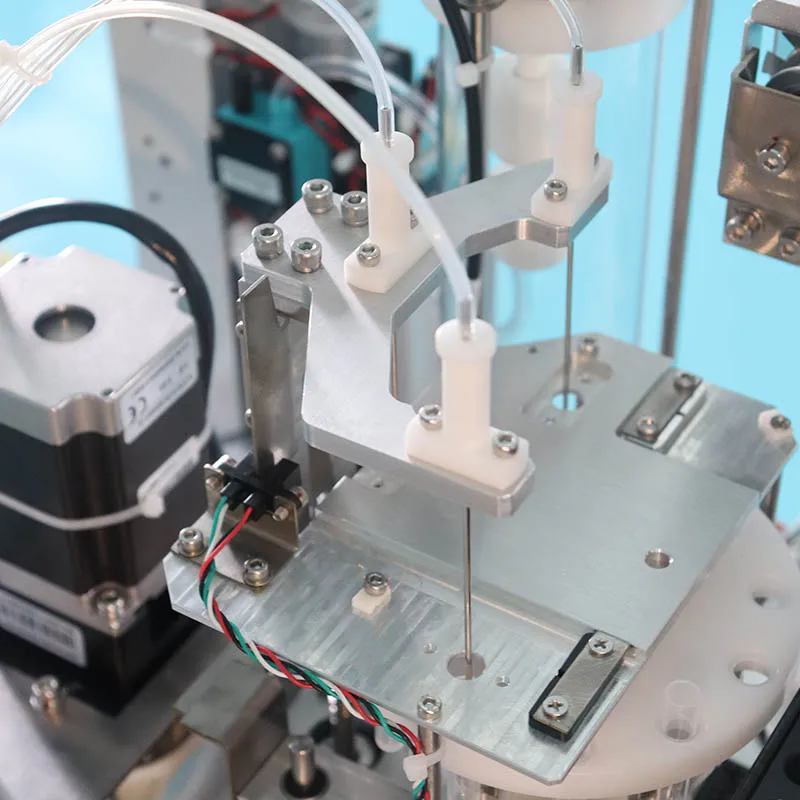

Washing and mixing module

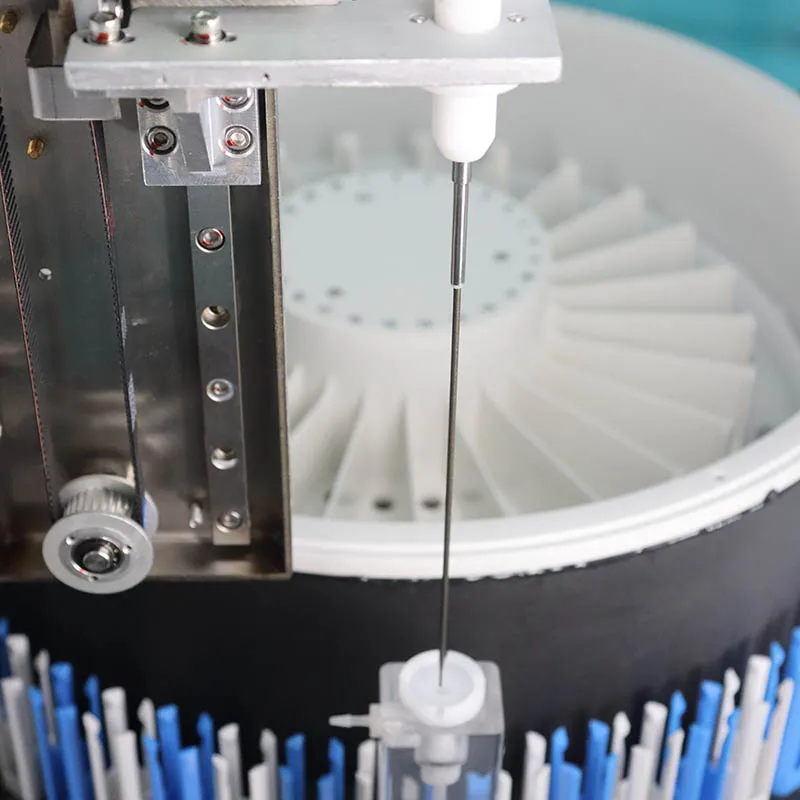

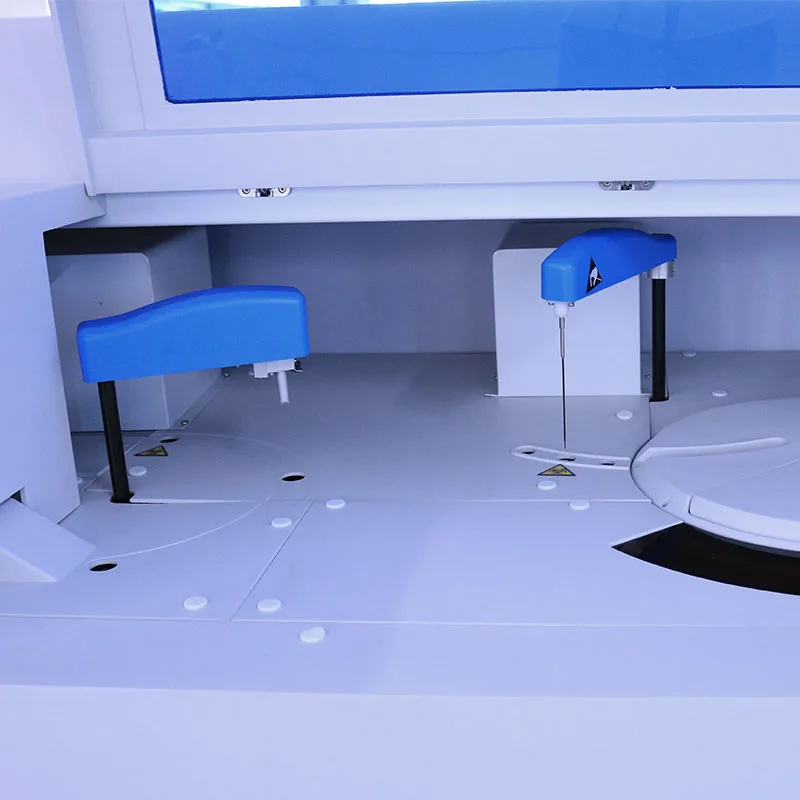

Sample Probe

1. Disc design, up to 60 samples loading capacity per batch

2. The position of sample, standard product and quality control
positions can be edited

3. Support emergency function.

1. Patented semiconductor refrigeration technology
2. Up to 30 reagent position on board with refrigeration at 2-8℃

3. Up to
30 items can be tested at the same time.

1. Three-level cleaning mode, higher cleaning efficiency;

2. Non-contact mixing to avoid cross-contamination.

1. Excellent rinsing system make carry-over ≤10-5
2. Liquid-level and blood coagulation detection system

3. Intelligent anti-collision function

4. Sampling volume: 15μl-100μl

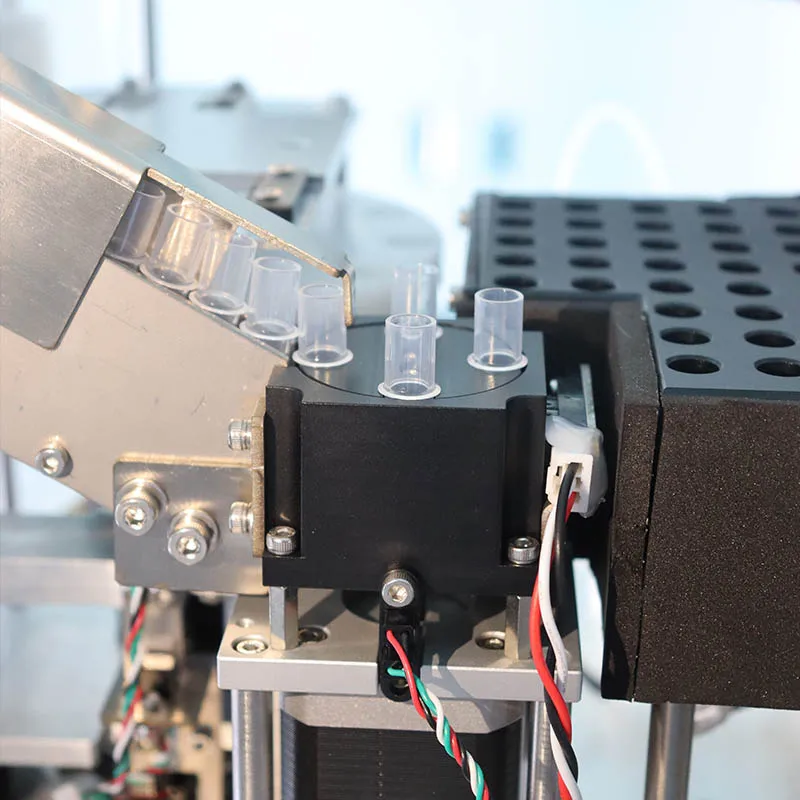

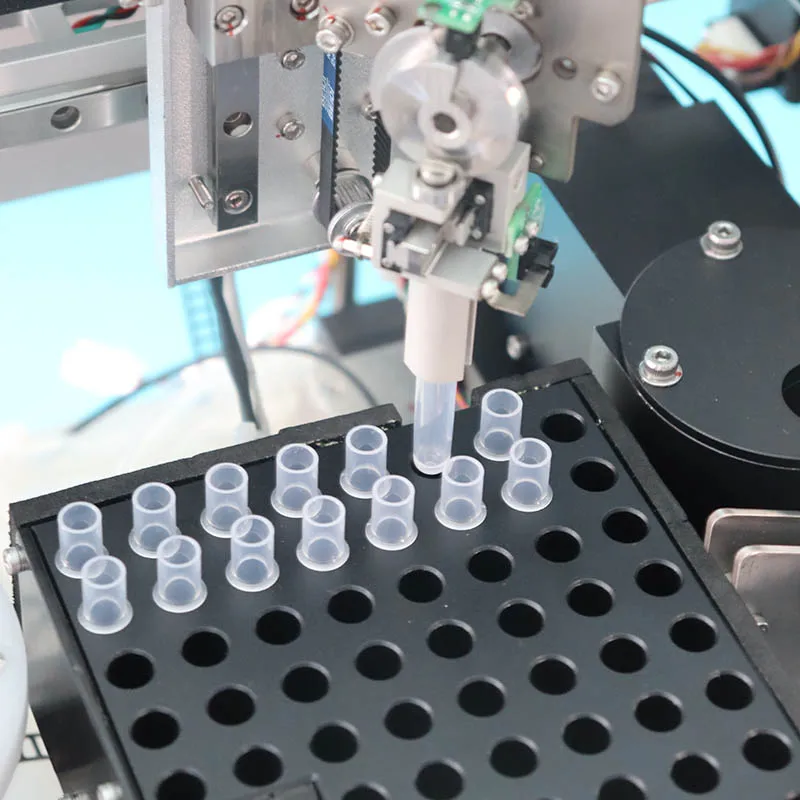

RV Loading Module

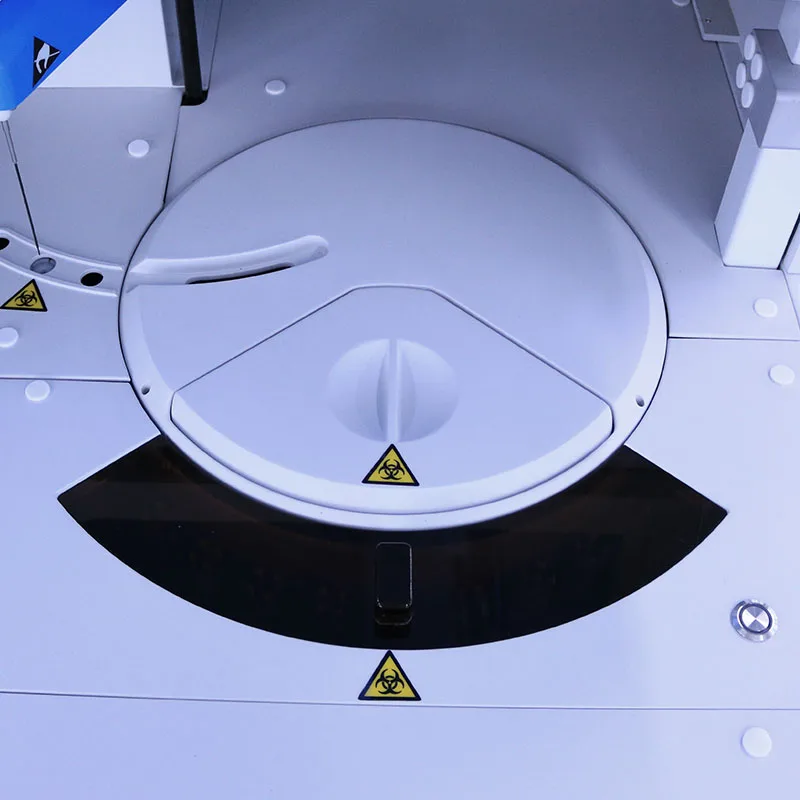

Incubation plate

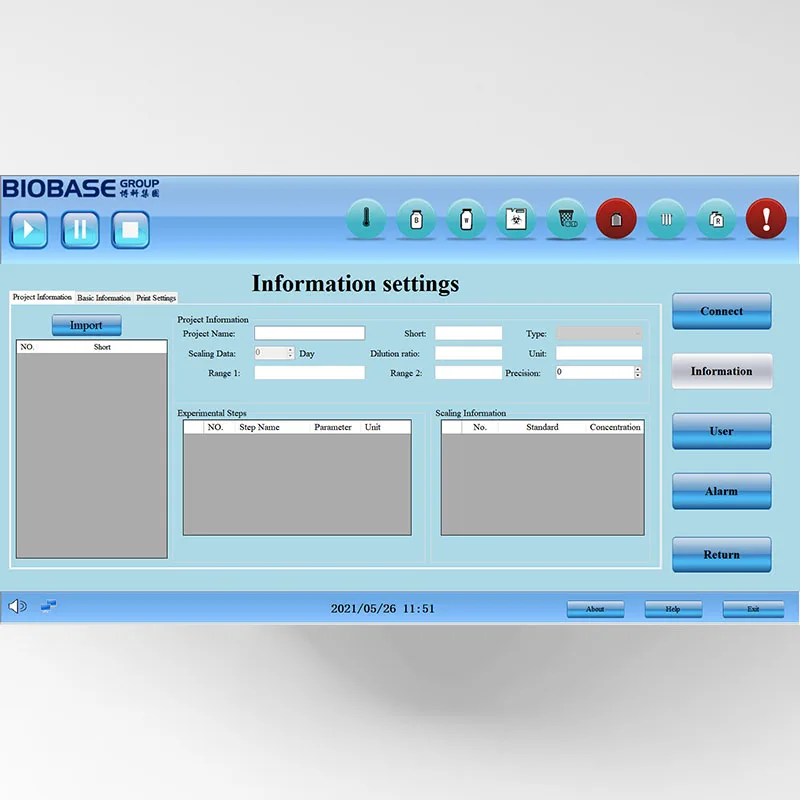

Instrument Software

1. Independent reaction vessel

2. Up to 1200 pcs per batch with continues loading

3. Automatically supply reaction vessel

4. Intelligently
detect the amount of RV

1. 80 incubation positions

2. Constant 37°C incubation

1. Flexible sample test mode: STAT function, automatic dilution, reset function, continuous loading

2. Reagent management: the remaining amount, calibration validity, expiry date management

3. Consumables management: continuous monitoring and low-level warning

4. Result management: store search, print and statistics, automatic unit conversion function

LIS/HIS connection

Auto daily ma

Model

BKI1100

BKI2200

Throughput

80T/H

120T/H

Principle

Magnetic particle enzymatic chemiluminescence

Modes of Operation

Random, Batch and STAT

Separation method

Magnetic separation technology

Sample Positions

60 (Each position could be used as an emergency position)

Reagent Positions

30 pcs (2-8℃ refrigeration)

Incubation Positions

50

80

Time to 1st Result

18 Minutes

Sample Volume

15-100μl

Detection Precision

CV≤5%

Carry-over Rate

≤10-5

Correlation Coefficient

r≥0.99

Calibration Stability

28 Days

Calibration Type

6/7-point calibration

Software system

Windows 7/8/10, 32 or 64 bit
Bi-direction, support HL7 protocol
Intuitive User Interface, Intelligent Data Management

Interface

TCP/IP Network interface

Other Function

Liquid level detection
Anti-collision function
Sample barcode scanning
Reagent radio frequency identification
Intelligent alarm prompt

Power Supply

AC110/220V，50/60Hz

External Size (W*D*H)

1120*735*513mm

1305*770*1150mm

Net Weight

130Kg

220Kg

Package Size (WD*H)

1303*873*854mm

1608*898*1534mm

Gross Weight

180kg

294kg
