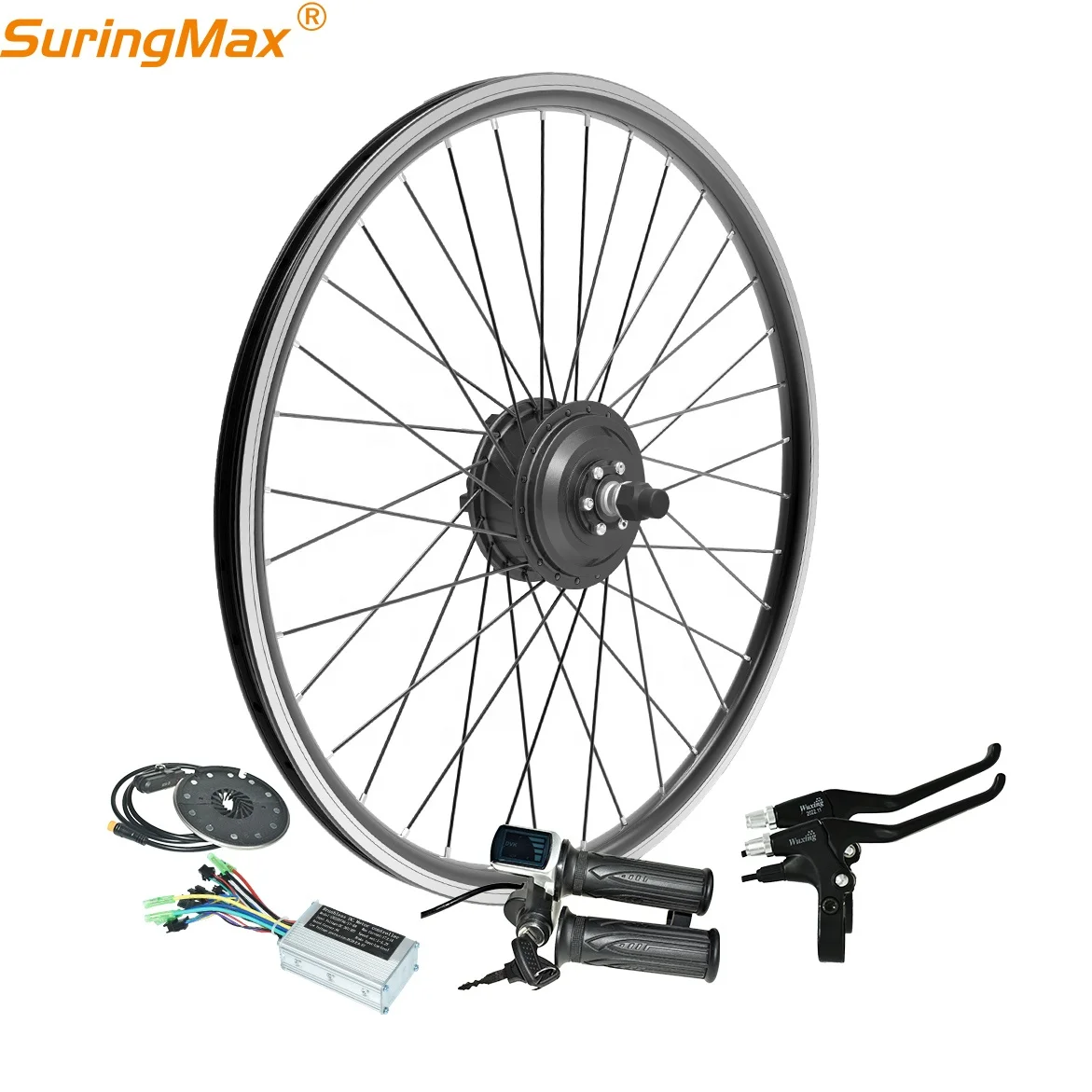

36 spokes holes ebike kit 350w 36v 250w electric bike 24v 250 watt hub motor conversion kit for cycle
- Category: >>>
- Supplier: Changzhou Suring Motor Technology Co. Ltd.
Share on (1600998103046):
Product Overview
Description
Products Description
Factory low price europe electric motor e bike complete 36V 48v 250W 350W ebike conversion kit
The price of this link is not include the battery. If you need it, please contact us. Thank you very much.
250W GEAR MOTOR PARAMETER | ||||||
POWER | 36V 250W | COLOR | Black | |||
STYLE | Brushless and gear | WEIGHT | 2.8kg | |||
MAX SPEED | 40km/h | DROPOUT | 100MM / 135MM / 138MM Cassette | |||
MAX TORQUE | 38Nm | EFFICIENCY | ≥80% | |||
CERTIFICATION | CE, EN15194, Rohs | WARRANTY | 3 years | |||
Motor | 36V 250W geared dc brushless hub motor with 9 pin waterproof cable | |||||
Battery | 36V lithium-ion battery, All battery including fuse and BMS （optional parts） | |||||

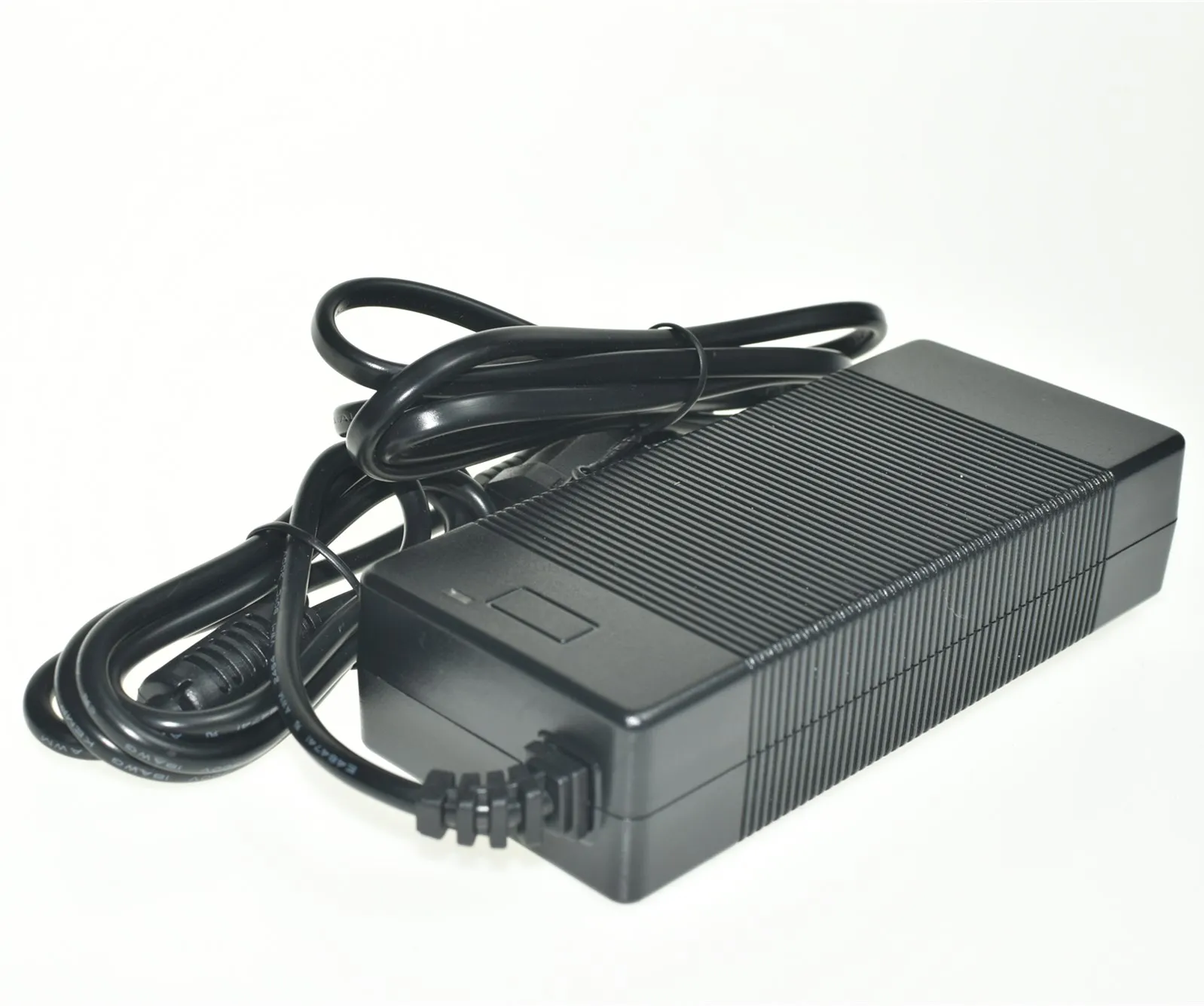

Charger | AC 100V -240V 2amps smart charger（optional parts） | |||||
Controller | 36V/14A/17A intelligent brushless controller,low voltage protection =42V | |||||
PAS | 1:1 intelligent pedal assistant system | |||||
Display | LED /LCD Display for option | |||||
Throttle | Thumb throttle/Twist throttle for option | |||||
Braking | E-brakes levers OR E-brake sensor for motor power cut off | |||||

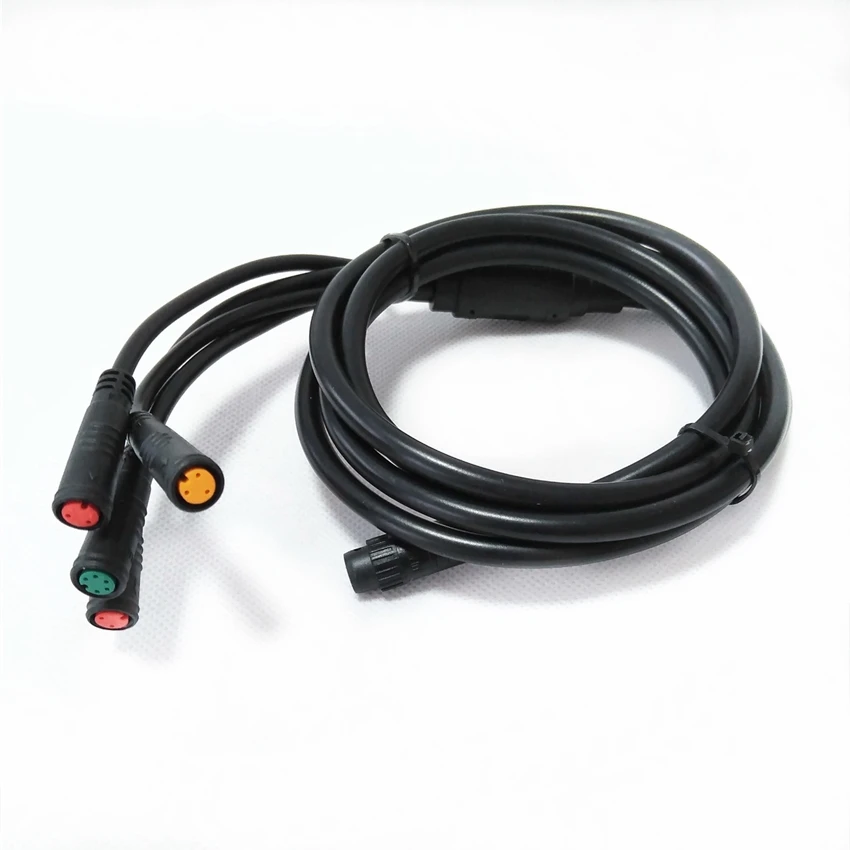

wiring | Waterproof harness or regular connection(Bullet/PP30 for motor and JST/DJ2.8 for other electric parts) | |||||
Details Images
WLCOME TO SHOW YOUR REQUIREMENTS!

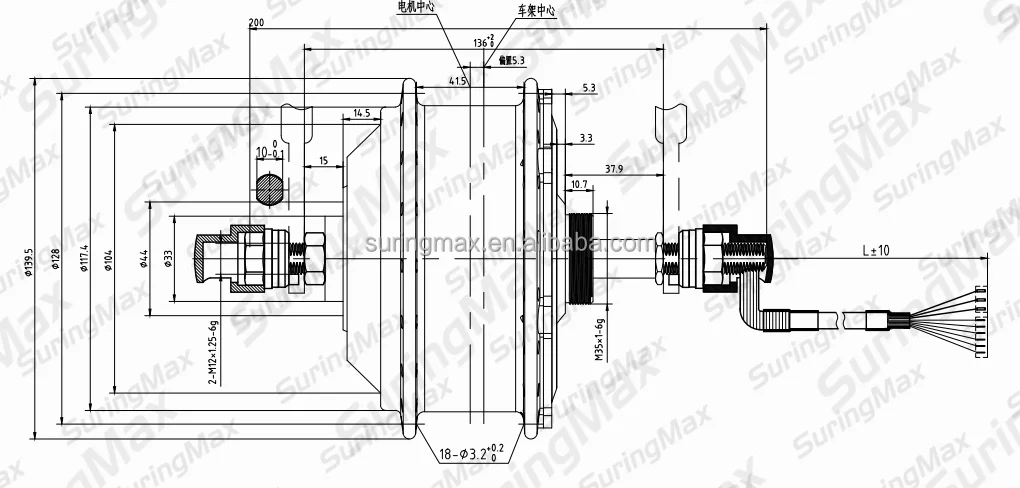

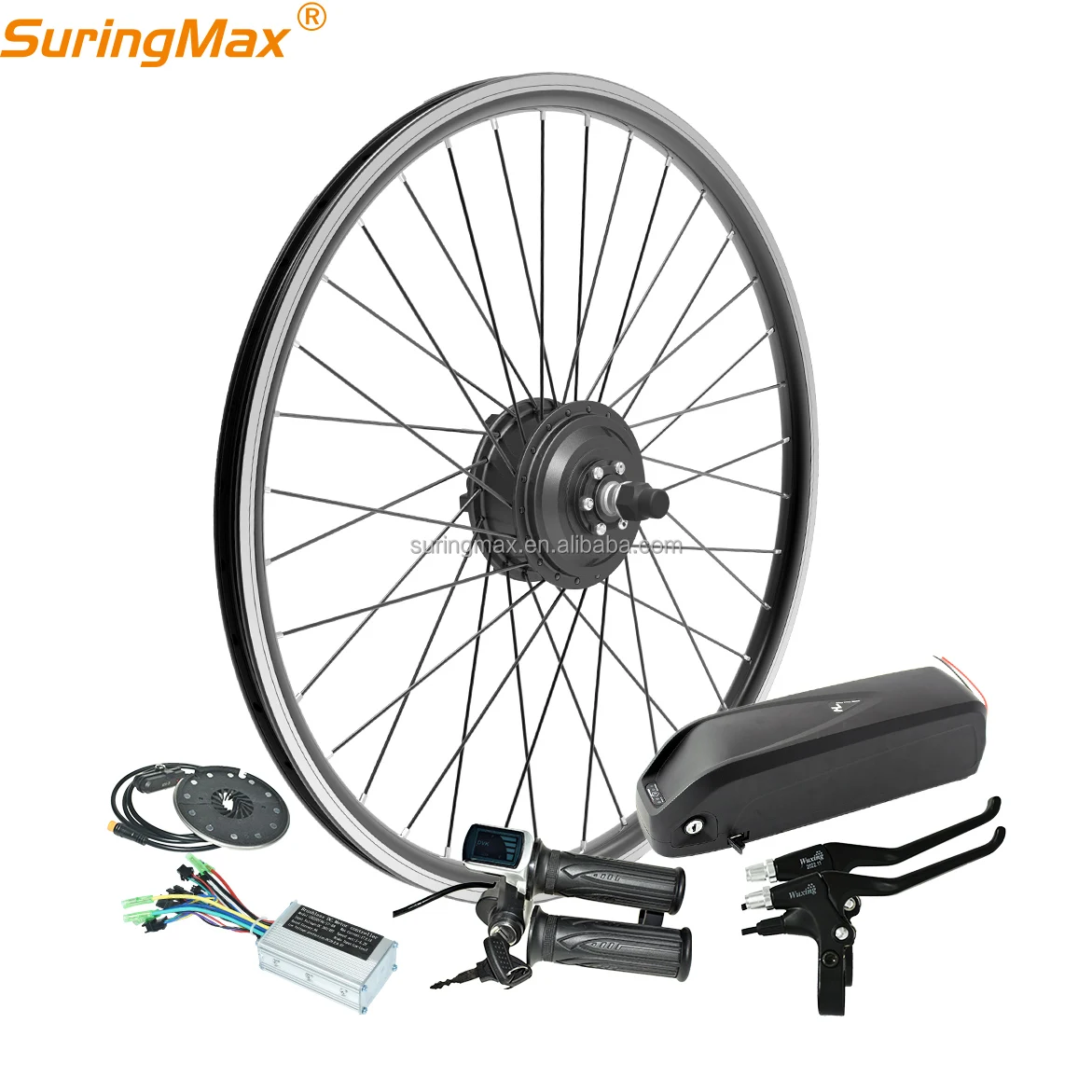

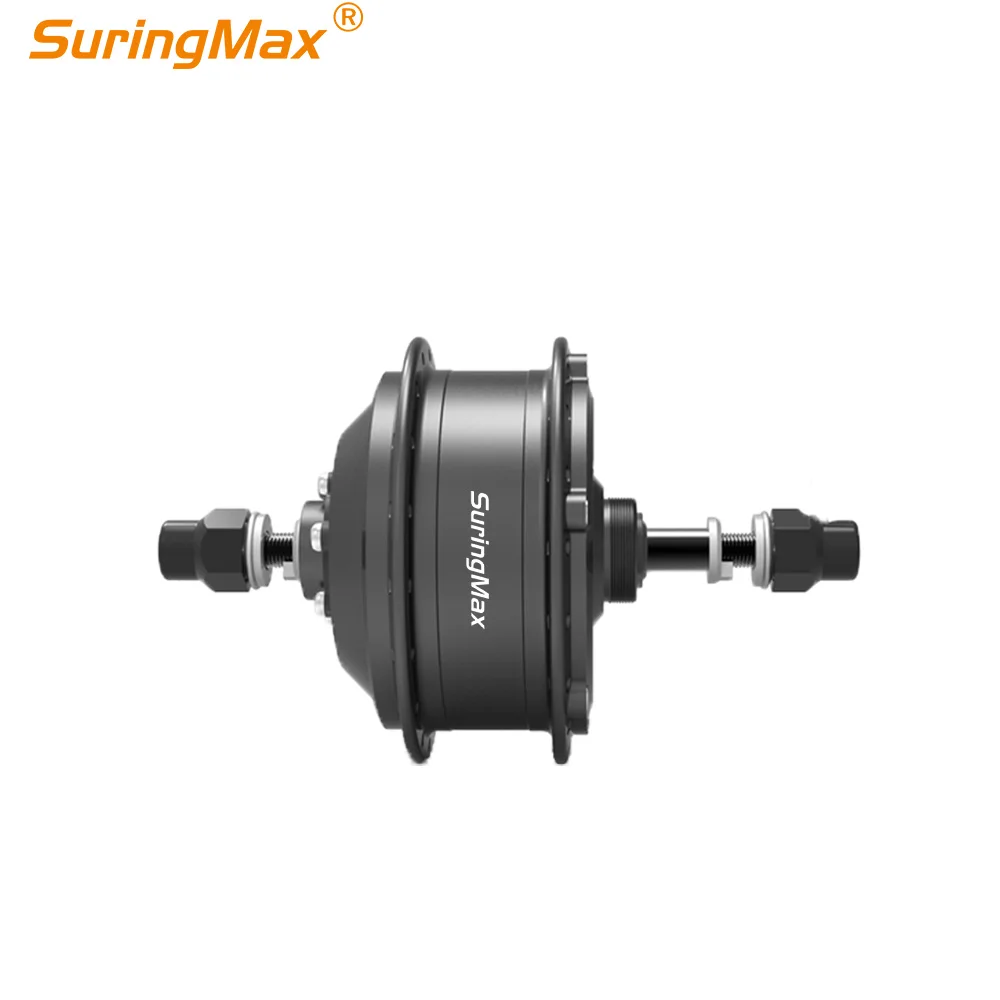

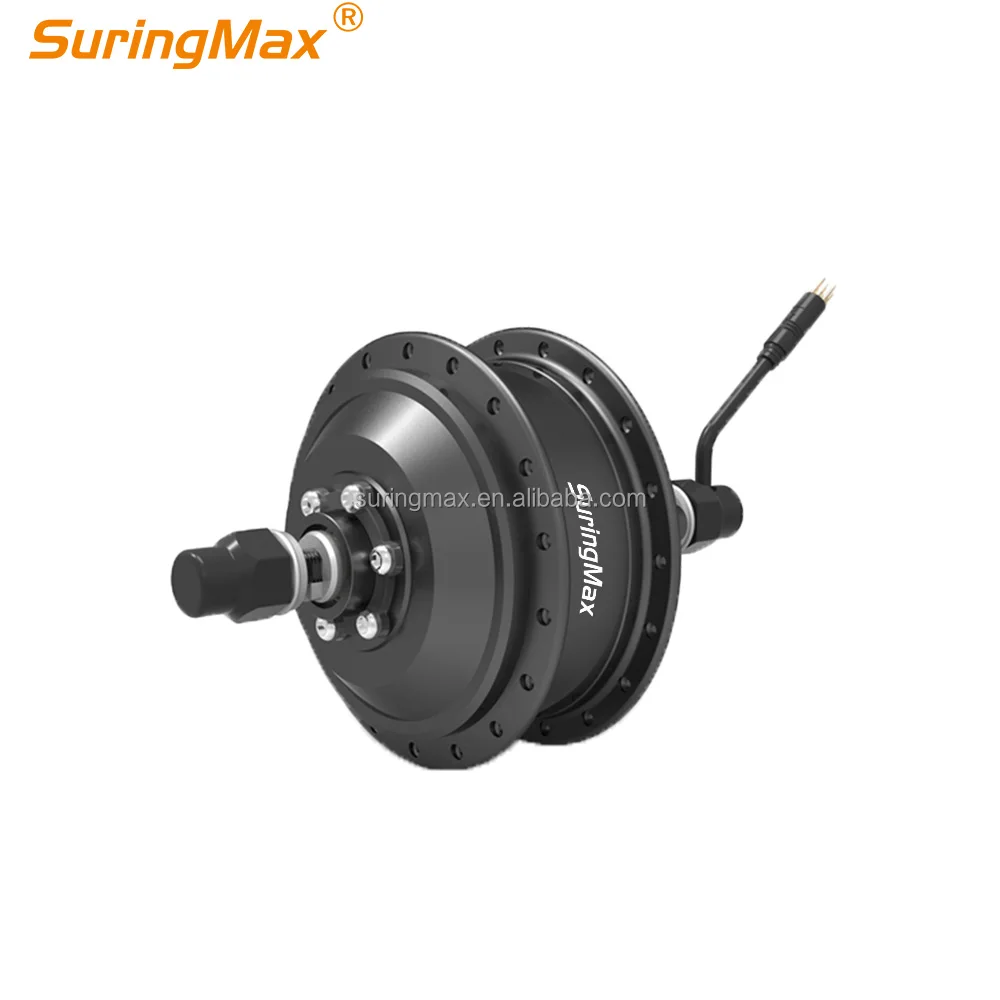

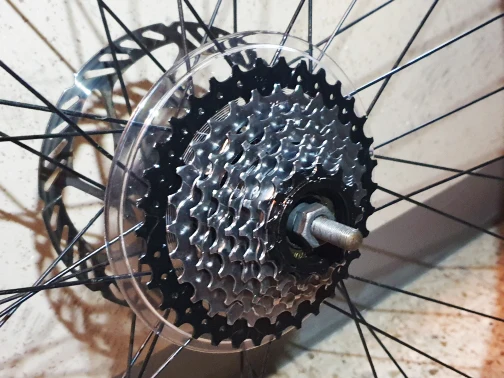

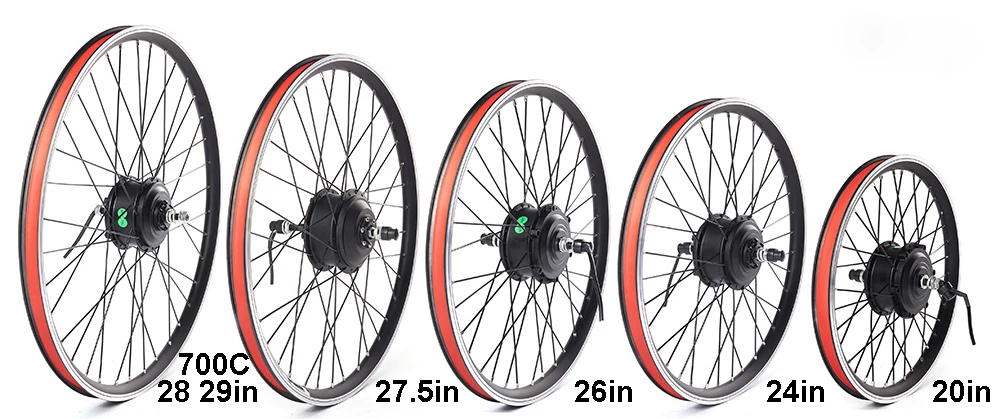

this 250w gear motor is rear version. It works from 24v-36v. These motors support 16" 18" 20" 22" 24" 26" 28" 29" and 700C rims, And we can provide rim assembling service.

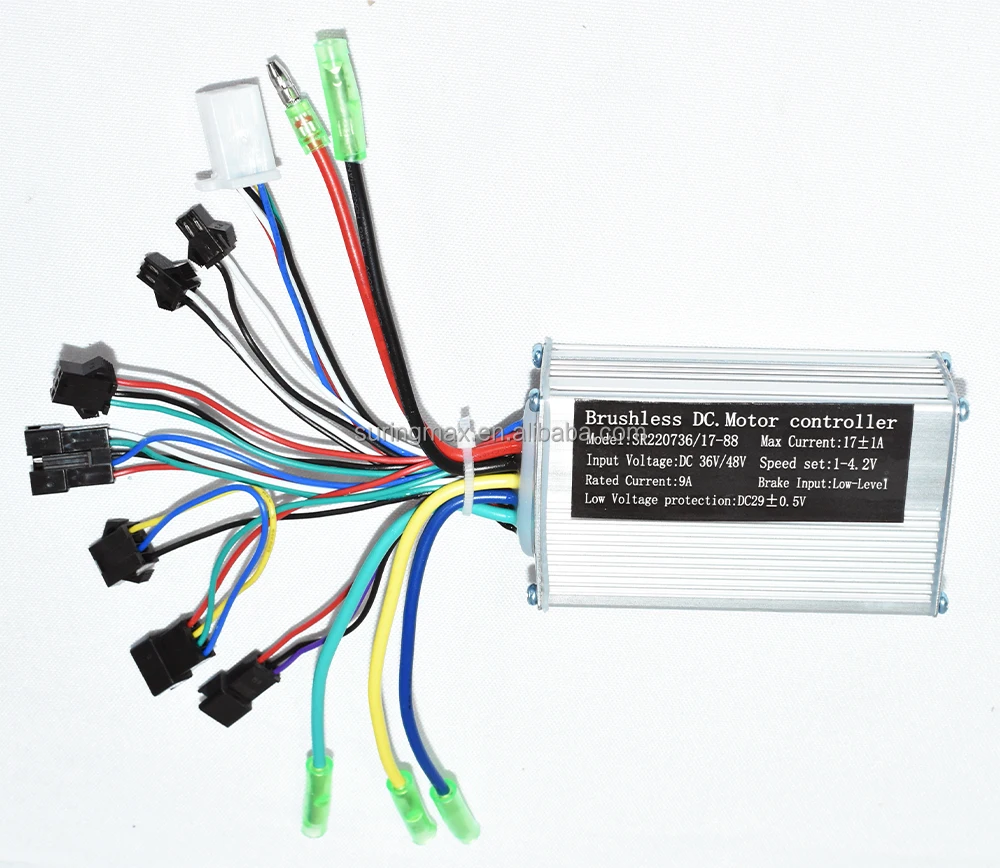

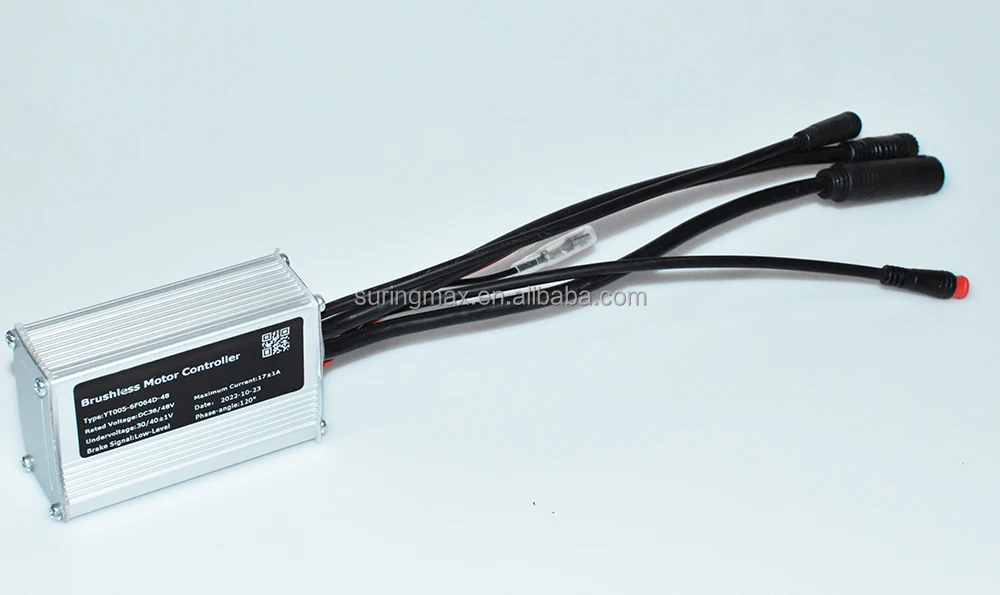

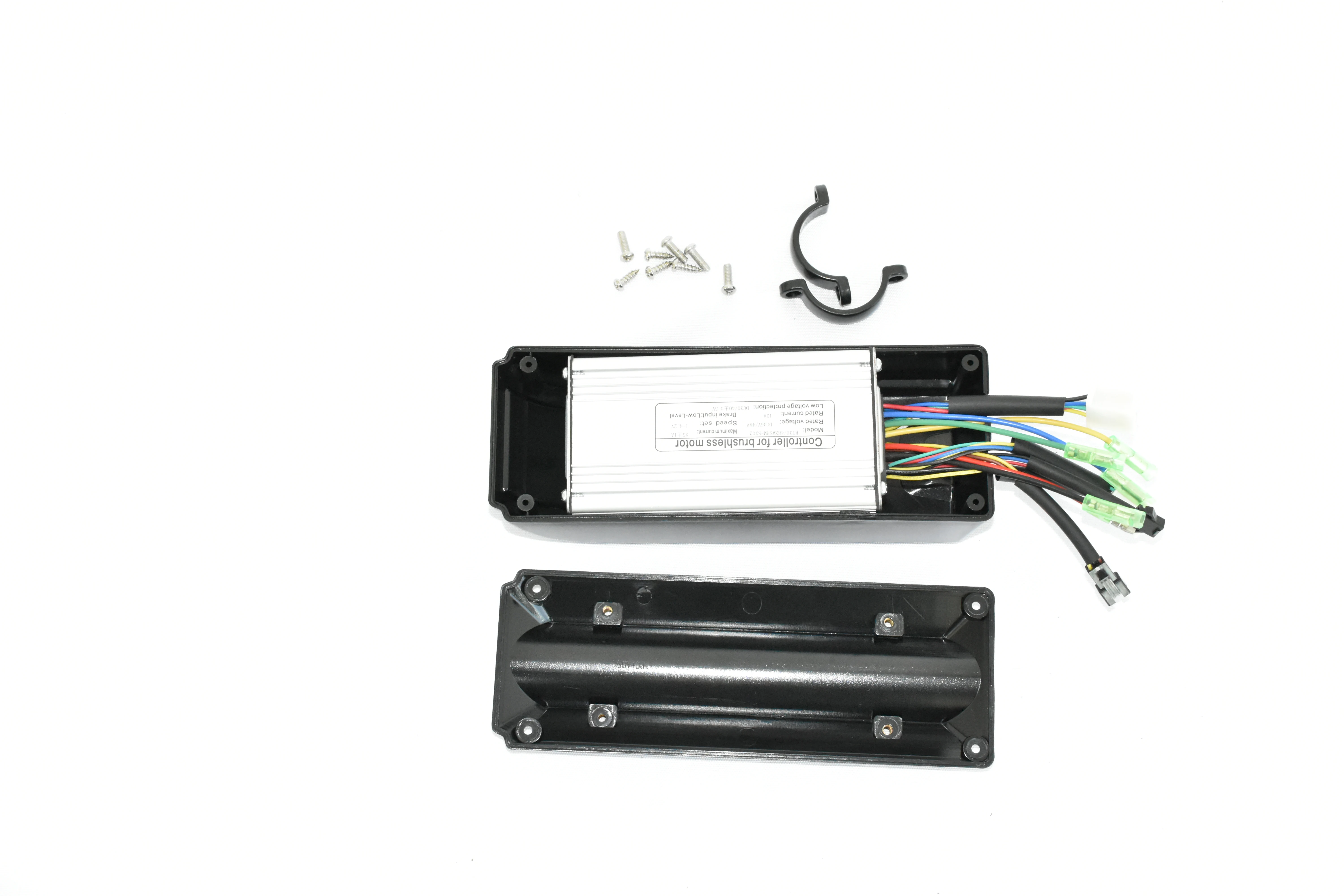

We have regular and waterproof controllers for choosing. According to your requiremnets, we will provide the most suitable one to you. From 14A - 25A, make the perfect riding experience.

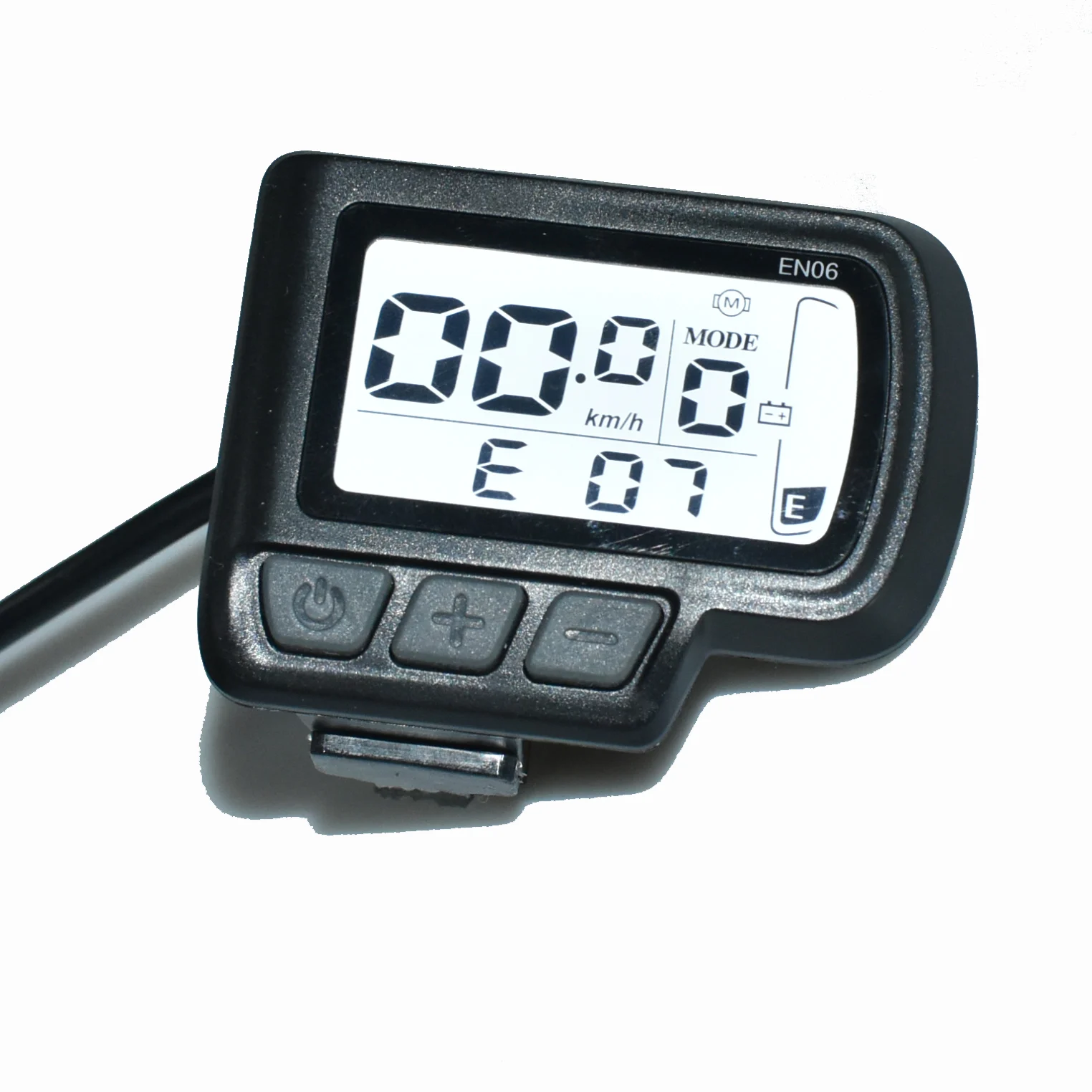

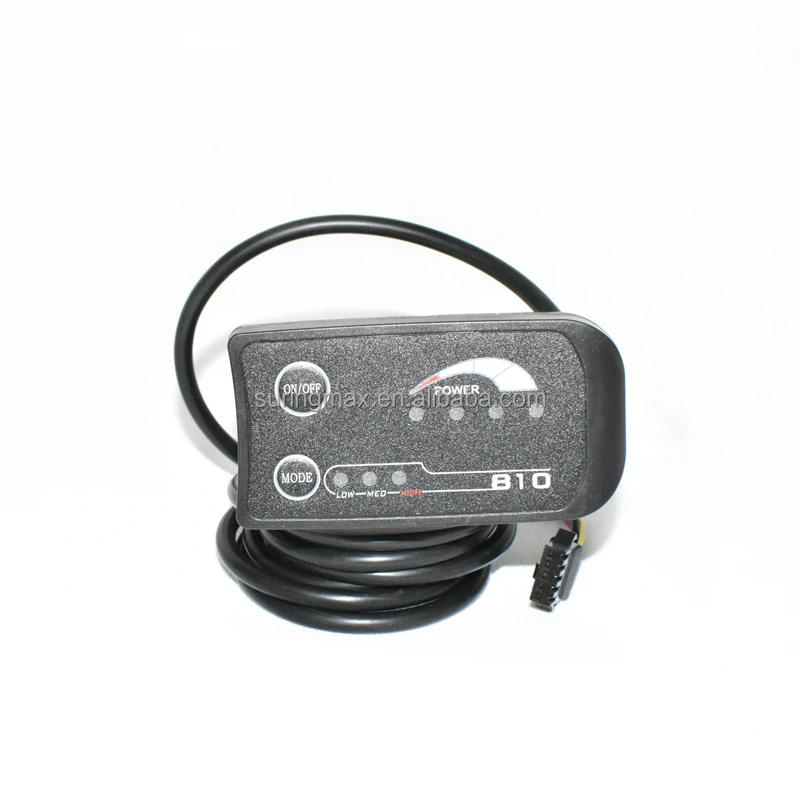

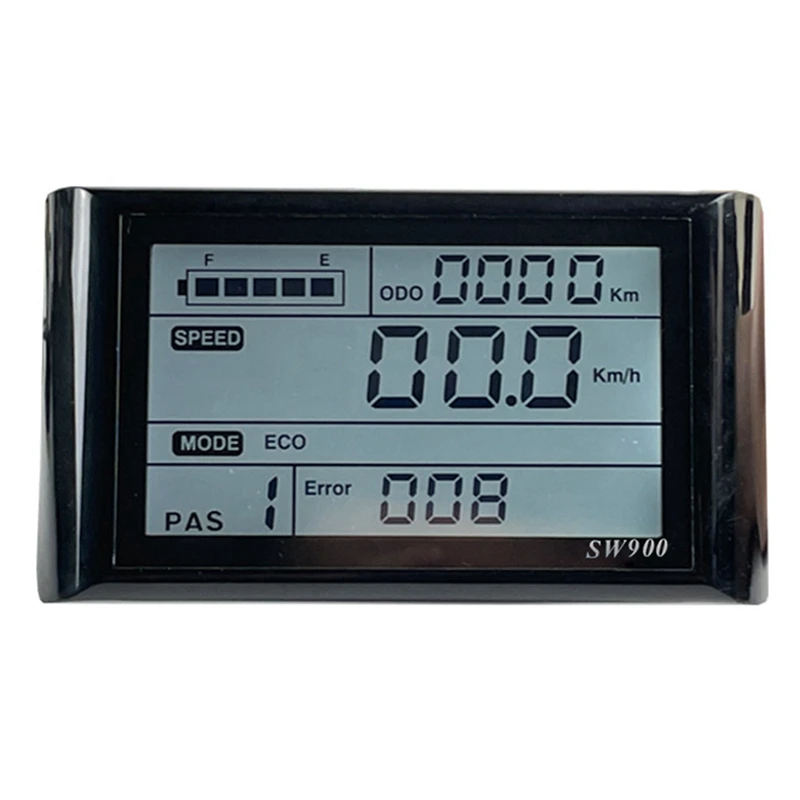

There are various displays, LED, LCD, TFT colorful screen.

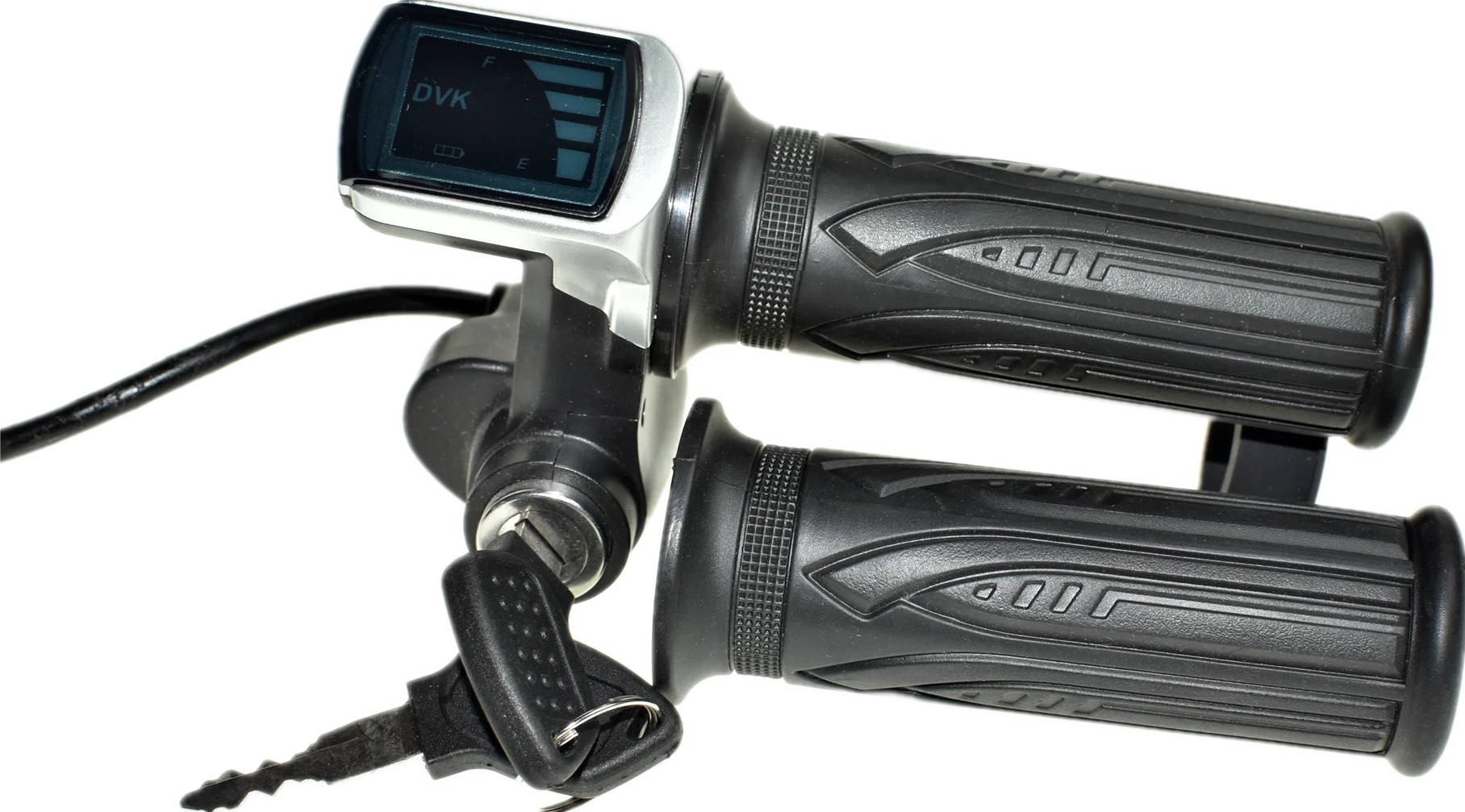

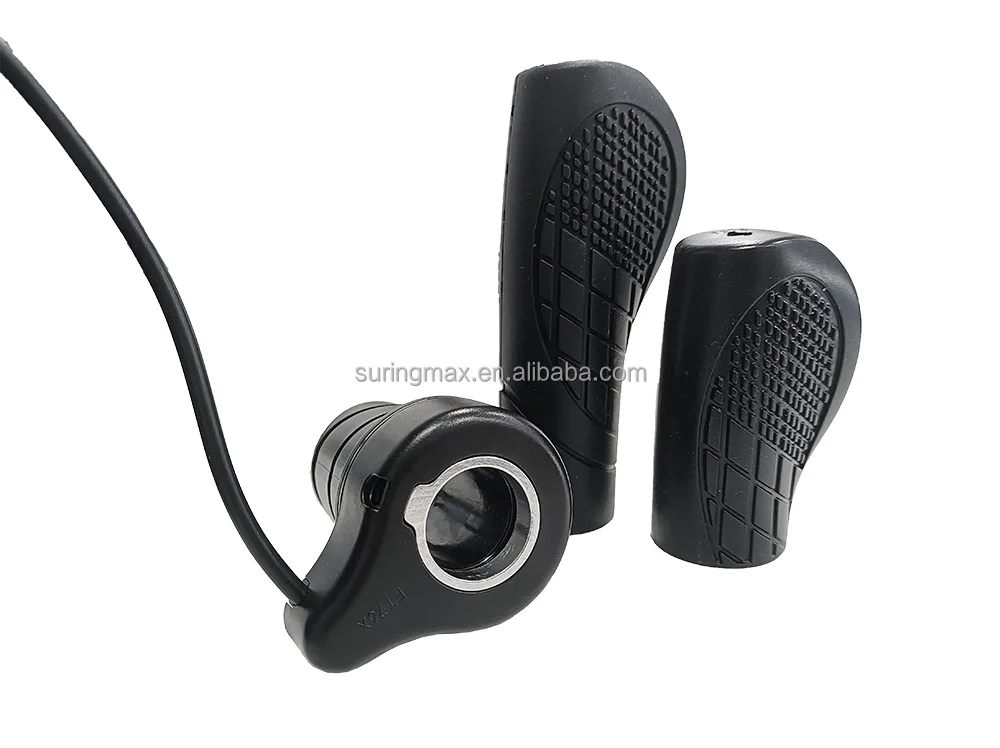

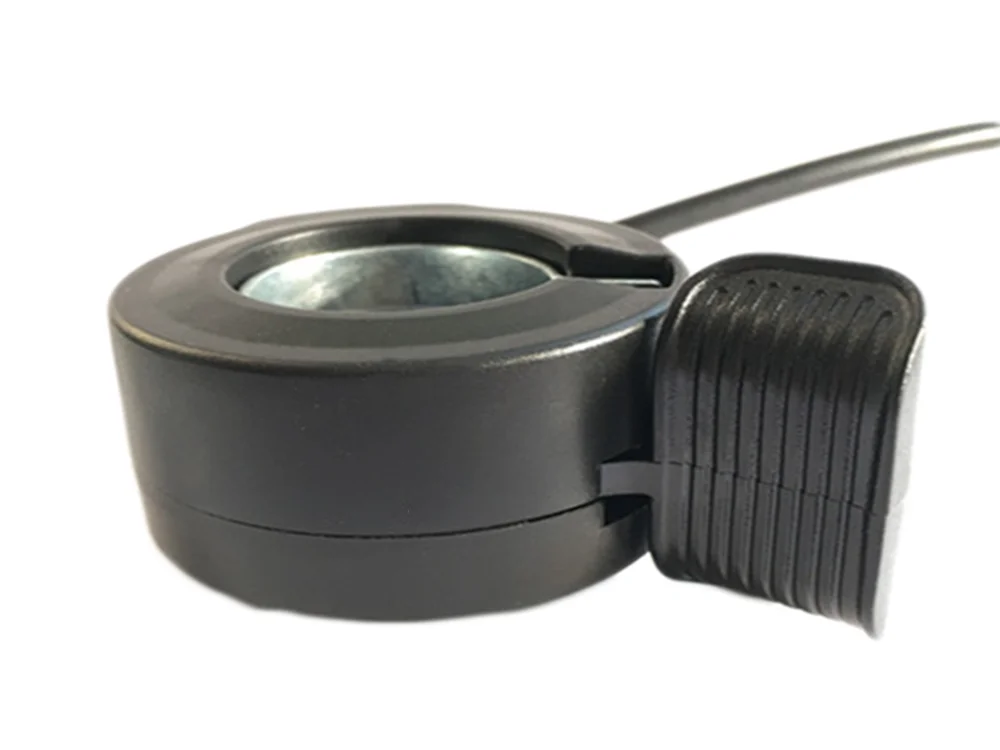

Thumb throttle, twist throttle, half twist throttle, throttle with keys, throttle with screen etc..

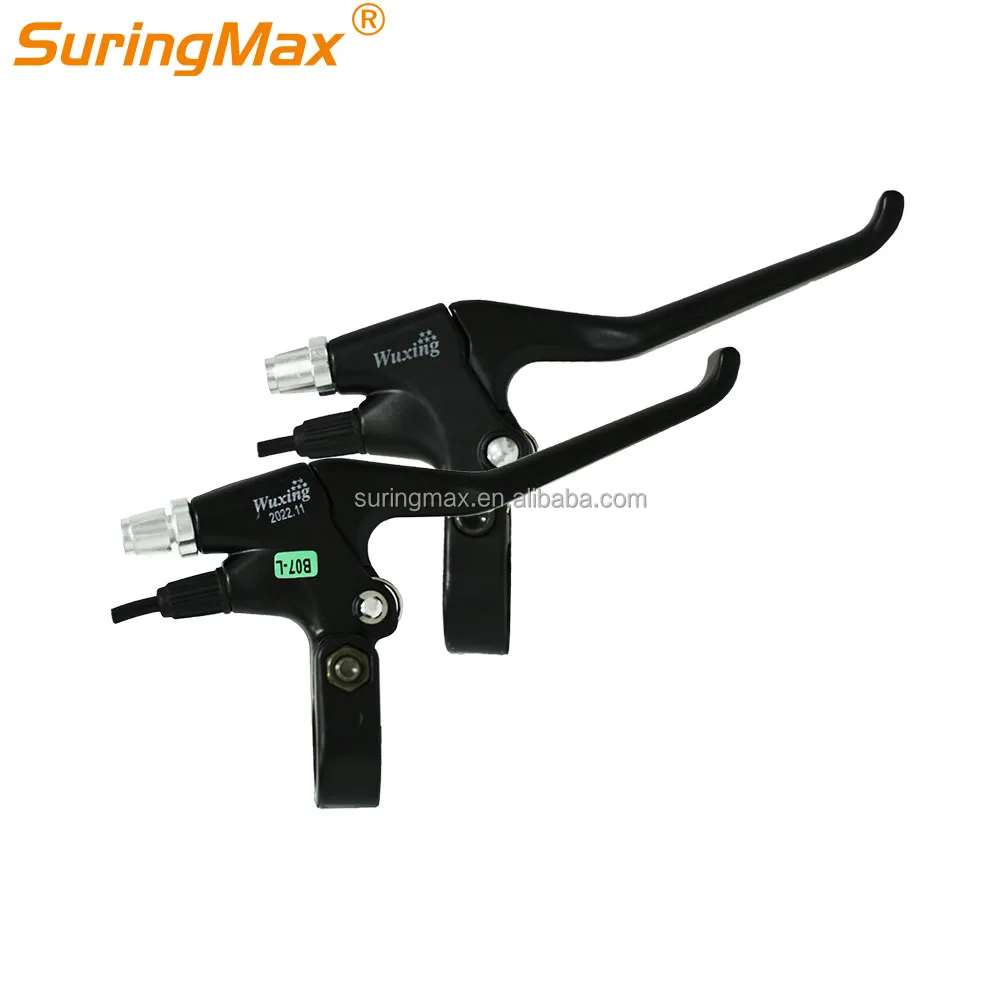

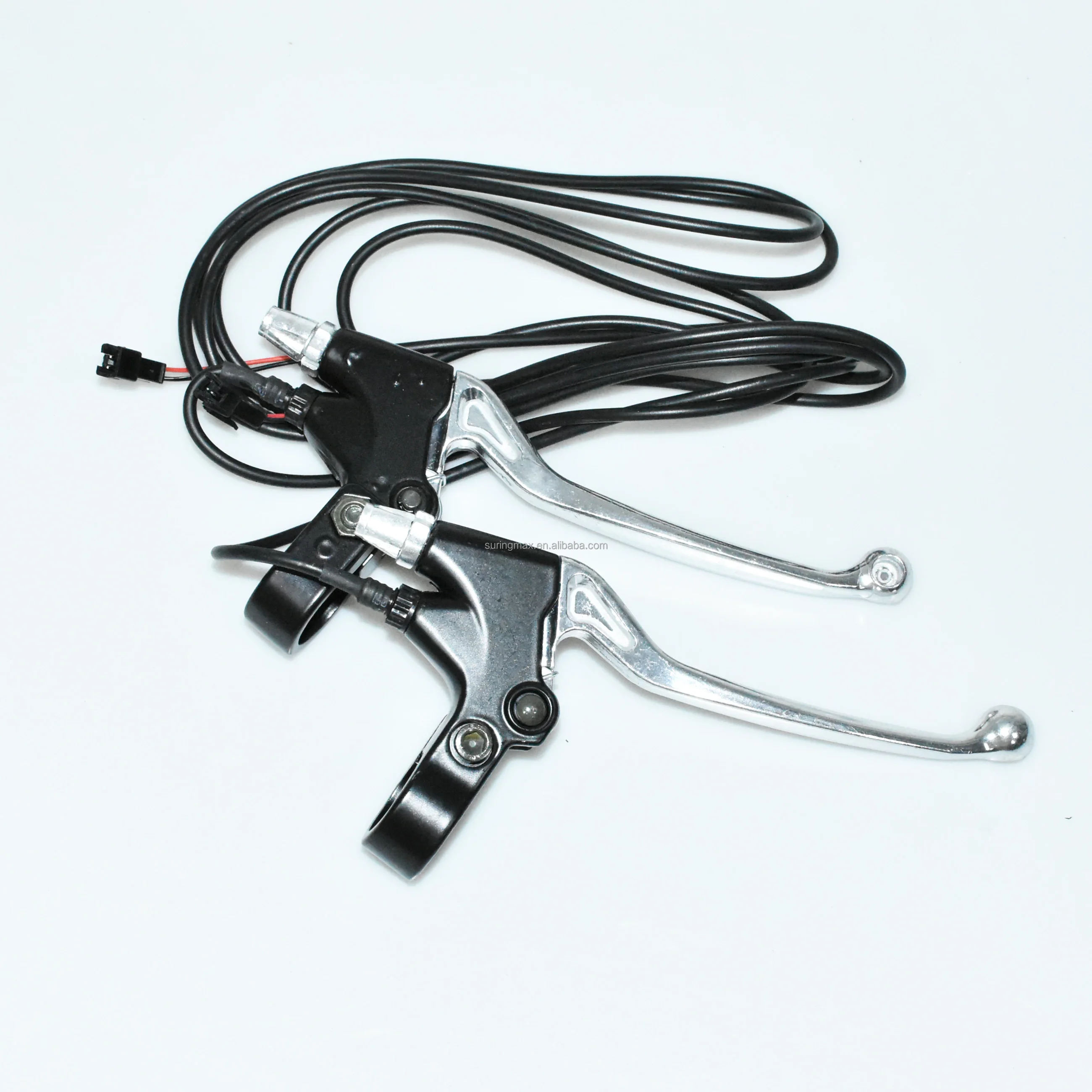

Regualr ebrake levers, Wuxing ebrake levers, brake sensors, Hydraulic brake for choosing.

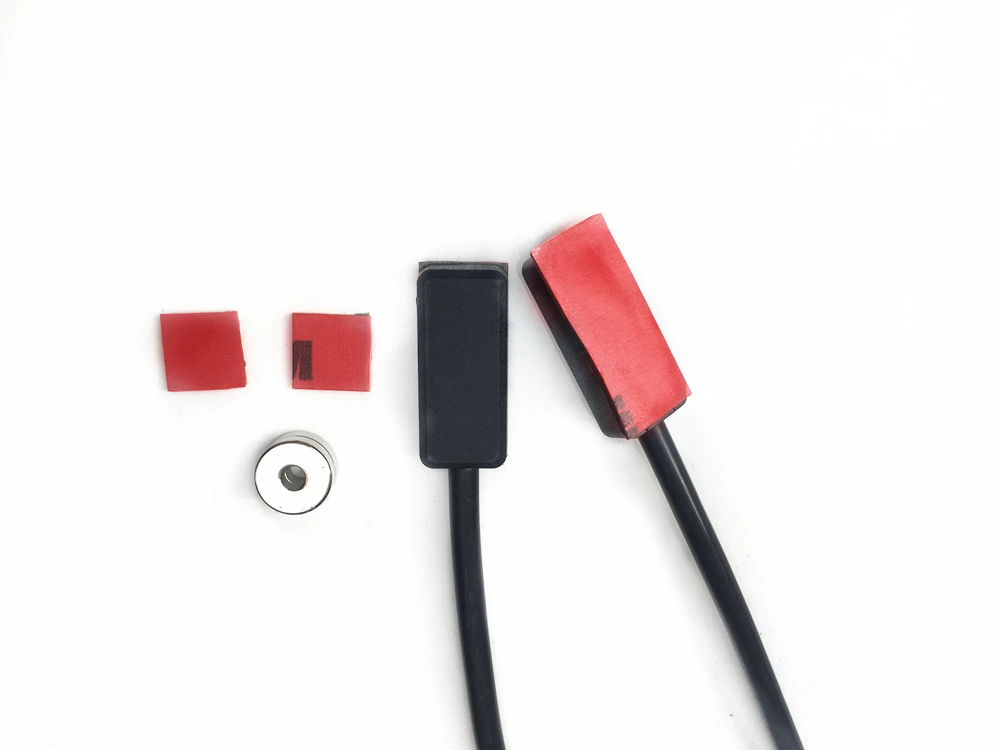

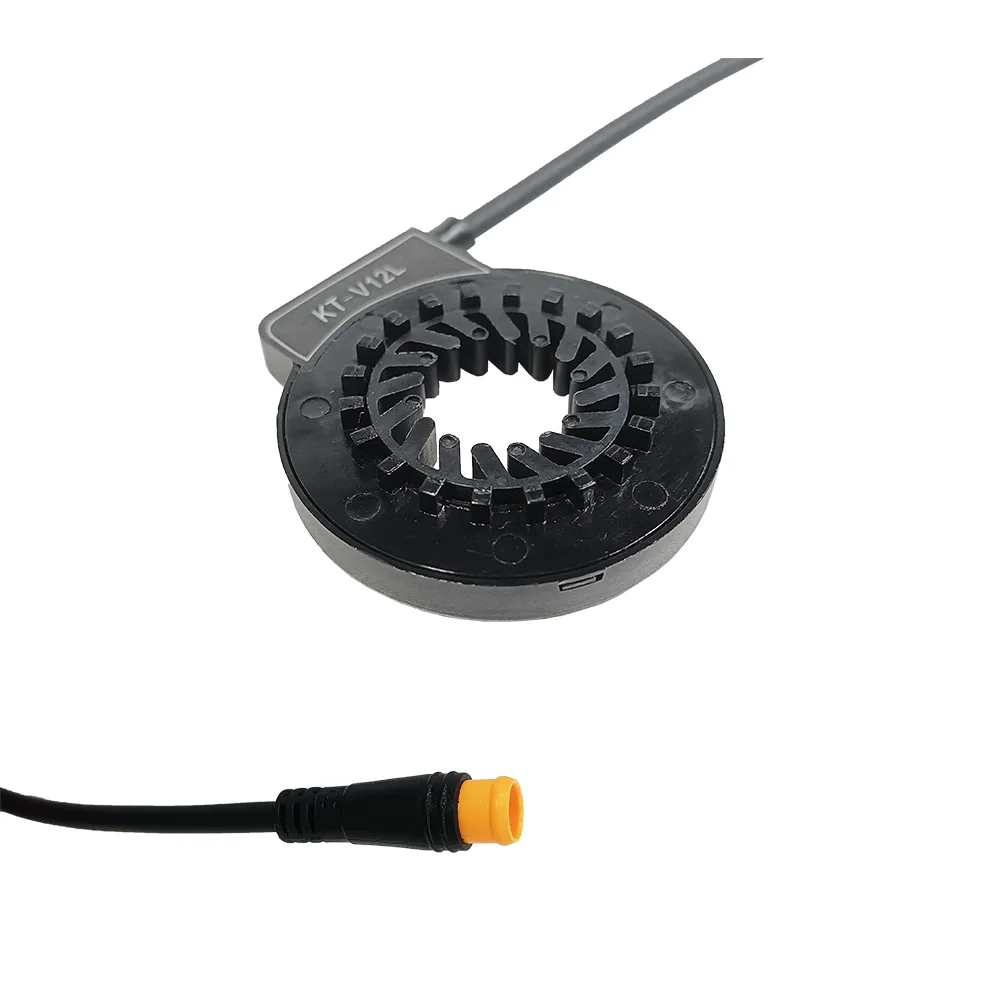

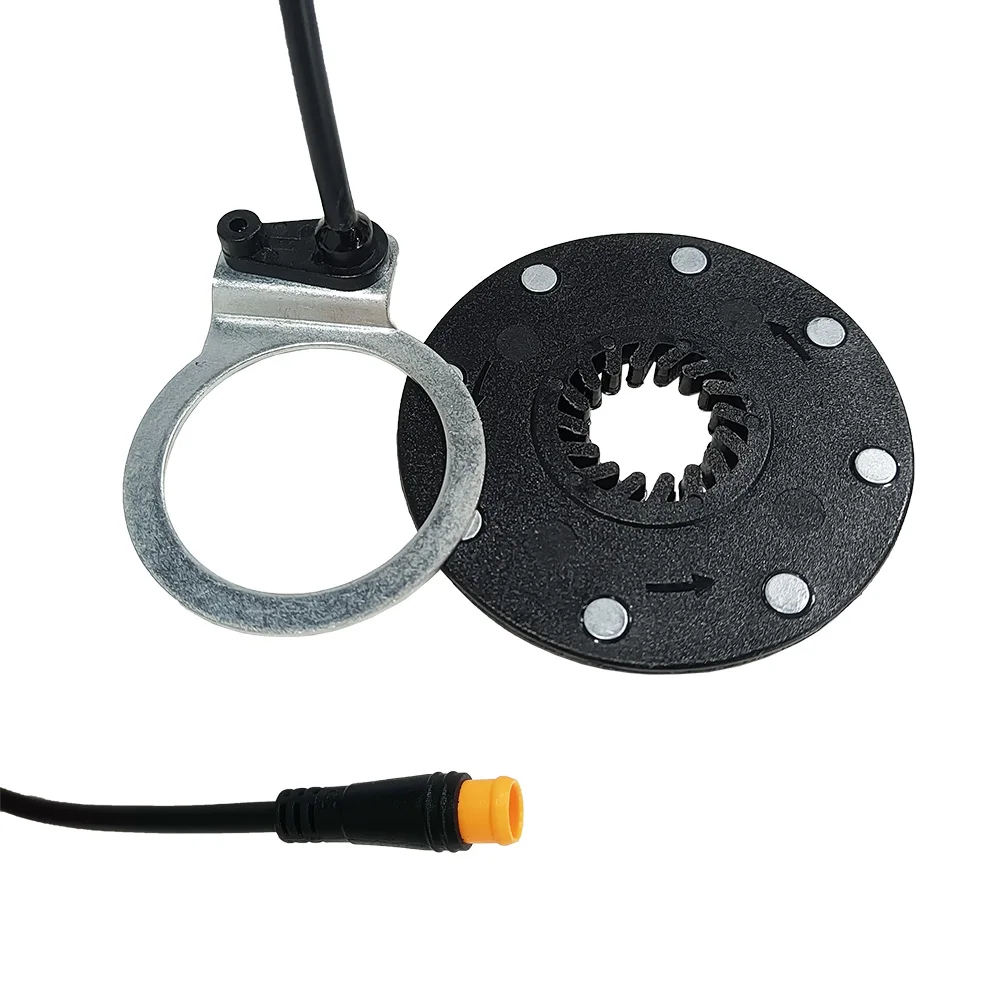

PAS: 8 magnets, 12 magnets and other types for choosing.

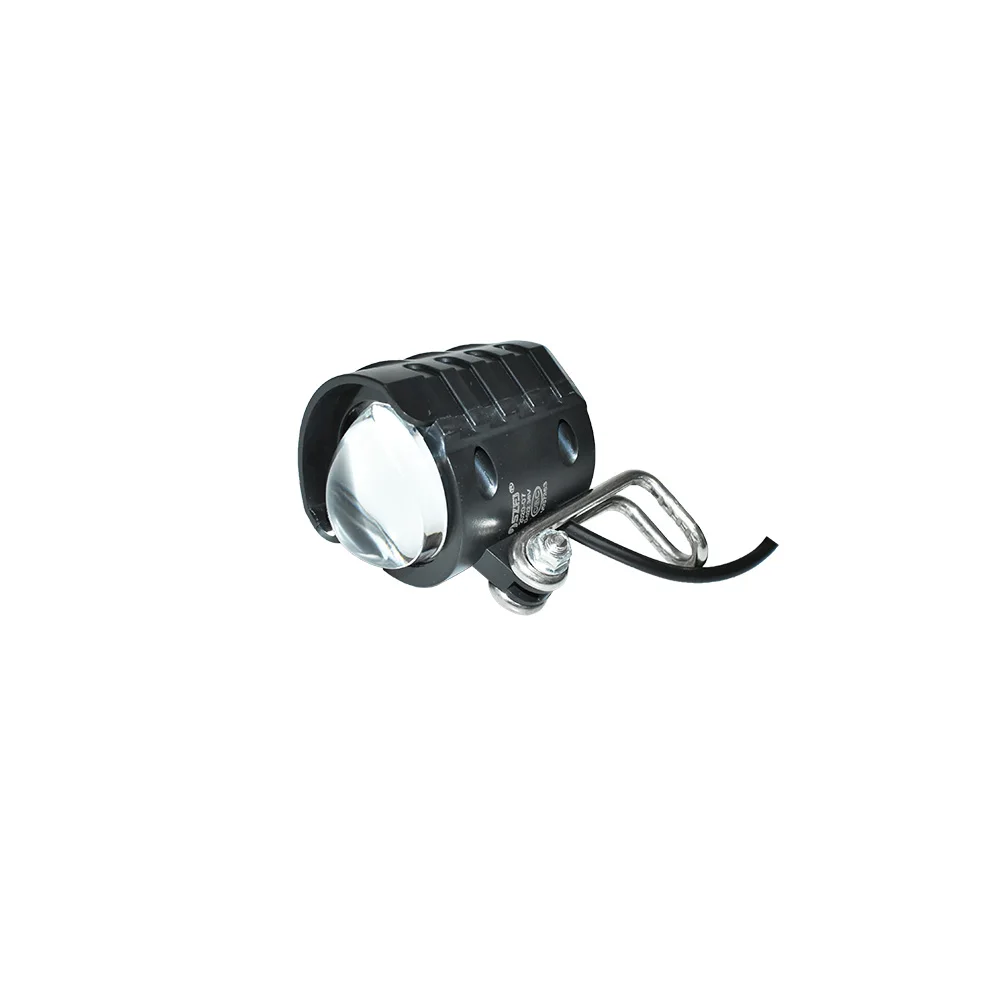

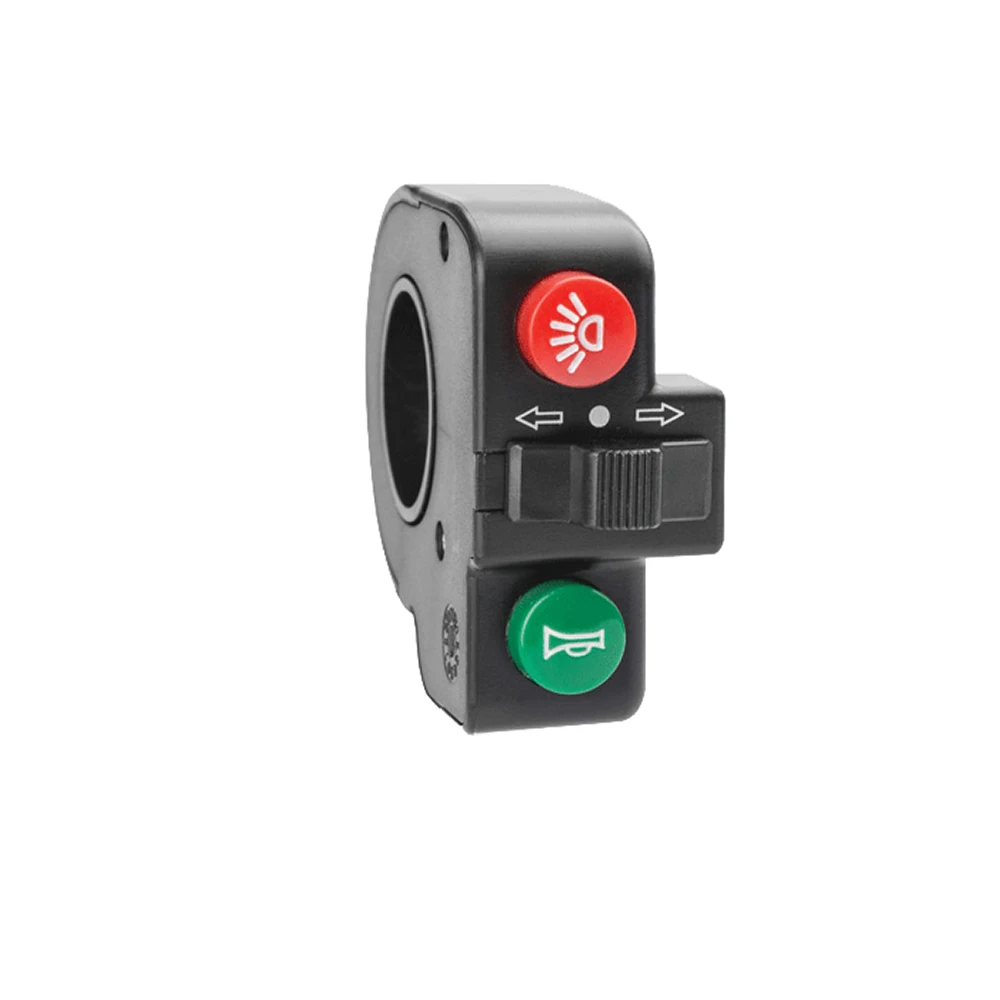

We also have other parts, like headlights, rearlights, controller cases, switches, chargers, waterproof cables, freewheels etc..
Customer Photos
Other products
Certifications
Product packaging
FAQ
1.Can we place a small order before the batch order?
--Yes.
2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes. Cause the controller and Motor belongs to the OEM products, different customers have the different request.
3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.
4.Do you provide any OEM?
Yes, we can design motor for some special request.
5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts.
--Yes.
2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes. Cause the controller and Motor belongs to the OEM products, different customers have the different request.
3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.
4.Do you provide any OEM?
Yes, we can design motor for some special request.
5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts.
