Product Overview
Description
Products Overview
Stainless Steel Tube Roll Forming Machine comprised of 3T manual uncoiler, feeding guiding, roll forming machine, straighten device, cutting equipment, electrical controlling system, output table.
Technical Parameter:
1. Machine specification: forming thickness 0.2mm-1.2mm galvanized coils
2. Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 20 stations
4. Main motor power: 5.5KW*2
5. Roller material: 45# forged steel, surface coated with chrome
6. Main shaft material: 45# steel
7. Main axis dia.: ￠60mm
8. Hydraulic cutting pressure: 10-12Mpa
9. Cutting method: hydraulic powered, cutting after roll forming.
10. Cutting blade material: Cr12 quenching treatment
11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
12.Way of Drive: Gearbox
2. Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 20 stations
4. Main motor power: 5.5KW*2
5. Roller material: 45# forged steel, surface coated with chrome
6. Main shaft material: 45# steel
7. Main axis dia.: ￠60mm
8. Hydraulic cutting pressure: 10-12Mpa
9. Cutting method: hydraulic powered, cutting after roll forming.
10. Cutting blade material: Cr12 quenching treatment
11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
12.Way of Drive: Gearbox
Serial No. | Commodity & Description | Quantity |

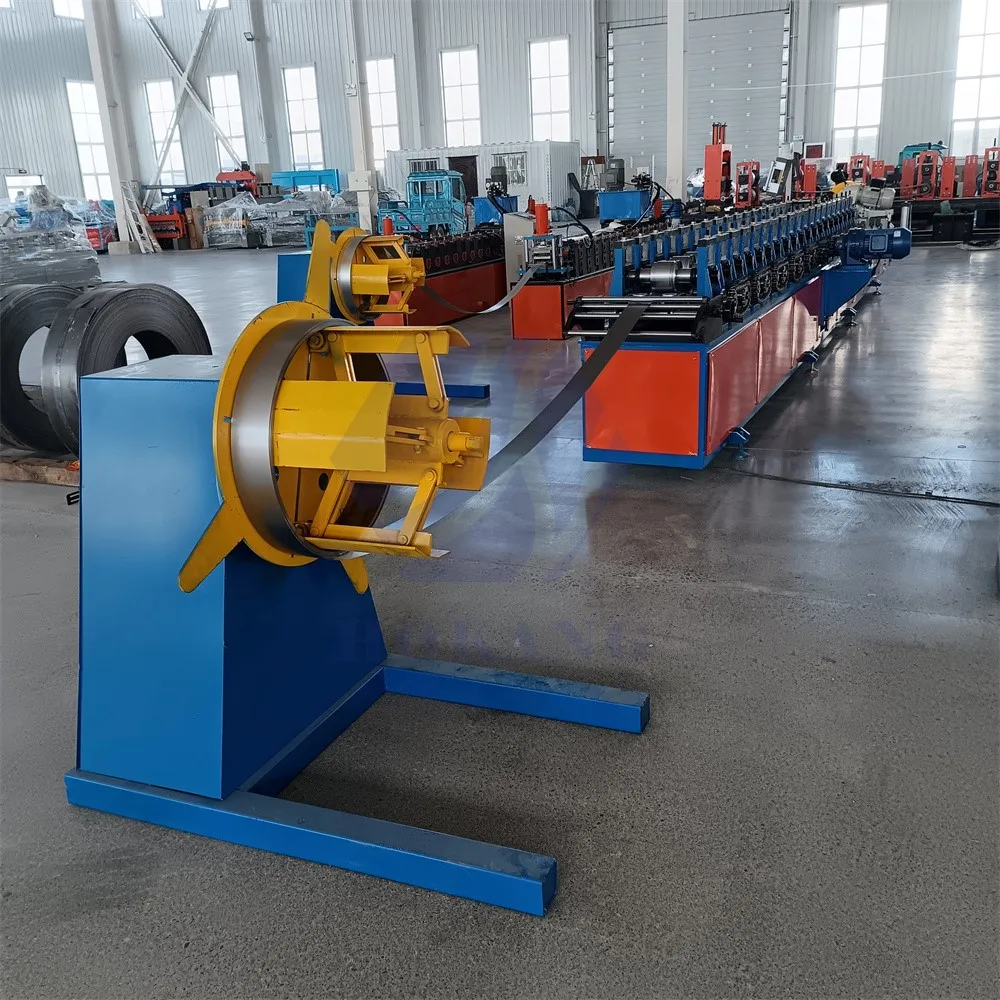

1 | 3T manual un-coiler | 1 set |
2 | feeding guiding | 1 set |
3 | Main roll forming machine | 1 set |
4 | Output table | 1 set |
5 | Main drive | 1 set |
6 | Servo Following Cutting | 1 set |

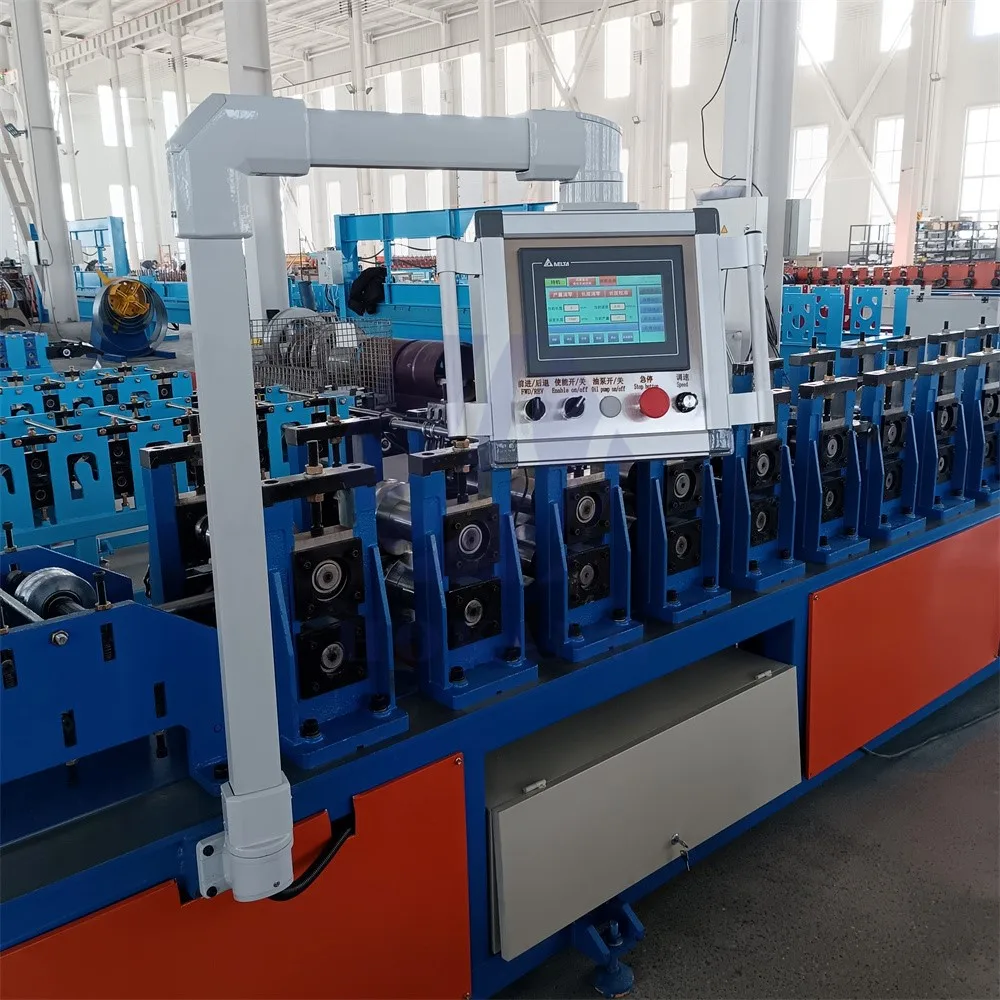

7 | Controlling system (including cabinet) | 1 set |
Working Process :
Uncoiling – feed Guiding–Roll forming –fly saw cutting –Run-out table
Specification
Model | Pipe Diameter | Pipe Thickness | Drive Motor | Dimension | Horizontal shaft diameter | Vertical shaft diameter |
HK-40 | φ8-51mm | 0.3-2.2mm | 7.5kw+5.5kw | 29m*1.5m | 40mm | 30mm |
HK-50 | φ25-76mm | 0.4-2.5mm | 7.5kw+5.5kw | 32m*1.5m | 50mm | 30mm |
HK-60 | φ50-114mm | 0.5-3.0mm | 15kw+15kw | 35m*1.8m | 60mm | 30mm |
HK-80 | φ89-168mm | φ89-168mm | 18.5kw+18.5kw | 40m*2.5m | 80mm | 50mm |
HK-100 | φ114-219mm | φ114-219mm | 22kw+22kw | 43m*3.0m | 100mm | 60mm |
HK-120 | φ168-325mm | φ168-325mm | 37kw+37kw | 48m*3.0m | 120mm | 80mm |
Product Details

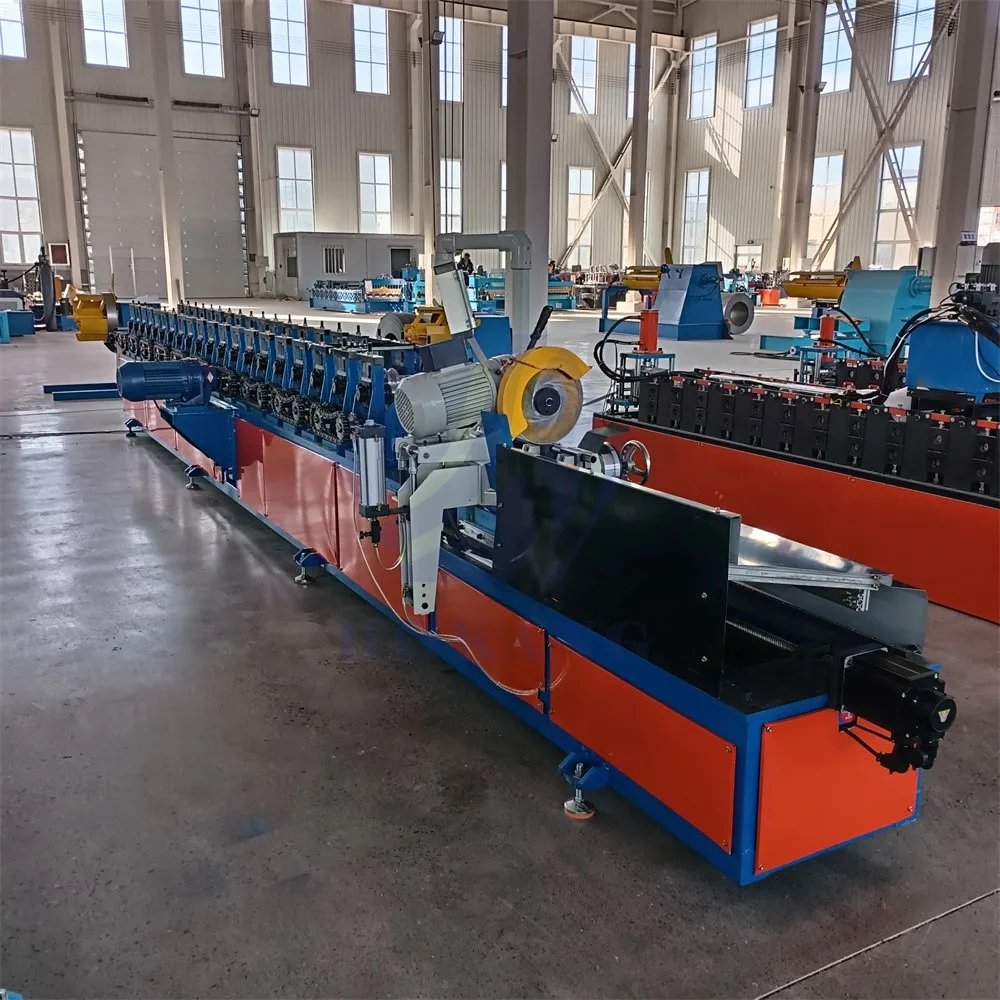

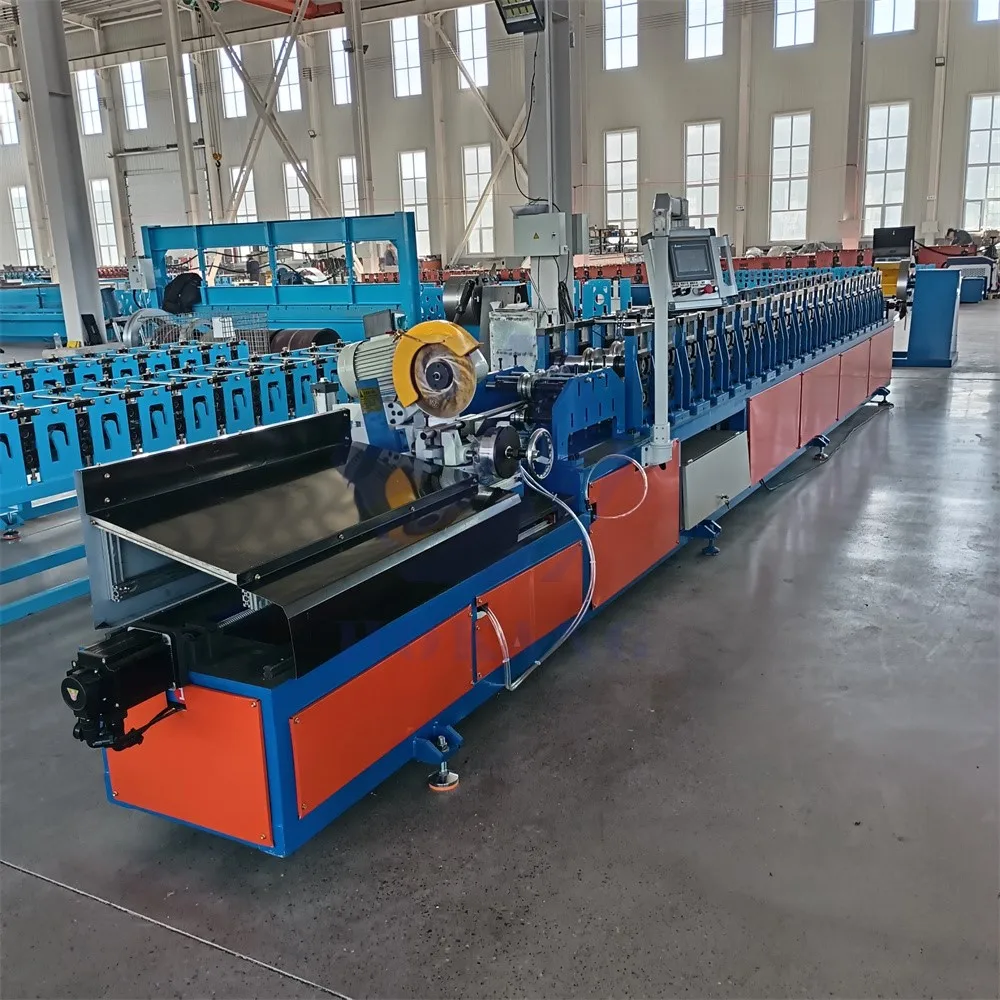

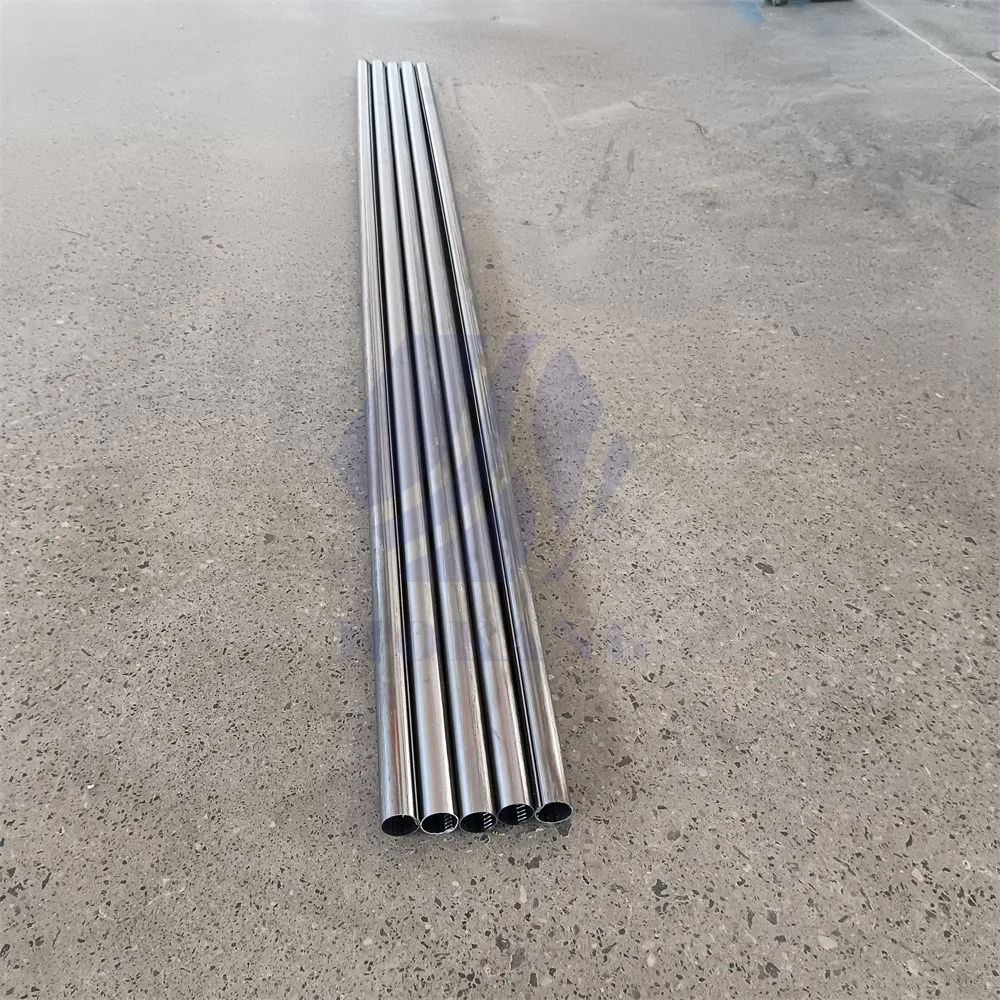

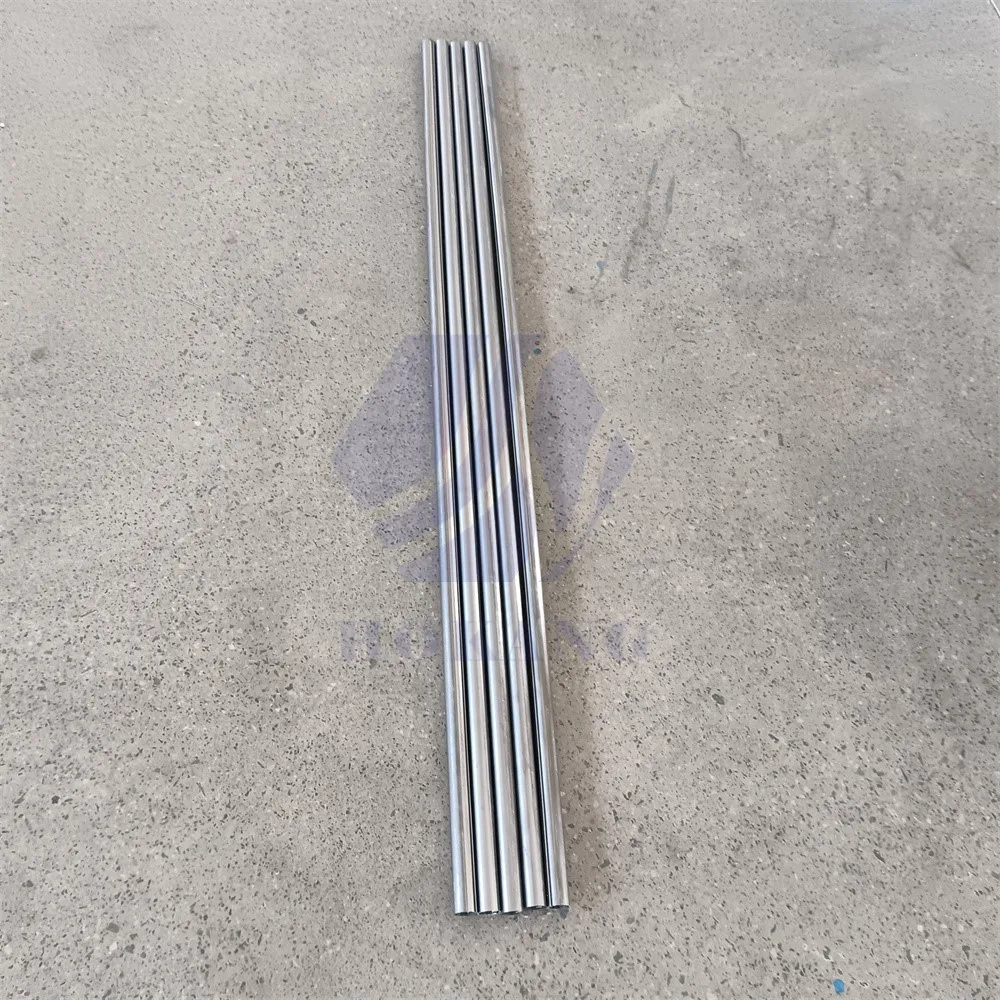

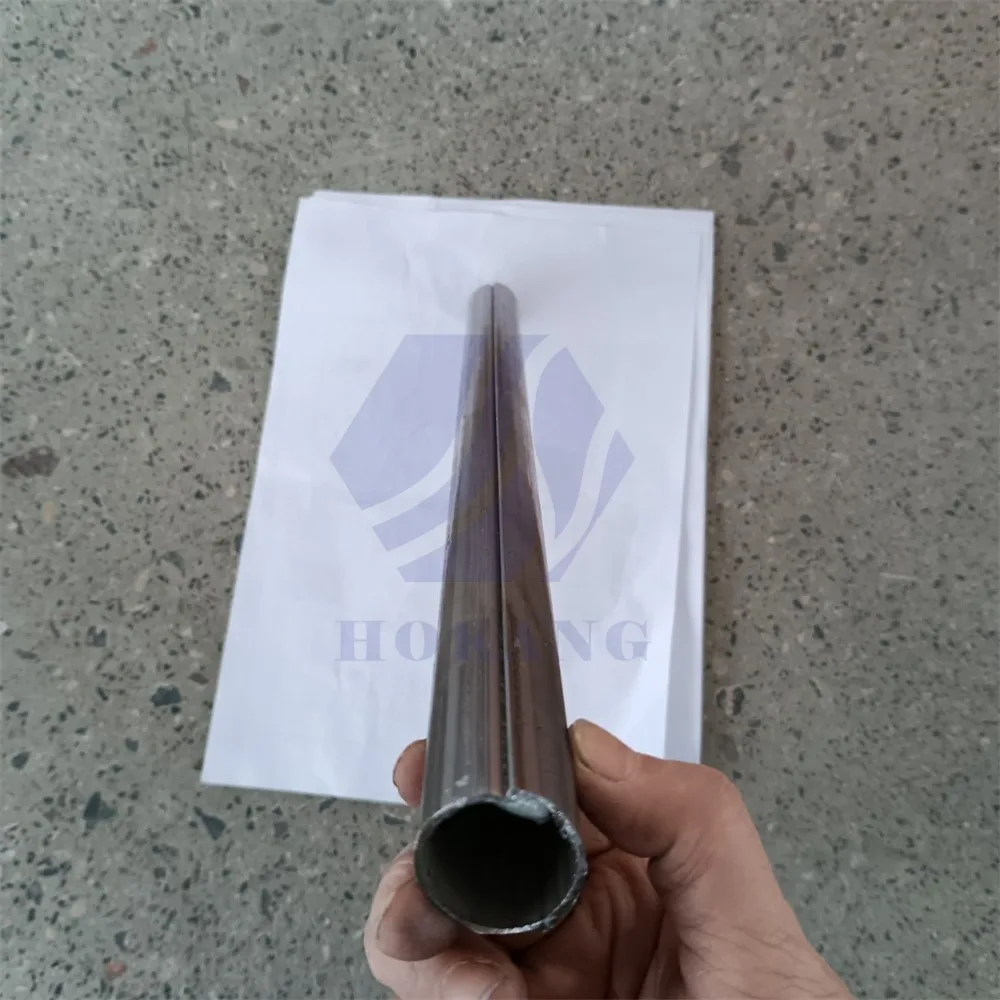

Stainless Steel Metal Tube Pipe Making Machine
Stainless steel industrial pipe making machine is mainly used to produce industrial stainless steel pipes. Due to the maturity of stainless steel welding pipe technology, seamless pipes have been replaced in many fields. It is widely used in chemical industry, medicine, distillery, petroleum, food, automobile, paper making, air conditioning and other industries.

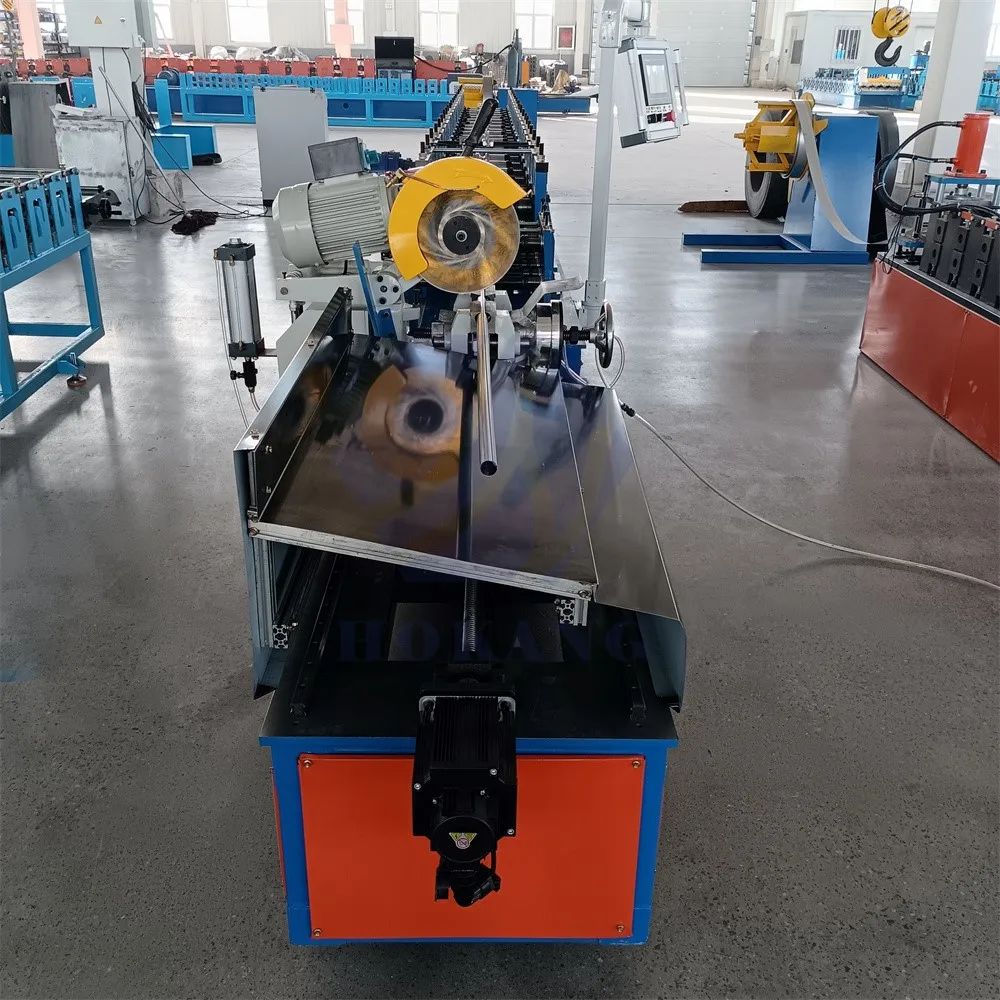

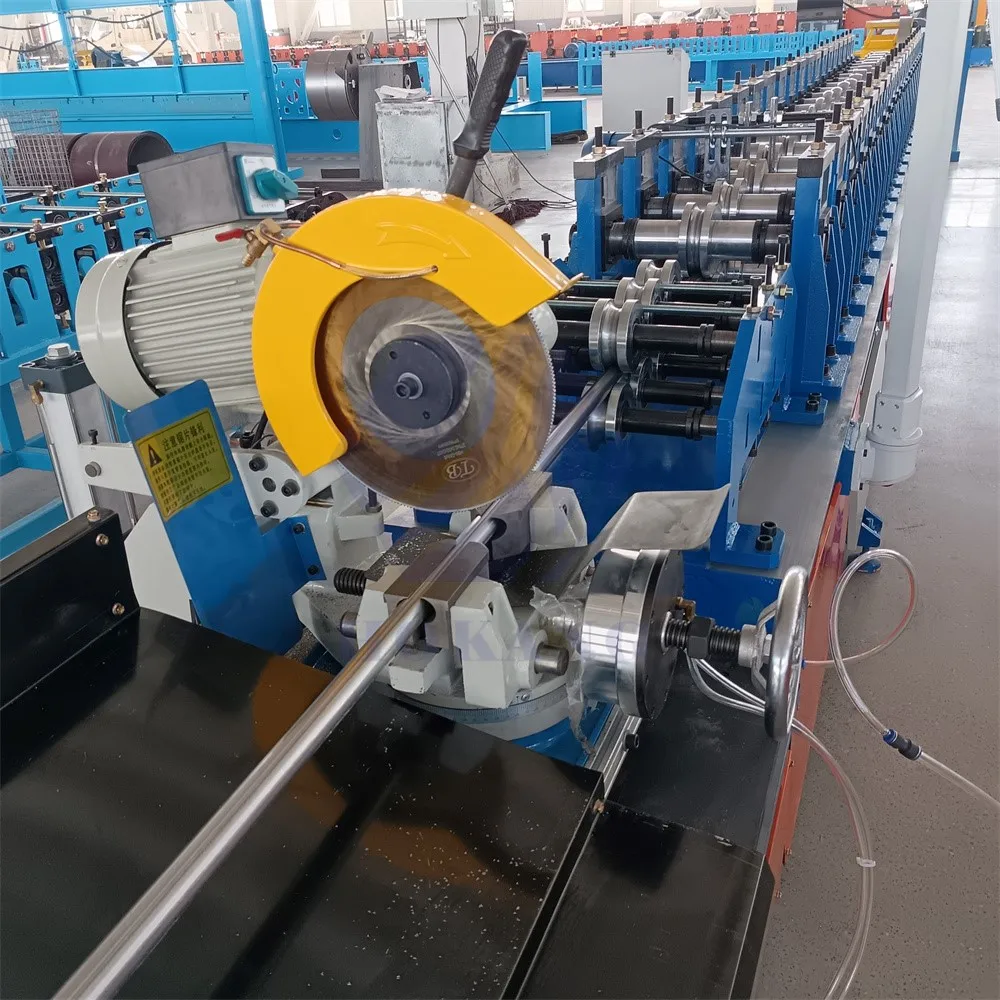

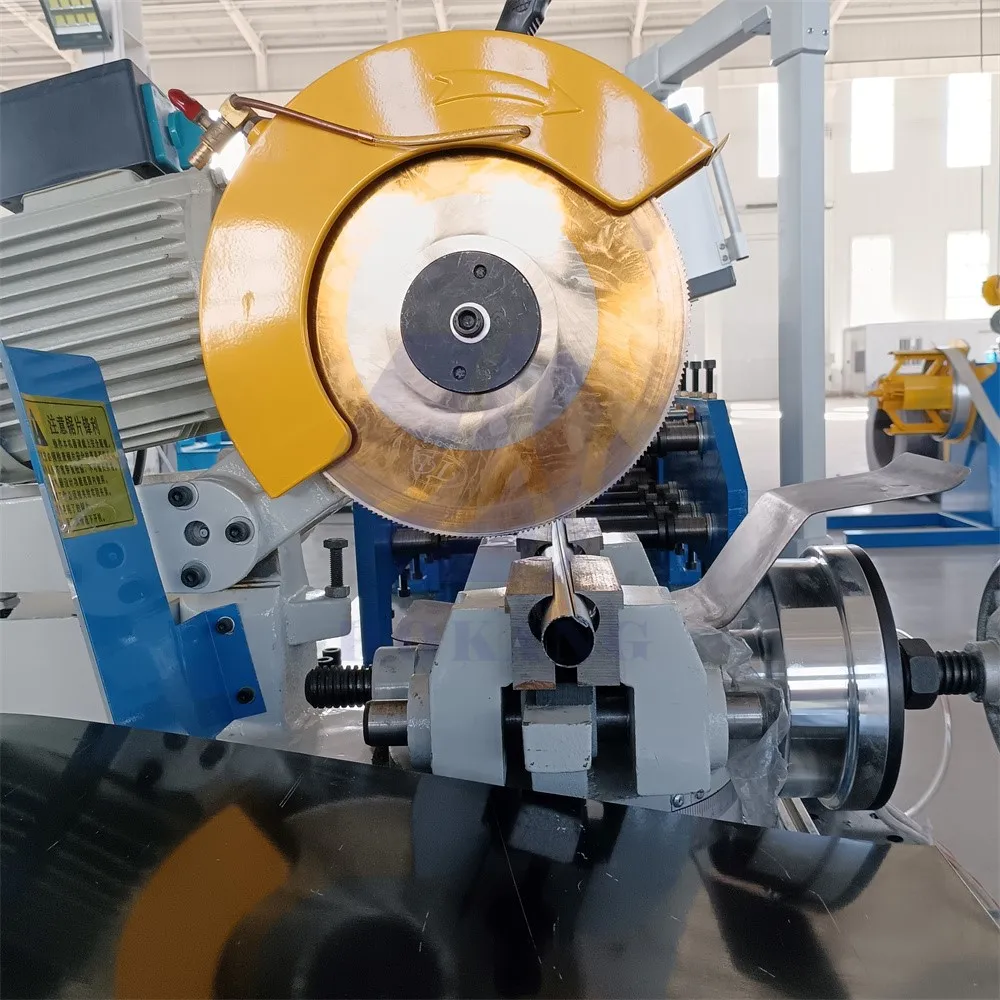

Cutting Systerm Of steel pipe making production line
Tungsten steel saw blade, cutting smoothly without burrs, cutting without sparks, low noise, safe and environmentally friendly.

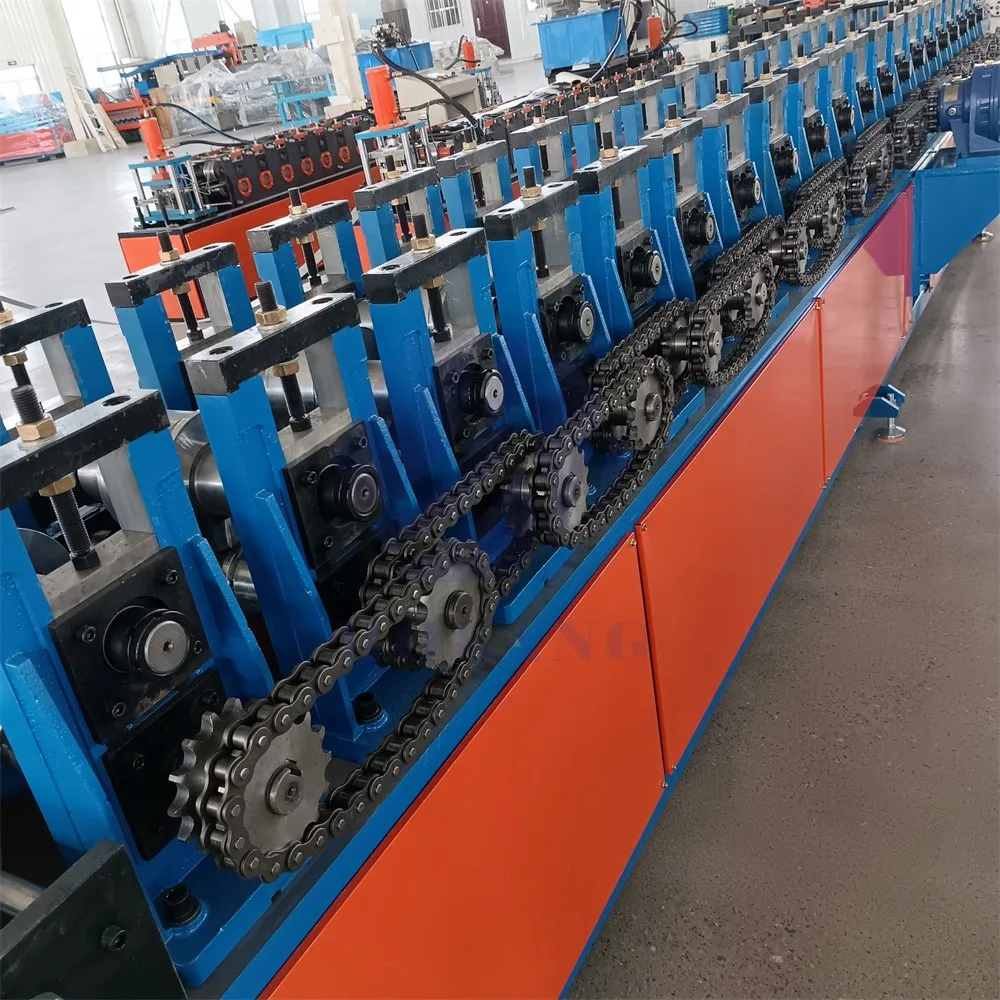

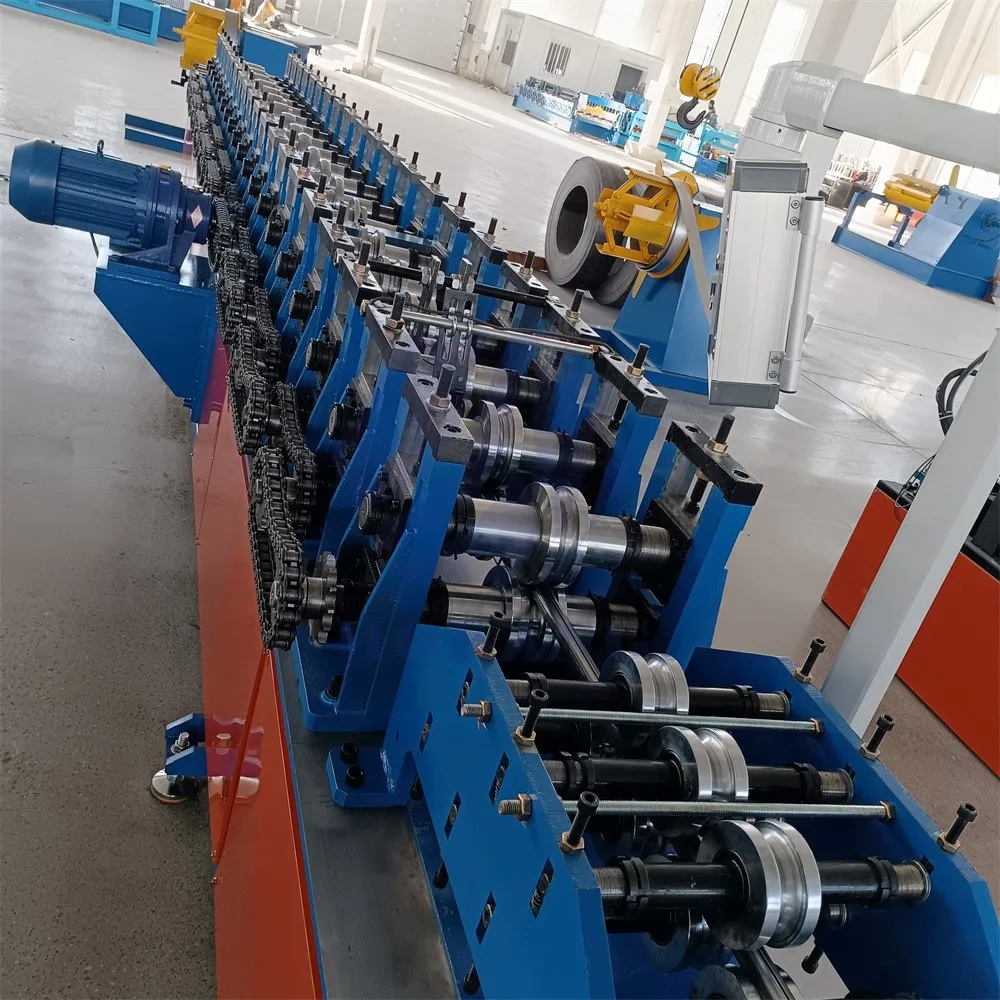

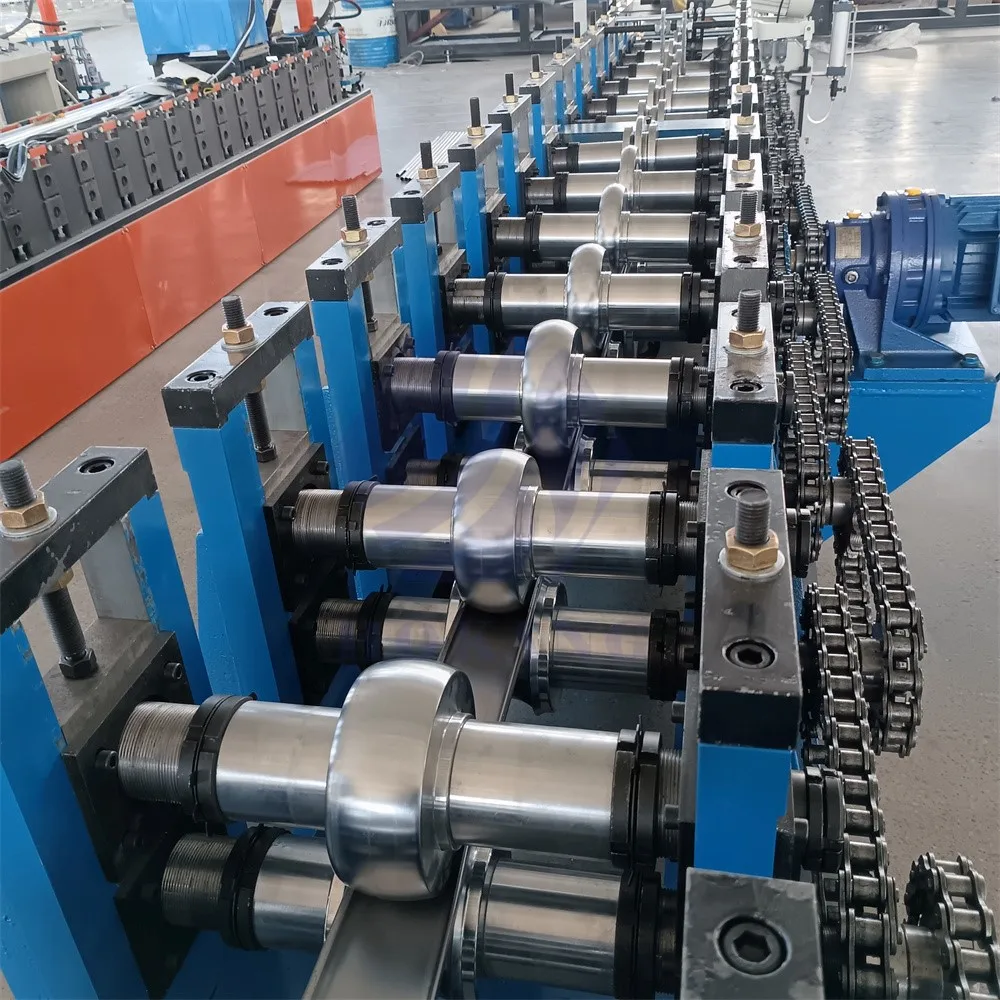

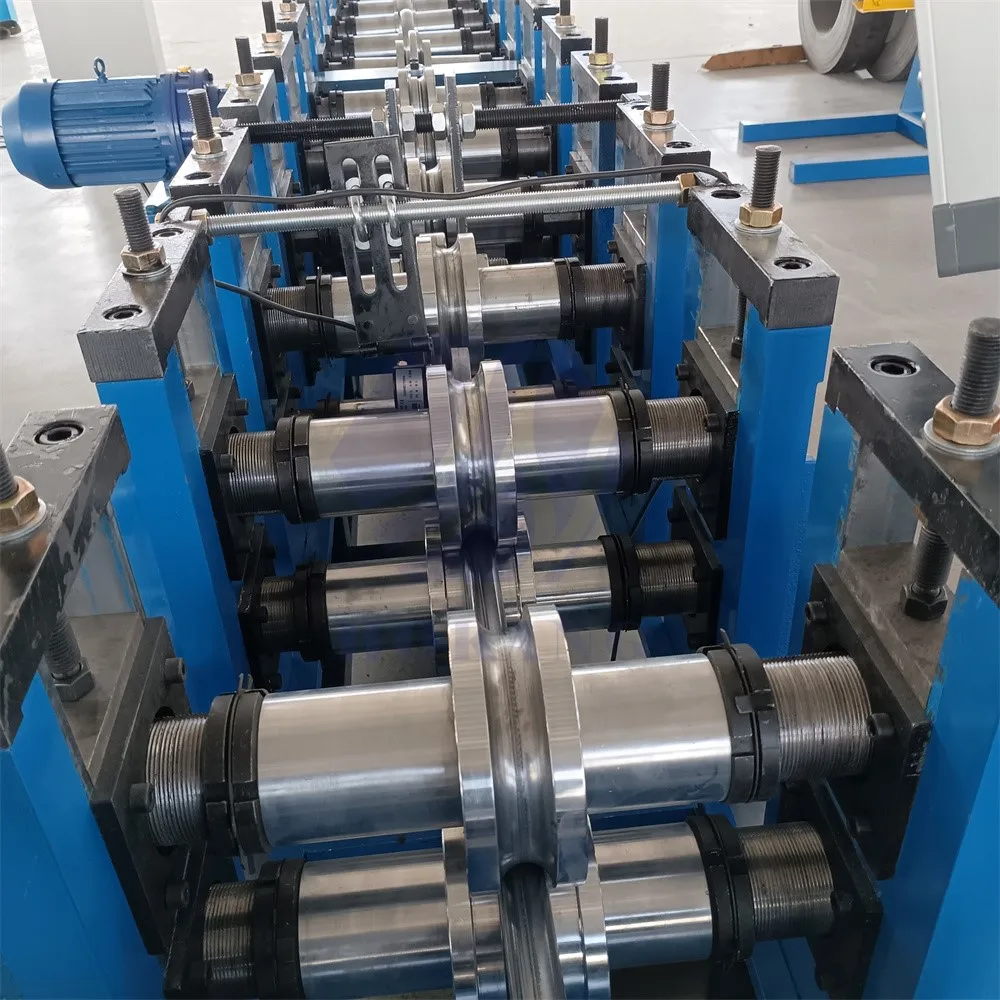

Forming Systerm of steel pipe making production line
22 rows forming, 2 rows adjusting straight wheels, CNC milling frame, memorial archway thickness 100MM, two inch heat treatment of
chain, not easy to wear, durable, high precision.
chain, not easy to wear, durable, high precision.

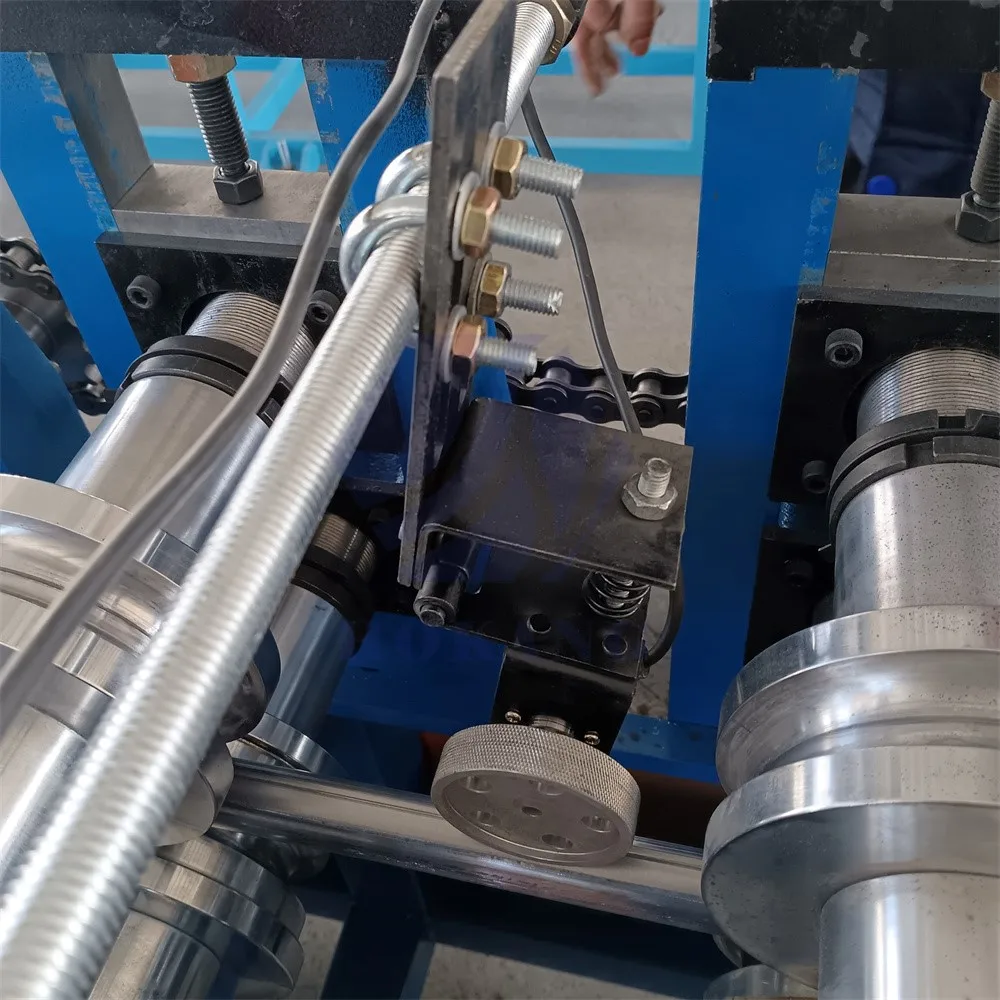

Meter counter of steel pipe making production line
Aluminum alloy aluminum alloy, high precision, wide counting range, fast speed, strong anti-interference performance.
Feeding platform of steel pipe making production line
The hand cranked wheel adjustable integrated feeding platform can accurately control the feeding width, making it easy and fast to
operate.
operate.
Design of Machine
Why Choose Us
1. CNC equipment parts processing, high product accuracy;
2. The machine is sturdy and durable, with little chance of maintenance;
3. Adopt Siemens motor and other brand accessories, with high performance;
4. Fully automatic, simple operation, continuous production and high efficiency;
5. The pipe making speed is 15% faster than that of peers, and the output is high;
6. The production cost is low, the material waste is small, and the finished product rate of pipe can reach more than 98%;
7. We have professional designers and planners to customize different solutions for our customers with different requirements, and help them make more reasonable suggestions on production line layout and production management.
8. Provide technical documents and support for mechanical installation, maintenance, operation, etc.
9. Provide machinery related transportation information, be responsible for loading goods and handling transportation related procedures, and pay attention to cargo safety and logistics information at all times.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
3. Adopt Siemens motor and other brand accessories, with high performance;
4. Fully automatic, simple operation, continuous production and high efficiency;
5. The pipe making speed is 15% faster than that of peers, and the output is high;
6. The production cost is low, the material waste is small, and the finished product rate of pipe can reach more than 98%;
7. We have professional designers and planners to customize different solutions for our customers with different requirements, and help them make more reasonable suggestions on production line layout and production management.
8. Provide technical documents and support for mechanical installation, maintenance, operation, etc.
9. Provide machinery related transportation information, be responsible for loading goods and handling transportation related procedures, and pay attention to cargo safety and logistics information at all times.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
