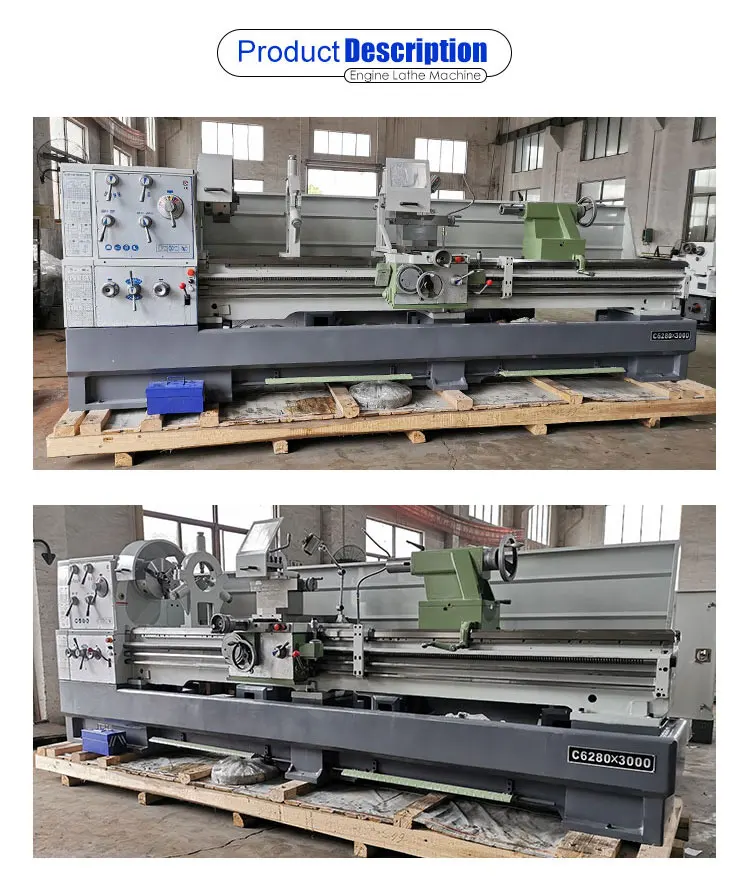

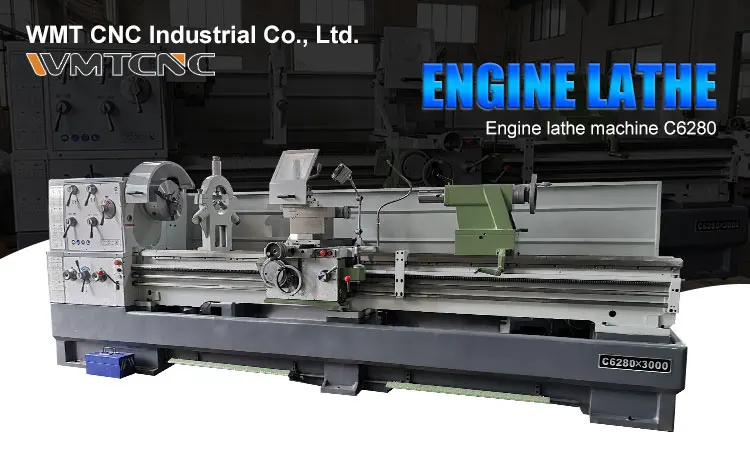

Precision engine surface lathe C6280x3000 horizontal gap bed medium size lathe machine
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600998186312):
Product Overview
Description
Product Description
Main Features:
1. Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2. Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3. The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 .Machine tool uses the domestic brand lead screw, the nut uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.

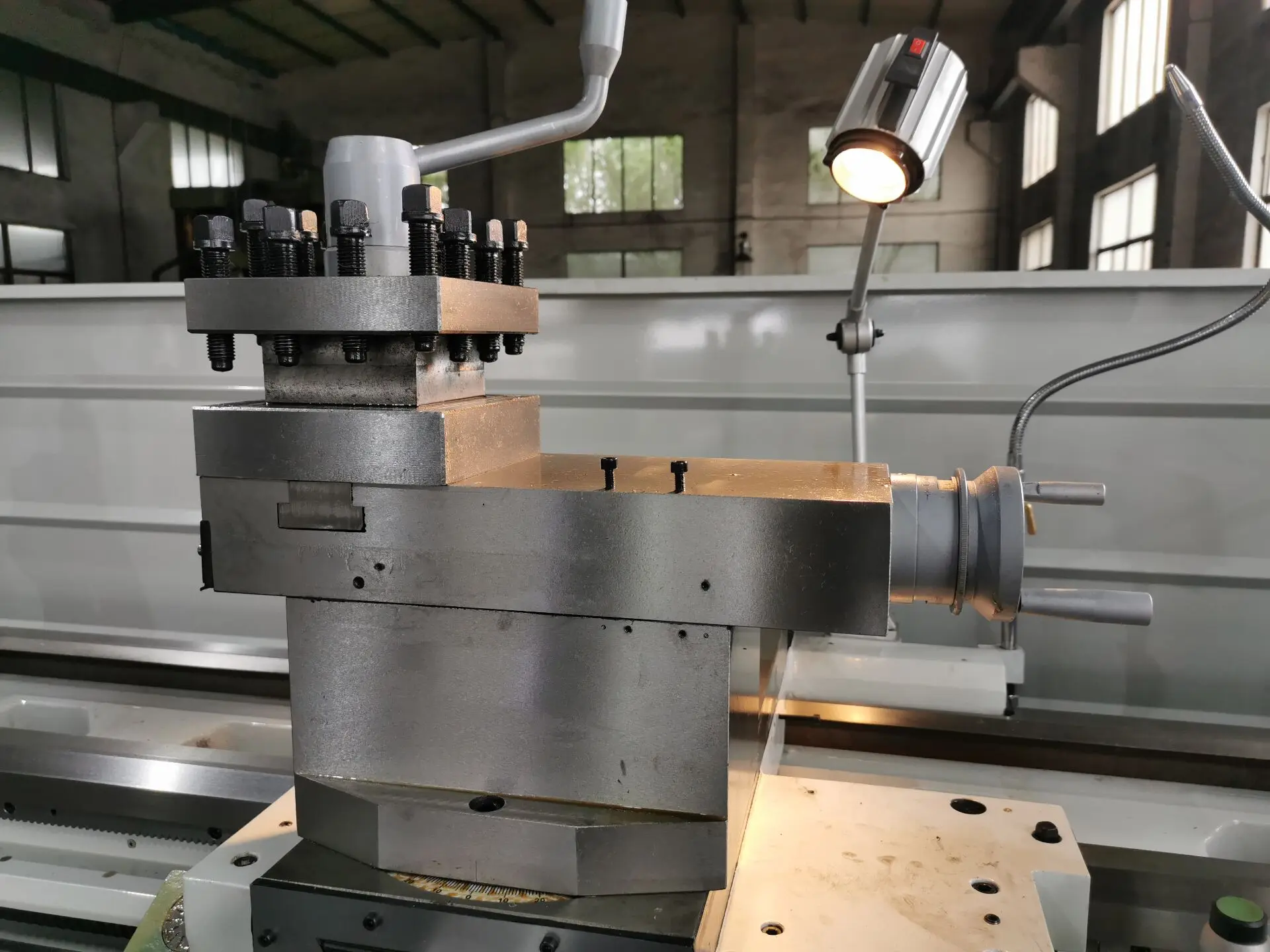

5 .The machine adopts high strength four position tool post
2. Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3. The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 .Machine tool uses the domestic brand lead screw, the nut uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
5 .The machine adopts high strength four position tool post
Specification | C6280x3000 |
Max.swing over bed | 800 mm |
Max.swing over gap | 1046 mm |
Max.swing over cross slide | 580 mm |
Distance between centers | 1500/2000/3000 mm |
Width of bed | 400 mm |
Travel of cross slide | 420 mm |
Travel of top slide | 235 mm |
Spindle nose | 1:20 |
Spindle bore | 105 mm |
Spinde range | 25-1600 rpm V 16-70&50-215 110-475&350-1500rpm |
Metric threads range | 0.45-120 mm |
Imperial threads range | 7/16-80T.P.I |
Longitudinal feeds | 0.044-1.48 mm/u |
Cross feed | 0.022-0.74 mm/u |
M.P threads range | 0.25-60 mm |
D.P threads range | 7/8-160DP |
Tailstock quill diameter | 90 mm |
Tailstcok quill travel | 230 mm |
Taper of tailstock quill | MT5 |
Mian motor | 7.5kw or 11kw |
Coolant pump | 90 w |
Rapid movement motor | 550w |
N.W/G.W | 3820/4495kg |
Packing size | 5287x1525x1925 mm |

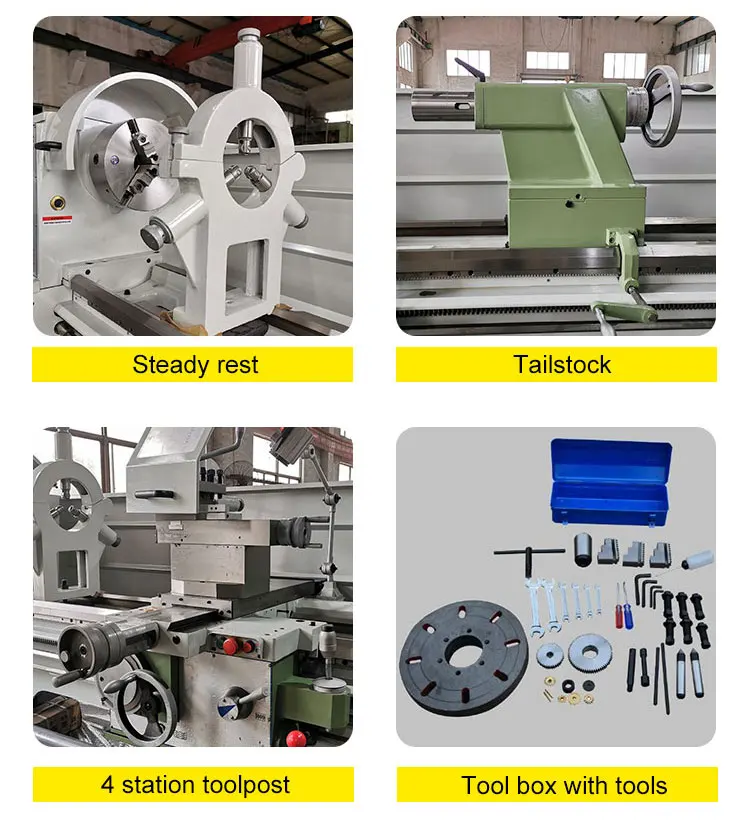

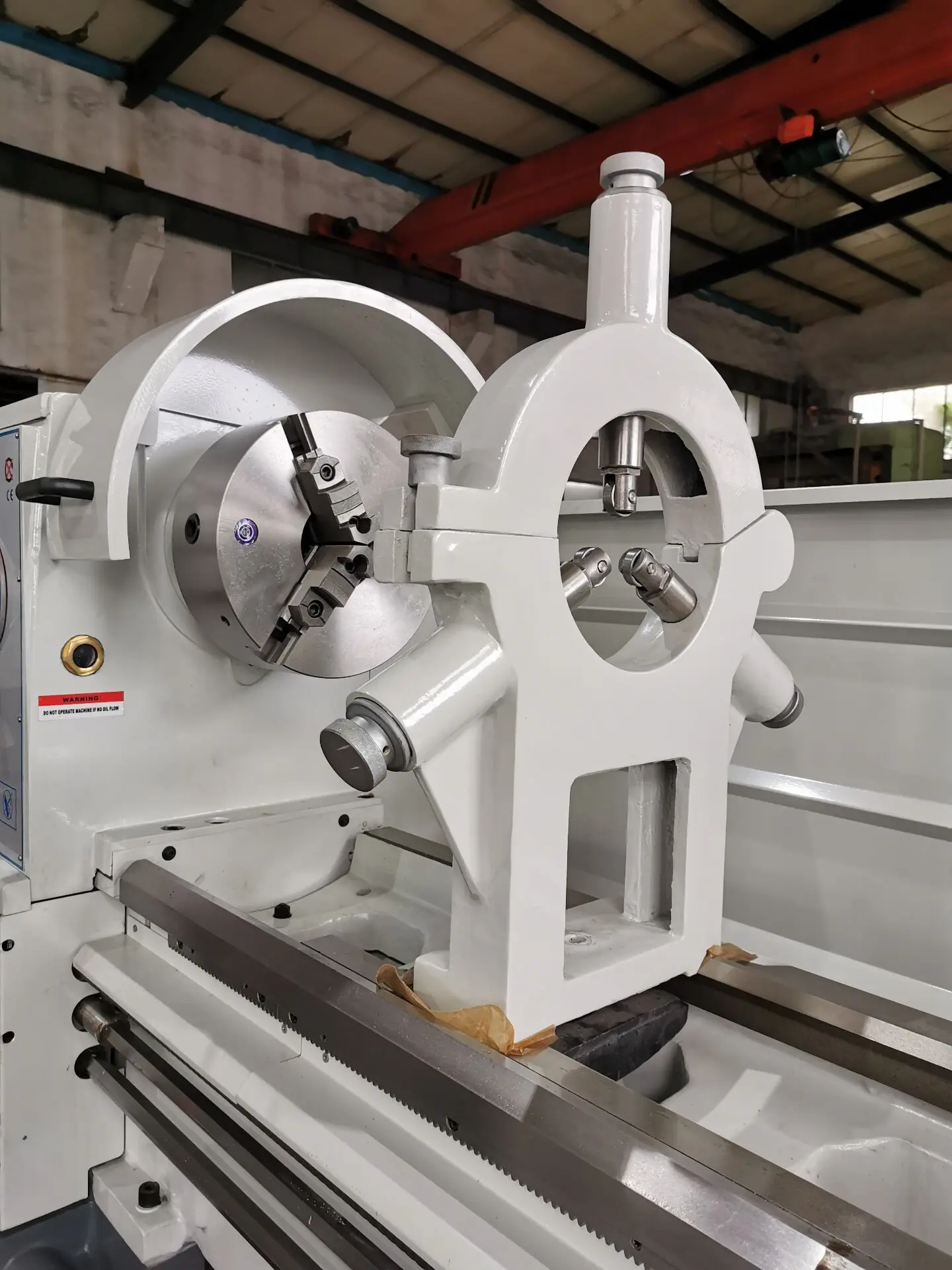

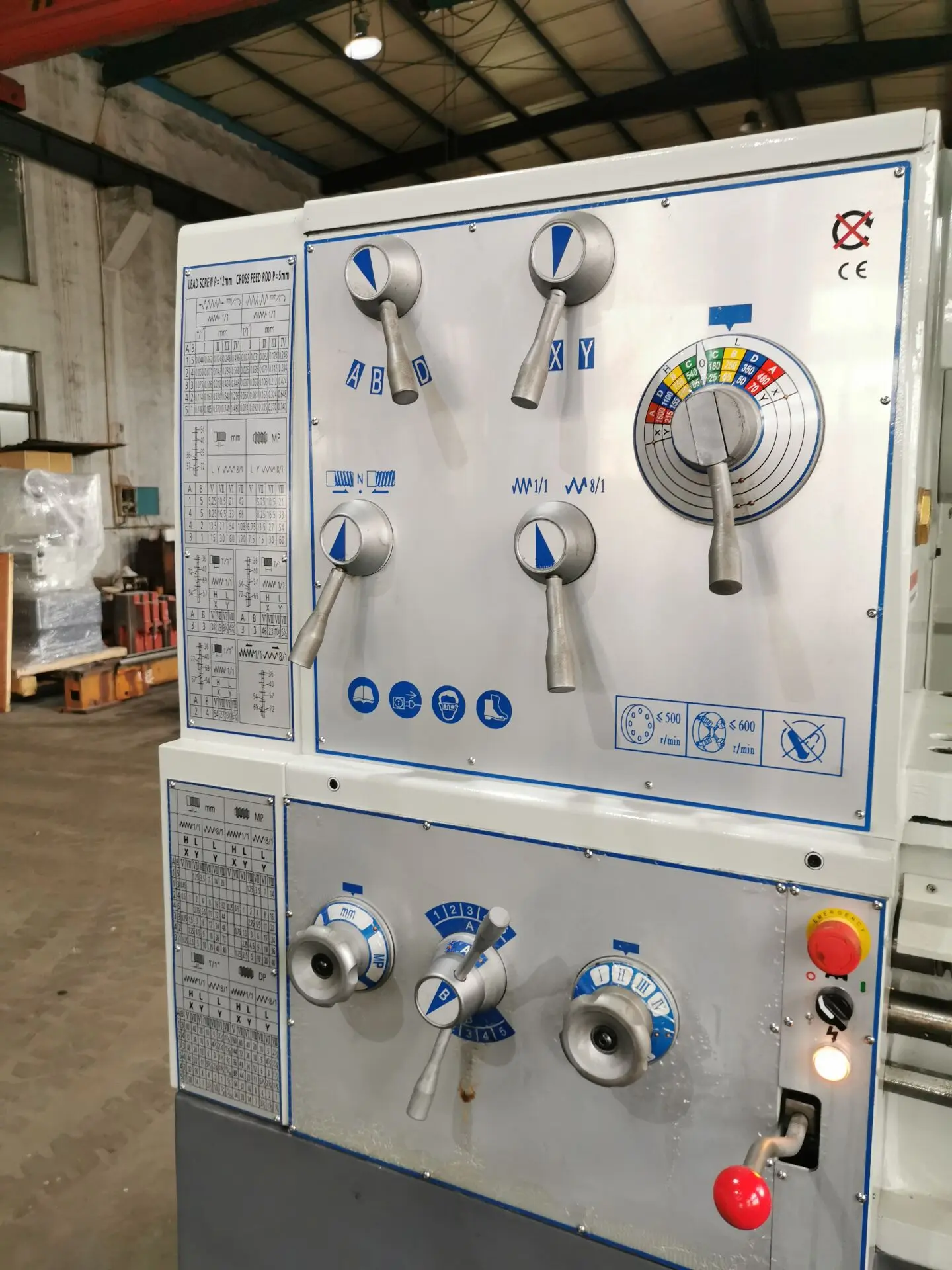

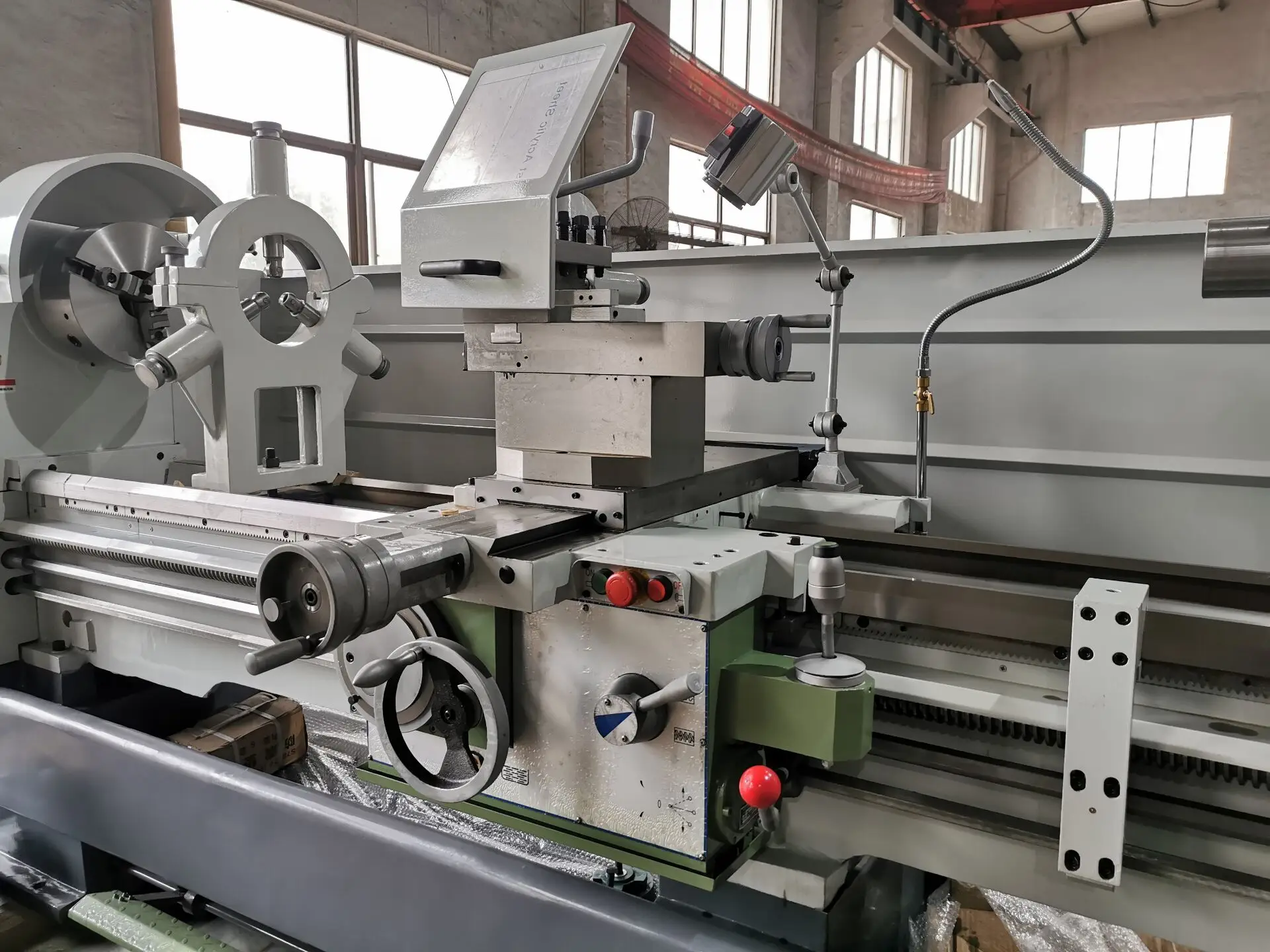

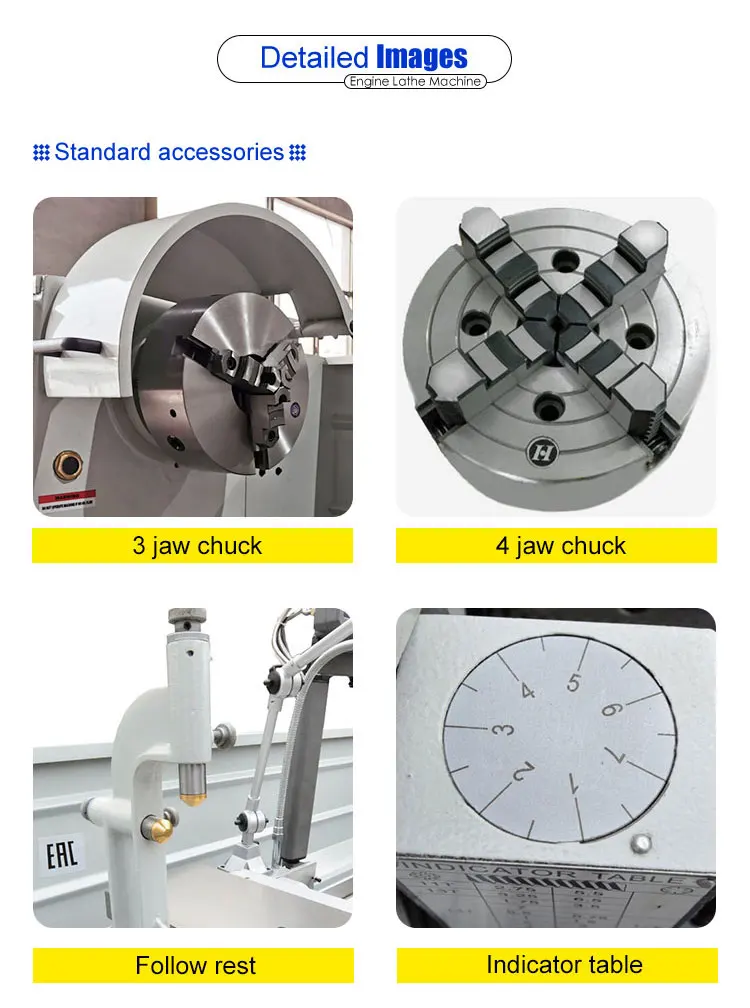

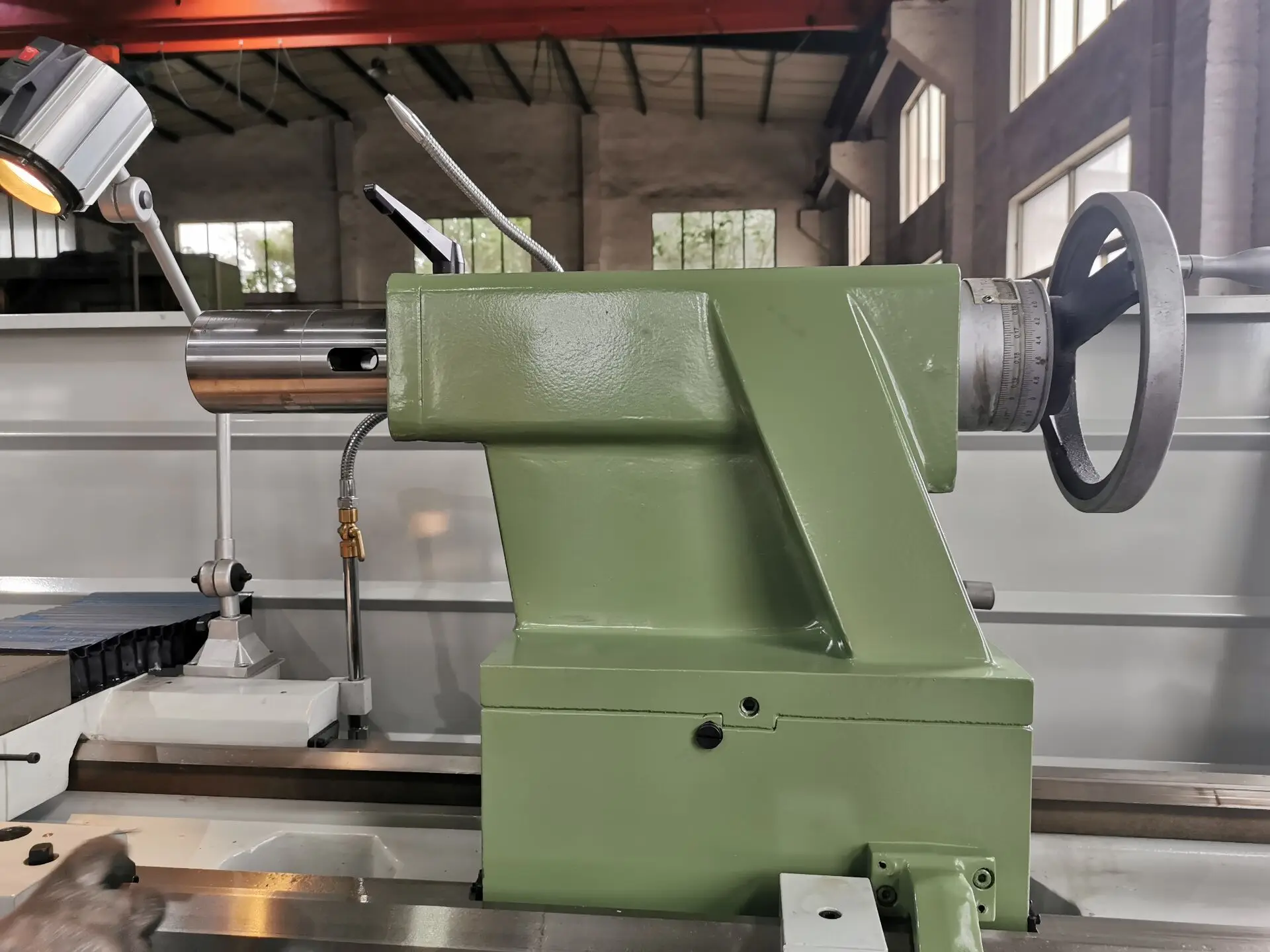

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
