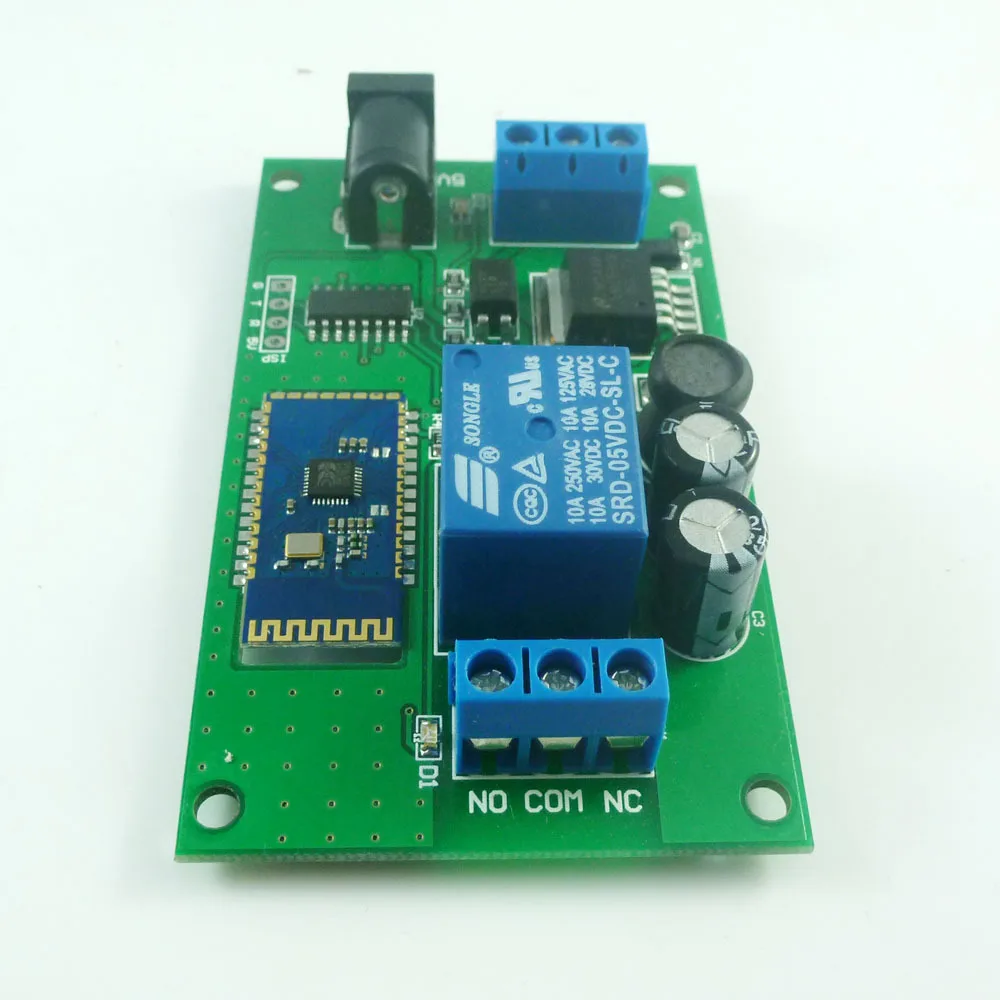

CE034_M 5 24V 2.4G Wireless Bluetooth Relay Mobile Phone Remote Control Switch Controller IoT Smart Home Module
- Category: >>>
- Supplier: Changsha Mili Technology Co. Ltd.
Share on (1600998340745):
Product Overview
Description
Product Description
CE034_M 5-24V 2.4G Wireless Bluetooth Relay Mobile Phone Remote Control Switch Controller IoT Smart Home Module |
Products Description
Product Manual
1. Functional characteristics:
1. Working voltage: power supply 1, DC 6-25V; Power supply 2, DC 5V
2 WORKING CURRENT: STANDBY 11MA, RELAY ON-ON 45MA (TEST CONDITION 12V)
3 Bluetooth V2.1 + EDR, Class 2
4 2.4GHz-2.48GHz unlicensed ISM band
5. Send instructions through the Android Bluetooth APP to control the conduction and disconnection of the relay (we provide the Android Bluetooth APP, you can also use your own APP to control the relay, send a simple command to control), you can also control the relay through an external trigger signal.
6 jog self-locking relay "on", relay "off" 4 instructions
7 External trigger input, photoelectric isolation switch, low pulse input.
8. Size: 81*50*32
9 Weight: 32g
10 Max load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC
1. Functional characteristics:
1. Working voltage: power supply 1, DC 6-25V; Power supply 2, DC 5V
2 WORKING CURRENT: STANDBY 11MA, RELAY ON-ON 45MA (TEST CONDITION 12V)
3 Bluetooth V2.1 + EDR, Class 2
4 2.4GHz-2.48GHz unlicensed ISM band
5. Send instructions through the Android Bluetooth APP to control the conduction and disconnection of the relay (we provide the Android Bluetooth APP, you can also use your own APP to control the relay, send a simple command to control), you can also control the relay through an external trigger signal.
6 jog self-locking relay "on", relay "off" 4 instructions
7 External trigger input, photoelectric isolation switch, low pulse input.
8. Size: 81*50*32
9 Weight: 32g
10 Max load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC
