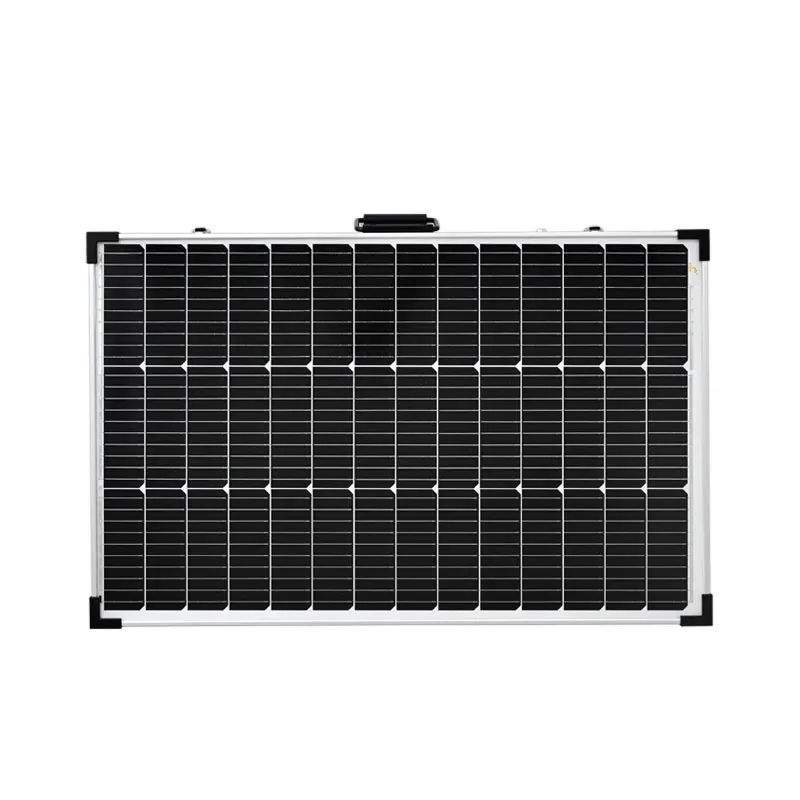

130W 180W 200W 270W 300W Folding Solar Panel Glass Portable Solar Suitcase with Controller for Battery Portable Power station
- Category: >>>
- Supplier: Shenzhen Sungold Solar Co. Ltd.
Share on (1600998358705):
Product Overview
Description
Product Feature
Product Advantage
First Sungold portable product generation. Can be carried conveniently and greatly broadens
the outdoor field.
Made of corrosion-resistant aluminum and tempered glass, withstand extreme weather conditions

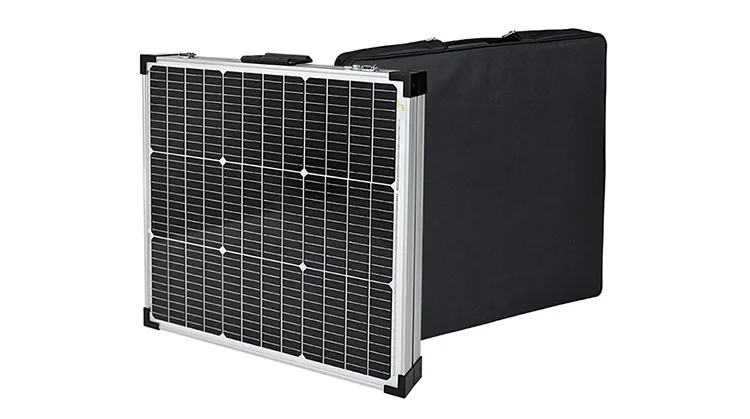

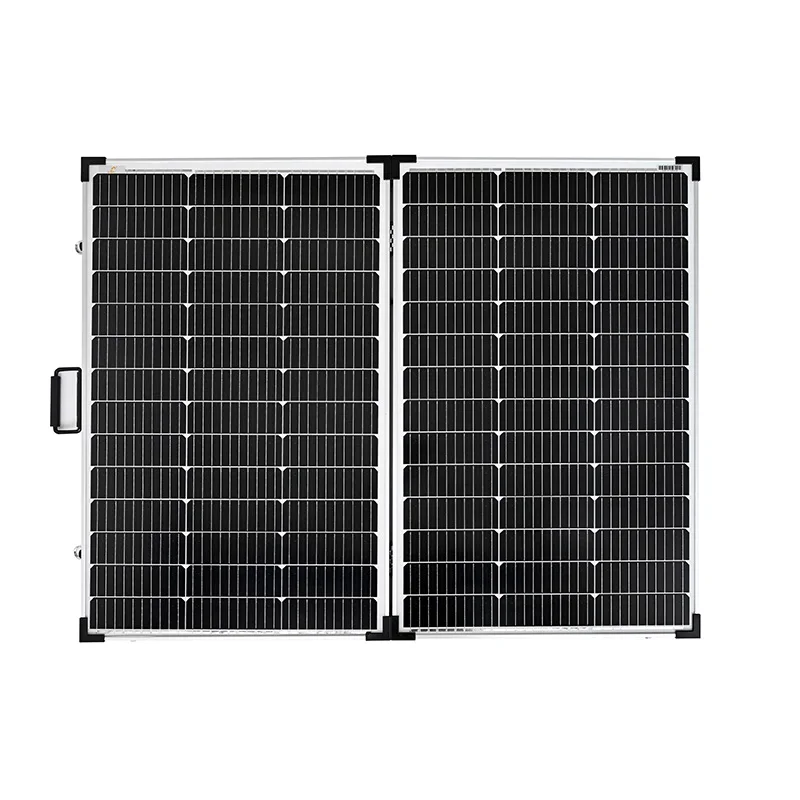

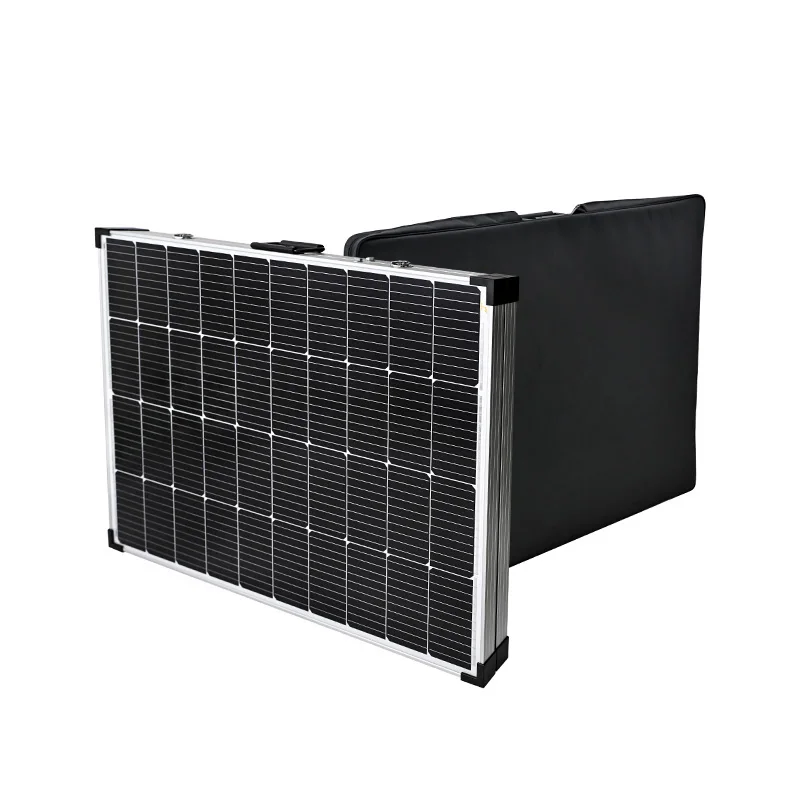

Foldable glass panel can reduce space occupation, easy to carry for outdoor activities
Glass surface material,connection between the panel is encapsulated with solar silica gel to prolong the service
life of the solar panel.
life of the solar panel.

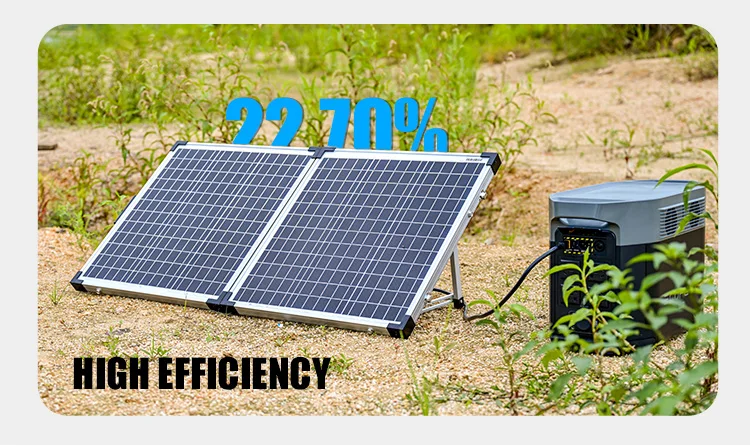

Using 182 mono cells, the conversion efficiency is as high as 22.70%.
Product Details
Customized logo monocrystalline waterproof solar panel 130W~300W customizable wattage suitable for outdoor activities
Product Specification
Model | SGF3-130W | SGF3-180W | SGF3-200W | SGF3-240W | SGF3-270W | SGF3-300W | |||||
Maximum Power/Pmax(Wp) | 130W | 180W | 200W | 240W | 270W | 300W | |||||
Cell Efficiency | >22.70% | >22.70% | >22.70% | >22.70% | >22.70% | >22.70% | |||||
Number of cells | 2*3*12 | 2*3*12 | 2*3*14 | 2*3*11 | 2*4*9 | 2*4*10 | |||||
Operating Voltage/Vmp(V) | 20.50 | 20.50 | 23.90 | 18.80 | 20.50 | 22.80 | |||||
Operating Current/Imp(A) | 6.35 | 8.79 | 8.37 | 12.77 | 13.18 | 13.16 | |||||
Open Circuit Voltage/Voc(V) | 24.00 | 24.00 | 28.00 | 22.00 | 24.00 | 26.70 | |||||
Short Circuit Current/Isc(A) | 6.66 | 9.22 | 8.79 | 13.40 | 13.83 | 13.82 | |||||
Folded Size(mm) | 615*590*30mm | 800*590*35mm | 925*590*35mm | 1070*590*35mm | 885*770*35mm | 980*770*35mm | |||||
Expand Size(mm) | 1183*615*30mm | 1183*800*35mm | 1183*925*35mm | 1183*1070*35mm | 1543*885*35mm | 1543*980*35mm | |||||
Solar cells | mono cell | mono cell | mono cell | mono cell | mono cell | mono cell | |||||
Weight | 11.80kg(26.01lbs) | 14.30kg(31.53lbs) | 16.50kg(36.78lbs) | 18.90kg(41.76lbs) | 20.50kg(45.19lbs) | 22.80kg(50.27lbs) | |||||
The maximum system voltage | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) | |||||
Output power tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |||||
Operating Temperature | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ | |||||
Color | White | White | White | White | White | White | |||||
Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | |||||
Remark | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. | ||||||||||
Product Application

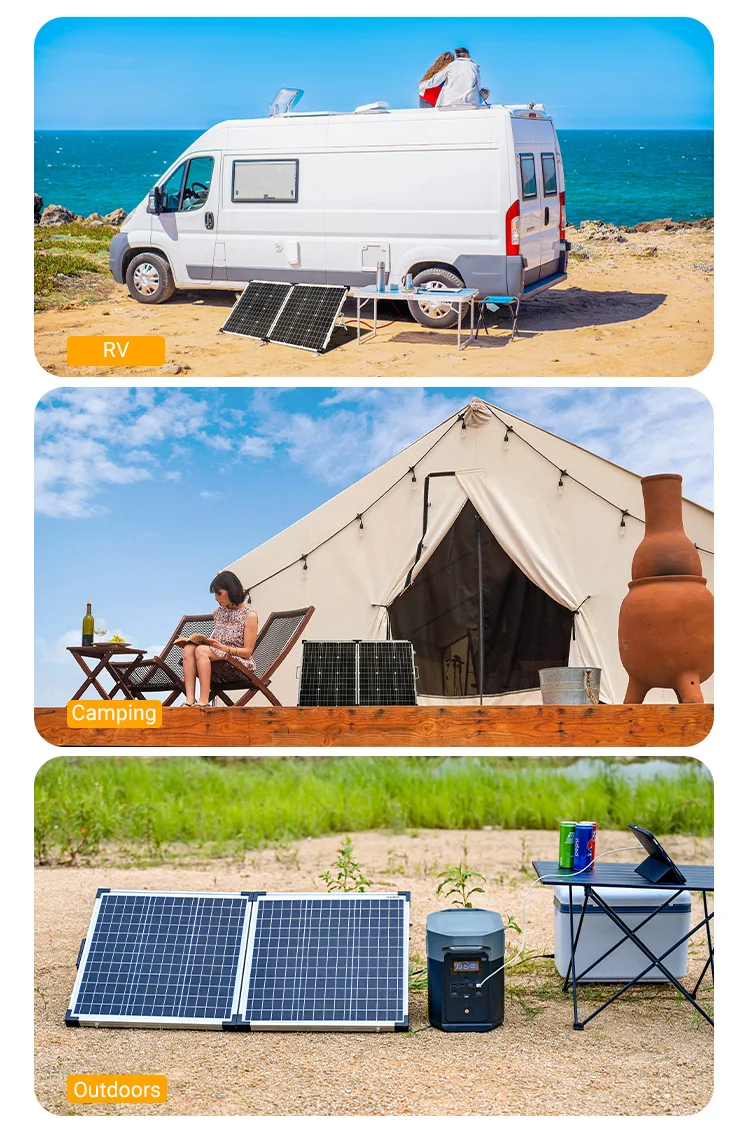

For of-grid home, RV, commercial vehicle, ship, outdoor camping, outdoor emergency
Production Process
Product Packaging
Client Feedback
FAQs

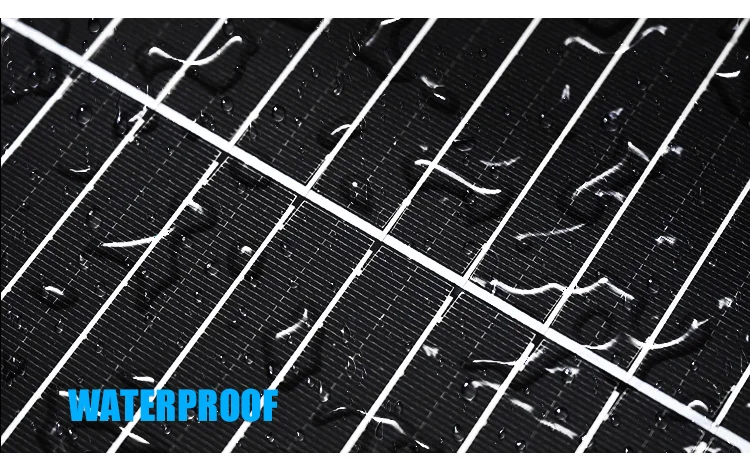

1. Q:Is the SGF waterproof?
Yes, the SGF series are waterproof folding solar panels.
2.Q:Does this product come with its own stand?
Yes, the bracket of SGF is foldable and integrated with the solar panel.

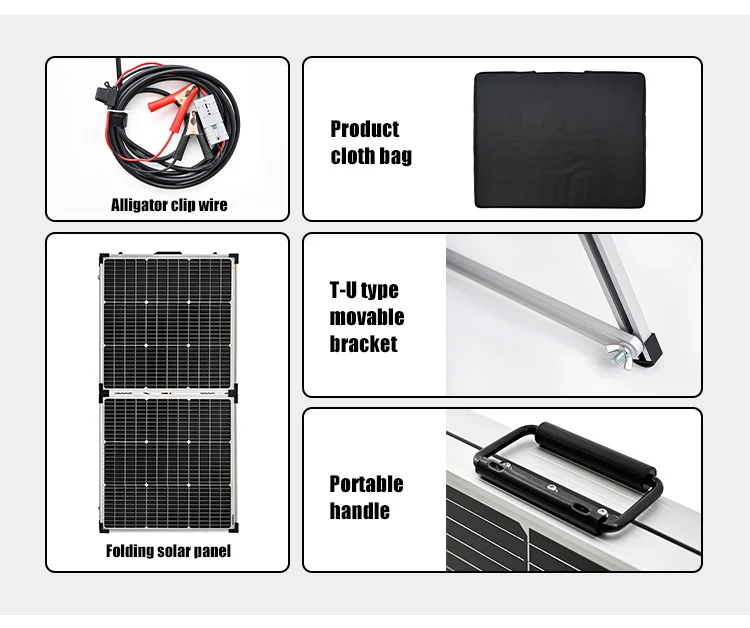

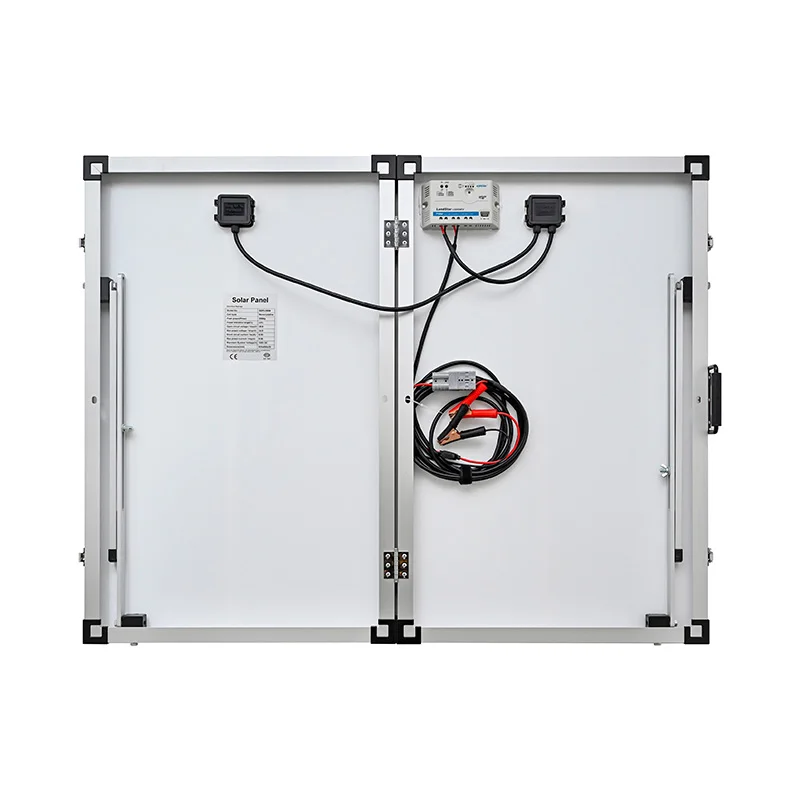

3.Q:Does the product come with wiring?
Some SGF series are equipped with wiring, you can find out more through the product specification.
4.Q:Where is it suitable for use?
Yachts, homes and caravans are all good applications.
5.Q:How is the bracket of SGF series designed?
There is an adjustable screw at the bottom of the bracket. If you want to raise the solar panel to absorb more sunlight, you can push the screw forward. If you want to lower the height, simply push the screw back.
6. Q:How is the bracket of the SGF series designed?
There is an adjustable screw at the bottom of the bracket. If you want to raise the solar panel to absorb more sunlight, you can push the screw forward. If you want to lower the height, simply push the screw back.
7. Q:Are the SGF series solar panels very durable?

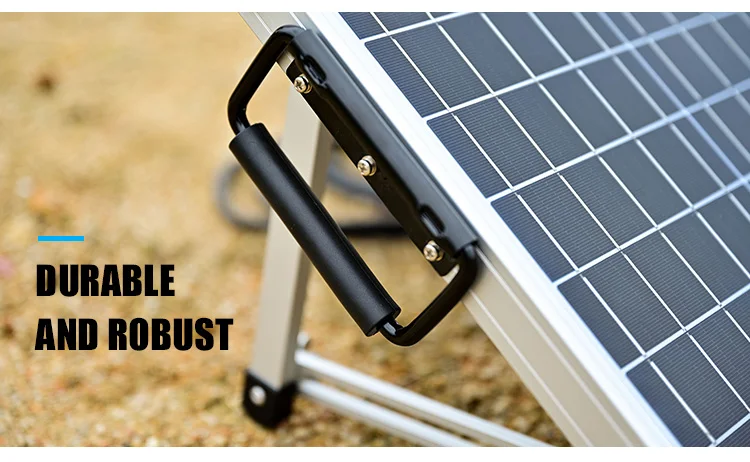

Absolutely. The aluminium frame and the handle made of anti-ageing material ensure that the product has good resistance to corrosion and ageing. The surface is covered with glass material to better protect the batteries and extend the life of the product.
8.Q:Where can I use the SGF series folding solar panels?
The LVP Series can be used for most of your basic electrical loads if you are going caravan camping, picnicking, or even if there is an unexpected power outage. It can also be your reliable back-up power source when you need power in extreme weather conditions.
9. Q:Why is my solar panel not producing enough?
The output efficiency of solar panels can be suboptimal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy days, and the accumulation of dust and dirt on the surface of the solar panel, can all lead to reduced efficiency.
10. Q: Do you support logo customisation?
Yes, we support OEM customisation services.
Yes, the SGF series are waterproof folding solar panels.
2.Q:Does this product come with its own stand?
Yes, the bracket of SGF is foldable and integrated with the solar panel.
3.Q:Does the product come with wiring?
Some SGF series are equipped with wiring, you can find out more through the product specification.
4.Q:Where is it suitable for use?
Yachts, homes and caravans are all good applications.
5.Q:How is the bracket of SGF series designed?
There is an adjustable screw at the bottom of the bracket. If you want to raise the solar panel to absorb more sunlight, you can push the screw forward. If you want to lower the height, simply push the screw back.
6. Q:How is the bracket of the SGF series designed?
There is an adjustable screw at the bottom of the bracket. If you want to raise the solar panel to absorb more sunlight, you can push the screw forward. If you want to lower the height, simply push the screw back.
7. Q:Are the SGF series solar panels very durable?
Absolutely. The aluminium frame and the handle made of anti-ageing material ensure that the product has good resistance to corrosion and ageing. The surface is covered with glass material to better protect the batteries and extend the life of the product.
8.Q:Where can I use the SGF series folding solar panels?
The LVP Series can be used for most of your basic electrical loads if you are going caravan camping, picnicking, or even if there is an unexpected power outage. It can also be your reliable back-up power source when you need power in extreme weather conditions.
9. Q:Why is my solar panel not producing enough?
The output efficiency of solar panels can be suboptimal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy days, and the accumulation of dust and dirt on the surface of the solar panel, can all lead to reduced efficiency.
10. Q: Do you support logo customisation?
Yes, we support OEM customisation services.
