Union Tech FL 25MM Three Light Thermal Vision Laser Ranging Gimbal Camera Uav Pod
- Category: >>>
- Supplier: Zhonglian Kechuang (shenzhen) Technology Co. Ltd.
Share on (1600998359477):
Product Overview
Description
System specification | ||||||
Material: | Aluminum alloy | Power Consumption: | ＜10w | |||
Size: | 112(L)x114.5(W)x161(H)mm | Control angle range: | ±360°xN(Yaw);-120~30(Pitch);±30(Roll) | |||
Weight: | 600±5g | Stable precision: | 0.52 mrad | |||
Working Temp.range: | -20℃～70℃ | Stable frequency: | 1250 Hz | |||
Storage Temp.Range: | -30℃～80℃ | Control accuracy: | 2.09 mrad | |||
Protection Rate: | IP43 | Attitude correction: | Auto | |||
Number of axis: | Tri-axial(Yaw/Pitch/Roll) | Control interface: | S.BUS、COM、TTL UART(RS232 optional)、 Network(TCP) | |||
Input voltage: | 12v | Video output interface: | RJ45*2 | |||
Working current: | 0.8A | Working model: | Follow yaw；Lock yaw；90° overlook | |||
Controling mode: | Speed control；Angle control；Point to move | Controllable rotation speed (default): | Min: 0.18 °/s, Max: 45 °/s | |||
Specification | ||||||
Aperture D/f' | F1.0 | Sensor: | SONY 2.5K | |||
Field | 640*512（12um) | |||||
Visible lig ht zoom factor: | 10X Optical zoom 12X lossless zoom 40X Max hybrid zoom | Visible light equivalentfocal length | 4.9~49.0mm(10x) 12x: 58.8mm 40x: 196mm | |||
Visible light pixel | 7 MP | Visible light AF time | ＜1S Real time focusing | |||
IR- Encapsulation way | Ceramic package | IR- Focal length | 25mm | |||
Ranging range | 5~2000m,Max: 2500m | Wavelength | 905nm | |||
M.O.D.: | 1m(W)-20m(T) | Photo format | JPG：3648*2052 | |||
SNR: | 120 dB | Video storage format | MP4：2560×1440@30fps、 3840×2160@25fps 1920*1080@60fps、 1280*720@120fps | |||
MEGA OIS: | Auto | Video output format | 1920*1080@30fps/ 1920*1080@25fps | |||
Storage methods: | Mirco SD: 32/64/128/256GB | |||||
Target Tracking : | PTZ physical shock absorbing structure | |||||
Positioning method: | Mage center point positioning | Longitudinal shock absorption distribution | Down pressure type 4 shock-absorbing balls physical shock absorption | |||
Positioning accuracy: | 2m | Effective image stabilization amplitude | 0.5mm@30~500Hz | |||
Effective working amplitude: | 1.2mm@25Hz、3mm@5Hz | |||||
Products Description

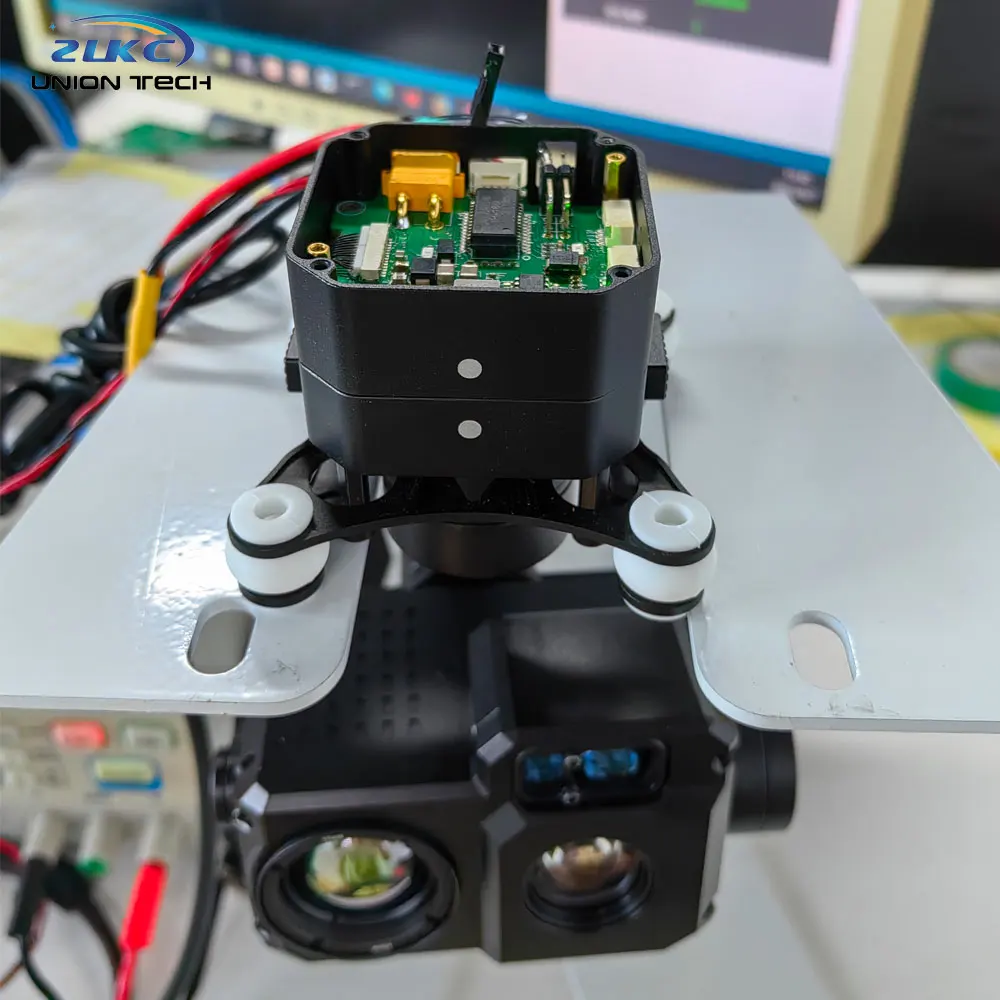

TM2510 Gimbal Camera

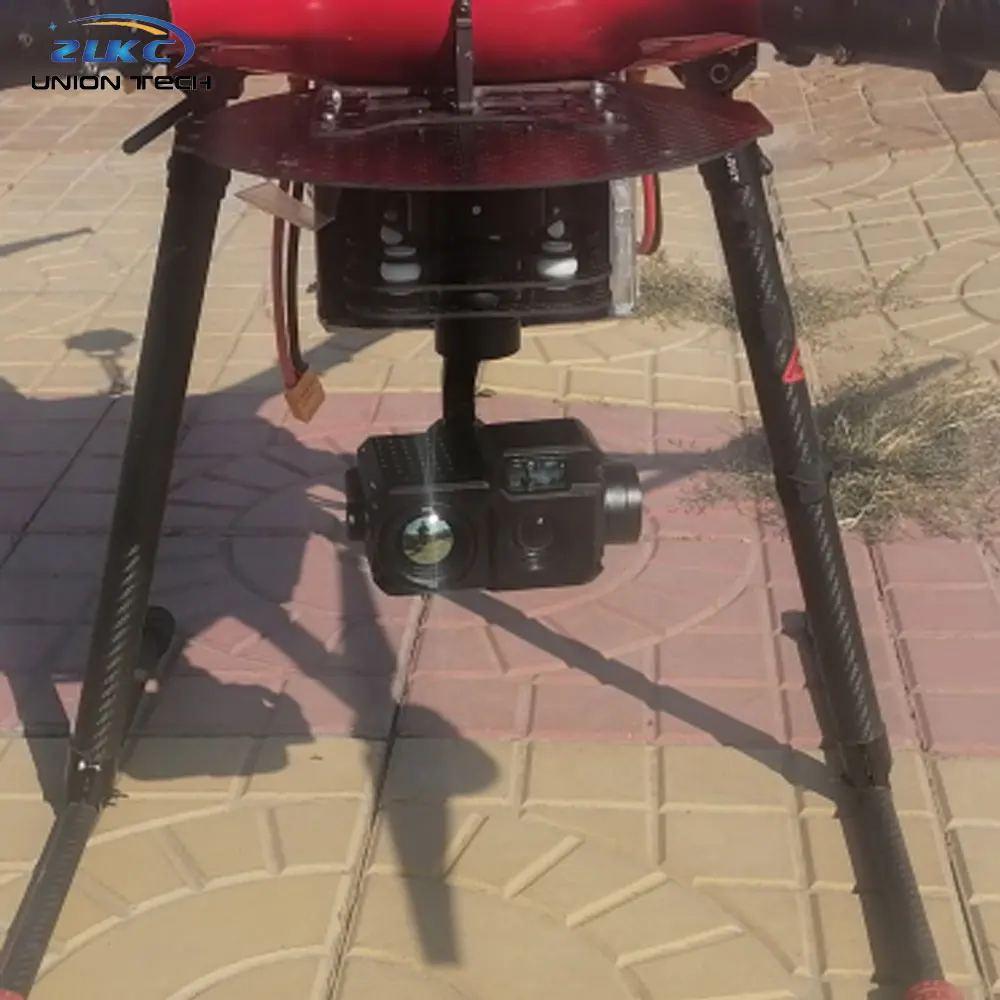

UT-TM2510 gimbal camera seamlessly integrates a 10x optical zoom ,thermal camera, and a laser rangefinder. Designed for precision and performance, this camera is ideal for a range of applications requiring detailed imaging and distance measurements.

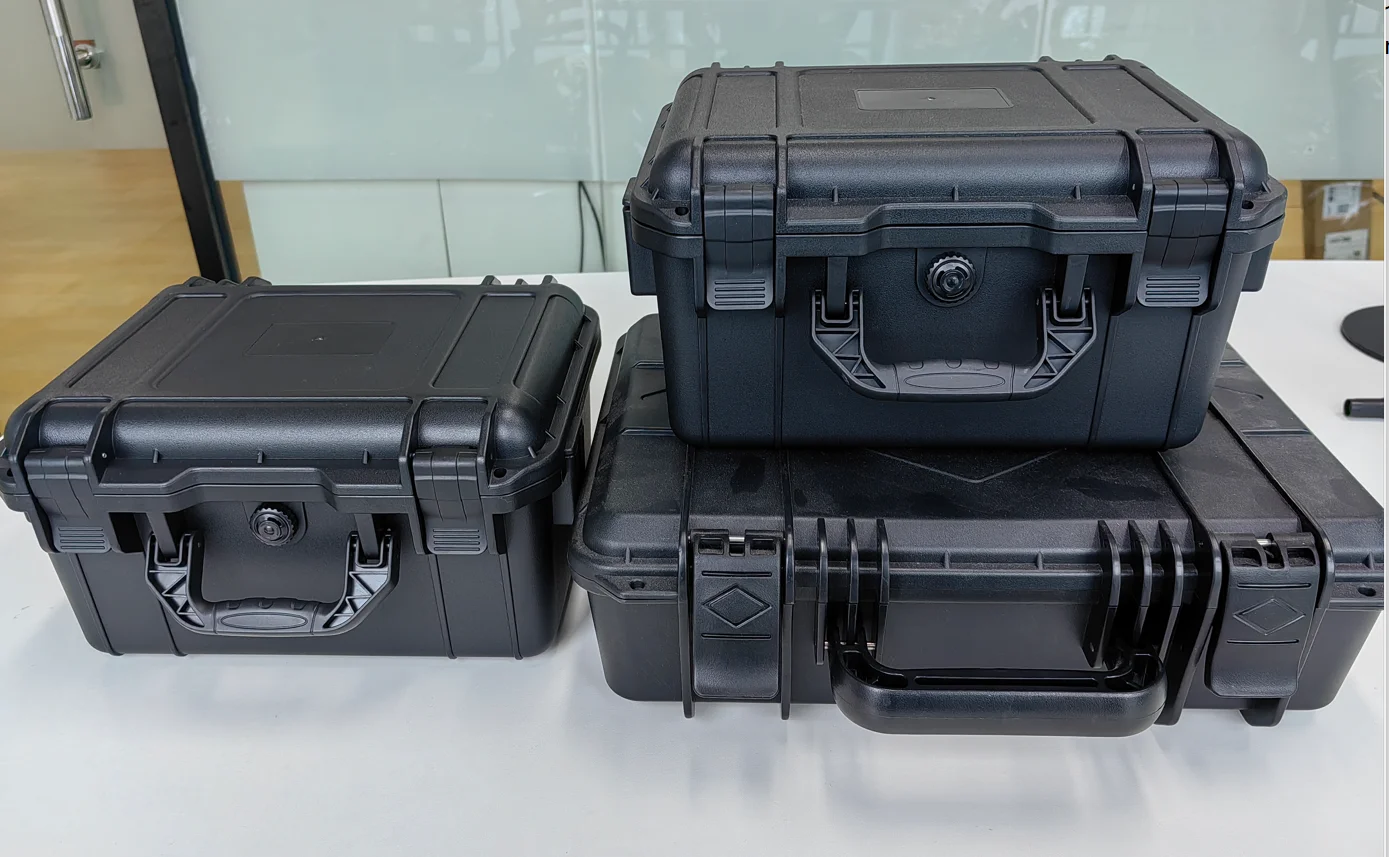

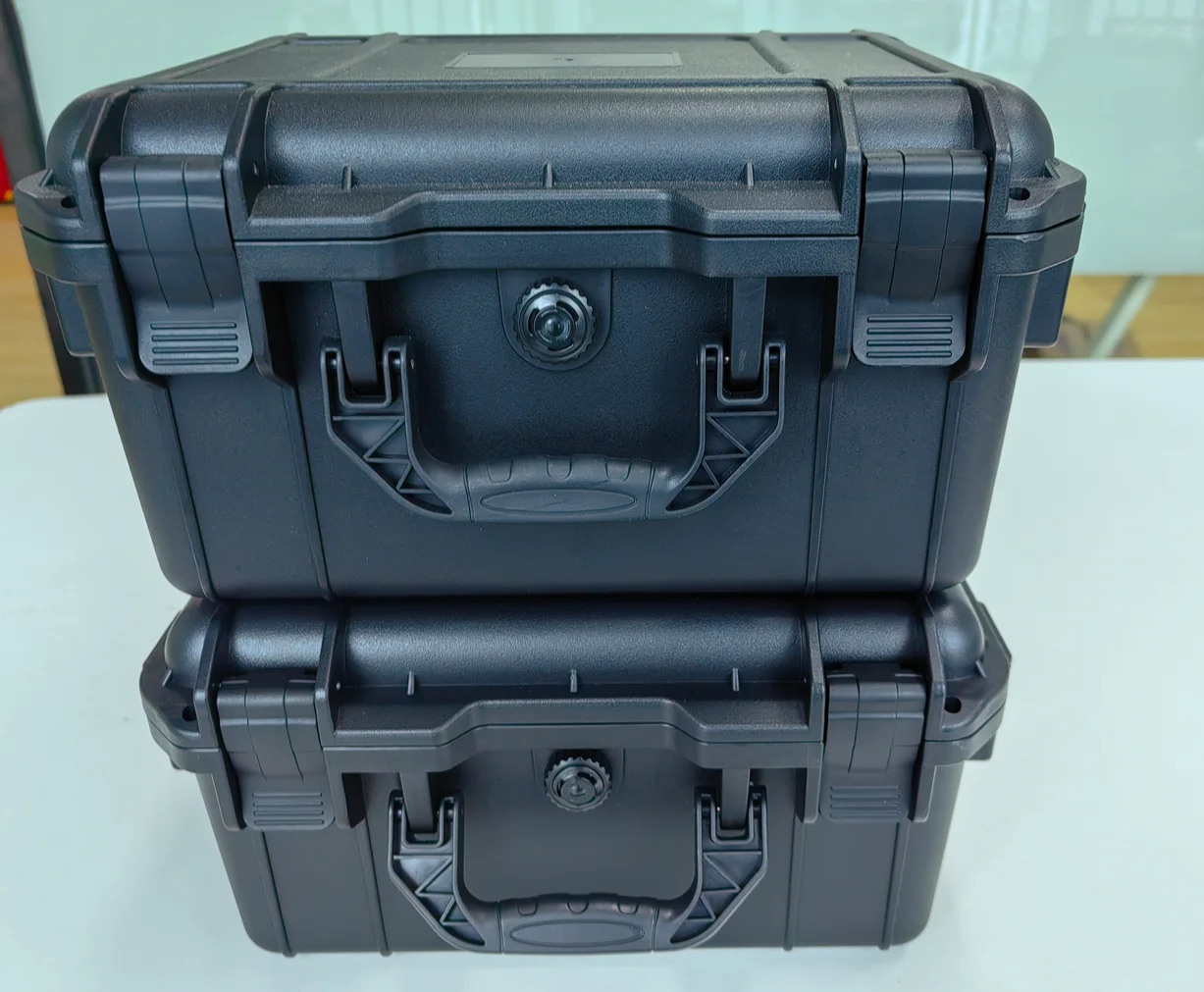

Product packaging
Company Profile
Union Tech innovation (Shenzhen) Technology co.ltd is a high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric pod system. Union Tech main products are camera imaging products, photoelectric payload systems and its key accessories. The key core parts and technology, in the products, are design and manufactured by our own team, like gimbal cameras, optical pods, visible/thermal cameras, thermal lens, intelligent AI algorithm, control system, wireless HD transmission system and ect. Our core team members, over 15 industrial years, have abundant experience in this field. Union Tech is a know-how company to design and produce products, customized products are then available from us. Products now are wildly used in UAV, UGV, USV, robotics and other related fields in worldwide.

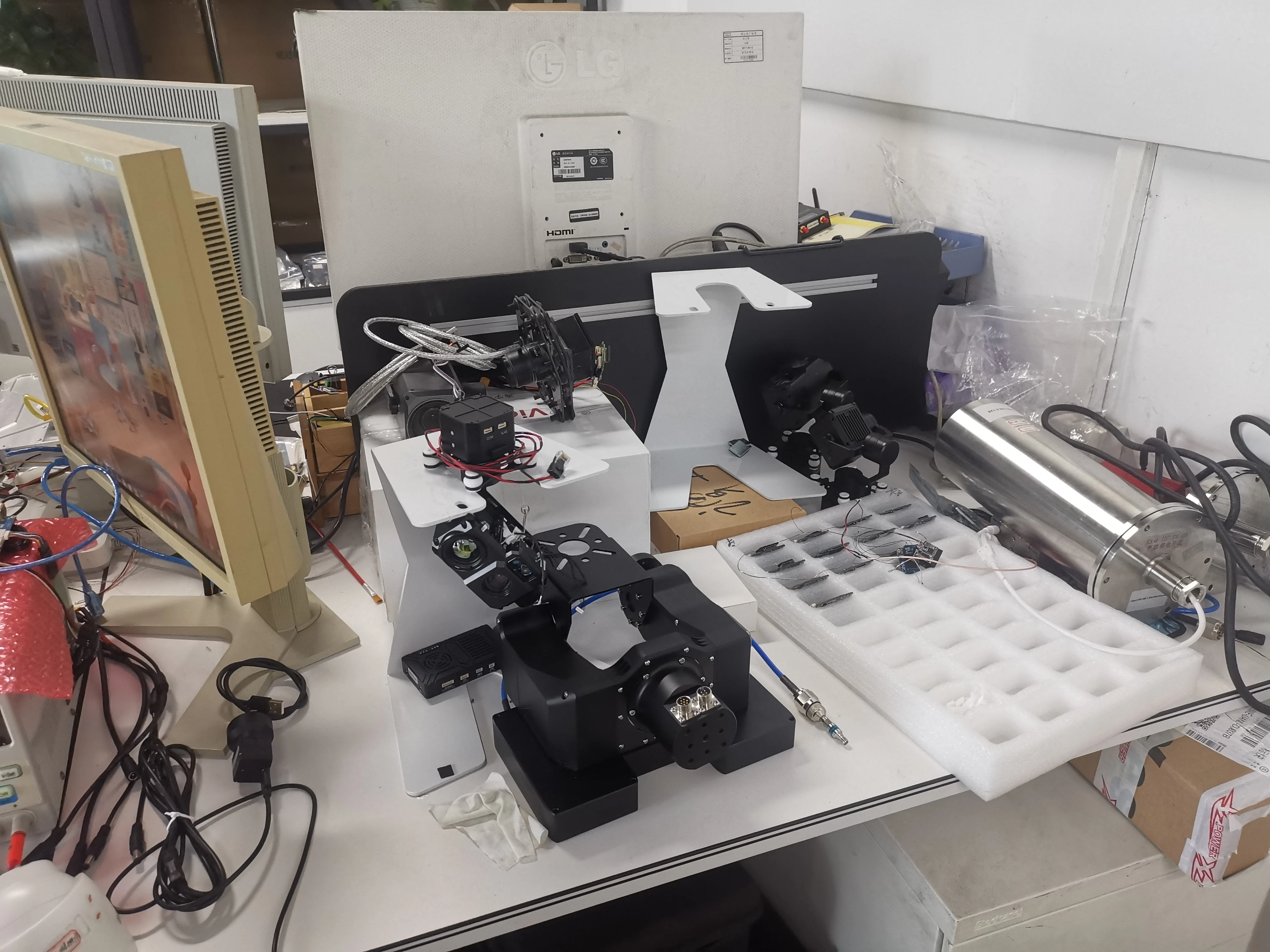

Manufacturing Technique
Q1: Are you a manufacturer or a trading Company? | ||||||||
A: We have our own factory, and the prices are all factory prices, which are the lowest. | ||||||||
Q2:What's your MOQ? | ||||||||
A:1 pcs. | ||||||||
Q3: Can OEM or ODM be provided? | ||||||||
A: Yes, we provide customized services for customers.You need to provide us with some technical data, such as dimensions and markings. | ||||||||
Q4:What certificates do you have? | ||||||||
A:We passed CE,AE, FCC certification. | ||||||||
Q5: Do you provide samples? ls it free or extra? | ||||||||
A: We will charge as little sample fee as possible. | ||||||||
Q6: What if the item is broken? | ||||||||
A: Except for human error, we will replace the defect in a completely new wayWithin 7 days after you get our products. | ||||||||
Q7:What's your leadtime? | ||||||||
3-5days for inventory and 25~35 days for the new project. | ||||||||
