Product Overview
Description
Products Description
Temperature Signal Isolator Technical Parameters | ||
Input Signal | B,E,J,K,N,R,S,T thermocouple signals PT100,Cu50 and other RTD signals | |
Cold Junction Compensation | Range:-20℃~+75℃(error 1℃/20℃) Model:Internal compensation | |
RTD Excitation Voltage | 2.5V | |
Allowed Line Resistance | ≤100Ω | |
Output Signal | 4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized | |
Output Load Resistance | RL≤500Ω(output current signal); | |
RL≥1KΩ(output voltage signal); | ||
Power Supply | DC24V,±10%;AC85-265V | |
≤70mA(1 in 1 out,24V power supply,output 20mA); | ||
≤90mA(1 in 2out,24V power supply,output 20mA); | ||
≤100mA(2 in 2 out,24V power supply,output 20mA); | ||
Accuracy | 0.2%F.S. | |
Temperature Drift | 0.005%F.S./℃ (-20℃~+55℃) | |
Isolation Intensity | 1500V AC/1min(between input-ouput-power) | |
Insulation Resistance | ≥100MΩ(between input-ouput-power) | |
Working Temperature & Humidity | -20℃~+55℃ | |
EMC | Complies with GB/T 18268(IEC61326-1) | |
Applicable Equipment | 2-wires or 3-wires RTD ,Thermal resistance (RTD) | |
If you have more request for inverter , pls contact me online service . | ||
Technical Index and Specification:
1>. It accepts the thermocouple signal from the site,isolates and transformers it to standard current or voltage signal,then send the standard signal to the control room,PLC DCS and display instrument.
2>. Thermocouple K E J T R S N direct interface,cold forging compensation,4-port isolation.

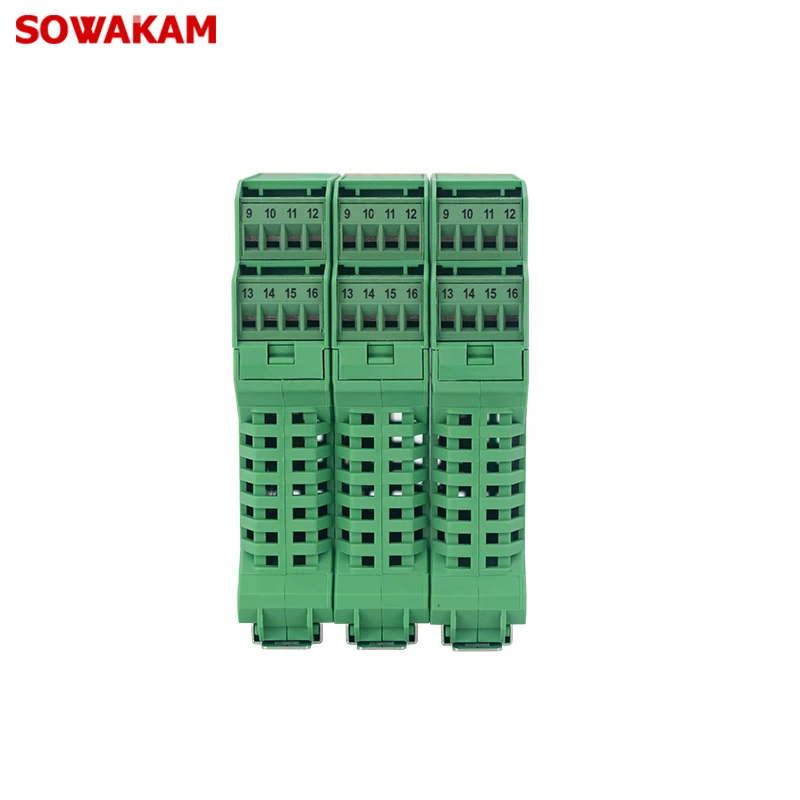

3>. DIN T rail independent mounting,terminals pluggable.Full channel configuration,Parameter customizable.
2>. Thermocouple K E J T R S N direct interface,cold forging compensation,4-port isolation.
3>. DIN T rail independent mounting,terminals pluggable.Full channel configuration,Parameter customizable.
4>. PT100 temperature transmitter accepts the thermal resistance signal from the site,isolates and transformers it to standard current or voltage signal,then send the standard signal to the control room,PLC DCS and display instrument.
5>. PT100,Cu50 sensor direct interface,containing linearized long line compensation.4-port isolation,the 2 output routes are isolated from each other.
6>. It has 3 types,1 in/1 out,1 in/2 out,2 in/2 out,input and output signal can be customized.
5>. PT100,Cu50 sensor direct interface,containing linearized long line compensation.4-port isolation,the 2 output routes are isolated from each other.
6>. It has 3 types,1 in/1 out,1 in/2 out,2 in/2 out,input and output signal can be customized.
Product Details

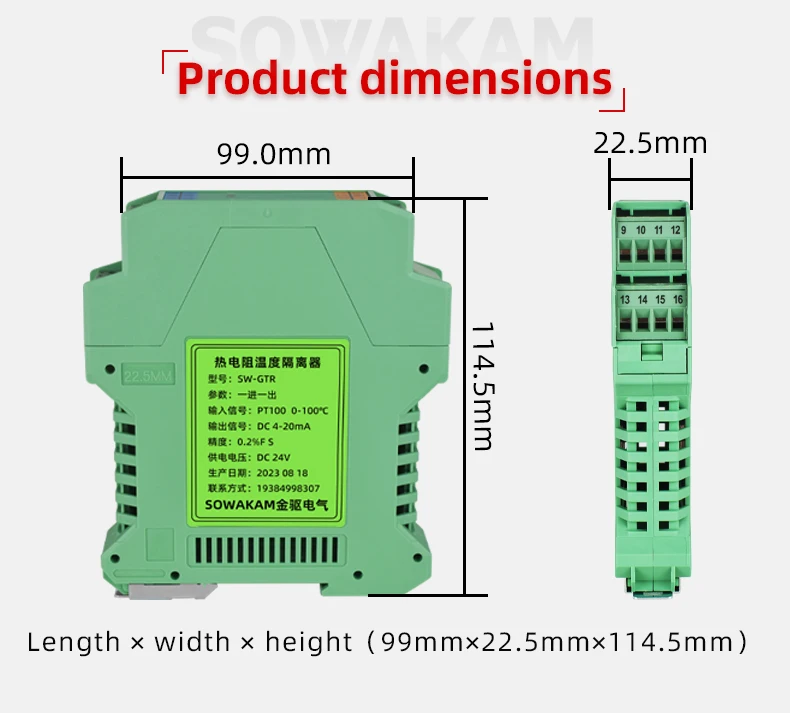

Product Size

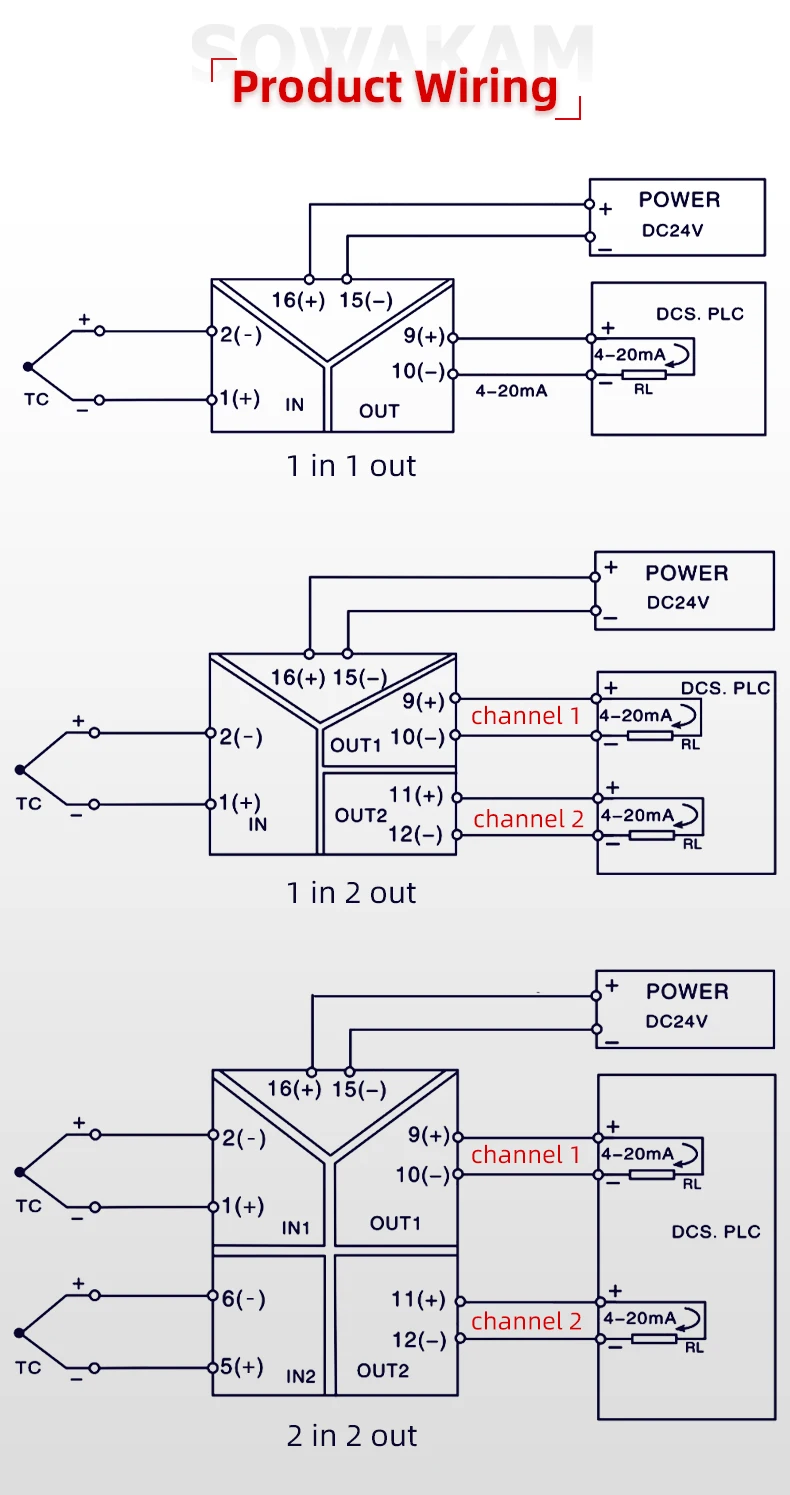

Product Wiring
Customer Feedback
About Our Company
FAQ
Q1 : Where is your factory and Company ?
A : Huaibei City , Anhui ,China
Q2 : Do you accept OEM logo and OEM User's Manual ?
A : Yes, we accept OEM and ODM with your autherization , it needs 50pcs or above.
Q3 : What is your MOQ ?
A : 1pc for test order is also accepted .
Q4: What's the payment term?
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
Q5: What's the delivery time?
A: For 1000pcs , it usually needs one week to finish.
Q6: How you control quality?
A: Our inverters strictly follow ISO9001 quality control system. After four times quality inspect and high temperature testing we will print "QA" pass.
Q7: What kind of certificate you have?
A: We have ISO, CE, CB, TUV, etc.
Q2 : Do you accept OEM logo and OEM User's Manual ?
A : Yes, we accept OEM and ODM with your autherization , it needs 50pcs or above.
Q3 : What is your MOQ ?
A : 1pc for test order is also accepted .
Q4: What's the payment term?
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
Q5: What's the delivery time?
A: For 1000pcs , it usually needs one week to finish.
Q6: How you control quality?
A: Our inverters strictly follow ISO9001 quality control system. After four times quality inspect and high temperature testing we will print "QA" pass.
Q7: What kind of certificate you have?
A: We have ISO, CE, CB, TUV, etc.
