AC Current Transducer,single phase ac current transducer din rail hall effect current sensor analog signal 4 20mA output

Current transducer:

A current transducer, also known as a current sensor or current transformer, is a device that converts electrical current into another electrical signal, such as voltage or resistance. This process is called transduction. Current transducers are used in a variety of applications, including power distribution, industrial automation, and medical devices.

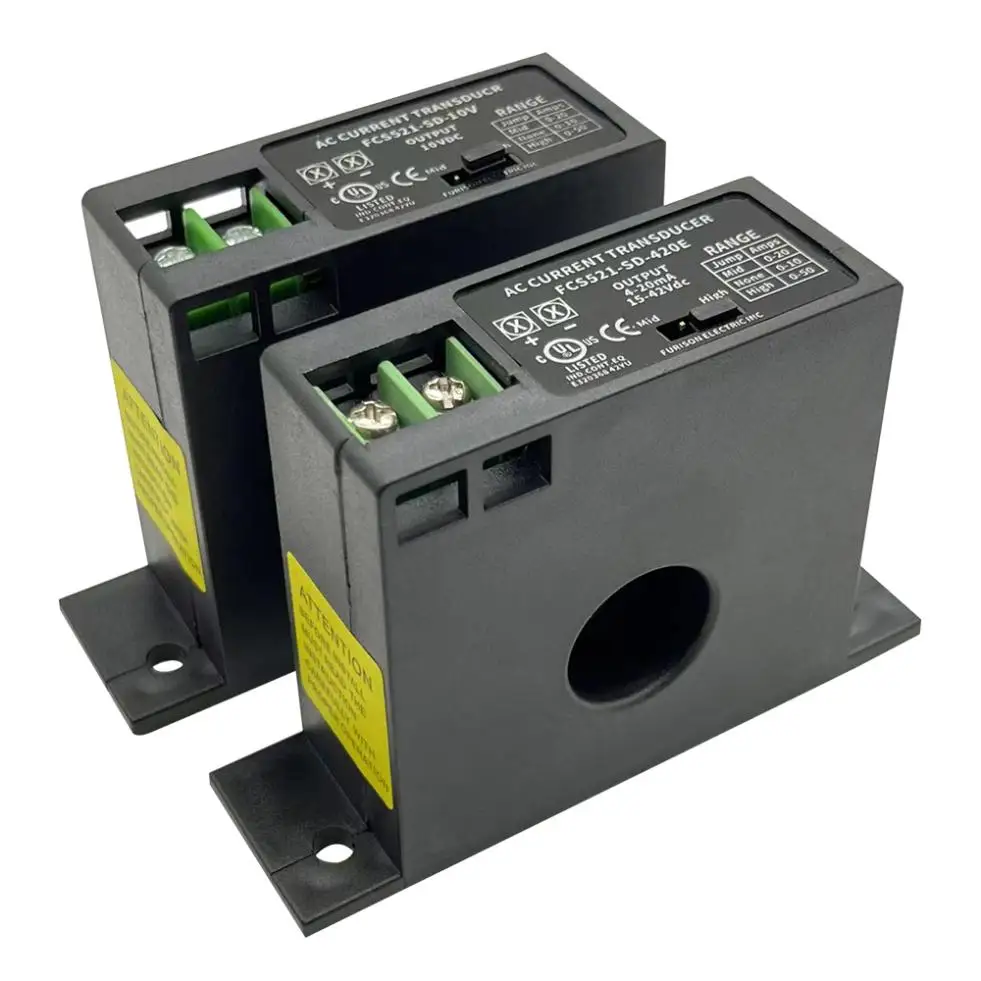

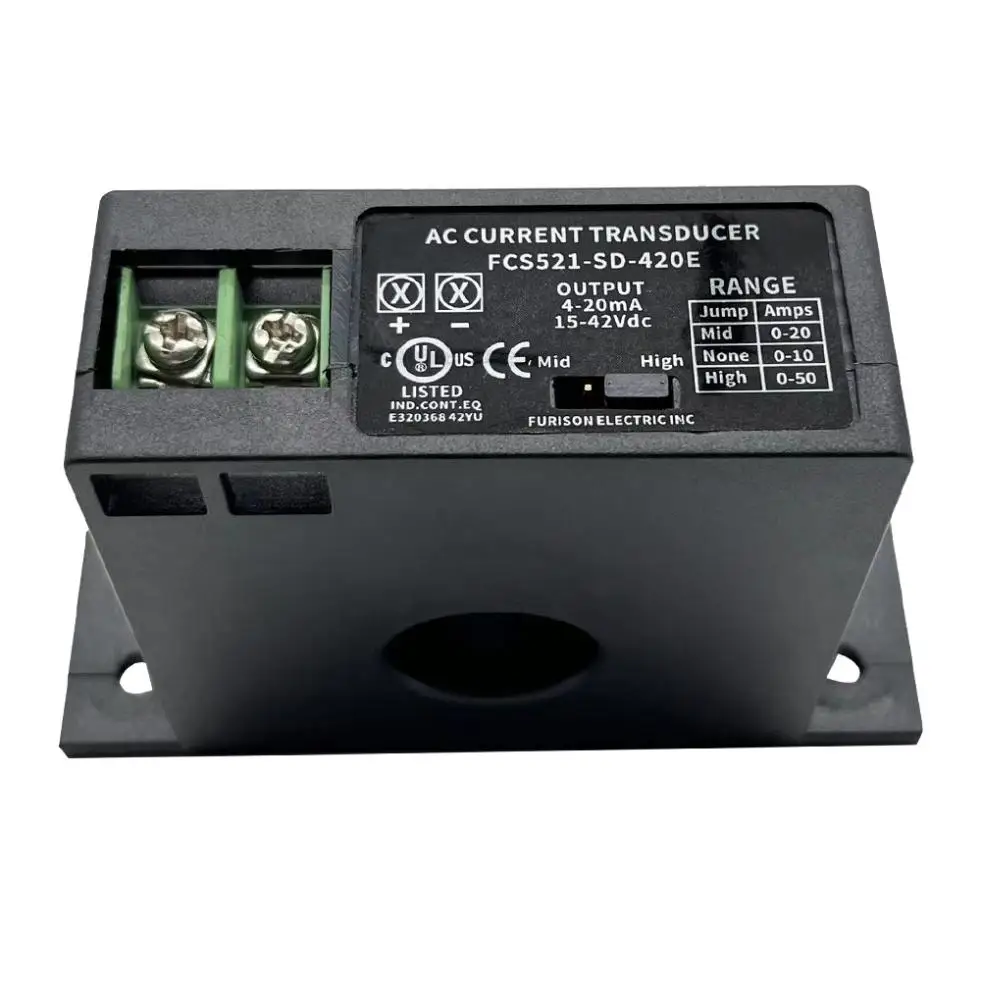

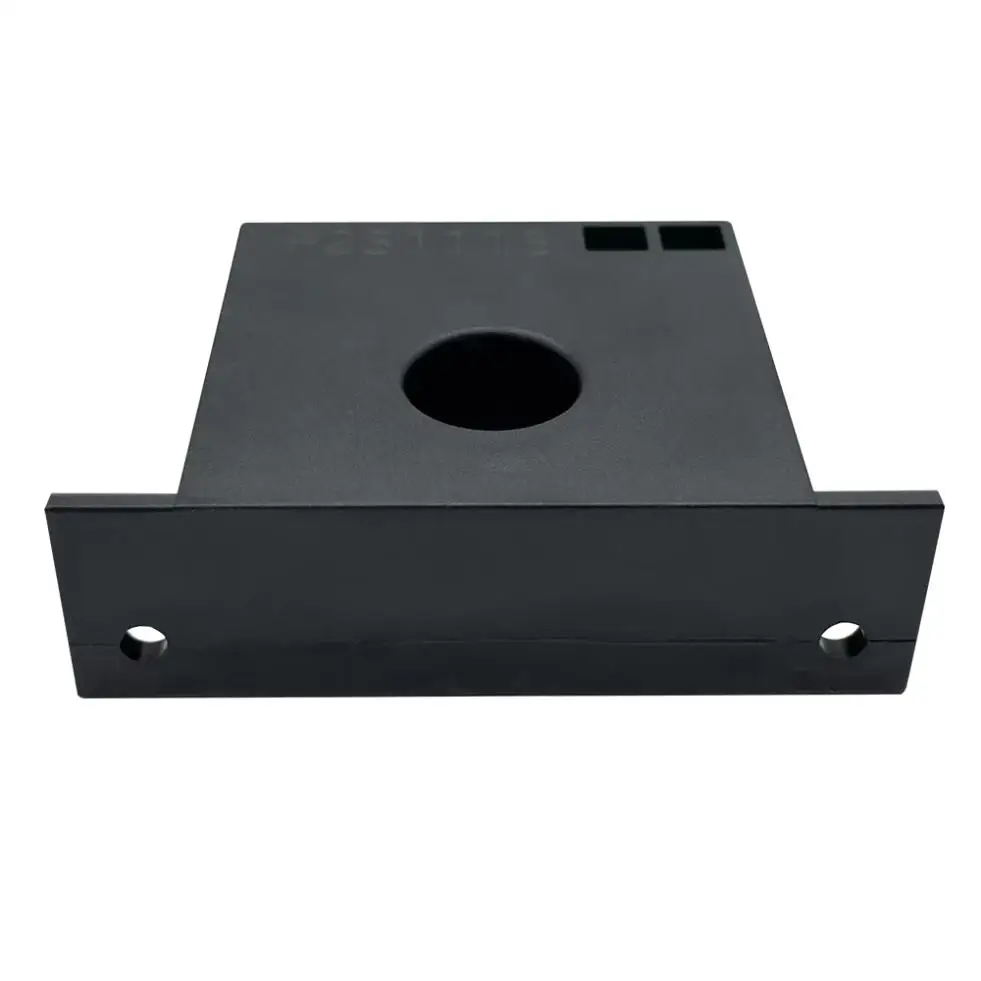

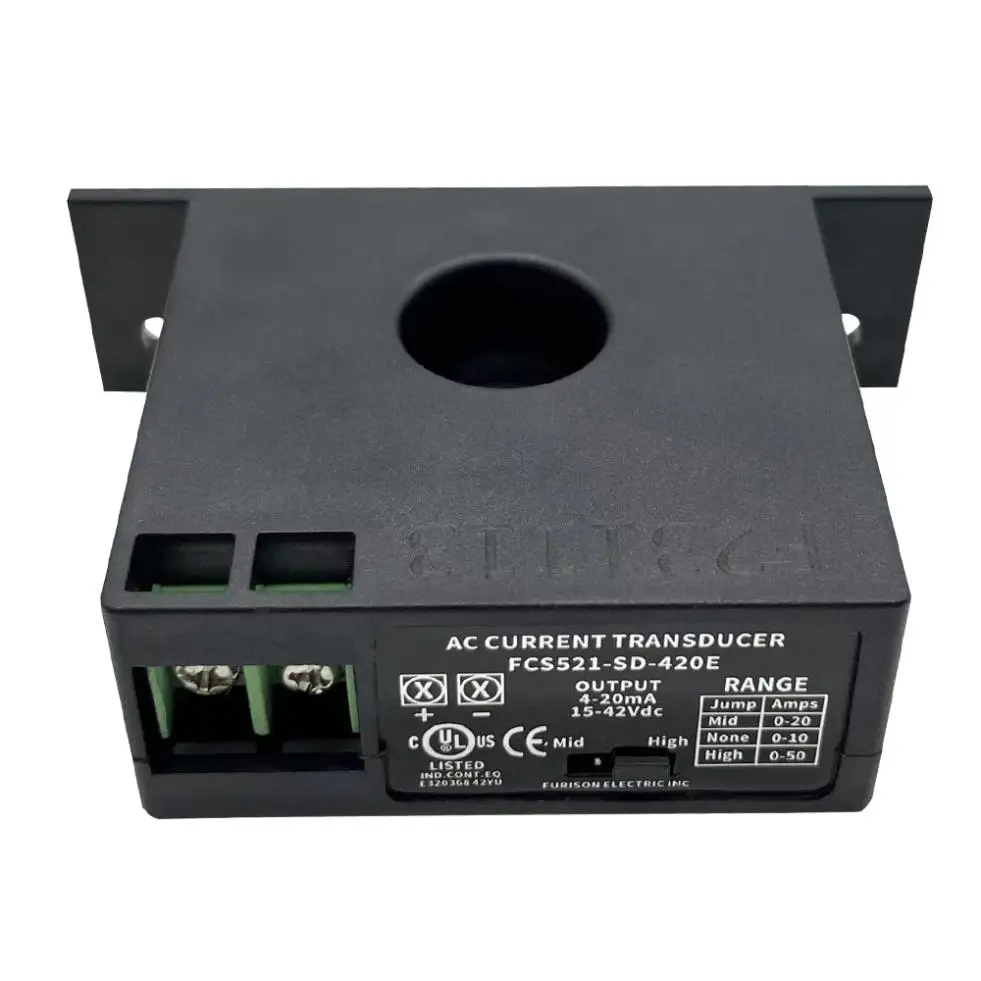

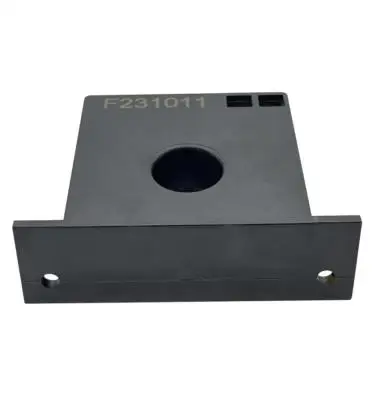

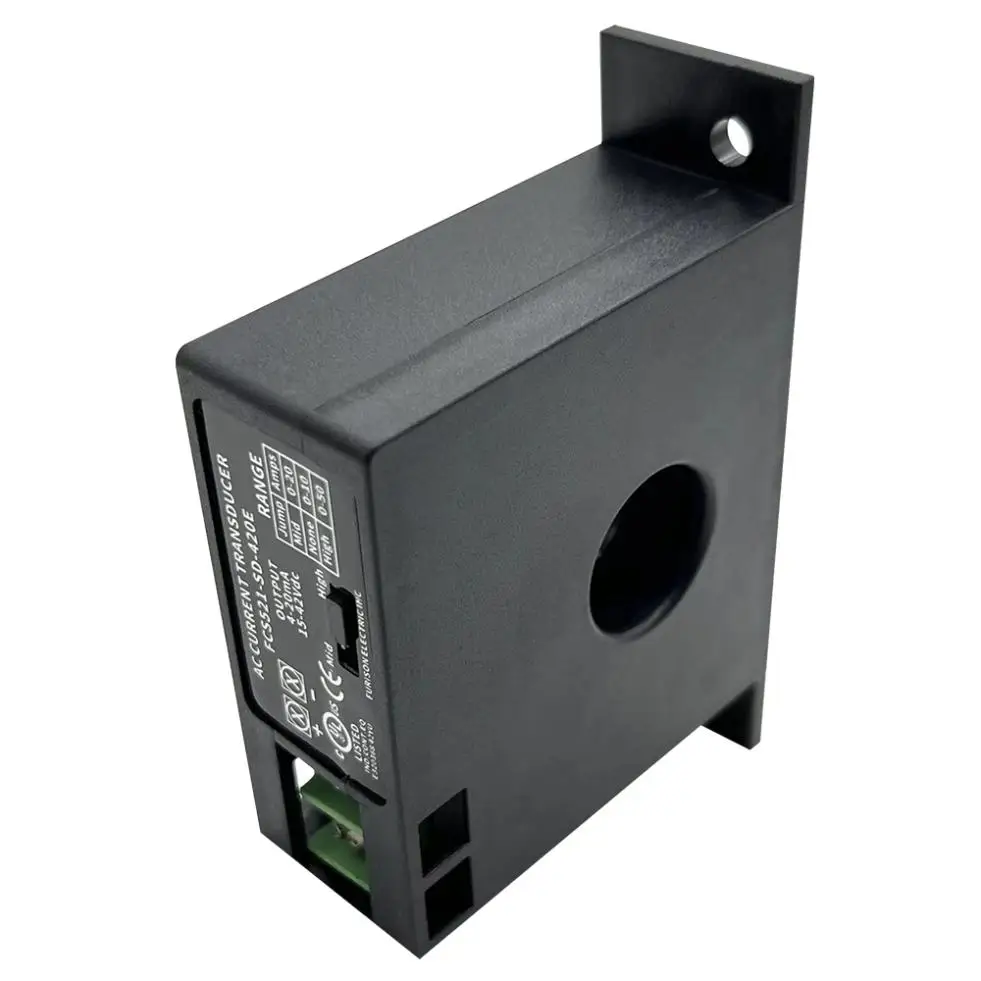

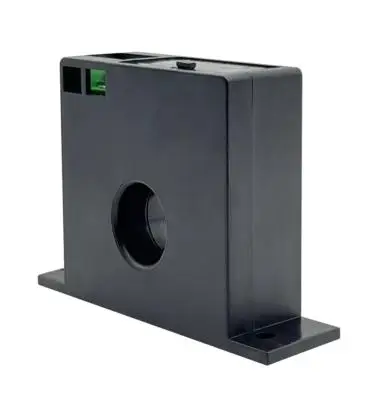

FCS521/FCS2151 series AC current transmitters can isolate and measure AC current and output standard industrial signals o-5v,0-10v or 4-20mA,which can be connected to various ADs to form a variety of Digital centralized acquisition system, or output to PLC to form an automatic control system,or connect with traditional analog or digital indicating instruments to display the measured value. FCS521 series (input 0-10/20/50A),FCS2151(input O-100/150/200A),these two series can be set by jumpers,select and input the appropriate monitoring current. Strong anti-overload ability,high precision, high isolation, high safety, low power consumption, strong anti-interference ability,etc..and easy to install, there are two options of fixed port and clamp-shaped opening, widely used in the field of industrial automation.

There are two main types of current transducers:

(1)AC current transducers: These transducers are used to measure alternating current (AC) signals. They typically use a magnetic core to couple the current signal to the transducer's output signal.
(2)DC current transducers: These transducers are used to measure direct current (DC) signals. They typically use a Hall-effect sensor or a photodiode to detect the current signal.

Some of the applications of current transducers:

(1)Power distribution: Current transducers are used to monitor the current flow in power lines. This information is used to ensure that the power grid is operating safely and efficiently.
(2)Industrial automation: Current transducers are used to control motors and other electrical equipment. They are also used to monitor the performance of machinery and equipment.
(3)Medical devices: Current transducers are used to monitor the electrical activity of the heart and other organs. They are also used to power medical devices.

Specifications:

 Wiring diagram:

 Advantage:

1. Self-powered without external power supply

2. High current detection accuracy and stable performance

3. Maximum overload 200%

4. Easy to install and use,no need to connect DC circuit

5. The shell is made of self-extinguishing material ABS

6. Through core design isolation withstand voltage up to 2000v

7. Hysteresis is less than 1%, can be used under

8. strong magnetic field conditions

Inner box size:190x190x90mm

Packing:1.27kg/12pcs/0.03CBM/BOX
