8 Port POE 10/100M 1 100Mbs combo uplink 48V 120W POE Switch For IP Camera CCTV Camera System
- Category: >>>
- Supplier: HiOSO Technology Co. Ltd.
Share on (1600999400792):
Product Overview
Description
Product Description
FOWAY1309PFC 8 100M POE + 1 100M/1000M Combo
Overview

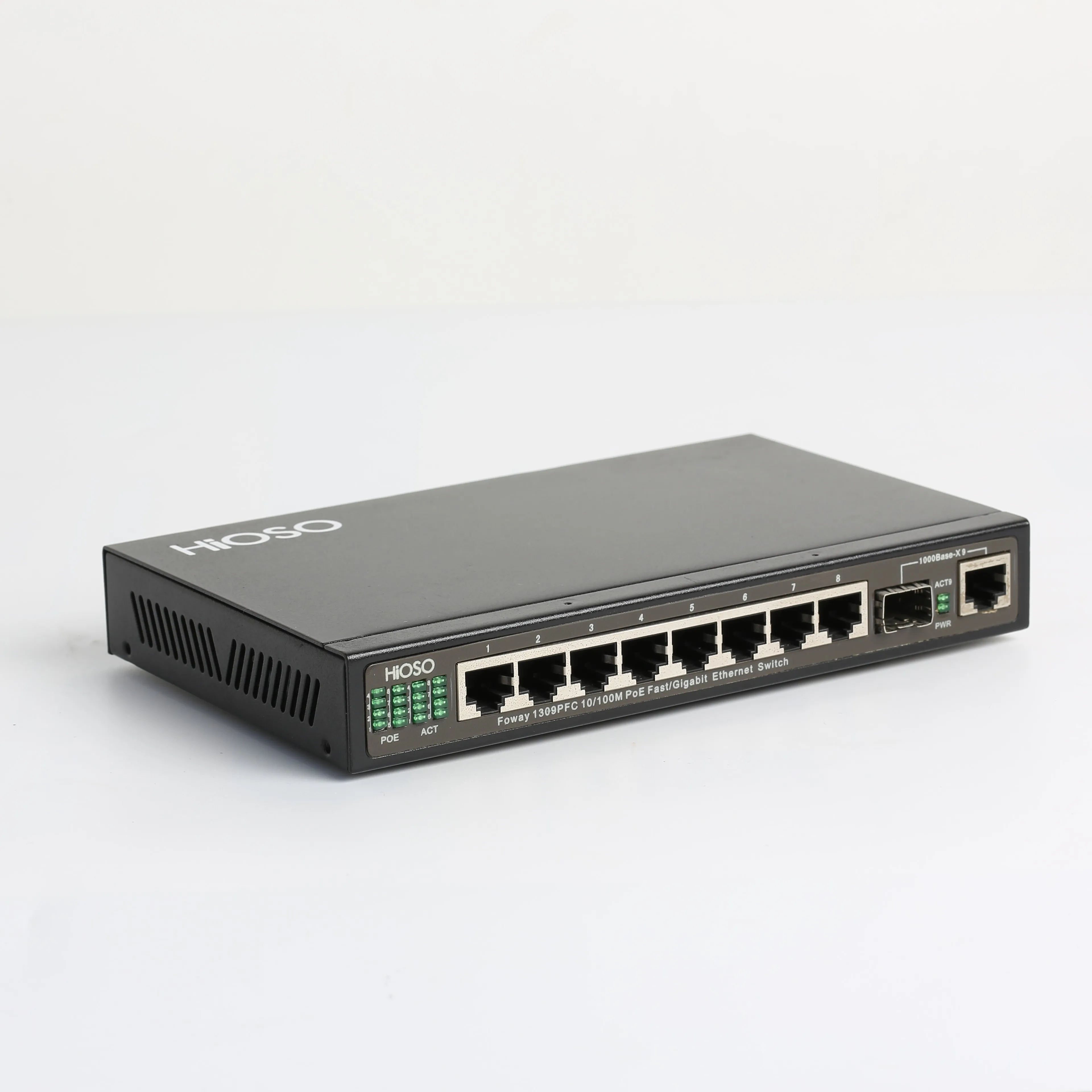

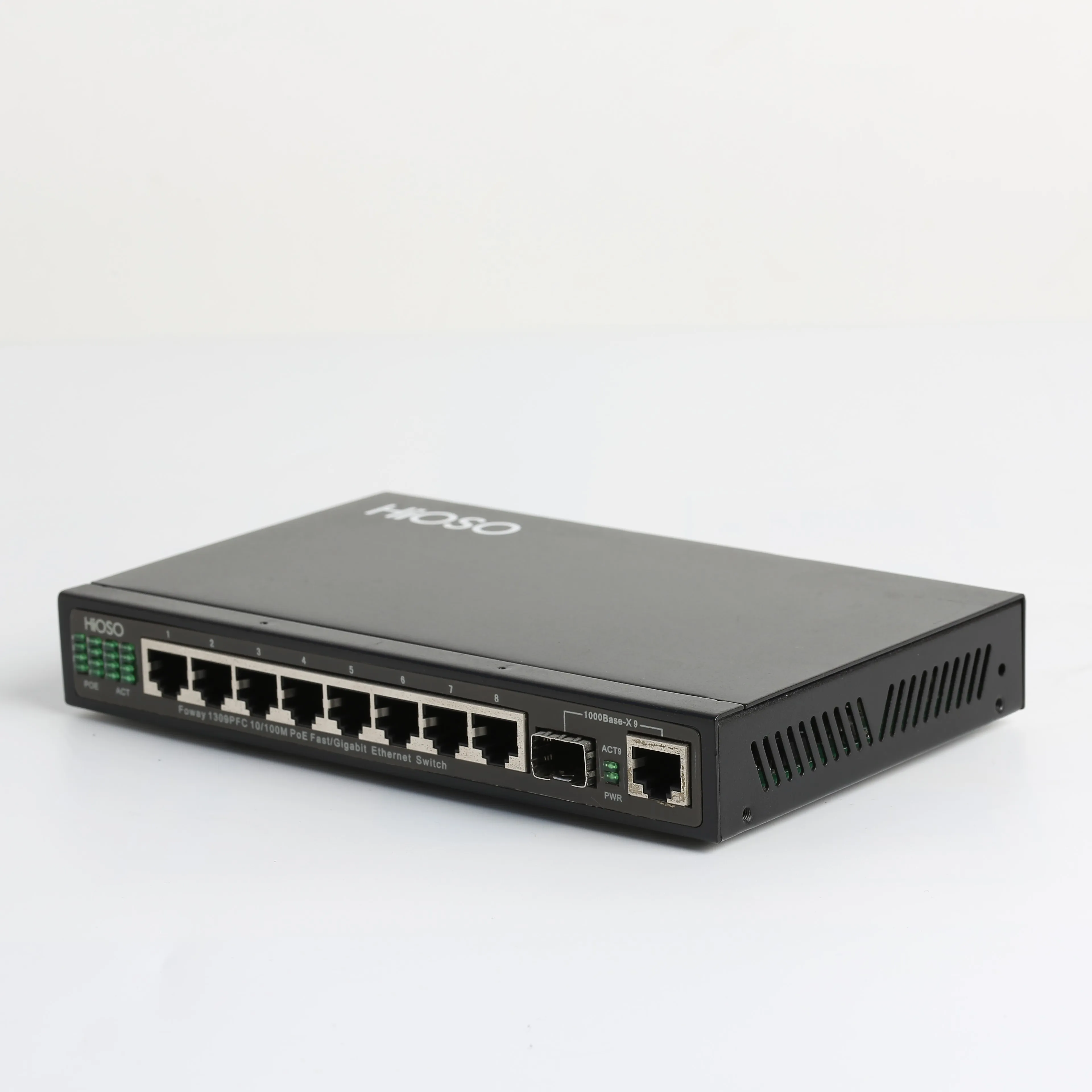

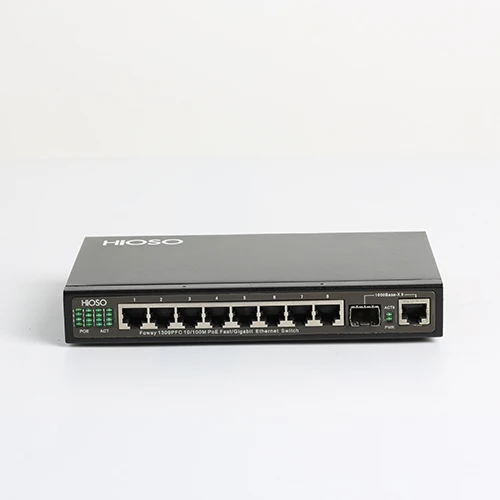

HiOSO FOWAY1309PFC is a nine ports 100M PoE Ethernet Switch, with 8 RJ45 PoE ports and 1 1000M uplink Combo port (100M/1000M SFP fiber port or 10/100/1000M adaptive RJ45 port optional), include non-managed type and managed type, managed type supports web management and SNMP management(optional).
FOWAY1309PFC supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
FOWAY1309PFC supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices, supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Character
l Support Maximum 8 100M PoE ports and 1 1000M Combo port (100M/1000M SFP port and 10/100/1000M RJ45 port optional)
l Each PoE port supports to auto discovery the standard power receiving devices
l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
l Support each port full rate, full-duplex non-blocking forwarding
l Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth
l Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

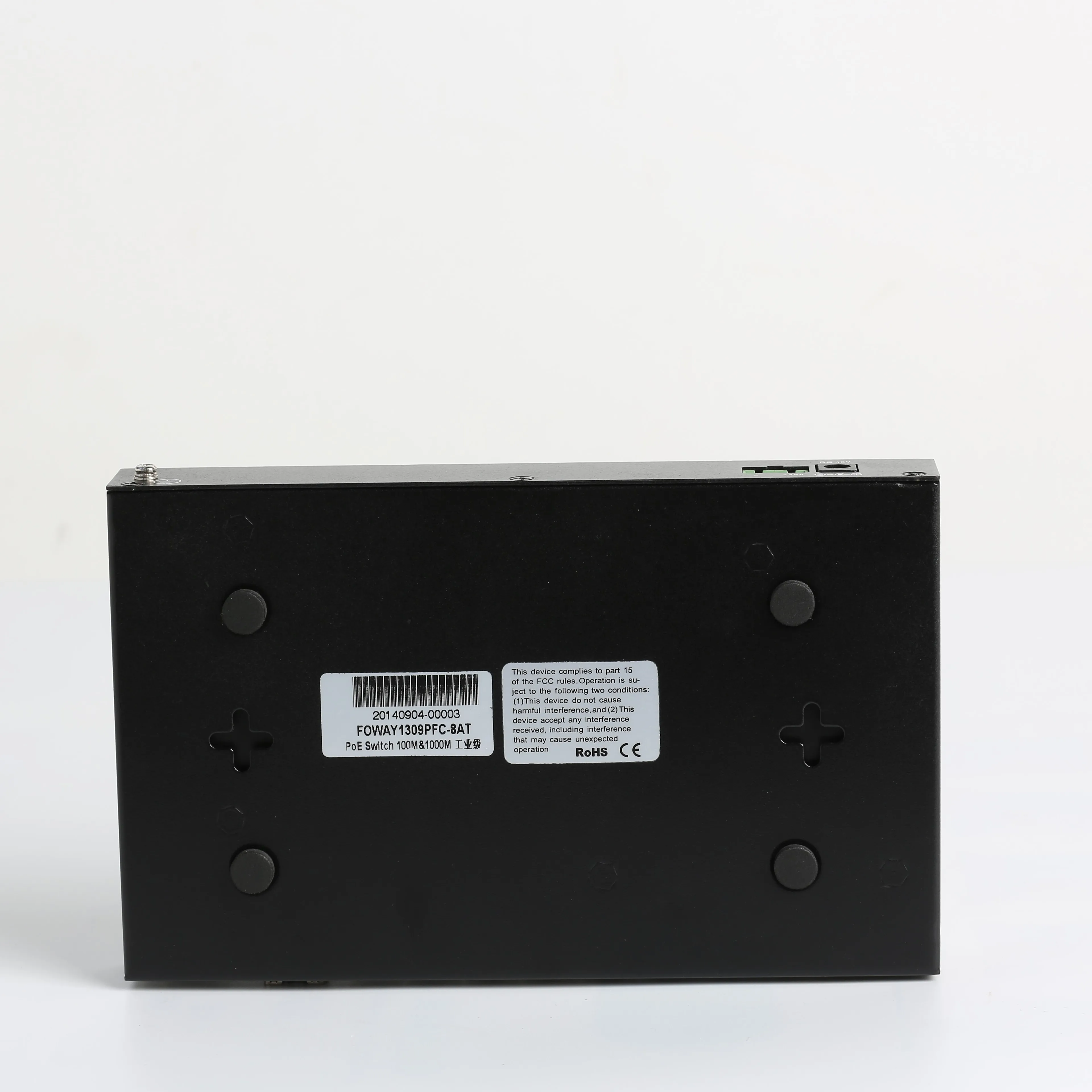

l Support to provide wall-mounted hanger better for installation if need, metal casing better for heat dissipating
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
PoE | Power supply ports: 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/ cutting |
Wavelength | SFP modules: 850nm/1310nm/1490nm/1550nm |
Distance | 100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode: 220m (fiber 62.5/125μm)/ 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port | 8 100M RJ45 ports (PoE optional): 10/100Mbps 1 1000M Combo port: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 |
MAC | 8K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |

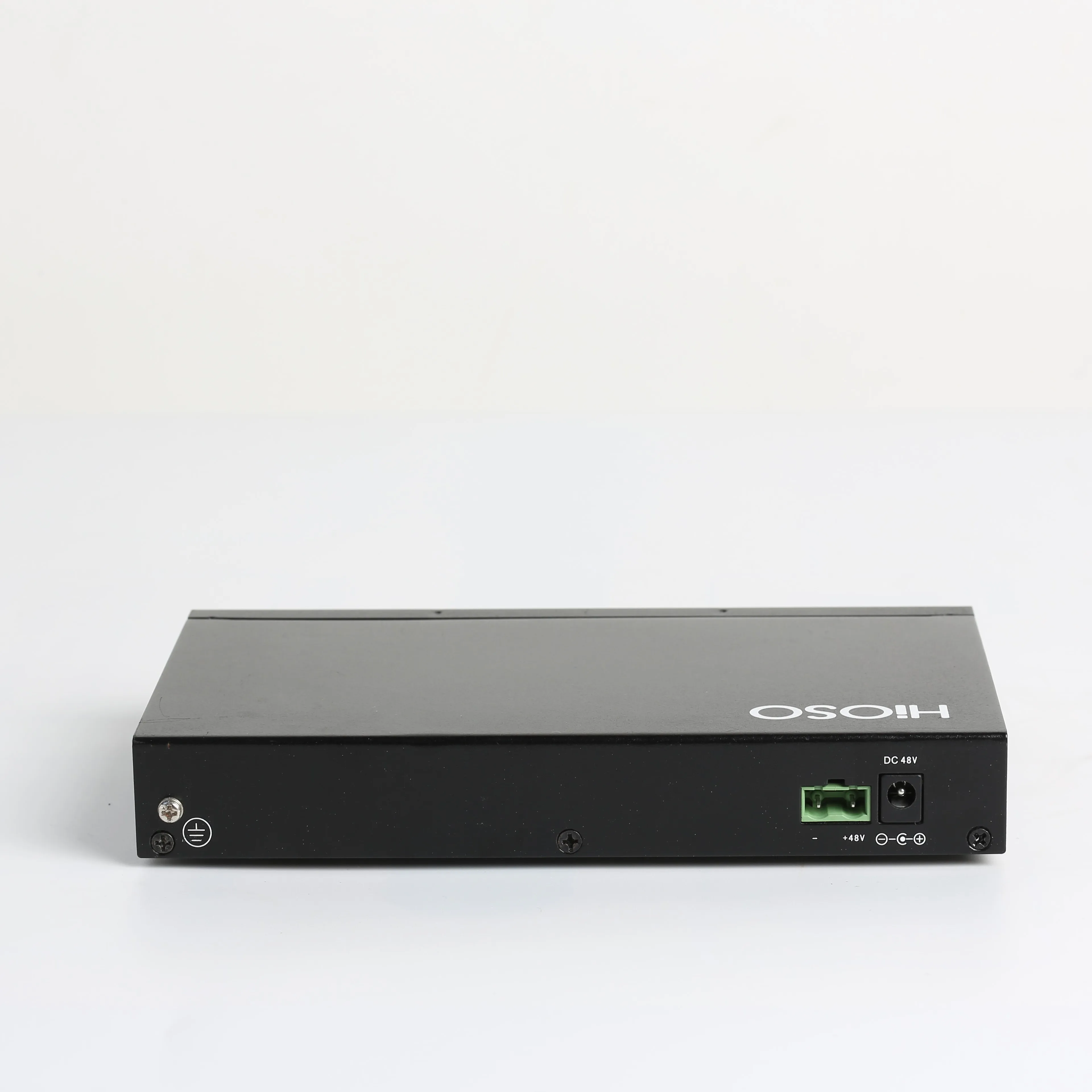

Power | DC48V(External power), AC110V/220V & DC48V redundant power back up(Internal power) |
Power consumption | 120W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 28mm (H)×193mm(W)×119mm (D) |
Order information
No | Product code | NMS | Ports | PoE ports |
1 | FOWAY1309PFC-8AF | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W |
2 | FOWAY1309PFC | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W |
3 | FOWAY1309PFC-240W | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W |
4 | FOWAY1309PFCP-8AF | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W,AC220V |
5 | FOWAY1309PFCP | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W,AC220V |
6 | FOWAY1309PFCP-240W | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W,AC220V |
7 | FOWAY1309PFCM-8AF | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W |
8 | FOWAY1309PFCM | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W |
9 | FOWAY1309PFCM-240W | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W |
10 | FOWAY1309PFCPM-8AF | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W,AC220V |
11 | FOWAY1309PFCPM | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W,AC220V |
12 | FOWAY1309PFCPM-240W | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W,AC220V |
