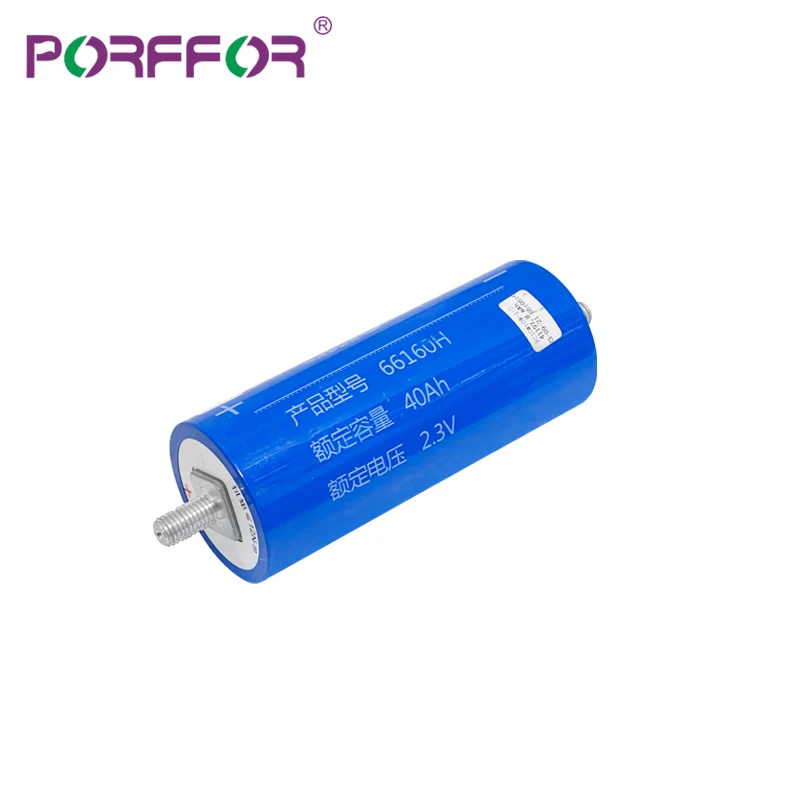

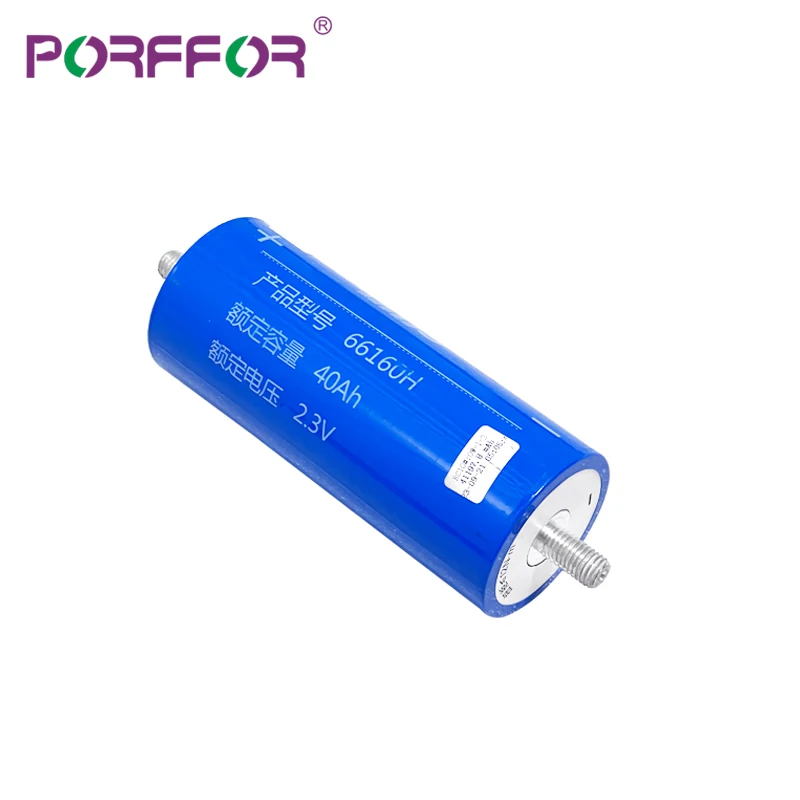

Yinlong LTO 66160h 2 3V 40Ah Lithium Titanate Battery with 30000 Super Long Life Cycle for Energy Storage System
- Category: >>>
- Supplier: Wuxi Porffor Technology Co. Ltd.Wuxi Ltd.
Share on (1600999409541):
Product Overview
Description
Best Selling
Product Description
Lithium Titanate Oxide (lithium titanium oxide) technology
The lithium-titanate or lithium-titanium-oxide (LTO) battery is a type of rechargeable battery which has the advantage of being faster to charge than other lithium-ion batteries but the disadvantage of having a much lower energy density.
With a primary focus on high speed charging and energy storage, Lithium Titanate Oxide (lithium
titanium oxide) technology is the future of battery-powered technology.
titanium oxide) technology is the future of battery-powered technology.
Here are some key features of Lithium Titanate Oxide (LTO) 2.3v 40Ah batteries:

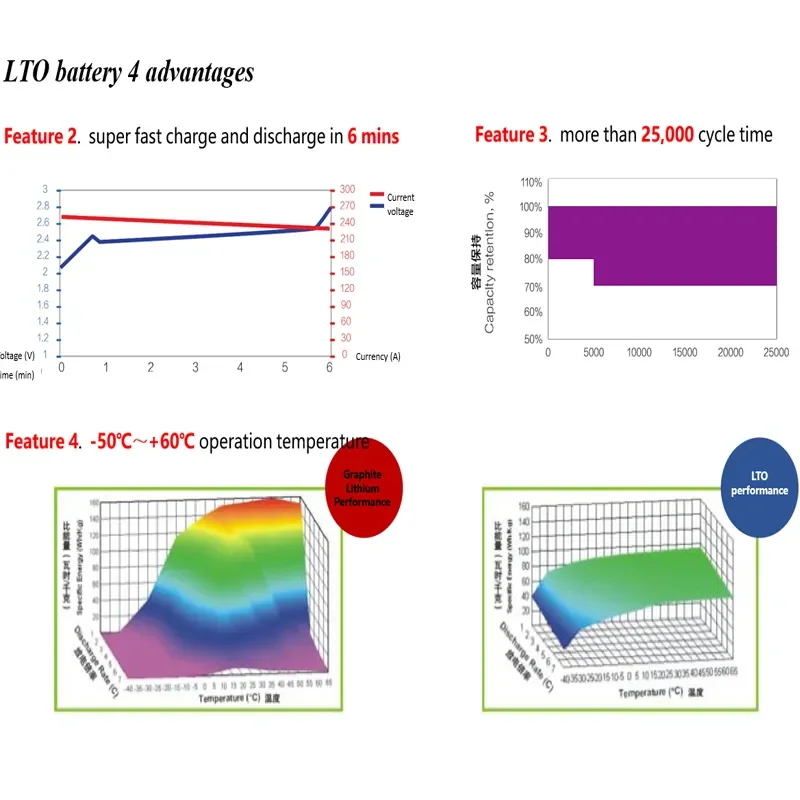

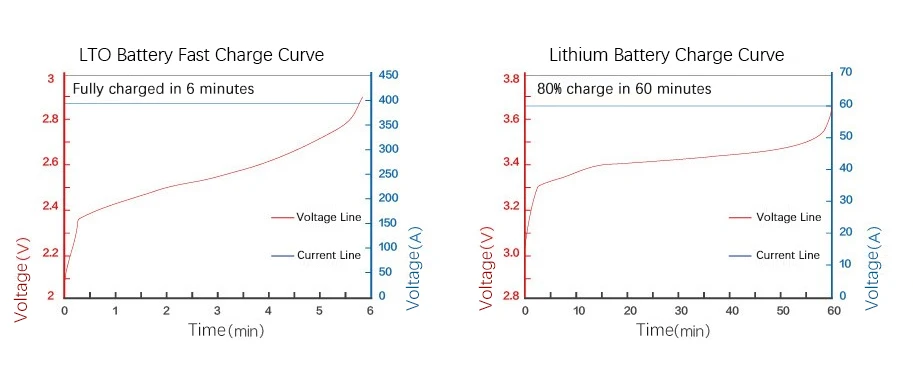

1. Rapid Charging-400A for charging and 800A for discharging:
LTO batteries are known for their rapid charging capabilities, allowing for quick replenishment of energy in a relatively short time. LTO-P66160-40Ah-2.3V can support max 400A for charging and 800A for discharging.
2. Long Cycle Life up to 25000 times:
LTO batteries exhibit an exceptionally long cycle life, capable of enduring a high number of charge and discharge cycles without significant degradation, making them durable and reliable.
3. High Power Density of 73.6Wh/kg:
LTO batteries offer a high power density, with a 73.6Wh/kg high power density, its suitable for applications that require bursts of high energy or rapid charging and discharging, like car audio, engine stating, ATV, automotive and so on.
4. Wide Temperature Range from -20 to 45℃:
LTO batteries perform well across a broad temperature range, maintaining their efficiency and reliability even in extreme hot or cold conditions. 2.3V 40Ah LTO battery cell is cold-resistance lower to -20℃
5. Enhanced Safety:

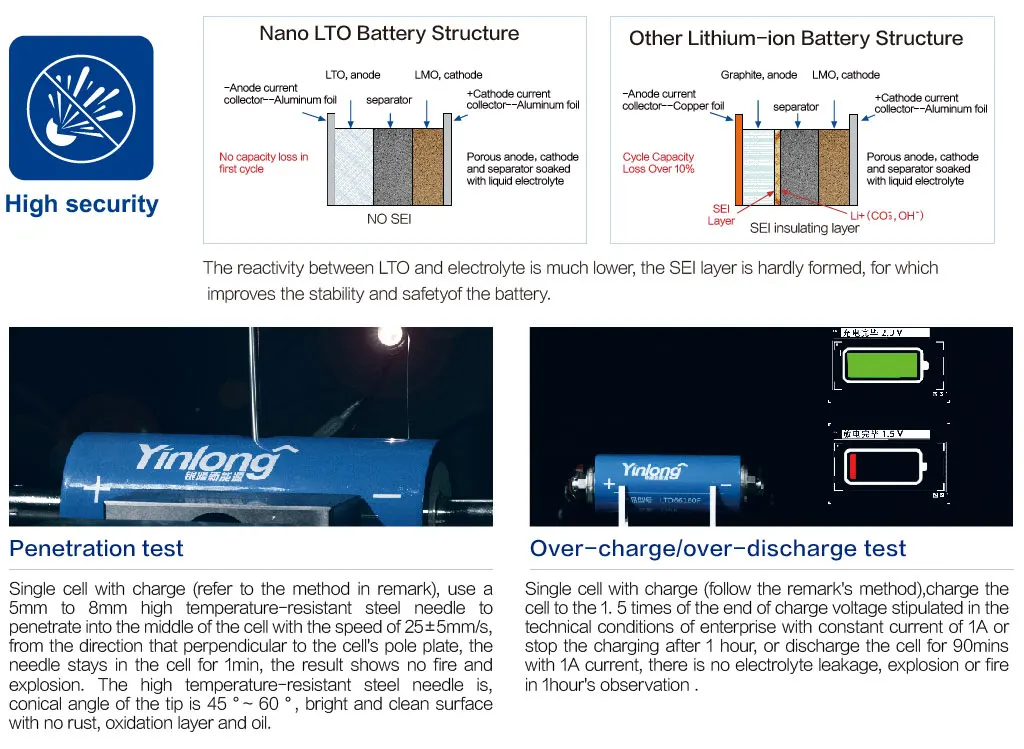

The materials used in LTO batteries contribute to their enhanced safety profile, reducing the risk of overheating, thermal runaway, and other safety concerns associated with certain battery technologies.
6. Excellent Calendar Life up to 70 years:
LTO batteries have an extended calendar life, LTO cell 2.3V 40Ah has more than 25000 cycle life, making it well-suited for applications where the battery may not be regularly used but needs to maintain performance over time.
7. Stable Chemistry:
The stable lithium titanate oxide chemistry contributes to the longevity and reliability of LTO batteries, ensuring consistent performance over the lifespan of the battery.
8. Wide Operating Voltage:
LTO batteries typically have a wide operating voltage range from from 1.5V-2.8V, allowing them to deliver stable power output across various states of charge.
9. Suitability for High-Cycle Applications:
LTO batteries are particularly well-suited for high-cycle applications such as electric vehicles, where frequent charging and discharging are common.
10. Low Thermal Expansion:
The low thermal expansion of LTO materials helps minimize stress on the battery components, contributing to the overall durability and reliability of the battery.
It's important to note that while LTO batteries have these advantages, they also have limitations, such as lower energy density compared to some other lithium-ion batteries. The choice of battery technology depends on the specific requirements of the application. Please feel free to contact abby@porffor.com for suggestions and solution.
1. Rapid Charging-400A for charging and 800A for discharging:
LTO batteries are known for their rapid charging capabilities, allowing for quick replenishment of energy in a relatively short time. LTO-P66160-40Ah-2.3V can support max 400A for charging and 800A for discharging.
2. Long Cycle Life up to 25000 times:
LTO batteries exhibit an exceptionally long cycle life, capable of enduring a high number of charge and discharge cycles without significant degradation, making them durable and reliable.
3. High Power Density of 73.6Wh/kg:
LTO batteries offer a high power density, with a 73.6Wh/kg high power density, its suitable for applications that require bursts of high energy or rapid charging and discharging, like car audio, engine stating, ATV, automotive and so on.
4. Wide Temperature Range from -20 to 45℃:
LTO batteries perform well across a broad temperature range, maintaining their efficiency and reliability even in extreme hot or cold conditions. 2.3V 40Ah LTO battery cell is cold-resistance lower to -20℃
5. Enhanced Safety:
The materials used in LTO batteries contribute to their enhanced safety profile, reducing the risk of overheating, thermal runaway, and other safety concerns associated with certain battery technologies.
6. Excellent Calendar Life up to 70 years:
LTO batteries have an extended calendar life, LTO cell 2.3V 40Ah has more than 25000 cycle life, making it well-suited for applications where the battery may not be regularly used but needs to maintain performance over time.
7. Stable Chemistry:
The stable lithium titanate oxide chemistry contributes to the longevity and reliability of LTO batteries, ensuring consistent performance over the lifespan of the battery.
8. Wide Operating Voltage:
LTO batteries typically have a wide operating voltage range from from 1.5V-2.8V, allowing them to deliver stable power output across various states of charge.
9. Suitability for High-Cycle Applications:
LTO batteries are particularly well-suited for high-cycle applications such as electric vehicles, where frequent charging and discharging are common.
10. Low Thermal Expansion:
The low thermal expansion of LTO materials helps minimize stress on the battery components, contributing to the overall durability and reliability of the battery.
It's important to note that while LTO batteries have these advantages, they also have limitations, such as lower energy density compared to some other lithium-ion batteries. The choice of battery technology depends on the specific requirements of the application. Please feel free to contact abby@porffor.com for suggestions and solution.
Product Name | lithium titanate oxide 2.3V 40Ah |
Main Ingredient | LTO battery(Li4Ti5O12) |
Manufacturer | YINLONG |
Typical Capacity | 40Ah |
Typical Voltage | 2.3V |
Internal Resistance (1KHz) | 0.4mΩ |
Standard Charge/Discharge Current | 1C/1C |
Standard Charge/Discharge Cut-off Voltage | 2.9V/1.5V |
Max. Continuous Charge/Discharge Current | 10C/10C |
Max. Pulse Discharge Current (10s) | 20C |
Cycle life | >25000 cycles @1C 100%DOD 25°C |
Charge Temperature | 50°C~65°C |
Discharge Temperature | 50°C~65°C |
Diameter(mm) | 66 |
Height(mm) | 160 |
Storage Temperature | -20 C to 45 °C ( within 1 month) -20 ·C to 20 oC ( within 1 year) |
Net Weight | 1.24kg approx |
Energy Density | 66mm |
Package | 160mm |
CTN size | 553*260*278mm |
Weight | 24kg approx |

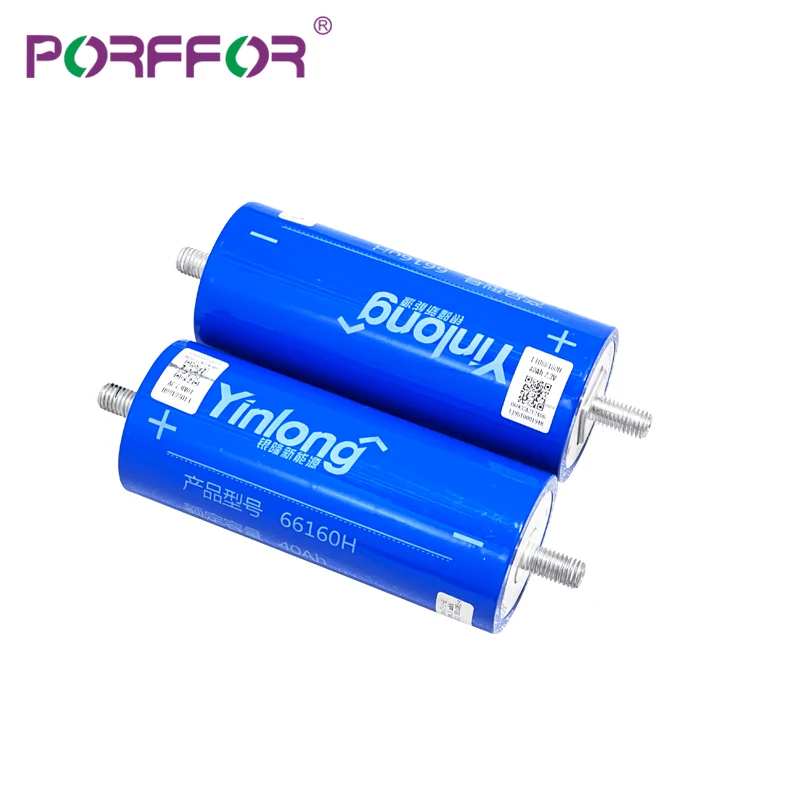

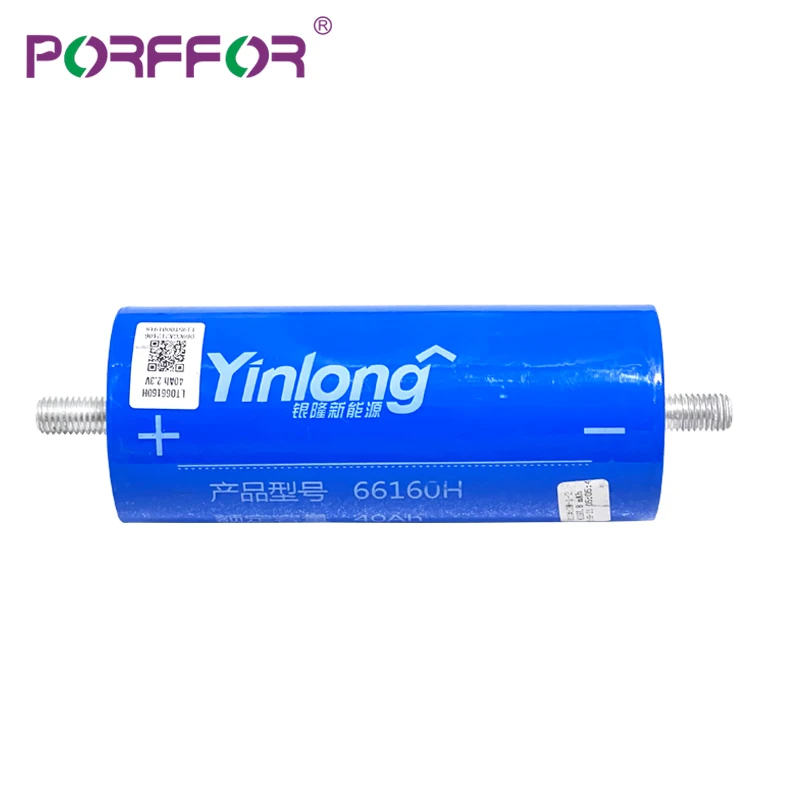

Details Images
LTO battery(Li4Ti5O12) is a lithium ion battery with lithium titanate as the anode. It has been widely used because of its high safety, high stability, excellent performance, long cycle life and environment friendly. It has the features of low
self-discharge, high safety, long cycle life, wide operating temperature range, fast charge and discharge rate.
self-discharge, high safety, long cycle life, wide operating temperature range, fast charge and discharge rate.

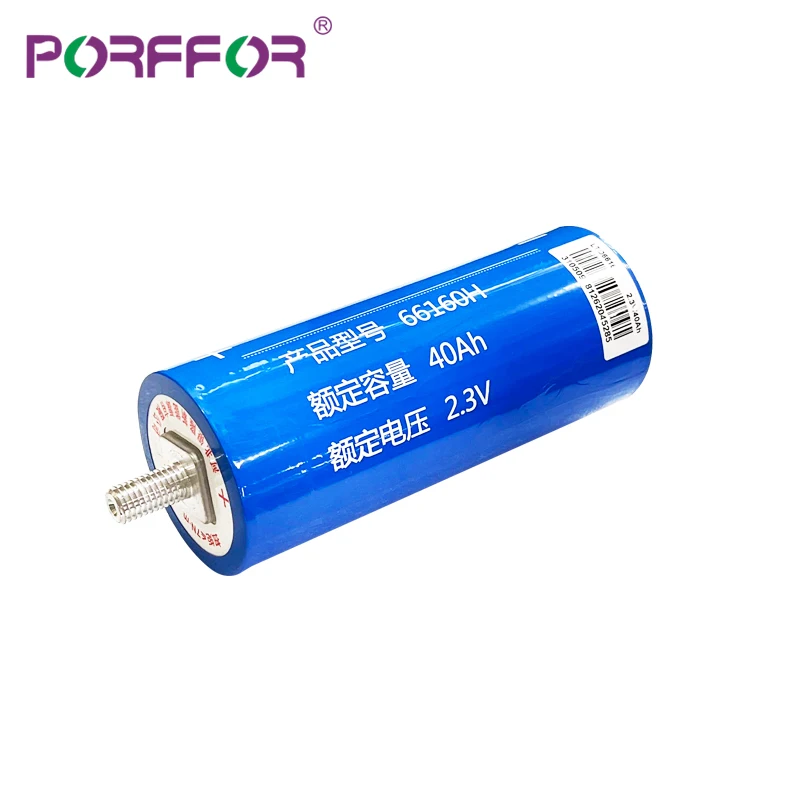

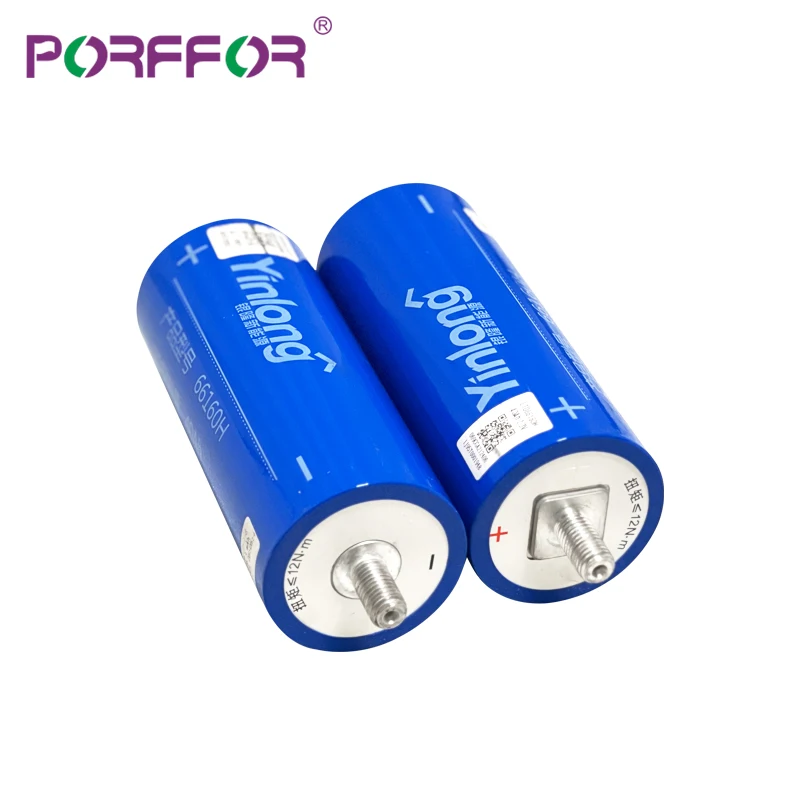

With M12 for terminal. Please contact us for inquiry. We are willing to answer your questions.
Lithium Titanate (Li4Ti5O12) technology is the future of today. One of the latest, market-ready batteries that last for more than25000 cycles (DOD at 80%) and fast charging and discharge characteristics are the preferred choice for demand projects. Most often, they are utilized in extreme temperatures due to Titanate nanotechnology, LTO battery cells handle low temperatures betterthan lead acid, Li-ion, and the other types of batteries available on the market.

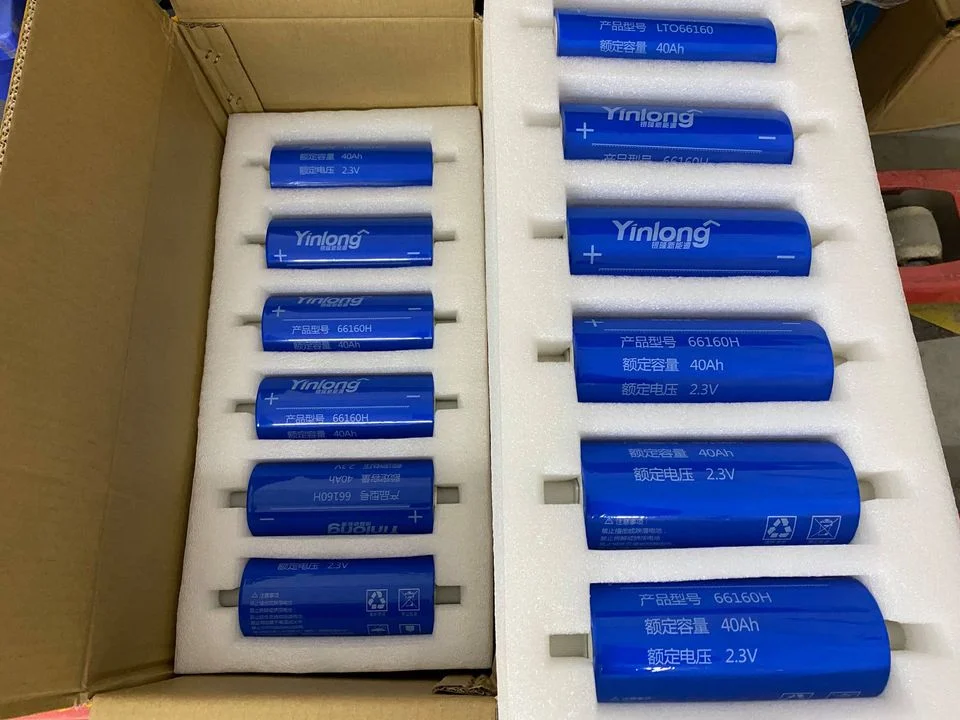

Packing & Delivery
Why Choose Yinlong LTO
Lithium-titanate Oxide (LTO) based cell

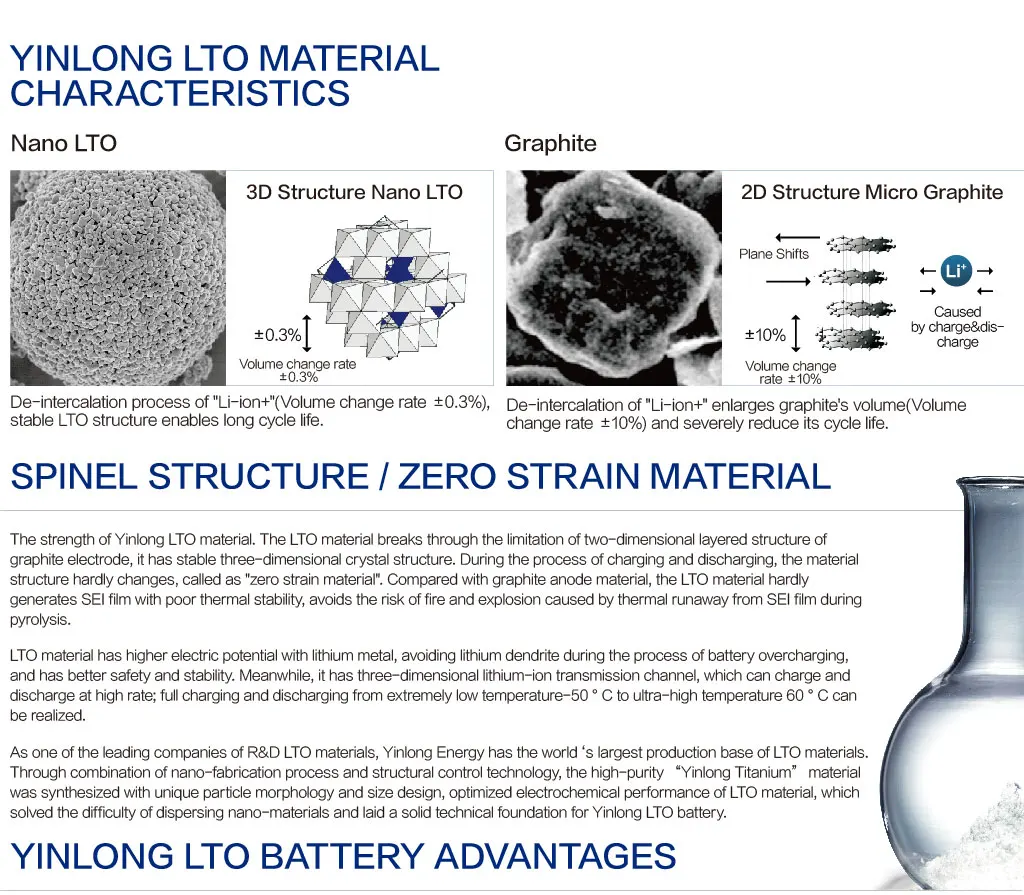

A lithium-titanate battery is a modified lithium-ion battery that uses lithium-titanate nanocrystals, instead of carbon, on the surface of its anode. This gives the anode a surface area of about 100 square meters per gram, compared with 3 square meters per gram for carbon, allowing electrons to enter and leave the anode quickly. Also, the redox potential of Li+ intercalation into titanium oxides is more positive than that of Li+ intercalation into graphite. This leads to fast charging (higher charging current) being much safer in the case of the titanate, than in the case of carbon, since lithium dendrites are less likely to form in the former case. Lithium-titanate cells last for 3000 to 7000 charge cycles; a life cycle of ~1000 cycles before reaching 80% capacity is possible when charged and discharged at 55 °C (131 °F), rather than the standard 25 °C (77 °F).

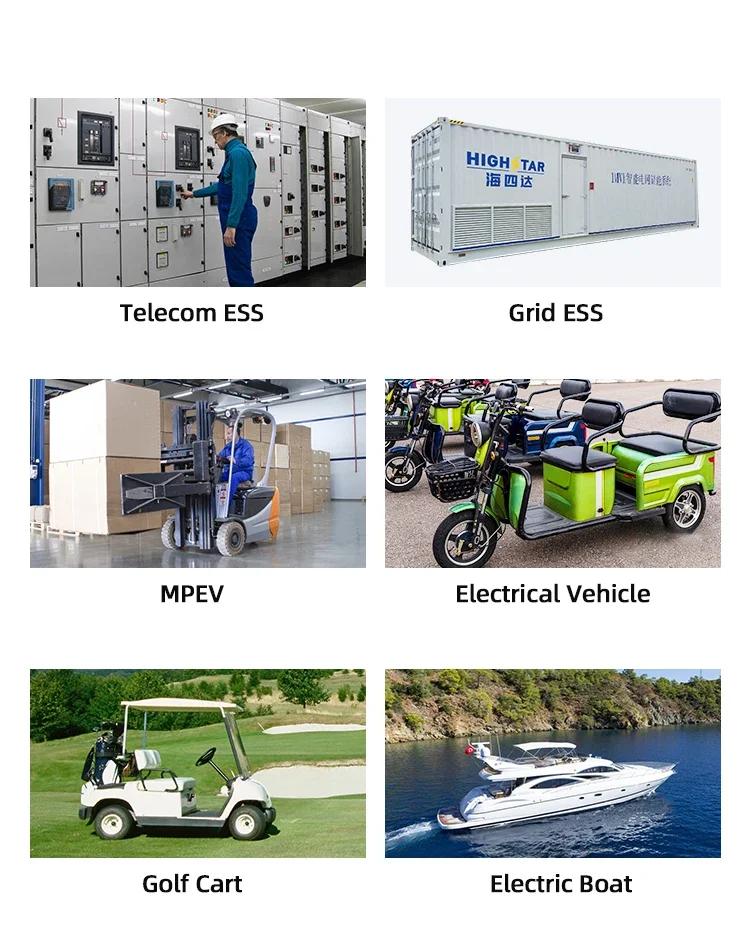

Application
