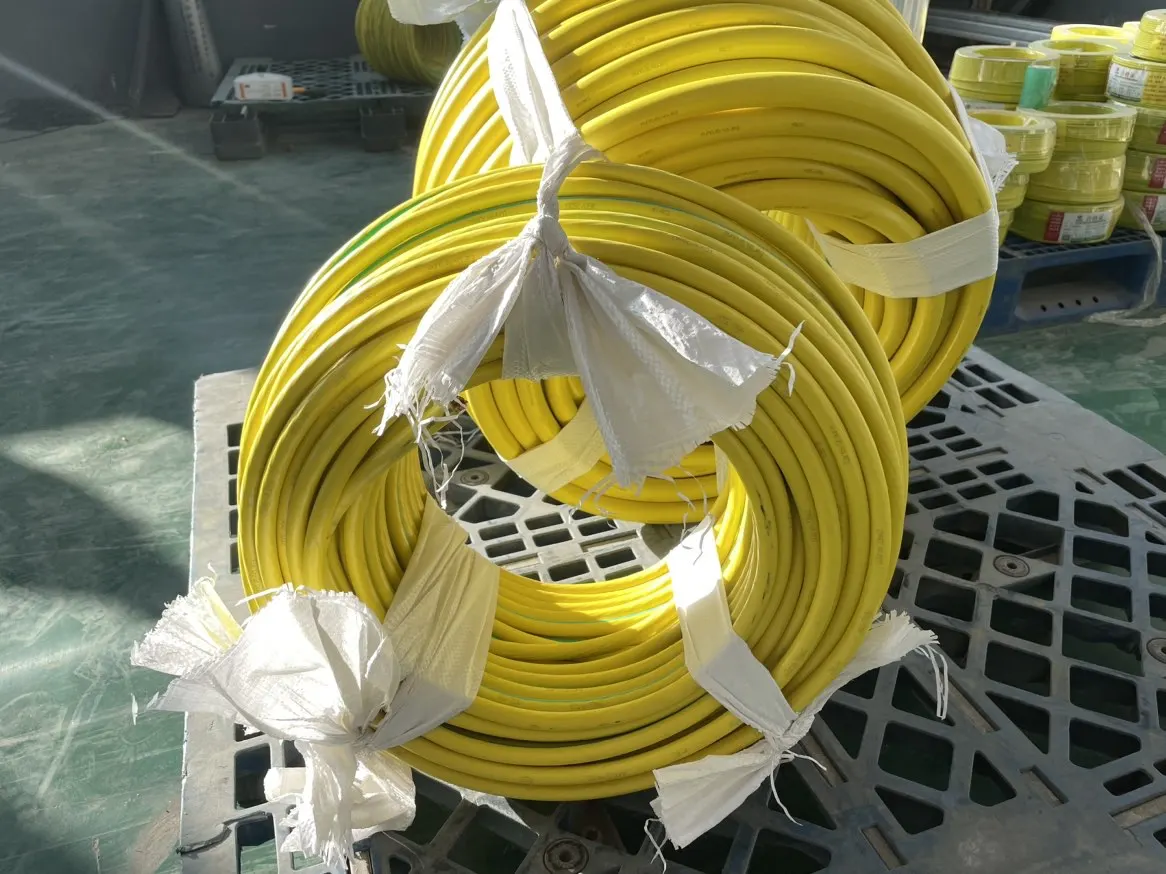

600V Thhn/Thwn/Thwn 2 14 12 10 8 6 4 3 2 1/0 4/0 AWG 400MCM Copper Conductor PVC insulation Nylon sheath Electrical Cable
- Category: >>>
- Supplier: Zhengzhou Huadong Cable Co. Ltd.
Share on (1600999421829):
Product Overview
Description
Product Description

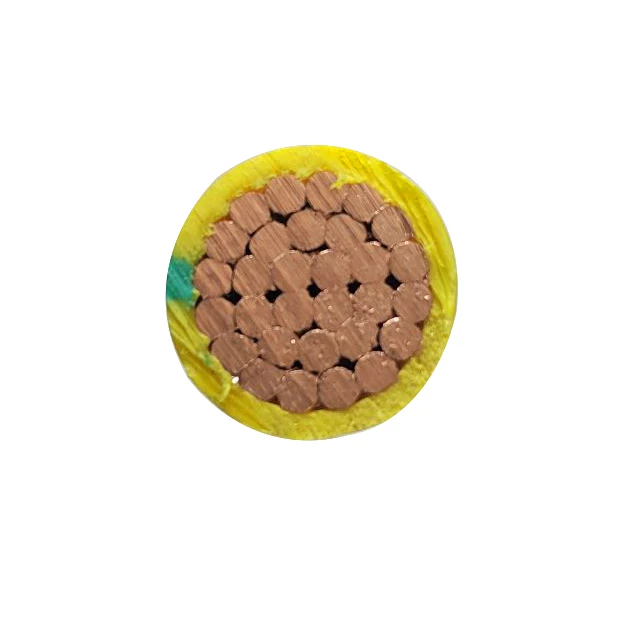

Structure:
1. Conductor: soft plain copper, conforms to ASTM B3, B8.
2. Insulation: PVC, color can be black, red, blue, green, white, purple, orange, etc.
3. Jacket: Nylon
Voltage:
600V
Working temperature:
in dry locations only at temperature not to exceed 90°C.
Performance:
VW-1 Flame retardant;
Oil resistant;
UV resistant.
Application:
Type THHN/THWN conductors are primarily used in conduit for services, feeder, and branch circuits in commercial or industrial applications as specified in the National Electrical Code.
When used as type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as type THWN, conductor is suitable for use at temperatures not to exceed 90 ° C, dry locations or 75 ° C wet locations or not to exceed 75°C when exposed to oil or coolant.
When used as type THWN-2, conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant.
Type THHN/THWN conductors are primarily used in conduit for services, feeder, and branch circuits in commercial or industrial applications as specified in the National Electrical Code.
When used as type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as type THWN, conductor is suitable for use at temperatures not to exceed 90 ° C, dry locations or 75 ° C wet locations or not to exceed 75°C when exposed to oil or coolant.
When used as type THWN-2, conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant.
THHN | THWN | THWN-2 |
T = Thermoplastic | T = Thermoplastic | T = Thermoplastic |
HH = High Heat Resistance | H = Heat Resistance | H = Heat Resistance |
W = Water Resistance | W = Water Resistance | |
N = Nylon Coating | N = Nylon Coating | N = Nylon Coating |
Temperature Rating = 90°C (Dry) | Temperature Rating = 90°C (Dry), 75°C (Wet) | Temperature Rating = 90°C (Dry & Wet) |
Product Paramenters
Size AWG /Kcmil | Number of strands (Nos) | Min. Average Insulation | Min. Jacket | Overall | Max. DC resistance at 20C (Ω/km) | ||||
Thickness | Thickness | Diameter | |||||||
mil | mm | mil | mm | mm | |||||
14 | 1 | 15 | 0.38 | 4 | 0.1 | 2.6 | 8.45 | ||
12 | 1 | 15 | 0.38 | 4 | 0.1 | 3 | 5.31 | ||
10 | 1 | 20 | 0.51 | 4 | 0.1 | 3.8 | 3.34 | ||
14 | 19 | 15 | 0.38 | 4 | 0.1 | 2.9 | 8.62 | ||
12 | 19 | 15 | 0.38 | 4 | 0.1 | 3.4 | 5.43 | ||
10 | 19 | 20 | 0.51 | 4 | 0.1 | 4.3 | 3.41 | ||
8 | 19 | 30 | 0.76 | 5 | 0.13 | 5.6 | 2.14 | ||
6 | 19 | 30 | 0.76 | 5 | 0.13 | 6.6 | 1.35 | ||
4 | 19 | 40 | 1.02 | 6 | 0.15 | 8.3 | 0.848 | ||
3 | 19 | 40 | 1.02 | 6 | 0.15 | 9 | 0.673 | ||
2 | 19 | 40 | 1.02 | 6 | 0.15 | 9.8 | 0.534 | ||
1 | 19 | 50 | 1.27 | 7 | 0.18 | 11.3 | 0.423 | ||
1/0 | 19 | 50 | 1.27 | 7 | 0.18 | 12.1 | 0.335 | ||
2/0 | 19 | 50 | 1.27 | 7 | 0.18 | 13.2 | 0.266 | ||
3/0 | 19 | 50 | 1.27 | 7 | 0.18 | 14.4 | 0.211 | ||
4/0 | 19 | 50 | 1.27 | 7 | 0.18 | 15.8 | 0.167 | ||
250 | 37 | 60 | 1.52 | 8 | 0.2 | 17.6 | 0.142 | ||
300 | 37 | 60 | 1.52 | 8 | 0.2 | 18.9 | 0.118 | ||
350 | 37 | 60 | 1.52 | 8 | 0.2 | 20.1 | 0.101 | ||
400 | 37 | 60 | 1.52 | 8 | 0.2 | 21.3 | 0.0885 | ||
500 | 37 | 60 | 1.52 | 8 | 0.2 | 23.6 | 0.0709 | ||
600 | 61 | 70 | 1.78 | 9 | 0.23 | 26 | 0.059 | ||
750 | 61 | 70 | 1.78 | 9 | 0.23 | 28.6 | 0.0472 | ||
Customer Project
Certifications

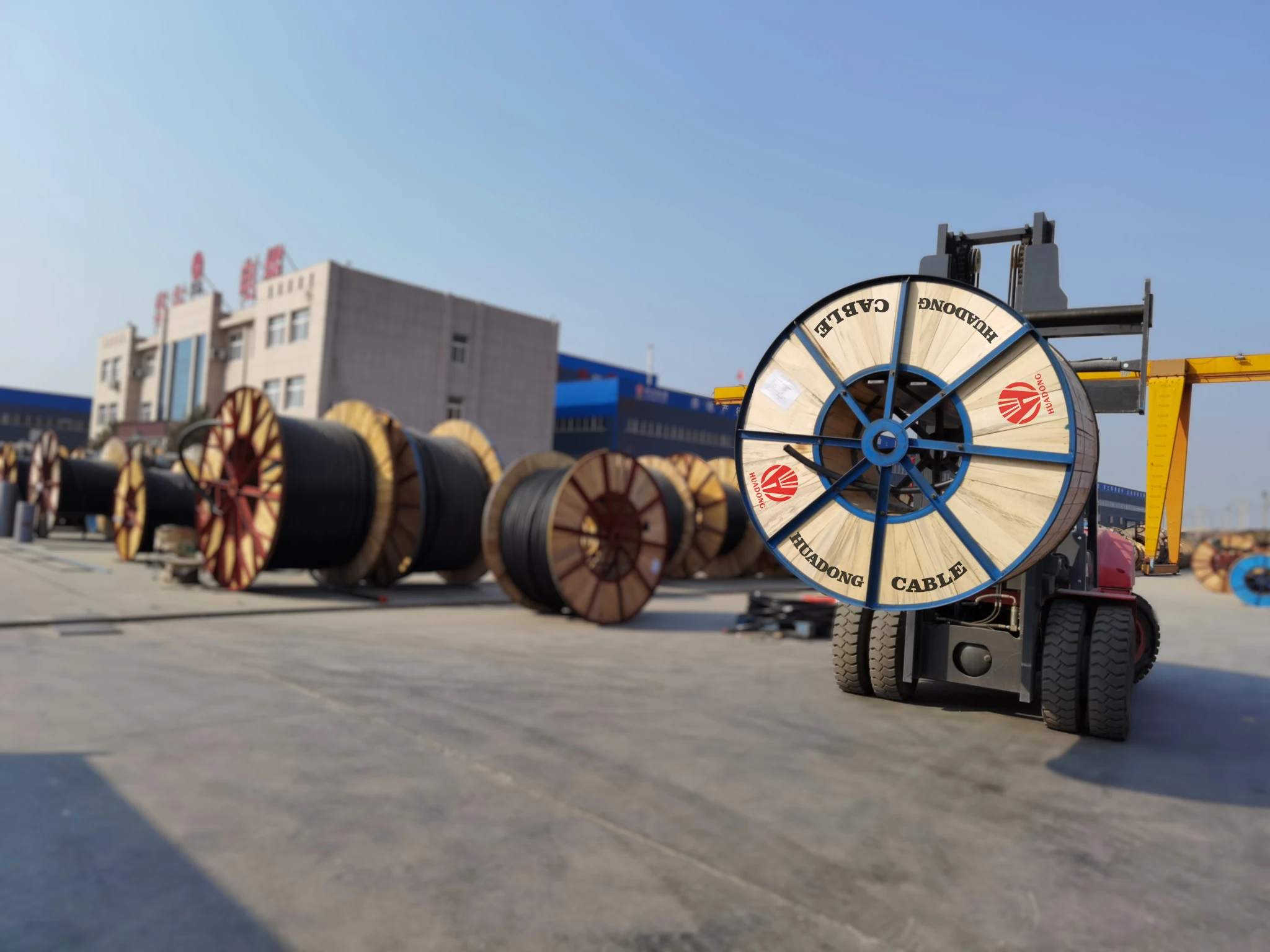

Company Profile
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade company in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 150,000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC,0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC,BS, ICEA, ASTM, DIN, VDE and JIS standards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Cooperative Customer

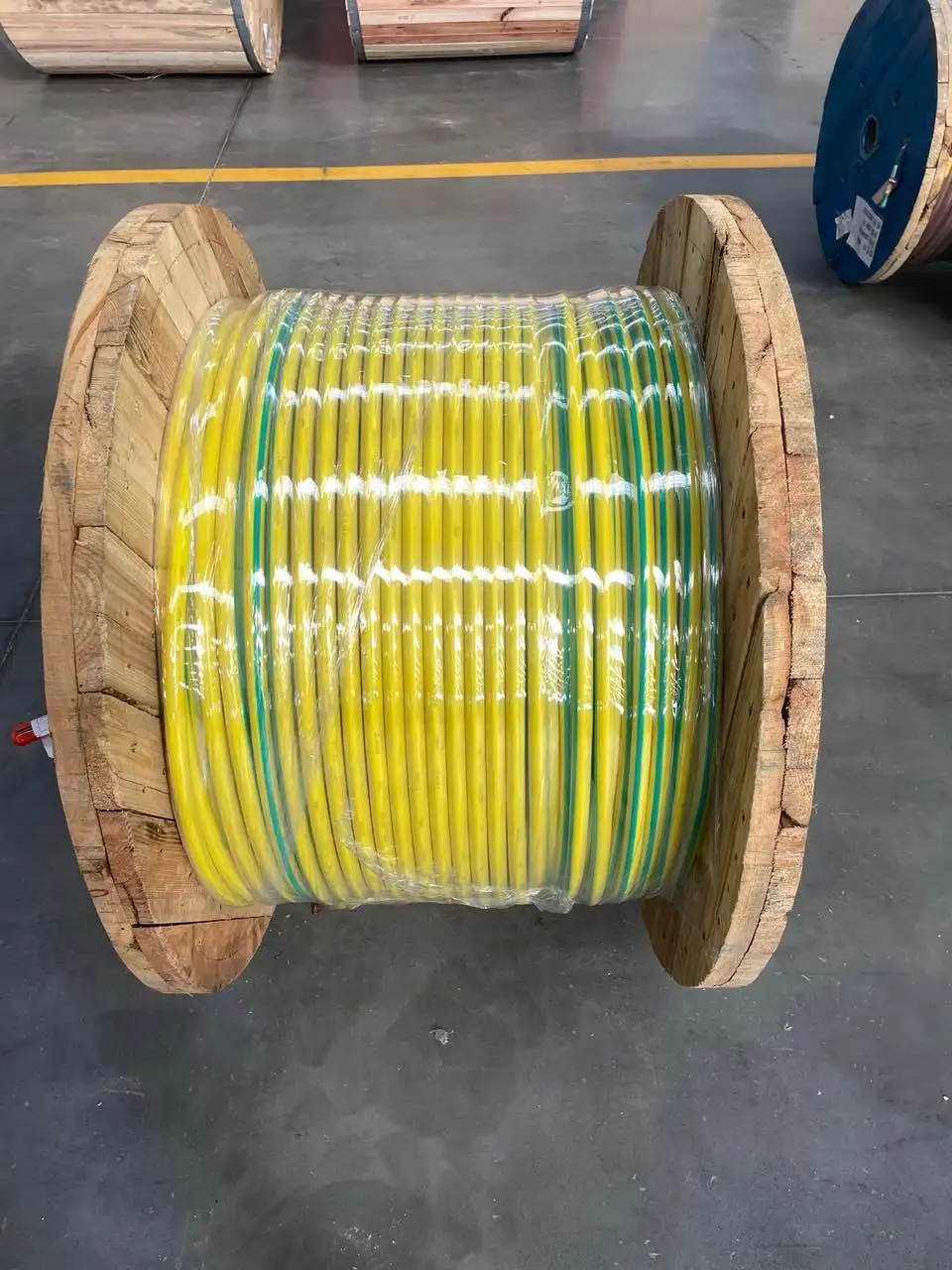

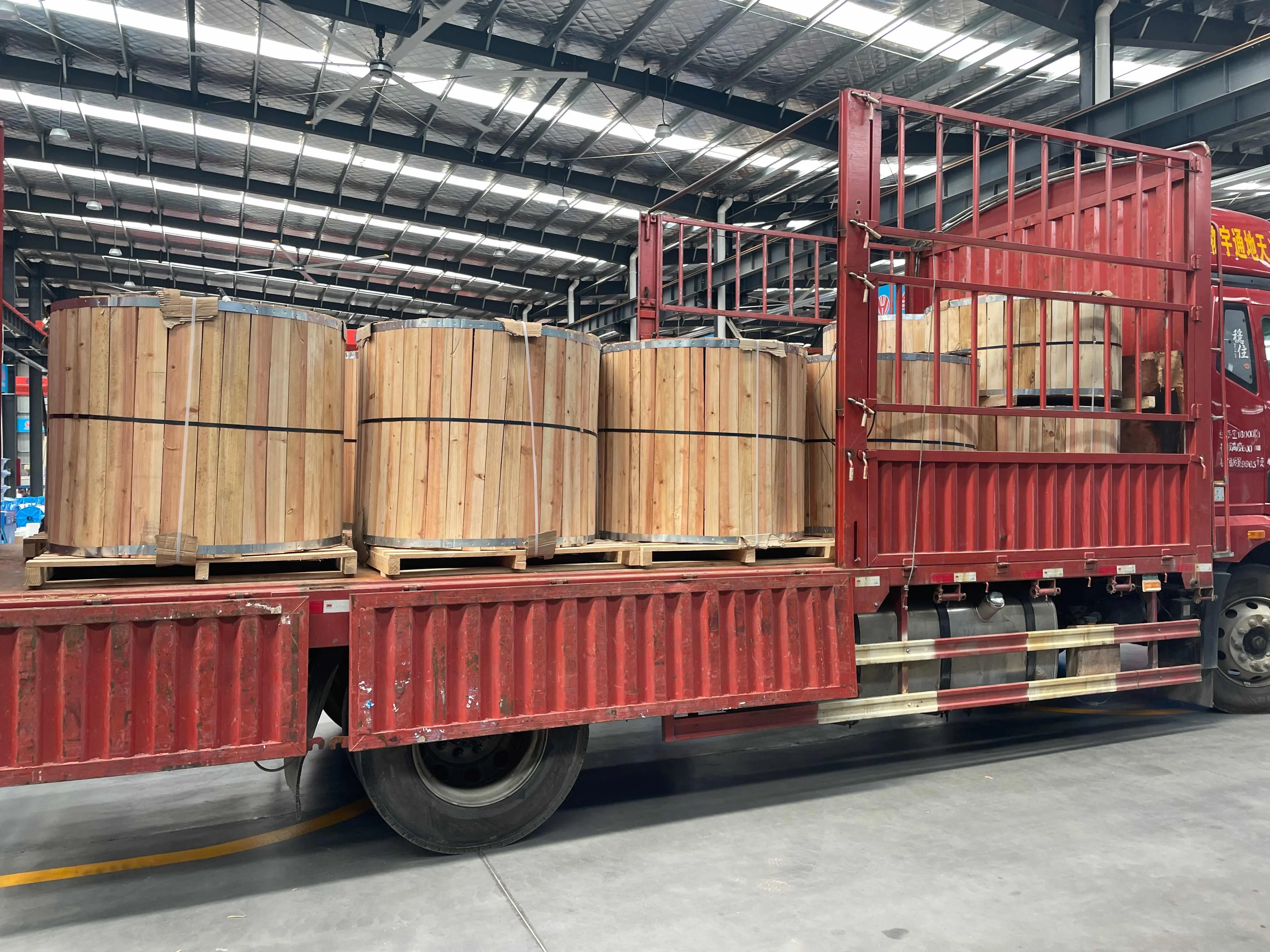

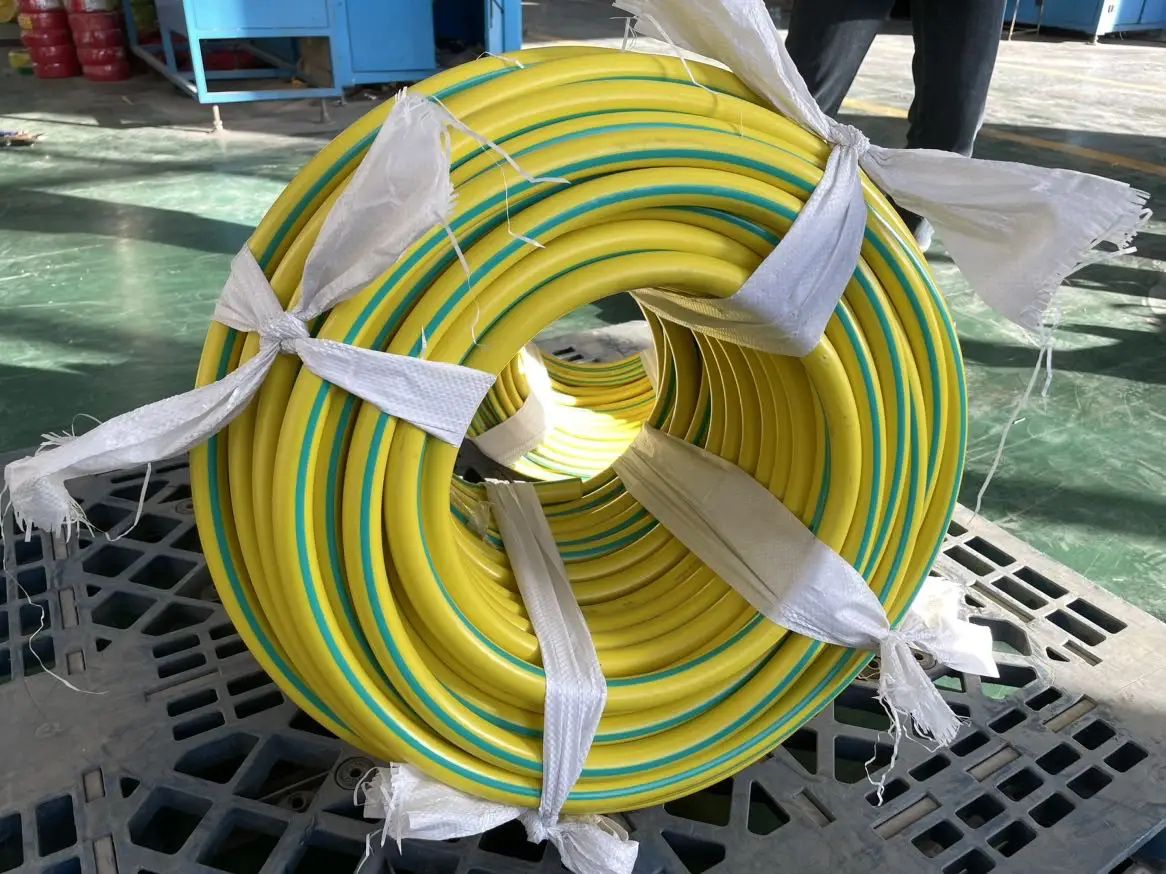

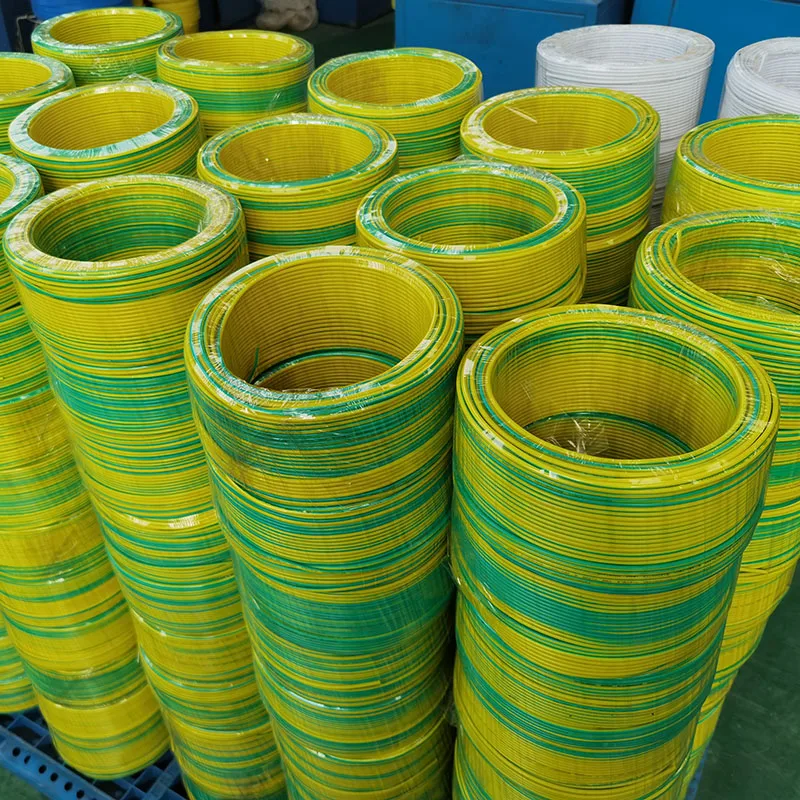

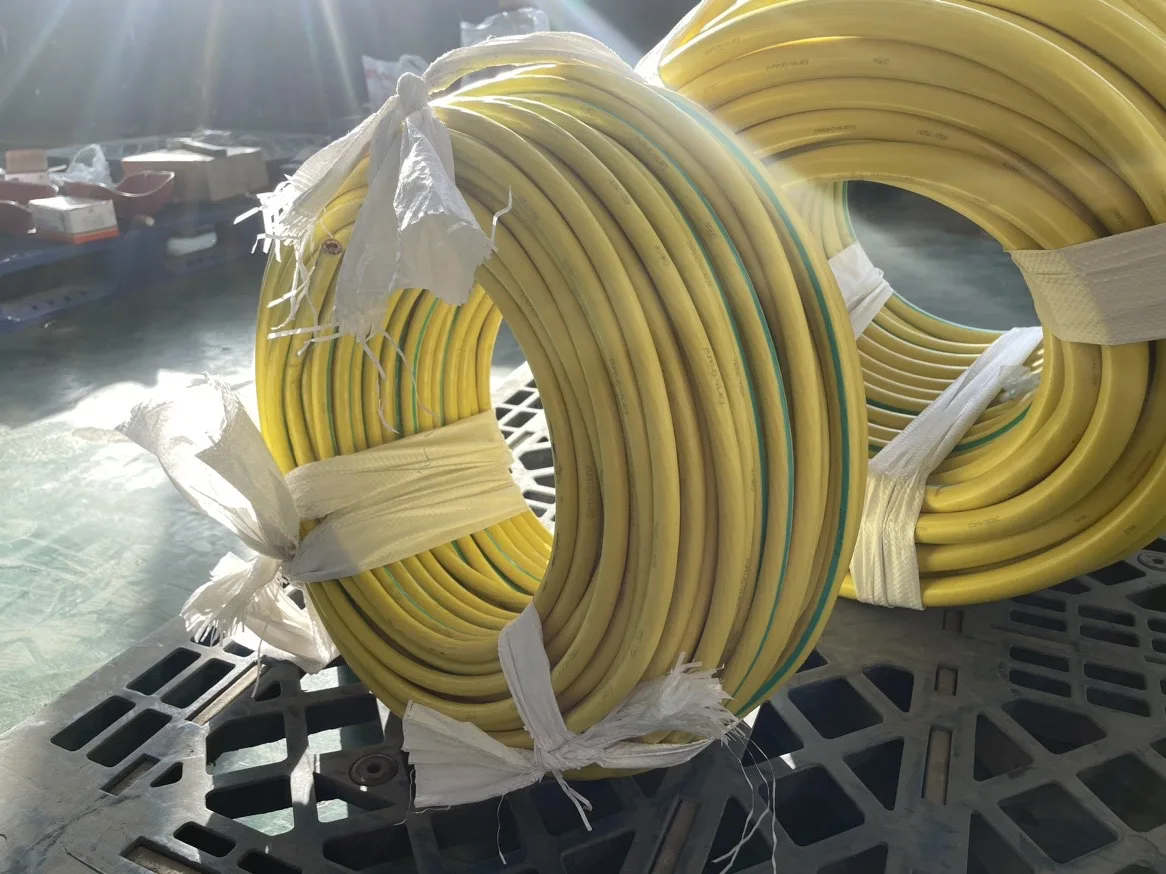

Product packaging
FAQ
1.what is our payment term?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
The lead time usually is 10 – 30 working days.
3.what is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
