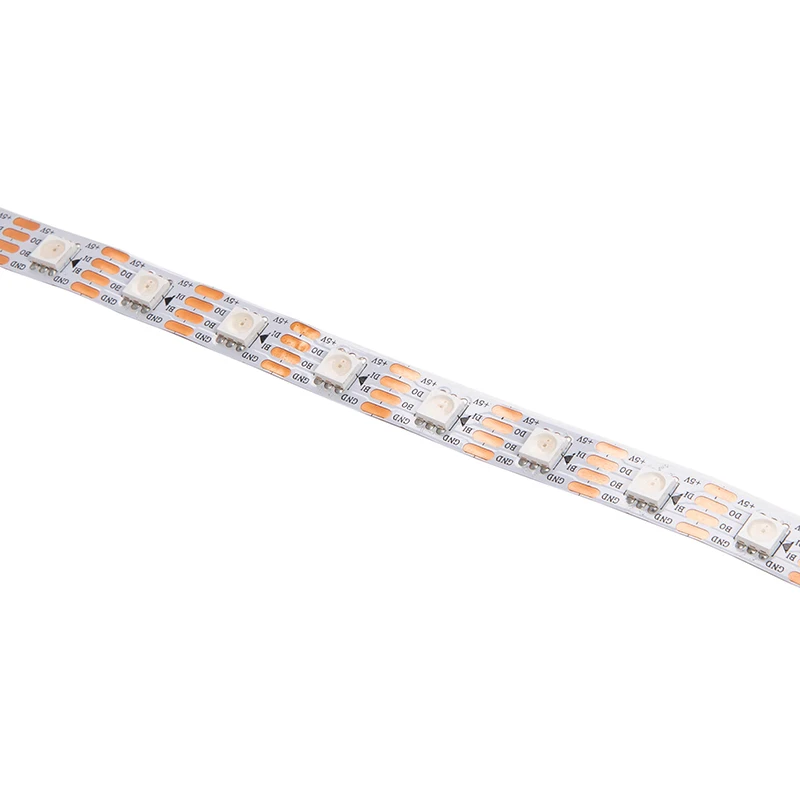

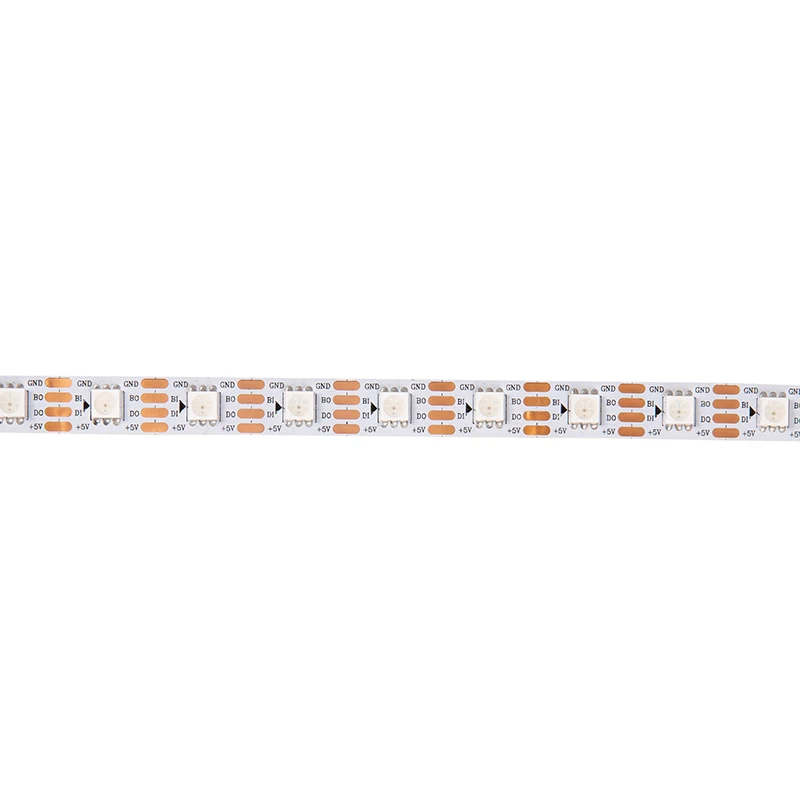

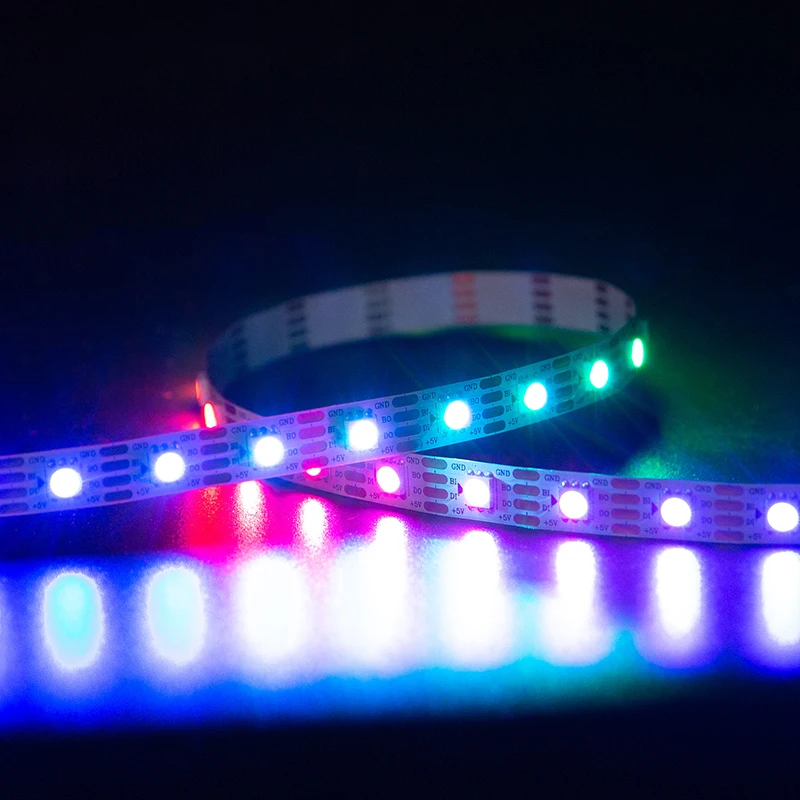

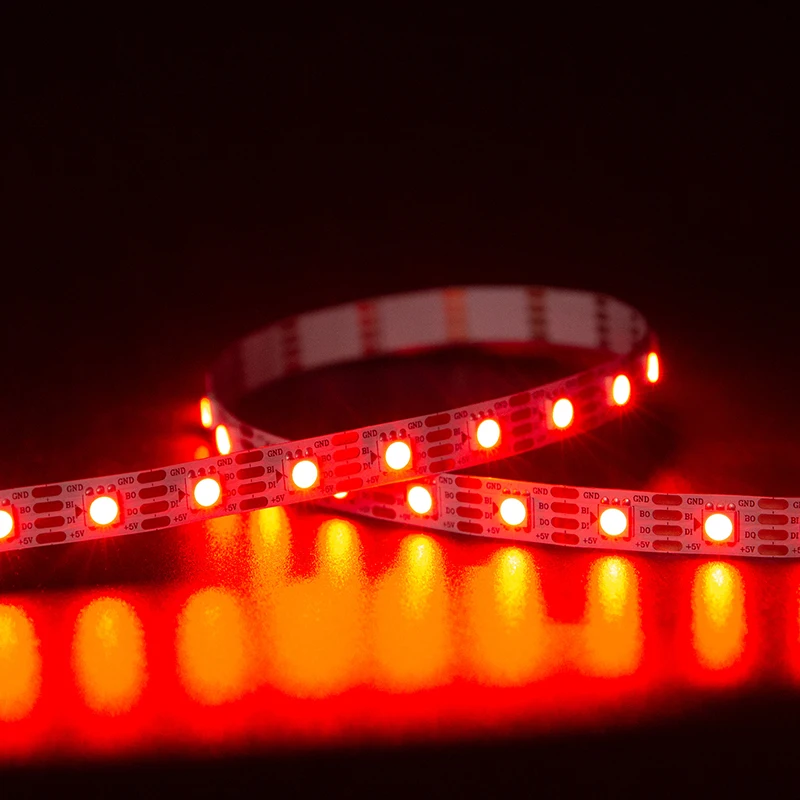

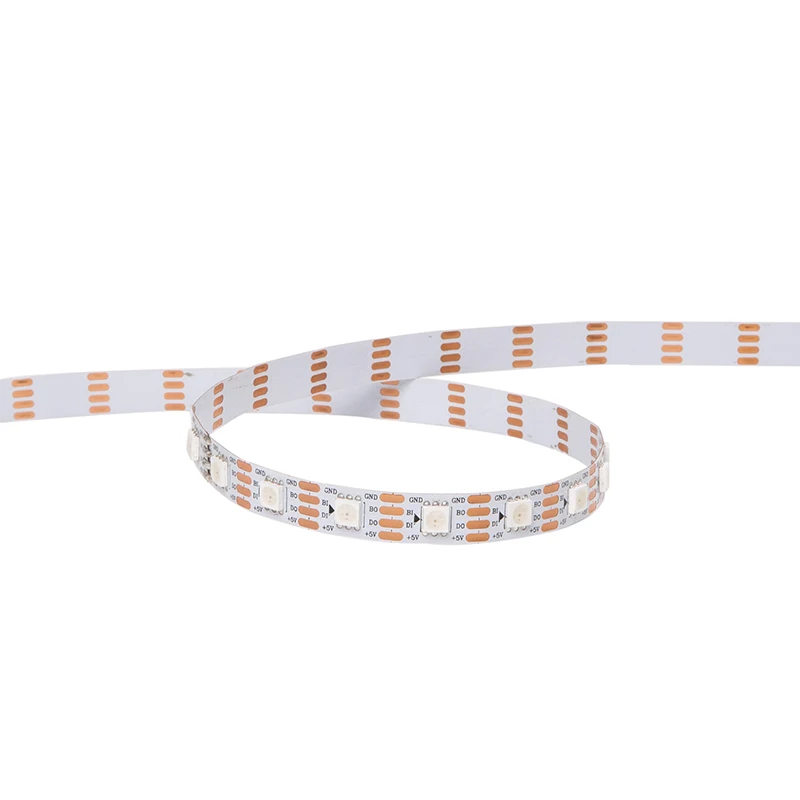

Magic Color Built in IC WS2813 LED Strip light RGB Flex LED Pixel Lighting Rope 30 60leds/M Non Waterproof IP20 WS2813 Strip
- Category: >>>
- Supplier: Glite Electronics Co. Ltd.
Share on (1600999746005):
Product Overview
Description
Product Introduction
Key Features:
1. LED strip based on WS2813 with up to 30/ 60/ 144 LED lights per meter
2. High quality RGB LED chips with high color stability and luminous efficacy
3. Signal break-point continuous transmission support by the double-signal line
4. Individual addressable to produce complex lighting effects
5. Waterproof level: IP20, IP65, IP67, IP68 available
6. Can be controlled by a micro-controller or other device that can communicate with the WS2813 driver IC( using the appropriate protocol)
Product Description
Led Density
WS2813 30 leds/meter 60 leds/meter 144leds/meter
Cutting Length
Tech Parameters
TYPE | 30LEDs/m | 60LEDs/m | 144LEDs/m |
IC | WS2813 | WS2813 | WS2813 |
PCB Width | 10mm | 10mm | 12mm |
Standard Length | 5 meter/roll | 5 meter/roll | 5 meter/roll |
PCB color | white/black | white/back | white/black |
Voltage | DC5V | DC5V | DC5V |
Watts | 9W/M | 18W/M | 43.2W/M |
Cutted | per 1 LED | per 1 LED | per 1 LED |
Ending | 15cm JST connector | 15cm JST connector | 15cm JST connector |
Packages | 5m/reell | 5m/reell | 5m/reell |
Weight (IP20) | 0.2kg/reel | 0.2kg/reel | 0.2kg/reel |
Weight (IP65) | 0.4kg/reel | 0.4kg/reel | 0.4kg/reel |
Weight (IP67) | 0.6kg/reel | 0.6kg/reel | 0.6kg/reel |
Work Temperature | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C |
Warranty | 3 years | 3 years | 3 years |
OEM Products | Yes | Yes | Yes |
OEM Packages | Yes | Yes | Yes |
Lead Time | Max 7 days | Max 7 days | Max 7 days |
Deliver Time | 3-5 days | 3-5 days | 3-5 days |
Control Component
Power Loading ↑
① Pick up the power supplier according to the led strips based on different voltage and wattage.
② Voltage of power supplier is decided by led strips. Wattage of power supply depend on the length of the led strip.
③ Each 5 meters offer a power supply connector to support multiple controlling on reels.
Controller Loading ↑
Multiple controllers are necessary for chain controlling when pixel quantities are more than 2048pcs. By coordinated controllers with certain method, hundreds reels of led strips can work together to perform.
Looking For A Simple Kit?
If you are looking for a simple working light and donnot want to make things complicated, we offer completed kits for you. Click the sales man on the right side for information please →
Extended Product
5V RGBW Pixel Strip
Color: RGBW 4 in 1
IC: SK6812
Voltage: DC5V
LED QTY: 30/60/72/144
12V RGB Pixel Strip
Color: RGB
IC: WS2815
Voltage: DC12V
LED QTY: 60
5V White Pixel Strip
Color: 2700K-6500K
IC: APA102
Voltage: DC5V
LED QTY: 60/144
12V RGB Pixel Strip
Color: RGB
IC: WS2811
Voltage: DC12V
LED QTY: 30/60
24V RGBW Pixel Strip
Color: RGBW 4 in 1
IC: DMX512
Voltage: DC24V
LED QTY: 30/60
24V RGBWW Pixel Strip
Color: RGBWW 5 in 1
IC: TM1914
Voltage: DC24V
LED QTY: 60
