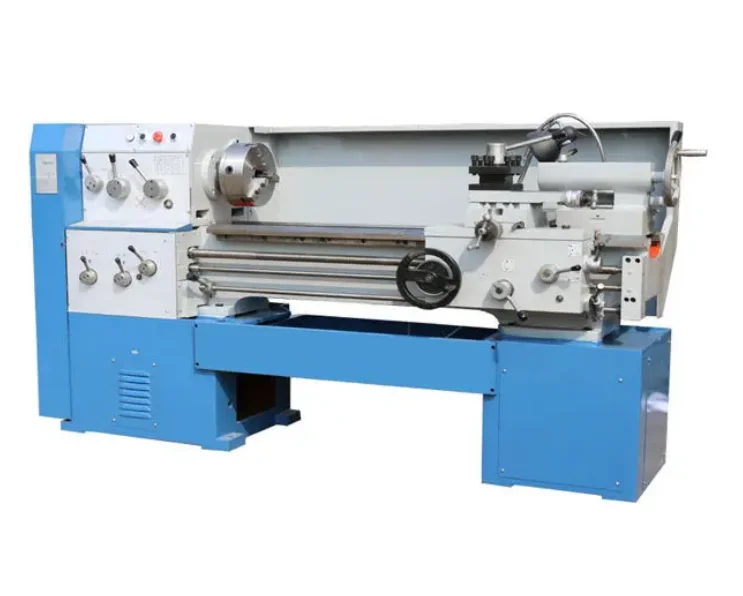

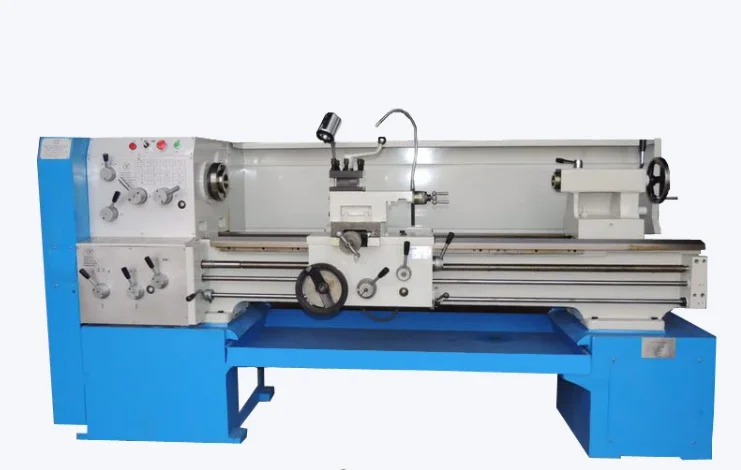

lathe machine cutting tools manual centre lathe 6150*1000 light metal machine tool
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1601000001944):
Product Overview
Description
Specifications | Units | C6136 | C6140 | C6150 | ||
Swing over bed | mm | 360 | 400 | 500 | ||
Max.Swivel Diameter On Tool Holder | mm | 190 | 230 | 330 | ||
Saddle Maximum Turning Diameter | mm | 520 | 560 | 660 | ||
Centre-To-Centre Spacing | mm | 750、1000、1500 | ||||
Width Of Bed | mm | 360 | ||||
Spindle Bore | mm | 52 | ||||
Spindle Nose | - | C6 | ||||
Taper Hole Of Spindle | - | MT6 | ||||
Spindle Speed Range (Series) | - | 40-1400（9steps） | ||||
Range Of Metric Threads (Number Of Types) | mm | 0.5-14mm（20kinds） | ||||
Range Of Inch Threads (Number) | - | 2-40/inch | ||||
Range Of Modulus Threads (Number Of Types) | - | 0.25-3.5mπ（11kinds） | ||||
Cross Slide Travel | mm | 180 | ||||
Maxium Compound Slide Travel | mm | 95 | ||||
Sectional Dimension Of Tool Bar | mm | 20*20 | ||||
Taper Of Tailstock Sleeve | - | MT4 | ||||
Quill Diameter | mm | 65 | ||||
Travel Of Tailstock Sleeve | mm | 140 | ||||
Main motor | kw | 4/5.5 | ||||
Center to Center 750mm | mm | 2220 x 1150 x 1590mm | ||||
1000mm | mm | 2470 x 1150 x 1590mm | ||||
1500mm | mm | 2970 x 1150 x 1590mm | ||||
Center to Center 750mm | 1350/2000 | 1400/2050 | 1500/2150 | 1600/2250 | ||
1000mm | 1450/2100 | 1500/2150 | 1600/2250 | 1700/2350 | ||
1500mm | 1600/2250 | 1650/2300 | 1750/2400 | 1850/2500 | ||
FAQ
Title goes here.
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
