Product Overview

Description





Products Description

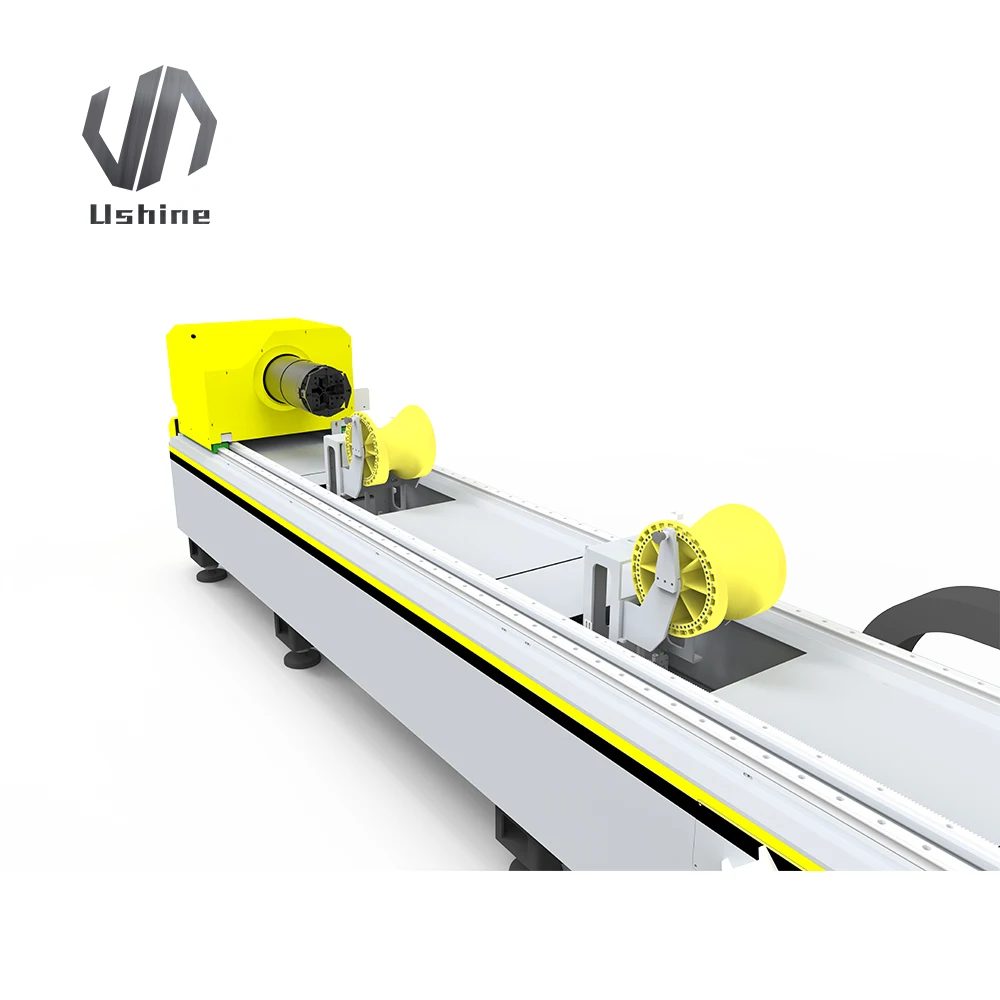

A6-E Automatic 3D
Laser Pipe Cutting Machine
Economical Limited model: multi material, multi shape and three-dimensional processing to meet the cutting needs of customers.

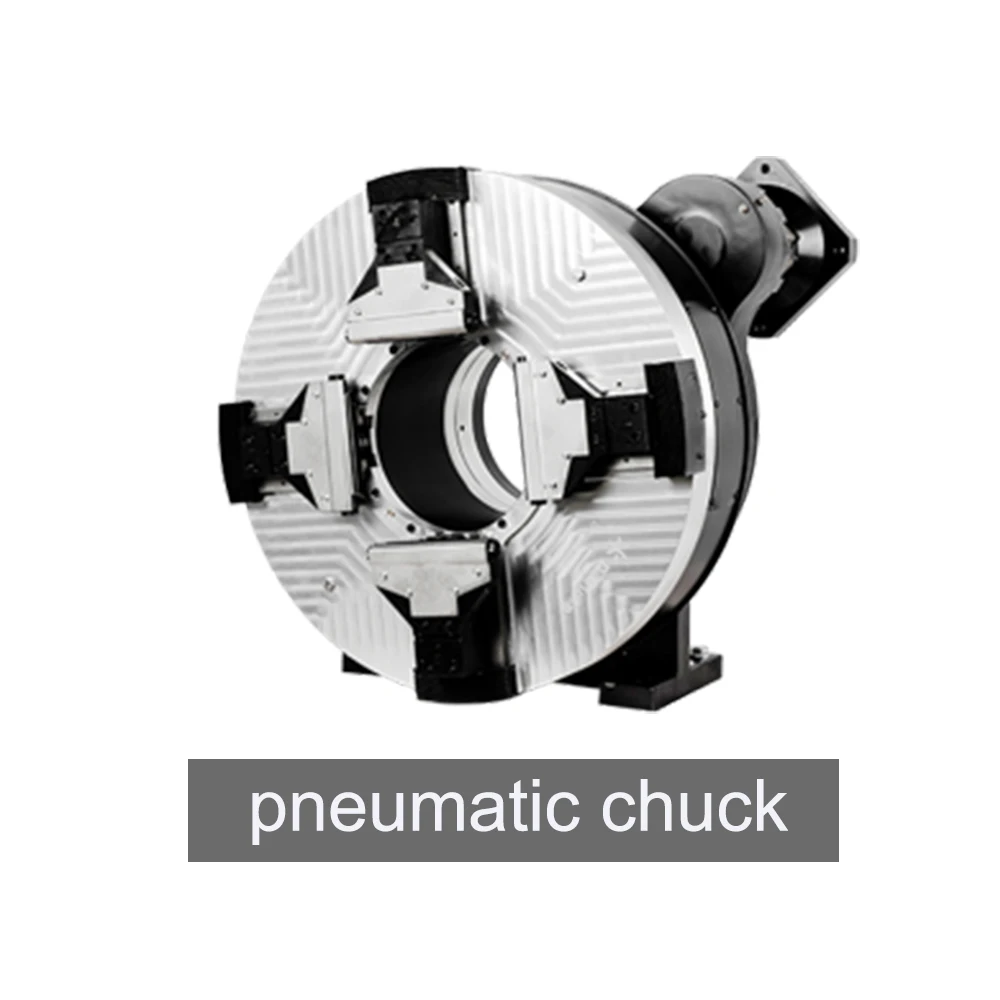

Excellent processing performance : full stroke pneumatic chuck, automatic centering, good cutting stability and high product precision.


Model
A6-E Automatic 3D Laser Pipe Cutting Machine
Pipe diameter
Round Pipe : φ15mm-φ220mm
Circumscribeed circle of rectangular pipe and special-shaped pipe ≤φ220mm)
X,Y axis positioning accuracy
+ 0.05mm/m
Maximum positioning speed of X,Y axis
 1 G
Maximum speed of chuchk
 80 r/min
Tailing length
≥200mm (according to the cutting length and size of the pipe)
Voltage power
380V/50HZ or customization
Machine dimensions
8800mm*2200mm*2600mm
Machine weight
5000KG

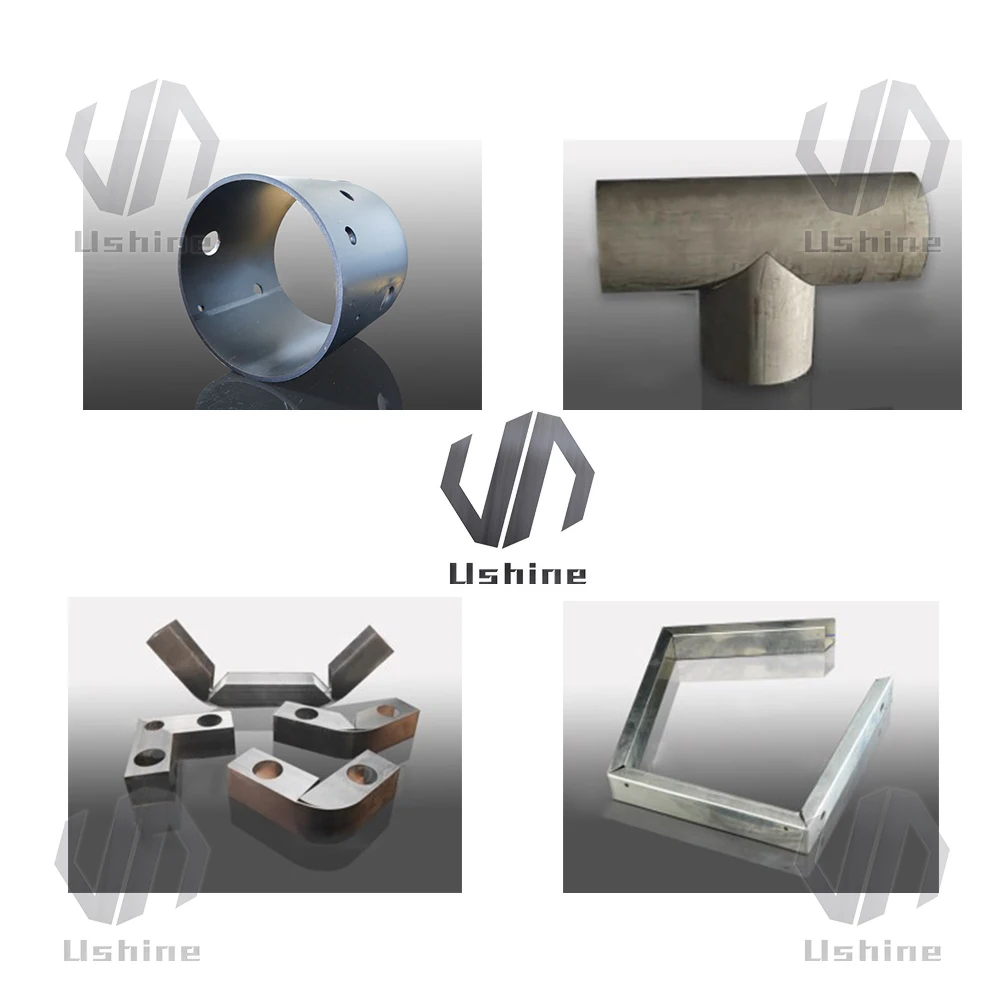

Cutting sample
