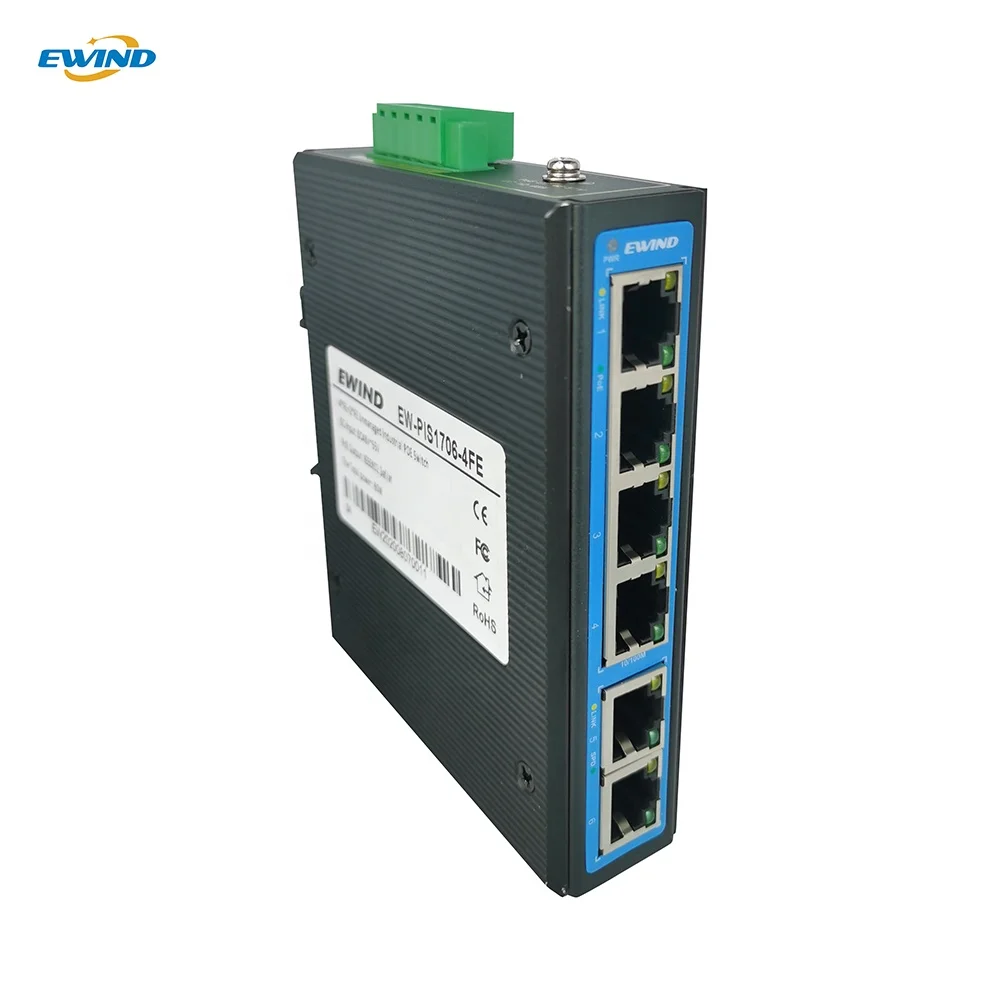

Factory OEM Customized 6 Ports 100M Industrial Ethernet Switch

Interface

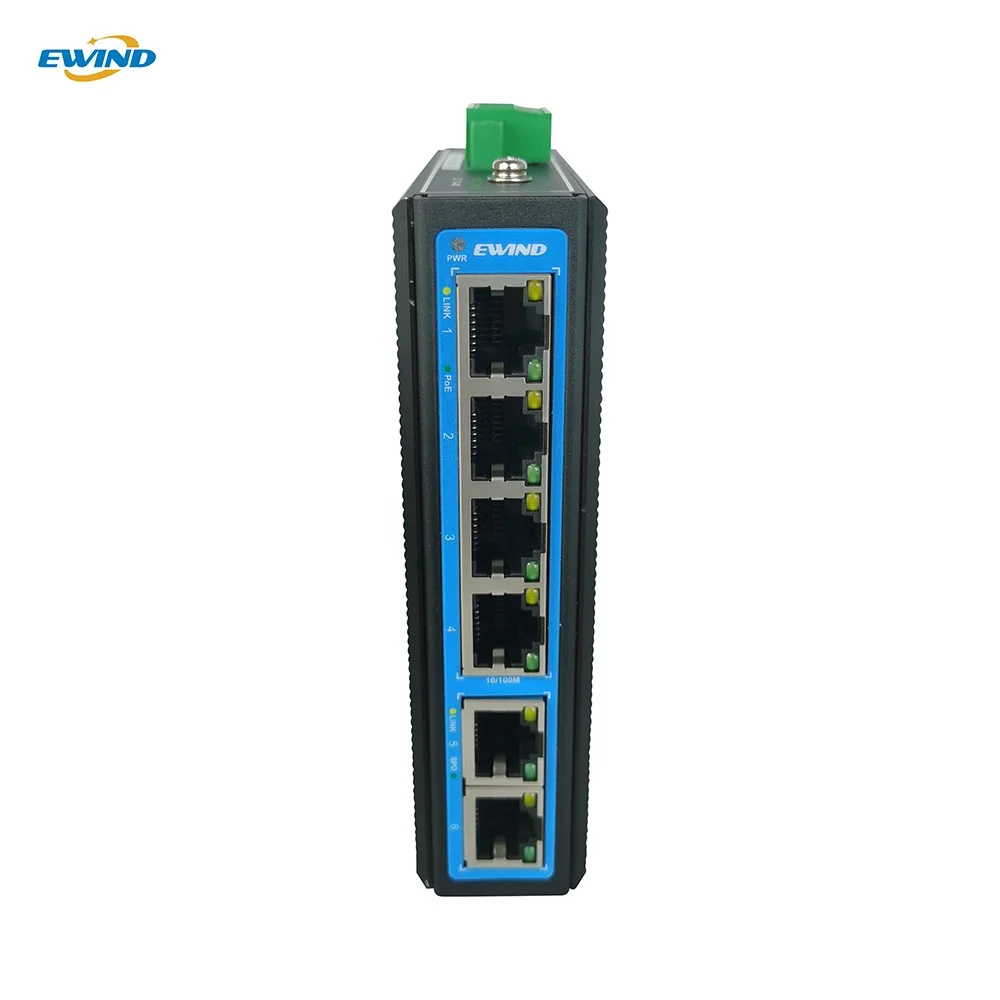

4*10/100Base-T RJ45 ports (Data)
2*100Base-T Uplink RJ45 port (Data)

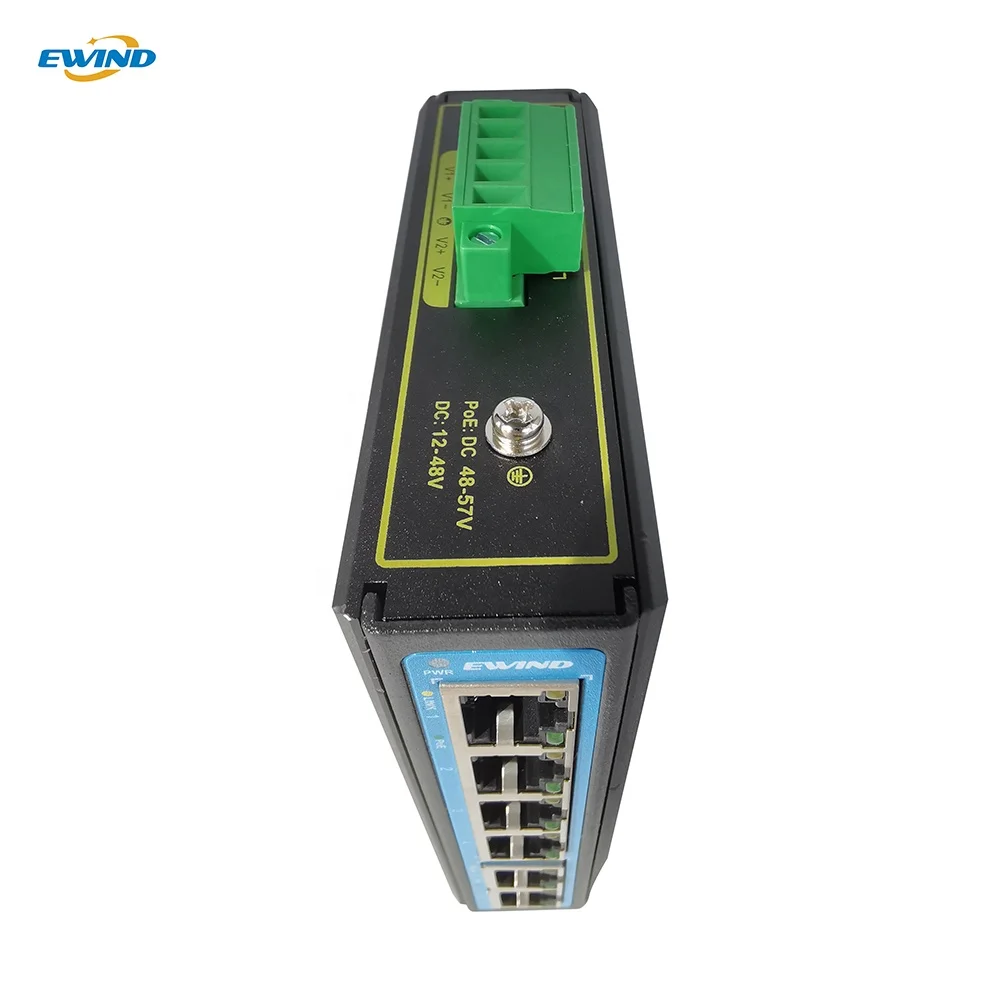

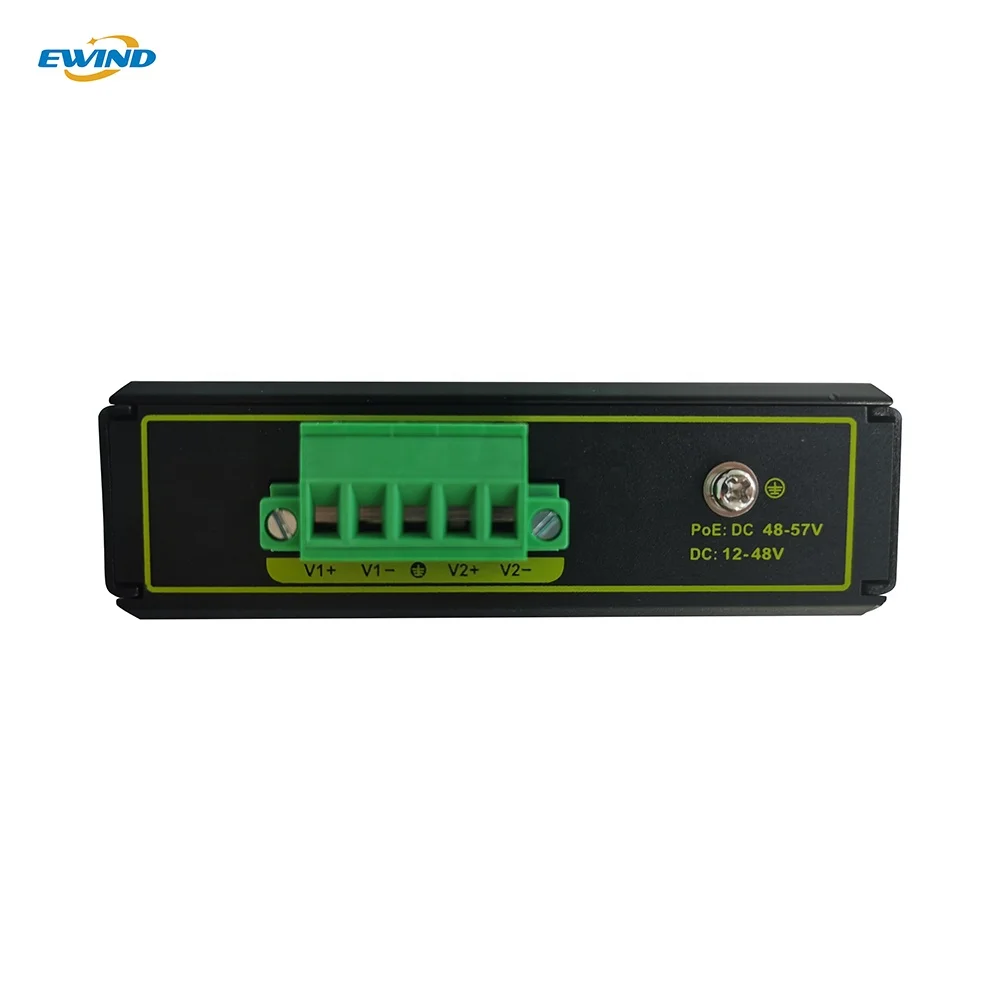

2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal)

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x

Ethernet Port Feature

Port 1-4 support 10/100Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption

Forwarding Rate@64byte

0.744Mpps

MAC

1K

Buffer Memory

1M

Jumbo Frames

10K

MTBF

100000 hours

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)

Working Voltage

12-57VDC; 5P industrial phoenix terminal, anti-reverse protection.

Power Consumption

Standby:<1W; Full load:<3W

LED Indicator

Power: PWR (green), Network: Link, Link/Act ( green );

Operation TEMP / Humidity

-40~+80°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+125°C;5%~95% RH Non condensing

Dimension (L*W*H)

98*120*36mm

Net /Gross Weight

<0.7kg/<1.0kg

Installation

Desktop, 35mm DIN rail

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV
IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022): Class A
IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)

Certification

CCC; CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;

Warranty

5 years, lifelong maintenance.
