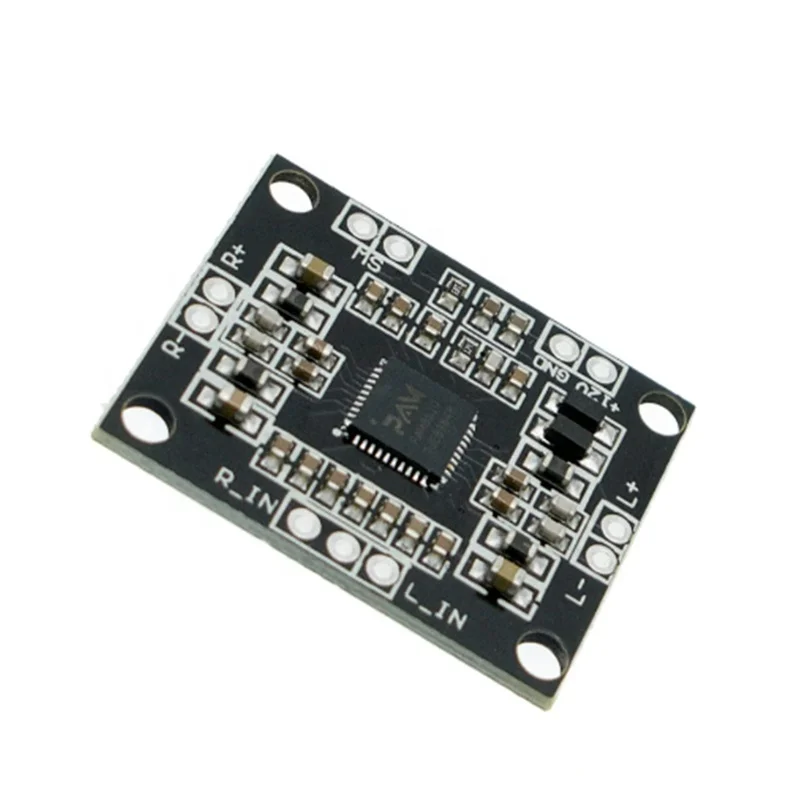

New PAM8610 Digital Power Amplifier Board 2 x15w Dual Channel Stereo mini class D power amplifier board Red/Black

Share on (1601000411568):


Price:$0.06 - $0.16

Quantity:


Product Overview

Description


New PAM8610 Digital Power Amplifier Board 2 x15w Dual Channel Stereo mini class D power amplifier board Red/Black



Product Description









specification:
1. Supply voltage: DC 7V-15V

2. Output power: 10w + 10w (8 load)
3. Efficiency: 90%
4. Shutdown Current: 4uA
5. Quiescent current; 20mA
6. SNR: 86%
7. Total harmonic distortion: 5W / 1KHz / 8 ---- 0.1%
8. Frequency range: 20Hz-20KHz
9. Input impedance: 15K
10. Output Impedance: 4-8
11. Amplifier board size: 30mm * 25mm * 2.5mm

How to use:
1. The power supply voltage limit is 16.5V, do not use more than this voltage.
2. The power supply is recommended for 12v, 3A power supply filter better
3. 4-8 inch stereo speakers recommended.
4. Do not short-circuit the audio output to each other or shorted to ground.
5. Carefully check before electricity, ensure wiring is correct before electricity.

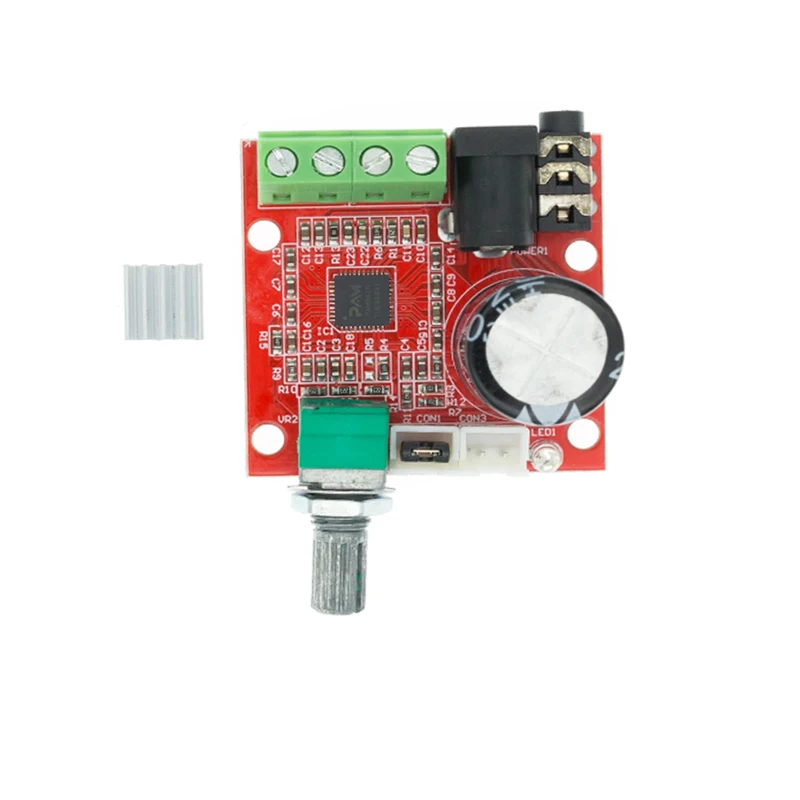

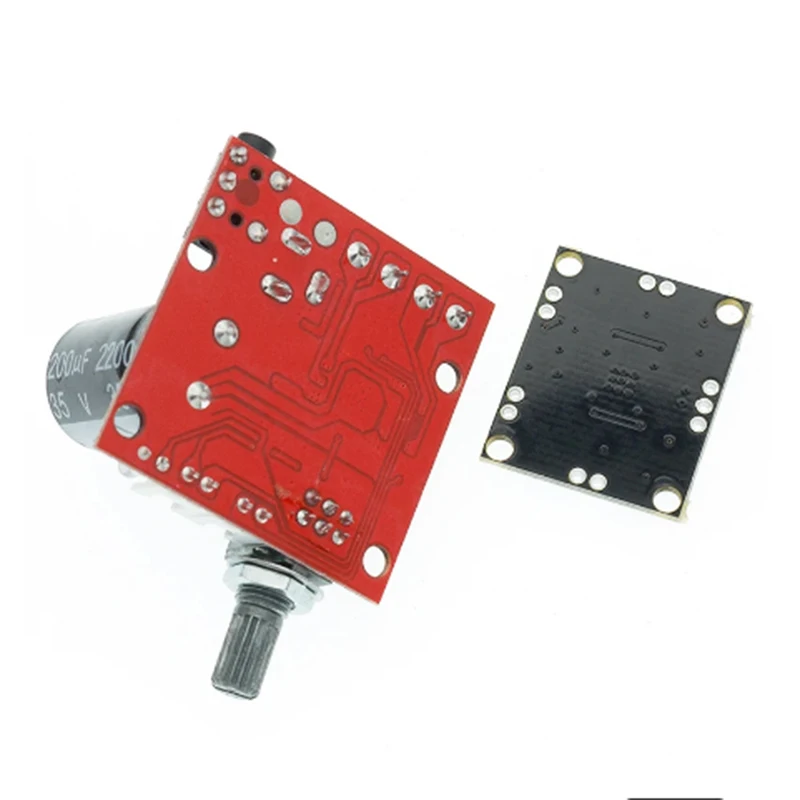

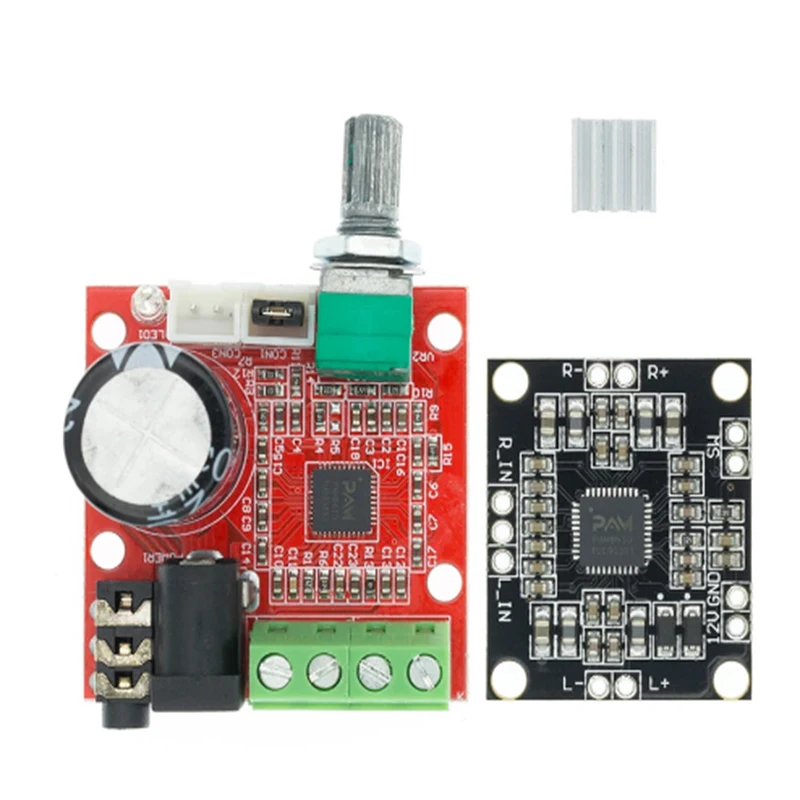

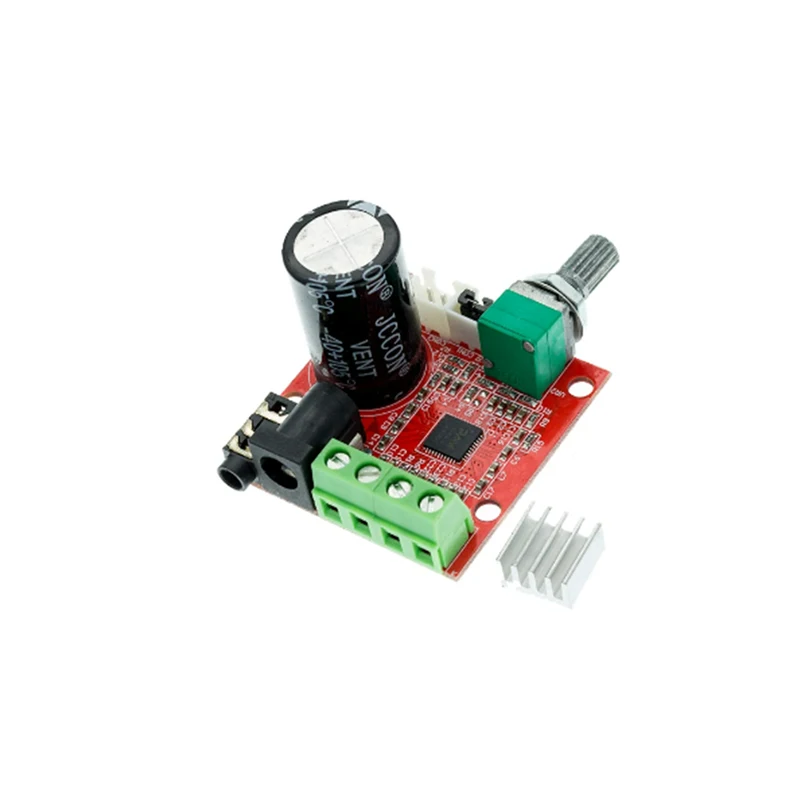

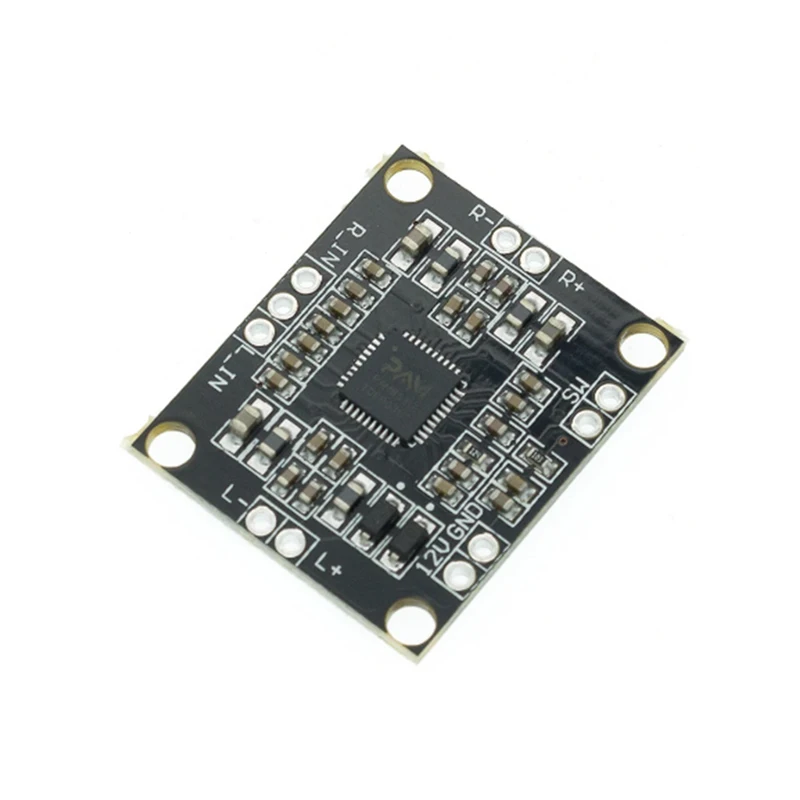

amplifier .jpgClass D Audio Amplifier.jpgAudio Stereo Module .jpgPower Amplifier Board.jpg15W Digital Amplifier.jpgPAM8610.jpg












Company Information:


Shenzhen Qianhai Ku Xian Sheng Industrial Co., Ltd. and Shenzhen Gangfasheng Technology Co., Ltd is the professional supplier of electronic components .For the best service and your most conveniently purchase ,we also offer bill of material list (BOM list) quote and supply,include Resistors, Capacitors, Transistors, LEDs, Connectors,etc. Our business philosophy is “ Best Products, Best Reputation, Best Efficiency, Best Service and Reasonable Price” since the company established. We've gained lots of supports and trusts for our professionalism and dedication. Be your reliable and convenient purchasing partner is our goal. Be the world-class electronic components distribution partner is our purpose. introduction.jpg





Packaging&Shipping:


Package:Standard Export Carton Package.


Shipping:


1. DHL / UPS / FedEx / TNT.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.655.png56555.png1555.png
