Competitive price and high quality API 16C choke manifold for oilfield drilling
- Category: >>>
- Supplier: HK HUICHUAN INTERNATIONAL PETROLEUM EQUIPMENT CO. LIMITED
Share on (1601000413307):
Product Overview
Description
Competitive price and high quality API 16C choke manifold for oilfield drilling
Product Description

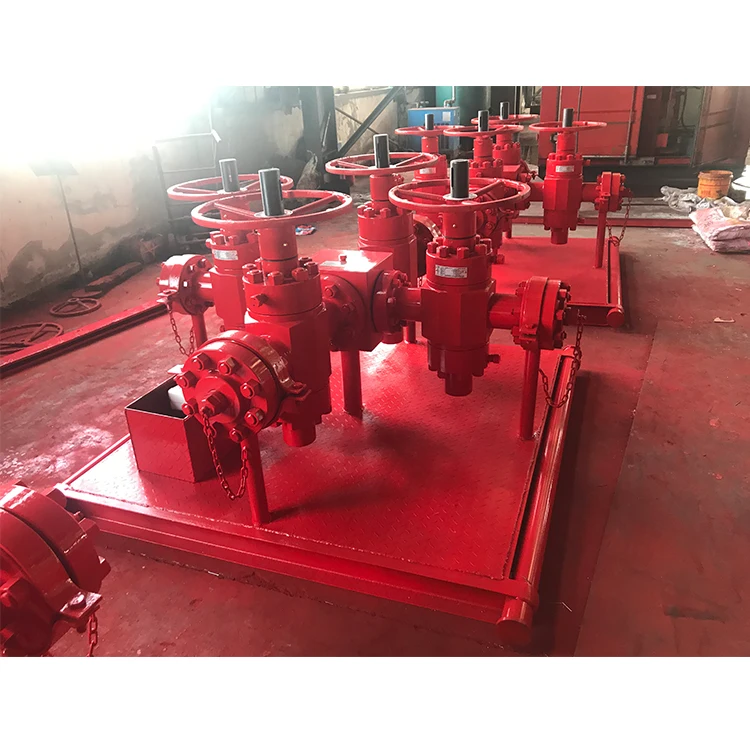

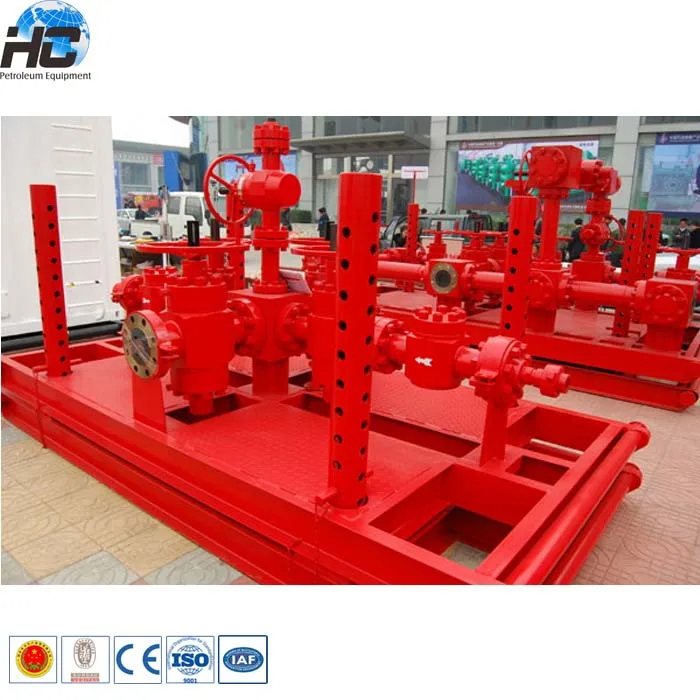

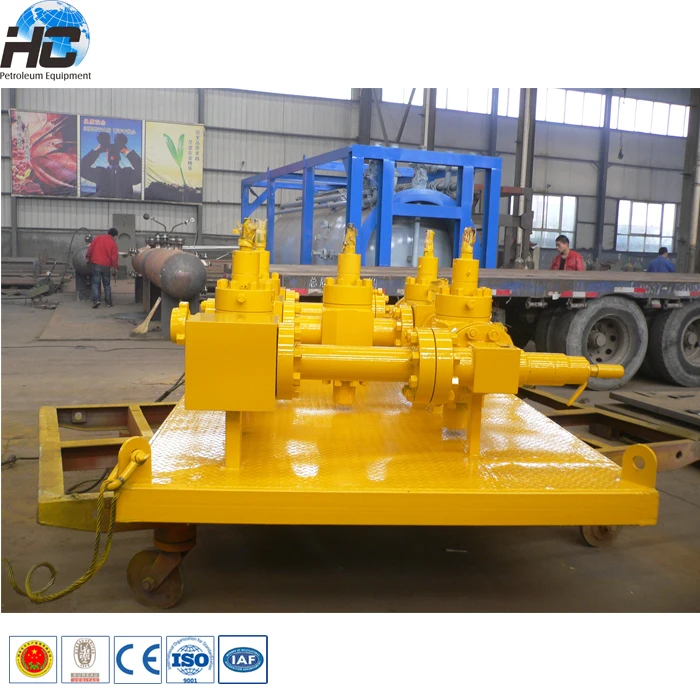

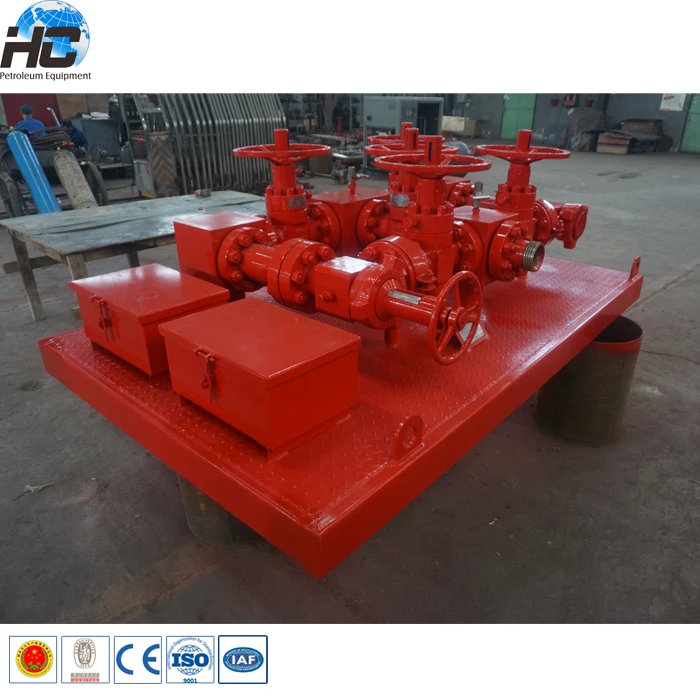

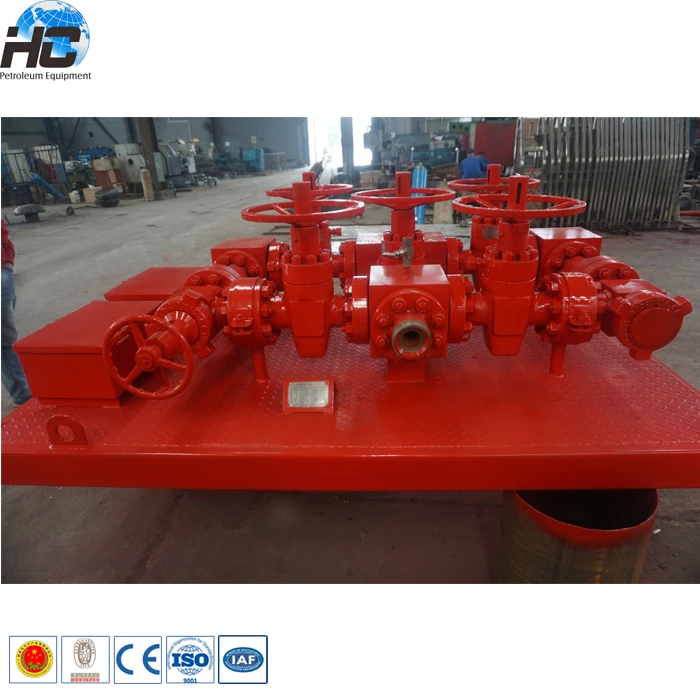

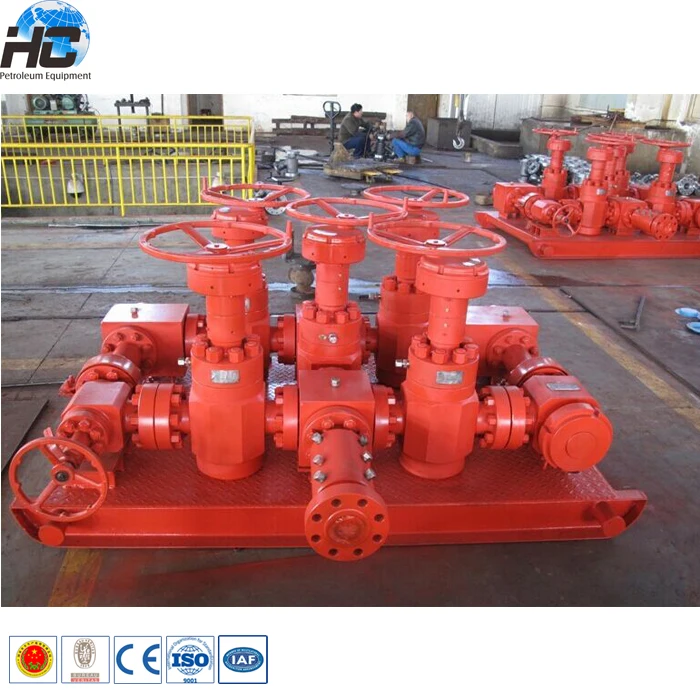

Choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well.
The technical parameters about competitive price and high quality API 16C choke manifold for oilfield drilling
| Pressure Parameters | 105MPa(15000psi) |
| Color | Red |
| Model | CM78-105 |
| Design Pressure | 105MPa |
| Weight | 4630kg(10260lb) |
| Dimension(L×W×H) | 3270×2371×1038.7mm 128.83×93.34×40.95in |
| Material Level | EE |
| Product specification level | PRL3 |
| Working Temperature | PU(-29℃~121℃) |
| Product performance level | PR1 |
| Nozzle | Fixed and adjustable nozzle |
| Characteristics | Five gate design |
| Work medium | Mud,oil and drilling fluid |
| Connection type | Flange |
Main features of competitive price and high quality API 16C choke manifold for oilfield drilling as below:
1.Control the well fluid flow.
2.Built-in Cameron style gate valves which can be redressed on pipeline.
3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke.
4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection.
5.Metal-to-metal, double seal to ensure reliability in harsh environments.
6.15000psi adjustable nozzle adopts gear handle,which can reduce the operating torque.
7.Positive choke is equipped with tungsten steel lining,making it twear-resisting and corrosion resistant.
