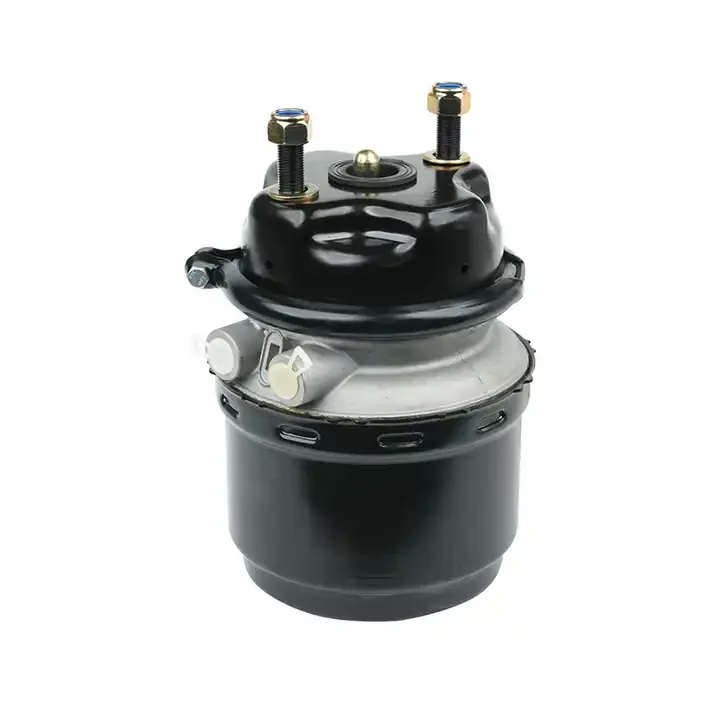

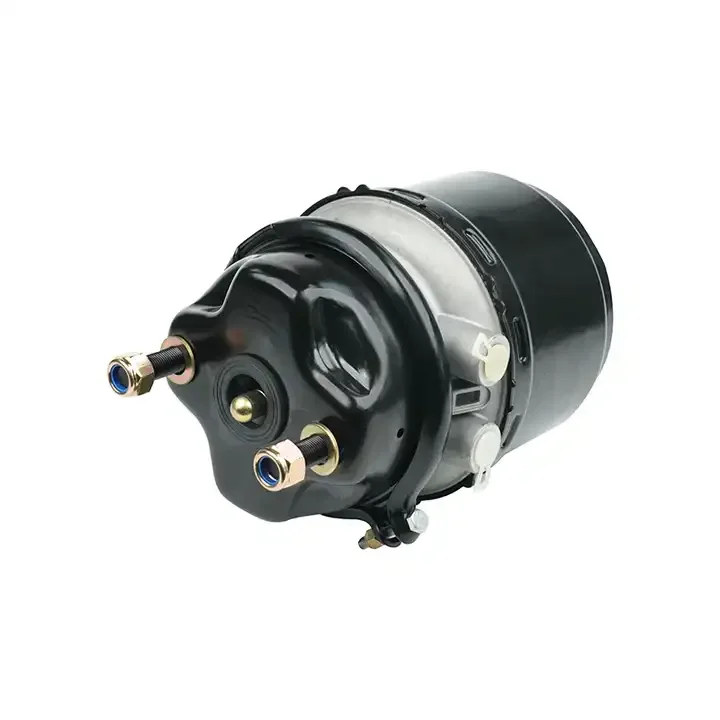

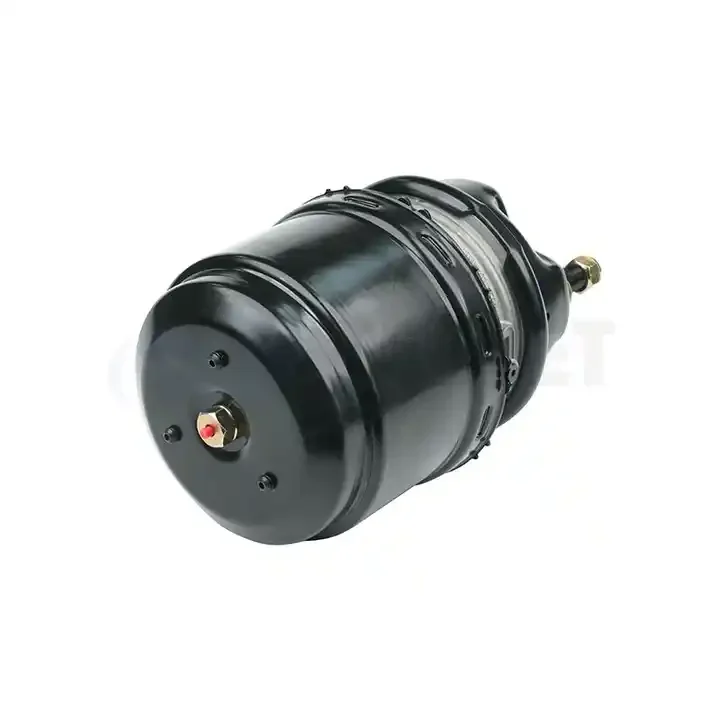

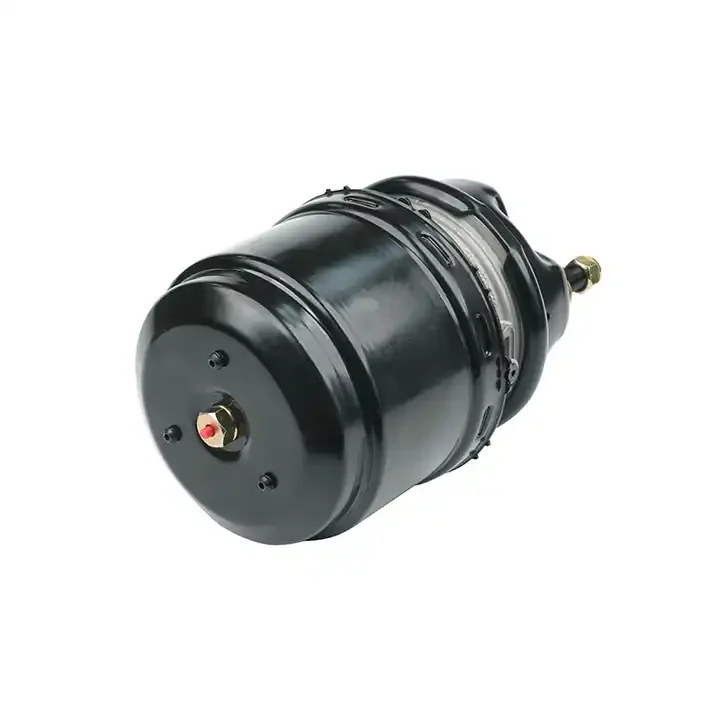

WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck
WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck
WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck
WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck
WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck
WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck
WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck

WABCO 9254813420 Type 24/30 Diaphragm Piston Actuators Tristop Cylinder Air Disc Spring Brake Chamber For Heavy Duty Truck

Share on (1601000443201):


Price:$32.00 - $40.00

Quantity:


Product Overview

Description





Product Description
Type 24/30 Diaphragm Piston Air Disc Spring Brake Actuators
Part Number
TB-2430PDGN-03
Stroke
64/64mm
Pushrod Length
15 mm
Chamber Style
Double Diaphragm
Port threads
M16 x 1.5
Distance Between Bolts
120.7mm
Rating Working Pressure
0.8Mpa
Max Working Pressure
1.03Mpa
Working temperature
-40℃～+80℃
Service chamber
above 1,000,000 times
Parking chamber
above 200,000 times
Finish
E-coating/Zinc-plated/Aluminum Sand-blated
Adaptation Truck Type
VOLVO: FH 12 2001-2005， FH 16 2003-2006， FM 9 2001-2005， FM 12 2001-2005， FH/FM 2005-NOW, FMX
Direct AftermarkeAt Replacement For OEM
WABCO：9254810700
DAF：1527254
MERITOR：20721842
VOLVO：20721842
VOLVO：3197931
VOLVO：20410136
