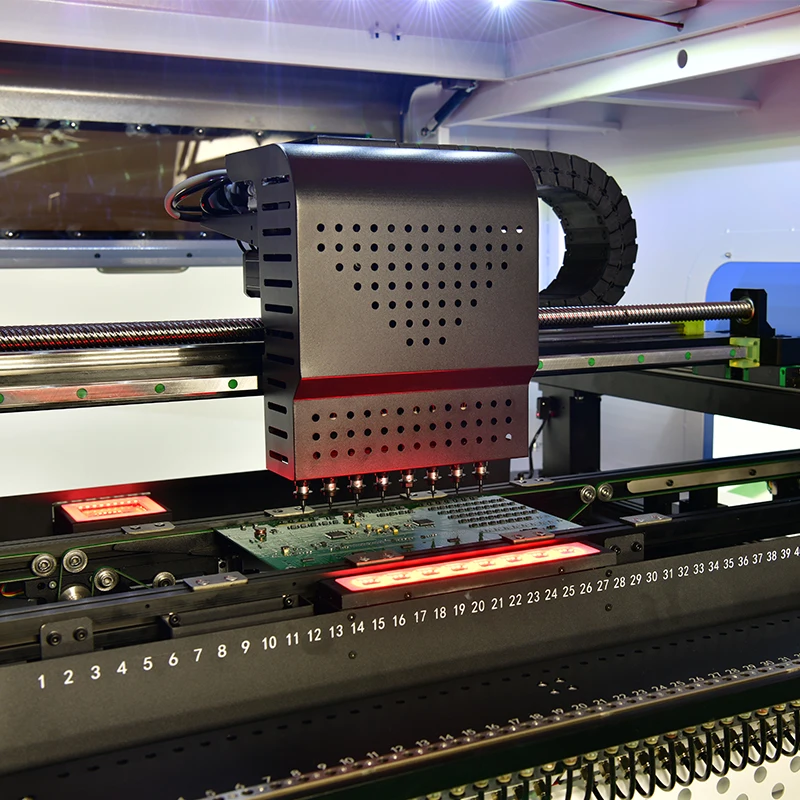

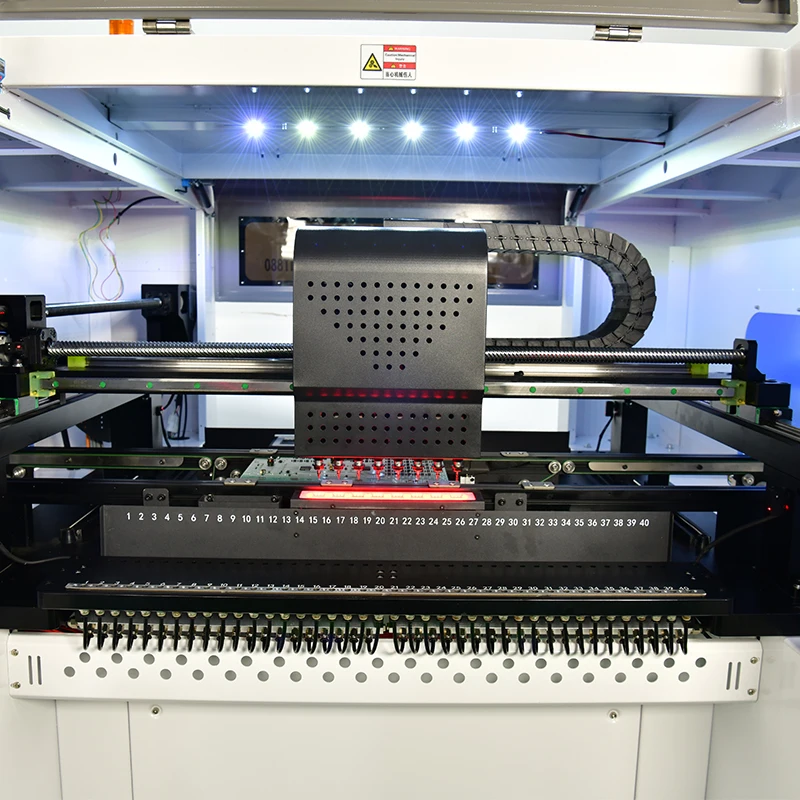

The machine SMT880 with 8 heads+10 cameras+80pcs feeders+Three stage track+Panasonic servo motor+Screw guide.
The machine SMT880 with 8 heads+10 cameras+80pcs feeders+Three stage track+Panasonic servo motor+Screw guide.
Feature

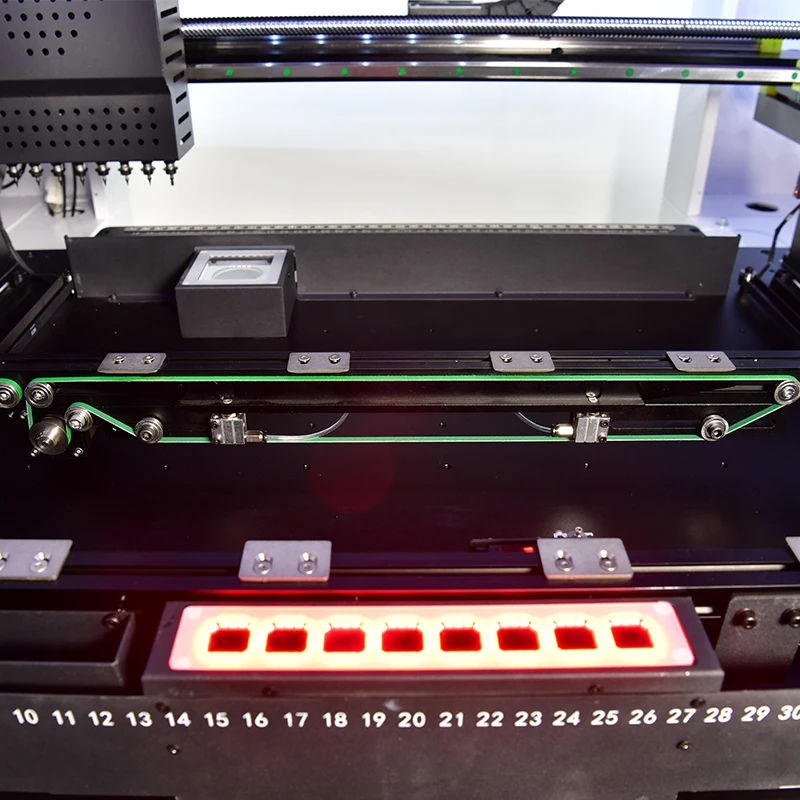

1.Three stage track.

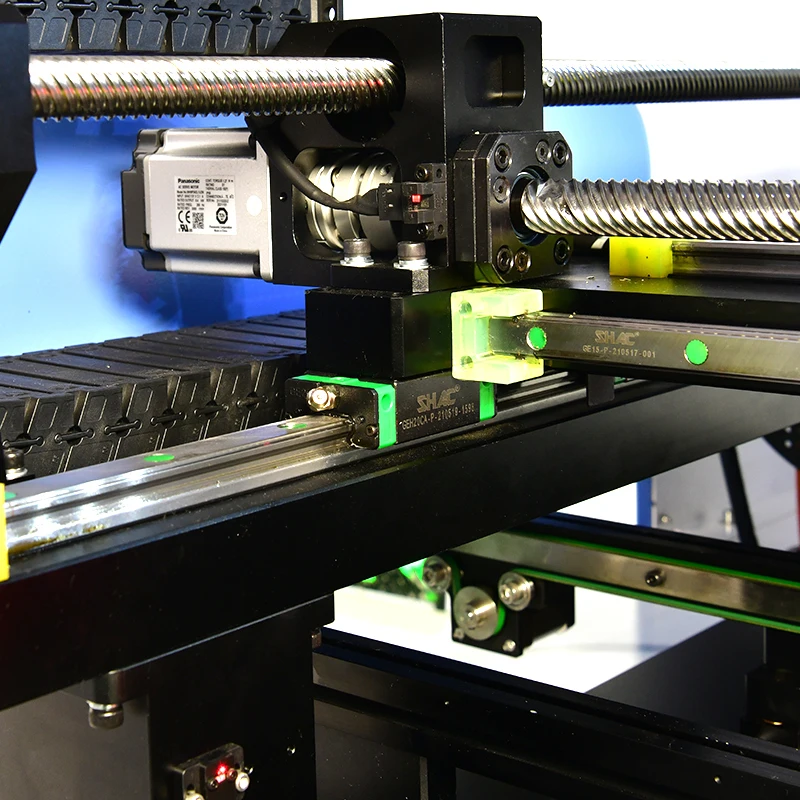

2.Panasonic servo motor.

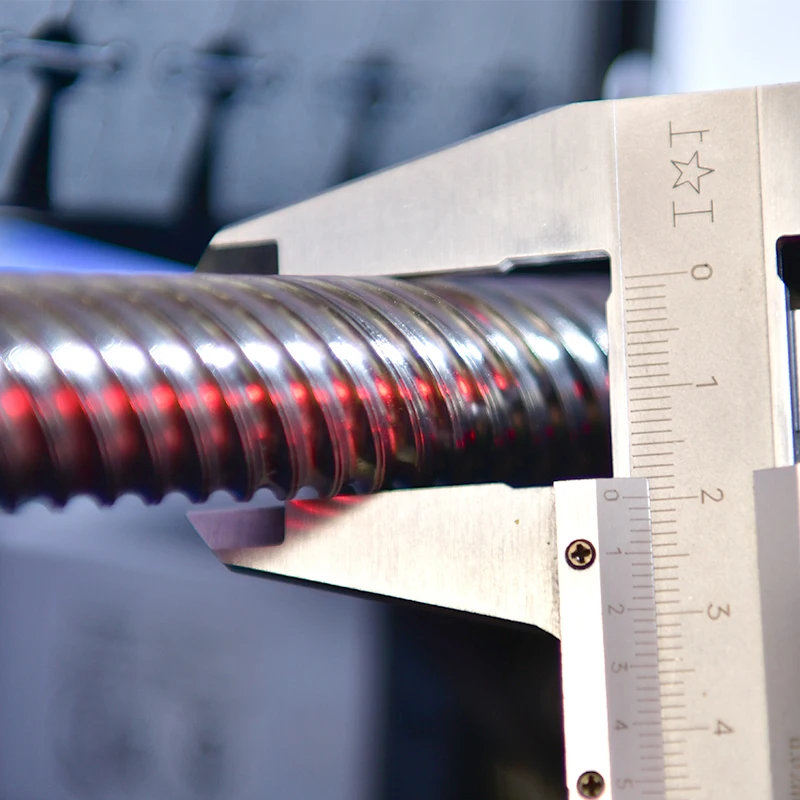

3.Screw Guide.
4.8 Heads+10 cameras +80 feeders.
3.Screw Guide.
4.8 Heads+10 cameras +80 feeders.
Part List
1.Pick and place machine:1 Set
2.IC fixed support:4 Set(Four M5*8,Four M5*20 screw)
3.JUKI nozzle:20Pcs(502*4，503*6，504*6，505*3，506*1)
4.Solid alibrate nozzle:8 Pcs
5.Power wire:1 Pcs(A machine external power supply)
6.Fixed foot:4 Pcs(Three coats)
7.The keyboard and mouse:1 Set
8.Nozzle calibration inkpad:1 box
9.Lubricant:1 Pcs
10.I3 industrial control PC (with key):1 Set
11.17 inch liquid crystal display:1 Set(Display*1, VGA line*1, power line*1)
12.Bracket:2 Set(Display bracket*1 keyboard and mouse bracket*1)
13.Conveyor connection line:2 Pcs
14.Camera parameter adjustment line:1 Pcs(Plug*3)
15.Handle:2 Pcs(M4*6 screw*6)
16.Seal ring of feeder:10 Pcs
The SMT880 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
3.JUKI nozzle:20Pcs(502*4，503*6，504*6，505*3，506*1)
4.Solid alibrate nozzle:8 Pcs
5.Power wire:1 Pcs(A machine external power supply)
6.Fixed foot:4 Pcs(Three coats)
7.The keyboard and mouse:1 Set
8.Nozzle calibration inkpad:1 box
9.Lubricant:1 Pcs
10.I3 industrial control PC (with key):1 Set
11.17 inch liquid crystal display:1 Set(Display*1, VGA line*1, power line*1)
12.Bracket:2 Set(Display bracket*1 keyboard and mouse bracket*1)
13.Conveyor connection line:2 Pcs
14.Camera parameter adjustment line:1 Pcs(Plug*3)
15.Handle:2 Pcs(M4*6 screw*6)
16.Seal ring of feeder:10 Pcs
The SMT880 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT880 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Number of feeders | 80 |
Number of IC Tray | 8 |
Number of Cameras | 10 |
Number of Heads | 8 |
Average Power | 1000 W |
Automatic Board | Three-Stage Track |
Guide | Screw Guide |
Maximum Mounting Speed | 15000 pcs/h |
Averagr Mounting Speed of Actual Mounting Resistance | 12000 pcs/h |
Maximum Travel Scope in Z Axis | 20 mm |
Maximum Circuit Board Area | 500*455 mm |
Positionning Precision | 0.01 mm |
The Buffer Range of Suction Nozzle | 4.5 mm |
Place Height | 20 mm (Option) |
Weight | 600 KG |
Dimension | 1420*1370*1350 mm |
Power Supply | 110V / 220V , 50 / 60 Hz |
Compressed Air | 0.5-0.6 Mpa |
Drive Motor | Panasonic Servo Motor |
Motion Drive System | Panasonic High-Speed DSP Drive |
Recognition Mode | Simultaneous Recognition of Eight Heads |
Vacuum Soure of Suction Nozzle | High-Speed On-Off Vacuum Generator with Vacuum Breaker |
Operating System | Full-Automatic Chip Mounter Operating System Operating System |
Independently Developed by Us Based On Windows Operating System | |
Supports Windows XP , Win7 | |
Element Angle | 0-360° Synchronous Rotation During Movement |
X/Y Operation Mode | Intelligent Curve of the Linear Acceleration and Deceleration Linkage |
MARK Point Positioning | Full-Automatic (the MARK Point Can be Adjust at Will) |
Intelligent Alarm | Automatic Correction , Automatic Filling , Feeding Shortage Alarm |
Automatic Connection from Left to Right in Single Sections | |
Automatic PCB Transfer Positioning/Plunger Positioning,Manual Plate Feeding | |
Visual Display | 17-inch Industrial Control Display, 4:3, Resolution:1280*1024 |
One Mark Recognition Camera, Four Quick-Recognition Cameras | |
One Precise-Recognition Camera | |
Adaptive to 0201 0402,0603,0805,1206,Diode,Audion,SOT,QFP | |
Within 40*40mm and the Pin Distance ≥0.3 mm (0.5 mm Center Distance) and BGA |
