High Productivity Diffuser Aeration Tubing Pipe Rubber Diaphragm Tube Sewage Treatment

Share on (1601000472004):


Price:$15.00

Quantity:


Product Overview

Description


Air Blower Driven Micro Bubble Tube Diffuser for Aeration System






Product Description:

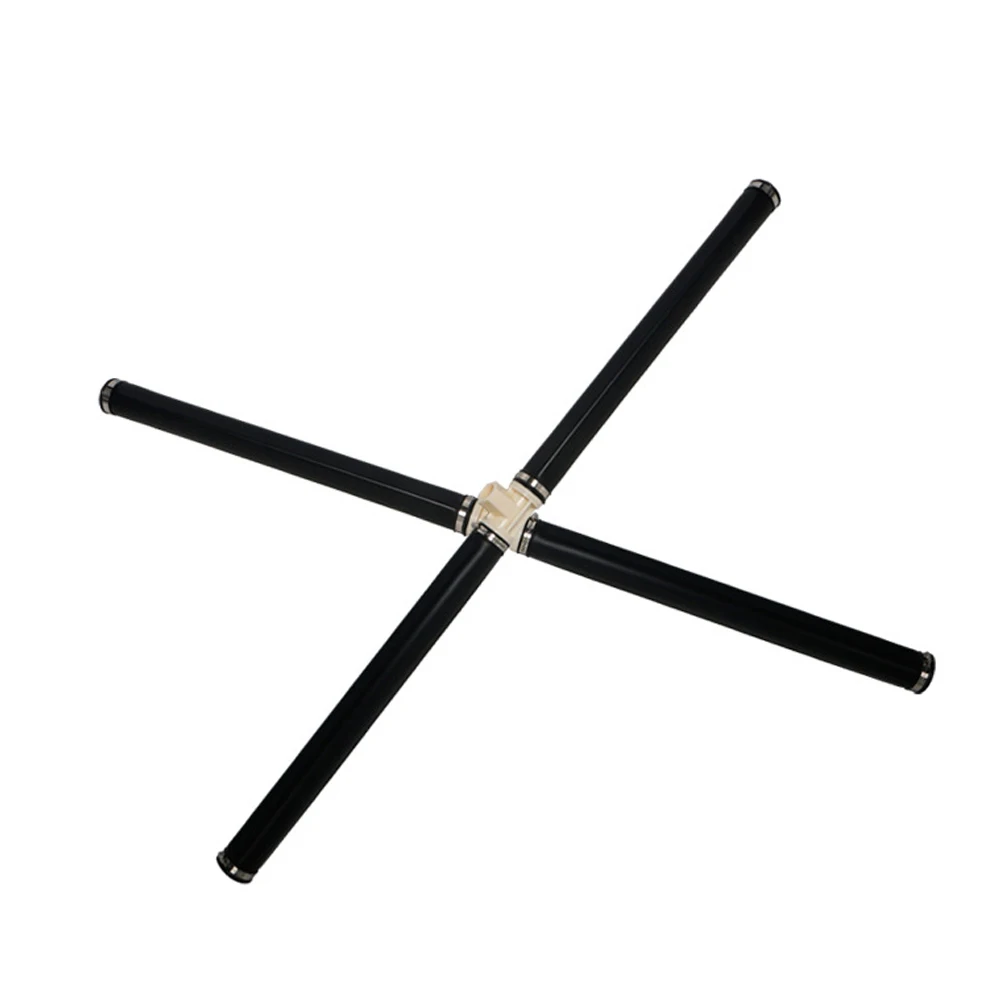

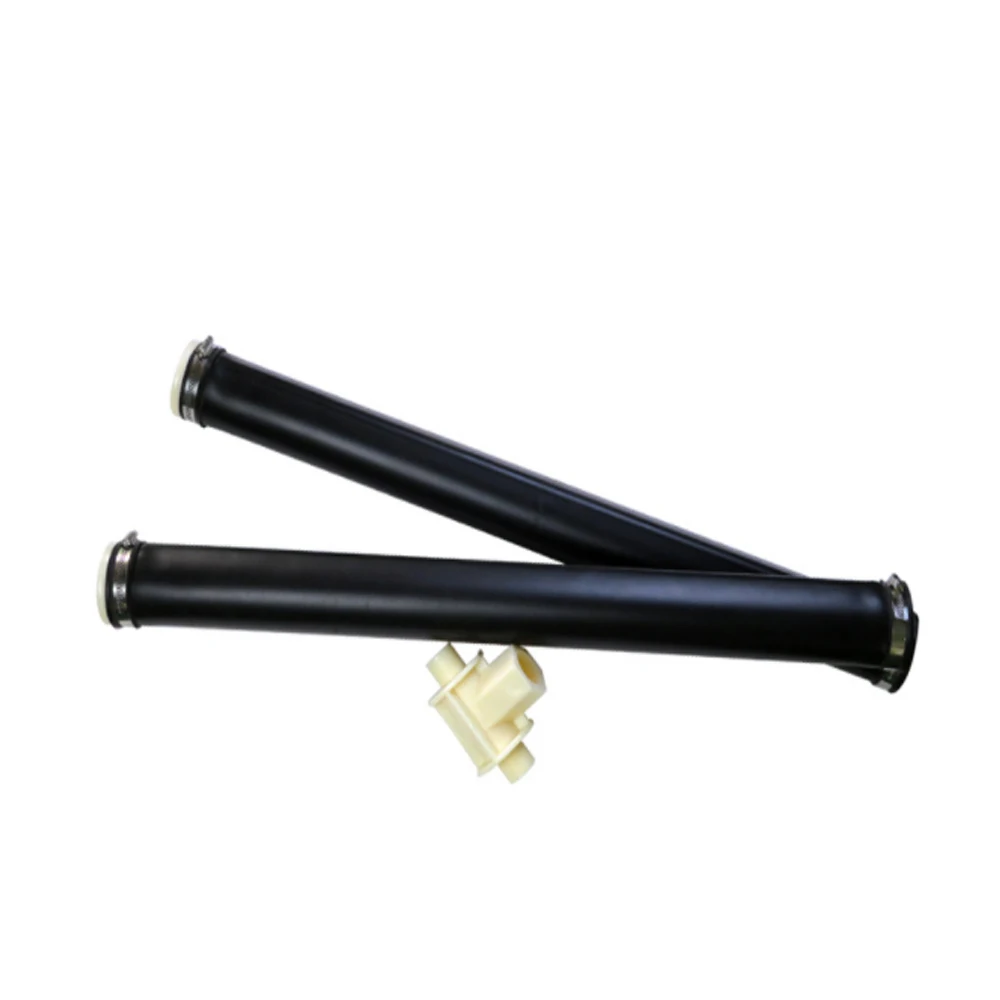

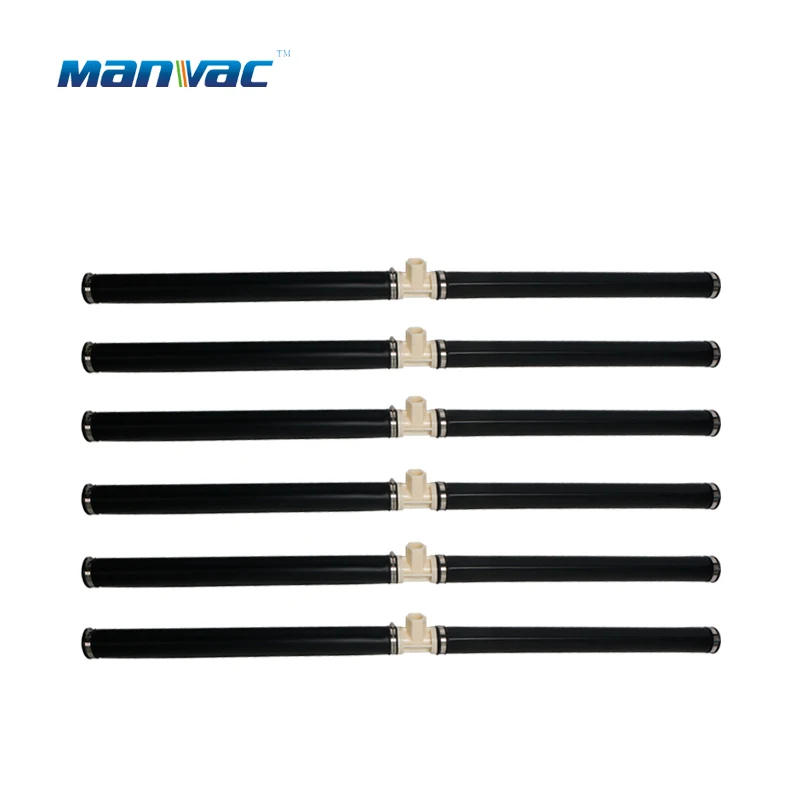

Fine bubble tube diffuser for effluent treatment can be connected on one side or in pairs to different rectangular and round tubes(ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforayion. The support tube(ABS or PVC material)can be reused when membranes are replaced.

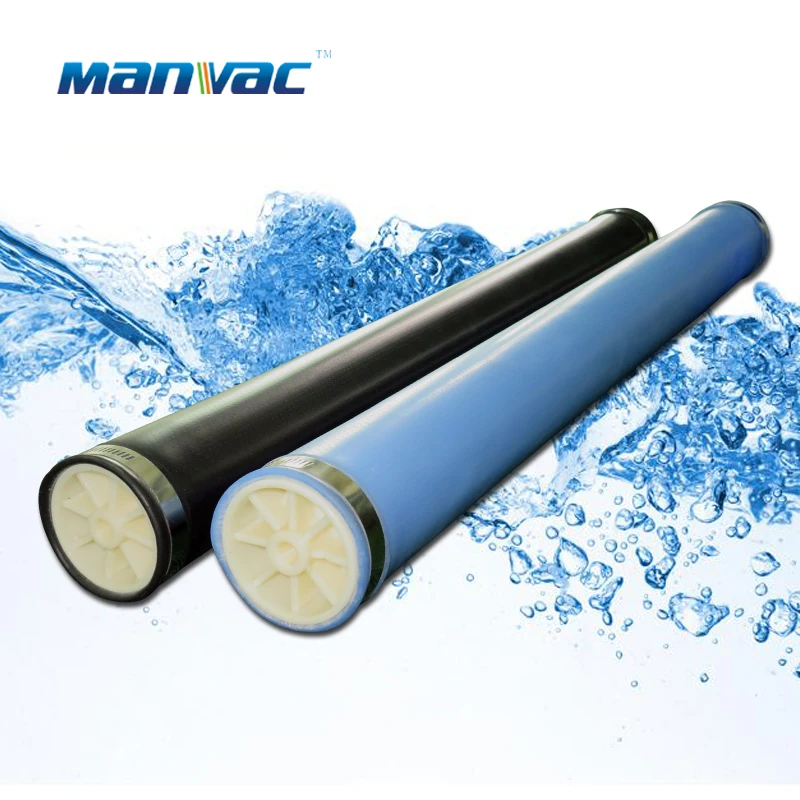

74



size







MOC:EPDM



Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm
perforations.Compression molding with modern equipment utilizing individual thermocouples and
vacuum technology ensures a repeatable very high quality product.





MOC:Silicon



Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products.
Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is
designed to resist tearing and creep,while producing fine bubbles at a modest headloss.

63





Technical Parameters






















































Model


φ63


φ93


φ113


MOC


EPDM/Silicon membrane
ABS tube



EPDM/Silicon membrane

ABS /PP carrier plate


EPDM/Silicon membrane

ABS /PP carrier plate

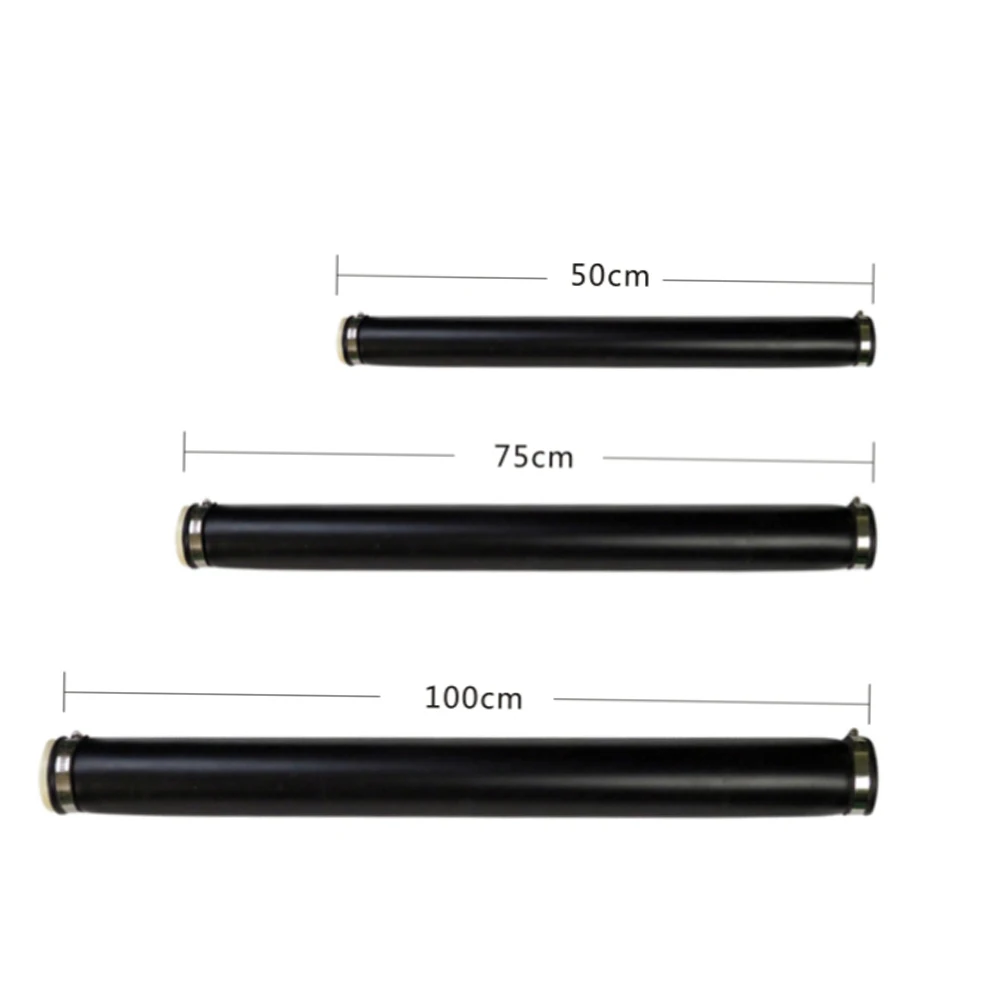

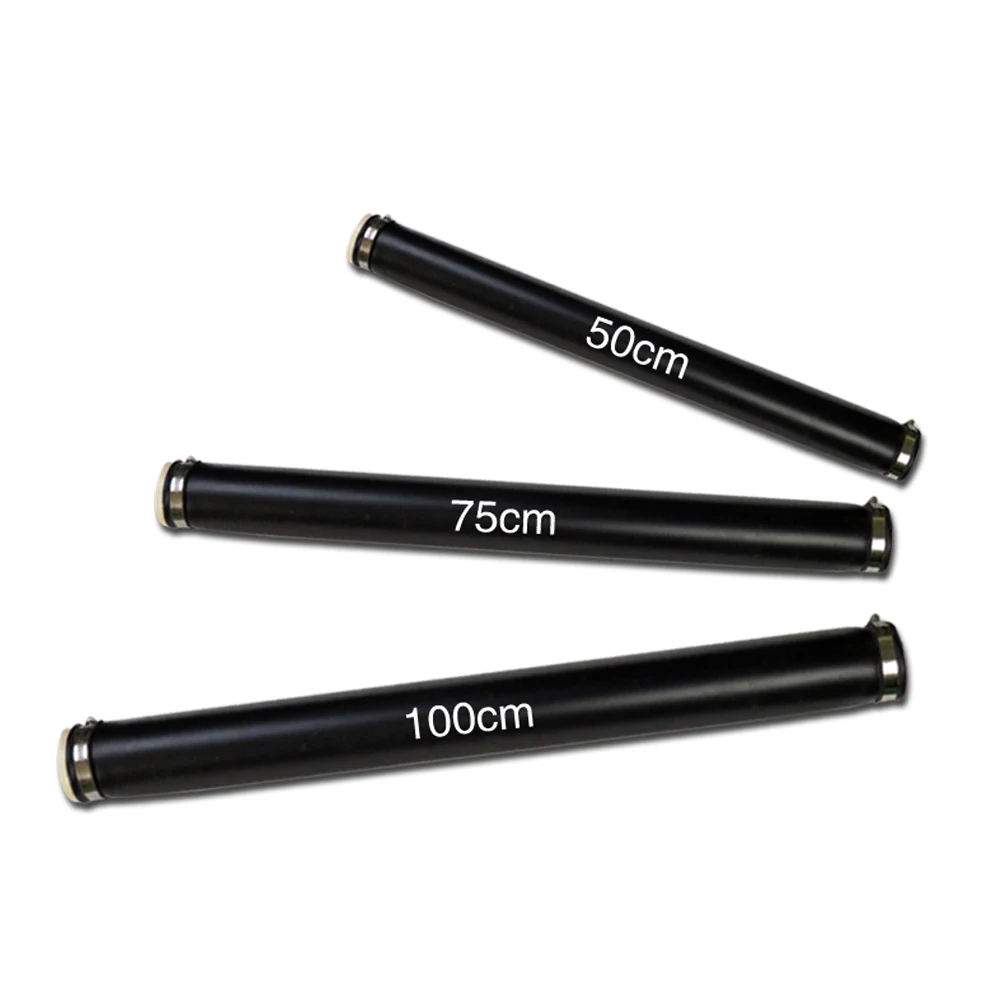

Length


500/750/1000mm


500/750/1000mm


500/750/1000mm


Connector


3/4 NPT


3/4 NPT


 3/4  NPT


Flow  range


2-14m³/h


5-20m³/h


6-28m³/h


Bubble Size


1-2mm


1-2mm


1-2mm


Service Area


0.75-2.5m²


1.0-3.0m²


1.5-3.5m²


Service Life


>8 year


>8 year


>8year






Main features




♦ High oxygen transfer efficiency
♦ Low cost of total ownership
♦ Anti-clogging, corrosion resistant
♦ Ease of installation,2 minutes for one diffuser
♦ Maintenance-free design, 8 years service life
♦ EPDM membrane with excellent performance






Typical applications




♦ Preservation aeration of waste water
♦ Oxygenation of activation basins
♦ Oxygenation to stabilize sludge
♦ Aeration of rivers and lakes
♦ Aeration of fish ponds
♦ CO admission for neutralization

application
