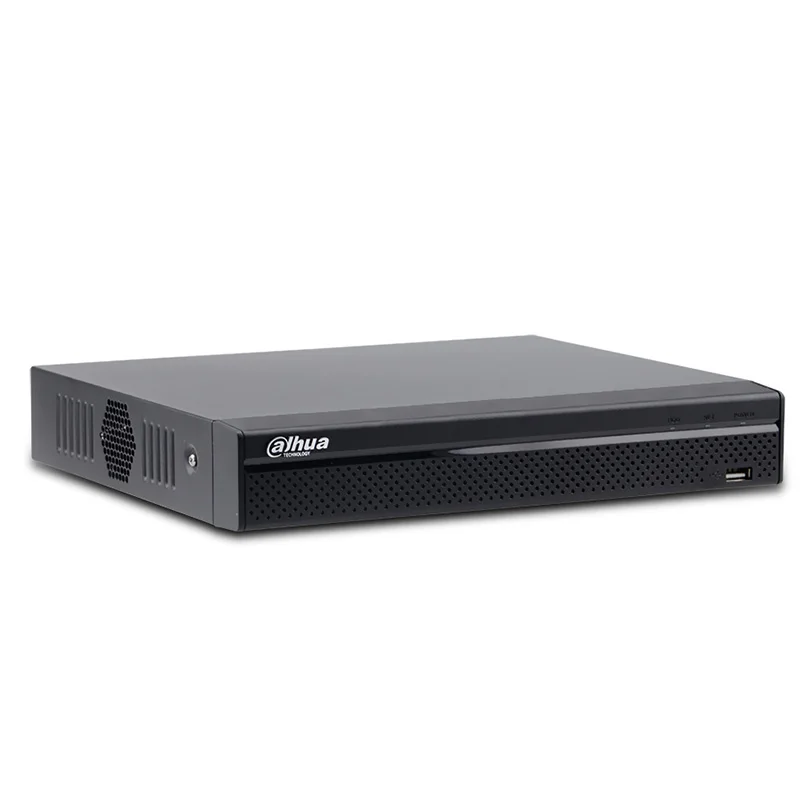

NVR4108HS 4KS3 8CH Compact 1U 1HDD Lite Smart Face Recognition Detection Network Video Recorder By Poe Ip Camera

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

Perimeter Performance of
AI by Camera (Number of
Channels)

6 channels

Gender; age group; glasses; expressions; face mask;
beard

Face Detection
Performance of AI by
Camera (Number of
Channels)

6 channels

Face Recognition Performance of AI by Camera (Number of Channels)

6 channels

4 channels: Secondary filtering for human and motor
vehicle, reducing false alarms caused by leaves, rain and lighting condition change
6 channels

Audio and Video
8 channels 80 Mbps incoming, 80 Mbps recording and 60 Mbps
outgoing 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p;
720p; D1; CIF; QCIF
AI disabled: 1-channel 12 MP@30 fps; 2-channel 8
MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4
MP@30 fps; 8-channel 1080p@30 fps
AI enabled: 1-channel 12 MP@30 fps; 1-channel 8
MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4
MP@30 fps; 7-channel 1080p@30 fps
1 HDMI, 1 VGA
Simultaneous：
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Heterogeneous：
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Main Screen: 1/4/8/9;Sub Screen: 1/4/8/9 ON-VIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon;Hanwha

Operating Temperature

–10 。C to +55 。C (14 。F to +131 。F)

Storage Temperature

–20 。C to +60 。C (–4 。F to +140 。F)

Operating Humidity

0.10–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
2:2019+A1:2021; EN 61000-3-
3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020;
EN 50130-4:2011+A1:2014 CE-LVD: EN 62368- 1:2014

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM; G726

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS;
SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server;
P2P; Auto Registration; IP Search (Supports IP camera,
DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Multi-channel Playback

Up to 8 channels

Record Mode

General, motion detection; intelligent; alarm

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag
playback, smart playback

General Alarm

Motion detection; privacy masking; video loss; scene
changing; PIR alarm; IPC external alarm

Anomaly Alarm

Camera disconnection; storage error; disk full; IP
conflict; MAC conflict; login locked; and cybersecurity
exception

Intelligent Alarm

Face detection; face recognition; perimeter protection;
SMD Plus; people counting; stereo analysis; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; audio;
buzzer; log; preset; email

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

NA (2 channels is optional)

Alarm Output

NA (1-channel 12 V 1 A output is optional)

HDD Interface

1 SATA port. Each disk can contain up to 20 TB. This limit
varies depending on the environment temperature .

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

12 VDC, 2 A

Total output of NVR is <10 W(without HDD)

0.81 kg (1.79 lb)

1.38 kg (3.04 lb)

260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" ×
1.87") (W × D × H)

334 mm × 89 mm × 314 mm (13.15" × 3.50" × 12.36")
(W × D × H)
