Product Overview

Description

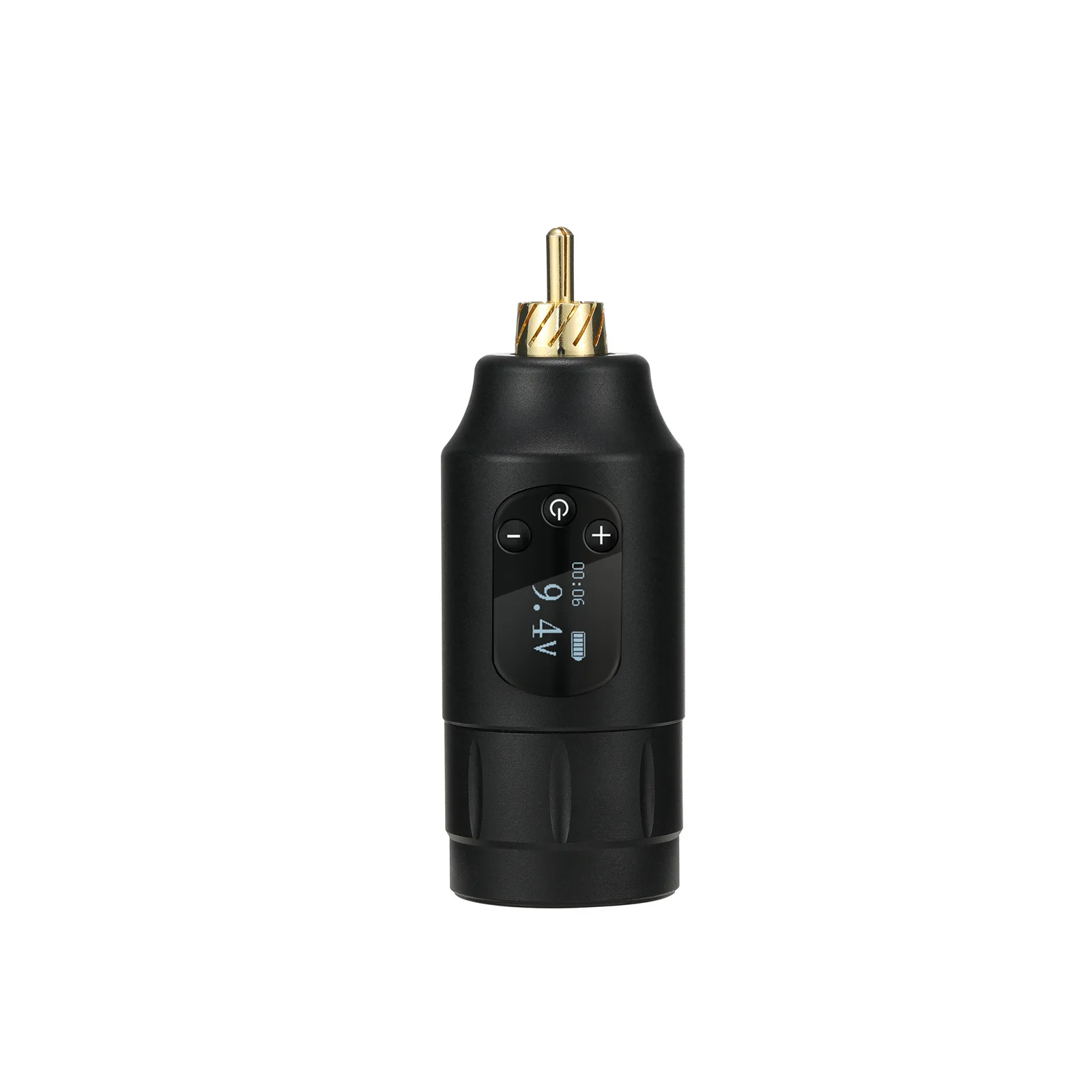

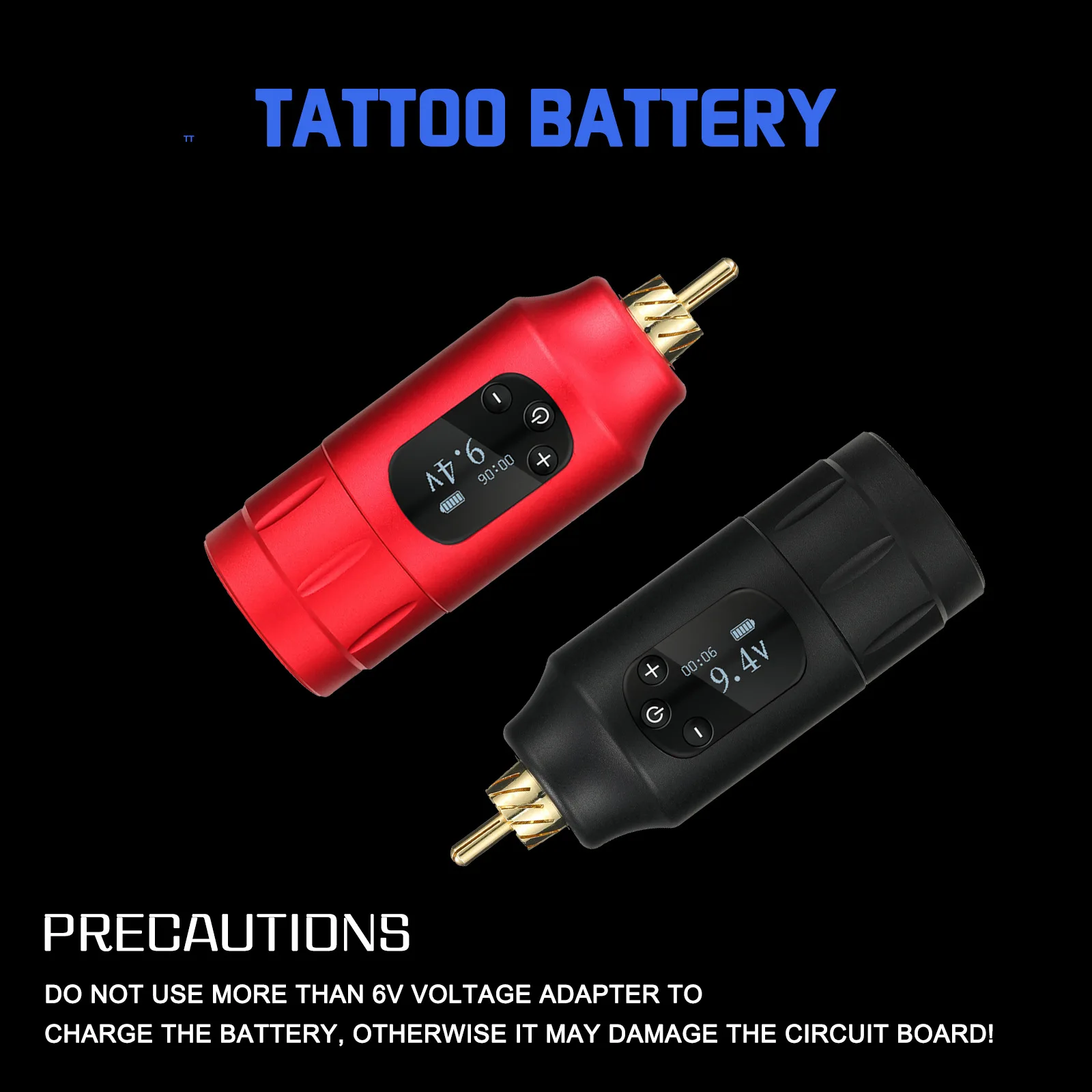

Tuffking wireless second generation tattoo power supply





-.Product Features

Tuffking new-generation wireless battery is an upgraded version on the basis of generation. LED lamp display is upgraded to OLED display screen. RCA and DC interfaces are adopted and are suitable for different machines. The circuit hardware/software algorithm is newly upgraded, with wider voltage range, more accurate adjustment and faster. Design two starting modes of normal starting and enhanced starting to adapt to different application scenarios; OLED high-resolution display screen with rich and clear display content; with charging overcharge protection \\card pin protection \\output short circuit protection, all kinds of abnormal situation display text reminder.

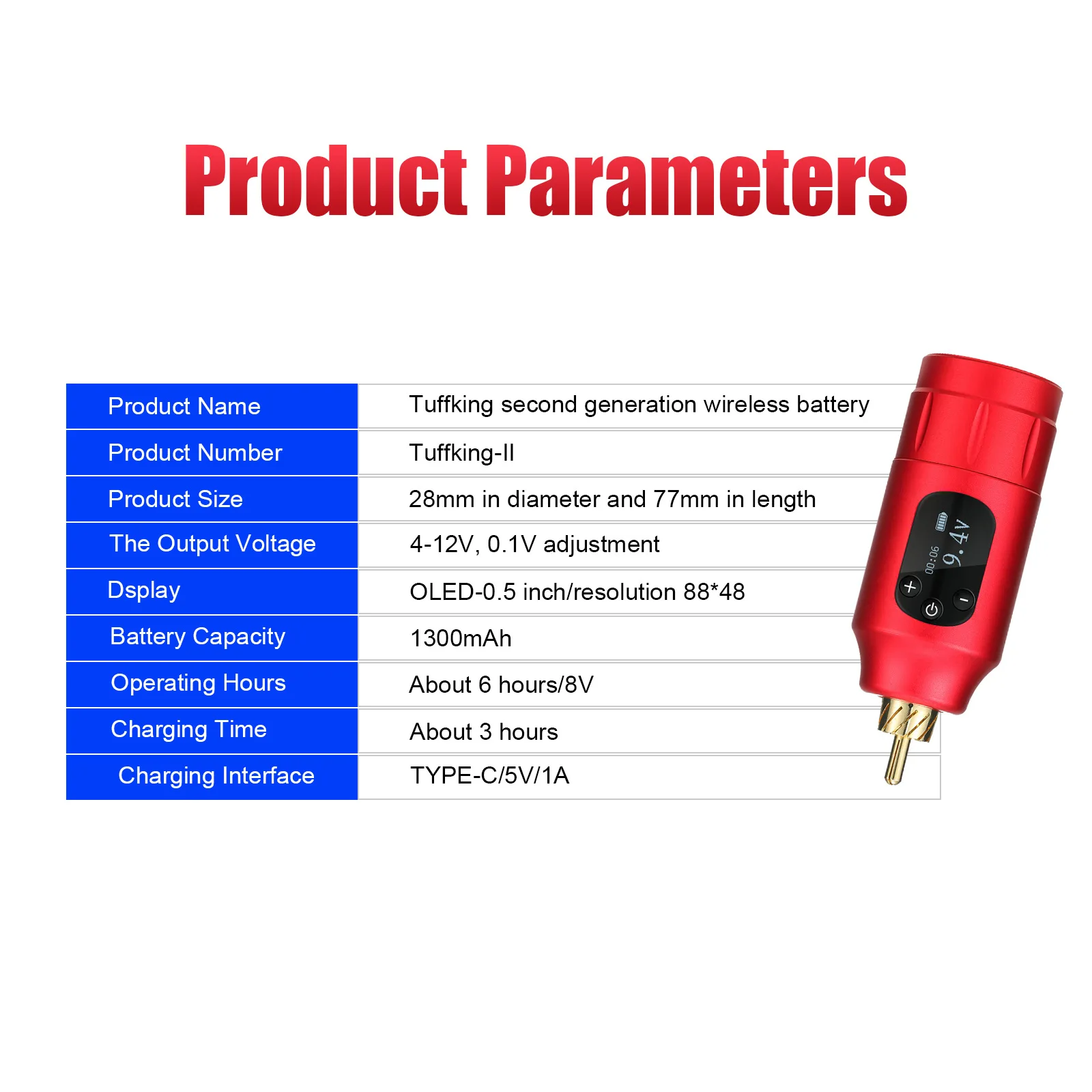

II.Basic parameters

1. Product Name: Tuffking second-generation wireless battery

2. Product model: Tuffking-II (for reference)

3. Dimensions: Diameter 28mm Length 77mm

4. Weight:117g


5. Output voltage: 4-12V,0.1V regulation

6. Display: OLED-0.5 inch/resolution 88*48

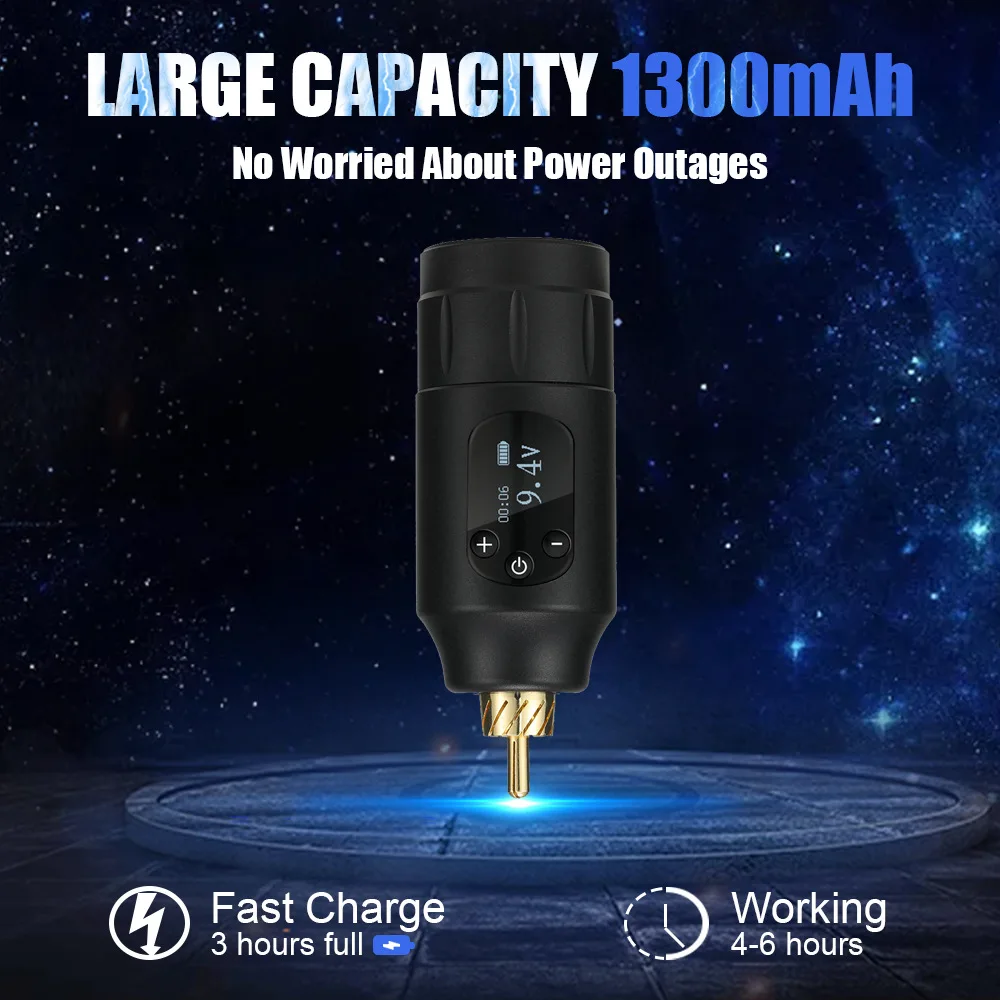

7. Battery capacity: 1300mAh

8. Working time: about 6 hours/8V

9. Charging time: About 3 hours

10. Charging interface:TYPE-C/5V/1A





Three.Method of use

1. Connect the battery to the machine.

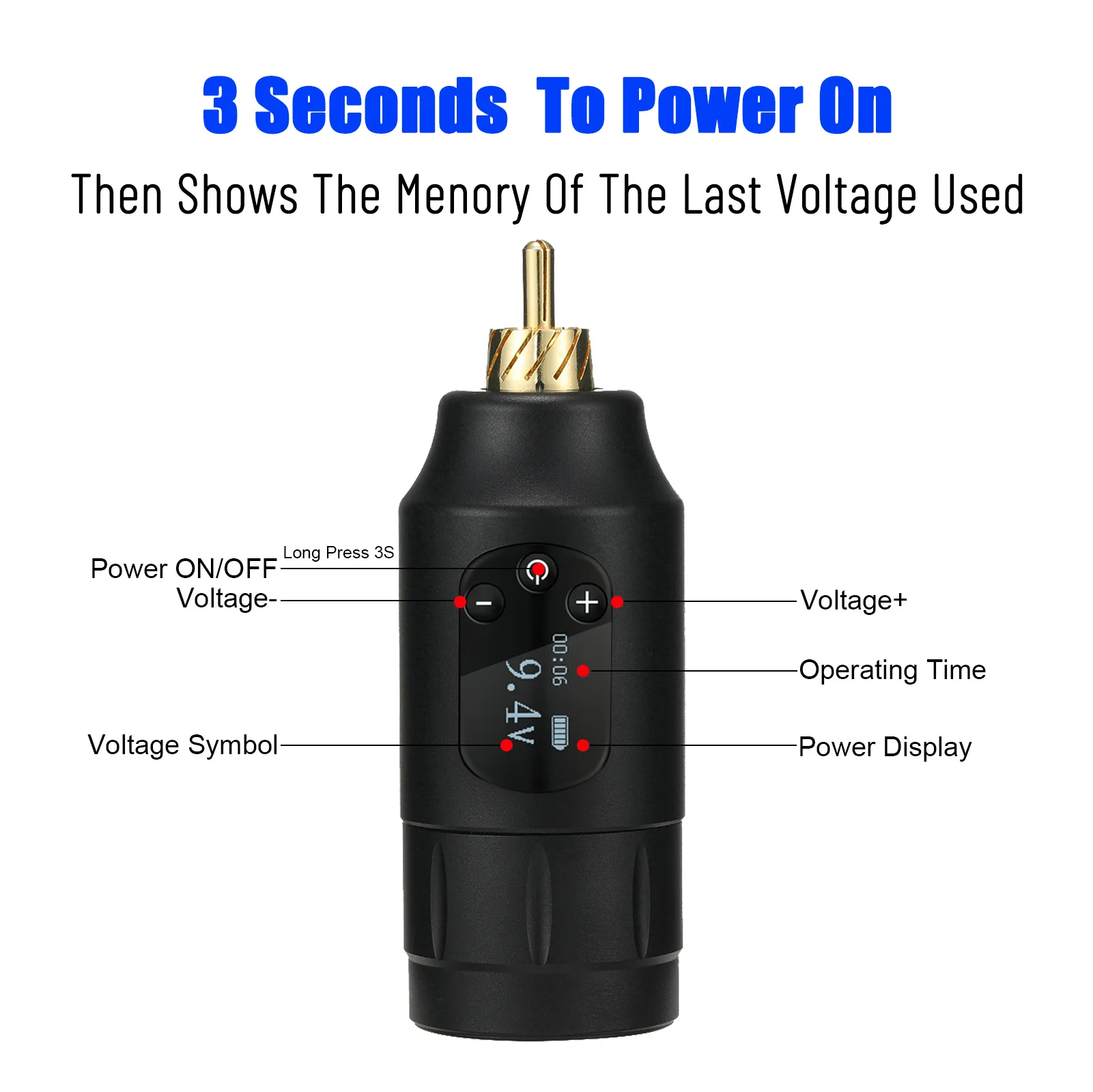

2. Startup/Pause: There are two startup modes. In shutdown state, press the power button for a long time to enter the normal startup mode, then press the power button to start the machine, and then press the power button to stop the machine. In shutdown state, double-click the power button to enter the enhanced startup mode, then press the power button to start the machine, rise to 10V in 0.2 seconds, then drop to the current setting voltage, and press the power button to stop the machine.



3. Shutdown: long press the power button to shut down the power-on state, no output 5 minutes automatic shutdown, no output load 5 minutes automatic shutdown. When the power is less than 5%, the alarm power is too low, and then shut down.



4. Voltage adjustment: click the button to increase the voltage, 0.1V increase, long press the button to quickly increase the voltage; click-button to reduce the voltage, 0.1V to reduce, long press-button to quickly reduce the voltage; Voltage range 4-12V.

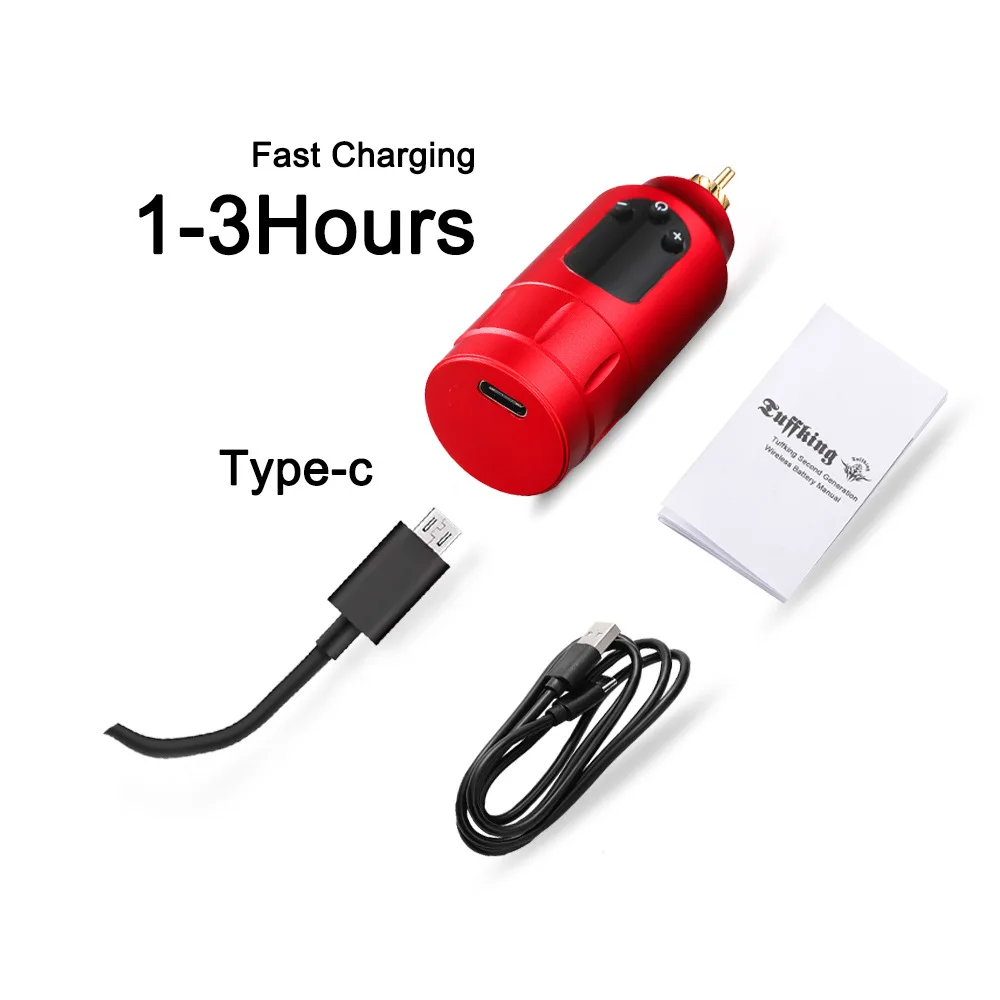

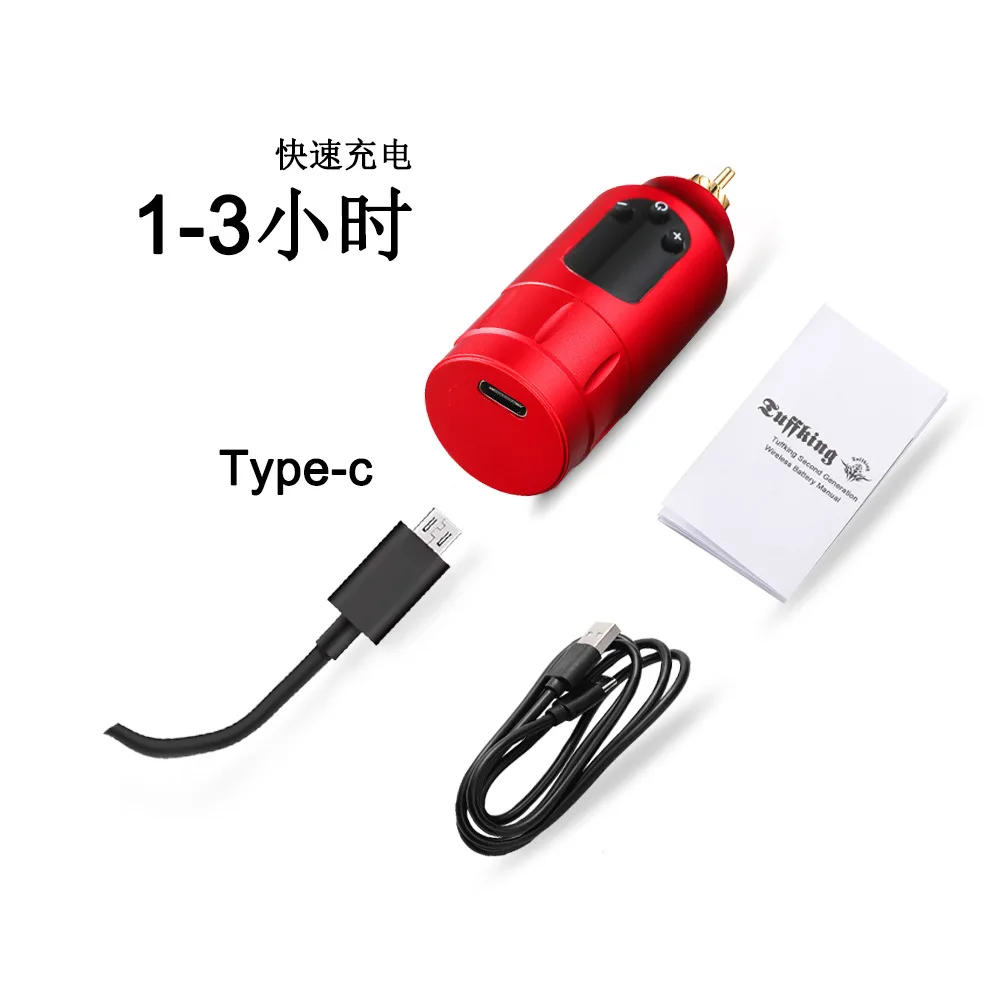

5. Charging: plug in the TYPE-C charging cable for charging, charging the display screen prompts Charging, charging is completed after the display prompts Charge complete.
