Product Overview
Description
Video presentation
Product Overview

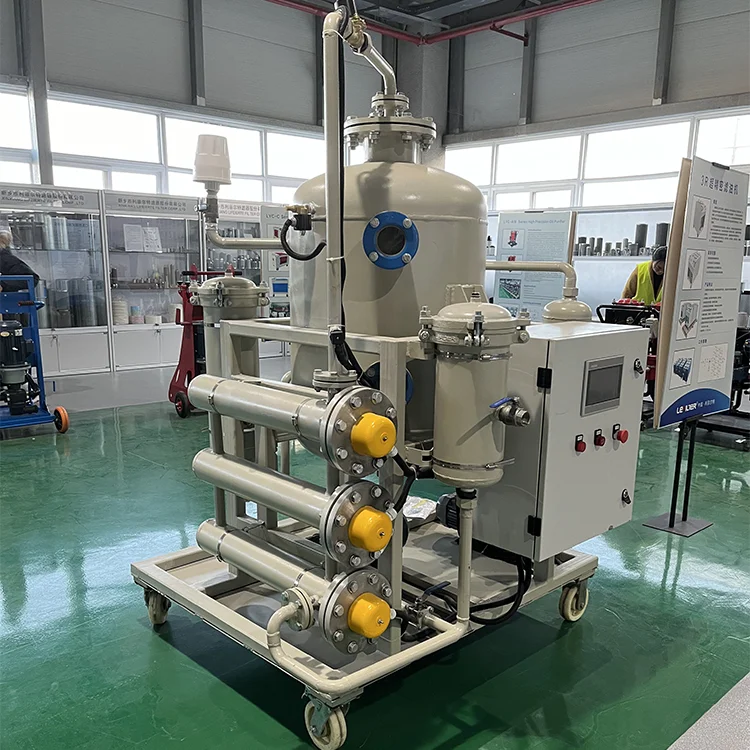

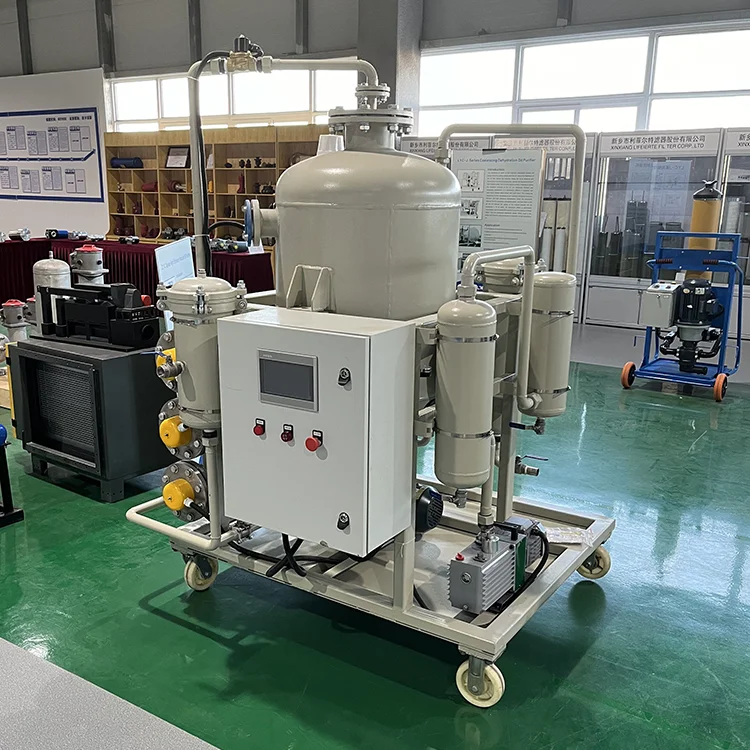

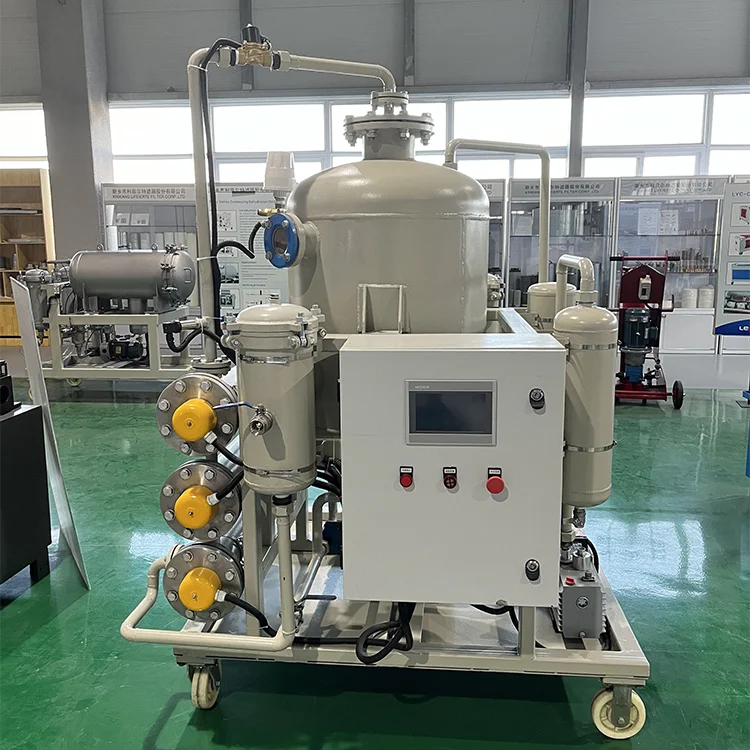

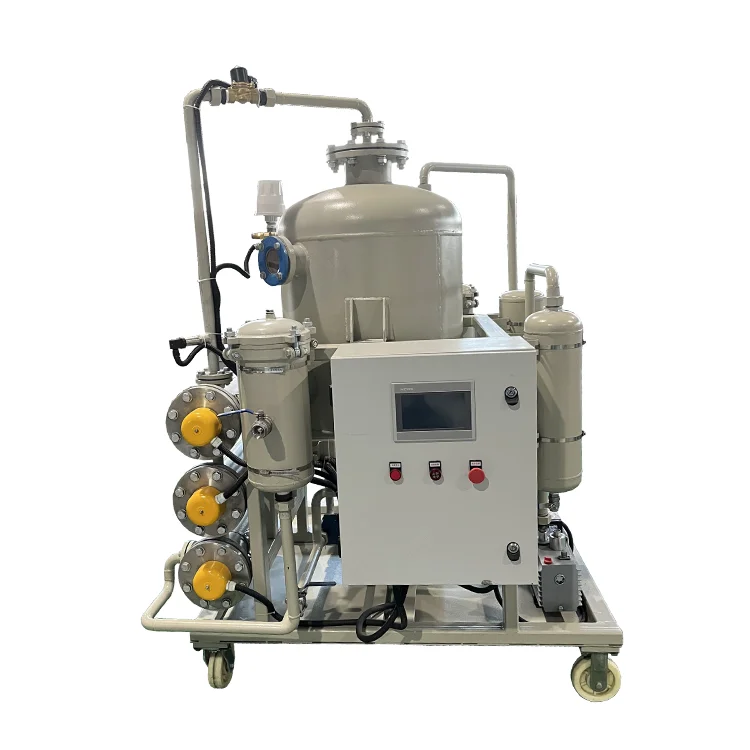

Vacuum oil purifier
The company is market-oriented, technology is the leader, quality is the first, and customers are the highest. The company has a large number of engineers, senior engineers, experts and scholars, specializing in the research, development, design and production of filters, oil filters, and other liquid purification devices. The company has strong economic strength, advanced equipment, sophisticated technology, complete testing methods and a sound quality assurance system, and has passed ISO &CE certification. Has a rigorous style, skilled service team and a comprehensive service network. We have been supporting the production of power plants, petrochemicals, metallurgy, internal combustion engines, medicine, steel and other industries, and are welcomed by customers.
The vacuum oil filter is one of the new generation of oil purification equipment series developed by our company on the basis of introducing the technology of absorbing oil purification equipment at home and abroad. The operation is simple and convenient, which can effectively degas, dehydrate, and purify mechanical impurities, so that the filtered oil meets the oil standard.
The vacuum oil filter is one of the new generation of oil purification equipment series developed by our company on the basis of introducing the technology of absorbing oil purification equipment at home and abroad. The operation is simple and convenient, which can effectively degas, dehydrate, and purify mechanical impurities, so that the filtered oil meets the oil standard.
PRODUCT SPECIFICATIONS
Model | ZLYC-25 | ZLYC-32 | ZLYC-50 | ZLYC-100 | ZLYC-150 | ZLYC-200 | |||||
Flow rate | 25L/min | 32L/min | 50L/min | 100L/min | 150L/min | 200L/min | |||||
Pressure | 0.6MPa | ||||||||||
Rated vacuum | ≤ -0.095 | ||||||||||
Water content | 5-30ppm | ||||||||||
Air content | ≤0.2% | ||||||||||
First class micron | 100um | ||||||||||
Second class micron | 10um, 20um | ||||||||||
Third class micron | 3um, 5um | ||||||||||
Voltage | 380V 50HZ 3PH , or others | ||||||||||
Power | 18KW | 26KW | 36KW | 65KW | 65KW | 135KW | |||||
Product applications
● Oil purifier of turbine oil and transformer
● In addition to water, hydraulic and lubricating oil filter impurities
● Comprehensively improve the cleanliness of hydraulic lubrication system
● Various types of oil regeneration purifier
Product Performance
1. Vacuum System:
By vacuum tank, vacuum pumps, condensate tanks, fluid tanks, air-filling system.Optimized structure design, greatly increasing the surface area of the oil in the vacuum system, and maximizing oil travel in a vacuum system. The oil in the water and gas are fully overflowed. This machine adopts advanced defaming system so oil filter at work will not appear similar products widespread phenomenon of injection.
2.Filtration system:
Using three filter, coarse filter inlet to protect the pump and extend the life of the main filter. After the pump has two fine filter, so the oil quickly reach high cleanliness. Using special gradient filter pore glass fiber material that can be layered filter particles of different size, which greatly improved the life of the filter. The filter has a perfect structure, which can effectively reduce the surface velocity filter, access to stable filtration accuracy.
3. Heating system:
Segmented gradual heating surface heat load is small 1.0W / cm2, the oil does not overheat causing deterioration. Oil temperature can be adjusted at 0 ~ 100 ℃, automatic control, and a protective device, the amount of oil is too low today automatically stop working, to avoid damage caused by dry heater.
Segmented gradual heating surface heat load is small 1.0W / cm2, the oil does not overheat causing deterioration. Oil temperature can be adjusted at 0 ~ 100 ℃, automatic control, and a protective device, the amount of oil is too low today automatically stop working, to avoid damage caused by dry heater.
4. Automatic control system:
The machine uses the frequency, level transmitters, temperature sensors, vacuum degree sensing instrument, such as a series of automatic control instruments of various information acquisition device run by the central processor for processing, automatic control of the whole equipment run and monitor the operational status of equipment. The unit comes with a variety of protective devices (overload, overvoltage protection, phase sequence protection, abnormal operation shutdown protection) to ensure safe operation of equipment.
The machine uses the frequency, level transmitters, temperature sensors, vacuum degree sensing instrument, such as a series of automatic control instruments of various information acquisition device run by the central processor for processing, automatic control of the whole equipment run and monitor the operational status of equipment. The unit comes with a variety of protective devices (overload, overvoltage protection, phase sequence protection, abnormal operation shutdown protection) to ensure safe operation of equipment.
5. The whole structure:
Machine integration bridge structure, reducing the volume. Holistic removable tank, ensure that the ground without oil operations, reduce environmental pollution. There are mobile, fixed, fully enclosed, vehicle type, and so many models to choose from.
Machine integration bridge structure, reducing the volume. Holistic removable tank, ensure that the ground without oil operations, reduce environmental pollution. There are mobile, fixed, fully enclosed, vehicle type, and so many models to choose from.
