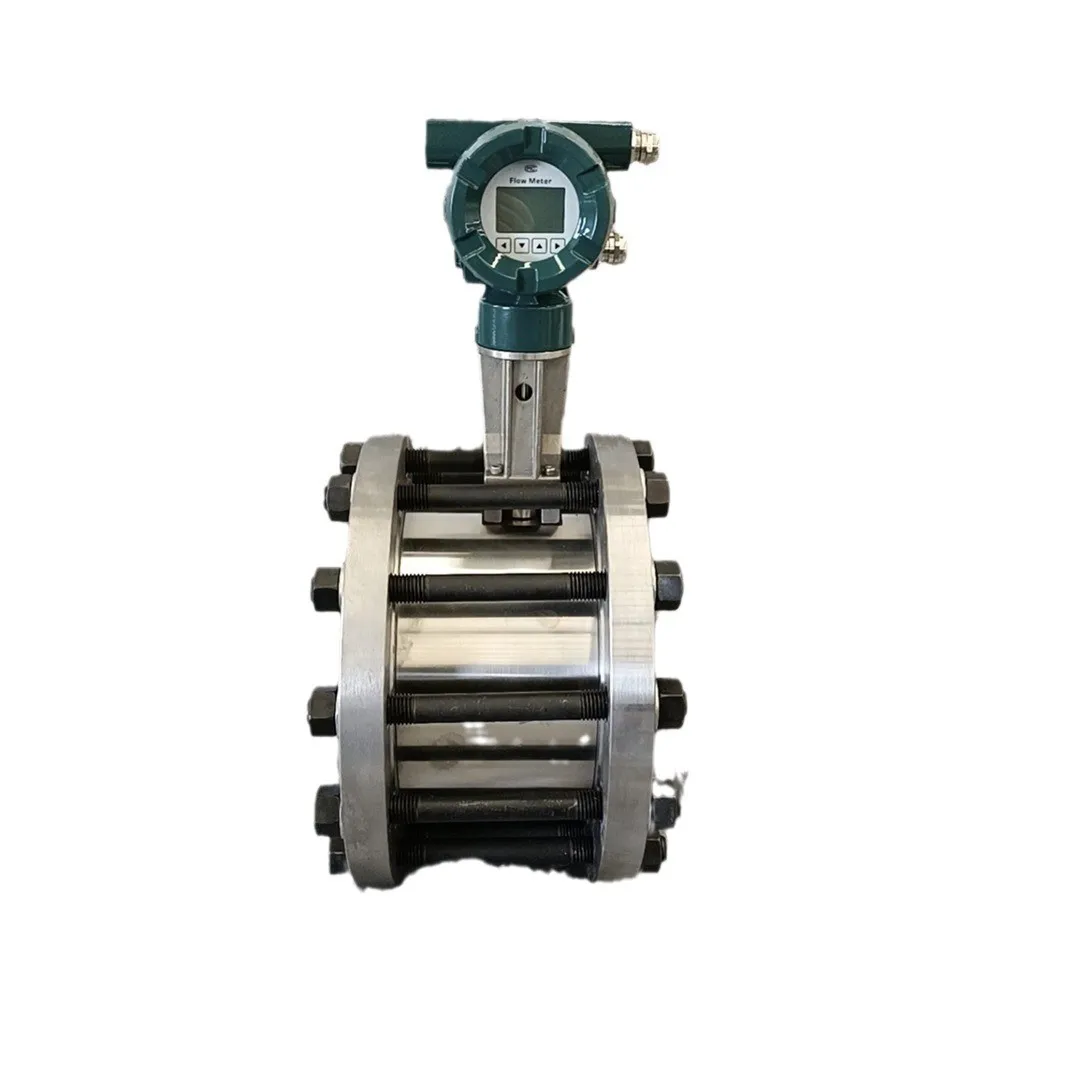

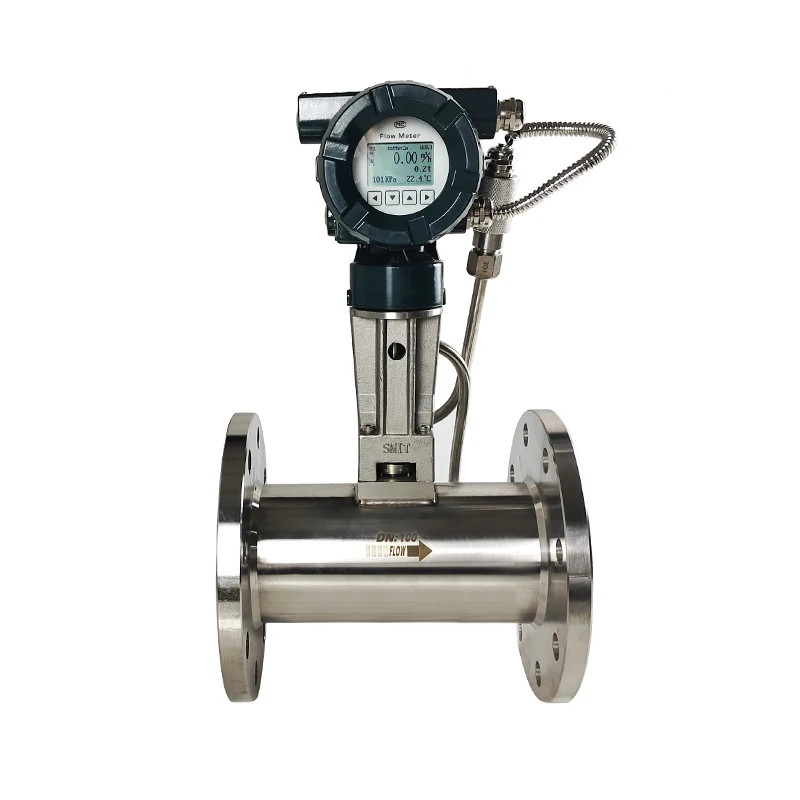

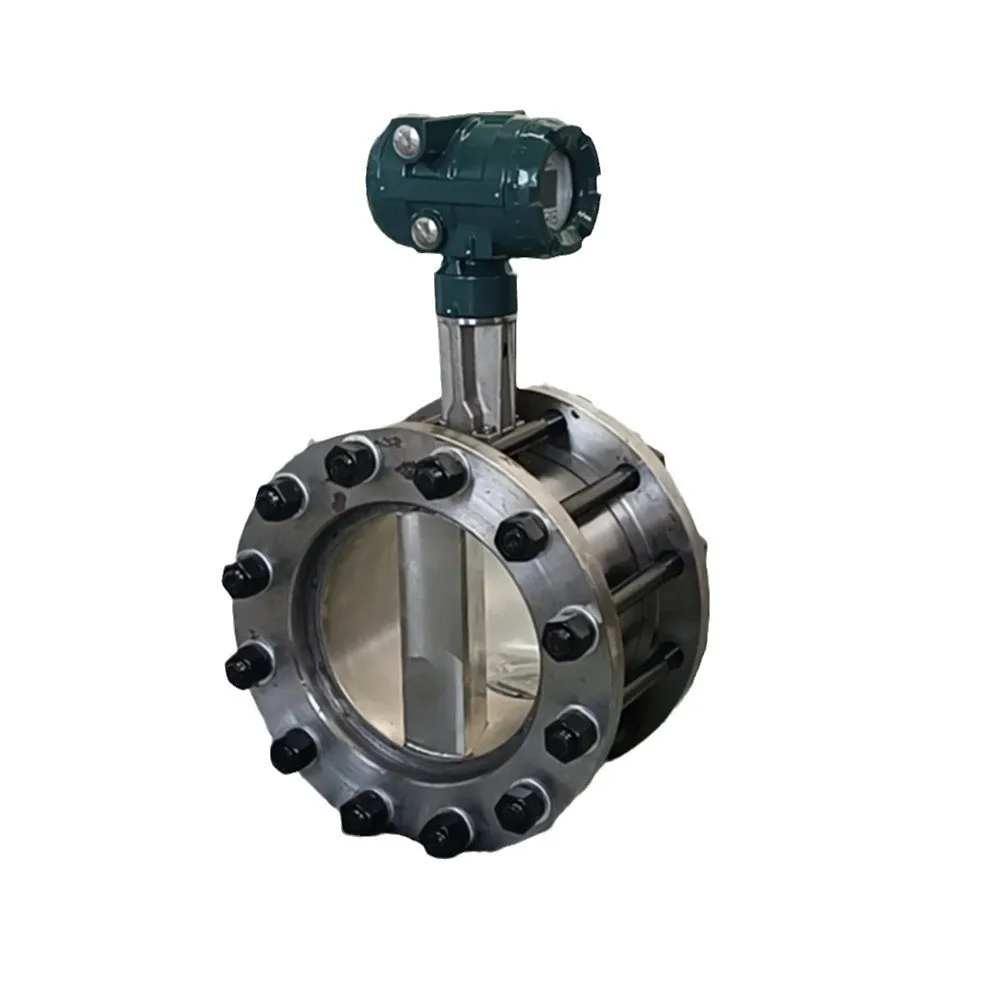

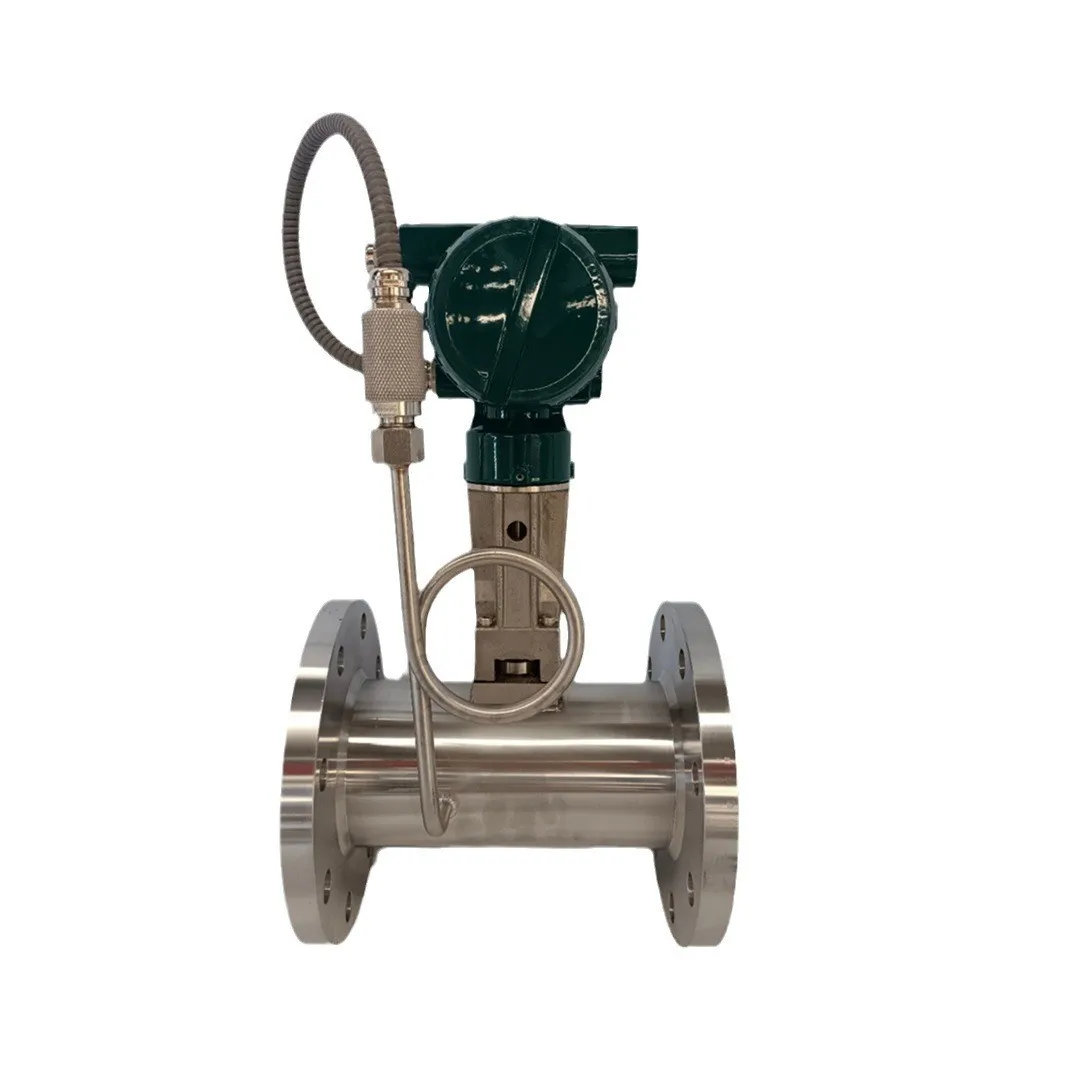

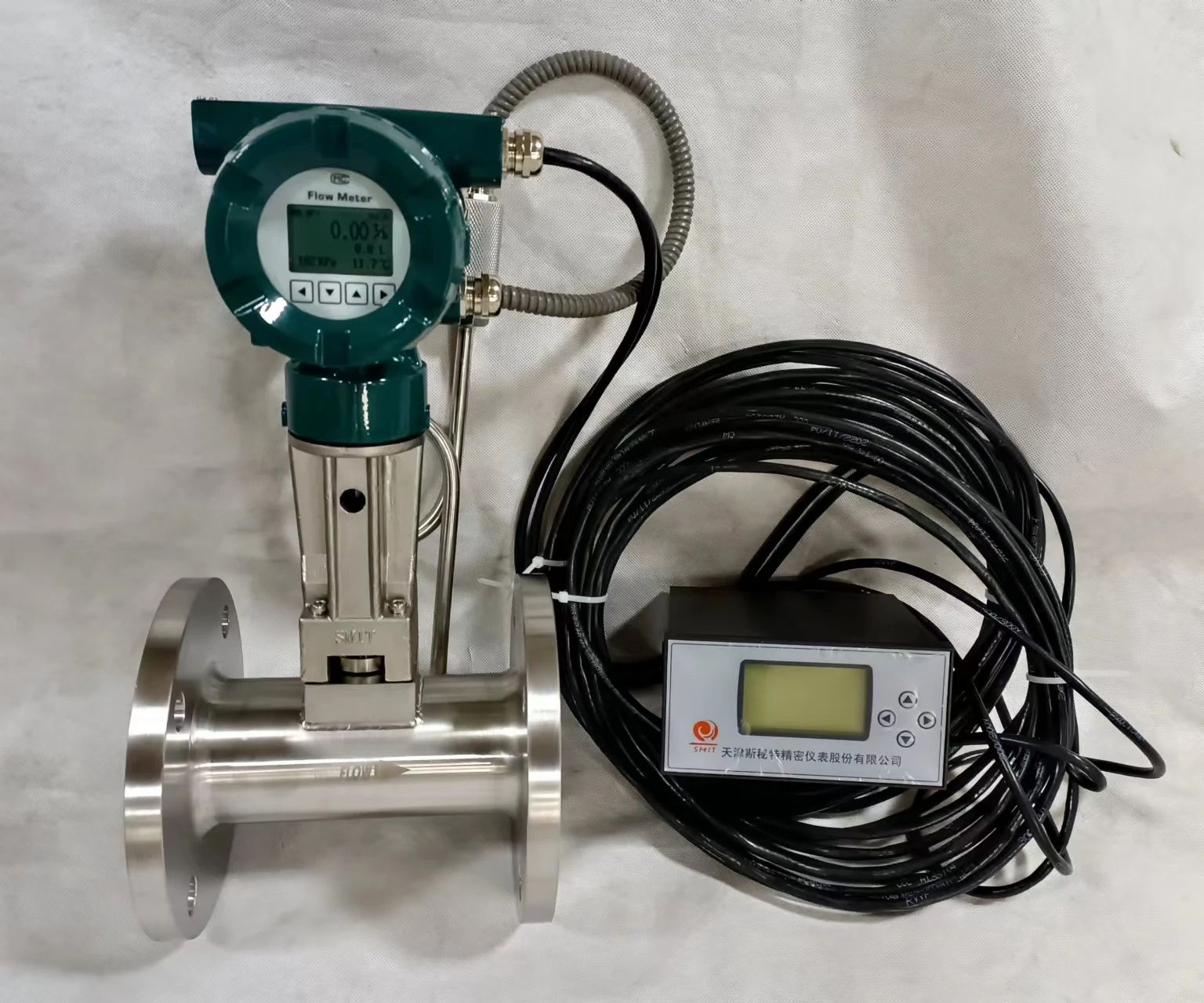

vortex flow meters with temperature and pressure compensation compressed air flow meter
- Category: >>>
- Supplier: Tianjin Smit Precision Instrument Co. Ltd.
Share on (1601001026460):
Product Overview
Description
Vortex flowmeter is suitable for gas, liquid, steam and other media measurement.
Product Description
LUGB type vortex flowmeter is also called the principle of vortex flowmeter is the use of fluid vibration and the development of a new type of flowmeter, widely used in petroleum, chemical industry, metallurgy, paper and other fluid metering, the flowmeter have no moving parts, reliability, high precision, long life, can be in a very wide range of flow accurately measuring the instantaneous flow and cumulative flow medium, it is not affected by medium, the influence of temperature, pressure, viscosity and component without plugging, BuKa, not easy to scale, high temperature resistant, high voltage, safety explosion-proof, suitable for bad environment.Flow scoring integrated display and remote display, and output pulse signal, current signal or 485, Hart protocol and computer networking.
Main technology data
Liquid vortex flowmeter specifications, basic parameters
DN(mm) | Flow range(m3/h) | Pressure of work(MPa) | Precision grade | repeatability
| Type of installation |
15 | 0.4~3.5 | 1.0 1.6 2.5 4.0 6.3 10.0 16.0 25.0 42.0 | 1.0 1.5 | 0.33 0.5 | Split type Clip mounted flange
|
20 | 1.2~9 | ||||
32 | 1.6~15 | ||||
40 | 2.5~20 | ||||
50 | 3.5~35 | ||||
65 | 6~60 | ||||
80 | 9~90 | ||||
100 | 14~140 | ||||
125 | 22~220 | 0.6 1.0 1.6 2.5 4.0 6.3 10.0 | |||
150 | 32~320 | ||||
200 | 56~560 | ||||
250 | 100~800 | ||||
300 | 150~1200 |
Specification and basic parameters of gas vortex flowmeter
DN(mm) | Operating range(m3/h) | Pressure of work(MPa) | Precision grade | repeatability
| Type of installation |
15 | 3.5~25 | 1.0 1.6 2.5 4.0 6.3 10.0 16.0 25.0 42.0 | 1.0 1.5 | 0.33 0.5 | Split type Clip mounted flange
|
20 | 13~70 | ||||
32 | 15~150 | ||||
40 | 25~210 | ||||
50 | 35~320 | ||||
65 | 48~480 | ||||
80 | 90~750 | ||||
100 | 150~1200 | 0.6 1.0 1.6 2.5 4.0 6.3 10.0 | |||
125 | 180~1700 | ||||
150 | 320~2500 | ||||
200 | 550~4500 | ||||
250 | 1100~7000 | ||||
300 | 1500~10000 |
Measure saturated steam by vortex flowmeter
For the calculation of the flow range of the saturated steam vortex street flowmeter, the density of the first line needs to be converted, and then the mass is converted according to the volume of the flow range of the gas vortex street working condition. The specific range is as follows:
Saturated steam mass flow range(kg/h)

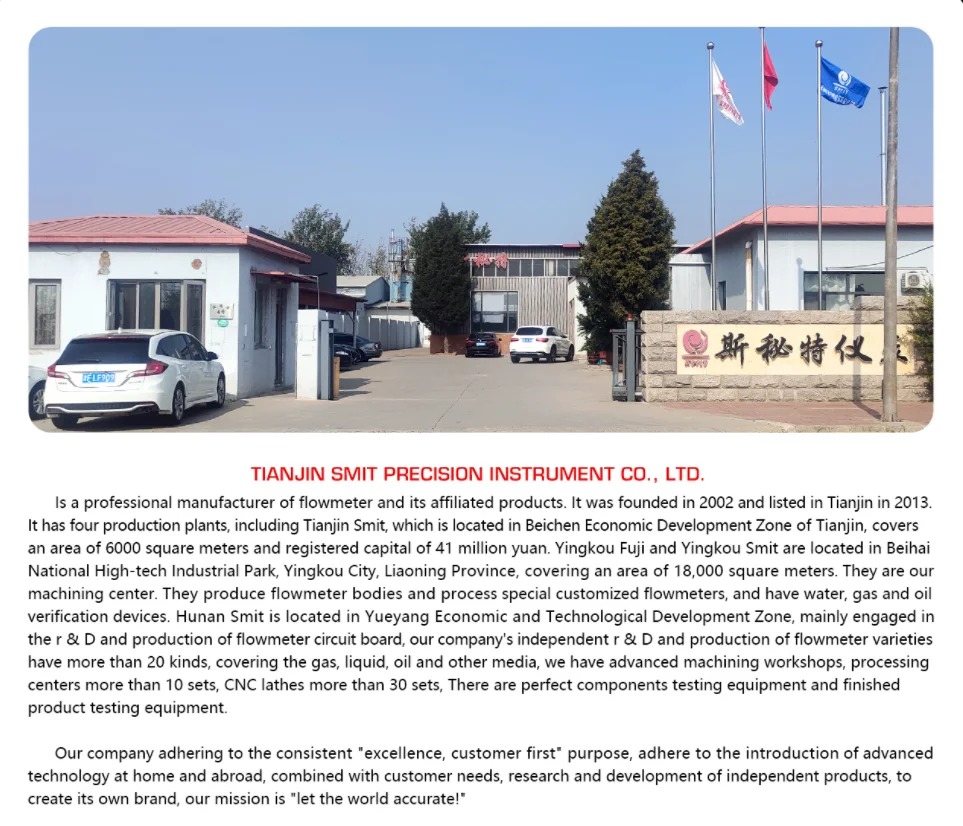

Company Information
