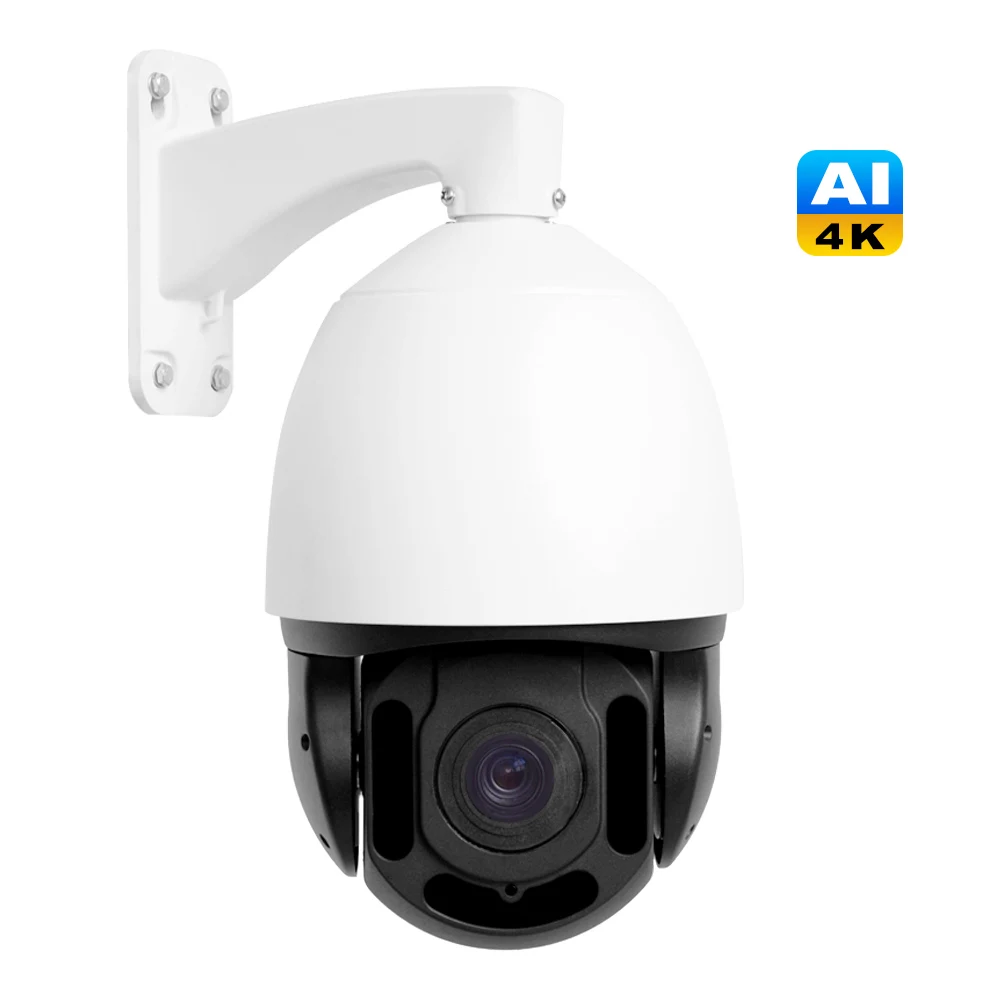

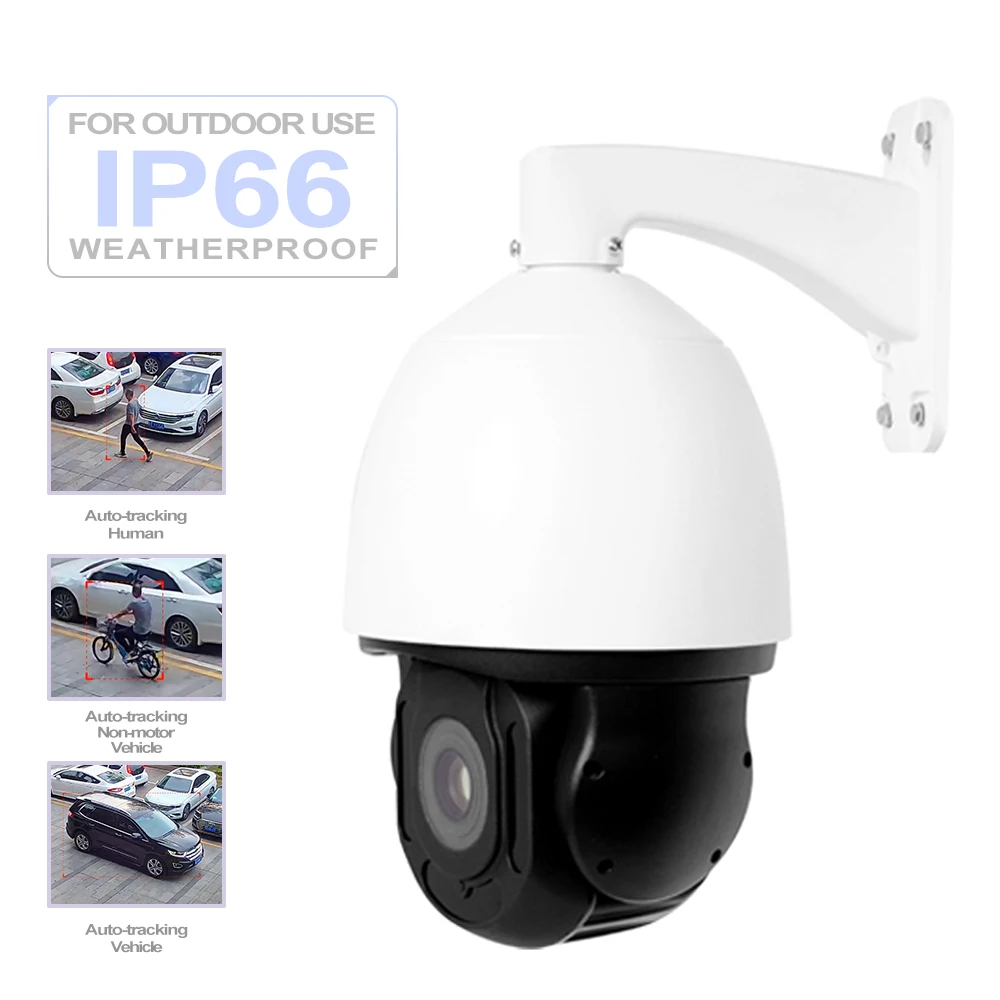

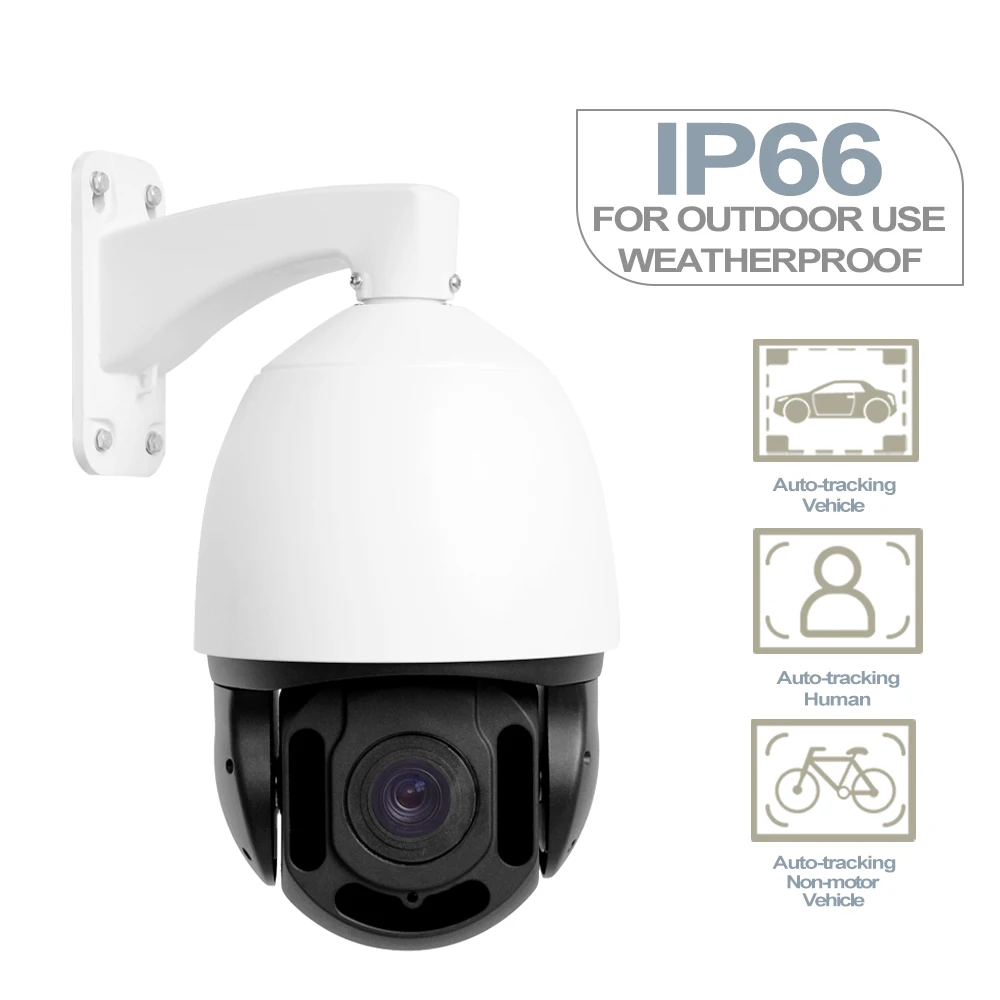

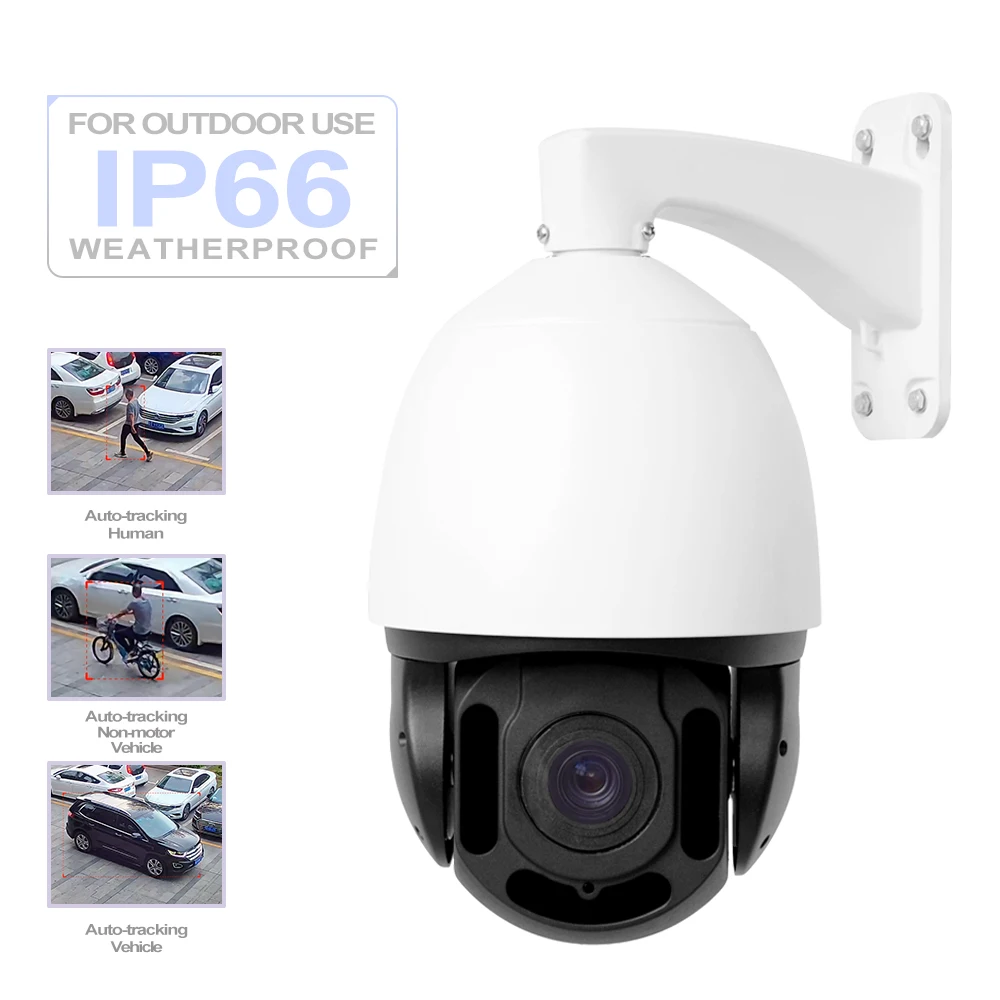

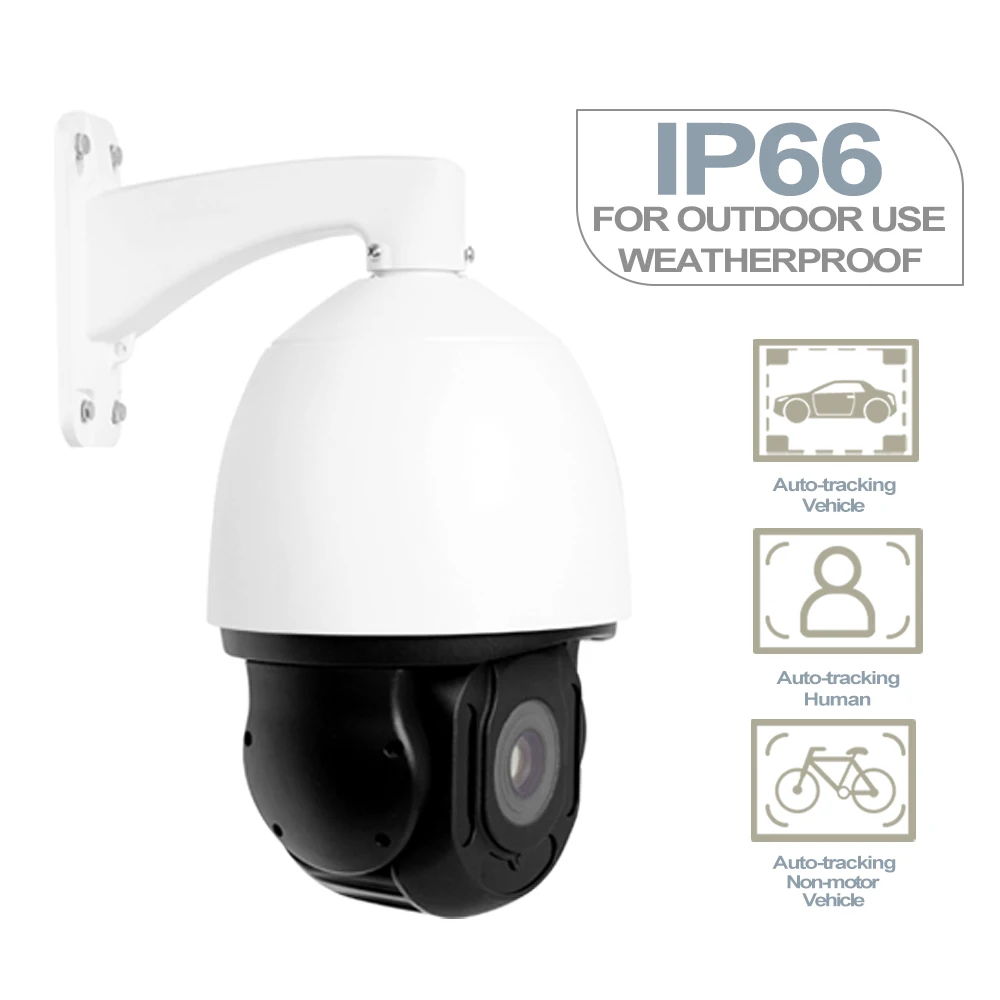

CCTV Factory 4K 20X PoE PTZ 100m 8MP@15fps IR built in mic Audio Outdoor Auto Tracking High Speed IP Network Security camera
- Category: >>>
- Supplier: Shenzhen Anto Technology Co. Ltd.
Share on (1601001028837):
Product Overview
Description

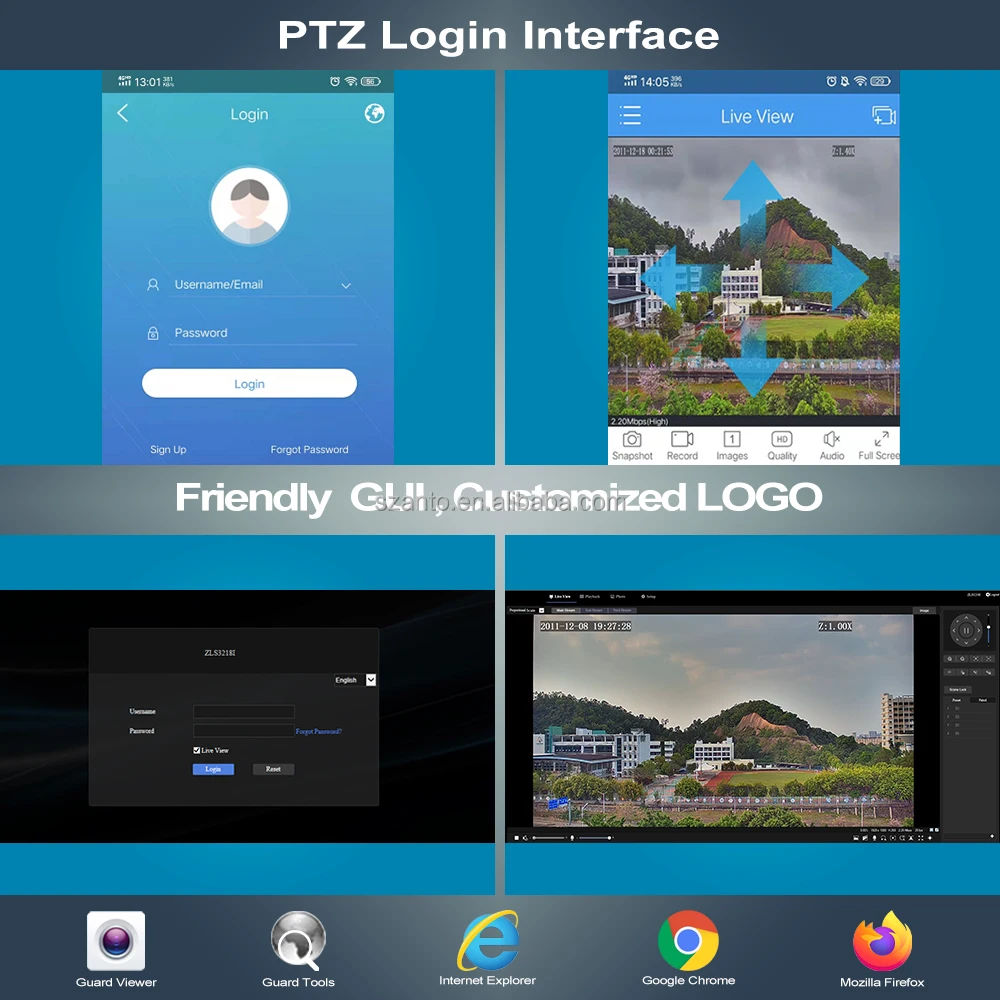

Shenzhen Guard Viewer App 4K Ip Ptz Camera 25X Optical Zoom 4k 8mp Full Color Night Vision Ai Ptz Camera Ai Auto Tracking Camera
Product Description
| Model | ZP6CV-A |
| Sensor | 1/1.7" IMX226 Progressive Scan CMOS Sensor, 4K 8.0 megapixel Starlight |
| Frame Rate | Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps; Sub Stream:2MP(1920×1080) : Max. 25fps; Third Stream: D1 (720×576): Max. 20fps; |

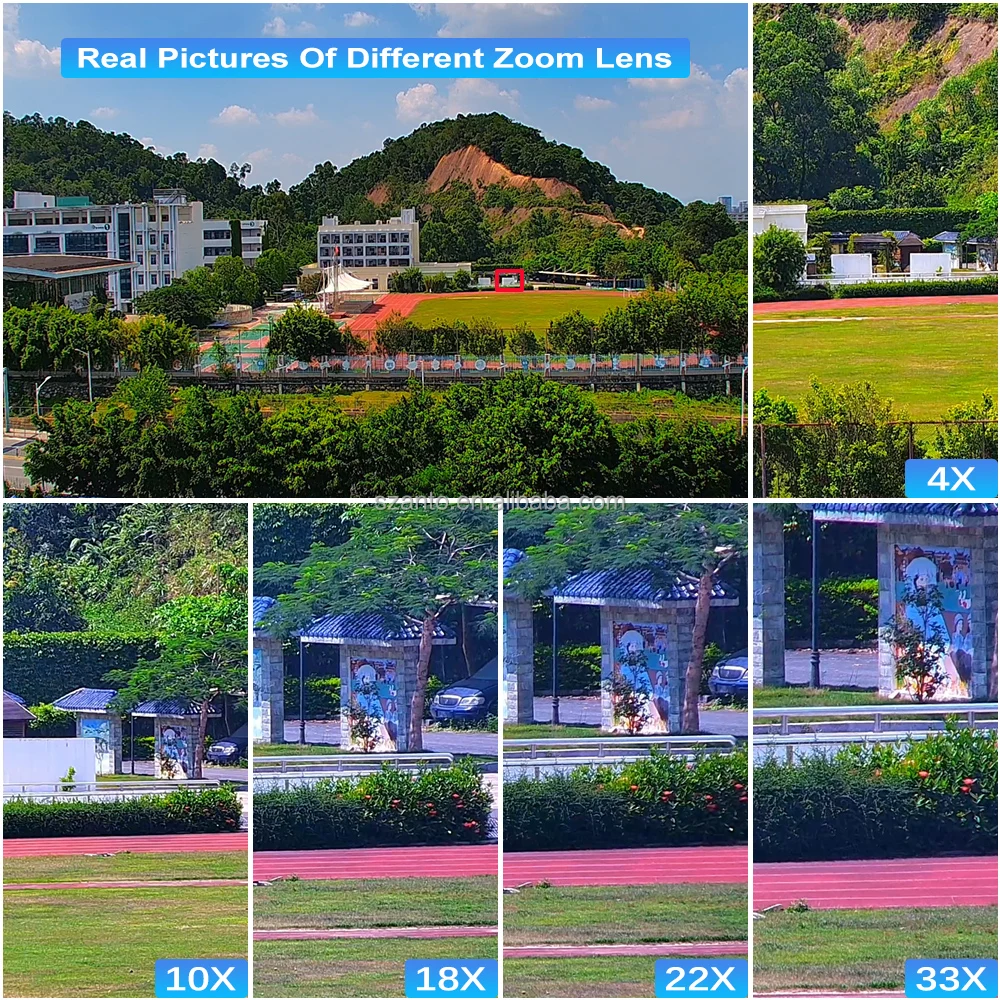

| Optics Zoom | 22X 6.5-143mm Optical Zoom |
| Digital Zoom | 16X Digital Zoom |
| Angle | Angle of View (H):58.9°~3.4° (V):35.2°~1.9° (O):72.5°~4.1° |
| Iris | Auto/Manual, F1.5-F3.4 |
| Auto Focus | Auto / One Push / Manual |
| Min Illumination | 0.003lux (F1.5, AGC ON, colour), 0lux with IR |
| Shutter | Auto/Manual, shutter time: 1 - 1/100000 s |
| Defog | Digital Defog |
| Noise reduction | 2D/3D DNR |

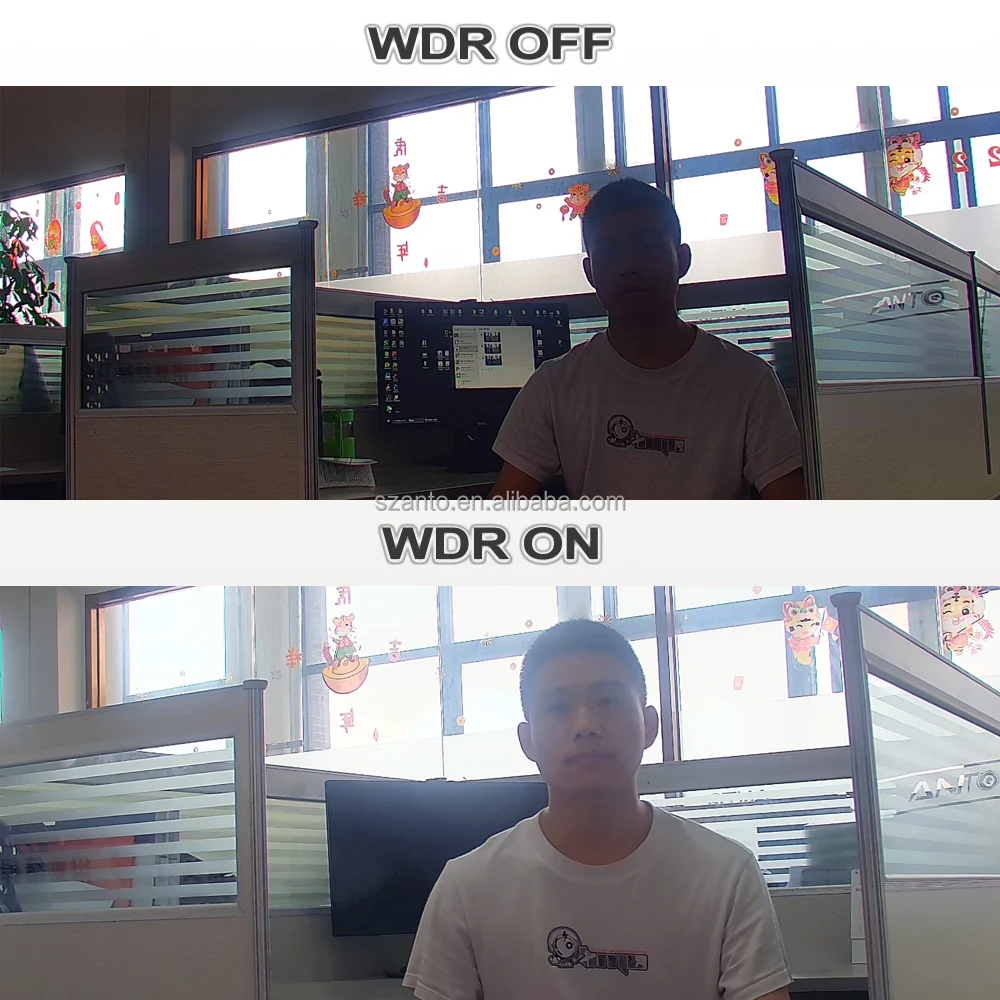

| Wide dynamic | 120dB |
| IR Range | UP to 300m |
| Pan & Tilt | |
| Manual speed | Pan(0.1°-200°/s) |
| Tilt(0.1°-180°/s) | |
| Rotation | Pan Continuously 360°, Tilt 0-90° with Auto-Flip |
| Preset | 128 Presets |
| Auto-flip | Tilt down 90°, with Auto-Flip 180° |
| Patrol | up to 16 Patrol |
| HomePosition | Preset/Patrol can be set |
| Proportional Zoom | Rotation Speed can be adjusted automatically according to zoom multiples |
| Video | |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline Profile, Main Profile, High Profile |
| HLC | Supported |
| BLC | Supported |
| EIS | Supported |
| Privacy Mask | Up to 24 Areas |
| ROI | Up to 8 Areas |
| Motion Detection | Up to 4 Areas |
| Smart | |

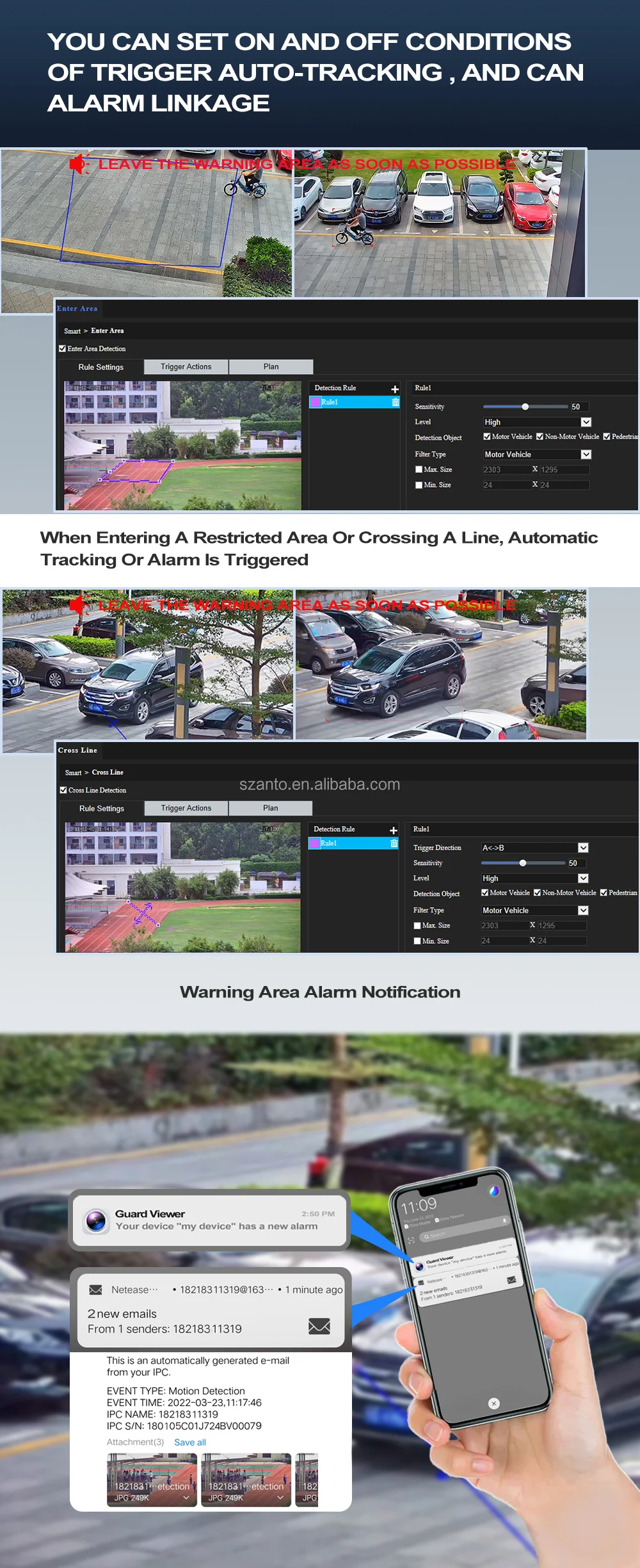

| Behavior Detection | Intrusion, Cross line, Motion Detection, Auto Tracking |
| Intrusion | Enter and loiter in a Pre-defined virtual Region |
| cross line | Cross a Pre-defined Virtual Line |
| motion detection | Moving within a Pre-defined Virtual Region |
| Recognition | Face detection, Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People Counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,TLS,SSL |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API |
| Interface | |
| Audio I/O | Audio Cable |
| Input: Impedance 35 kΩ, Amplitude 2 V [p-p] | |
| Output: Impedance 600 Ω, Amplitude 2 V [p-p] | |
| Alarm I/O | 1 IN 1 OUT |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power consumption | 9W/40W(IR_LED ON) |
| Power supply | DC 24V/2A |
| PoE | Support PoE power supply (optional) |
| Temperature | -40℃-+60℃ |
| Installation | Wall /Corner/Pole/Pendant installation (optional) |
| Net weight | 6.5KG |
| Size | Product Size (336.5×230mm), Packing Size (300*300*460mm) |

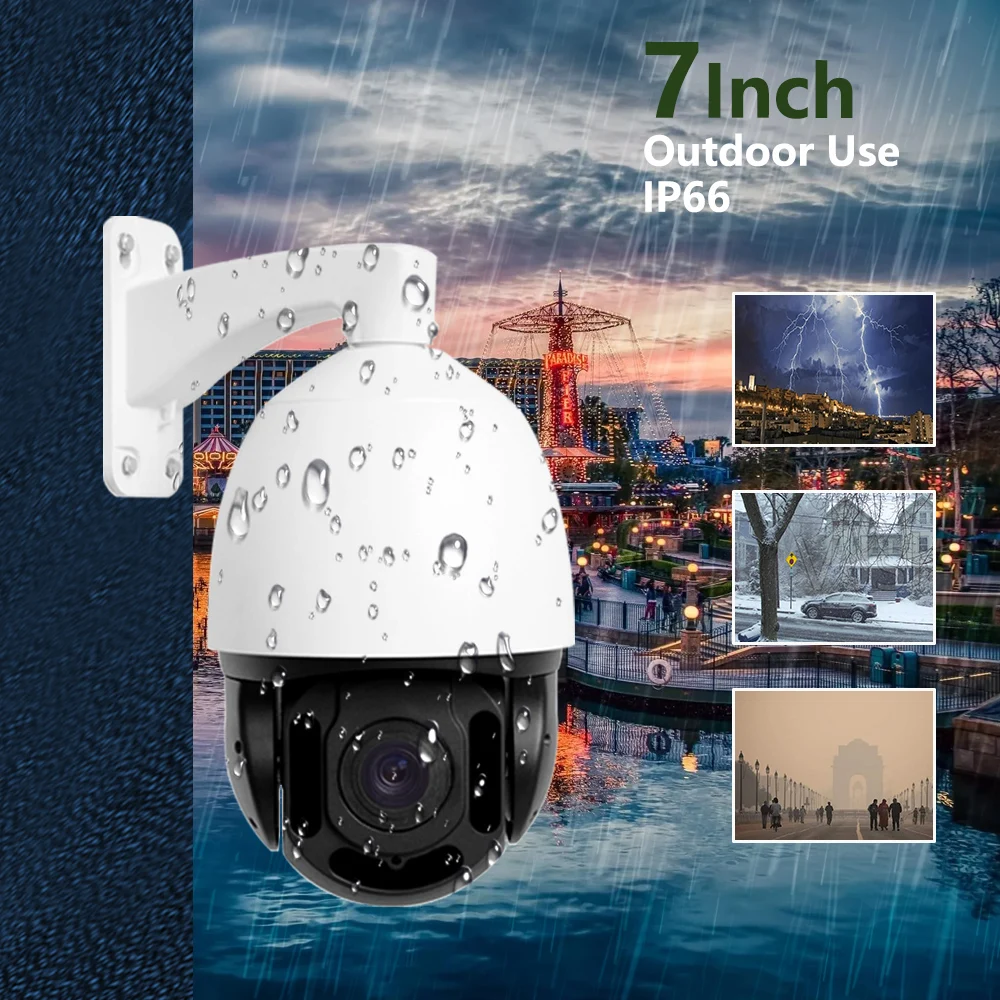

| Protection Level | IP66 Standard (Outdoor Dome) |
| TVS Lightning Protection, Surge Protection and Voltage Transient Protection | |
Product applications
Company Information
Certifications
Exhibitions
2013 Shenzhen CPSE 2014 South Africa 2014 Brazil
2015 Hongkong 2015 United States 2016 United States
2018 United Kingdom 2018 Russia 2019 South Korea
FAQ
Q1: Terms of payment
A1: We accept Payment via T/T, Western Union, and PayPal.
For batch order, 50% deposit should be paid in advance and 50% balance before delivery.
For batch order, 50% deposit should be paid in advance and 50% balance before delivery.
Q2: Sample Policy
A2: We can supply the sample, but the customers have to pay the sample cost and shipping freight.
Q3: MOQ
A3: 1 Piece for sample order. 10 Pieces for batch order.
Q4: Lead time
A4: For sample order, normally we can ship out your order within 10 days.
For batch order, we will ship out your order within 25 days after we receive your payment.
For batch order, we will ship out your order within 25 days after we receive your payment.
Q5: Shipping Method and Delivery Terms
A5: For sample order, we ship by fast carrier like DHL/UPS/FedEx.
For batch order, we ship by sea with the term of EXW, FOB, CFR, CIF, etc.
For batch order, we ship by sea with the term of EXW, FOB, CFR, CIF, etc.
Q6: Packing
A6: Carton Packing. ODM package is available according to customer’s requirements.
Q7. OEM & ODM Service
A7: Yes, OEM and ODM service are welcome. Both hardware and software are produced by ourself. So we the ability to offer any kinds of ODM services.
Q8: Warranty
A8: All of our products have 1 year warranty.
Packaging & Shipping
For sample order, we ship by fast carrier like DHL/UPS/FedEx.
For batch order, we ship by air or by sea with the term of EXW, FOB, CFR, CIF, etc.
