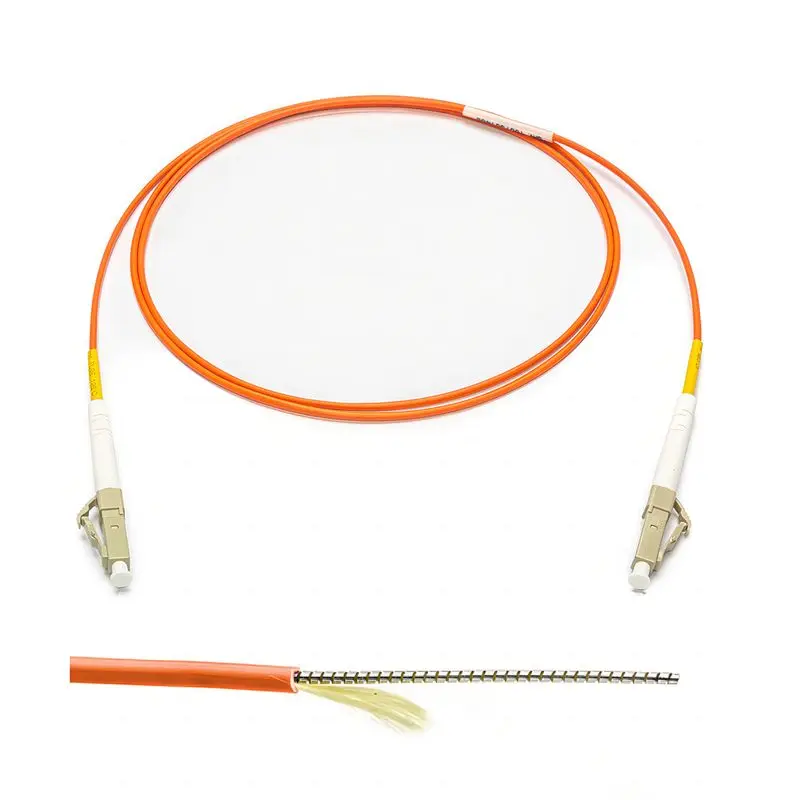

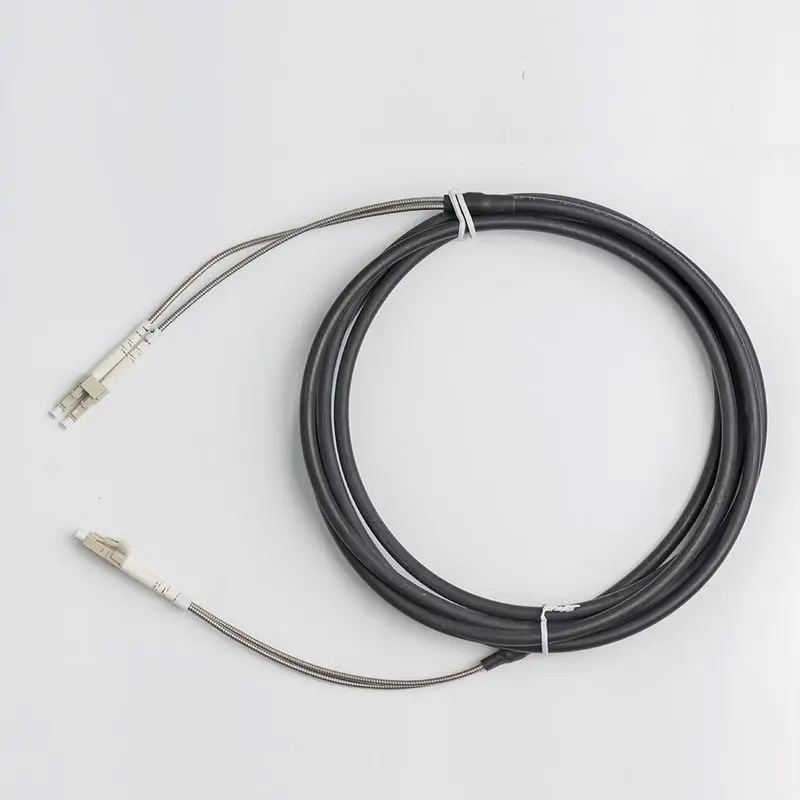

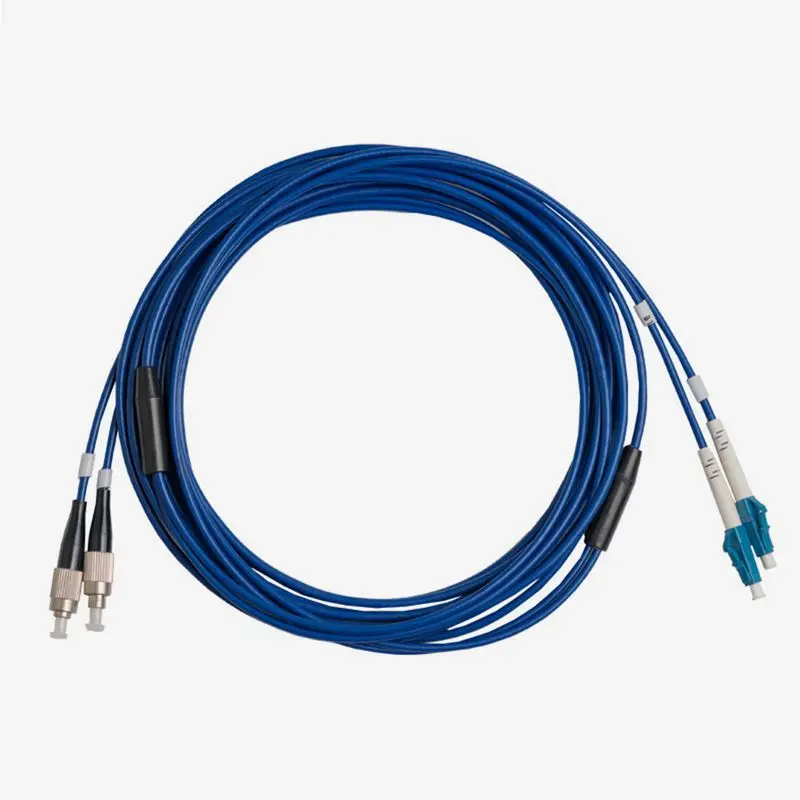

SM MM 2.0mm 3.0mm Simplex Duplex Optical Fibre Jumper SC ST FC LC Connector OM1 OM2 OM3 OM4 Fiber Optic Patch Cord
- Category: >>>
- Supplier: Hangzhou Huaxun Technology Co. Ltd.
Share on (1601001051736):
Product Overview
Description
Product Description

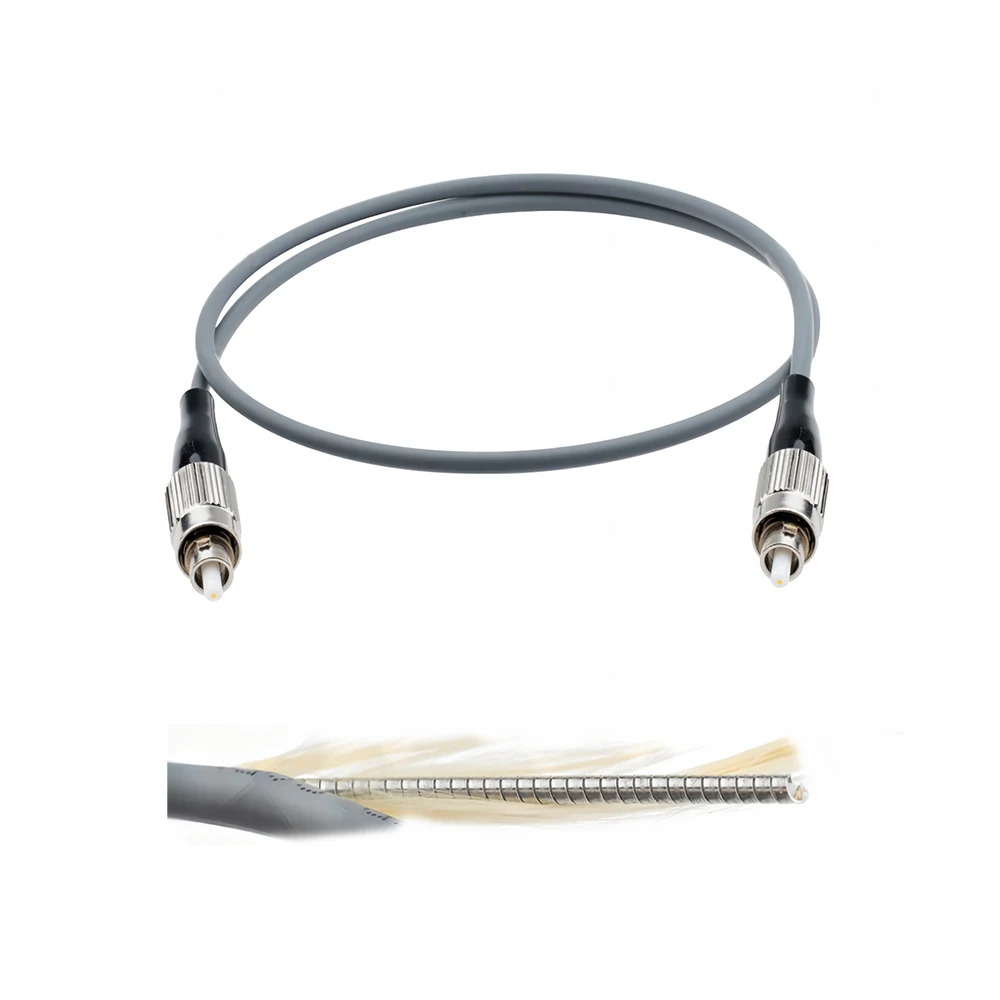

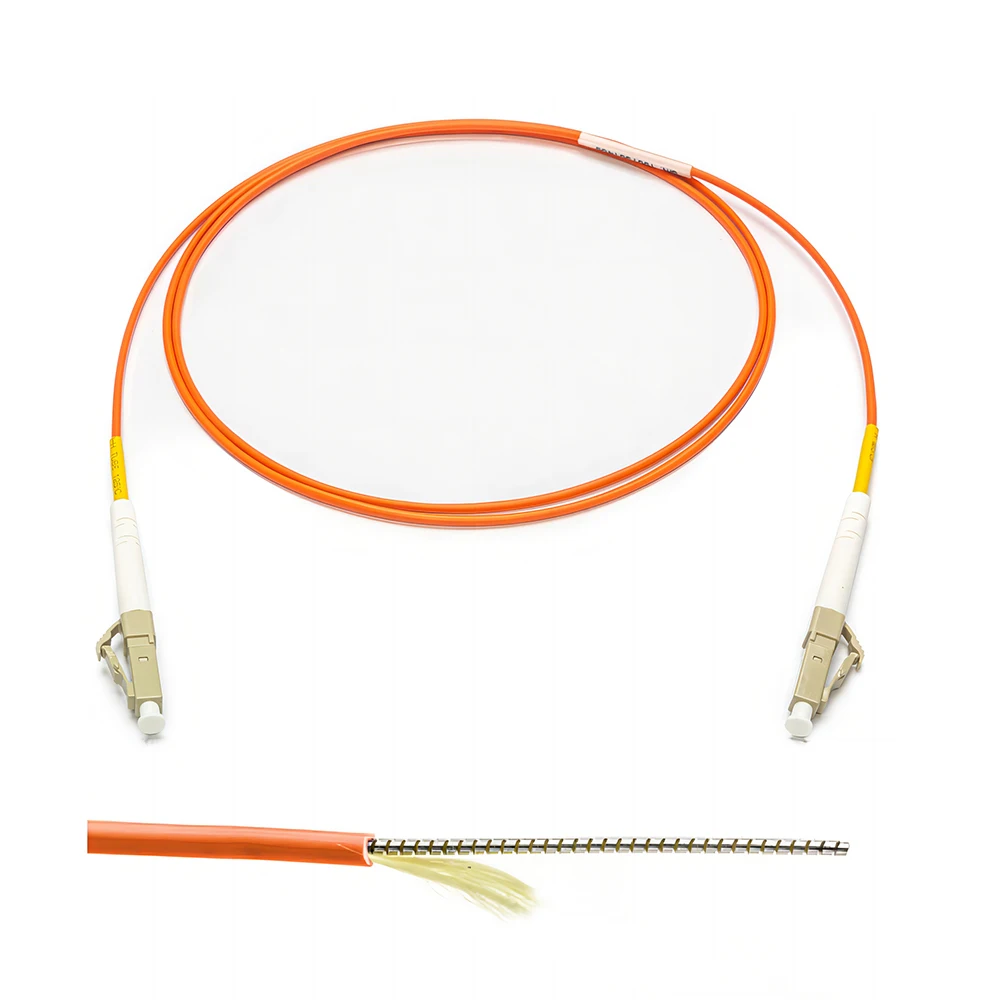

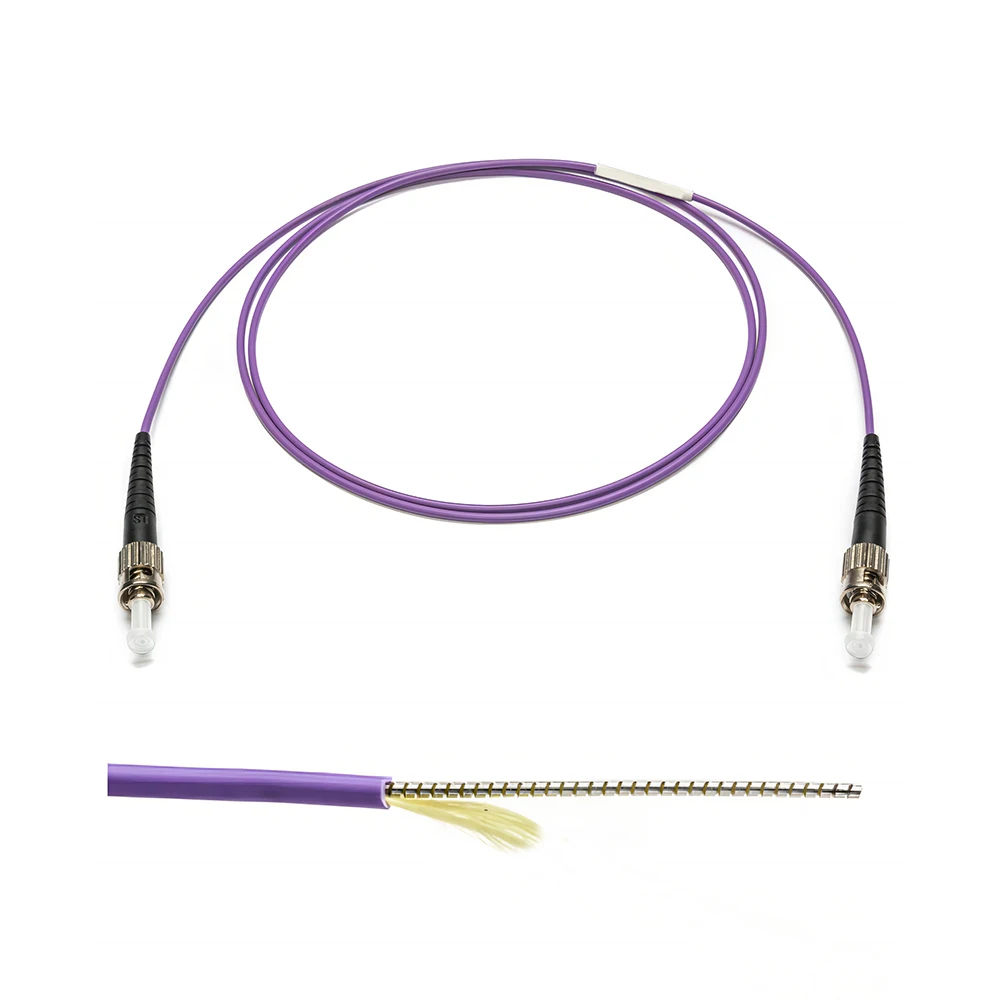

Armored Patch Cords are suitable for harsh environmental conditions without the need for additional protection. They are typically used in industrial environments, outdoor to indoor telecommunication networks, FTTX, FTTH and some critical applications. The patch cords provide sturdy interconnectivity to active equipment, passive optical devices and cross-connects. Armored patch cords come double armored with steel tape for better crush resistance and steel mesh for better tensile strength. Through this they have a high durability and a good crush resistance to ensure a longer life.
Product Overviews
Advantages
Low Insertion Loss
High Return Loss
Good Repeatability
Good Exchangeability
High Temperature Stability
Comply with YD/T 1272.4-2007 specification
8° Angled physical contact polishing (APC)
Application
Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
Test Equipment
Production Flow
Technical Parameters
SINGLE FERRULE CONNECTOR SPECIFICATION
Parameters | IL – Max | IL – Typical | RL (PC/APC) |
SM – Standard | < 0.30 dB | < 0.20 dB | > 55/65 dB |
MM – Standard | < 0.30 dB | < 0.18 dB | > 28 dB |
CABLE CHARACTERISTICS
Cable Characteristics | Units | |
Cable Material | LSZH/ PVC | |
Cable Diameter | mm | 1F – 3.0 / 2F – 3.3 |
Strength Member | Aramid + Steel Mesh | |
Max Crush resistance | N/100mm | 3000 |
Max tensile load | N | 300 |
Operating Temperature | C | -25 to 70 |
