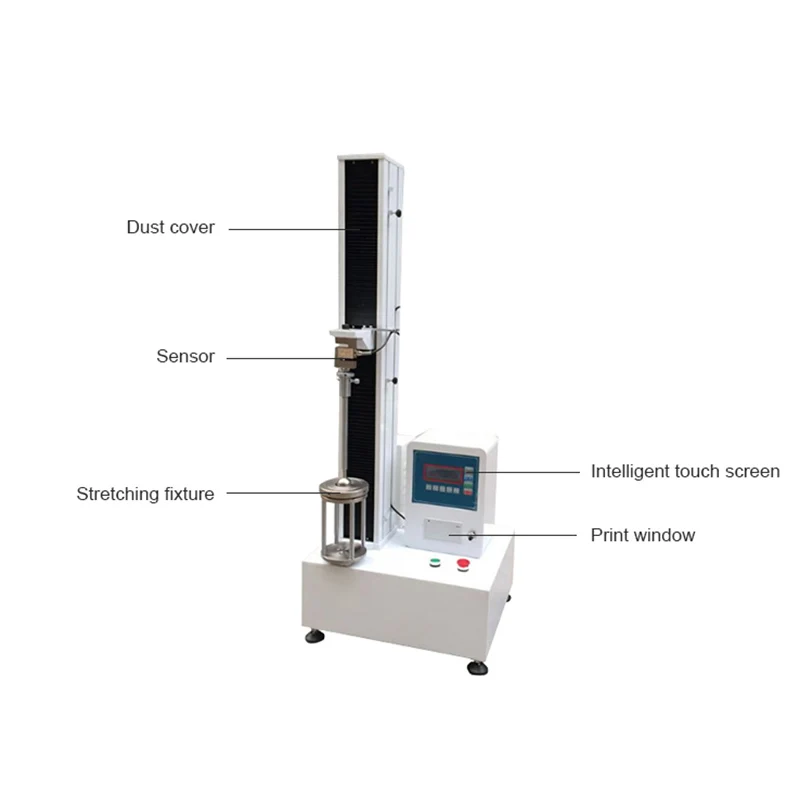

Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine
Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine
Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine
Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine
Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine
Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine
Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine

Computerized Single Column Universal Automatic Tensile Testing Machine Rubber Material Tensile Testing Machine

Share on (1601001070428):


Price:

Quantity:


Product Overview

Description







Product Paramenters

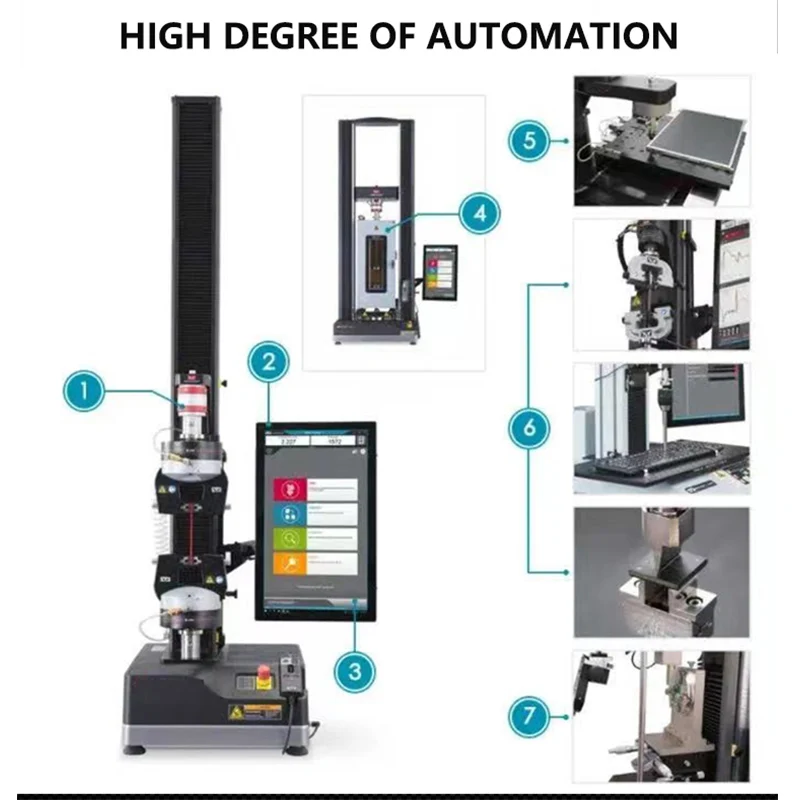

It is applicable for tensile, compression, bending, shear, and low cycle testing of various materials. It is suitable for metal, rubber, plastic, spring, textile, and component testing.




Scope Of Application:
Mainly Applicable To The Testing Of Metal And Non-Metallic Materials, Such As Rubber, Plastic, Wire And Cable, Optical Fiber And Cable, Seat Belts, Safety Belts, Leather Belt Composite Materials, Plastic Profiles, Waterproof Coils, Steel Pipes, Copper Materials, Profiles, Spring Steel, Bearing Steel, Stainless Steel (And Other High-Hardness Steels), Castings, Steel Plates, Steel Strips, And Non-Ferrous Metal Wires.
Compliance With Standards:
This Machine Fully Meets The Requirements Of The National Standard Gb/T228-2002 "Metallic Materials Tensile Test Method At Room Temperature". At The Same Time, It Can Perform Tests And Data Processing According To Gb, Iso, Jis, Astm, Din And Various Standards Provided By Users, And Has Good Scalability. Astmdinjisbsgb/T528-1998 /T529-1999


Model
WDS-01,02,03,05,1,2,3,5
Structure
Single column, double spaces
Max. Load(kN)
0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5
Material
All aluminum alloy surface spray painting shell
Load accuracy
Class 1/ Class 0.5
Load range
2%～100%F·S
Load resolution
1/ 30000
Resolution of displacement
0.01mm
Test speed(mm/min)
0.05-500 stepless arbitrary setting
Speed accuracy
within ±1% set speed
Tensile space(mm)
600 (can be customized)
Compression space(mm)
600 (can be customized)
Test width(mm)
100
Beam travel distance(mm)
772
Workbench thickness(mm)
26
Base height(mm)
158
Power supply
AC220V±10%，50Hz/60Hz(can be customized)


Standards：
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

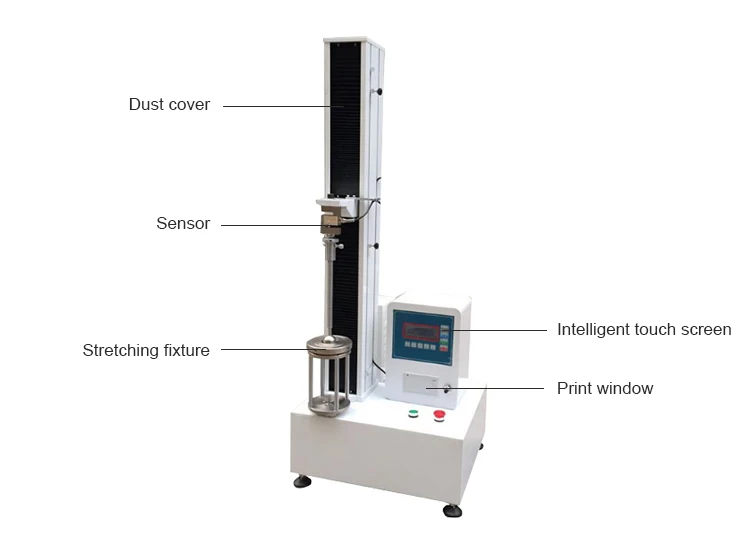

Product Display




Related Products




Packaging&Shipping




About Us










FAQ


1. Could I have the prices of your products?
A：Welcome. Please feel free to send us an email here. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?
A：Yes, MOQ 1

3. What's the lead time for regular orders?
A：7-15 days for order quantity lower than 1 pcs

4. Do you inspect the finished products?
A：Yes, each step of production and finished products will be coming out inspection by QCdepartment before shipping.
