Walkable 120W 150W 165W Sunpower Cell Flexible solar panel High efficiency Module For Monitoring Balcony RV Caravan Yacht

Share on (1601001124256):


Price:$113.99 - $125.99

Quantity:


Product Overview

Description

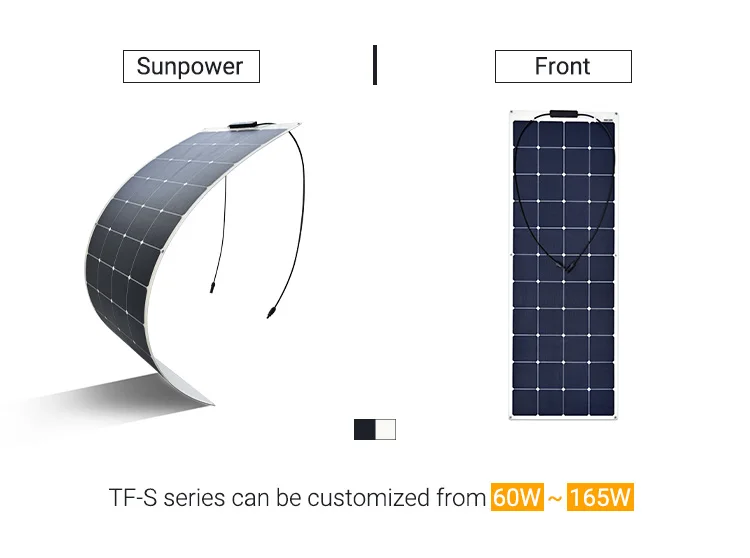

Customized logo flexible solar panels 60-165W customizable wattage. Ideal for outdoor, RV, home, BIPV and other applications





Product Feature

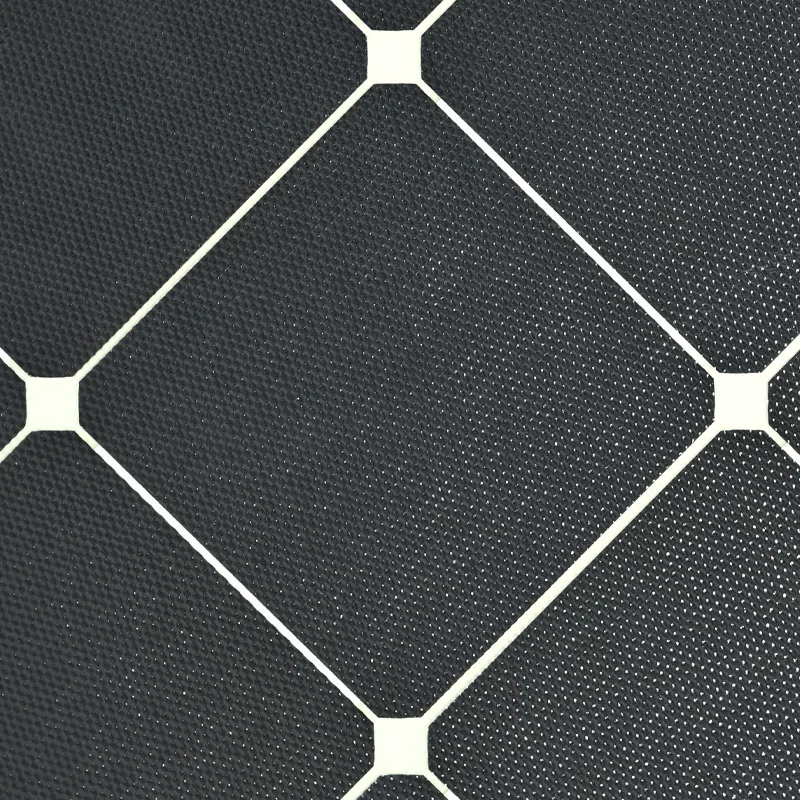

TF-S series is an innovative glss-free solar module, adopt SunPower
solar cell,with higher efficiency.




Product Advantage

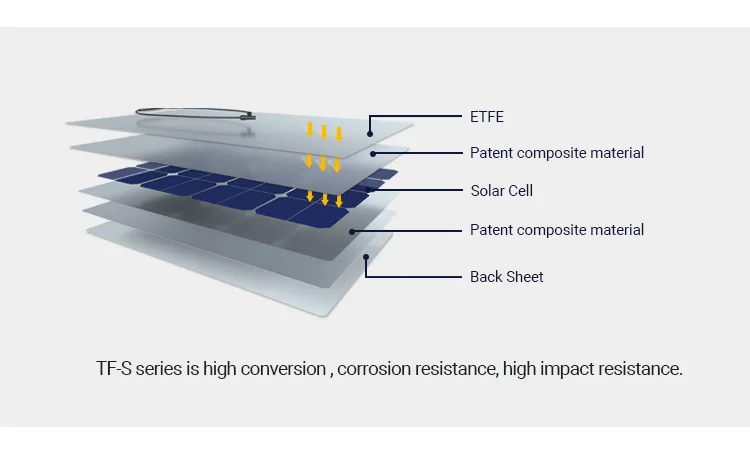

TF-S series use an organic polymer composite to replace the typical glass front sheet as a laminate.
The polymer composite material used is extremely durable and capable of withstanding extreme
temperatures and climate conditions.

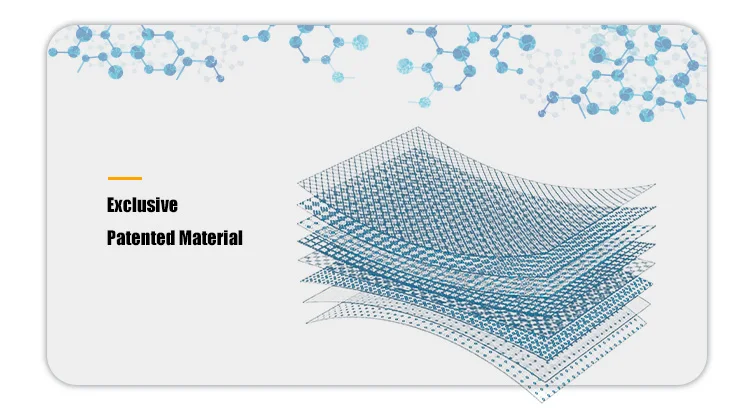

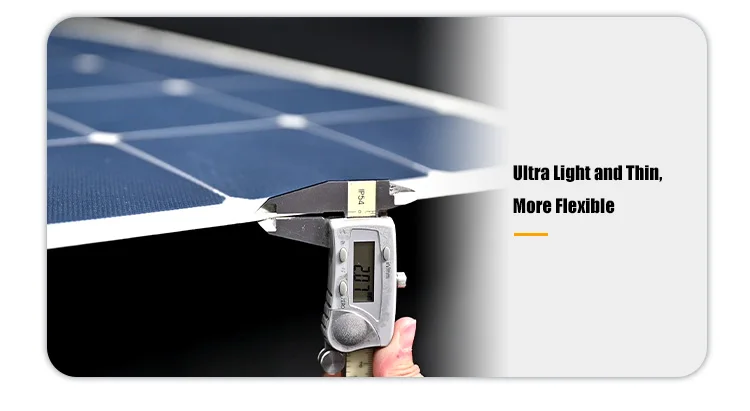

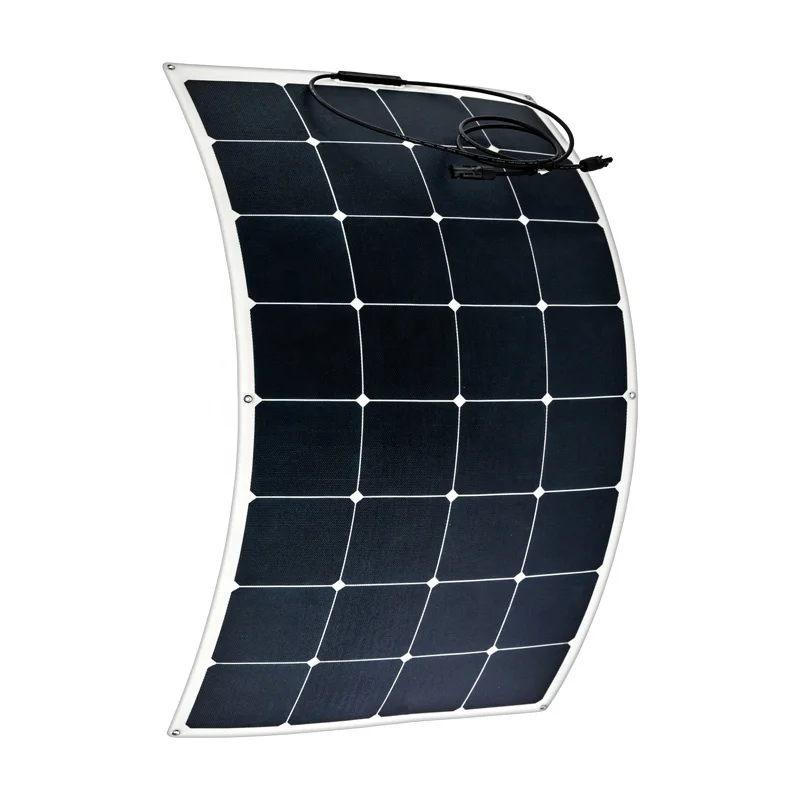

TF-S Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels

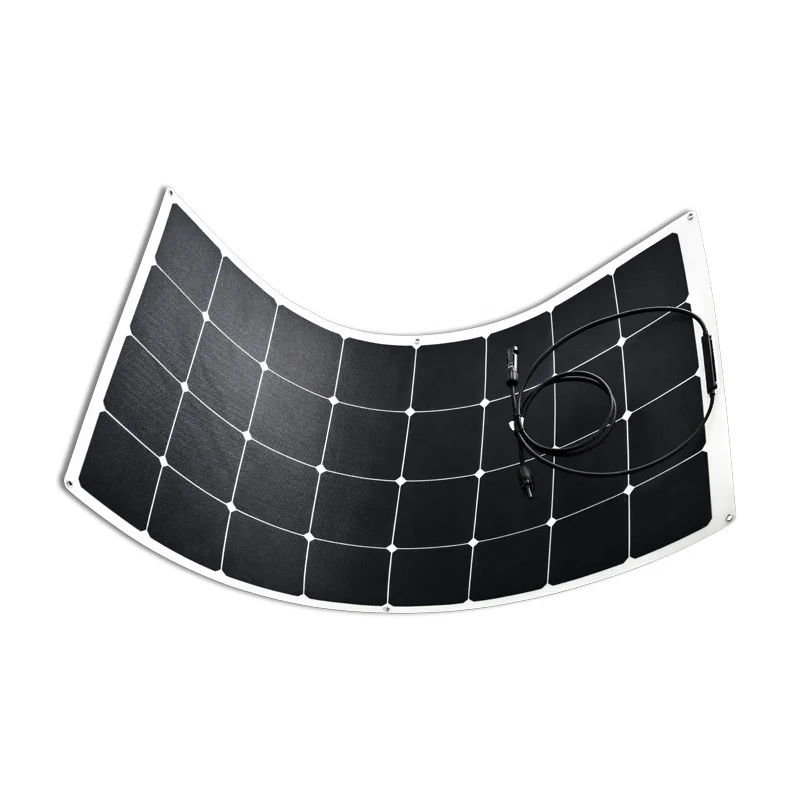

to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to
conform to a variety of unique shapes.

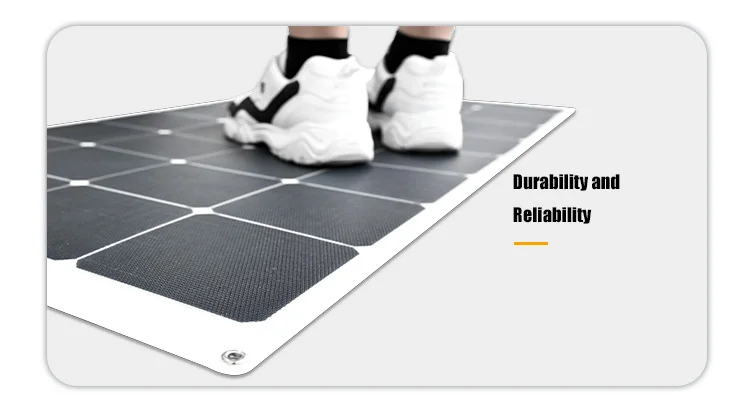

TF-S series come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests
conducted by the company. These tests have verified the product’s protection and stability, providing
confidence in its reliability. Additionally, the product features a newly patented material that has proven
highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.

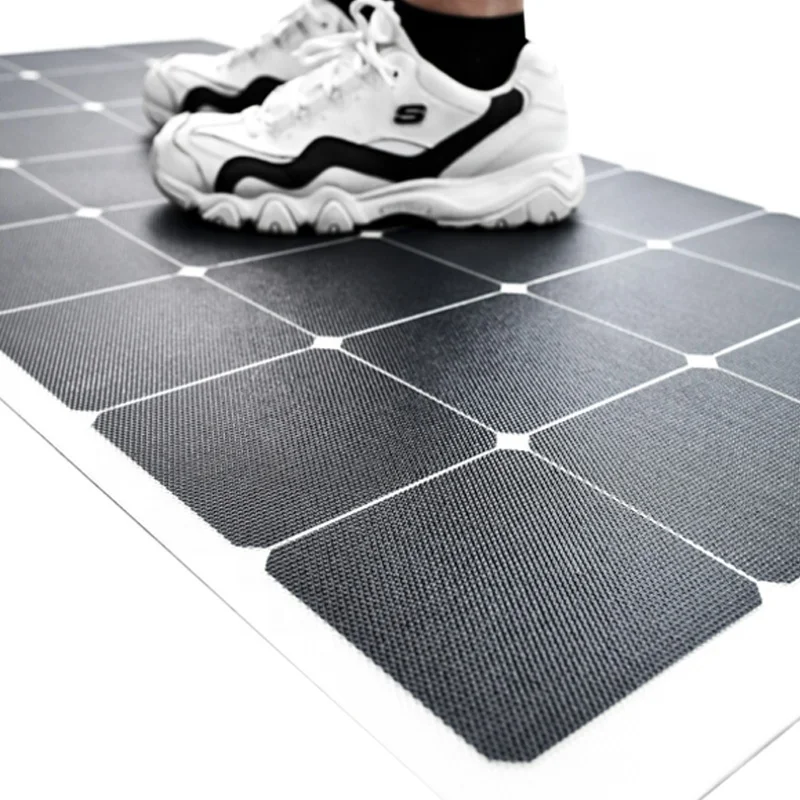

TF-S series has undergone rigorous anti-stepping tests, and the flexible solar panels have performed well
when stepped on irregular surfaces, verifying the good flexibility of the TF-S series and its adaptability to
various curved environments.




Product Details






Product Specification


Model
SG-TF-S-135W
SG-TF-S-150W
SG-TF-S-165W
Maximum Power/Pmax(Wp)
135W
150W
165W
Cell Efficiency
>24.4%
>24.4%
>24.4%
Number of cells
4*9
4*10
4*11
Operating Voltage/Vmp(V)
22.3
24.8
27.3
Operating Current/Imp(A)
6.06
6.05
6.05
Open Circuit Voltage/Voc(V)
26.2
29.2
32.1
Short Circuit Current/Isc(A)
6.42
6.41
6.41
Dimension(mm)
1200*540*2mm
1330*540*2mm
1460*540*2mm
Solar cells
SunPower cell
SunPower cell
SunPower cell
Weight(kg)
2.33
2.59
2.84
The maximum system voltage
200V DC(IEC)
200V DC(IEC)
200V DC(IEC)

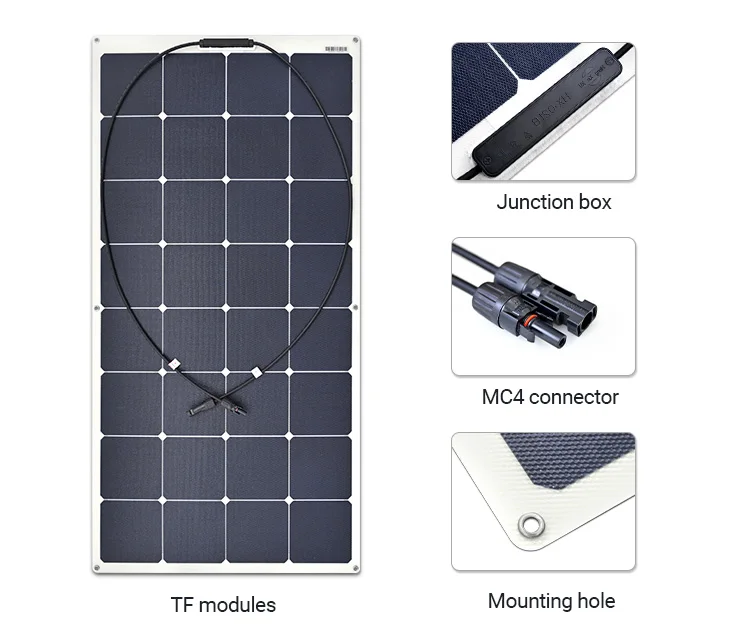

Output cable
JB (2*bypass diodes) +
900mm/4mm² cable+MC4 compatible
JB (2*bypass diodes) +
900mm/4mm² cable+MC4 compatible
JB (2*bypass diodes) +
900mm/4mm² cable+MC4 compatible

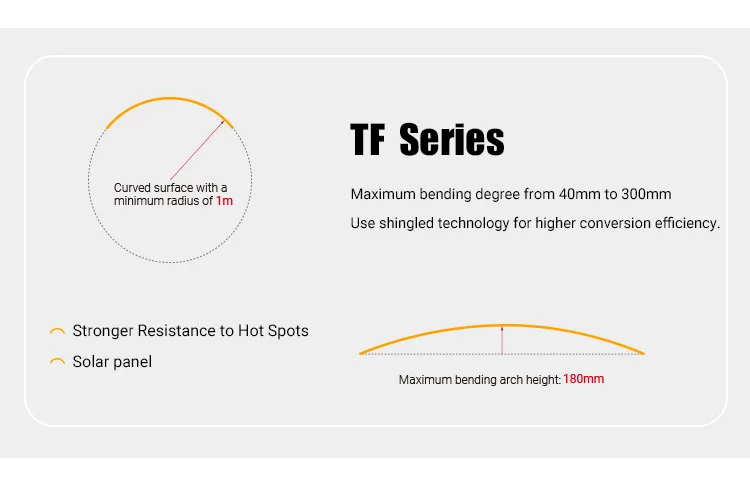

Maximum bending arch height
160mm
200mm
240mm
Output power tolerance
±3%
±3%
±3%
Operating Temperature
-40~85℃
-40~85℃
-40~85℃
Color
black/white
black/white
black/white
Warranty
5 Years
5 Years
5 Years

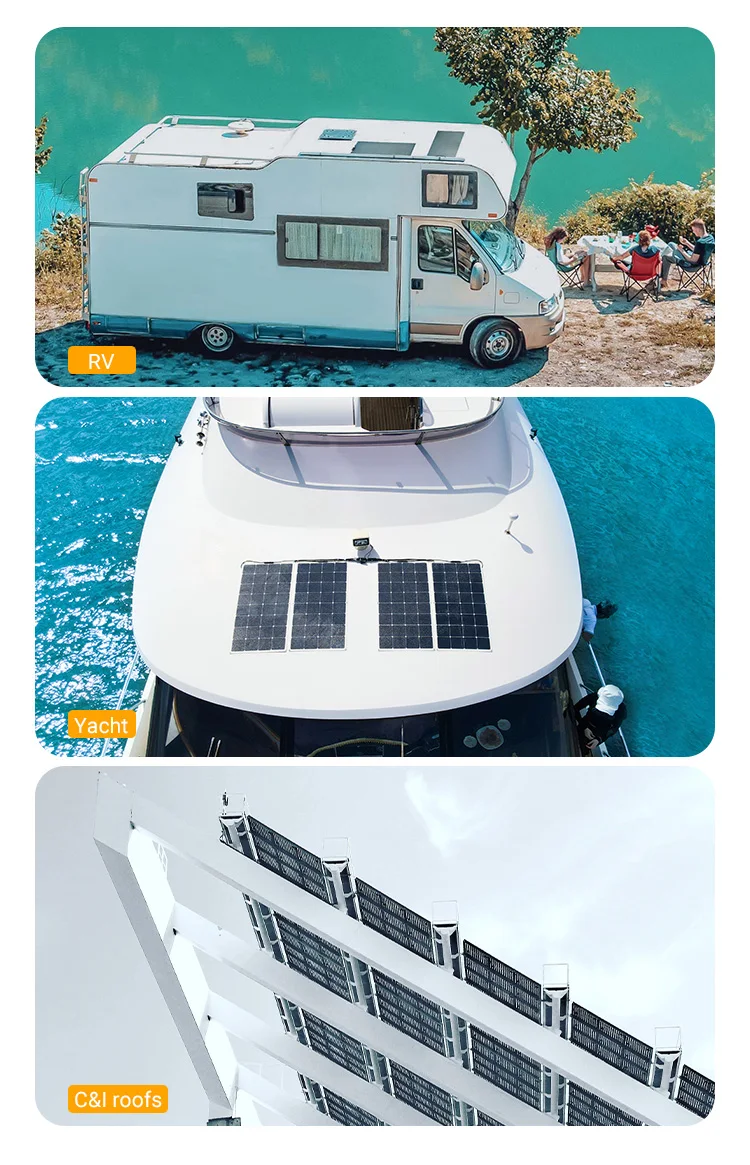

Product Application


customized logo shingled cell flexible solar panels 60~165W customizable
wattage suitable for yachts, caravans, roofs, tents, outdoor camping, balconies




Production Process




Product Packaging




Client Feedback




FAQs


1.Q:What is this product used for?
TF-S is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs, etc.

2.Q: How long is the warranty of this product? How long is the service life?
TF-S is 5 years warranty and 20 years service life.

3.Q: Does this product have any professional certification? Is it reliable?
TF-S has passed EMC, LVD and RoHS professional certification, the quality is trustworthy.

4.Q: I want to use it in RV, should it be TF or LEE?
For comparison, TF series will be more suitable for RV use and LEE for marine use.

5.Q: What is the maximum and minimum temperature for use?
The ambient temperature is -40℃~85℃.

6.Q: Why is the actual efficiency not as high as you give?
Our efficiency is obtained under the most ideal power generation environment. The efficiency of solar power generation is affected by various power generation factors: such as the angle of direct sunlight, surface shading, placement position, etc.

7.Q: Do you have a bezel on this product?
No, Sungold flexible panels have no bezel design to achieve greater flexibility and bendability.

8.Q: Will the product be damaged if I step on it when I use it?
No, TF series has been strictly tested by stepping on it, so you can use it without worry.

9.Q: Is it waterproof, will it affect the use because it is not waterproof?
Yes, waterproof, TF series is made of waterproof materials, high waterproof level does not affect the use.

10.Q: Can this product be bent? How much can be bent?
Yes, TF series flexible bendable, the maximum bending arch height from 45mm to 360mm.
