SCULPFUN iCube OEM Lazer Engraver Printer DIY Mini Cortadora Laser Cutting Machine for Small Business
- Category: >>>
- Supplier: Shenzhen Sculpfun Technology Co. Ltd.
Share on (1601001211041):
Product Overview
Description
Products Description
Notes:Sculpfun only provide hardware and base drivers for operating system , the laser engraver support LaserGRBL ( free) , Lightburn(not free) and other similar edit software like Benbox, GrblController, LiteFire; Support Windows/Linux/Mac operating system.Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Product Model | SCULPFUN iCube |
Engraving Size | 130*130mm/120*120mm |
Engraving Materials | Wood, Paper, Cardboard, Plastic, PCB Board, Aluminum Oxide, 304 Stainless Steel, Ceramic,Dark Stone |
Fan Speed | 5000RPM |
Temperature Sensor | 45℃ Trigger |
Machine Electricity Power | 60W (It has nothing to do with cutting or engraving performance,just electricity consumes) |
Laser Head Power | 3W/5W/10W |
Laser Wave Length | 455±5nm |
Engraving Accuracy | 0.02mm/0.06mm/0.08mm |
Smoke Filter | Equipped with the smoke filtration system that effectively filters the smoke generated during the engraving and cutting process without the enclosure |
Laser Protective Cover | iCube portable laser engraver is designed with a detachable fully enclosed Acrylic material eye protection shield |
Multiple Connection Methods | BT function or Type-C（Wi-Fi：2.4Ghz，Bluetooth: 4.2） |
Image Format | JPEG/BMP/TIF/GIF etc. |
Power Input | 100-240V AC, 50/60HZ |
Power Output | 12V 5A/7A |
Equipment Net Weight | 3.2kg |
4Package Weight | 4.75kg |
Packing Size | 318*282*360mm |
Support System | Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux |
Certification | CE FCC RoHS IEC |
Certifications
CE
CE
ROHS
FCC
F
IEC
Details Images
Product packaging
1* | Metal Plate | 1* | Power Adapter |
1* | MDF | 1* | Cotton Filter Set |
1* | U-shaped Shield | 1* | Lens Repair Kit |
1* | Laser Head | 1* | Goggle |
1* | Support Feet | 1* | Basswood Board |
1* | Installation Instruction | 1* | Laser Engraver |
1* | Power Cable | 1* | Type-C Data Cable |
1* | Basswood Board |
Production Process
Quality Control
Our Advantages
Features:

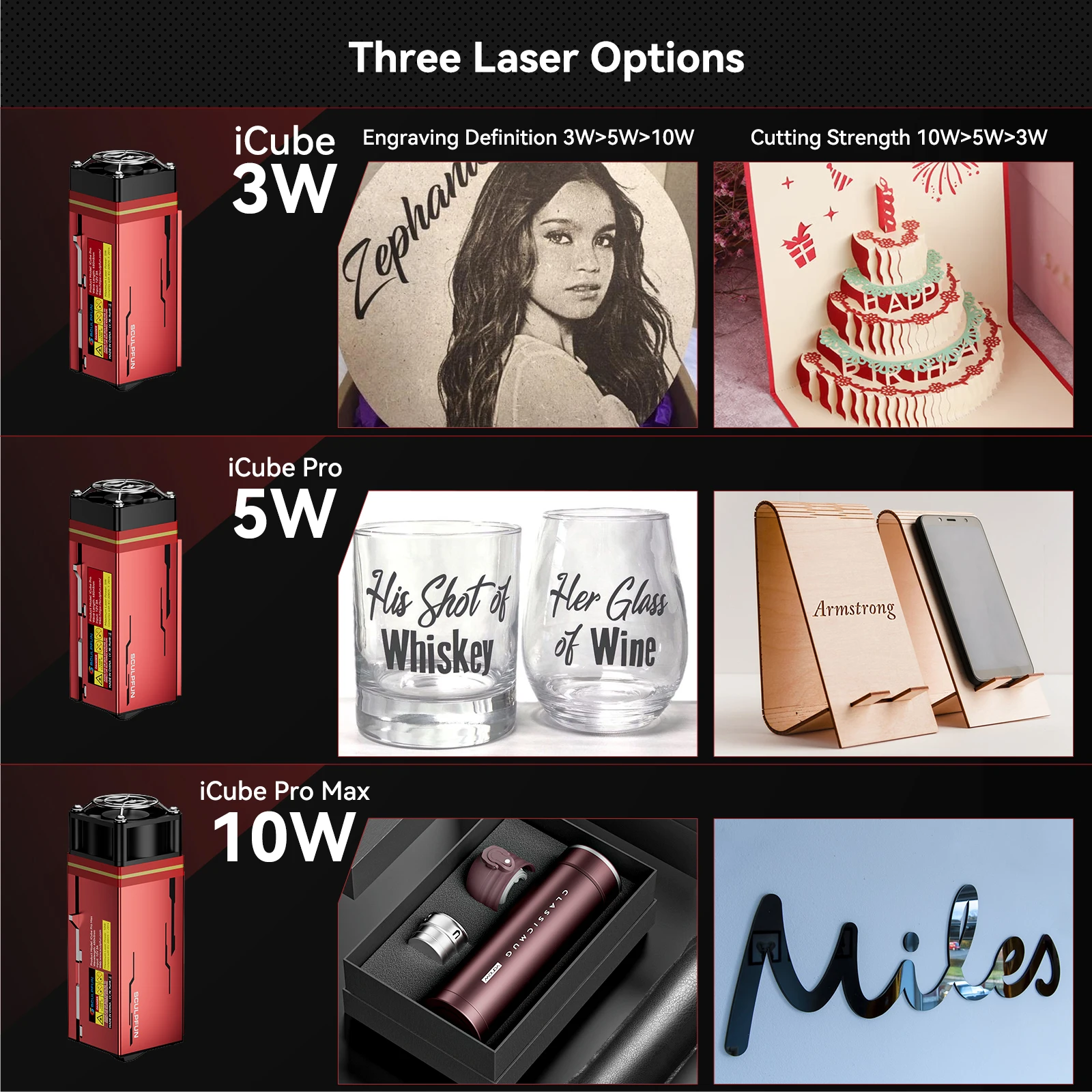

1. 3/5/10W Ultra-fine Laser:
iCube uses the 3/5/10W diode laser with 0.02/0.06/0.08mm ultra fine laser focus. It has super fine engraving ability which can present high definition engraving image. This laser engraver is suitable for engraving detailed objects and can cut colored paper and create three-dimensional paper works.
2.High-Speed Engraving:
2.High-Speed Engraving:
iCube 3W laser engraver with the 32-bit motherboard greatly improves the engraving efficiency, which can reach 10000mm/min engraving speed.
3.With Smoke Filter:
3.With Smoke Filter:
Sculpfun iCube laser engraver is equipped with the smoke filtration system that effectively filters the smoke generated during the engraving and cutting process without the enclosure, which makes it more convenient to engrave and cut in an office or home. Bringing more usage scenarios and enjoying the fun of engraving without limitation.

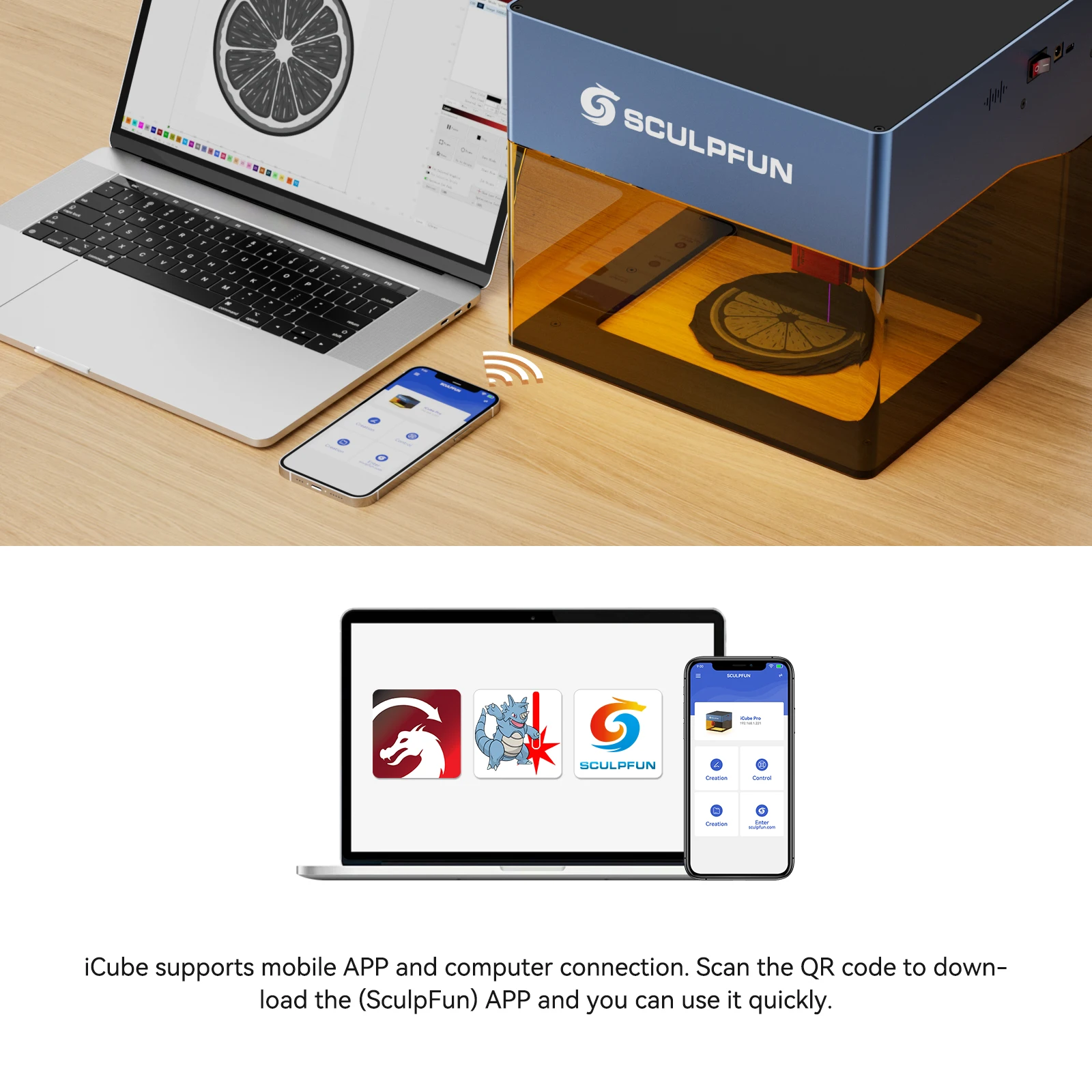

4.Multiple Connection Methods:
4.Multiple Connection Methods:
The laser engraving machine supports mobile phone and computer system connection. You can connect to iCube machine via your mobile phone with Sculpfun APP, or you can connect to the computer with the BT function or Type-C interface data cable to use. It is compatible with Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux system.
5.Temperature Alarm Function:
5.Temperature Alarm Function:
Built with the temperature alarm device, the machine will stop running and emit a buzzer alarm when the temperature inside the engraving machine is over 45℃ to ensure the safety of users and equipment. And when the temperature descends, restart the machine to start the work.
6.Enclosed Eye Protection Shield:
6.Enclosed Eye Protection Shield:
iCube portable laser engraver is designed with a detachable fully enclosed Acrylic material eye protection shield, which can effectively protect your eyes from different angles. It enables you to observe the laser engraving process without wearing the goggles.

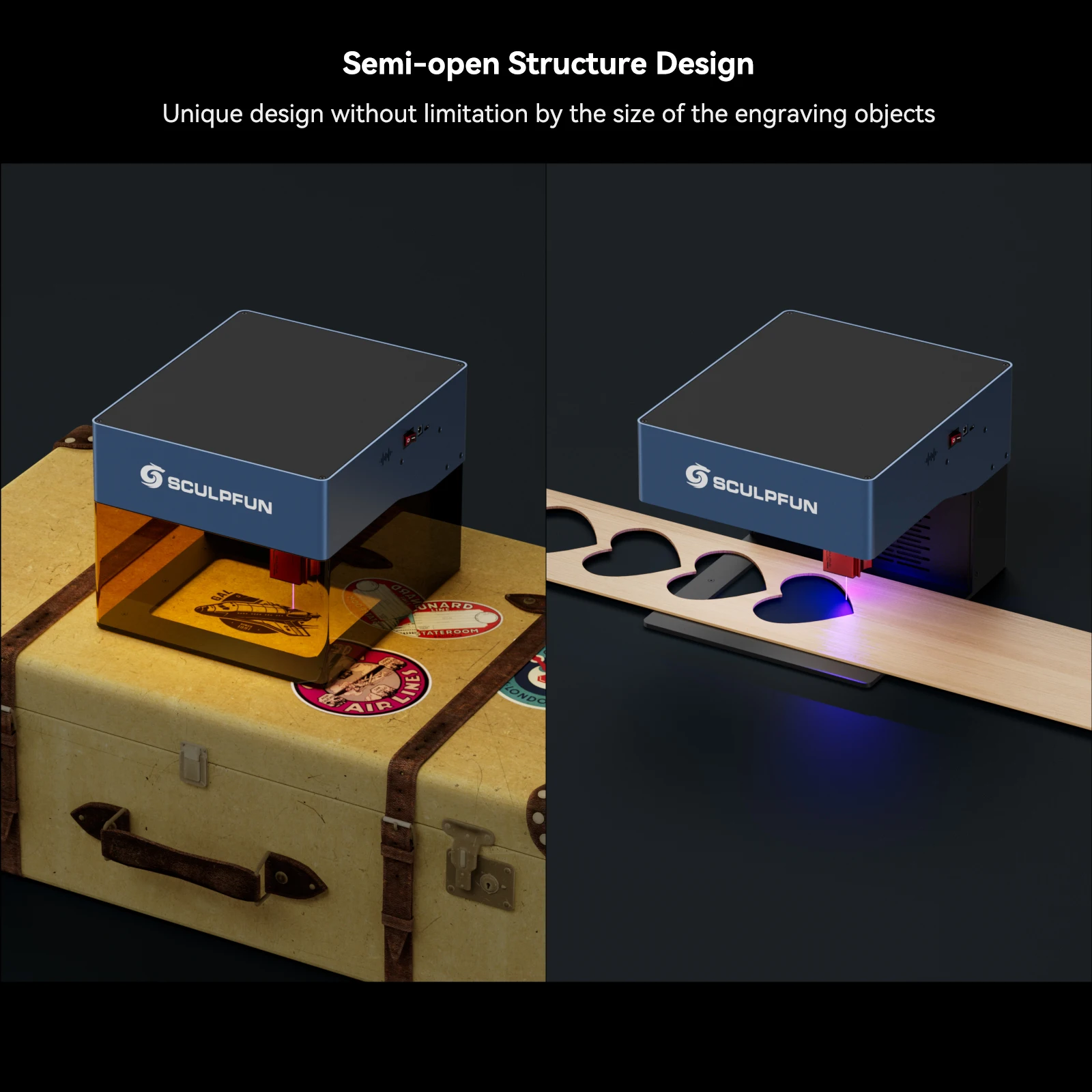

7.Engraving Objects without Size Limit:
7.Engraving Objects without Size Limit:
With the unique semi-open structure design, there is no limitation by the size of the engraving objects. You can place them inside the machine or put the machine on the surface of some large objects to perform the tasks. The patterns engraving area is 130x130mm which can meet your various engraving demands.

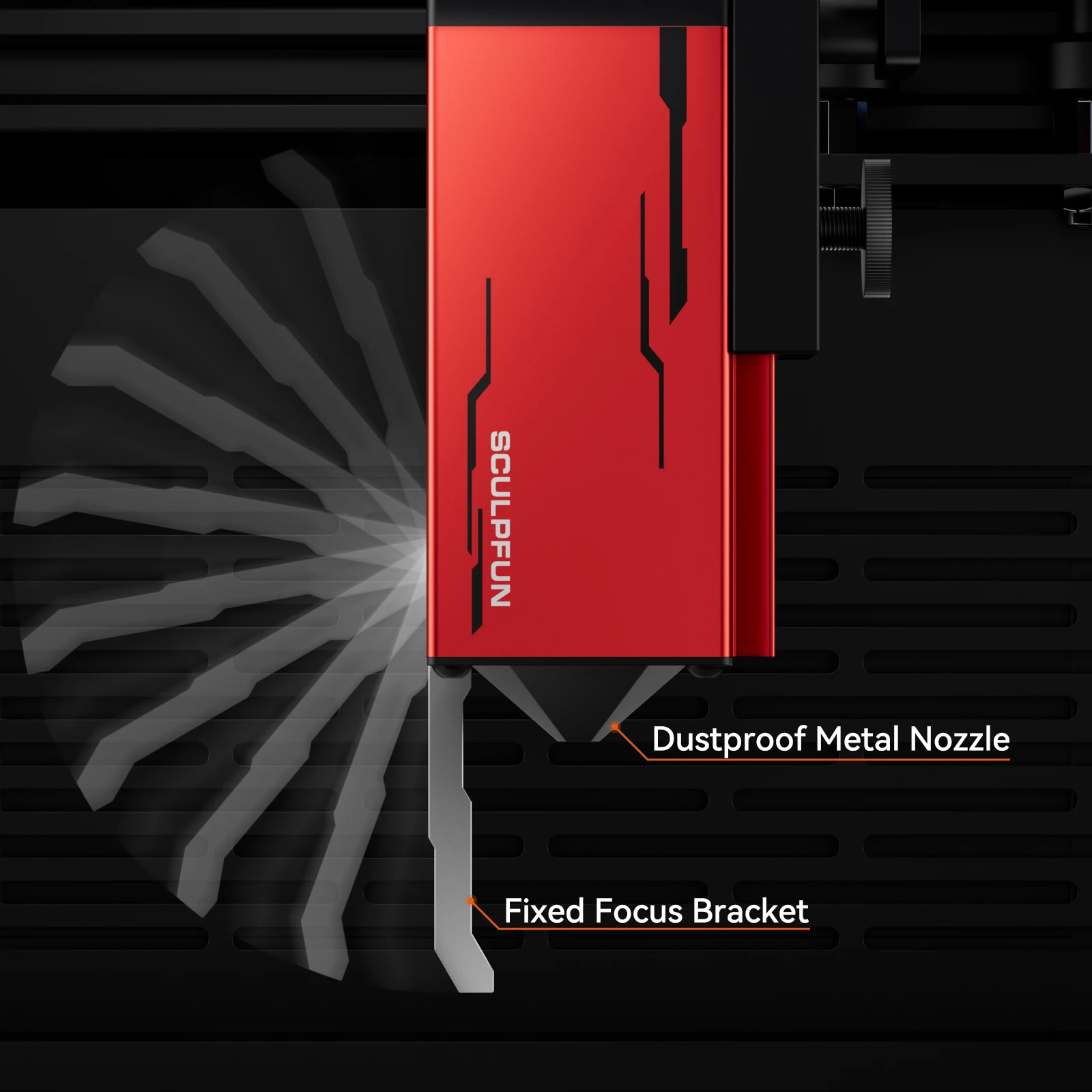

8.Replaceable Laser Lens:
8.Replaceable Laser Lens:
Sculpfun iCube series adopts an innovative laser head that supports to replace the laser lens, which greatly improves the service life of the laser by more than 10 times longer than that of other general lasers. When the lens is damaged or dirtied after long-term use, it can be replaced to restore the cutting power.
Some Important Tips:
1: About the Engraving Materials:
Note that any specular reflective objects can not be engraved, otherwise the laser reflection will damage the laser head.
2: About the smoke filter:
A free set of cotton filter is attached with purchasing, it needs to be replaced periodically to ensure the filter effect.
3: About the laser lens:
A free lens is attached in the package with purchasing, which also can be ordered separately.
Note that any specular reflective objects can not be engraved, otherwise the laser reflection will damage the laser head.
2: About the smoke filter:
A free set of cotton filter is attached with purchasing, it needs to be replaced periodically to ensure the filter effect.
3: About the laser lens:
A free lens is attached in the package with purchasing, which also can be ordered separately.
Note:
●Because of the powerful laser, it is forbidden to run the engraving machine unattended. Please pause it if you're not around.
●Please refer to the user manual for detailed machine instructions and parameter settings.
●Please install the laser protective cover before operating the machine; if not, a pair of goggles is needed.
●Do not touch the laser with your hands, or it may burn your hands.
●Please avoid strong impact on the machine.
●Children under 14 are not allowed to use this product and children over 14 need adult supervision.
●Do not apply the laser directly to any specular reflective objects as this may cause injury to the operator or burn the laser.
●Please refer to the user manual for detailed machine instructions and parameter settings.
●Please install the laser protective cover before operating the machine; if not, a pair of goggles is needed.
●Do not touch the laser with your hands, or it may burn your hands.
●Please avoid strong impact on the machine.
●Children under 14 are not allowed to use this product and children over 14 need adult supervision.
●Do not apply the laser directly to any specular reflective objects as this may cause injury to the operator or burn the laser.
