Custom 8mp 4K 30FPS Full HD USB3.0 IMX415 Drone Camera Module Support UVC Protocol For HDMI Live Streaming Videoconference
- Category: >>>
- Supplier: Shenzhen Ccdcam Technology Co. Limited
Share on (1601001226489):
Product Overview
Description
Custom Sensor Selection
In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at.
Resolution | 2MP，4MP，5MP，8MP，12MP |
Sensor | GC2053，GC2063，IMX307，IMX327，GC4653，500AI，IMX335，IMX347，IMX385，IMX334，IMX485，IMX412，IMX323IMX291，IMX290，MN32443，IMX274，IMX226，IMX178，OV4689 |
Size | 1/1.2"，1/1.8"，1/2.3"，1/2.8"，1/2.9"，1/3" |
Frame Frequency | 20fps，25fps，30fps，50fps，60fps，90fps，120fps |
DSP model | GK7205V200，GK7205V300，GK7605V100，Hi3516CV500，Hi3516DV300，HI3516AV300，HI3519AV100，SD3403，SSC338G，SSC339G，Hi3516CV200，Hi3516CV300，Hi3516DV100，HI3516AV100，HI3519AV101 |
Lenses / Custom Filter/FoV Options
From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses.
The field of view of the wide-angle lens is generally around 80°, which is mainly used for shooting general scenes. The ultra-wide-angle lens is used for shooting scenes such as landscapes, buildings, and group photos. The fisheye lens is an extreme wide-angle lens and the view angle even reaches 180°, the diameter of the lens is very short and protrudes outward, similar to the eyes of fish, and is widely used in the fields of scene monitoring, robot navigation and measurement.
According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as :
According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as :
Diagonal (°) | Vertical (°) | Horizontal (°) |
180 | 180 | 180 |
170 | 161.1 | 166 |
120.0 | 90 | 111.1 |
115.2 | 81.2 | 102 |
107.1 | 73.9 | 95.1 |
90.5 | 61.9 | 82.4 |
80.1 | 53.1 | 73.7 |
63.4 | 37.8 | 54.4 |
46.8 | 27 | 39.6 |
34.4 | 19.5 | 28.8 |

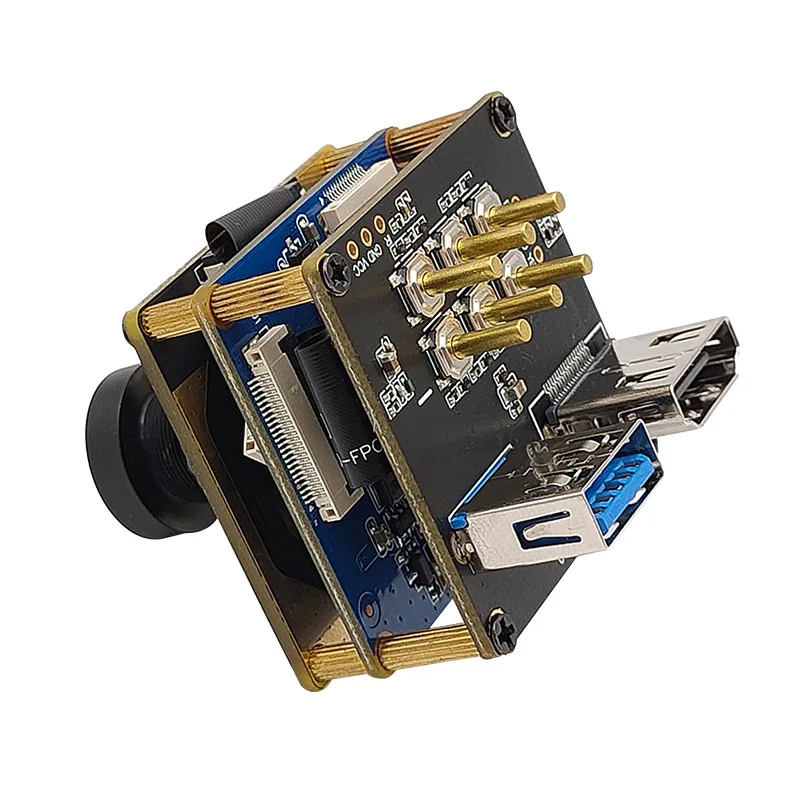

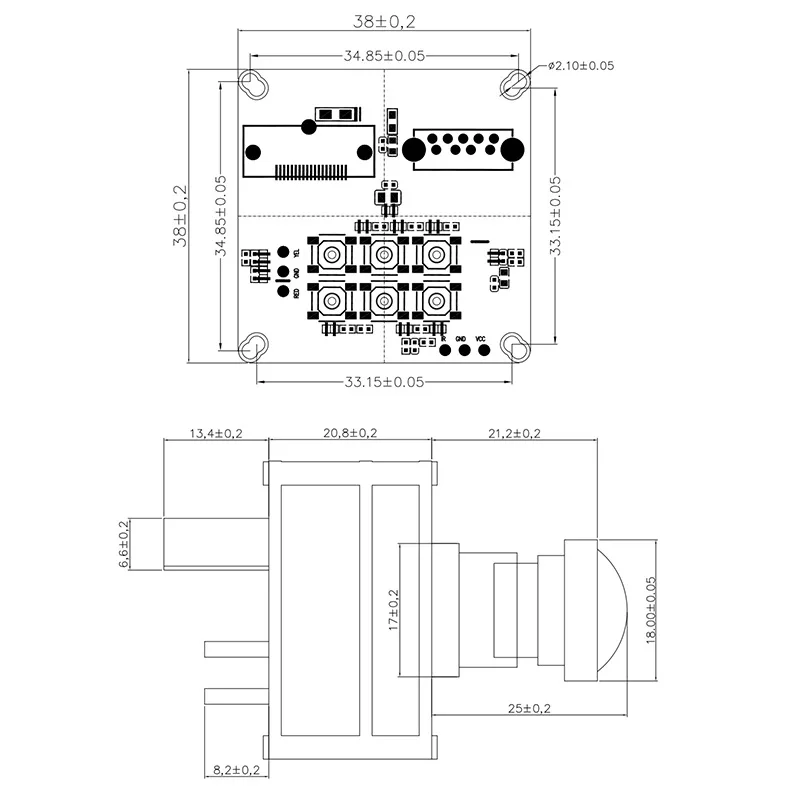

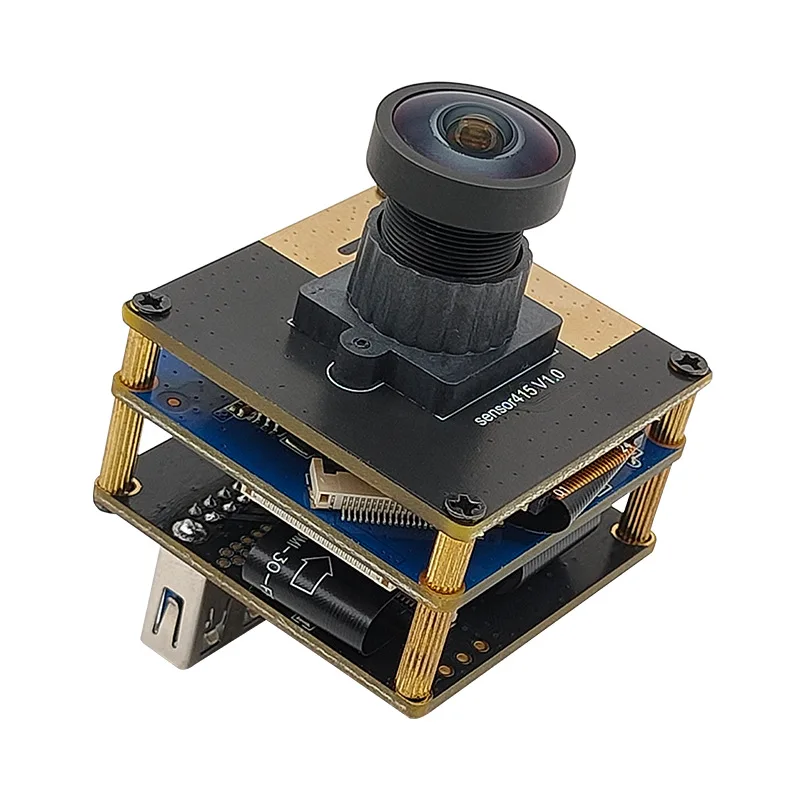

HDMI Camera Module
Module model | HDMI-USB3.0-4K-30FPS |
resolution | 4K |
sensor type | 1/2.8''CMOS |
Highest effective pixel | 3840*2160 |
Pixel size | 1.45μm*1.45μm |
Highest dynamic range | 72dB |
Highest signal-to-noise ratio | 30dB |
Main control I device SOC | Sigmastar88 series |
Minimum illumination | 0.01Lux@（F1.2,AGC ON） |
Synchronously | internal synchronization |
HDMI interface | HDMI1.4B supports 4K 30fps |
USB3.0 interface | UVC drive-free agreement |
Encoding | MJPG.YUY2.H264.265.NV12 |
support system | Windows Android Linux Mac (supports UVC multiple systems) |
power input | DC_5V, 500mA |
output method | MJPG/YUY2 |
Camera Module
Application Solution
FAQ
1 years free repair and lifetime technical support provided after the shipment date.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and you need to afford the shipping cost to us, we will afford the
shipping cost to your side.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
> OEM and ODM Projects is welcome, and pls kindly send your logo, so we can discuss more details.
Payment Terms
T/T, Paypal, Western Union, Alibaba payment
> We accept T/T 30% deposit to start the order,70% balance payment when goods finish.
> If order value less than 20,000USD$, we should get 100% payment before production
MOQ
Sample order is weclome!
OEM product logo MOQ 100pcs, OEM box design MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity to us.
> We will send a Proforma Invoice for PO the order.
> After you paid, we will start the production, and finish the order ASAP.
> When the goods are ready, generally we will send by express, like Fedex, DHL, UPS, TNT. and send the tracking number.
Technical Support
We have professional enginner team to support for you.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and you need to afford the shipping cost to us, we will afford the
shipping cost to your side.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
> OEM and ODM Projects is welcome, and pls kindly send your logo, so we can discuss more details.
Payment Terms
T/T, Paypal, Western Union, Alibaba payment
> We accept T/T 30% deposit to start the order,70% balance payment when goods finish.
> If order value less than 20,000USD$, we should get 100% payment before production
MOQ
Sample order is weclome!
OEM product logo MOQ 100pcs, OEM box design MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity to us.
> We will send a Proforma Invoice for PO the order.
> After you paid, we will start the production, and finish the order ASAP.
> When the goods are ready, generally we will send by express, like Fedex, DHL, UPS, TNT. and send the tracking number.
Technical Support
We have professional enginner team to support for you.
