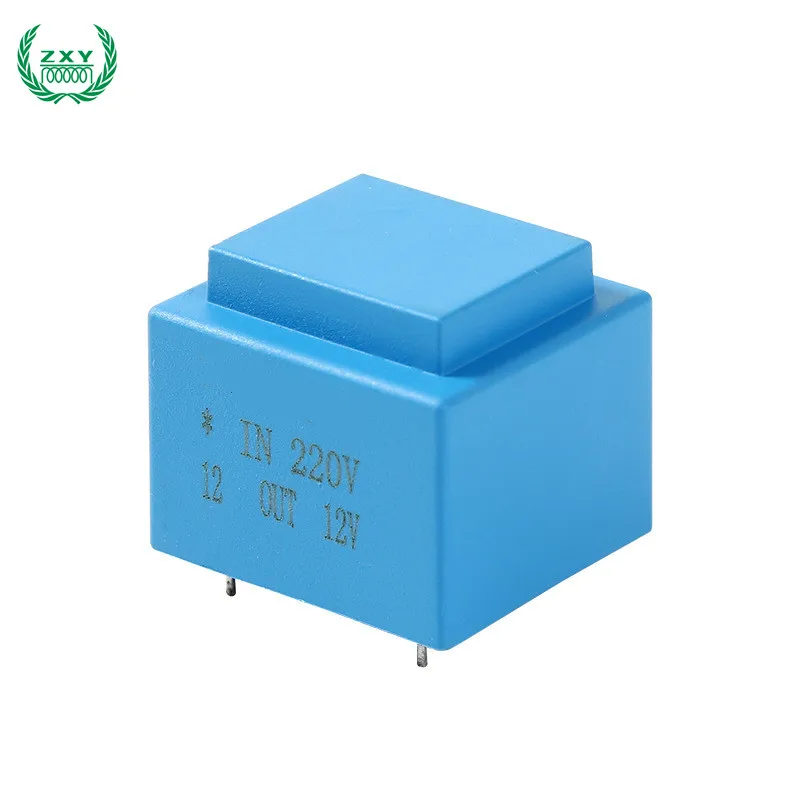

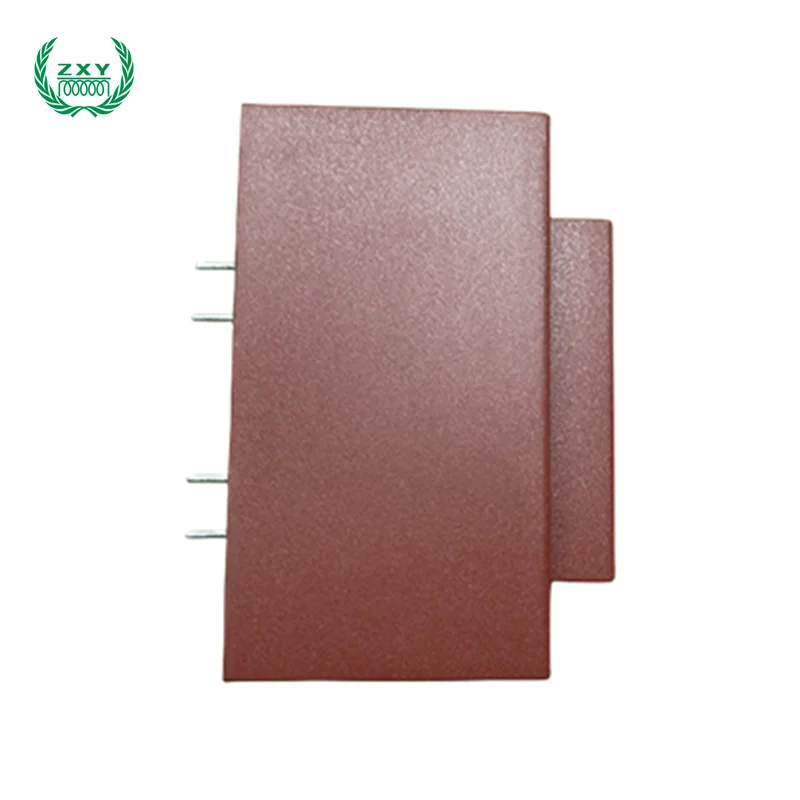

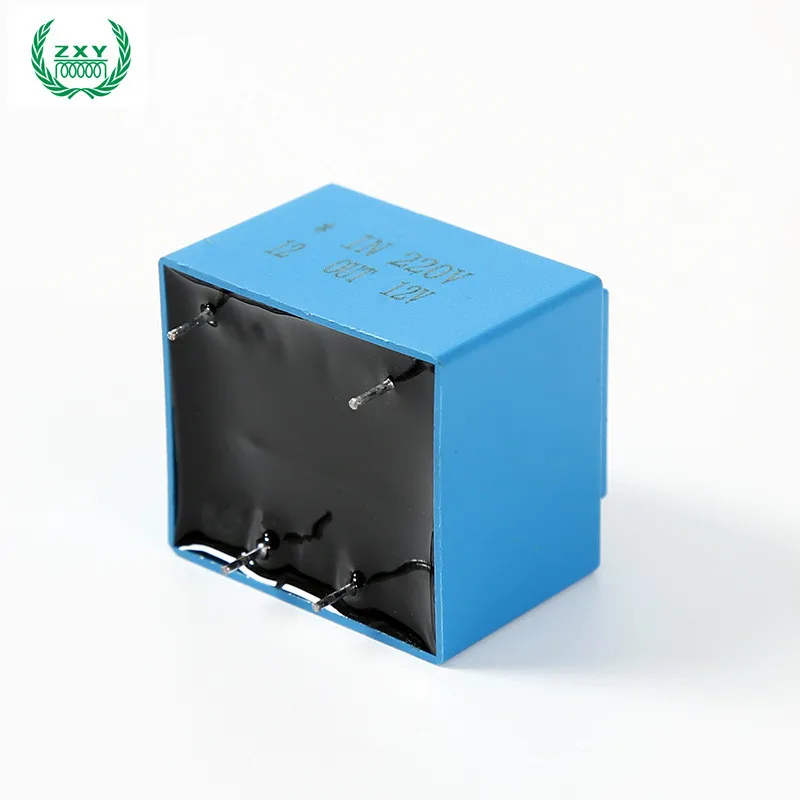

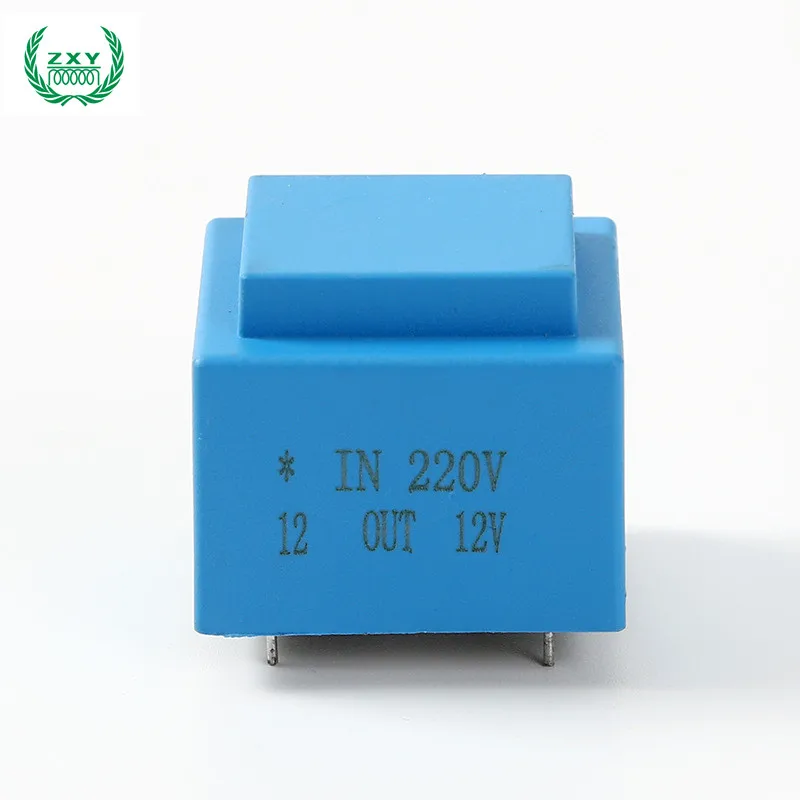

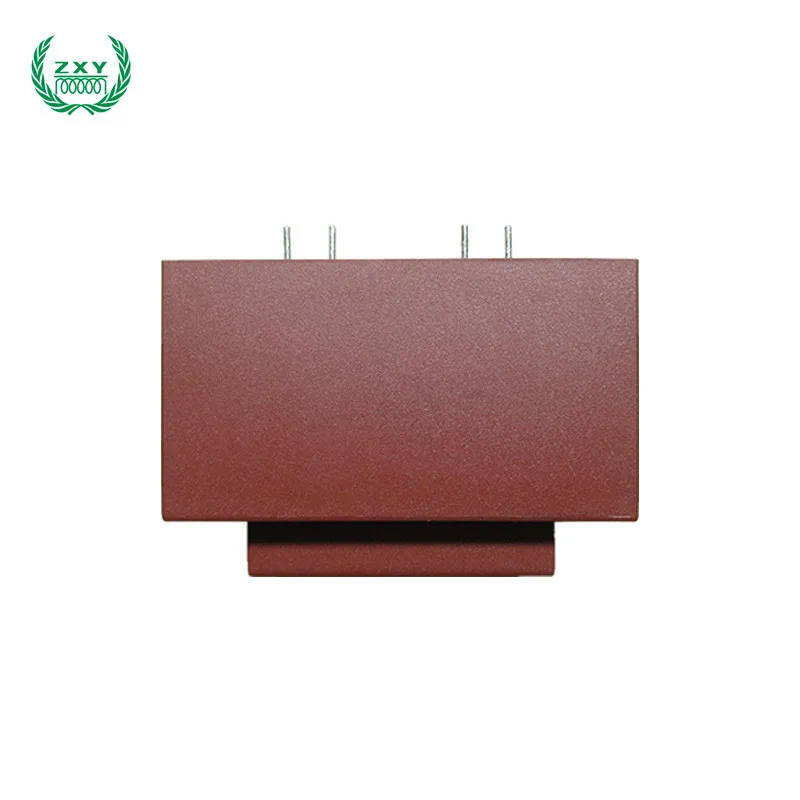

Sealed transformer 0.5W 1W 1.5W 2W 3W 5W 10W small pin type potting transformer 220V to 12
- Category: >>>
- Supplier: Shenzhen Zhixiangyuan Electronics Co. Ltd.
Share on (1601001263409):
Product Overview
Description
Product Details
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | ZXY |
| Model Number | EI |
| Input Voltage | 220V |
| onput | 12V |
| Name | electric transformer |
| Package | Carton Box |
| Tolerance | 20% |
| Application | Power Supply |
| Series | EI Encapsulated Transformer |
Product Description

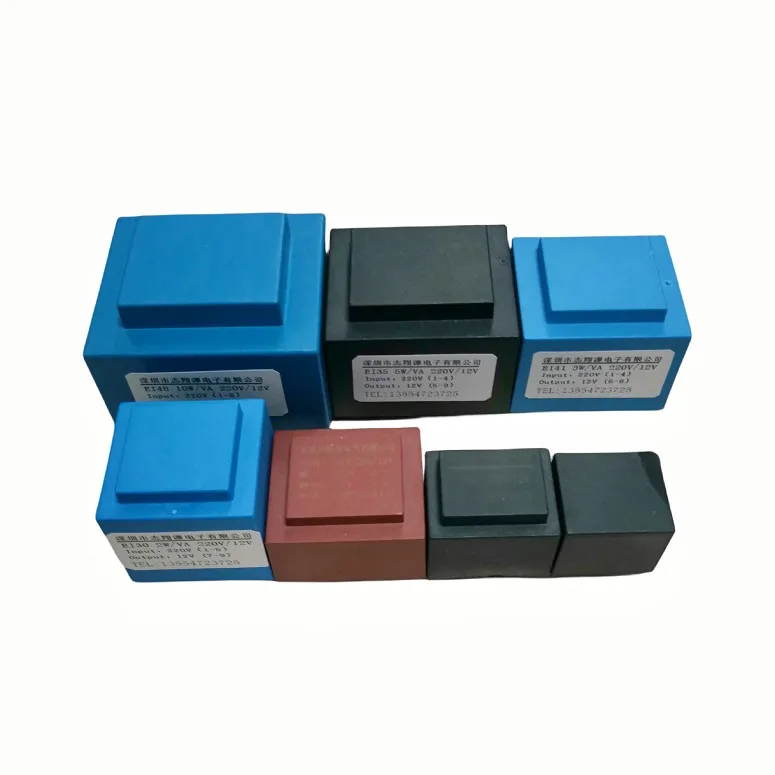

Sealed waterproof transformer 0.5W 1W 1.5W 2W 3W 5W 10W small pin type potting transformer 220V to 12
1.Low-frequency potting transformer Water-proof insulated transformer Mechanical equipment power transformer
- Our EI28 Low frequency 220V to 9V/1VA power transformer is a high quality electrical equipment for voltage conversion. With excellent performance and stable power output, it is suitable for various application scenarios.
2. Features:
- The product has good adhesion mechanical strength and electrical properties
3.Wide range of applications
Widely used in automotive, electronics, microwave communication, instrumentation, etc. Installed in USB data cable AV cable, video audio cable and mouse cable
4.Characteristics:
| Core type | power | Length | width | height | Stack up | pitch-row | Total length | weight |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | KG | ||
| E128*13 | 1W | 30 | 30 | 27 | 13 | 42 | 52 | 0.07 |
| E13515 | 2W | 37 | 34 | 32 | 17 | 47 | 58 | 0.13 |
| EI41*17 | 3W | 53 | 37 | 36 | 18 | 53 | 64 | 0.18 |
| E41*20 | 5W | 43 | 42 | 36 | 22 | 56 | 67 | 0.23 |
| E148*18 | 8W | 50 | 40 | 42 | 21 | 61 | 73 | 0.3 |
| E148*24 | 10 W | 50 | 45 | 43 | 26 | 61 | 74 | 0.36 |
| E148*26 | 12 W | 50 | 45 | 44 | 29 | 61 | 72 | 0.4 |
| E157*25 | 15W | 60 | 50 | 51 | 28 | 72 | 85 | 0.53 |
| E157*30 | 20 W | 60 | 54 | 51 | 32 | 73 | 87 | 63 |
| E157*35 | 25 WV | 60 | 59 | 51 | 38 | 76 | 90 | 0.82 |
| E166*32 | 30 W | 69 | 58 | 58 | 35 | 85 | 96 | 0.96 |
| E166*32 | 40 W | 69 | 58 | 58 | 35 | 85 | 96 | 0.98 |
| E166*36 | 50 W | 69 | 61 | 59 | 38 | 82 | 100 | 1.04 |
| E176*42 | 80 W | 79 | 69 | 68 | 45 | 96*18.5 | 109 | 156 |
| E186*43 | 100 W | 89 | 74 | 76 | 47 | 100 *18.5 | 116 | 2.08 |
| E196*45 | 200 W | 96 | 86 | 81 | 45 | 79*69 | 96 | 2.66 |
| E196*60 | 300 W | 96 | 100 | 81 | 60 | 79*84 | 96 | 3.41 |
