Mivi Pipe Production Line / Ms Pipe Making Machine Sales
- Category: >>>
- Supplier: Yangzhou Mivi Machinery Manufacturing Co. Ltd.
Share on (1601001290120):
Product Overview
Description
Product Description
1.Carbon steel pipe making machine is a type of machinery used to manufacture carbon steel pipes.

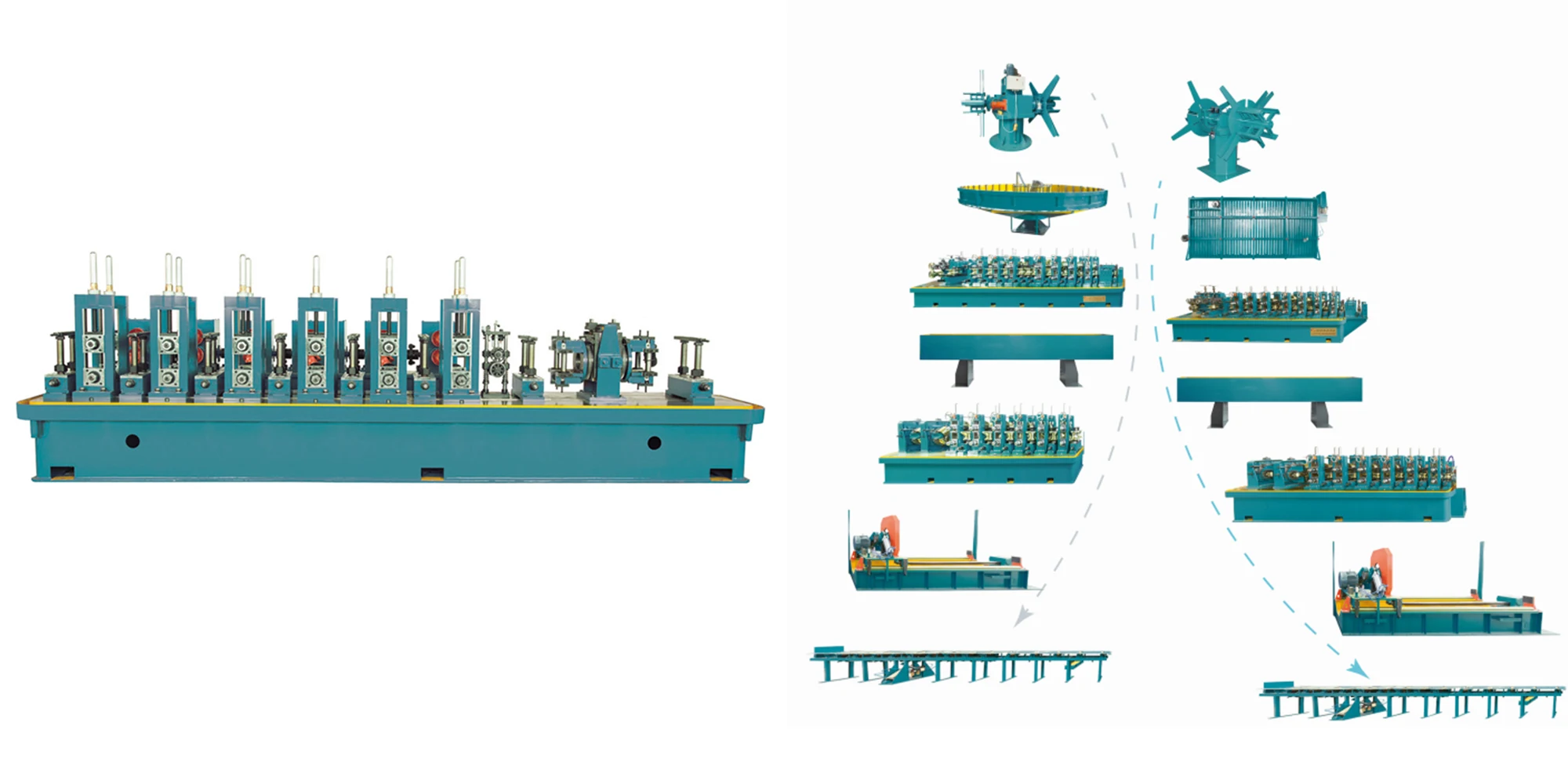

2.production process:
●The first step in the process is the feeding of the raw material, which is usually a steel strip, into the machine.
●The steel strip is then passed through a series of rollers that gradually shape it into a cylindrical form.
●As the steel strip passes through the rollers, it is also welded longitudinally, creating a continuous seam along the length of the pipe.
●Once the pipe is formed, it is then passed through a series of finishing processes, including trimming, sizing, and straightening.
●The finished pipes can then be cut to the required length and packaged for shipment to customers.
3.Carbon steel pipe making machines come in a variety of sizes and configurations, depending on the specific needs of the manufacturer. The machines can also be automated, allowing for a higher degree of precision and speed in the production process.
2.production process:
●The first step in the process is the feeding of the raw material, which is usually a steel strip, into the machine.
●The steel strip is then passed through a series of rollers that gradually shape it into a cylindrical form.
●As the steel strip passes through the rollers, it is also welded longitudinally, creating a continuous seam along the length of the pipe.
●Once the pipe is formed, it is then passed through a series of finishing processes, including trimming, sizing, and straightening.
●The finished pipes can then be cut to the required length and packaged for shipment to customers.
3.Carbon steel pipe making machines come in a variety of sizes and configurations, depending on the specific needs of the manufacturer. The machines can also be automated, allowing for a higher degree of precision and speed in the production process.
Specification
Item No. | MG-50 |
Outer Diameter | 19mm-76mm |
Wall Thickness | 0.7mm-2.75mm |
Production Speed | 30-100m/min |
Driving Motor | 160KW |
HF Welder Power | 200KW |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Warranty of core components | 1 Year |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works |
Company Profile
OUR FACTORY
OUR OFFICE
VIDEO INTRODUCTION
Yangzhou Mivi Machinery Manufacturing Co., Ltd. is located in the Da Yi Industrial Park which is northern suburb of Yangzhou, Jiangsu Province. It covers an area of 25,000 M3. The total employees now is 55. It's around 1 KM away from the highway and 8 KM away from Yangzhou city.
We are the professional manufacturer of steel pipe mill, roller,elevator, cold rolling mill and other related processing line. These lines have been exported to many countries, like Peru, Malta, Saudi Arabia, Malaysia, Armenia, Hungary, India, South Africa, Egypt, Mexico, etc.
At any time we always focus on the quality. Blanking by CNC flame cutting, perfect steel welding, shot blasting before roughly machining, key part machining by CNC boring-milling machine center, strict heat treatment as per standard requirements, etc.
Let our machine speaking, this is our only thinking!
We are the professional manufacturer of steel pipe mill, roller,elevator, cold rolling mill and other related processing line. These lines have been exported to many countries, like Peru, Malta, Saudi Arabia, Malaysia, Armenia, Hungary, India, South Africa, Egypt, Mexico, etc.
At any time we always focus on the quality. Blanking by CNC flame cutting, perfect steel welding, shot blasting before roughly machining, key part machining by CNC boring-milling machine center, strict heat treatment as per standard requirements, etc.
Let our machine speaking, this is our only thinking!
Certifications
Our Service
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3.We provide one year warranty.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3.We provide one year warranty.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2018,sell to Southeast Asia(50.00%),Eastern Europe(10.00%),Africa(10.00%),South Asia(10.00%),Domestic Market(10.00%),South America(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pipe Making Machine,Cold Rolling Mill.
4. why should you buy from us not from other suppliers?
Yangzhou Mivi Machinery Manufacturing Co., Ltd.is the professional manufacturer of steel tube mill, roller, elevator and other related processing line. These lines have been exported to many countries, like Thailand, Vietnam, Burma, India, Russia, etc.
We are based in Jiangsu, China, start from 2018,sell to Southeast Asia(50.00%),Eastern Europe(10.00%),Africa(10.00%),South Asia(10.00%),Domestic Market(10.00%),South America(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pipe Making Machine,Cold Rolling Mill.
4. why should you buy from us not from other suppliers?
Yangzhou Mivi Machinery Manufacturing Co., Ltd.is the professional manufacturer of steel tube mill, roller, elevator and other related processing line. These lines have been exported to many countries, like Thailand, Vietnam, Burma, India, Russia, etc.
