Huepar remote control 904DG For Tile,Green self leveling 360 degree horizontal&vertical 16 multi lines 4D flooring laser level
- Category: >>>
- Supplier: Huipu Opto-Electronic Instrument (zhenjiang) Co. Ltd.
Share on (1601001351561):
Product Overview
Description
Product Description
Huepar 16 lines 4D Cross Line Laser Level Green Beam Line With Li-ion battery For Tiles Floor Multifunction & Remote Control
Product Description:
Huepar 904DG 16 Lines 4D Green Laser Level Specifications:
● Laser Beam: Green Beam
● Projection: 16 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Osram 520nm
● Horizontal / Vertical Accuracy: ±3mm/10m;±1/9 In. at 33 Ft.
● Leveling / Compensation Range: 4°±1°
● Leveling Time: ≤3s
● Working Distance: 40m, ≥50m with detector 132 Ft, ≥165 Ft with detector
● Operating Time & Power Source: 8 hours with built-in Li-ion battery 3.7V / 1500mAh

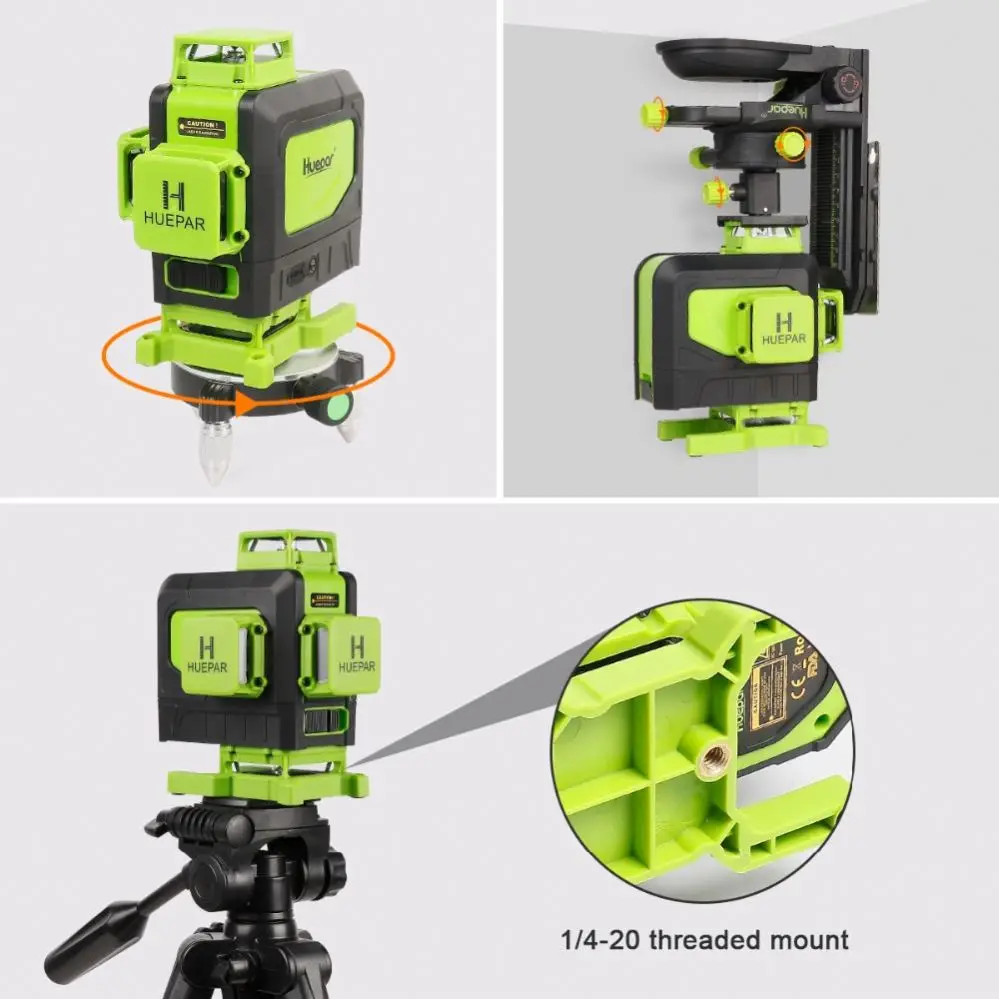

● Mount Size: 1/4"-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
WARNING:
● Do not point the laser beam directly into the eyes.
Product Description:
Huepar 904DG 16 Lines 4D Green Laser Level Specifications:
● Laser Beam: Green Beam
● Projection: 16 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Osram 520nm
● Horizontal / Vertical Accuracy: ±3mm/10m;±1/9 In. at 33 Ft.
● Leveling / Compensation Range: 4°±1°
● Leveling Time: ≤3s
● Working Distance: 40m, ≥50m with detector 132 Ft, ≥165 Ft with detector
● Operating Time & Power Source: 8 hours with built-in Li-ion battery 3.7V / 1500mAh
● Mount Size: 1/4"-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
WARNING:
● Do not point the laser beam directly into the eyes.
Specification
Model No. | 904DG |
Expanded Angle | 2H360°/2V360° |
Laser class | Class 2 |
Beam source | Green Beam |
Laser wavelength | 520nm |
H/V accuracy | ±3mm/10m;±1/9 In. at 33 Ft. |
Self-leveling range | 4°±1° |
Self-leveling time | ≤3s |
Working distance (Line) | 40m, ≥50m with detector 132 Ft, ≥165 Ft with detector |
Power source | Lithium battery |
IP rating | IP54 |
Operating Temp | -10°C to 50°C |
Storage Temp | -20°C to 70°C |
Mount size | 1/4''-20 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
Our warranty policy:
1.For GNSS/RTK products we offer one year and half a year warranty.
2.For optical instruments (total station, theodolite, Level), we offer 1 years warranty. For
accessories we offer 6 months warranty.
3.Product in warranty please sends us photos to show the problem. And then will decide to
send you parts or you send the instrument back to us to repair, We are responsible for the double-run freight and other cost,
Please make sure to contact us first instead of sending the damaged parts directly to us. Sometime, our service people can repair
your product local.
4.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay
double-run freight and the maintenance cost.
5.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man made damage of the
instrument is notcovered in warranty liability.Warra
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and
test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey
software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project
specification, we will feedback with professional suggestions as reference. We offer GNSS raw data process and CAD drawing for
survey field end users. If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer
professional repair service for all kinds of survey equipment.
1.For GNSS/RTK products we offer one year and half a year warranty.
2.For optical instruments (total station, theodolite, Level), we offer 1 years warranty. For
accessories we offer 6 months warranty.
3.Product in warranty please sends us photos to show the problem. And then will decide to
send you parts or you send the instrument back to us to repair, We are responsible for the double-run freight and other cost,
Please make sure to contact us first instead of sending the damaged parts directly to us. Sometime, our service people can repair
your product local.
4.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay
double-run freight and the maintenance cost.
5.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man made damage of the
instrument is notcovered in warranty liability.Warra
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and
test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey
software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project
specification, we will feedback with professional suggestions as reference. We offer GNSS raw data process and CAD drawing for
survey field end users. If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer
professional repair service for all kinds of survey equipment.
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, MoneyGram and PayPal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2. How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will
be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4. Does your company ship battery or not?
Our company can receive battery order and ship to customer normally, except a few special countries
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, MoneyGram and PayPal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2. How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will
be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4. Does your company ship battery or not?
Our company can receive battery order and ship to customer normally, except a few special countries
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
