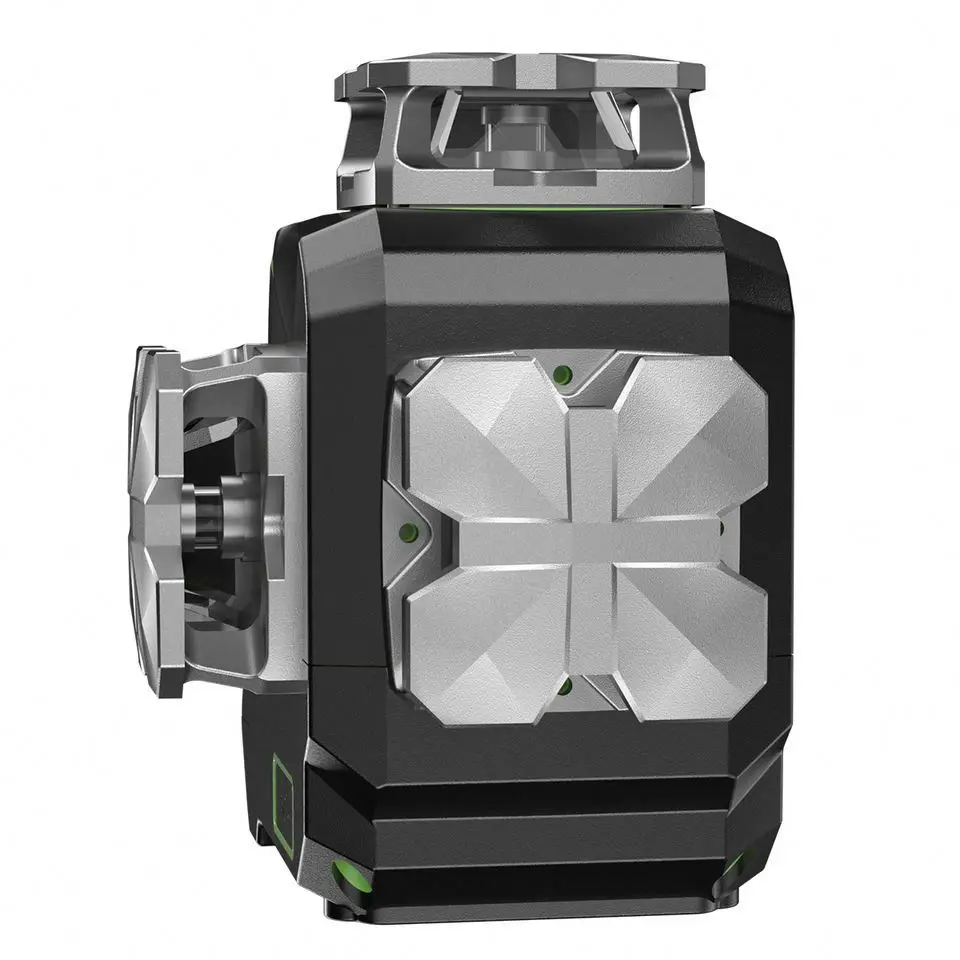

Huepar Osram S03CG with Hard Carry Case Bluetooth Function&Outdoor Pulse Mode 3D Green Beam linelaserlevel,12 Line Laser Level
- Category: >>>
- Supplier: Huipu Opto-Electronic Instrument (zhenjiang) Co. Ltd.
Share on (1601001374520):
Product Overview
Description
Product Description
Huepar S03CG 12 Lines 3D Green Laser Level Specifications:
● Laser Beam: Green Beam
● Screen type: LCD screen with backlight
● Projection: 12 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 505nm-520nm
● Horizontal / Vertical Accuracy: ±2mm/10m,±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥20m, ≥40m with detector
●Working Time: About 7 hours with li-ion battery, About 1.5 hours with AA battery
● Power Source: 7.4V / 2600mAh Li-ion battery & 4x AA battery
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
● Screen type: LCD screen with backlight
● Projection: 12 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 505nm-520nm
● Horizontal / Vertical Accuracy: ±2mm/10m,±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s

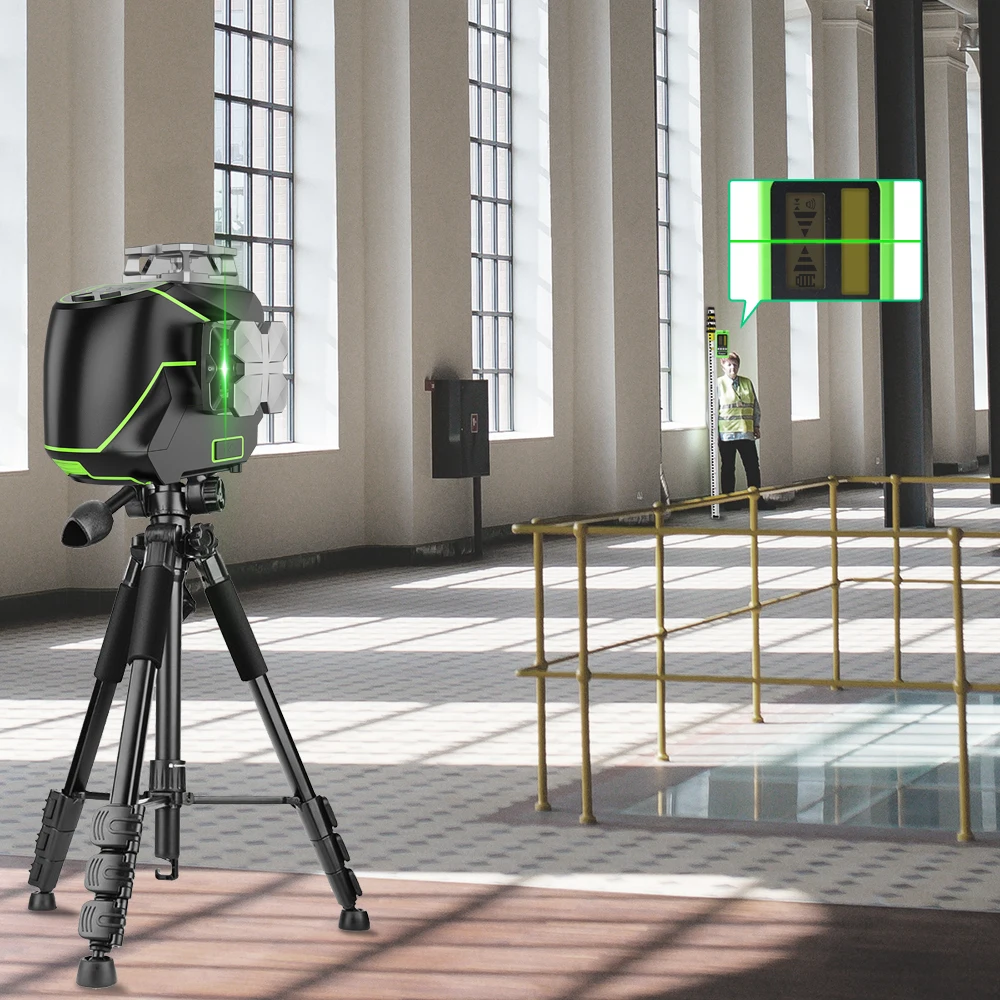

● Working Distance: ≥20m, ≥40m with detector
●Working Time: About 7 hours with li-ion battery, About 1.5 hours with AA battery
● Power Source: 7.4V / 2600mAh Li-ion battery & 4x AA battery
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃

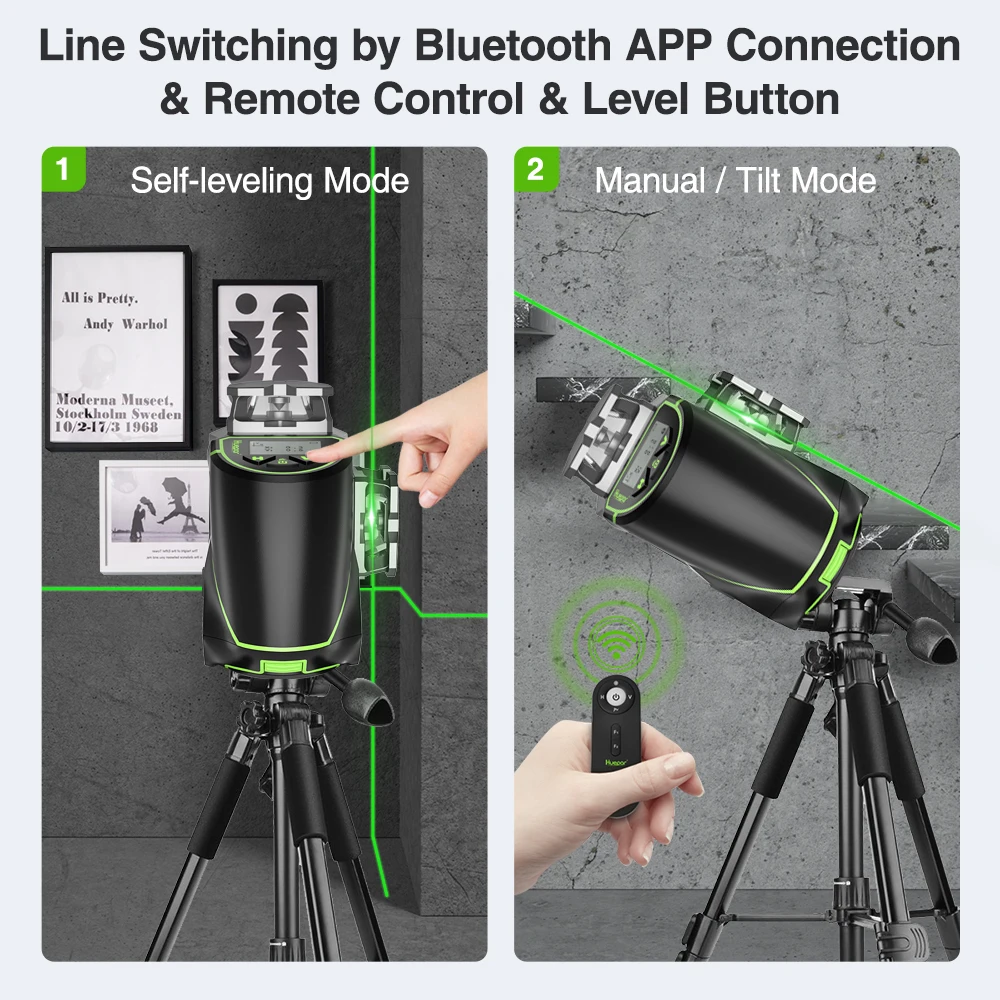

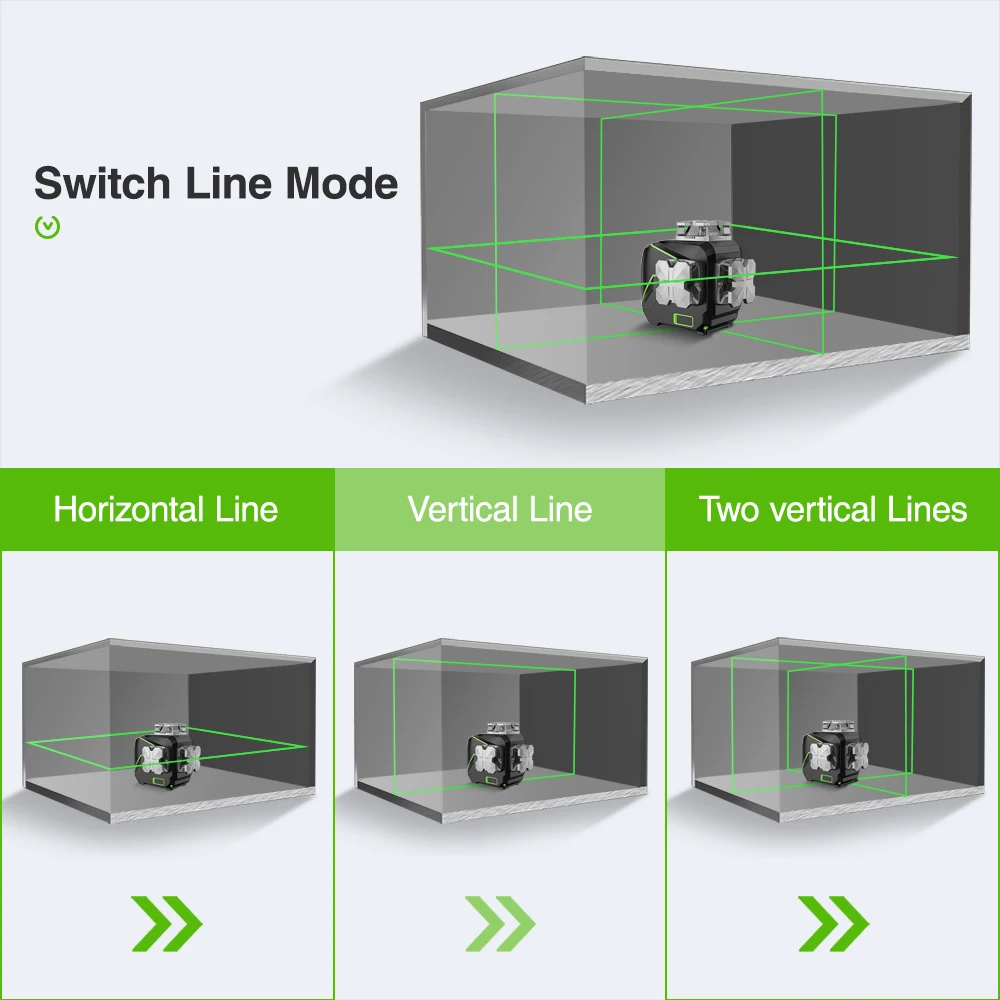

Line Switching:
Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
The laser lines can be selected separately according to job requirements.
The laser lines can be selected separately according to job requirements.

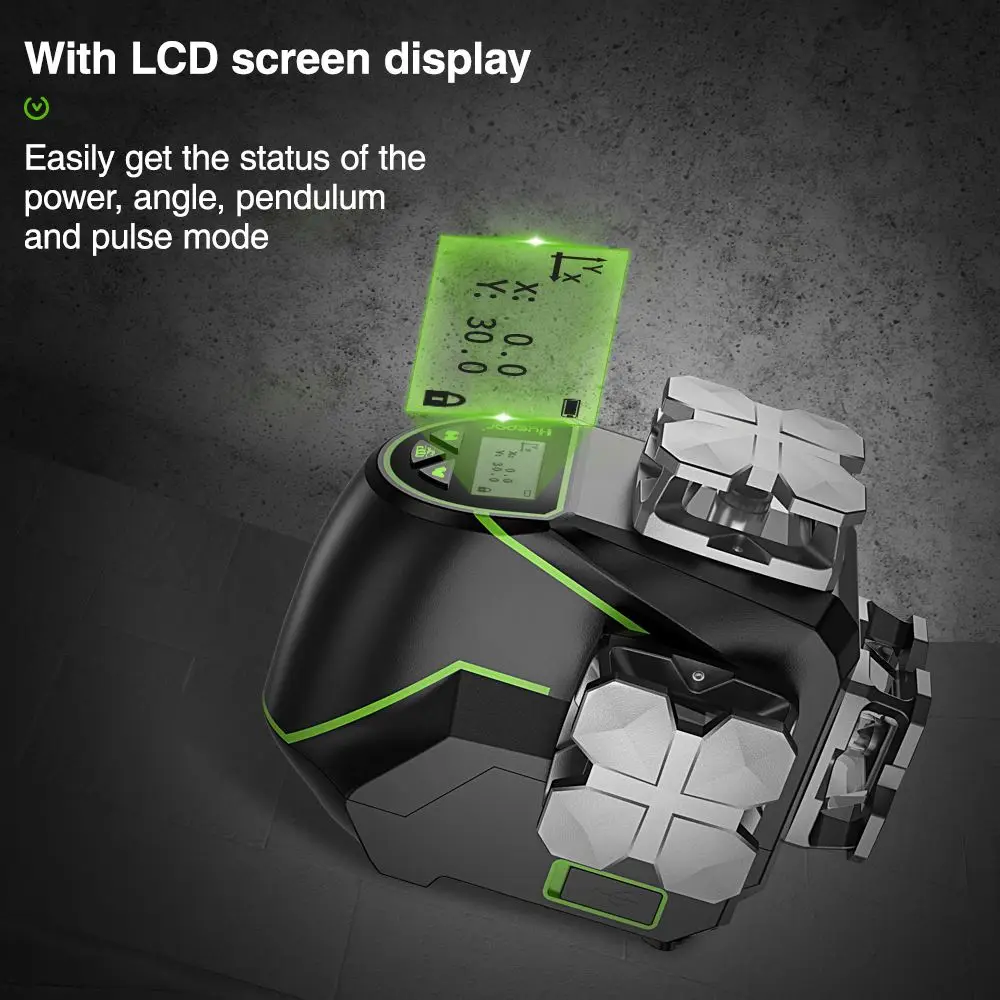

With LCD Display Screen:
The laser level kit features LCD screen display.
Users can easily get the status of the power, angle, pendulum and pulse mode on the display
Users can easily get the status of the power, angle, pendulum and pulse mode on the display

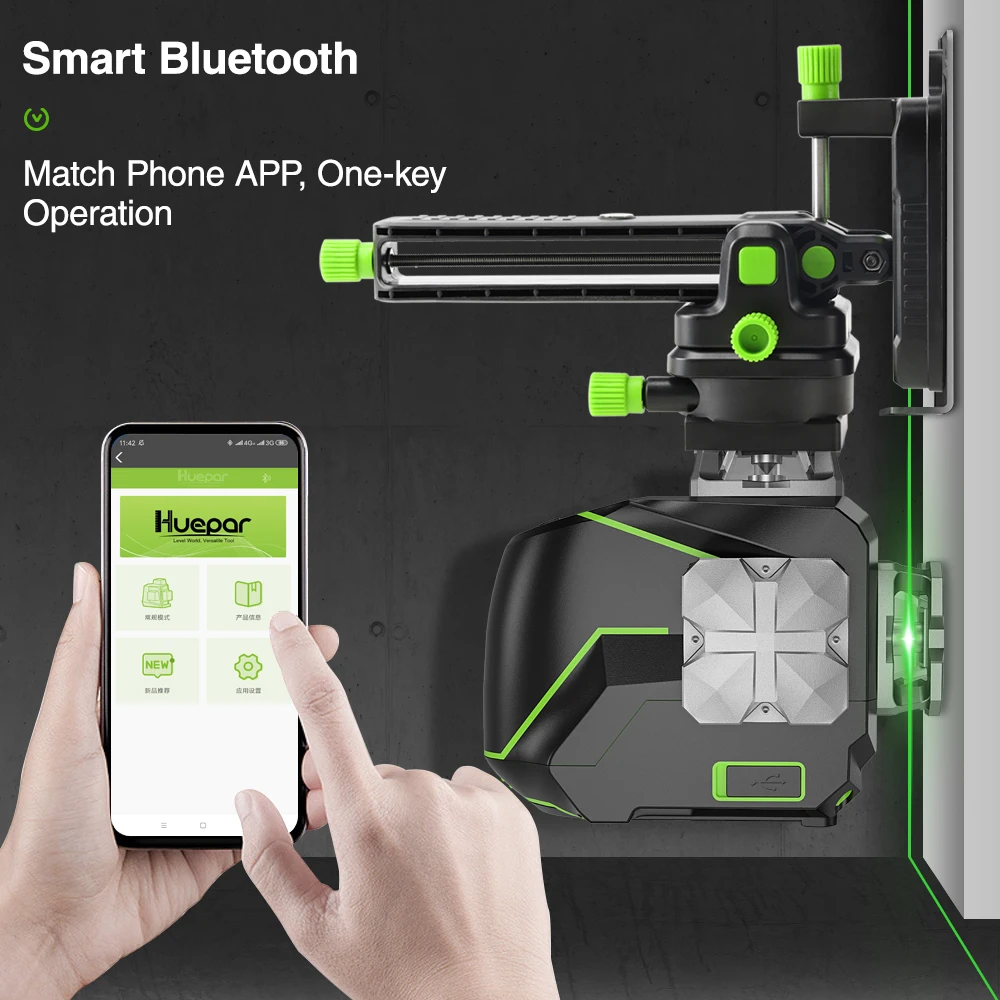

Connected With Smart Bluetooth:
Connect S03DG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.The laser tool can connect two phones at the same time, whether on Android or iOS.
The functions of the laser tool can be easily operated with the Bluetooth feature.
The functions of the laser tool can be easily operated with the Bluetooth feature.

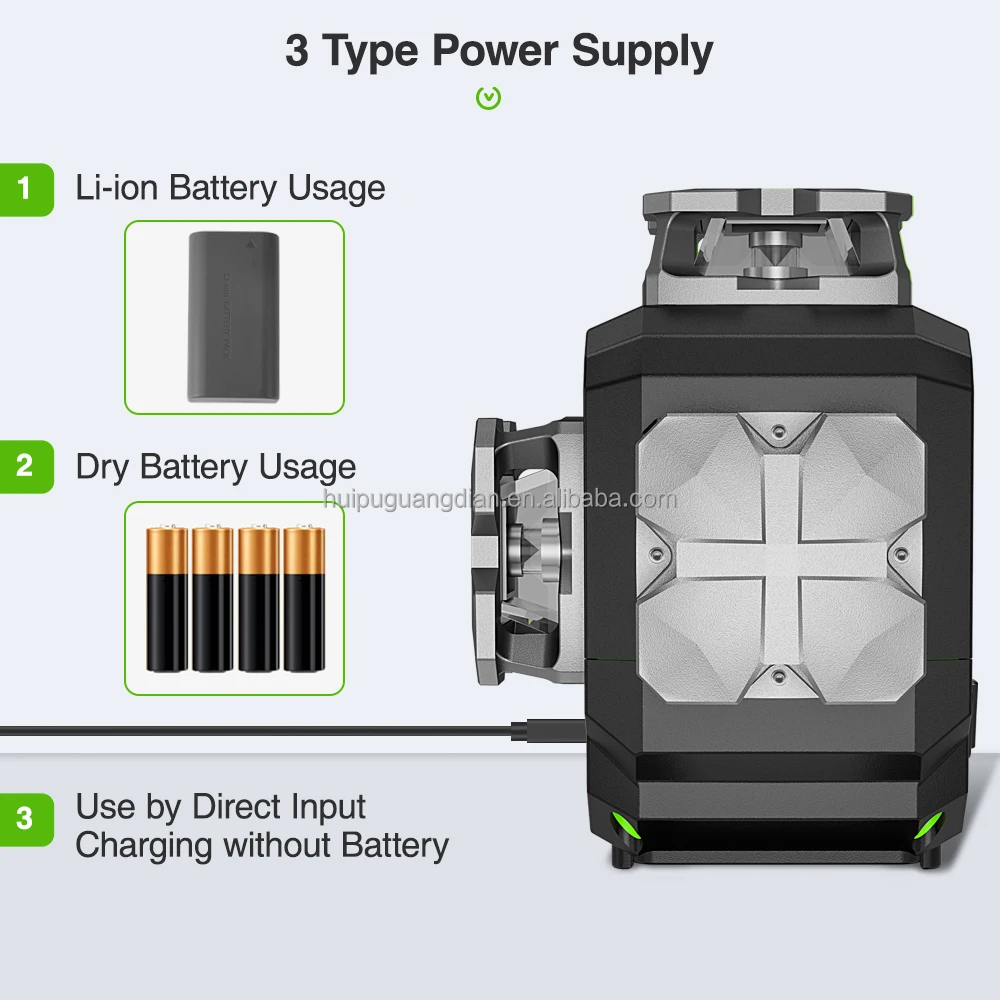

Diverse Power Supply:
Large-capacity li-ion battery: 7 hours of extra-long working
AA battery: 4x AA battery for 1.5h usage
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
Charging protection help prevent the tool from overcharge
AA battery: 4x AA battery for 1.5h usage
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
Charging protection help prevent the tool from overcharge
Title goes here.

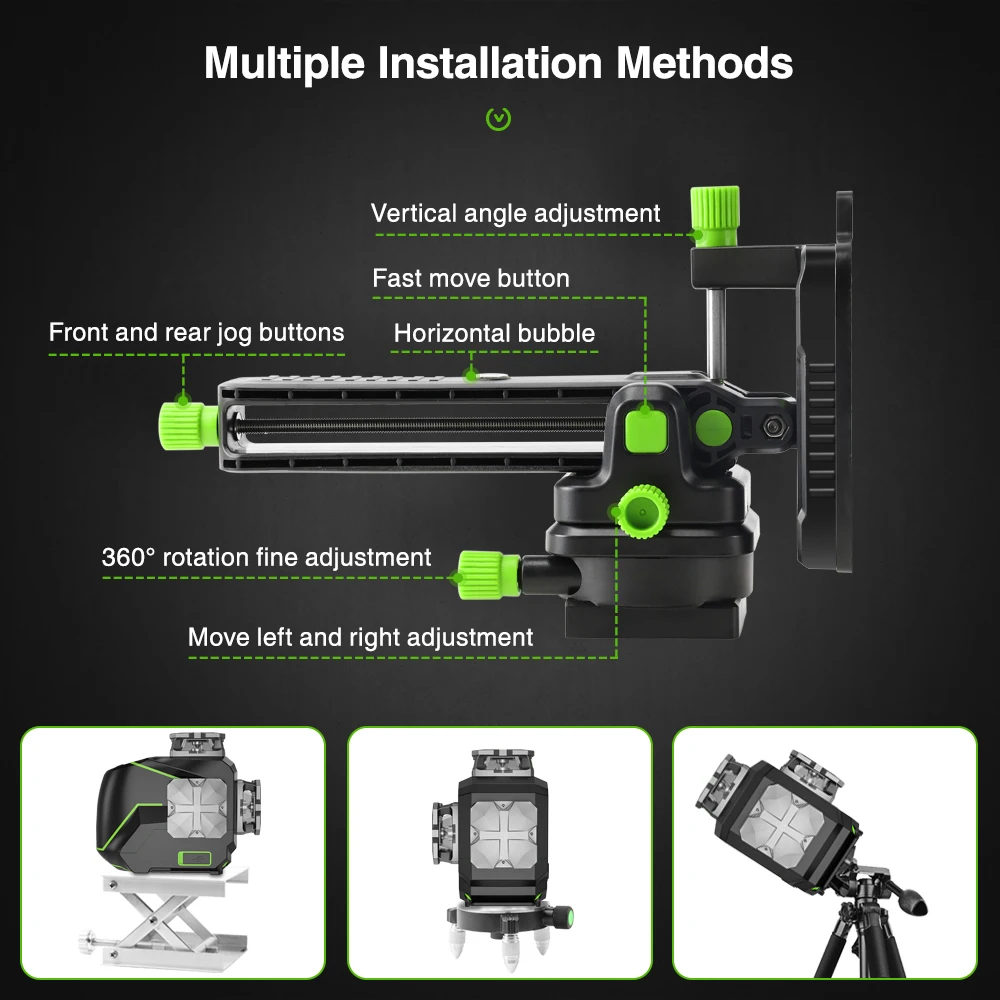

Multiple Installation Method:
360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree , projecting lines at any angle. With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.
Mount Size: 1/4"-20 / 5/8"-11 mounting thread for temporarily fastening in place or being fixed on tripod
360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree , projecting lines at any angle. With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.
Mount Size: 1/4"-20 / 5/8"-11 mounting thread for temporarily fastening in place or being fixed on tripod
Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
Specification
Model No. | S03CG |
Expanded Angle | 2H360°/2V360° |
Laser class | Class 2 |
Beam source | Green Beam |
Laser wavelength | 520nm |
H/V accuracy | ±3mm/10m;±1/9 In. at 33 Ft. |
Self-leveling range | 4°±1° |
Self-leveling time | ≤3s |
Working distance (Line) | 40m, ≥50m with detector 132 Ft, ≥165 Ft with detector |
Power source | Lithium battery |
IP rating | IP54 |
Operating Temp | -10°C to 50°C |
Storage Temp | -20°C to 70°C |
Mount size | 1/4''-20 |
Packing & Delivery

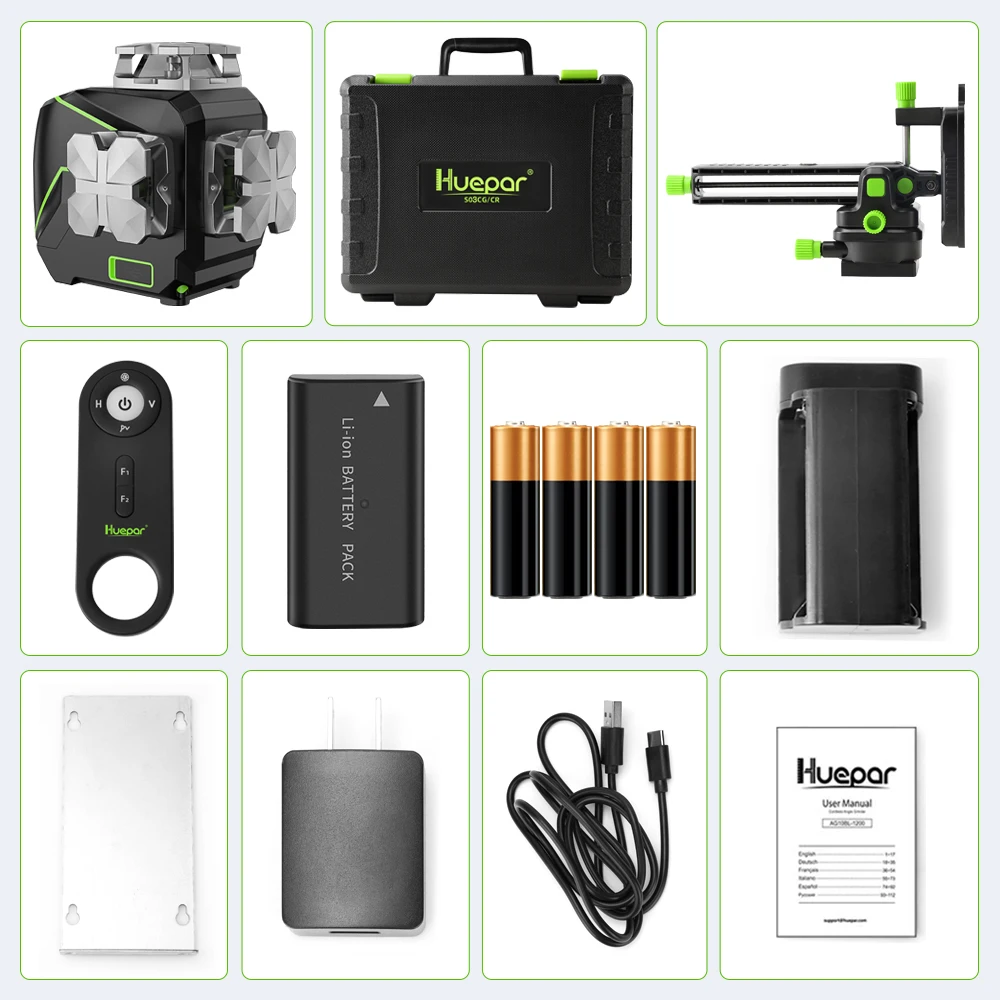

Package Contents:
1 x Green Laser Level S03CG
1 x Wall Hanging Plate
1 x Multifunctional Pivoting Base
1 x 2600mAh Li-ion Battery
1 x Remote Control
1 x Power Adapter
1 x AA Battery Compartment
4 x AA battery
1 x User Manual
1 x Hard Carry Case
