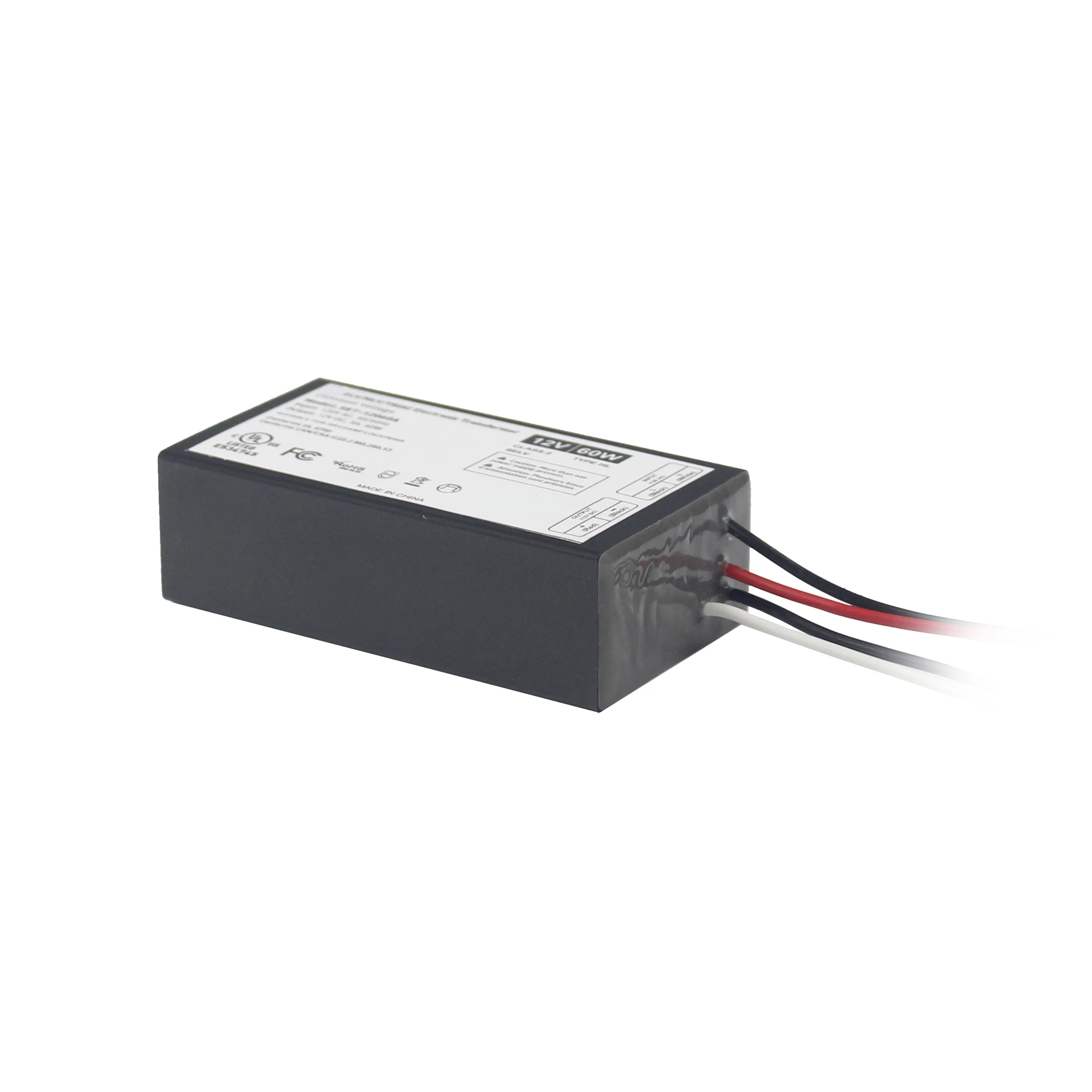

ELV/MLV/Triac 12V 24V 60W mini dimmable led driver
- Category: >>>
- Supplier: Zhuhai Guangwei Electronics Co. Ltd.
Share on (1601001537840):
Product Overview
Description

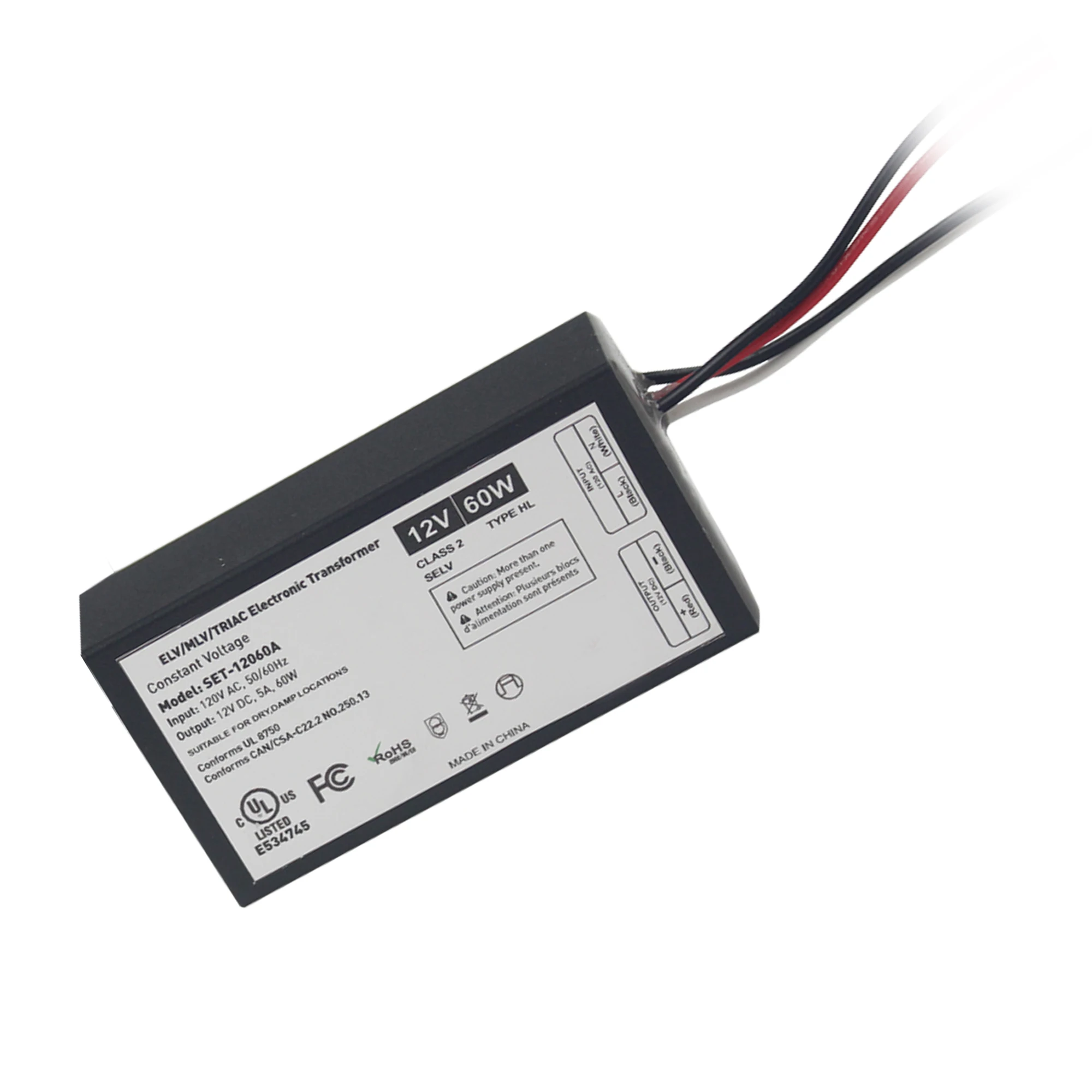

SET-12060A
UL FCC Triac/ELV/ MLV Dimmable LED Driver
Product Features：
▶ Dimming:a Tric/ ELV/ MLV Dimming 0-100%
▶UL Pending, Class 2, Type HL
▶120Vac input
▶3 years warranty
▶UL Pending, Class 2, Type HL
▶120Vac input
▶3 years warranty
Model | SET-12060A | SET-24060A | ||
Certificates | UL，FCC | UL，FCC | ||
Output | DC Voltage | 12V | 24V | |
Rated Current | 5A | 2.5A | ||
Rate Power | 60W | |||
Rated Power Factor | 0.98@120VAC | |||
ECG Efficiency | 88%@120VAC | |||
Input | Voltage Range | 120VAC | ||
Normal input current | 0.58A | |||
Frequency Range | 47-63Hz | |||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over load | Reduce the output voltage and output power, auto-recovery or re-power on to recovery | |||
Usage environment | Damp and Dry | |||
