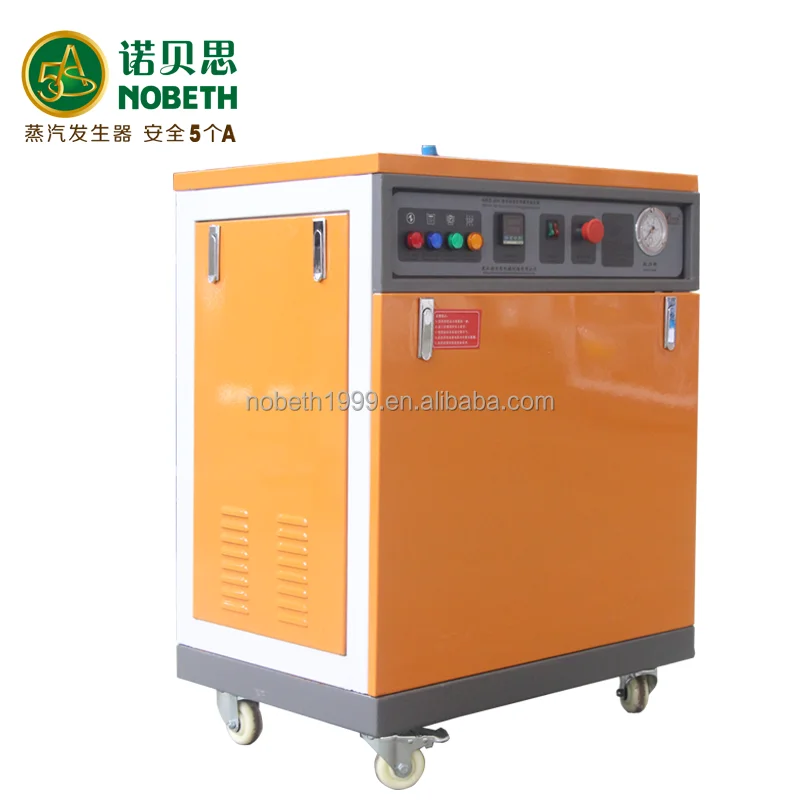

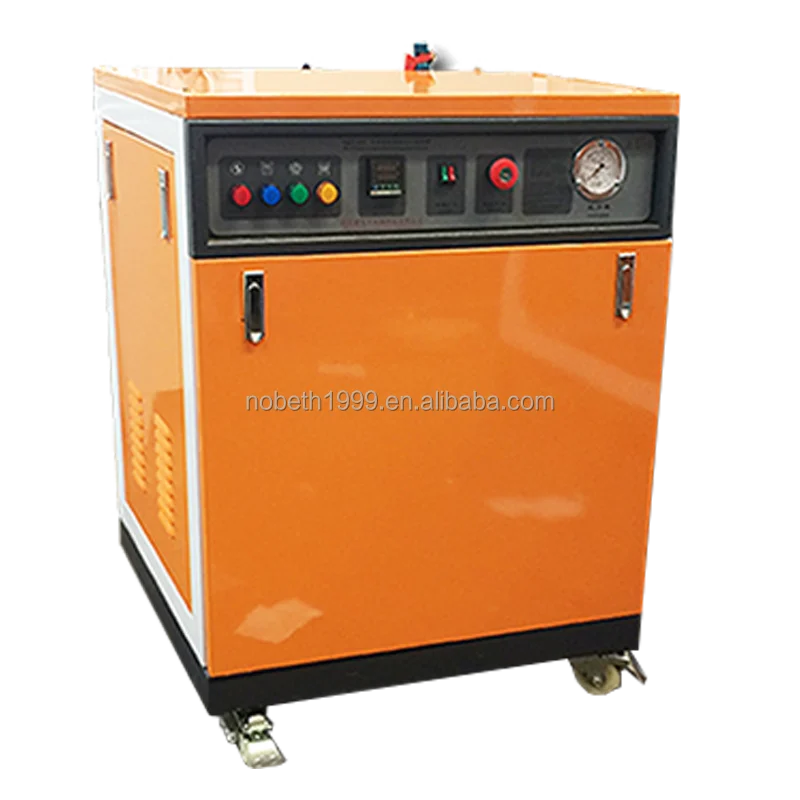

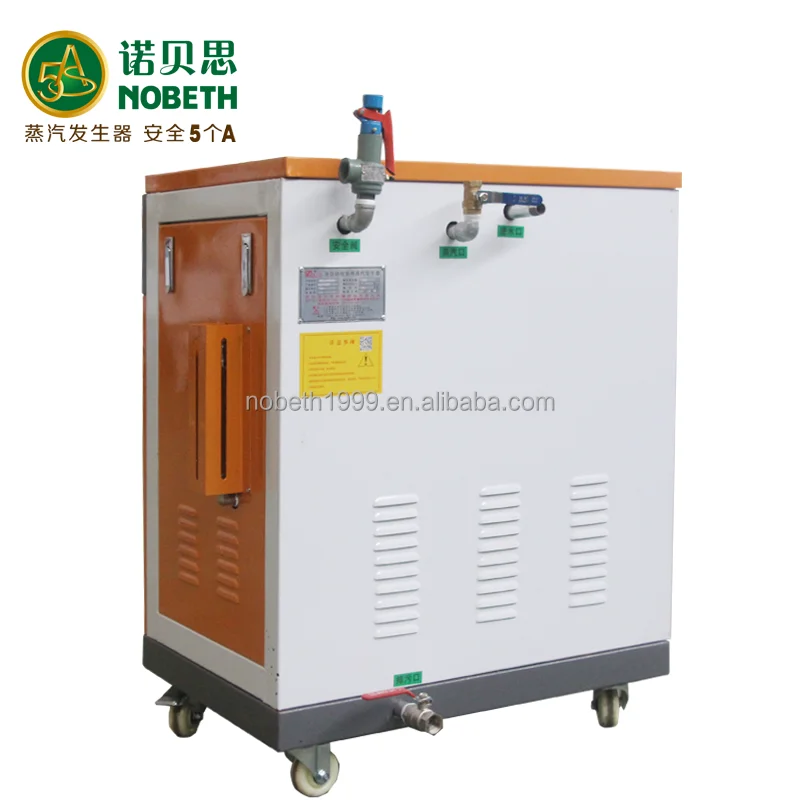

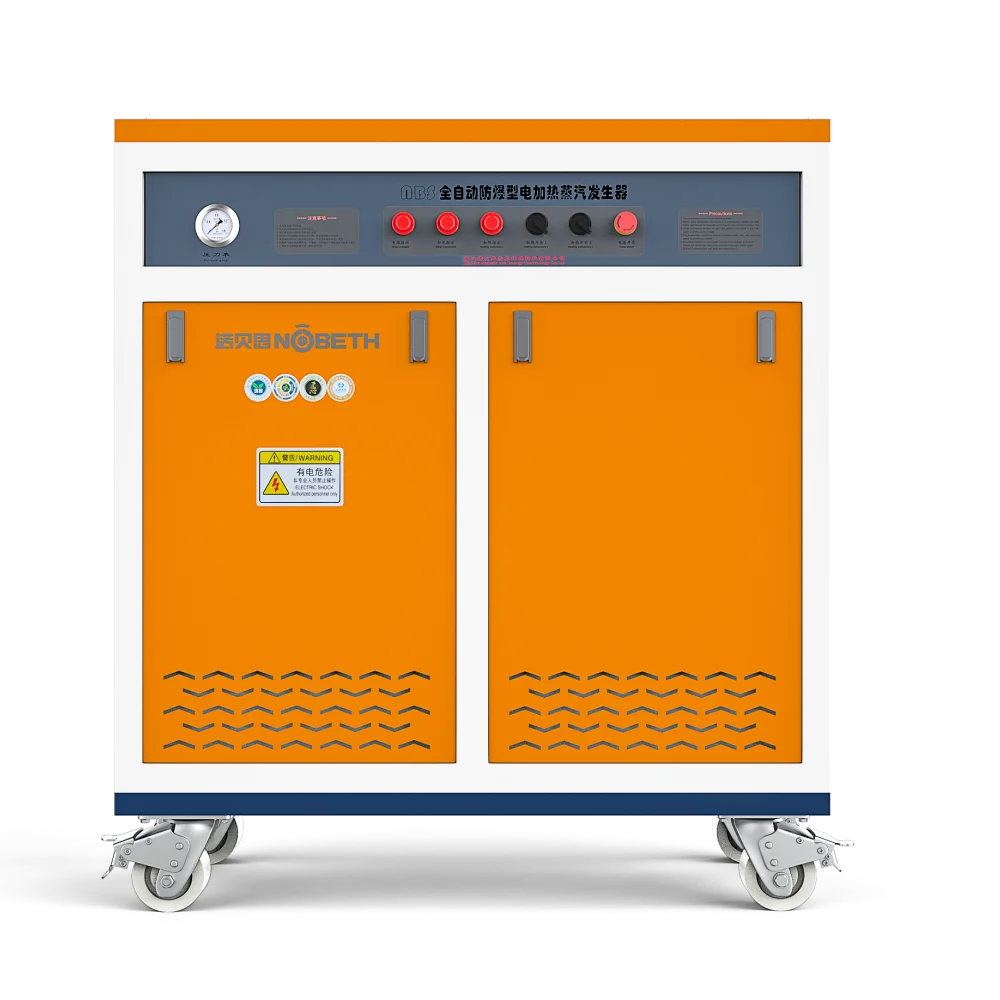

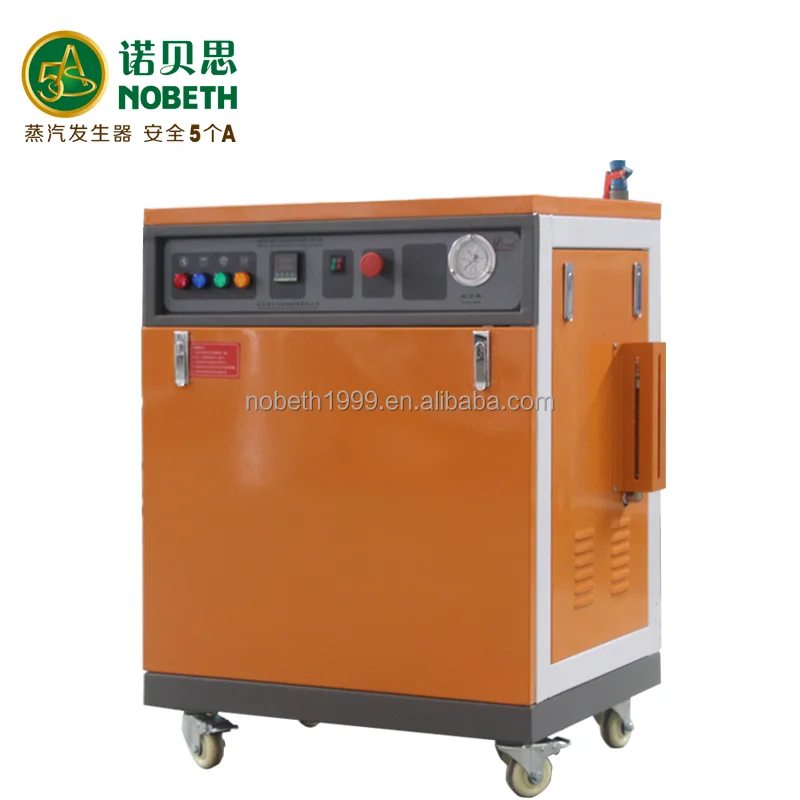

720KW new type steam boiler industrial vertical Intelligent steam generator in 2023 electric heating steam generator for U.S.A
- Category: >>>
- Supplier: Wuhan Handa Technology CO. Ltd
Share on (1601001562923):
Product Overview
Description
Short Description:
Nobeth-AH electric heating steam generator is controlled by all-copper float level controller. No special requirement of water
quality, pure water can be used.There is no water in produced steam.Multiple sets of seamless stainless steel heating pipes are
used, and the power can be adjusted according to needs. The adjustable pressure controller and safety valve can be double
guaranteed.It can be made into 316L stainless steel according to needs.
Brand: Nobeth
Manufacturing Level: B
Power Source: Electric
Material: Mild Steel
Power: 6-720KW
Rated Steam Production: 8-1000kg/h
Rated Working Pressure: 0.7MPa
Saturated Steam Temperature: 339.8℉
Automation Grade: Automatic
quality, pure water can be used.There is no water in produced steam.Multiple sets of seamless stainless steel heating pipes are
used, and the power can be adjusted according to needs. The adjustable pressure controller and safety valve can be double
guaranteed.It can be made into 316L stainless steel according to needs.
Brand: Nobeth
Manufacturing Level: B
Power Source: Electric
Material: Mild Steel
Power: 6-720KW
Rated Steam Production: 8-1000kg/h
Rated Working Pressure: 0.7MPa
Saturated Steam Temperature: 339.8℉
Automation Grade: Automatic
Model | Power (KW) | Voltage(V) | Steam Capacity (KG/H) | Steam pressure (Mpa) | Steam Temperature | Size(mm) |
NBS-AM-6KW | 6 KW | 220/380V | 8 | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-9KW | 9 KW | 220/380V | 12 | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-12KW | 12 KW | 220/380V | 16 | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-18KW | 18 KW | 380V | 24 | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-24KW | 24 KW | 380V | 32 | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-36KW | 36 KW | 380V | 50 | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-48KW | 48 KW | 380V | 65 | 0.7Mpa | 339.8℉ | 900*720-1000 |
NBS-AS-54KW | 54 KW | 380V | 75 | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AS-60KW | 60 KW | 380V | 83 | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AS-72KW | 72 KW | 380V | 100 | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AS-90KW | 90 KW | 380V | 125 | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AN-108KW | 108 KW | 380V | 150 | 0.7Mpa | 339.8℉ | 1460*860*1870 |
NBS-AN-120KW | 120 KW | 380V | 166 | 0.7Mpa | 339.8℉ | 1160*750*1500 |
NBS-AN-150KW | 150 KW | 380V | 208 | 0.7Mpa | 339.8℉ | 1460*880*1800 |
NBS-AH-180KW | 180 KW | 380V | 250 | 0.7Mpa | 339.8℉ | 1460*840*1450 |
NBS-AH-216KW | 216 KW | 380V | 300 | 0.7Mpa | 339.8℉ | 1560*850*2150 |
NBS-AH-360KW | 360 KW | 380V | 500 | 0.7Mpa | 339.8℉ | 1950*1270*2350 |
NBS-AH-720KW | 720 KW | 380V | 1000 | 0.7Mpa | 339.8℉ | 3200*2400*2100 |

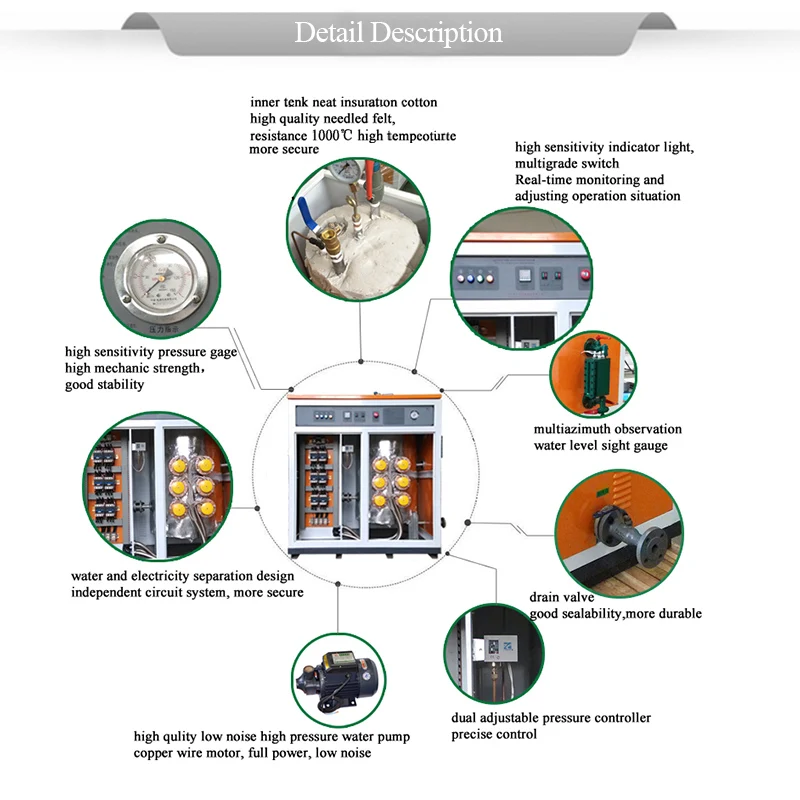

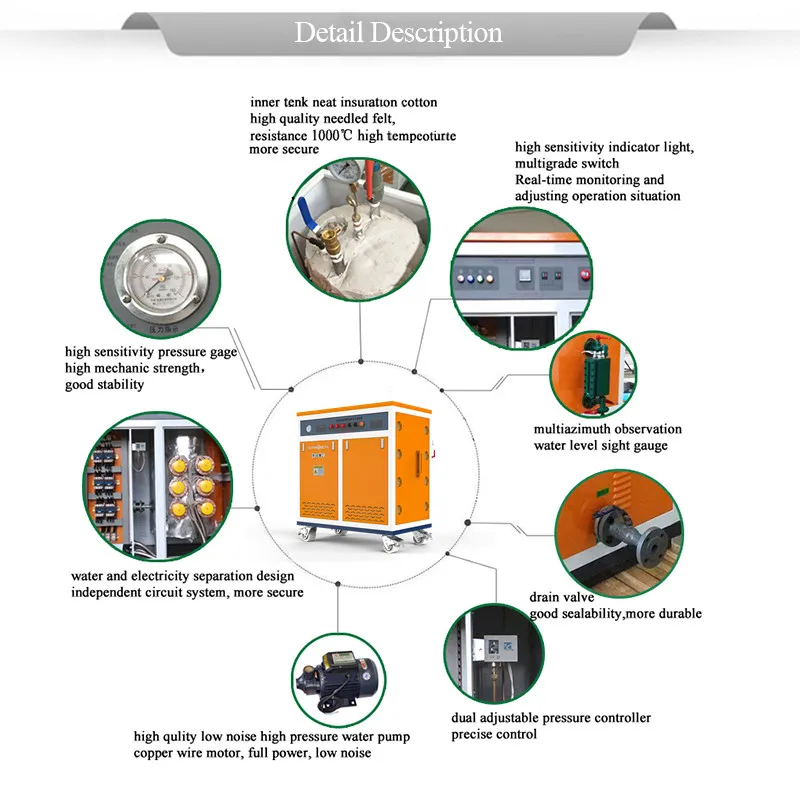

Structure Diagram
