1000L Flash Pasteurization equipment 2023 UTH Plate Sterilizer Price
- Category: >>>
- Supplier: Antler Automation Equipment (suzhou) Co. Ltd.
Share on (1601001574914):
Product Overview
Description
Product Description

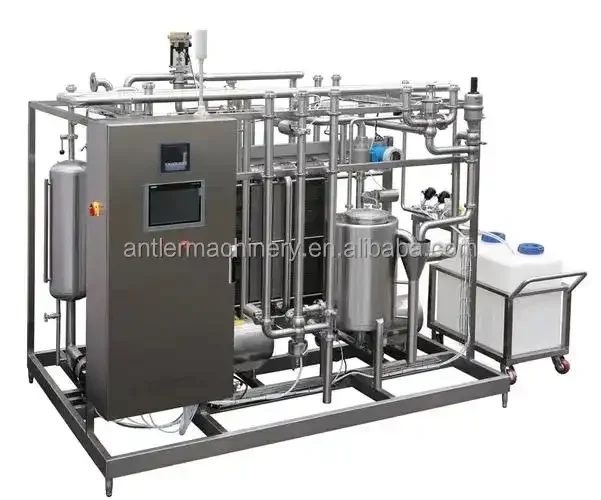

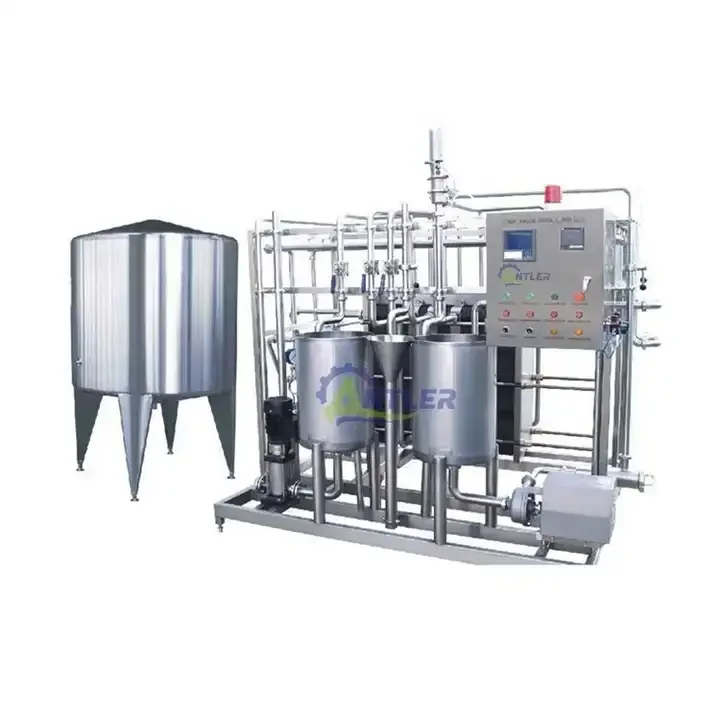

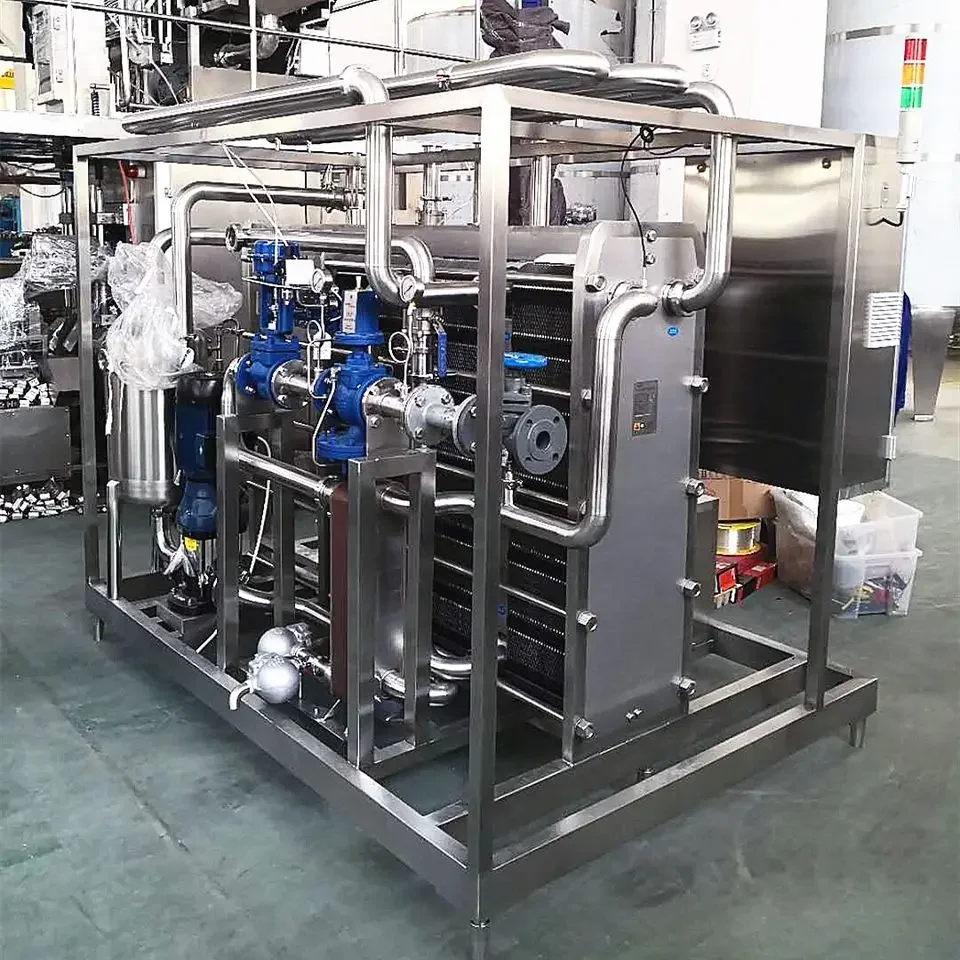

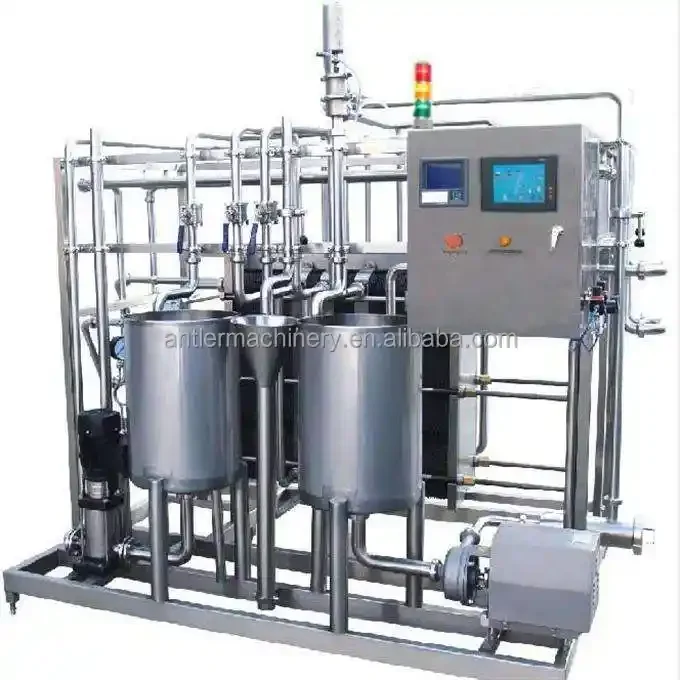

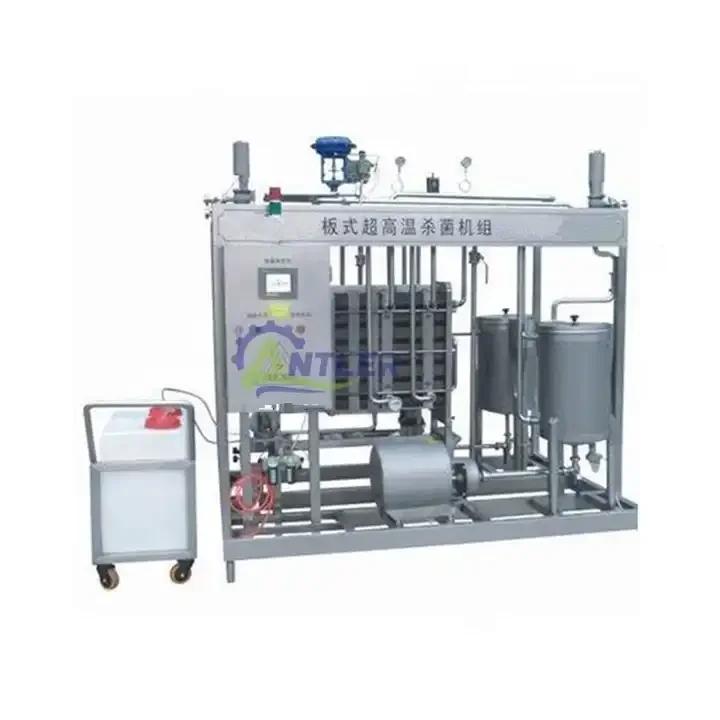

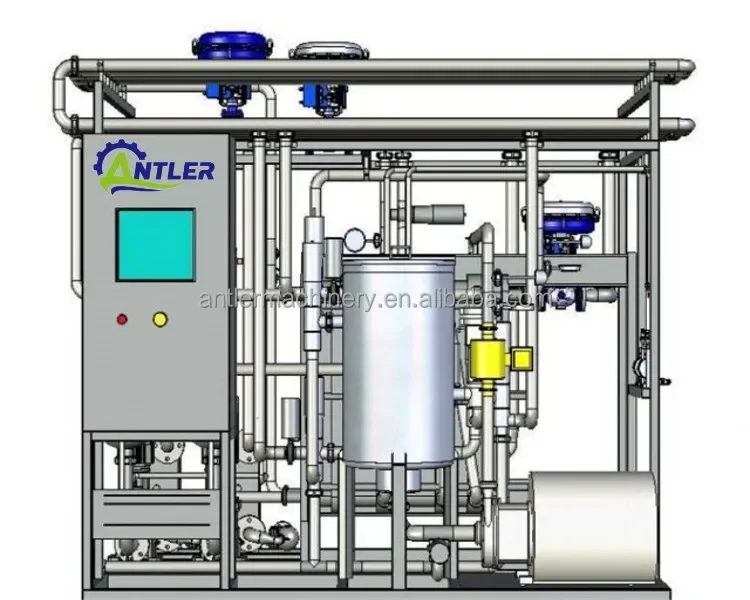

The UHT plate sterilizer is designed for continuous sterilization for milk, fruit juice, soy milk, tea drinks and similar
products. If it is linked with aseptic filling equipment, it can be used for production of products with a shelf life of 3 to 5

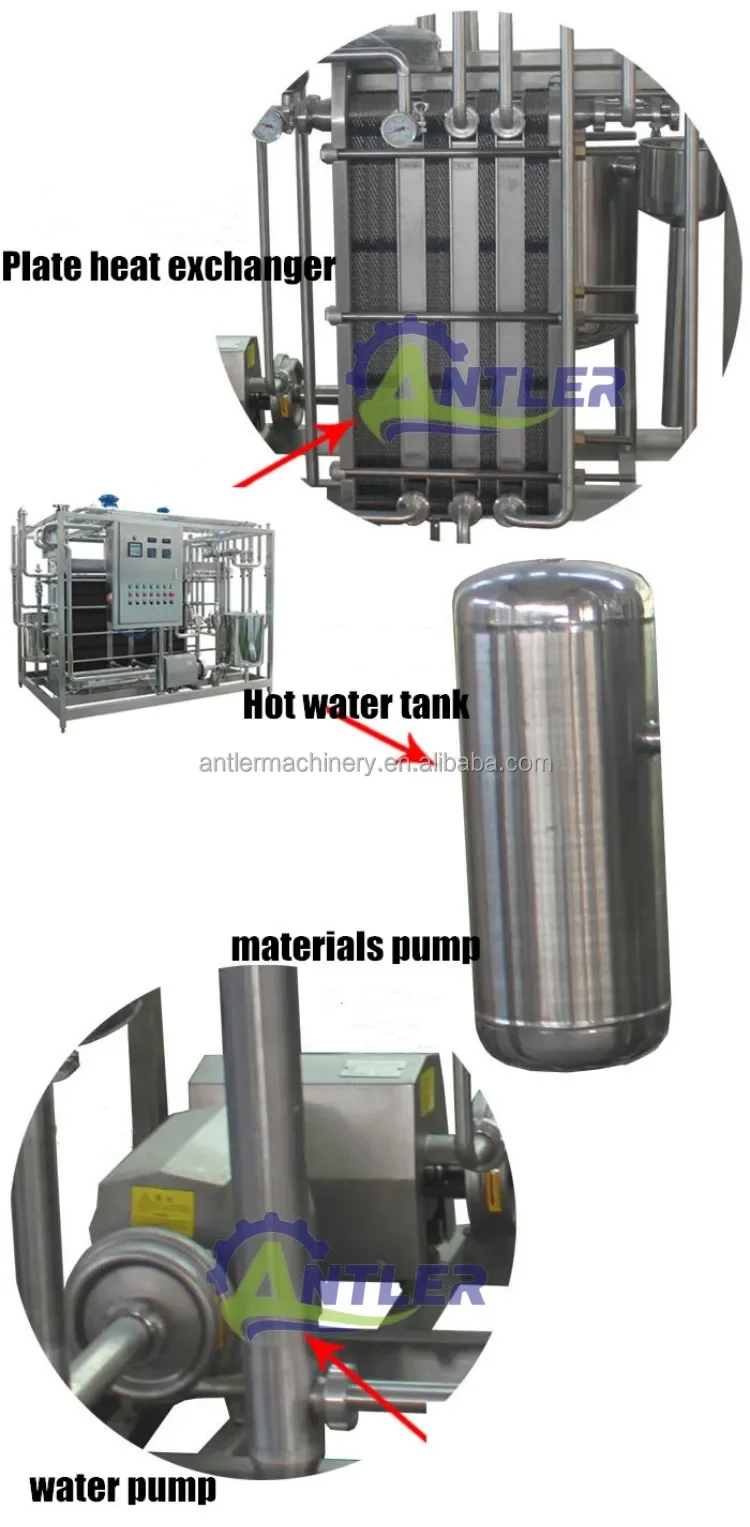

months. It can also be connected with machines such as separator, degasser and flash vaporizer. The output of this sterilizer is mainly regulated by the flow controller in the feed system. Since materials are both heated and cooled in the heat recovery section of the plate heat exchanger, the heat recovery rate can reach above 90%.
This sterilizer can automatically control heating and sterilizing temperature of materials, and can record temperature on a
continuous basis. Unqualified material will be re-processed in this sterilizer before they are discharged.

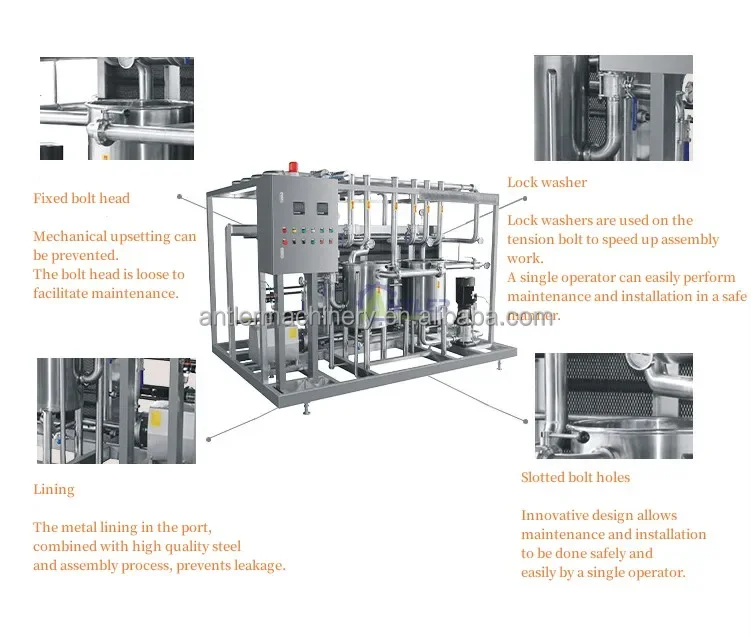

This sterilizer has many advantages, such as high heat exchange efficiency, stable and reliable operation, being easy to
operate,clean and maintain, long service life, compact structure, and small floor space.
products. If it is linked with aseptic filling equipment, it can be used for production of products with a shelf life of 3 to 5
months. It can also be connected with machines such as separator, degasser and flash vaporizer. The output of this sterilizer is mainly regulated by the flow controller in the feed system. Since materials are both heated and cooled in the heat recovery section of the plate heat exchanger, the heat recovery rate can reach above 90%.
This sterilizer can automatically control heating and sterilizing temperature of materials, and can record temperature on a
continuous basis. Unqualified material will be re-processed in this sterilizer before they are discharged.
This sterilizer has many advantages, such as high heat exchange efficiency, stable and reliable operation, being easy to
operate,clean and maintain, long service life, compact structure, and small floor space.
Model | Capacity | Heat exchange area | Power | Steam consumption | Dimension | Weight |
ATL-S500 | 500L/H | 5m2 | 5.2KW | 50KG/H | 1200X1200X1500MM | 700 KG |
ATL-S1000 | 1000L/H | 8m2 | 6KW | 65KG/H | 1500X1400X1700MM | 850 KG |
ATL-S2000 | 2000L/H | 13m2 | 6KW | 105KG/H | 2000X1800X1800MM | 920 KG |
ATL-S3000 | 3000L/H | 20m2 | 7.5KW | 155KG/H | 2200X2000X2000MM | 1050 KG |
ATL-S4000 | 4000L/H | 30m2 | 8KW | 260KG/H | 2250X2000X2200MM | 1140 KG |
ATL-S5000 | 5000L/H | 45m2 | 8KW | 300KG/H | 2250X2000X2200MM | 1250 KG |
ATL-S10000 | 10000L/H | 60m2 | 11KW | 520KG/H | 2800X2000X2200MM | 1400 KG |
Pasteurization is primarily used to make products safe to eat or drink, increase shelf life and to reduce spoilage.
However, it can also be used to alter the properties of the end product. For example, pasteurization of yogurt milk the proteins, enabling the yogurt culture to grow and making the product both more viscous and more stable.
Given the huge variety of different applications and customer requirements, most of the pasteurization equipment we delivered is customized to meet individual customer needs.
Given the huge variety of different applications and customer requirements, most of the pasteurization equipment we delivered is customized to meet individual customer needs.
1.Capacity: 0.5-10T/H
2. Heating Type: steam heating/electric heating
3.Control: automatic
4. The materials and heating medium are heated by non-contact heat exchange in their own systems to ensure the hygiene and safety of materials.
5. Short sterilization time ensure the nutrient content of the material is not damaged. Good heat transfer effect, high heat recovery and less energy consumption.

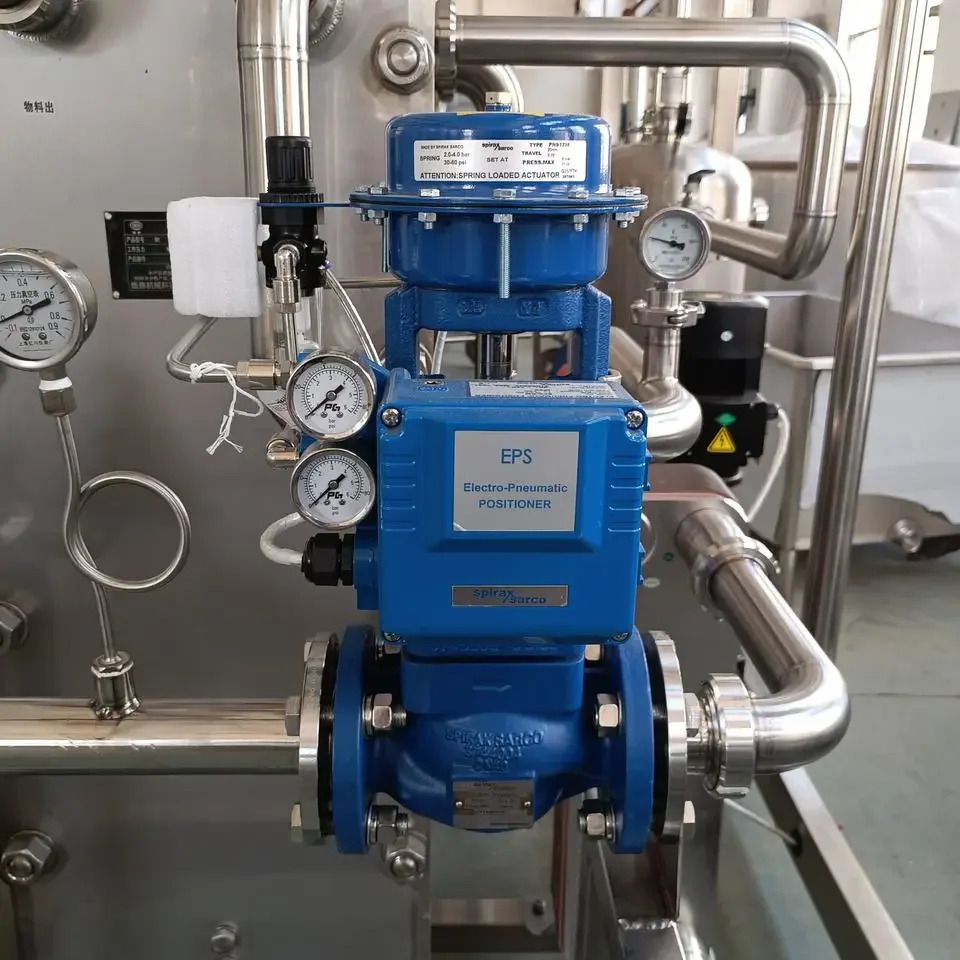

6. PLC control, heating temperature and steam flow regulation of each section of the material can be controlled automatically.
2. Heating Type: steam heating/electric heating
3.Control: automatic
4. The materials and heating medium are heated by non-contact heat exchange in their own systems to ensure the hygiene and safety of materials.
5. Short sterilization time ensure the nutrient content of the material is not damaged. Good heat transfer effect, high heat recovery and less energy consumption.
6. PLC control, heating temperature and steam flow regulation of each section of the material can be controlled automatically.
Specification
item | value |
Applicable Industries | Food & Beverage Factory, Food & Beverage Shops |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 2 years |
Core Components | PLC, Bearing, Pump |
Condition | New |
Place of Origin | China |
Brand Name | ANTLER |
Voltage | 380V/220V |
Power | 7000 |
Weight | 490KG |
Dimension(L*W*H) | 2200X1250X1700MM |
Warranty | 2 years |
Key Selling Points | High-accuracy |
Product name | Plate type sterilizing machine |
Application | Liquid Foods |
Function | High Tempareture Sterilization |
Material | Stainless Steel 304 |
Capacity | 500-1000L/H |
Sterilizing Type | Electric Steam |
MOQ | 1 Set |
Feature | Low Energy High Efficiency |
Recommend Products
Automatic tubular sterilization machine
Tube-in-tube sterilization machine
Experimental tube sterilization machine
Autoclave retort sterilizer
Certifications
Packing & Delivery
Company Profile
Antler Automation Equipment (Suzhou) Co., Ltd. focus on innovative food and beverage process technology and mechanical manufacture technology, from standard plant systems to customized solutions, designed to meet optimum hygiene and quality standards, while operating efficiently and sustainably. As a true producer and partner of clients and relations who are professionally involved in food and beverages project and who rely on continuous precision and high services for project design, equipment manufacturing and commissioning, and also staff training .Our technical expertise is complemented by project management, planning and cost control services to help our customers achieve flexible and cost-effective food production.
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer of food & beverages processing machine.
2. What's the price of your machines?
Please contact us for further communication, we shall make you an offer.
3. What is the payment terms?
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, 100L/C at sight before shipment.
4. What is the supply scope?
We can provide you with turnkey project for complete dairy,fruit and vegetables processing machine.
Along with project design and basic formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your
factory size. We can design the layout according to your factory size.
6. What's your Warranty time?
Our warranty is 2 years after delivery.
We are a professional manufacturer of food & beverages processing machine.
2. What's the price of your machines?
Please contact us for further communication, we shall make you an offer.
3. What is the payment terms?
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, 100L/C at sight before shipment.
4. What is the supply scope?
We can provide you with turnkey project for complete dairy,fruit and vegetables processing machine.
Along with project design and basic formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your
factory size. We can design the layout according to your factory size.
6. What's your Warranty time?
Our warranty is 2 years after delivery.
