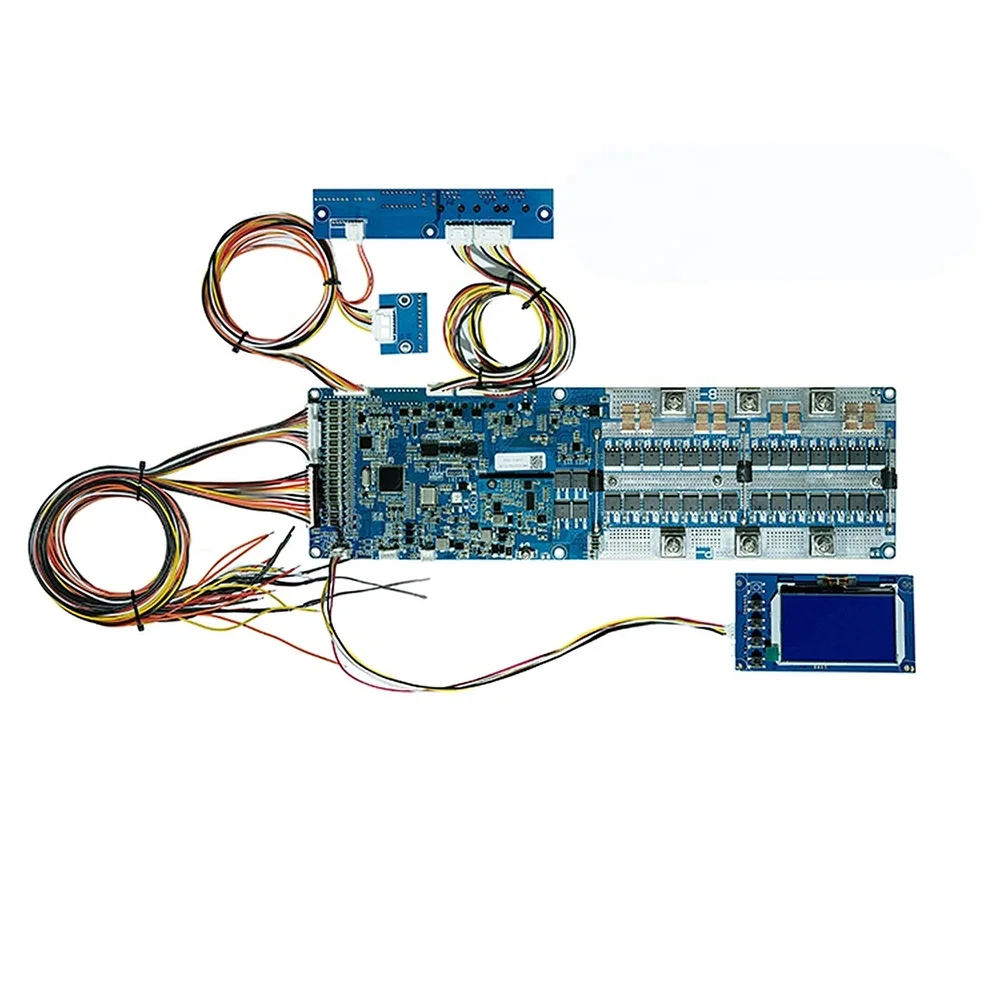

EU Deligreen Seplos lipo lifepo4 battery bms 16S 48V 50a 100a 150a 200a smart bms Blue tooth, RS485 anc CAN with hybrid inverter

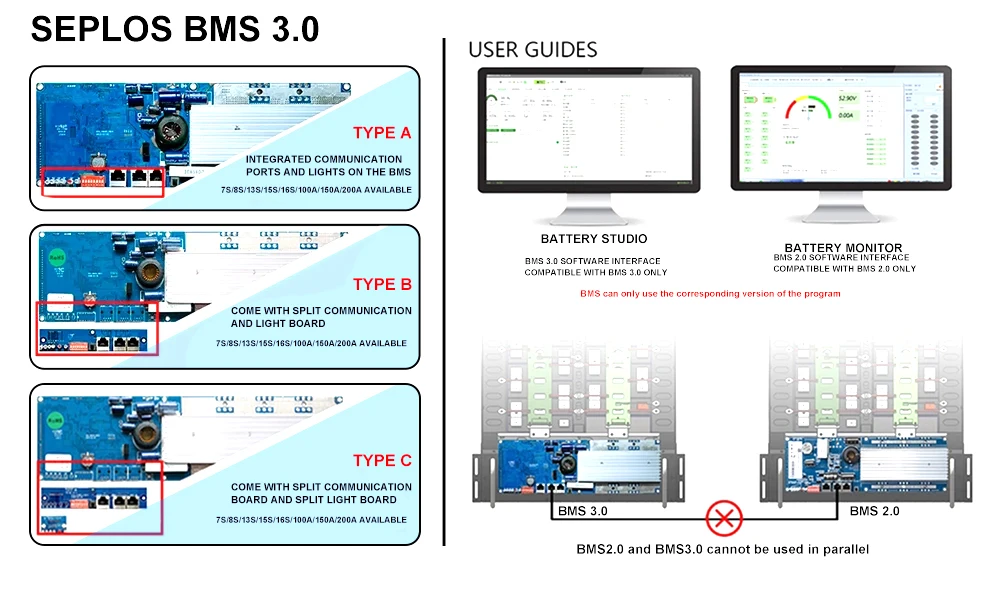

Seplos 3.0 Version BMS and 3.0 Version KITS are both available now.





EU STOCK:
105AH/280AH/300AH lifepo4 battery cells
12V 100ah lifepo4 battery pack
LTO cells
BMS
48V 280ah/300ah kits , 3.0 version kits




EU Deligreen Seplos lipo lifepo4 battery bms 16S 48V 50a 100a 150a 200a smart bms Blue tooth, RS485 anc CAN with hybrid inverte

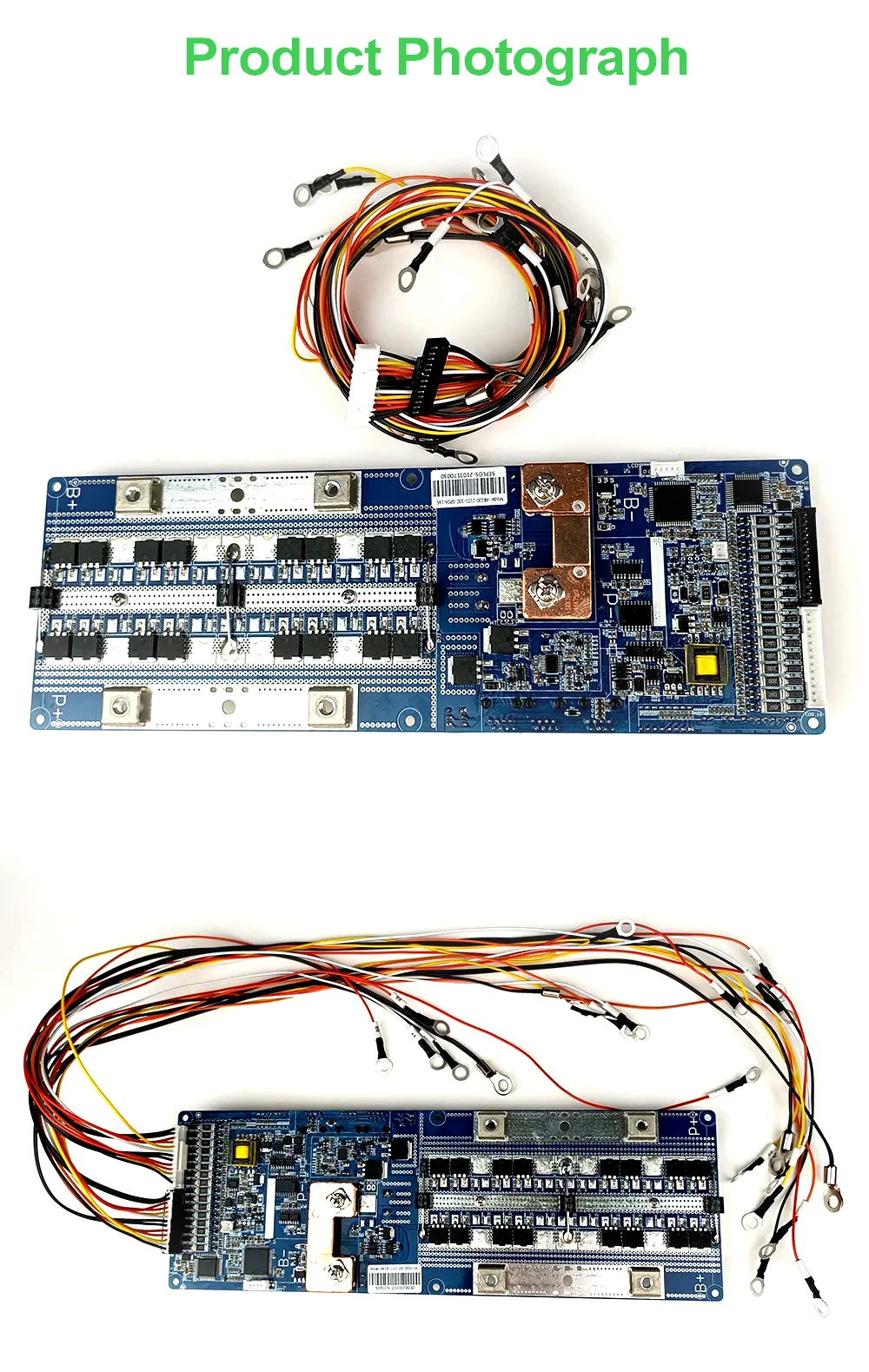

1. We can provide seplos CANBUS/RS485 24V/48V 50A/100A/150A/200A Lifepo4/NCM BMS,for prismatic or Cylindrical lithium battery pack
2.We can provide two kinds of BMS boards with different communication modes, one is BMS using CANBUS communication protocol and the other is BMS using RS485 communication protocol, so that customers can have more flexible choices
3.Our BMS can support up to 16 units in parallel operation.

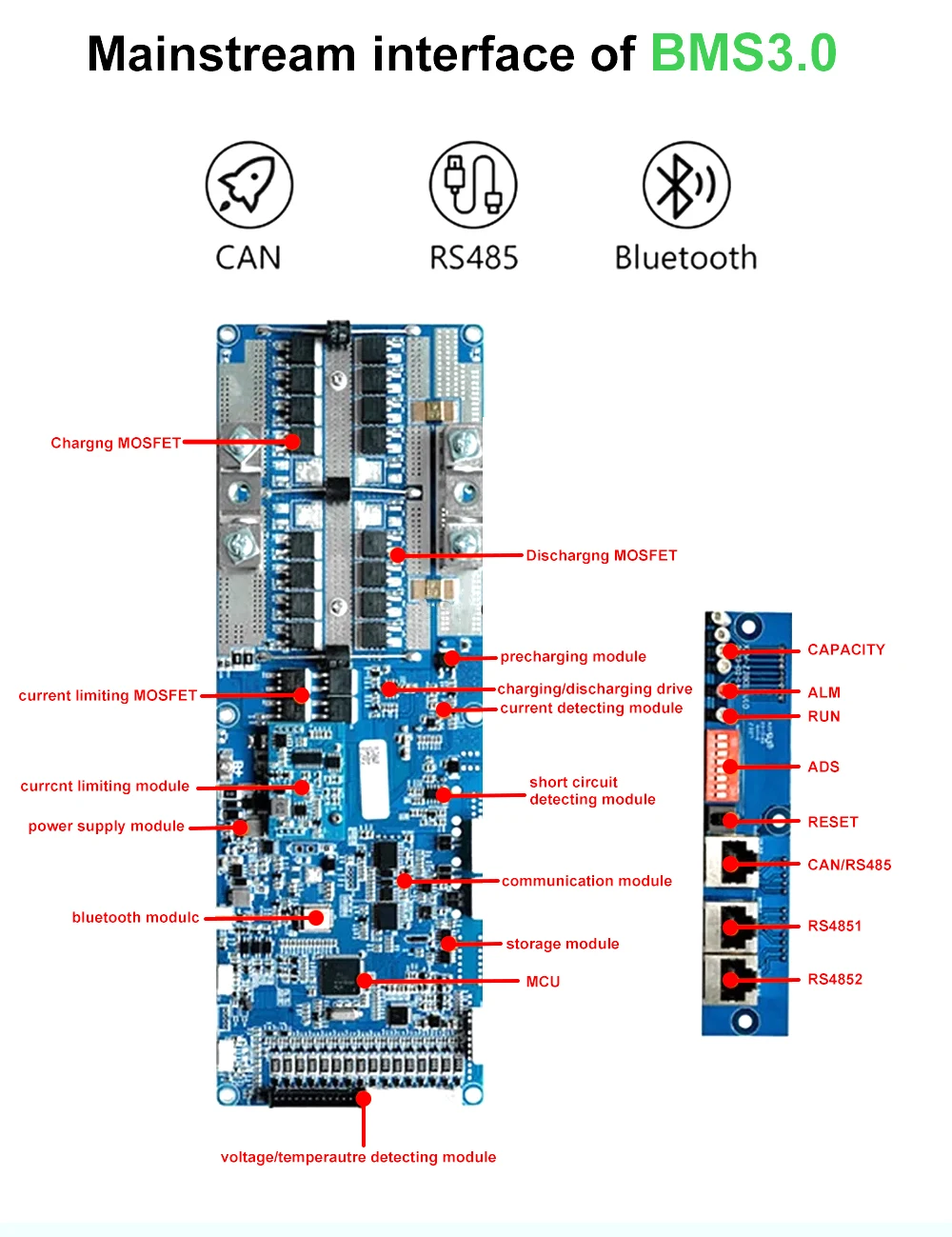

4.The main functions are: CANBUS communication、RS485 communication、Passive balance、Individual cell over voltage protection、Over（under）voltage protection、temperature protect、over charge（discharge） protection, over current protection, Short circuit protection etc.

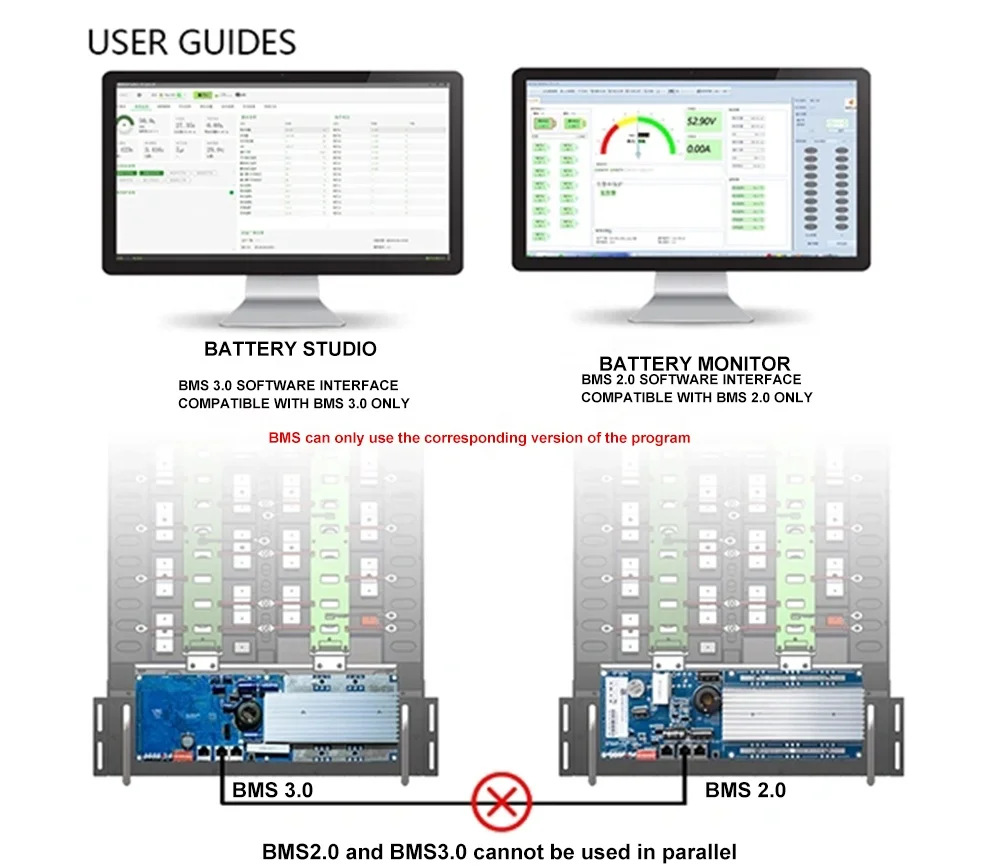

Attention: when we want to view the battery pack parameters through the battery parameter monitoring software, we need to use the Rj45 to USB Adapter to connect the battery pack to the computer.

We recommend that you purchase an Rj45 to USB Adapter fromus.
Adapters purchased from the market may not work properly due to the definition of the hardware

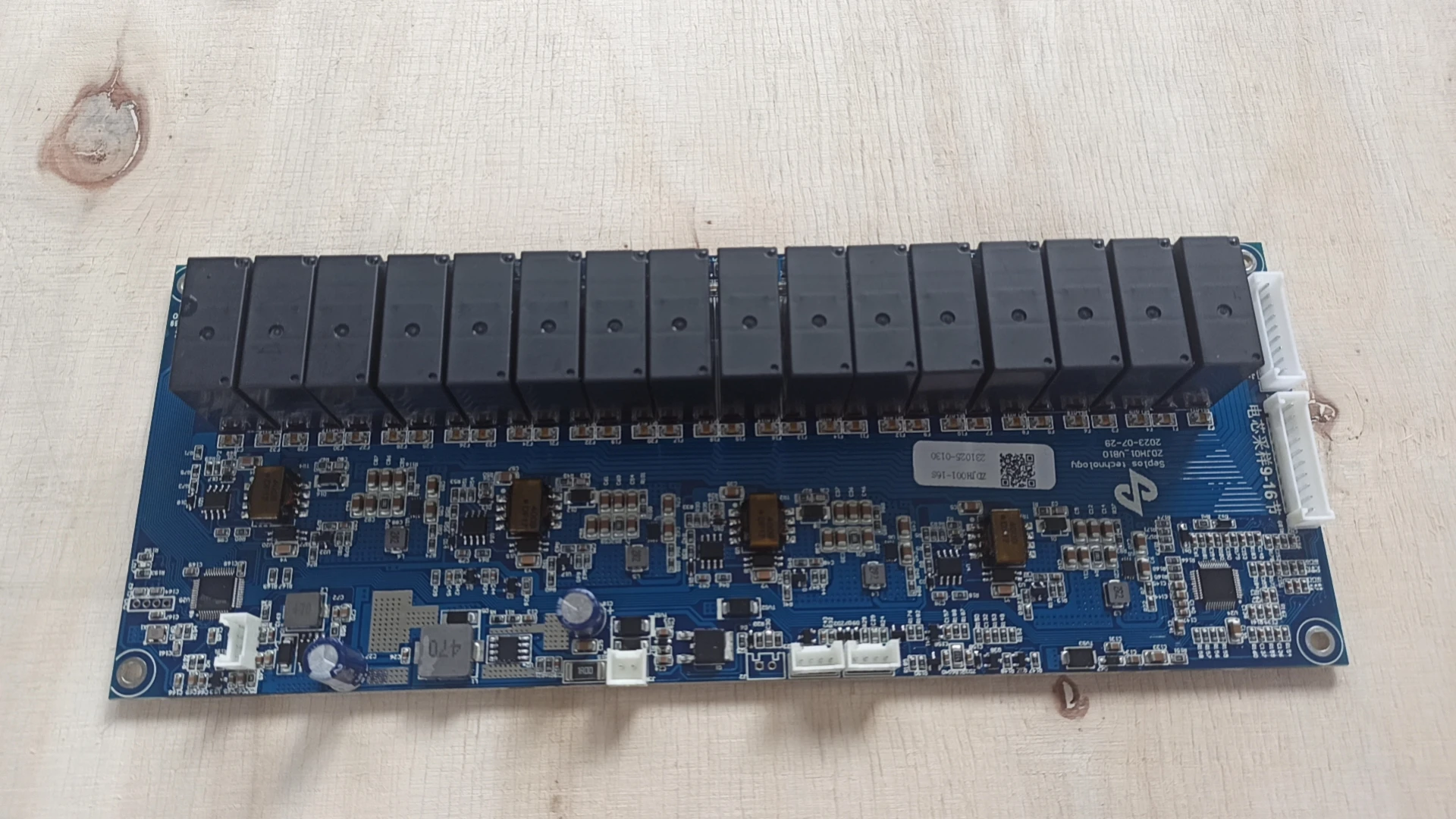

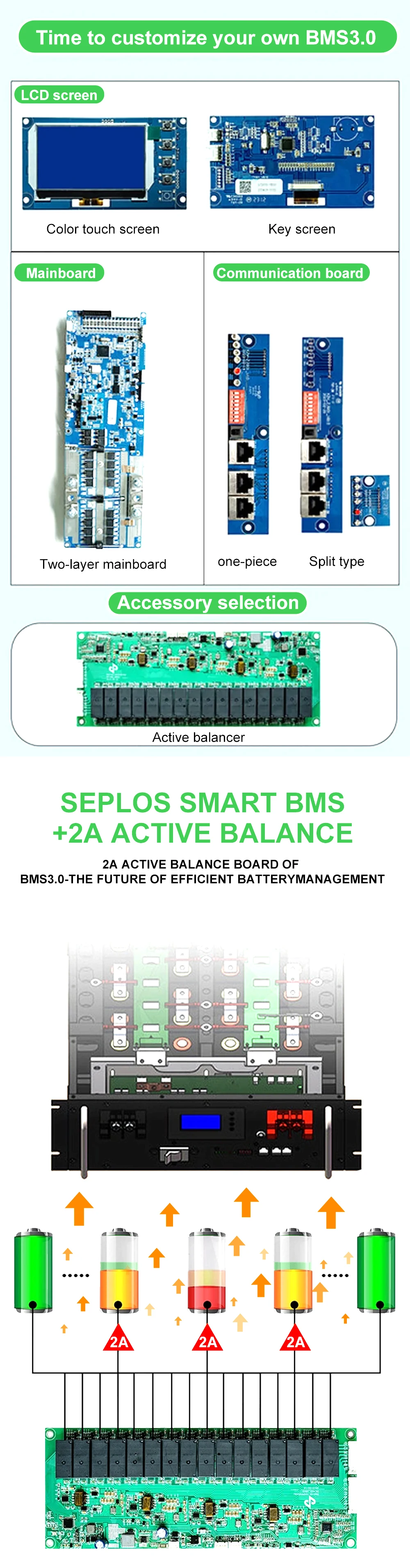

Factory direct wholes sale new bms seplos BMS 3.0 16S 48V 200A with 2A active balancer seplos battery case

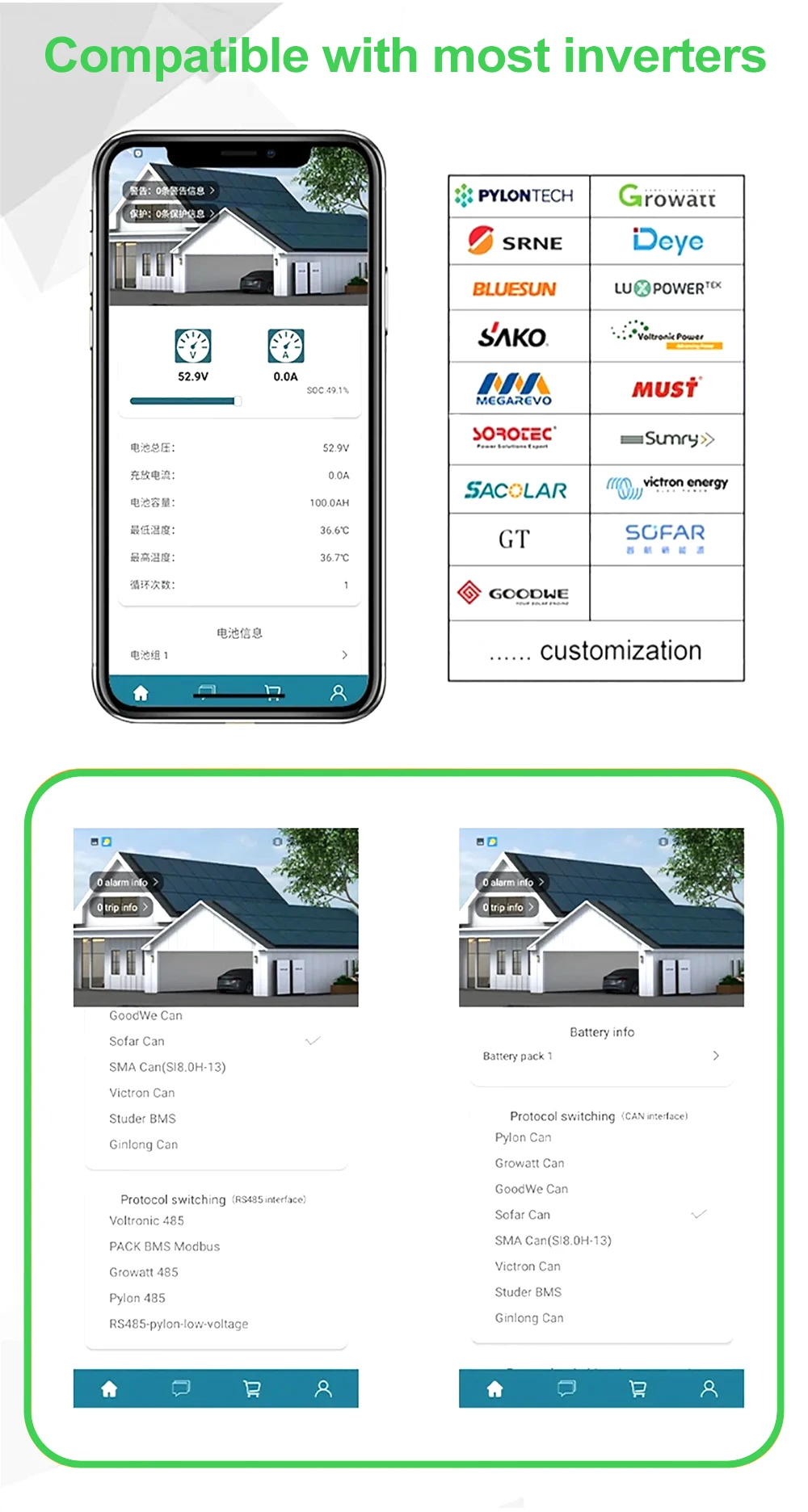

Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:

Now our RS485 communication board supports these brands of inverters,The BMS with RS485 communication has a built-in RS485 protocol, please confirm with the salesman before buying what you need is that one RS485 protocol.

If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help
confirm that.




Battery type and serial number
LFP(16S/15S)
NCM(14S/13S)
Continuously charging/discharging current
50A
100A
150A
200A
50A
100A
150A
200A
Communication protocol
CANBUS（defult） RS485(Please contact Sale man)
Custom function
Heating function、External switch、RS485 protocol
Discharge Output Impedance
<2mΩ
Working Temperture
-20℃-70℃
compensating impedance
10mΩ
Pre-charging
0-3000ms
Current Balance
Passive balance
150mA(Max)


Power consumption
Working mode power consumption


<40mA
Sleeping mode power consumption


0uA


Capacity protection
Nominal capacity
5-500Ah
Remaining capacity protection


5%


Short Circuit protection
Short circuit protection lock
Continuously short in the output circuit
Short circuit protection lock times
5 times
Short circuit protection lock release
Connected with charger

Individual cell voltage protection
Over voltage protection
3650mV
4200mV
Under voltage protection
2700mV
2900mV


Voltage protection
Over voltage protection
57.6V
58V
Under voltage protection
41.6V
40.6V
Current protection
Over current protection
60A
110A
160A
210A
60A
110A
160A
210A
Over current protection time delay


30mS
Current limiting(charging)


Passive current limiting


10A


Heating function
Start
0℃
Stop
10℃
