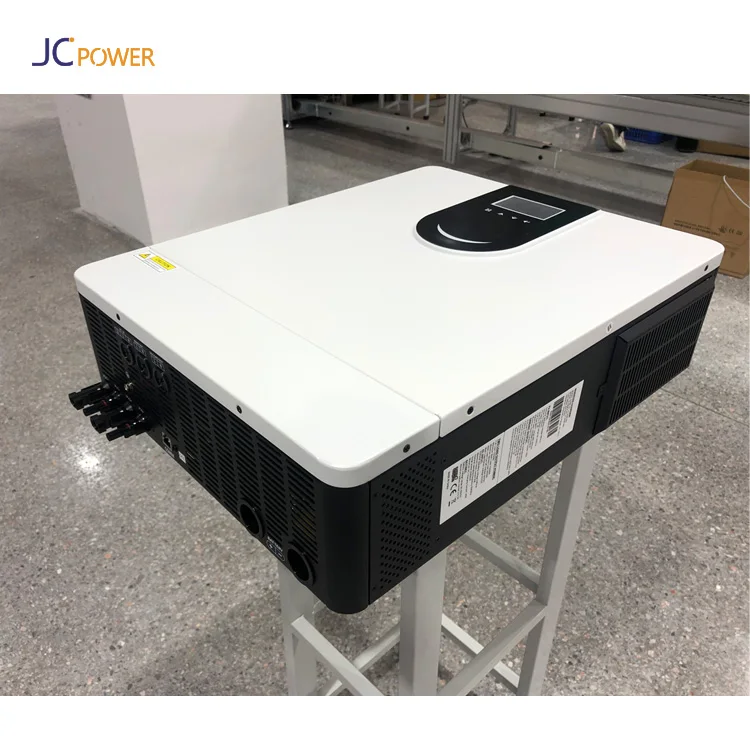

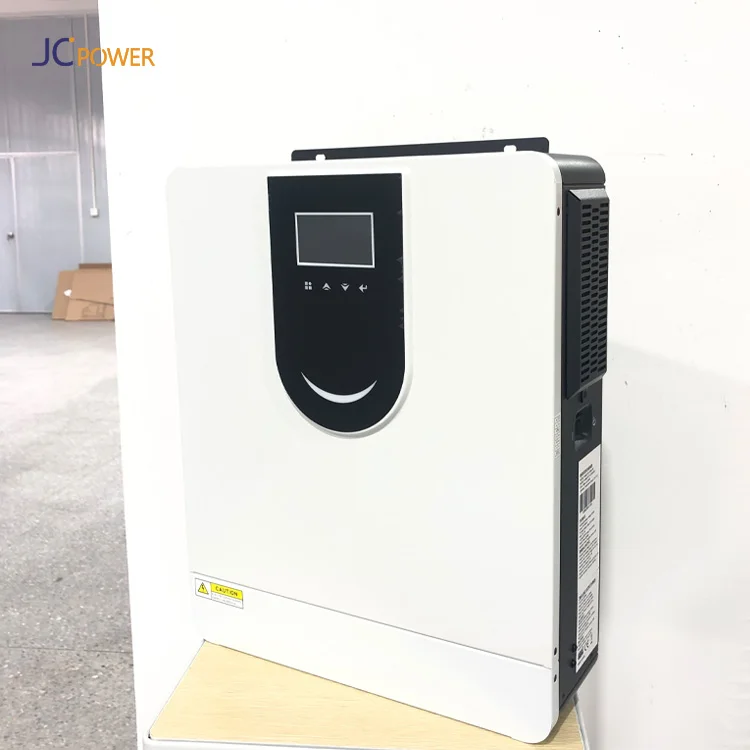

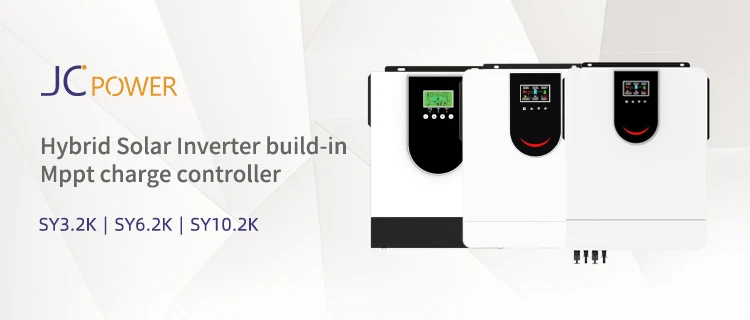

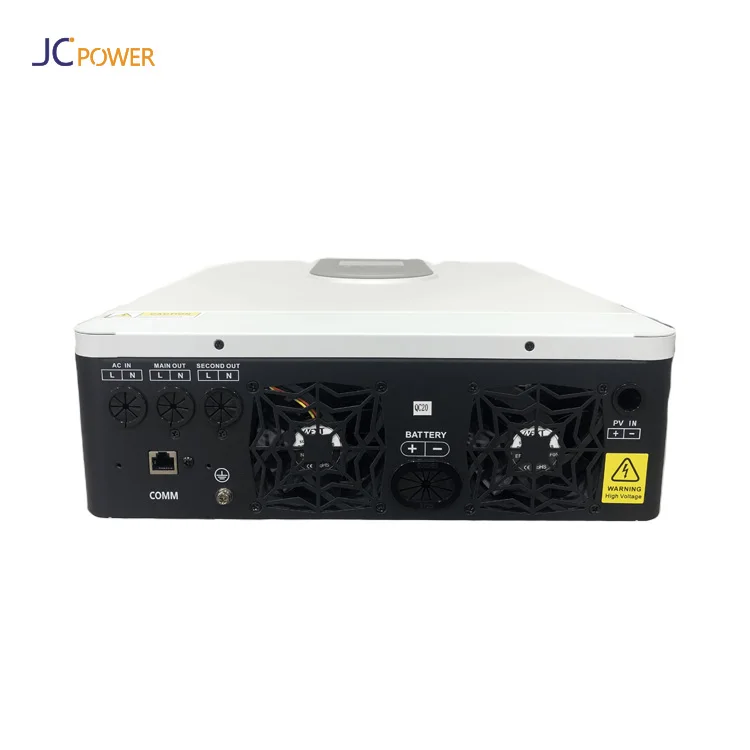

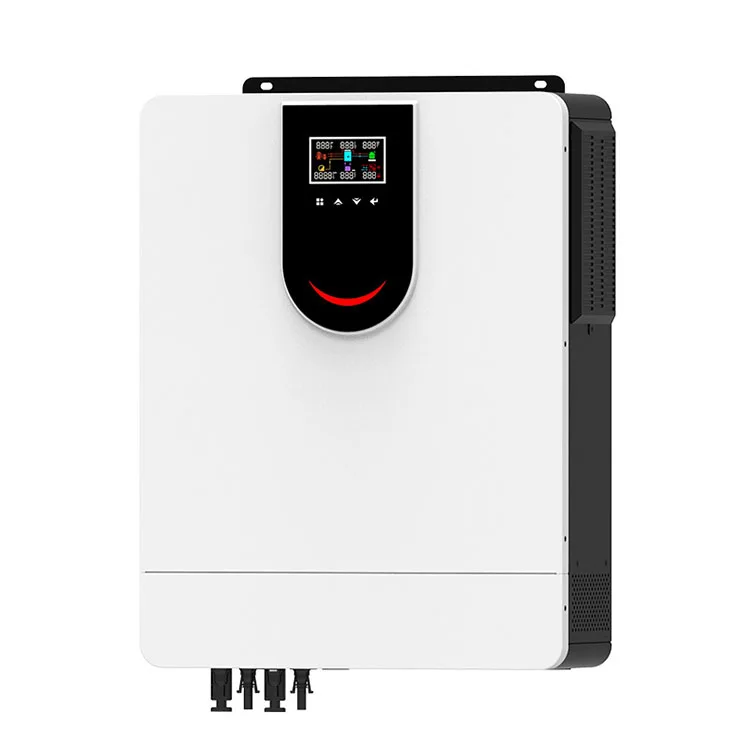

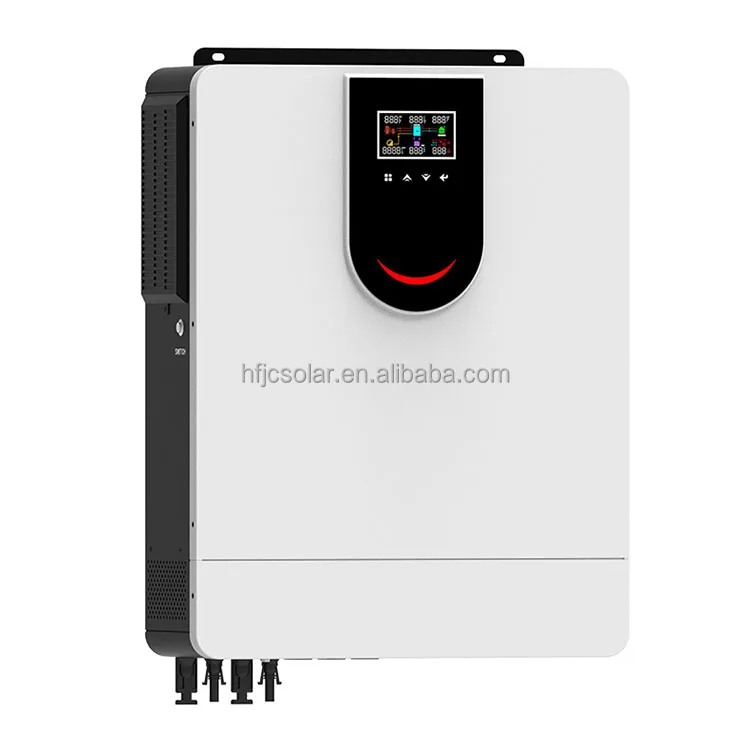

10000w Solar Power Inverter 10kw Hybrid Inverter
- Category: >>>
- Supplier: Hefei Jingchi New Energy Co. Ltd.
Share on (1601001620489):
Product Overview
Description
Products Description
PRODUCT CHARACTERISTICS

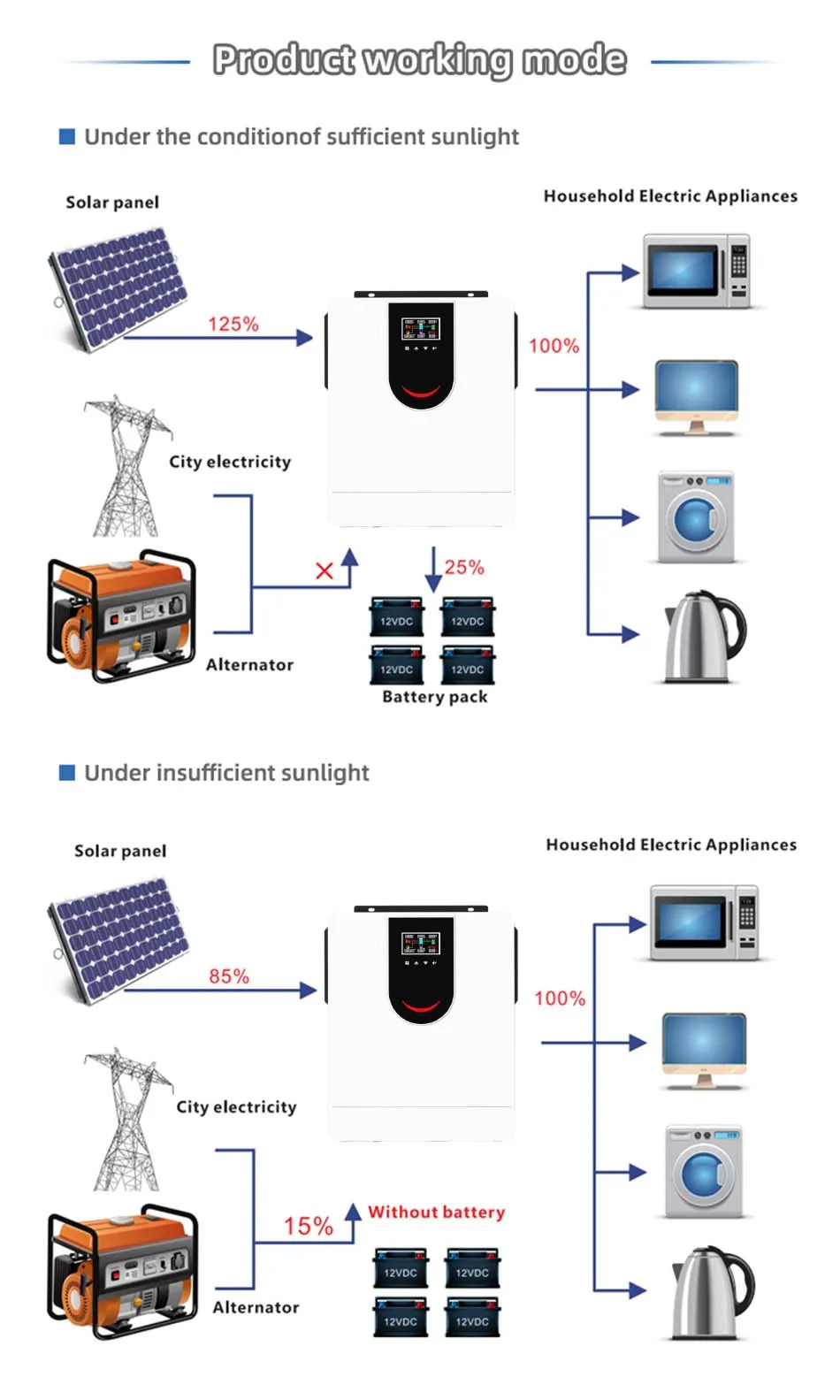

1. It supports two working modes: battery mode and no battery mode;

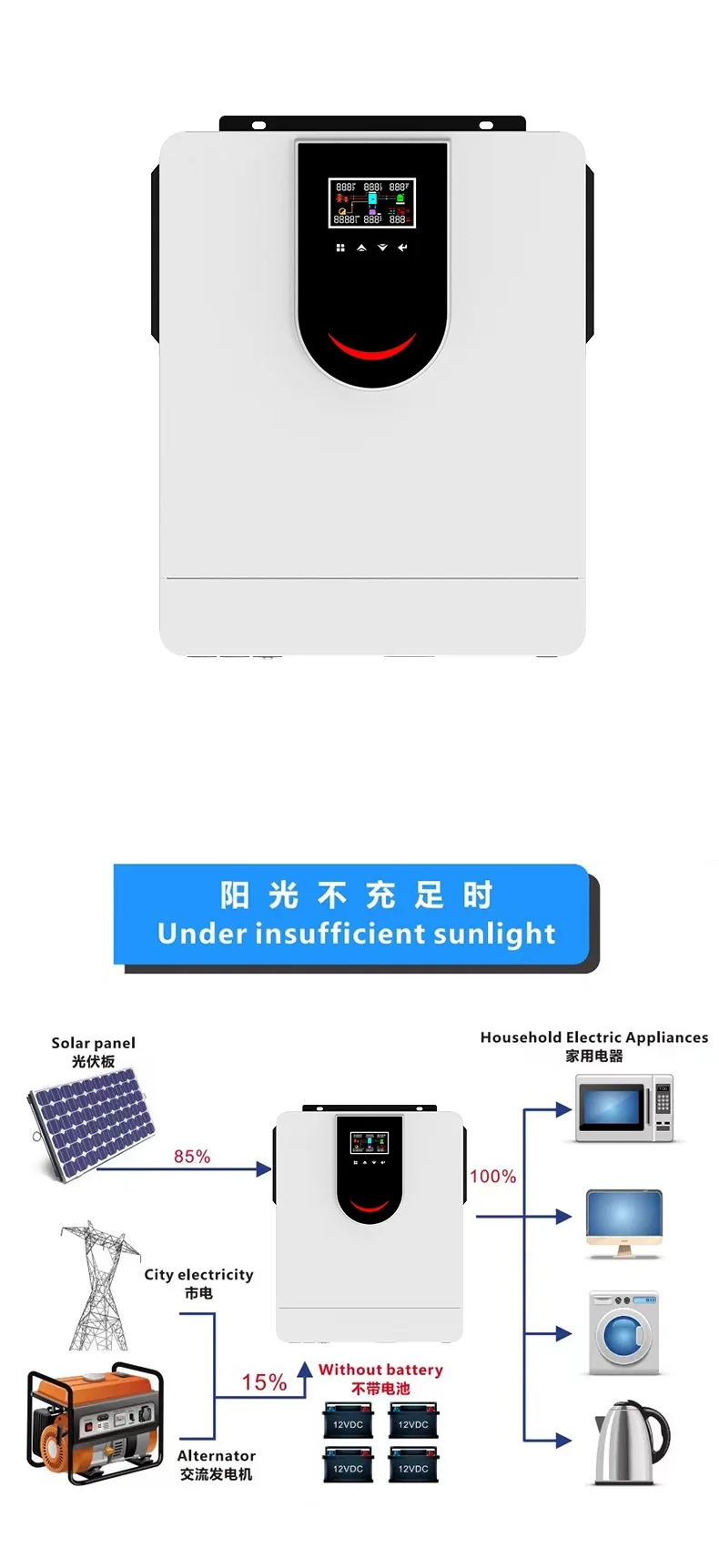

2. In the battery free mode, solar energy is preferred, and mains power is used as a supplement to supply power to the load;
3. With anti surge and anti reverse protection at the battery end, it perfectly matches the lithium battery application system;
4. Three charging modes are available: solar energy only, solar energy is preferred, and solar energy is complementary to mains power;
5. Two AC output modes are available: mains power priority and inverter priority
6. Efficient MPPT technology, with tracking efficiency no less than 97%;
7. PFC technology is used to realize high power factor AC-DC charging and reduce the occupation of power grid capacity;
8. SPWM technology, pure sine wave output;
9. The total charging and discharging limit current of the battery can be set, which is applicable to the battery with current limit
The occasion of making;
10. The mains charging current can be set, and the usage of mains charging can be flexibly configured according to the demand;
11. Self learning SOC display function;
12、Rich user setting interface, real-time monitoring system parameters;
13. Isolate RS485 communication interface, which can match GPRS, WIFI and other modules to achieve remote monitoring;
14. With lithium battery BMS Link communication interface, and optional BMS Lin k communication protocol conversion mode
Block to realize charging and discharging control based on BMS.
2. In the battery free mode, solar energy is preferred, and mains power is used as a supplement to supply power to the load;
3. With anti surge and anti reverse protection at the battery end, it perfectly matches the lithium battery application system;
4. Three charging modes are available: solar energy only, solar energy is preferred, and solar energy is complementary to mains power;
5. Two AC output modes are available: mains power priority and inverter priority
6. Efficient MPPT technology, with tracking efficiency no less than 97%;
7. PFC technology is used to realize high power factor AC-DC charging and reduce the occupation of power grid capacity;
8. SPWM technology, pure sine wave output;
9. The total charging and discharging limit current of the battery can be set, which is applicable to the battery with current limit
The occasion of making;
10. The mains charging current can be set, and the usage of mains charging can be flexibly configured according to the demand;
11. Self learning SOC display function;
12、Rich user setting interface, real-time monitoring system parameters;
13. Isolate RS485 communication interface, which can match GPRS, WIFI and other modules to achieve remote monitoring;
14. With lithium battery BMS Link communication interface, and optional BMS Lin k communication protocol conversion mode
Block to realize charging and discharging control based on BMS.
Product Details

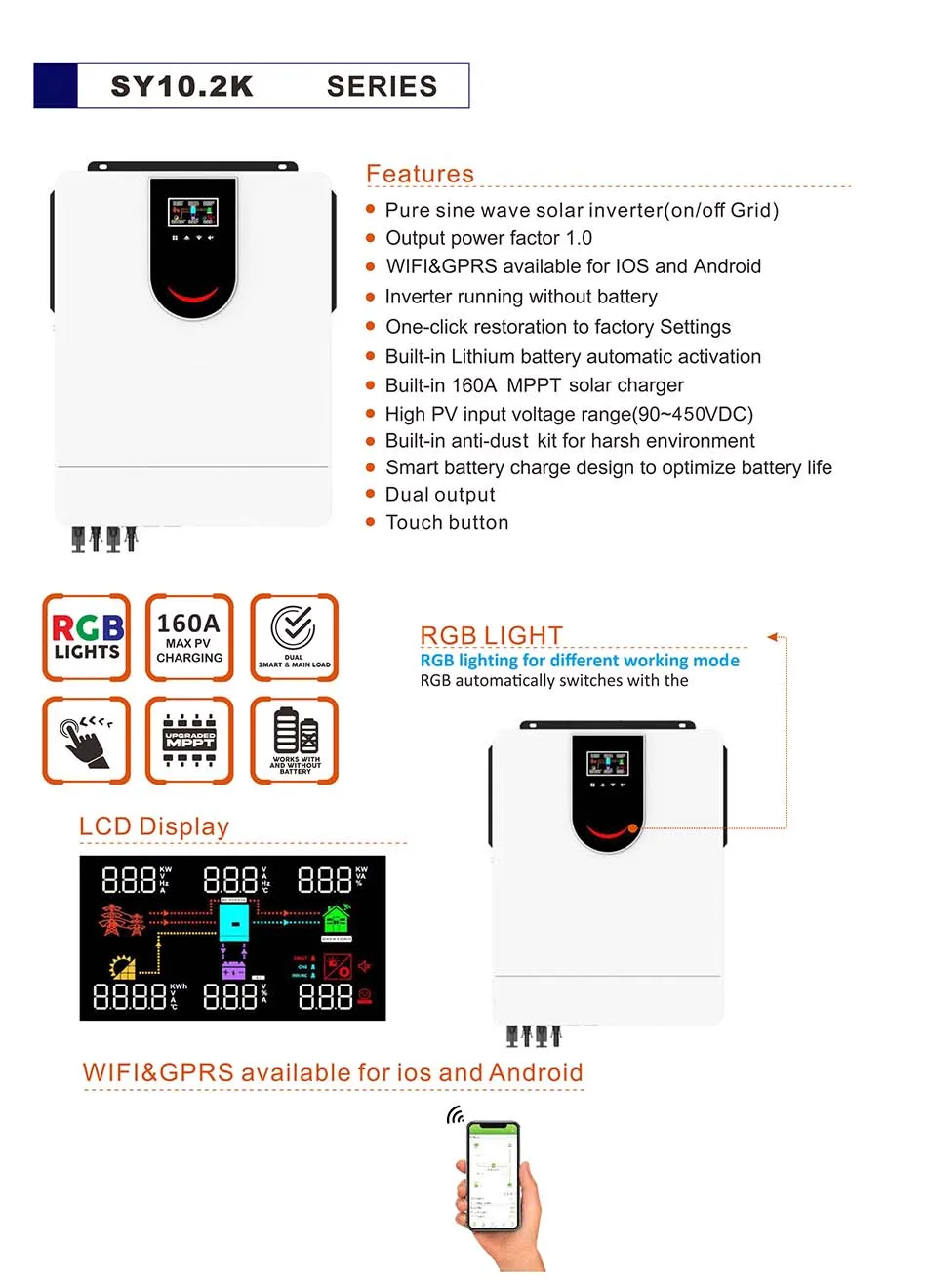

Model | SY2.0K | SY3.2K | SY-3.5K | SY-5.5K | SY-3.6K | SY-4.2K | SY-6.2K | SY-8.2K | SY-10.2K | |||||||||
Rate power | 1600va/2000w | 3200va/3000w | 3500va/3500w | 5500va/5500w | 3600va/3600w | 4200va/4200w | 6200va/6200w | 8200va/8200w | 10.2Va/10KW | |||||||||
AC INPUT | ||||||||||||||||||
Voltage | 230Vac | |||||||||||||||||
Selectable Voltage Range | 170-280Vac (For Personal Computers) 90-280Vac(For Home Appliances) | |||||||||||||||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |||||||||||||||||
AC OUTPUT | ||||||||||||||||||
AC Voltage Regulation | 230VAC15% | |||||||||||||||||
Surge Power | 4000Va | 6400Va | 7000Va | 11000Va | 7200Va | 8400Va | 12400Va | 16400W | 20400W | |||||||||
Efficiency(Peak)PV to INV | 98% | |||||||||||||||||
Efficiency(Peak)Battery to INV | 94% | |||||||||||||||||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||||||||||||||||
BATTERY & AC CHARGER | ||||||||||||||||||
Battery Voltage | 12V | 24V | 48V | |||||||||||||||
Floating Charge Voltage | 13.5V | 27V | 54V | |||||||||||||||
Overcharge Protection | 16V | 33V | 63V | |||||||||||||||
SOLAR CHARGER | ||||||||||||||||||
Maximum PV Array Power | 2000W | 3000W | 5000W | 6000W | 6200W | 6200W | 6500W | 8200W | 10200W | |||||||||
MPPT Range @ Operating Voltage | 90~430VDC | |||||||||||||||||
Maximum PV Array Open Circuit | 450VDC | |||||||||||||||||
Maximum Charging Current | 80A | 80A | 80A | 80A | 120A | 140A | 120A | 160A | 180A | |||||||||
JC Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and
cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!

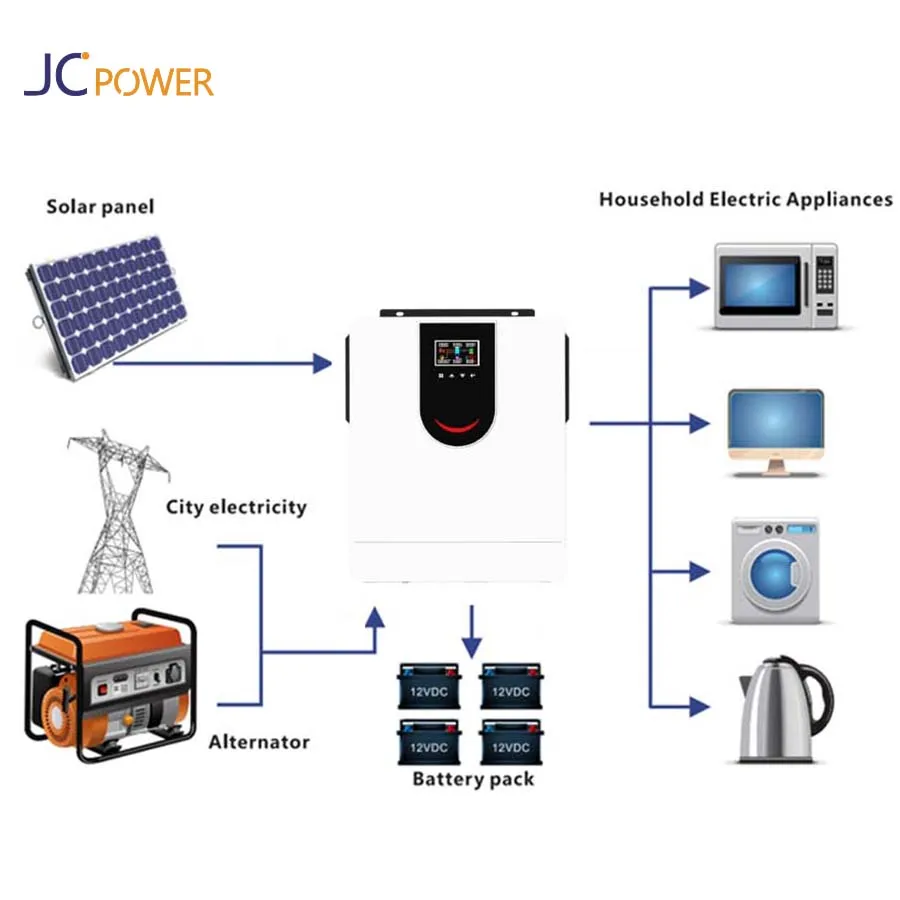

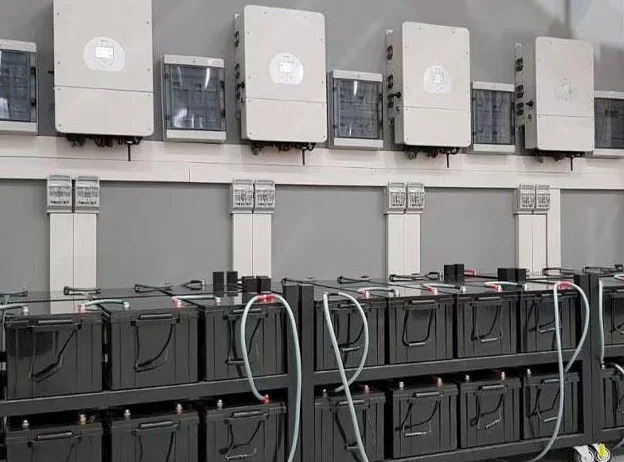

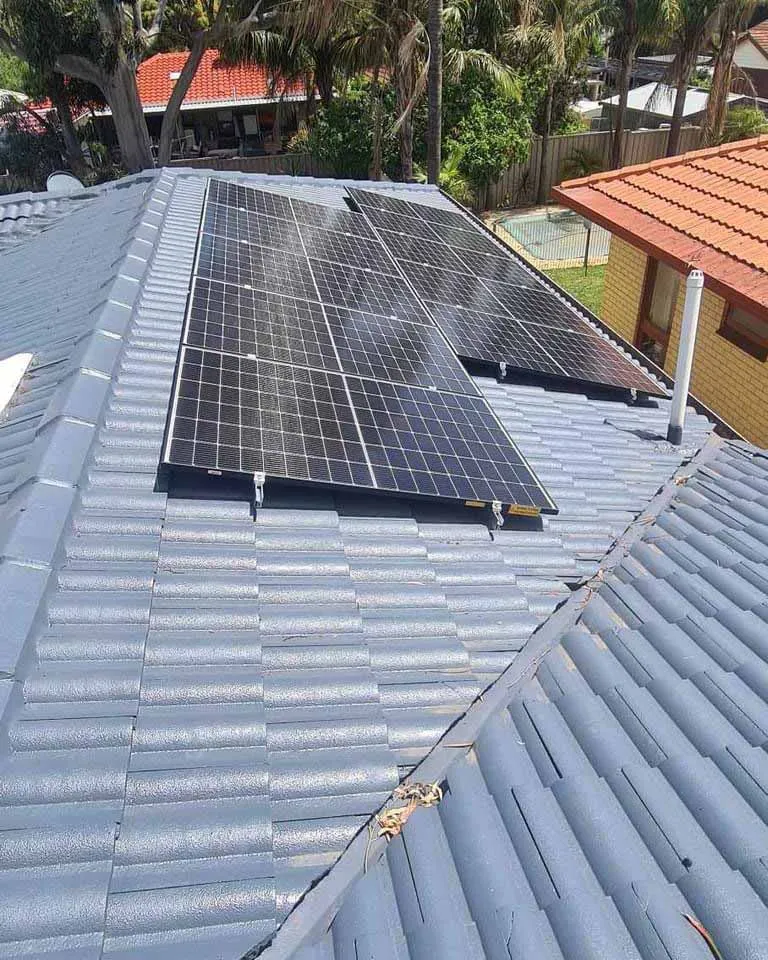

Wide Application
JC inverter SP series is widely used in residential and commercial solar energy systems. More than 6000 deep cycles, up to 90% DOD
and phosphate batteries, have won consistent trust.
Integrated Function
With lithium battery BMS-Link communication interface, optional BMS-Link communication protocol conversion modeblock to realize
charge and discharge control based on BMS.
charge and discharge control based on BMS.
Details Images
Product packaging
Recommend Products
Why Choose Us
Hefei Jingchi New Energy Co., Ltd.
JC Power is an international high-tech growth enterprise, specializing in the R & D and sales of solar panels, solar
inverters,controllers and pv solar power generation and battery storage systems.
JC Power team provides professional system solutions, stable and reliable products, and satisfactory after-sales service. It is
willing to work with partners to build an ecological environment and win-win cooperation.
• 12 YEARS PROFESSIONAL MANUFACTURER
• STRICT QUALITY INSPECTION AND MANUFACTURING PROCESS CONTROL
• ONE-STOP SOLUTIONS FOR PV PRODUCTS
inverters,controllers and pv solar power generation and battery storage systems.
JC Power team provides professional system solutions, stable and reliable products, and satisfactory after-sales service. It is
willing to work with partners to build an ecological environment and win-win cooperation.
• 12 YEARS PROFESSIONAL MANUFACTURER
• STRICT QUALITY INSPECTION AND MANUFACTURING PROCESS CONTROL
• ONE-STOP SOLUTIONS FOR PV PRODUCTS
FAQ
Q: Do you produce all the products yourselves?
---A: Yes, we have our own Solar Panel Factory, Plastic & Injection Factory, PCB Factory, Cable Plant, Lithium Battery Factory and
Assembling Lines, all the products we are selling are designed and manufactured by ourselves.
Q:How is your Quality Control?
---A: We specialized in solar lighting products for 10 years, the quality of the products are pass strict inspection, and we have
one year warranty!
Q: How is your Products Control?
---A: Test and quality assurance. Our defective rate is 0.2% .Customer could purchase our products with safety.
Customer Service
Q. How is the after sales service?
---A. Huge team which is in charge of after-sales service, also a service hotline dealing with the complains and feedback s from
buyers.China working hours 9:00-18:00 Monday-Friday online service to help buyers solving problem..
Q. How can you guarantee the exclusive sale for OEM & ODM service?
---A. Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM
project.
Q. How to apply refund?
---A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund
would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.
---A: Yes, we have our own Solar Panel Factory, Plastic & Injection Factory, PCB Factory, Cable Plant, Lithium Battery Factory and
Assembling Lines, all the products we are selling are designed and manufactured by ourselves.
Q:How is your Quality Control?
---A: We specialized in solar lighting products for 10 years, the quality of the products are pass strict inspection, and we have
one year warranty!
Q: How is your Products Control?
---A: Test and quality assurance. Our defective rate is 0.2% .Customer could purchase our products with safety.
Customer Service
Q. How is the after sales service?
---A. Huge team which is in charge of after-sales service, also a service hotline dealing with the complains and feedback s from
buyers.China working hours 9:00-18:00 Monday-Friday online service to help buyers solving problem..
Q. How can you guarantee the exclusive sale for OEM & ODM service?
---A. Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM
project.
Q. How to apply refund?
---A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund
would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.
