Smart city nema Zhaga D4i control led pole light Die casting man 100w led street lightings outdoor led street light
- Category: >>>
- Supplier: Ningbo Die-Casting Man Technology Co. Ltd.
Share on (1601001660338):
Product Overview
Description
Quality Control
Qualified system and QC control process
We work under ISO 9001 quality system.
We have quality control for material in-coming inspection, on-line process inspection and finished product quality inspection.
We well control every process to make sure that you products are qualified and under control.
Testing Equipment
Test Equipment in house
We have Photometric black house testing equipment in house
LED parameter in house to test colour tempreture, efficiency, wattage
IP rate testing machine
IK testing machine
salty spray testing machine
Products Description

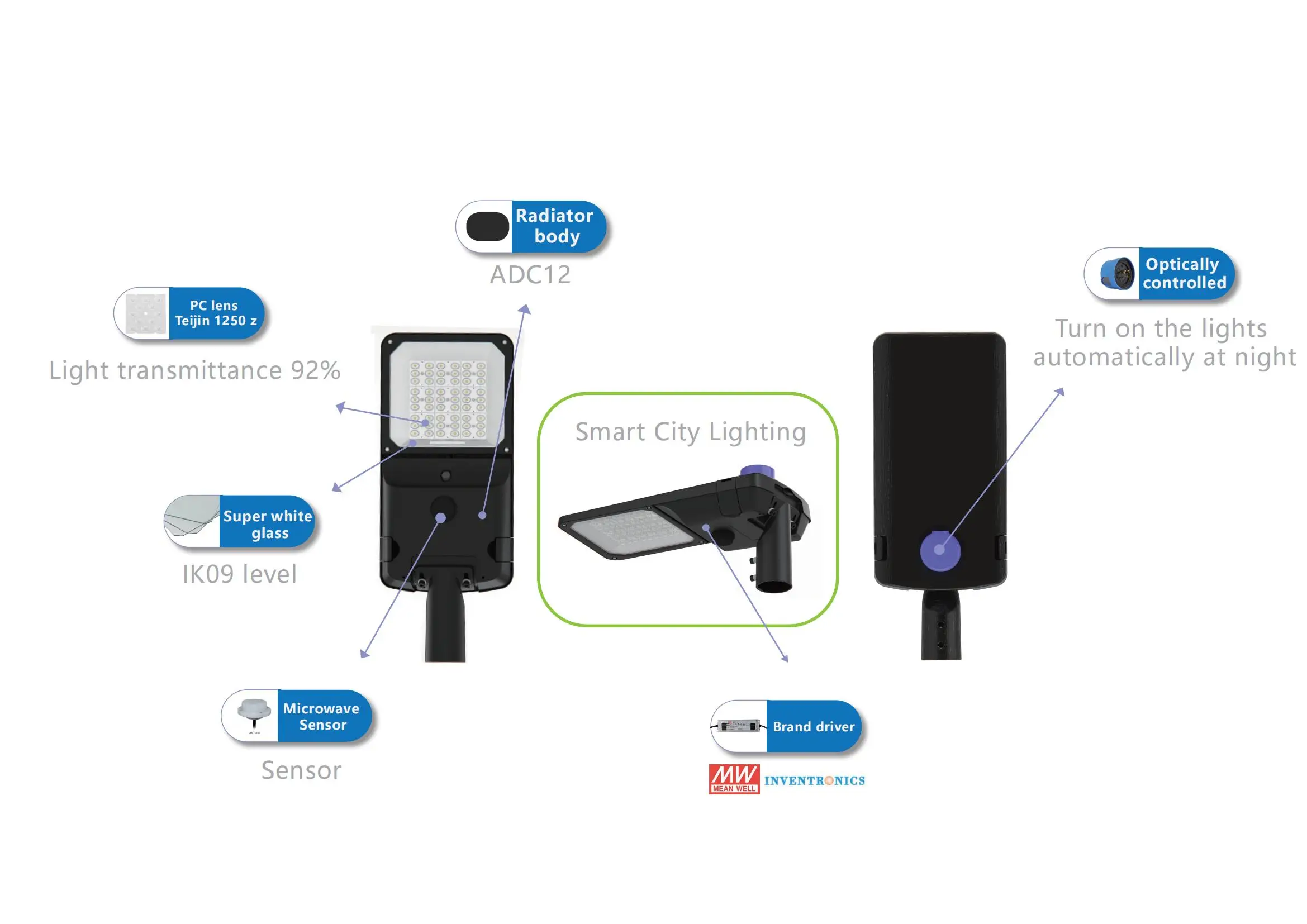

LED Street Light YASL-29
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
This series is a high-performance street lighting available in five sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 180 lm/w and will be capable of producing.
Up to 36000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Both Horizontal and Vertical available and adjustable angle-15°to+15°
This series is a high-performance street lighting available in five sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 180 lm/w and will be capable of producing.
Up to 36000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Product Specification
Model | YASL-29-40 | YASL-29-60 | YASL-29-100 | YASL-29-160 | YASL-29-240 | ||||
LAMP power | 30～60W | 50～90W | 80～140W | 130～200W | 200～300W | ||||
Number of lens（PCS） | 4(MAX 6) | 6(MAX 8) | 9(MAX 12) | 16(MAX 20) | 24(MAX 30) | ||||
Installation Height | 3-6m | 4-8m | 6-10m | 8-14m | 12-14m | ||||
Product Size（m m） | 576X209X89 | 593X263X89 | 646X263X89 | 709X315X89 | 812X315X89 | ||||
Packing Size（m m） | 585X250X140 | 620X305X140 | 665X305X140 | 730X360X140 | 840X360X140 | ||||
Net Weight | 3.8kgs | 4.1kgs | 4.6kgs | 7.4kg | 9.5kg | ||||
Gross Weight | 4.2kgs | 4.5kgs | 5.0kgs | 7.9kg | 10.5kg | ||||
Installation Pipe Diameter | φ45/60mm | φ60/76mm | |||||||
Materials | Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws | ||||||||
Color | Double grey, Sandy black , Matt silver | ||||||||
Led brand | LUMILEDS，OSRAM，CREE option | ||||||||
Led Specifications | 3030，5050 option | ||||||||
Efficiency | 130～140 lm/w，140～150 lm/w，150～160 lm/w，160～170 lm/w，170～180 lm/w option | ||||||||
Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K option（Reference：Energy Star) | ||||||||
color rendering index | Ra≥70；Ra≥80；Ra≥90 option | ||||||||

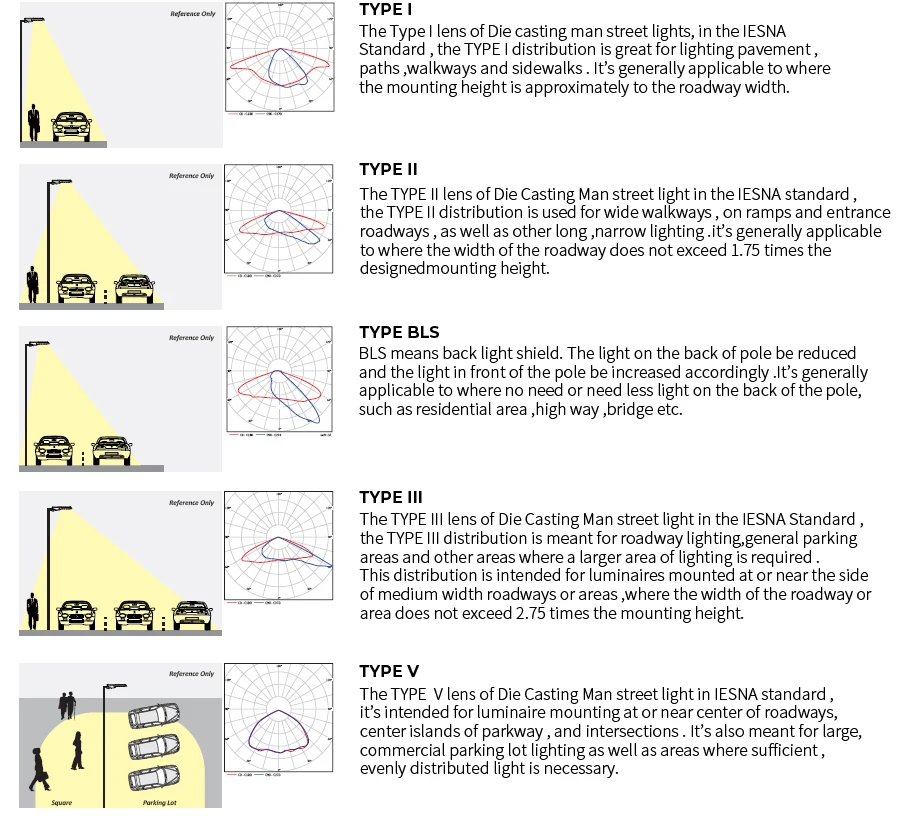

Optics | TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option | ||||||||
Driver brand | PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS | ||||||||
Input Voltage | AC90～305V | ||||||||
Security level | ClassI/ClassII/Class1/Class2 option | ||||||||
Frequency Range | 43～63Hz | ||||||||
Power Factor | PF≥0.95 | ||||||||
Working conditions Range | -30 to 45℃,20% to 90%RH | ||||||||
Dimming mode | Time control/0-10V/ Opticalcontrol/Microwaves/DALI option | ||||||||
SPD | 10KV/15KV/20KV option | ||||||||
Warranty | 5/8 year option | ||||||||
Protection | Overcurrent/Short circuit/Over temperature | ||||||||
Protection level | IP66;IK08/09/10 | ||||||||
Photometric

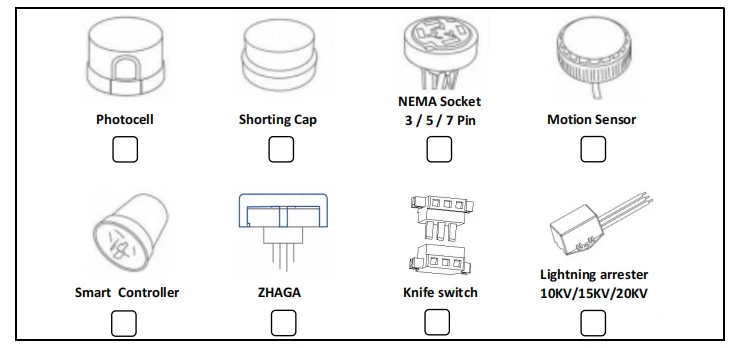

Accessories you can select
Recommend Products
Company Profile
Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
VR
Certifications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service ?
A: Yes. we do.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service ?
A: Yes. we do.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6: Do you supply empty house only， without LED and driver ?
A: Yes, we do.
