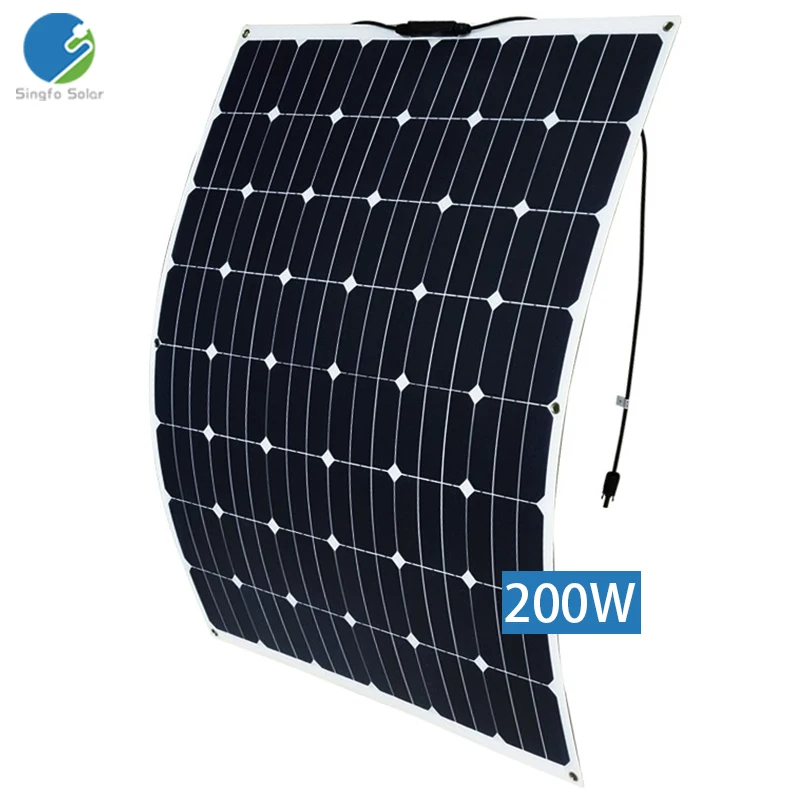

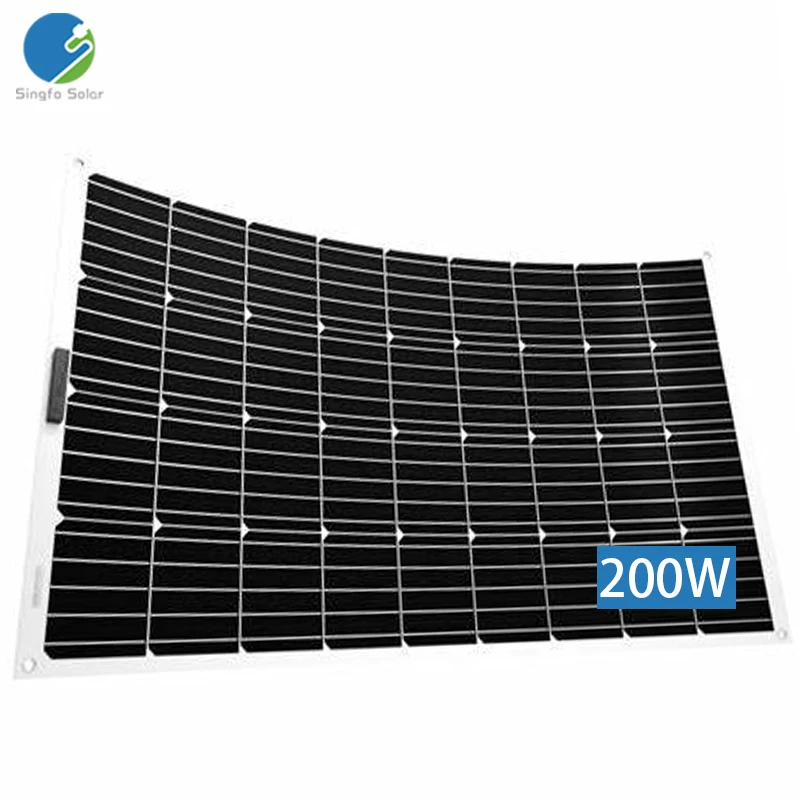

Singfo Solar 200w Wholesale Efficient 20V ETFE Monocrystalline Kit Solar Panel Flexible For Boat RV
- Category: >>>
- Supplier: Singfo Solar Energy Ltd.
Share on (1601001662007):
Product Overview
Description
Product Description

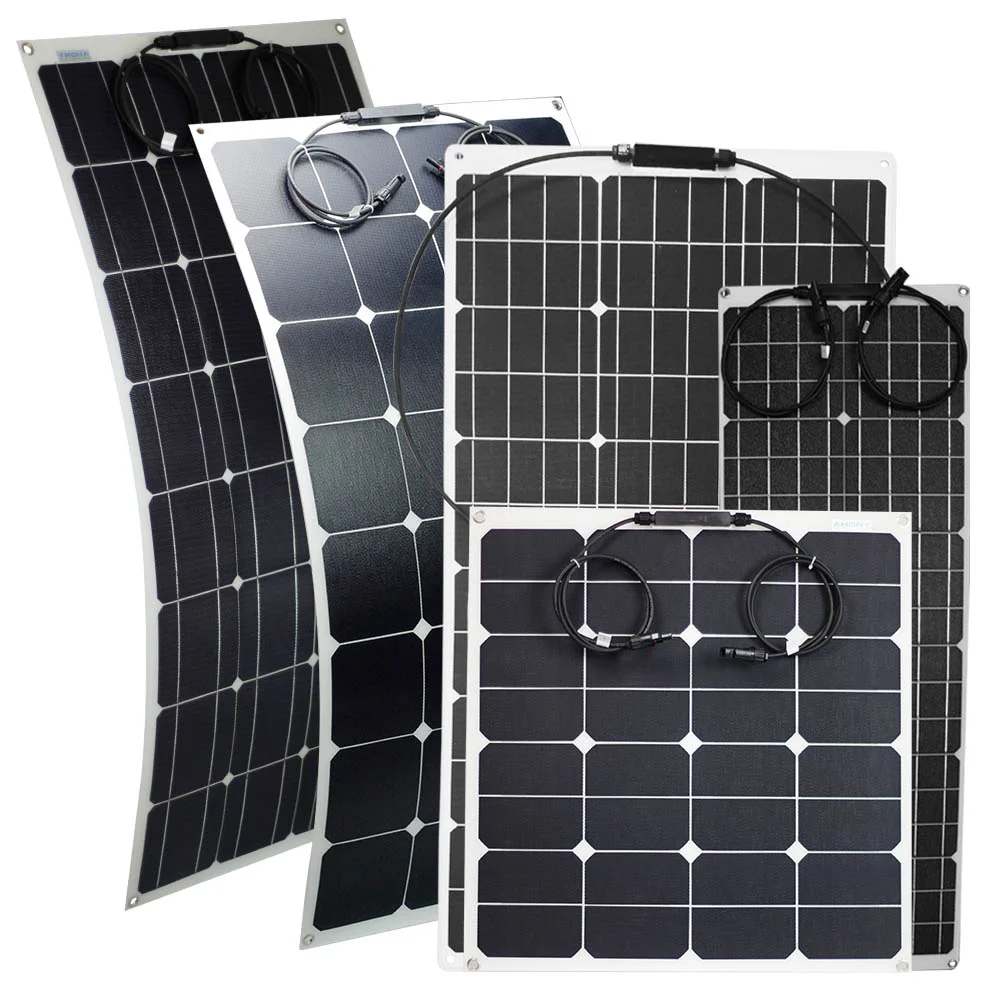

Singfo Solar Module 200 Watt PV Modules High Bend Solar Flexible Panels Solar Panel Flexible Solar Cell
Specification
Electrical Parameters | ||||||||||
Model no. | SF3-50WBR | SF3-100WBR | SF3-150WBR | SF3-200WBR | SF3-300WBR | |||||
Cell Type | Mono 125 | Mono 125 | Monol 156 | Mono 156 | Mono 156 | |||||
Maximum Power/Pmax | 50W | 100W | 150W | 200W | 300W | |||||
Maximum Power Voltage(Vmp) | 18V | 18V | 18V | 18V | 18V | |||||
Maxium Power Current(Imp) | 2.7A | 5.5A | 8.3A | 11A | 16.6A | |||||
Open-circuit Voltage(Voc) | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | |||||
Short-circuit Current (Isc) | 3.14A | 6.04A | 9.14A | 11.74A | 17.14A | |||||
Dimension | 560mm*520mm*2mm | 1030mm*520mm*2mm | 1130mm*680mm*2mm | 1520mm*680mm*2mm | 1530mm*1010mm*2mm | |||||
Net Weight | 1.5Kgs | 2.5Kgs | 3Kgs | 4Kgs | 5.5Kgs | |||||
Model no. | SF3-50WQR | SF3-100WQR | SF3-110WQR | SF3-150WQR | SF3-200WQR | SF3-260WQR | SF3-310WQR | SF3-410WQR |
Cell Type | Mono 182 | Mono 182 | Mono 182 | Mono 166 | Mono 210 | Mono 182 | Mono 182 | Mono 182 |
Maximum Power/Pmax | 50W | 100W | 110W | 150W | 200W | 260W | 310W | 410W |
Maximum Power Voltage(Vmp) | 19.72V | 23.2V | 17.7V | 20.55V | 22.62V | 40.87V | 49.56V | 32.45V |
Maxium Power Current(Imp) | 2.54A | 4.32A | 6.22A | 7.3A | 8.85A | 6.37A | 6.26A | 12.64A |
Open-circuit Voltage(Voc) | 23.34V | 27.46V | 20.83V | 23.81V | 26.57V | 47.51V | 57.7V | 37.78V |
Short-circuit Current (Isc) | 2.73A | 4.56A | 6.54A | 7.69A | 9.36A | 6.72A | 6.58A | 13.3A |
Dimension | 733*426*3mm | 795*705*3mm | 1008*630mm | 1090*730*3mm | 1157*929*3mm | 1752*815*3mm | 2009*885*3mm | 1920*1100mm |
Net Weight | 1.14Kgs | 2.04Kgs | 2.33Kgs | 2.74Kgs | 3.9Kgs | 5.2Kgs | 6.45Kgs | 7.94Kgs |

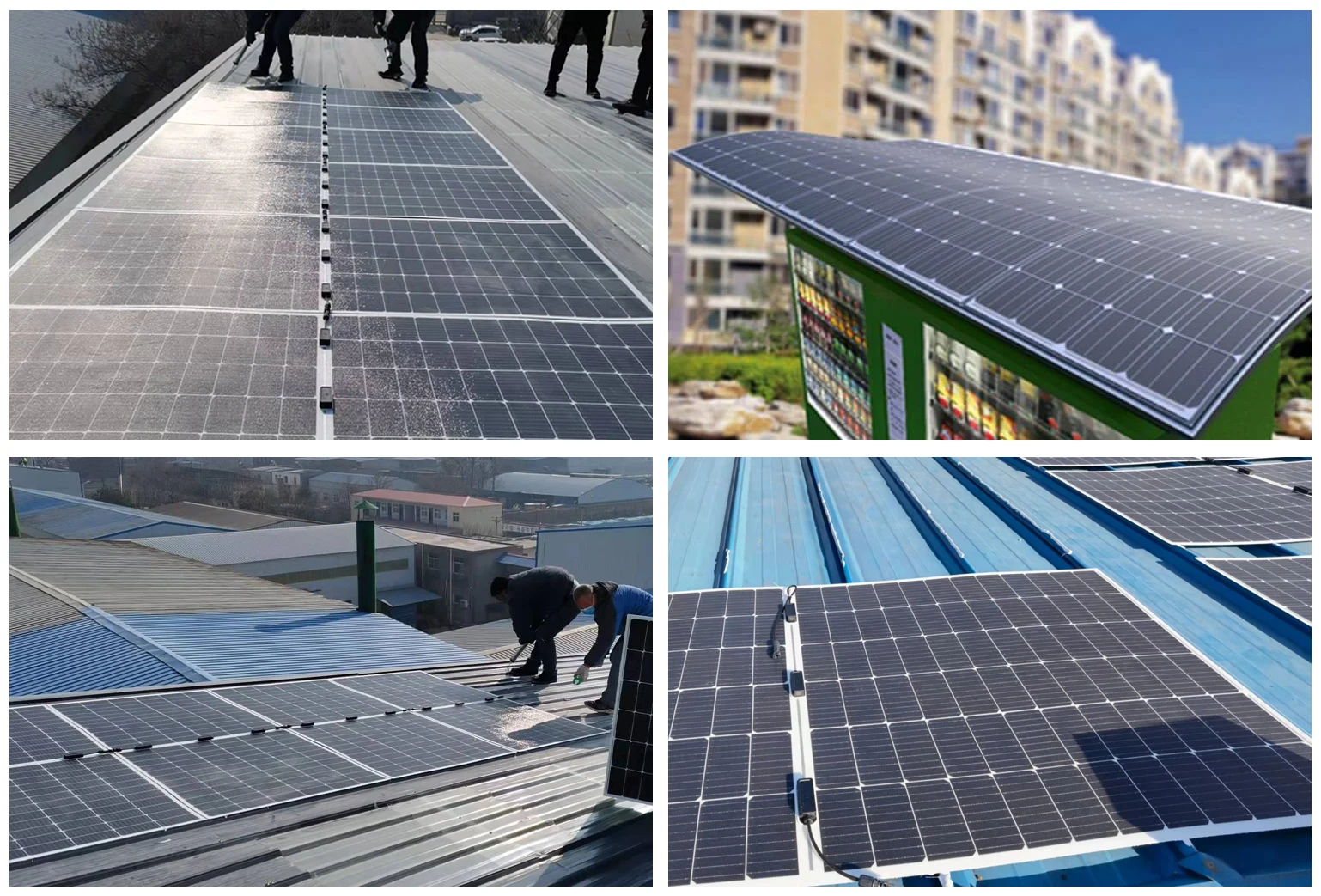

Project Cases
Guangzhou 3MW
Somalia 5KW
Dubai 78KW
Netherlands 873KW
Company Profile

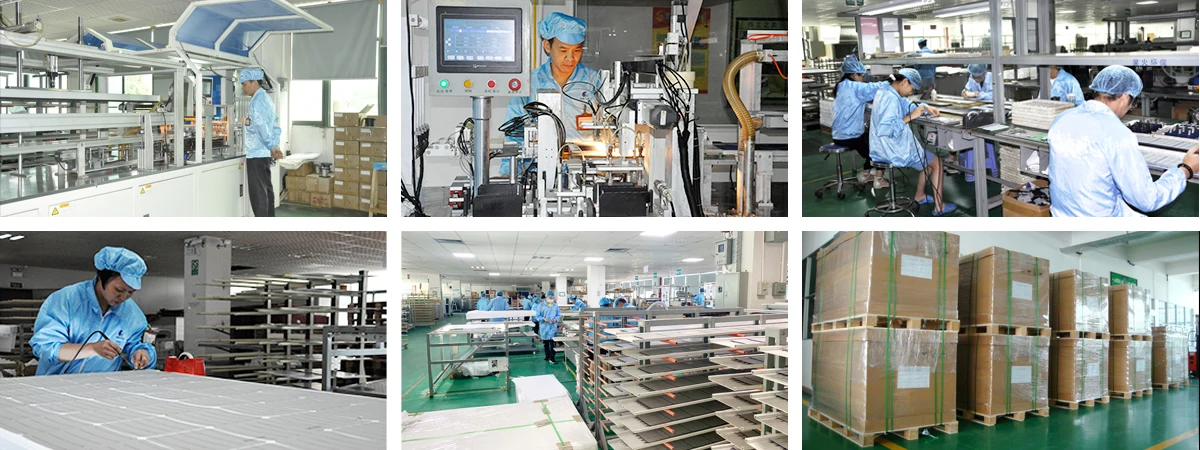

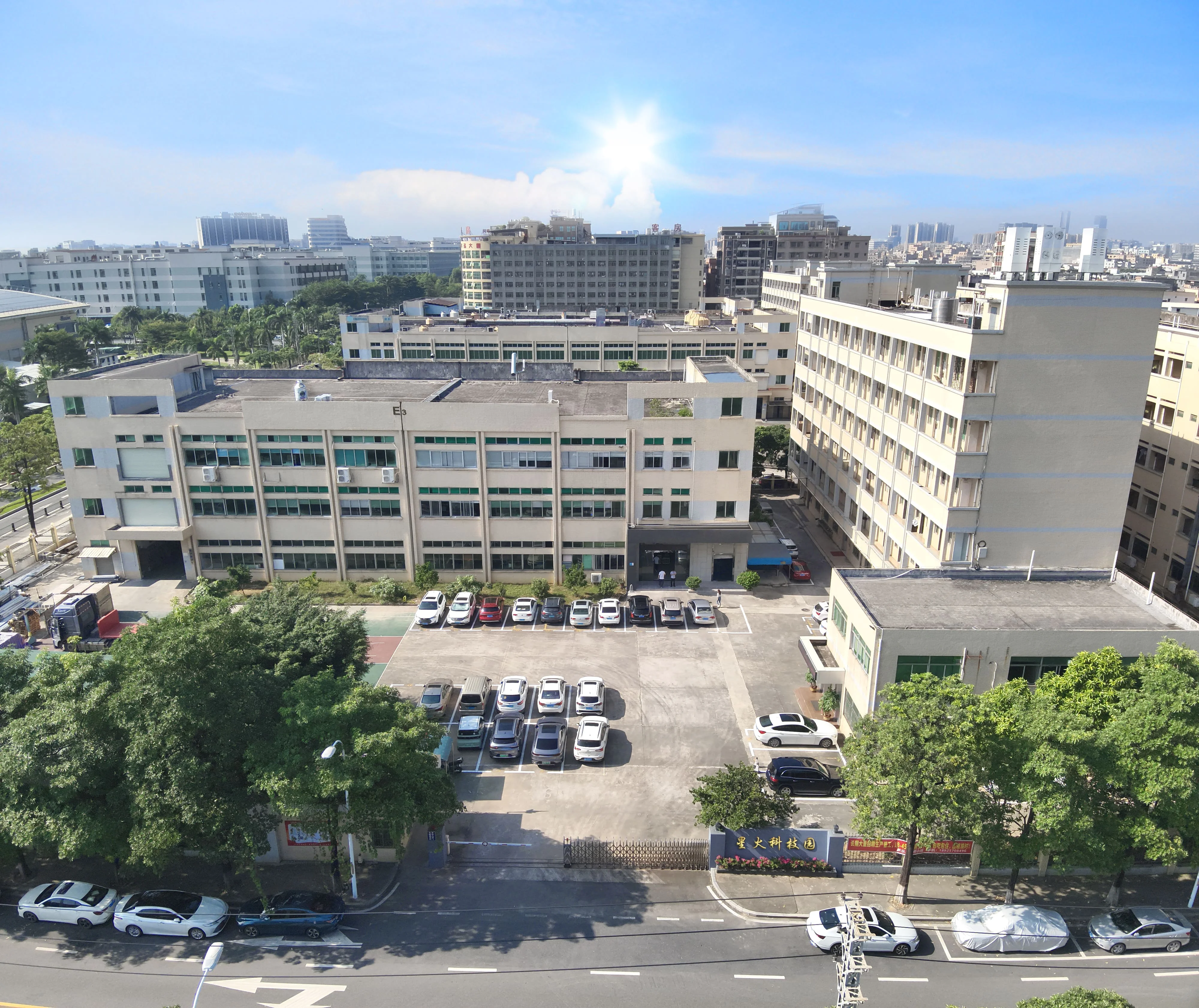

SINGFO SOLAR, located in Dongguan city was established in 1996 with more than 25 years experience in the energy power industry. It is a new energy high-tech enterprise that integrates R&D production, sales and testing, construction installation and after-sales from solar panel to solar energy system. Specializing in solar photovoltaic production and installation passed with ISO, CE, and TUV certifications, providing a complete one-stop service from component manufacturers to EPC construction general contractors.
