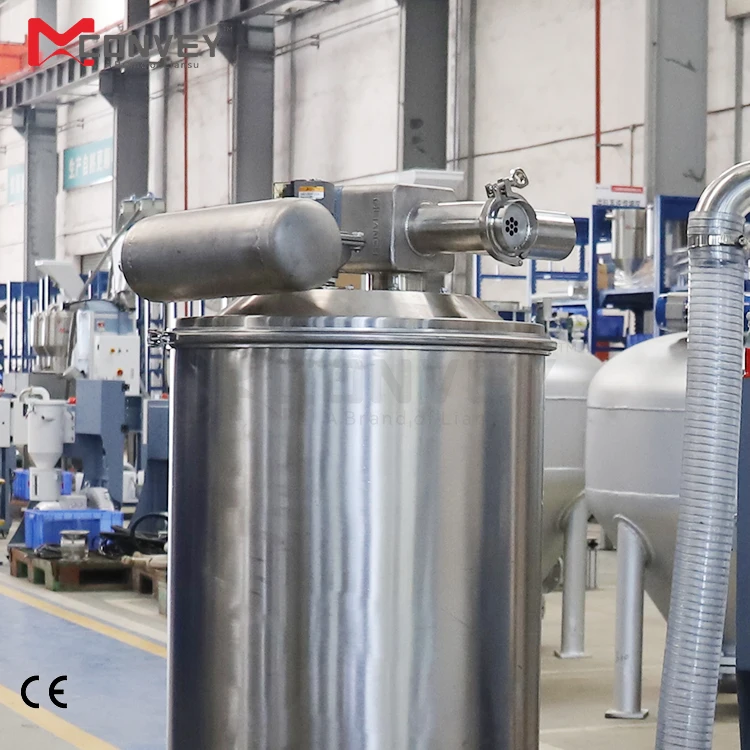

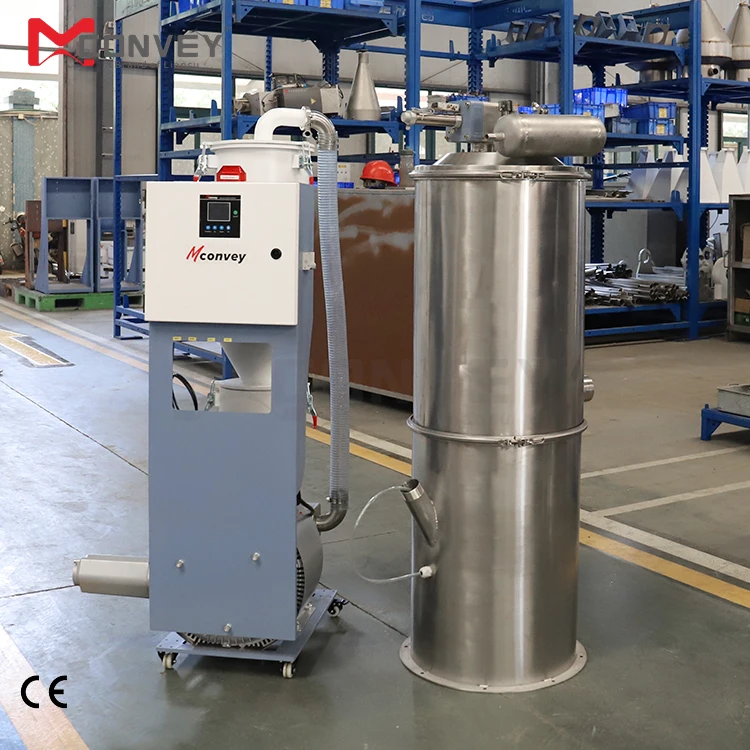

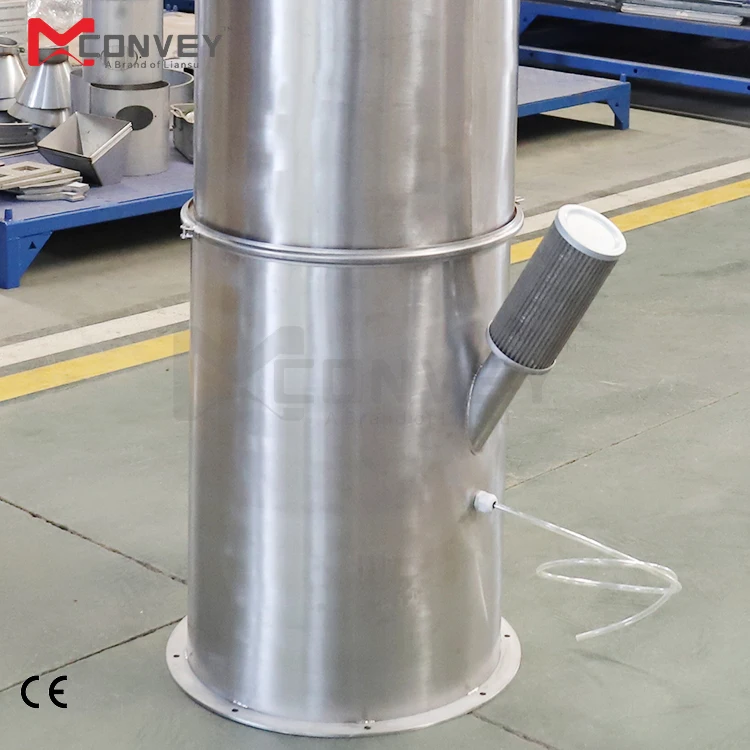

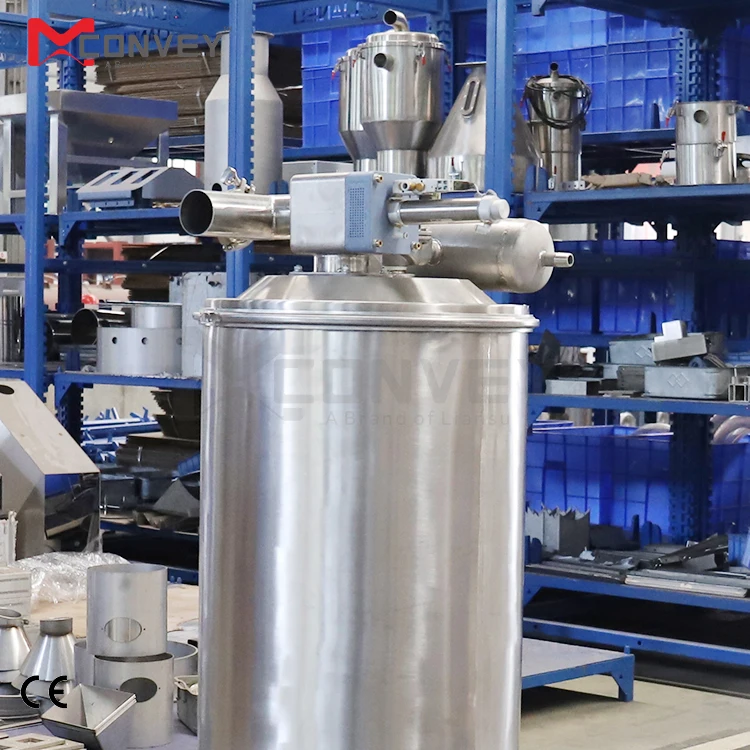

Automatic plastic PVC material vacuum powder feeder machine
- Category: >>>
- Supplier: Guangdong Liansu Machinery Manufacturing Co. Ltd.
Share on (1601001670588):
Product Overview
Description
Products Description
Application:
Specially designed for loading all types of powders, by high-pressure vacuum (negative pressure) power.
Suitable for:
* Food: Flour, salt powder, powder ingredients, etc;
* Chemicals: PVC powder, calcium carbonate powder, Titanium powder, additives, etc;
* Battery powder, pharmaceutical powder;
The big sizes hopper is suitable for loading bad-flowing powder or sticky powder.
Suitable for:
* Food: Flour, salt powder, powder ingredients, etc;
* Chemicals: PVC powder, calcium carbonate powder, Titanium powder, additives, etc;
* Battery powder, pharmaceutical powder;
The big sizes hopper is suitable for loading bad-flowing powder or sticky powder.
Feature of Loading Machine:
* With cyclone separation filter for dust-control;
* With self-clean function to prolong using life of filters;
* With suction timeout and fan overload alarm device
* With self-clean function to prolong using life of filters;
* With suction timeout and fan overload alarm device
Features of Hopper:
* Adopts TPFE polyester coated filters, with diltration: 0.8 mircon;
* Self-clean function: with automatic air-jet to remove the dust on the filters;
* With Vacuum-breaking Valve;
* With Big-discharge pneumatic valve for bad-flowing powder;
* Easy assemble and disassemble;
* Powder contacting parts made of s.s. 304.
* Self-clean function: with automatic air-jet to remove the dust on the filters;
* With Vacuum-breaking Valve;
* With Big-discharge pneumatic valve for bad-flowing powder;
* Easy assemble and disassemble;
* Powder contacting parts made of s.s. 304.
Pneumatic Vacuum Loader:
Model | Gas Consumption (L/min) | Output (kg/h) | Suction Port (mm) | Air Supply Pressure | Voltage |
LS-QVC-1 | 180 | 250 | 25 | 0.4-0.6MPa | 24V |
LS-QVC-2 | 360 | 600 | 38 | 0.4-0.6MPa | 24V |
LS-QVC-3 | 720 | 1300 | 51 | 0.4-0.6MPa | 24V |
LS-QVC-4 | 1440 | 1800 | 51 | 0.4-0.6MPa | 24V |

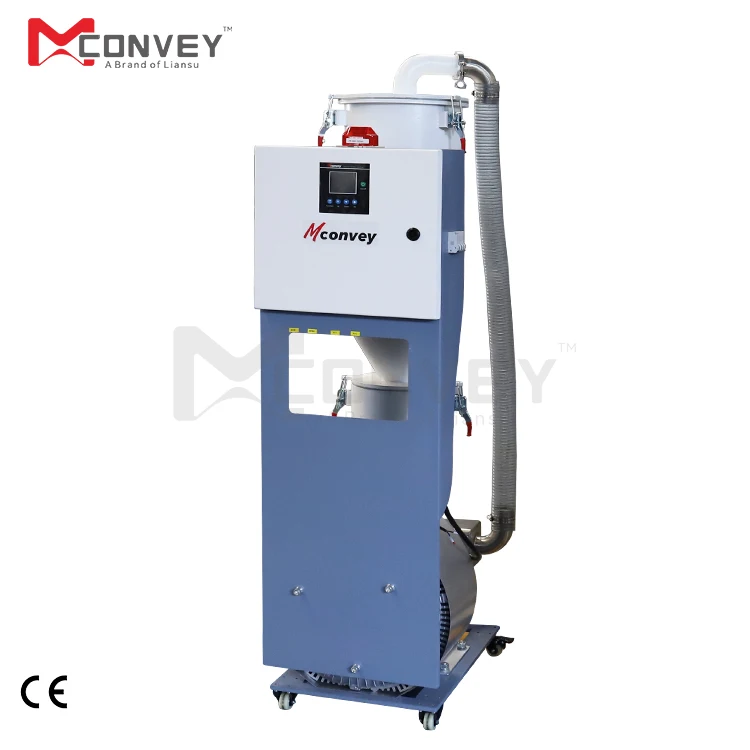

Air Pump Vacuum Feeder:
Model | power (kw) | Output (kg/h) | Suction tuyere (mm) | Suction Port (mm) | Voltage |
LSAL-2HP-P + ZKS-1 | 1.5 | 400 | 51 | 38 | 380V/50HZ |
LSAL-3HP-P + ZKS-2 | 2.2 | 600 | 51 | 38 | 380V/50HZ |
LSAL-5HP-P + ZKS-3 | 3.7 | 1200 | 51 | 51 | 380V/50HZ |
LSAL-7.5HP-DP + ZKS-6 | 5.5 | 2500 | 63 | 63 | 380V/50HZ |
LSAL-10HP-DP + ZKS-7 | 7.5 | 4000 | 63 | 63 | 380V/50HZ |
